Samson Airline 77 Bedienungsanleitung

UHF WIRELESS SYSTEM

• AL1 Presentation Transmitter

• AX1 Handheld Transmitter

• CR77 Receiver

OWNERS MANUAL

PRESENTATION

TRANSMITTER

HANDHELD TRANSMITTER

If you’ve had some prior experience using wireless systems, these QuickStart instructions will get you up and running with your AirLine sys-

tem in a matter of minutes! Detailed instructions for setting up and using your AirLine system can be found on page 17 of this manual, and

the “Guided Tour” sections on pages 6 - 16 provide full descriptions of all AirLine component controls and displays.

1. Make sure that the supplied receiver and AX1 or AL1 transmitter are factory preset to the same channel.

2. Physically place the receiver where it will be used and extend its antenna(s) vertically.

3. Set the power switch to your transmitter to the “off” position (away from the arrow) and place a fresh battery in it. Then turn the trans-

mitter back on momentarily; its LED will flash once and then go off if the battery is sufficiently strong. Once battery strength is verified, turn

the transmitter off.

4. If you are using an AX1, plug its XLR connector into a wired dynamic microphone; make a good tight connection, using the supplied

rubber gasket if necessary. If you are using the AL1 with an external lavalier microphone, make the physical connection between its input

connector and the microphone.

5. Turn your audio system off and make the physical cable connection between the receiver’s balanced or unbalanced output jack (if nec-

essary, both can be used simultaneously) and a mic level audio input of your amplifier or mixer. If your system contains a CR77 or UM1

receiver, be sure to set its Audio Output Level switch correctly.

6. Turn the Volume, Level or AF Level knob on the receiver completely counterclockwise. Connect the supplied AC adapter to the receiver

and plug it in (or place a fresh battery in the UM1 receiver), but leave its power off for the moment.

7. Turn on the receiver. If your system contains a CR77 receiver, its “Power” LED will light steadily red. (Note: the UM1 receiver has no such

LED.)

Samson AirLine QuickStart

ENGLISH

8. Turn on your transmitter. If your system contains either a CR77 or UM1 receiver, one of the “A/B Receiver” LEDs will be lit, showing you

whether the (left) “A” or (right) “B” receiver is currently being used. The CR77 / UM1 meter will also indicate the strength of the incoming

RF signal.

9. Turn on your connected amplifier and/or mixer but keep its volume all the way down. If your system contains an AL1 transmitter, make

sure it is unmuted. Set the Volume, Level or AF Level knob on the receiver fully clockwise; this is unity gain.

10. Speak or sing into your mic at a normal performance level while slowly raising the audio input control of your amplifier or mixer until

the desired level is reached. If necessary, use the supplied plastic screwdriver to adjust the transmitter’s Gain trimpot in order to increase or

decrease its signal level. If you are using an AL1 transmitter with the built-in microphone, correct placement is critical to sound quality. It

should be unobstructed by clothing and either clipped to a shirt pocket or lapel, or worn around the neck on the supplied lanyard.

11. Do a walkaround through the intended area of coverage while observing the receiver’s “Power/RF” LED or RF Meter; it should indicate

sufficient RF reception in all areas of coverage . Reposition it (or its antenna) as necessary. If extended range coverage is required, a Samson

CR77 or UM1 true diversity receiver (set to the same channel as the transmitter) should be used

12. If you hear any spurious noise from the receiver output when the transmitter is turned off, use the supplied plastic screwdriver to adjust

the receiver Squelch level control, slowly turning it clockwise to the point at which the noise disappears.

Samson AirLineQuickStart

ENGLISH

1: Antennas (A and B) - The anten-

na mountings allow full rotation

for optimum placement. In normal

operation, both Antenna A (the

antenna on the left) and Antenna

B (the antenna on the right) should

be placed in a vertical position.

Both antennas can be folded inward

for convenience when transporting

the CR77. See the “Setting Up and

Using the AirLine System” section on

page 17 in this manual for informa-

tion about antenna installation and

positioning.

2: Volume control - This knob sets the level of the audio signal being output through both the balanced and unbalanced output jacks on

the rear panel (see #2 and #4 on page 8 in this manual). Reference level is obtained when the knob is turned fully clockwise (to its “10” set-

ting).

3: Audio Meter - - This “ladder” display (similar to the VU bar meter used on audio devices) indicates the strength of the incoming audio

signal. When the “0” segment is lit, the incoming signal is optimized at unity gain; when the “+6” segment is lit, the signal is overloading.

When only the left-most “-20” segment is lit, the incoming signal is at just 10% of optimum strength. If no segments are lit, little or no signal

is being received. See the “Setting Up and the AirLine System” section on page 16 in this manual for more information.

Samson AirLine Guided Tour - CR77 Receiver / Front Panel

ENGLISH

ANT. A ANT. B

VOLUME

POWER

RF METERAUDIO METER dB

0 10 25 50 75 1000 +3 +6-5-10-20

ANT. A ANT. B

SQUELCH

MIN

CR77 UHF TRUE DIVERSITY RECEIVER

MAX

4: Squelch control - This control determines the maximum range of the CR77 before audio signal dropout. Although it can be adjusted

using the supplied plastic screwdriver, it should normally be left at its factory setting. See the “Setting Up and Using the AirLine System”

section on page 17 in this manual for more information.

5: A/B Receiver LEDs - When signal is being received, one of these will be lit green, showing you whether the (left) “A” or (right) “B” receiver

is currently being used. The CR77 constantly scans its two antennas and automatically selects whichever is receiving the strongest, clearest

signal. This True Diversity switching is completely inaudible, but it effectively increases overall range while virtually eliminating potential

interference and phase cancellation problems.

6: RF (Radio Frequency) Level meter - This “ladder” display (similar to the VU bar meter used on audio devices) indicates the strength of

the incoming radio signal. When the “100%” segment is lit, the incoming RF signal is fully modulated and at optimum strength. When only

the second most left-most “10%” segment is lit, the incoming signal is at just 10% of optimum strength. If no segments are lit, little or no

signal is being received. See the “Setting Up and Using the AirLine System” section on page 17 in this manual for more information.

8: Power switch - Use this to turn the CR77 power on and off. When the receiver is on, the internal Power LED is lit.

Samson AirLineGuided Tour - CR77 Receiver / Front Panel

ENGLISH

1: DC input - Connect the supplied 12

volt 160 mA power adapter here, using

the strain relief as shown in the illustra-

tion below. WARNING: Do not substi-

tute any other kind of power adapter;

doing so can cause severe damage to

the CR77 and will void your warranty.

2: Unbalanced output* - Use this

unbalanced high impedance (5K Ohm)

1/4" jack when connecting the CR77

to consumer (-10) audio equipment.

Wiring is as follows: tip hot, sleeve

ground.

3: Audio Output Level switch - Sets

the audio output level attenuation of

the balanced output (see #4 below) to

-20 dBm (line level) or -40 dBm (mic

level). See “Setting Up and Using the

AirLine System” on page 17.

4: Balanced output* - Use this elec-

tronically balanced low impedance (600 Ohm) XLR jack when connecting the CR77 to professional (+4) audio equipment. Pin wiring is as

follows: Pin 1 ground, Pin 2 high (hot), and Pin 3 low (cold).

* If required, both the unbalanced and balanced outputs can be used simultaneously.

Samson AirLine Guided Tour - CR77 Receiver / Rear Panel

ENGLISH

1234

Using the strain relief: Gather up a loop of wire and pass it through the strain relief,

then pass the adapter plug through the loop in order to create a knot.

1: A/B Receiver LEDs - When signal is being received, one of these will be lit orange,

showing you whether the (left) “A” or (right) “B” receiver is currently being used. The

UM1 constantly scans its two antennas and automatically selects whichever is receiving

the strongest, clearest signal. This True Diversity switching is completely inaudible, but

it effectively increases overall range while virtually eliminating potential interference

and phase cancellation problems.

2: Meter - This set of three multicolor LEDs acts as a meter, indicating either battery

power or the strength of the incoming RF signal. This meter can also be disabled alto-

gether to conserve battery power. See #15 on page 11 for more information.

3: Peak LED - This LED lights red when output signal from the UM1 is at the onset of

clipping (that is, when it is on the verge of being distorted). If you see this light during

operation, move the microphone further away or lower the output level of your instru-

ment or transmitter. For more information, see the section entitled “Setting Up and

Using the AirLine System” on page 17 in this manual.

4: Power switch - Use this to turn the UM1 power on and off.

5: SQ (Squelch) Level control - This control determines the maximum range of the

UM1 before audio signal dropout. Although it can be adjusted using the supplied

plastic screwdriver, it should normally be left at its factory setting. See the “Setting Up

and Using the AirLine System” section on page 17 in this manual for more information.

Samson AirLineGuided Tour - UM1 Receiver

MAX

MIN

POWER ON

SQ LEVEL

UHF MICRO DIVERSITY RECEIVER

LOW MID HIGH PEAK

800

MHz

2 3 1

ENGLISH

6: Battery holder - Insert a standard 9-volt alkaline battery here, being sure to

observe the plus and minus polarity markings shown. We recommend the Duracell

MN 1604 type battery. Although rechargeable Ni-Cad batteries can be used, they do

not supply adequate current for more than four hours.

WARNING: Do not insert the battery backwards; doing so can cause severe damage

to the UM1 and will void your warranty.

7: Plastic screwdriver - Specially designed for use in adjusting the UM1 Squelch

Level control (see #4 on the previous page). See the “Setting Up and Using the

AirLine System” section on page 17 in this manual for more information.

8: Antennas (A and B) - The antenna mountings allow full rotation for optimum placement. In normal operation, both antennas should

be placed in a vertical position. Both antennas can be folded inward for convenience when transporting the UM1. See the “Setting Up and

Using the AirLine” section on page 17 in this manual for more information.

9: DC input - This jack will accept a DC input voltage of 6 - 13 volts (inner connection [tip] positive, outer connection [sleeve] ground) from

your video camera, if available. Connect an optional Samson AC300R adapter here to charge a rechargeable 9-volt Ni-Cad battery.

10: Unbalanced output* - Use this unbalanced (1K Ohm max.) 1/8" (3.5 mm) mini-phone jack when connecting the UM1 to consumer (-10)

audio equipment. Wiring is as follows: tip hot, sleeve ground. If your video camera has stereo audio inputs, you’ll need to use a Y-adapter

that has a 1/8" (3.5 mm) mini-phone plug at one end and dual male RCA-type plugs at the other end.

11: Audio Output Level switch - Sets the audio output level of both the balanced and unbalanced outputs (see #10 above and #14 on the

following page) to -30 dBm (mic level), -20 dBm, or -10 dBm (line level). See the “Setting Up and Using the AirLine System” section on page

17 in this manual for more information.

Samson AirLine Guided Tour - UM1 Receiver

30 20 10

LEVELOUT UNBAL

DC INPUT

109 118

ENGLISH

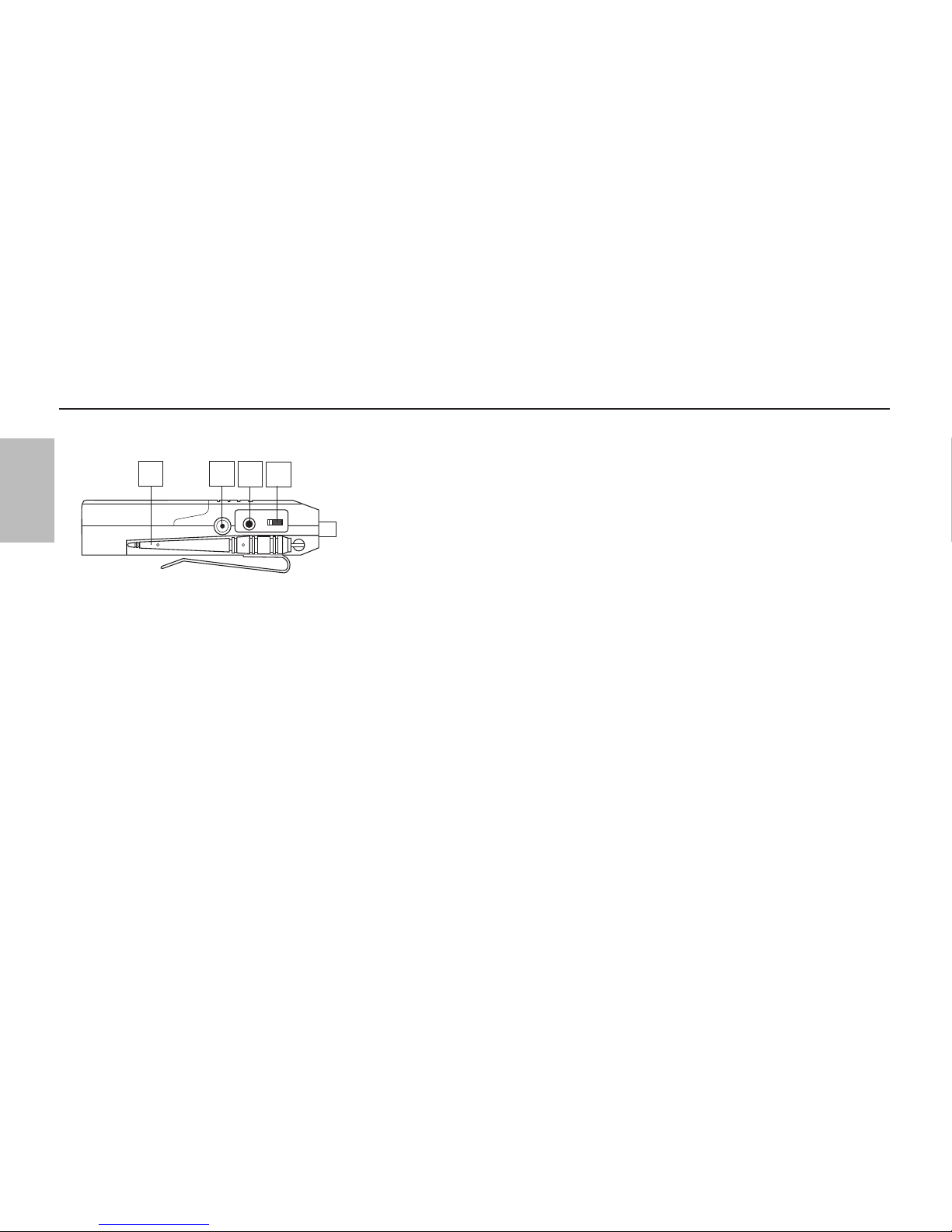

12: Level control - This knob sets the level of the audio signal being sent to the

headphones output (see #13 below).

13: Headphones output - Connect a stereo headphone to this standard 1/8" (3.5

mm) mini-phone jack in order to monitor the signal being output by the UM1. We

recommend the use of 30 ohm headphones. The level of the headphone signal can

be set by adjusting the Level control (see #12 above). Maximum output is 240 mW @

30 ohms).

14: Balanced output* - Use this electronically balanced low impedance (600 Ohm) mini-XLR jack when connecting the UM1 to professional

(+4) audio equipment. Pin wiring is as follows: Pin 1 ground, Pin 2 high (hot), and Pin 3 low (cold).

15: Meter switch - This three-position switch determines the function of the front-panel UM1 meter (see page #2 on page 9). In the left “RF”

position, the meter indicates the strength of the incoming RF signal. In the center “BATTERY” position, the meter indicates relative battery

power, showing whether the installed battery is at low (red), mid (yellow) or high (green) strength. (Note: When the red “low” indicator lights,

performance is degraded and the battery needs to be replaced). In the right “OFF” position, the meter is disabled altogether, thus conserv-

ing battery power.

* If required, both the unbalanced and balanced outputs can be used simultaneously.

Samson AirLineGuided Tour - UM1 Receiver

PHONES LEVEL

METER

RF OFF

BATT.

ENGLISH

1: XLR connector - Connect this standard female XLR connector

into any standard wired dynamic microphone in order to make it a

wireless mic.

2: Rubber gasket - If necessary, use this provided rubber gasket in

order to make a solid connection between the AX1 XLR connec-

tor and your microphone (note that not all microphones require its

use).

3: Power on-off switch - Move this switch in the direction of the

arrow to turn power to the AX1 on; move it away from the arrow

to turn power off. (to conserve battery power, be sure to turn the

AX1 off when not in use). Be sure to

mute the audio signal at your exter-

nal mixer or amplifier before turn-

ing the AX1 power on or off, or an

audible pop may result.

4: Power / Battery LED - This

LED flashes once when the AX1 is

first turned on and lights steadily red

when there is less than 2 hours of

battery power remaining, indicating

that the battery needs to be changed.

Samson AirLine Guided Tour - AX1 Handheld Transmitter

ENGLISH

Andere Handbücher für Airline 77

Inhaltsverzeichnis

Andere Samson Mikrofonsystem Handbücher

Samson

Samson Stage v466 Bedienungsanleitung

Samson

Samson Concert99 Bedienungsanleitung

Samson

Samson Stage 212 Bedienungsanleitung

Samson

Samson VHF Series Bedienungsanleitung

Samson

Samson CT7 Bedienungsanleitung

Samson

Samson Go Mic Bedienungsanleitung

Samson

Samson UHF Series One Bedienungsanleitung

Samson

Samson Go Mic Bedienungsanleitung

Samson

Samson UHF Series One Bedienungsanleitung

Samson

Samson Concert 288x Bedienungsanleitung

Samson

Samson Stage XPD1 Bedienungsanleitung

Samson

Samson AirLine AX1 Bedienungsanleitung

Samson

Samson VHF Micro VHF Micro TRUE DIVERSITY WIRELESS Bedienungsanleitung

Samson

Samson CONCERT 88X Bedienungsanleitung

Samson

Samson STAGE 266 HT6 Bedienungsanleitung

Samson

Samson Stage XPD1 Bedienungsanleitung

Samson

Samson Stage 266: Dual Handheld Wireless System Bedienungsanleitung

Samson

Samson Concert 77 Bedienungsanleitung

Samson

Samson Stage XPD1 Bedienungsanleitung

Samson

Samson Stage v266 Bedienungsanleitung

Samson

Samson XPD2 Bedienungsanleitung

Samson

Samson Stage 55 Bedienungsanleitung

Samson

Samson EXPEDITION XP40iw Bedienungsanleitung

Samson

Samson AirLine Bedienungsanleitung

Beliebte Mikrofonsystem Handbücher anderer Marken

Paso

Paso R824 Bedienungsanleitung

Naxa

Naxa NAM-982 Bedienungsanleitung

Motorola

Motorola PMNN4461 Bedienungsanleitung

Xvive

Xvive U3 Bedienungsanleitung

Tekon

Tekon DUOS Bedienungsanleitung

Heyuan Intelligence

Heyuan Intelligence IOT-G2S-01 Bedienungsanleitung

Devine

Devine WMD-IE Bedienungsanleitung

LG LF-D7150 Bedienungsanleitung

GE S768DAV Bedienungsanleitung

LD U305 HBH 2 Bedienungsanleitung

Chainway

Chainway URA8 Bedienungsanleitung

ORATOR

ORATOR D860TD Bedienungsanleitung

Sennheiser

Sennheiser Evolution Wireless Digital EW-DX EM 2 Bedienungsanleitung

Alpha Technologies

Alpha Technologies RBMS Bedienungsanleitung

SWIT Electronics Co.,LTD.

SWIT Electronics Co.,LTD. CW-S150 Bedienungsanleitung

Shure

Shure UA844 Bedienungsanleitung

Panasonic

Panasonic SHFX70 - DVD HOME THEATER WIRELESS SYSTEM Bedienungsanleitung

Pyle

Pyle PDWM5000 Bedienungsanleitung
