Samsung MH020FPEA Bedienungsanleitung

INSTALLATION MANUAL

MANUAL DE INSTALACIÓN

MANUEL D’INSTALLATION

MANUALE D’INSTALLZIONE

MANUAL DE INSTALAÇÃO

INSTALLATIONS-HANDBUCH

INSTALLATION MANUAL

Free Joint Multi Air Conditioner (Cool and Heat)

Acondicionador de aire libre del empalme multi (Refrigeración y Calefacción)

Climatiseur Free Joint Multi (Refroidissement et Chauffage)

Aria condizionata Free Joint Multi (Raffreddamento e Riscaldamento)

Free Joint Multi ar condicionado (Refrigeração e Aquecimento)

Free Joint Multi Klimaanlage (Kühlen und Wärmen)

Free Joint Multi Air Conditioner (Cool and Heat)

ENGLISH

ESPAÑOL

FRANÇAIS

ITALIANO

PORTUGUÊS

DEUTSCH

E§§HNIKA

RUSSIAN

MH020FPEA

MH023FPEA

MH026FPEA

MH035FPEA

MH052FPEA

MH18VP2-09

MH19VP2-07

MH19VP2-12

E S F I P D G R DB98-20238A(2)

MH026FPEA IM_E_20238 1/24/05 5:25 PM Page 17

E-2

Safety Precautions

The following safety precautions must be taken when using your air conditioner.

◆The unit should not be installed by the user. Ask the dealer or authorized

company to install the units except room air conditioners for the U.S.A and

Canada area.

◆If the unit is installed improperly, water leakage, electric shock or fire may

result.

◆The air conditioner must be installed in accordance with national wiring

regulations and safety regulations wherever applicable.

◆Mount with the lowest moving parts at least 2.5m above the floor or grade

level. (If applicable)

◆The manufacturer does not assume responsibility for accidents or injury

caused by an incorrectly installed air conditioner. If you are unsure about

installation, contact an installation specialist.

◆When installing the built-in type air conditioner, keep all electrical cables

such as the power cable and the connection cord in pipe, ducts, cable

channels e.t.c to protect them against liquids, outside impacts and so on.

WARNING

INSTALLING THE UNIT

◆If the power cord of this air conditioner is damaged, it must be replaced by

the manufacturer, its service agent or similarly qualified persons in order to

avoid a hazard.

◆The unit must be plugged into an independent circuit if applicable or

connect the power cable to the auxiliary circuit breaker. An all pole

disconnection from the power supply must be incorporated in the fixed

wiring with a contact opening of >3mm.

◆Do not use an extension cord with this product.

◆If the unit is equipped with a power supply cord and a plug, the plug must

be accessible after installation.

◆This appliance must be installed accordance with the national wiring

regulations.

POWER SUPPLY LINE,

FUSE OR CIRCUIT

BREAKER

Risk of electric shock. • Can cause injury or death. • Disconnect all

remote electric power supplies before servicing, installing or cleaning.

• This must be done by the manufacturer or its service agent or a similar

qualified person in order to avoid a hazard.

MH026FPEA IM_E_20238 1/24/05 5:25 PM Page 2

E-3

ENGLISH

Contents

◆PREPARING THE INSTALLATION

■Deciding on Where to Install the Air Conditioner ......................................... 4

■Air Conditioner and Accessories .................................................................. 7

◆INSTALLING THE INDOOR UNIT

■Fixing the Installation Plate .......................................................................... 8

■Purging the Unit ........................................................................................... 8

■Connecting the Assembly Cable .................................................................. 9

■Installing and Connecting the Indoor Unit Drain Hose ................................. 10

■Installing and Connecting the Indoor Unit Assembly Piping ........................ 11

■Cutting/Extending the Piping ........................................................................ 12

■Placing the Indoor Unit in Position ............................................................... 13

■Assigning Address to Indoor Unit ................................................................. 13

■Additional Functions ..................................................................................... 13

◆COMPLETING THE INSTALLATION

■Wiring Wired Remote Controller (Optional) ................................................. 14

■Troubleshooting ............................................................................................ 15

■Explaining Operations to the Owner ............................................................ 15

MH026FPEA IM_E_20238 1/24/05 5:25 PM Page 3

E-4

Deciding on Where to Install the Air Conditioner

When deciding on the location of the air conditioner with the owner, the following restrictions

must be taken into account.

General

Do NOT install the air conditioner in a location where it will come into contact with the following elements:

◆Combustible gases

◆Saline air

◆Machine oil

◆Sulphide gas

◆Special environmental conditions

If you must install the unit in such conditions, first consult your dealer.

Indoor Unit

◆There must be no obstacles near the air inlet and outlet.

◆Install the indoor unit on a surface that can support its weight.

◆Choose a position that enables the piping and cables to be easily connected to the outdoor unit and the

recommended length of 5 metres to be respected.

◆Leave enough clearance beneath the indoor unit to enable the filters to be removed without hindrance.

◆Maintain sufficient clearance around the indoor unit, as indicated in the diagram on the page opposite.

◆Make sure that the water dripping from the drain hose runs away correctly and safely.

PREPARING THE INSTALLATION

◆You have just purchased a Free Joint Multi air conditioner and it has been installed by

your installation specialist.

◆This device must be installed according to the national electrical rules.

◆Max input power & current is measured according to IEC standard and input power &

current is measured according to ISO standard.

MH026FPEA IM_E_20238 1/24/05 5:25 PM Page 4

E-5

ENGLISH

PREPARING THE INSTALLATION

1, 220-240, 50

Indoor unit Outdoor unit Power supply

Ø, V, Hz

✴✴

020/026/035FP

✴✴

026/035FK

✴✴

MH052FXEA2

✴✴

MH18VP2X

✴✴

MH19VP2X

✴✴

20/26/35

✴✴

Liquid

1/4”

Gas

3/8”

Unit Outside diameter

◗ Piping length and the height

Dimension

Composition

1 Room max

length

20 m

A, B

2 Room total max

length

40 m

A+B

Max height between

indoor units

3 m

(h)

Max height between

indoor unit & outdoor unit

15 m

(H)

160 mm

or more

100 mm

or more

200 mm

or more

300 mm

minimum

600 mm

minimum

600 mm

minimum

300 mm

minimum

Main power switch

(h) (H)

◆ MH18VP2X / MH19VP2X / MH052FXEA2

◗ Piping outside diameter

MH026FPEA IM_E_20238 1/24/05 5:25 PM Page 5

Deciding on Where to Install the Air Conditioner (Continued)

PREPARING THE INSTALLATION

E-6

◆ MH068FXEA4 / MH080FXEA4◆ MH068FXEA4 / MH080FXEA4

1, 220-240, 50

Indoor unit Outdoor unit Power supply

Ø, V, Hz

✴✴23/26/35/52✴✴

MH068FXEA4

MH080FXEA4

✴✴23/26/35✴✴

✴✴52✴✴

Liquid

1/4”

Gas

3/8”

1/2”

Unit Outside diameter

◗ Piping outside diameter

◗ Piping length and the height

Dimension

Composition

1 Room max

length

25 m

A, B, C, D

2 Room total max

length

30 m

A+B

3 Room total max

length

45 m

A + B + C

4 Room total max

length

70 m

A + B + C + D

Max height between

indoor units

3 m

(h)

Max height between

indoor unit & outdoor unit

15 m

(H)

160 mm

or more

100 mm

or more

200 mm

or more

300 mm

minimum

600 mm

minimum

600 mm

minimum

300 mm

minimum

Main power switch

AB CD

❊ The split type, 1-way cassette, duct type indoor units can be installed together.

(h) (H)

MH026FPEA IM_E_20238 1/24/05 5:25 PM Page 6

E-7

ENGLISH

E-7

Air Conditioner and Accessories

PREPARING THE INSTALLATION

The following accessories are supplied with the air conditioner.

Accessories in the Indoor Unit Case

OWNER'S INSTRUCTIONS

MANUAL DE INSTRUCCIONES

ISTRUZIONI PER L'USO

MANUAL DE INSTRUÇÕES

MANUEL D'UTILISATION

GEBRAUCHSANWEISUNG

Splut-typeRoom Air Conditioner

Aireacondicionado doméstico sistema Split

Condizionatored'aria per ambienti ad unità Separate

Aparelhode ar condicionado tipo Split

Climatiseurde type séparé

Geteilteraumklimaanlage

Owner’s Instruction

OWNER'S INSTRUCTIONS

MANUAL DE INSTRUCCIONES

ISTRUZIONI PER L'USO

MANUAL DE INSTRUÇÕES

MANUEL D'UTILISATION

GEBRAUCHSANWEISUNG

Splut-typeRoom Air Conditioner

Aireacondicionado doméstico sistema Split

Condizionatored'aria per ambienti ad unitàSeparate

Aparelhode ar condicionado tipo Split

Climatiseurde type séparé

Geteilteraumklimaanlage

Installation Manual

Batteries for

Remote Control (1)

Wired remote

Controller cables (1)

The following connection accessories may be supplied, depending on the option. If they are not

supplied, it is recommended that you collect them together before starting to install the air conditioner.

➢If these accessories are supplied, they are located in the accessory box.

Installation Plate (1)

(✴✴20/23/26/35✴✴)Installation Plate (1)

(✴✴52✴✴)

Remote Control

Pipe Clamps B (3) M3.8 x 20 Screws

for Wood (6) Putty 100g (1)M4 x 16 Tapped

Screws (6) Drain Hose,

length 2m (1)

Pipe Clamps A (3)

Assembly Piping,

Ø6.35mm (1) Assembly Piping,

Ø9.52mm (1)

(✴✴20/23/26/35✴✴)

Assembly Piping,

Ø12.70mm (1)

(✴✴52✴✴)

PE T3 Foam

Tube Insulation(1) Vinyl Tape,

Width 50mm (1) Drain Plug (1) Rubber Leg (4)

MH026FPEA IM_E_20238 1/24/05 5:25 PM Page 7

E-8

Fixing the Installation Plate

INSTALLING THE INDOOR UNIT

100 158

30mm

Installation plate

Pipe hole

(

65mm)

(Unit : mm)

MH020FPEA/MH023FPEA/MH026FPEA/

MH18VP2-09/MH19VP2-07

90 165

(Unit : mm)

MH035FPEA/MH19VP2-12

MH052FPEA

512 415

(Unit : mm)

Before fixing the installation plate to a wall or window frame, you

must determine the position of the 65 mm hole through which the

cable, piping and hose pass to connect the indoor unit up to the

outdoor unit. When facing the air conditioner in position on the wall,

the piping and cable can be connected from the:

◆Right

◆Left

◆Rear (right or left)

◆Underside

1Determine the position of the pipe and drain hose hole using the right

figure and drill the hole with an inner diameter of 65 mm so that it slants

slightly downwards.

2 If you are fixing the indoor unit to a... Then follow Steps...

Wall 3.

Window frame 4to 6.

3Fix the installation plate to the wall in a manner appropriate to the weight

of the indoor unit.

➢If you are mounting the plate on a concrete wall with anchor

bolts, the anchor bolts must not project by more than 20 mm.

4Determine the positions of the wooden uprights to be attached to the

window frame.

5Attach the wooden uprights to the window frame in a manner appropriate

to the weight of the indoor unit.

6Using tapped screws, attach the installation plate to the wooden uprights,

as illustrated in the last figure opposite.

Purging the Unit

On delivery, the indoor unit is loaded with an inert gas. All this gas

must therefore be purged before connecting the assembly piping.

To purge the inert gas, proceed as follows.

Unscrew the caps at the end of each pipe.

Result: All inert gas escapes from the indoor unit.

➢To prevent dirt or foreign objects from getting into the pipes

during installation, do NOT remove the caps completely

until you are ready to connect the piping.

MH026FPEA IM_E_20238 1/24/05 5:25 PM Page 8

E-9

ENGLISH

Connecting the Assembly Cable

INSTALLING THE INDOOR UNIT

The indoor unit is powered from the outdoor unit via the assembly cable.

1Extend the assembly cable if necessary.

2Open the front grille by pulling on the tabs on the lower right and left sides

of the indoor unit.

3Remove the screw securing the connector cover.

4Pass the assembly cable through the rear of the indoor unit and connect the

assembly cable such as figure.

➢Each wire is labelled with the corresponding terminal number.

5Pass the other end of the cable through the 65 mm hole in the wall.

6Replace the connector cover, carefully tightening the screw.

7Close the front grille.

8For further details on how to plug the other end of the assembly cable into

the outdoor unit, refer to installation manual of the outdoor unit.

1(L) 2(N)

F1 F2

F12(N)1(L) F2

12E

F1 F2

Indoor

unit

Outdoor

unit

Earth

terminal

Earth

terminal

MH026FPEA IM_E_20238 1/24/05 5:25 PM Page 9

E-10

To install the drain hose, proceed as follows.

1If necessary, connect the 2-meter extension to the drain hose.

2If you are using the extension, insulate the inside part of the extension

drain hose with a shield.

3Pass the drain hose under the refrigerant piping, taking care to keep the

drain hose tight.

4Pass the drain hose through the hole in the wall, making sure that it is

sloping downwards, as shown in the illustrations above.

➢The hose will be fixed permanently into position once the

whole installation has been tested for gas leaks; refer to

installation manual of the outdoor unit.

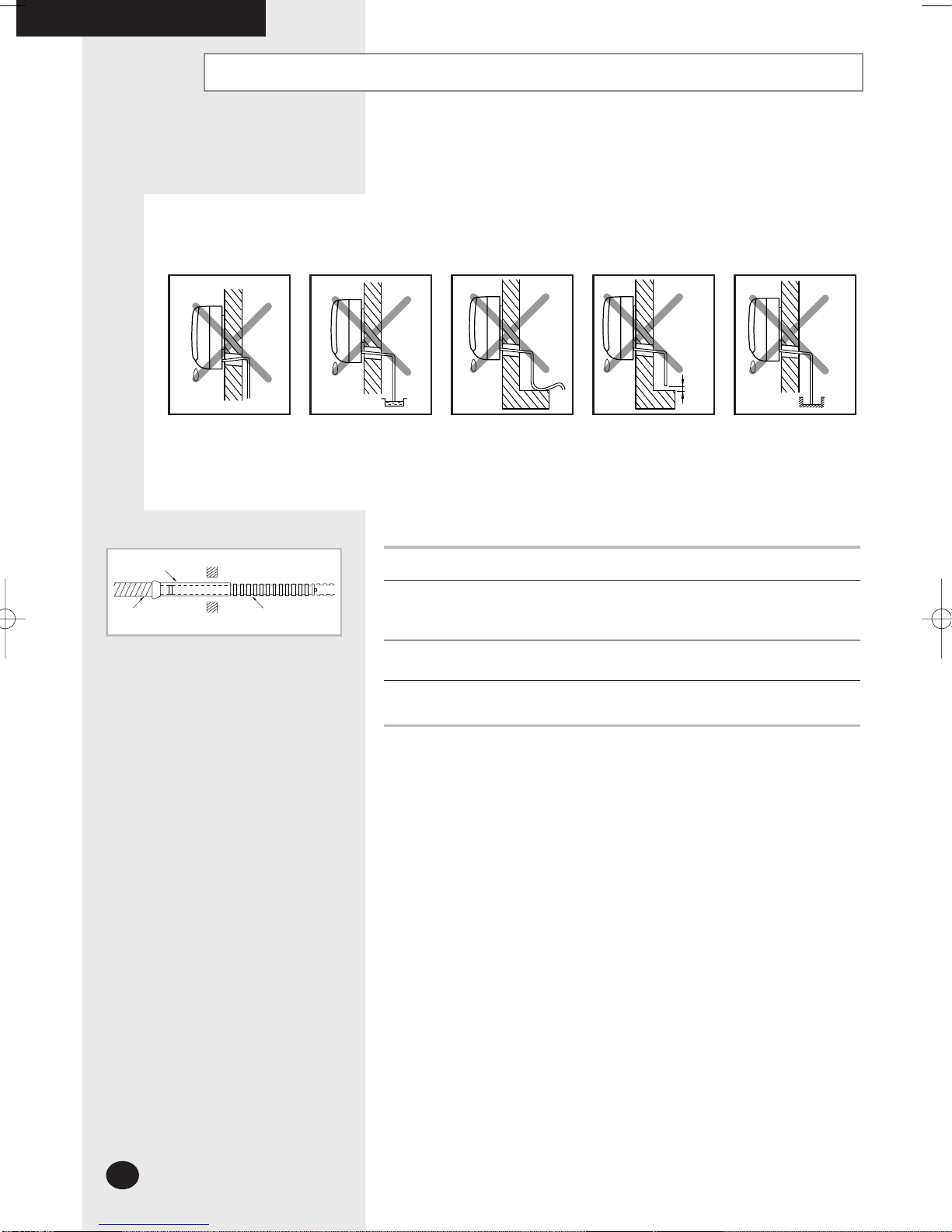

Installing and Connecting the Indoor Unit Drain Hose

Care must be taken when installing the drain hose for the indoor unit to ensure that any condensation

water is correctly drained outside. When passing the drain hose through the 65 mm hole drilled in the

wall, check that none of the following situations occur.

The hose must

NOT slope

upwards.

The end of the drain

hose must NOT be

placed in water.

Do NOT bend the

hose in different

directions.

Keep a clearance of

at least 5 cm between

the end of the hose

and the ground.

Do NOT place the

end of the drain hose

in a hollow.

5 cm

less Ditch

INSTALLING THE INDOOR UNIT

Shield

Drain hose Extension drain hose

MH026FPEA IM_E_20238 1/24/05 5:25 PM Page 10

Andere Handbücher für MH020FPEA

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Samsung Klimaanlage Handbücher

Samsung

Samsung ASA07C5(6)ME Bedienungsanleitung

Samsung

Samsung AW0700 Bedienungsanleitung

Samsung

Samsung AWT19PHHEB Bedienungsanleitung

Samsung

Samsung MR-AH01 Bedienungsanleitung

Samsung

Samsung AS-1808BR Bedienungsanleitung

Samsung

Samsung SC07APGD Bedienungsanleitung

Samsung

Samsung AC024BXUPCH/AA Gebrauchsanweisung

Samsung

Samsung AM NN1DKH Series Bedienungsanleitung

Samsung

Samsung Split-type Room Air Conditioner Bedienungsanleitung

Samsung

Samsung MCM-A200 User Manual (XP) Bedienungsanleitung

Samsung

Samsung AQ09C8ME Bedienungsanleitung

Samsung

Samsung AR**HS Bedienungsanleitung

Samsung

Samsung AVXCSH023/032/040CE Bedienungsanleitung

Samsung

Samsung AC026JNNCEH Bedienungsanleitung

Samsung

Samsung AM JNHF Series Bedienungsanleitung

Samsung

Samsung DH105CAV Bedienungsanleitung

Samsung

Samsung AQ07P8GE Bedienungsanleitung

Samsung

Samsung AR NXFP Series Bedienungsanleitung

Samsung

Samsung AEX160EDEHA Bedienungsanleitung

Samsung

Samsung AC***JXADCH Series Bedienungsanleitung

Samsung

Samsung AS09HPBN Installationsanleitung

Samsung

Samsung SH09BPH Bedienungsanleitung

Samsung

Samsung AR07MSPXASINEU Bedienungsanleitung

Samsung

Samsung AR09TXHQBWKNEU Bedienungsanleitung

Beliebte Klimaanlage Handbücher anderer Marken

Spheros

Spheros CC 355 Bedienungsanleitung

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Bedienungsanleitung

Panasonic

Panasonic CS-E12HKEW Bedienungsanleitung

nedis

nedis ACMB1WT7 Bedienungsanleitung

Daikin

Daikin FCFV50A Bedienungsanleitung

Fujitsu

Fujitsu Inverter ASBA30JFC Bedienungsanleitung

Toshiba

Toshiba RAS-M10SMUV-E Bedienungsanleitung

Daikin

Daikin FXLQ20MAVE Bedienungsanleitung

Hitachi

Hitachi RAS-E24CAK Bedienungsanleitung

CIAT

CIAT Magister 2 Series Leitfaden

Bestron

Bestron AAC6000 Bedienungsanleitung

Hisense

Hisense 7K Technisches Handbuch

Frigidaire

Frigidaire FFRE0533S1E0 Bedienungsanleitung

Frigidaire

Frigidaire CRA073PU11 Betriebsanleitung

Soleus Air

Soleus Air GB-PAC-08E4 Bedienungsanleitung

McQuay

McQuay MCK020A Bedienungsanleitung

Webasto

Webasto Frigo Top 25 DS Bedienungsanleitung

Frigidaire

Frigidaire FAZ12ES2A Bedienungsanleitung
