Rear & Side Panel Jacks

PN50B550T2F/PN58B550T2F/

PN63B550T2F

1-800-SAMSUNG (7267864)

Samsung Electronics America, Inc.

105 Challenger Road Ridgefield Park, NJ 07660-0511

Samsung Electronics Canada Inc., Customer Service

55 Standish Court Mississauga, Ontario L5R 4B2

Call center hours of operation (Mon-Sun 9AM-12AM EST).

www.samsung.com/register.

POWER IN

AUDIO OUT

PC IN[PC]/[AUDIO]

DVI AUDIO IN (AUDIO-R/L)

HDMI IN 1, 2(DVI), 3, 4

ANT IN

DIGITAL AUDIO OUT (OPTICAL)

COMPONENT IN 1, 2 / AV IN 1

EX-LINK

USB

AV IN 2

PN50B560T5F/PN58B560T5F/

PN63B590T5F

BN68-02222A.indd 1 2009-03-13 오후 6:11:39

English - 2

Video Input Performance Comparison

You can use the remote control up to a distance of about 23 feet from the TV.

Remote Control Buttons

/ HDMI/DVI Best

/ PC/COMPONENT Better

VIDEO Normal

Audio Output Performance Comparison

OPTICAL (Digital) Best

AUDIO (Analog) Normal

POWER

Turns the TV on and off.

Selects the TV mode directly.

NUMERIC BUTTONS

Press to change the channel.

Press to select additional channels

(digital and analog) being broadcast

by the same station. For example, to

select channel

“54-3”, press “54”, then press

“ ” and “3”.

MMUTE

Press to temporarily cut off the

sound.

VOL

Press to increase or decrease the

volume.

SOURCE

Press to display and select the

available video sources.

CH LIST

Used to display Channel Lists on the

screen.

TOOLS

Use to quickly select frequently used

functions.

 UP▲/DOWN▼/LEFT◄/

RIGHT►/ENTER

Use to select on-screen menu items

and change menu values.

INFO

Press to display information on the

TV screen.

COLOR BUTTONS

Use these buttons in the Channel list

and Media Play.

MEDIA.P (Media play)

This function enables you to view

and play photo and music files from

an external device. (Refer to pages

38 (Photo) and 41 (Music) on the

owner's instructions.)

P.MODE

Press to select the picture mode.

Use these buttons in the DMA,

Media Play and Anynet+ modes.

( : This remote can be used

to control recording on Samsung

recorders with the Anynet+ feature)

ON/OFF

Press to backlight the buttons on the

remote. This function is convenient

for using at night or when the room

is dark. (Using the remote control

with the light button set to On will

reduce the battery usage time.)

PRE-CH

Tunes to the previous channel.

Press to change channels.

(

Displays the on-screen menu.

)

FAV.CH

Press to switch to your favorite

channels.

RETURN

Returns to the previous menu.

EXIT

Press to exit the menu.

P.SIZE

Picture size selection.

SRS

Selects SRS TruSurround HD mode.

Controls the caption decoder.

MTS

Press to choose stereo, mono or

Separate Audio Program (SAP

broadcast).

BN68-02222A.indd 2 2009-03-13 오후 6:11:40

English - 3

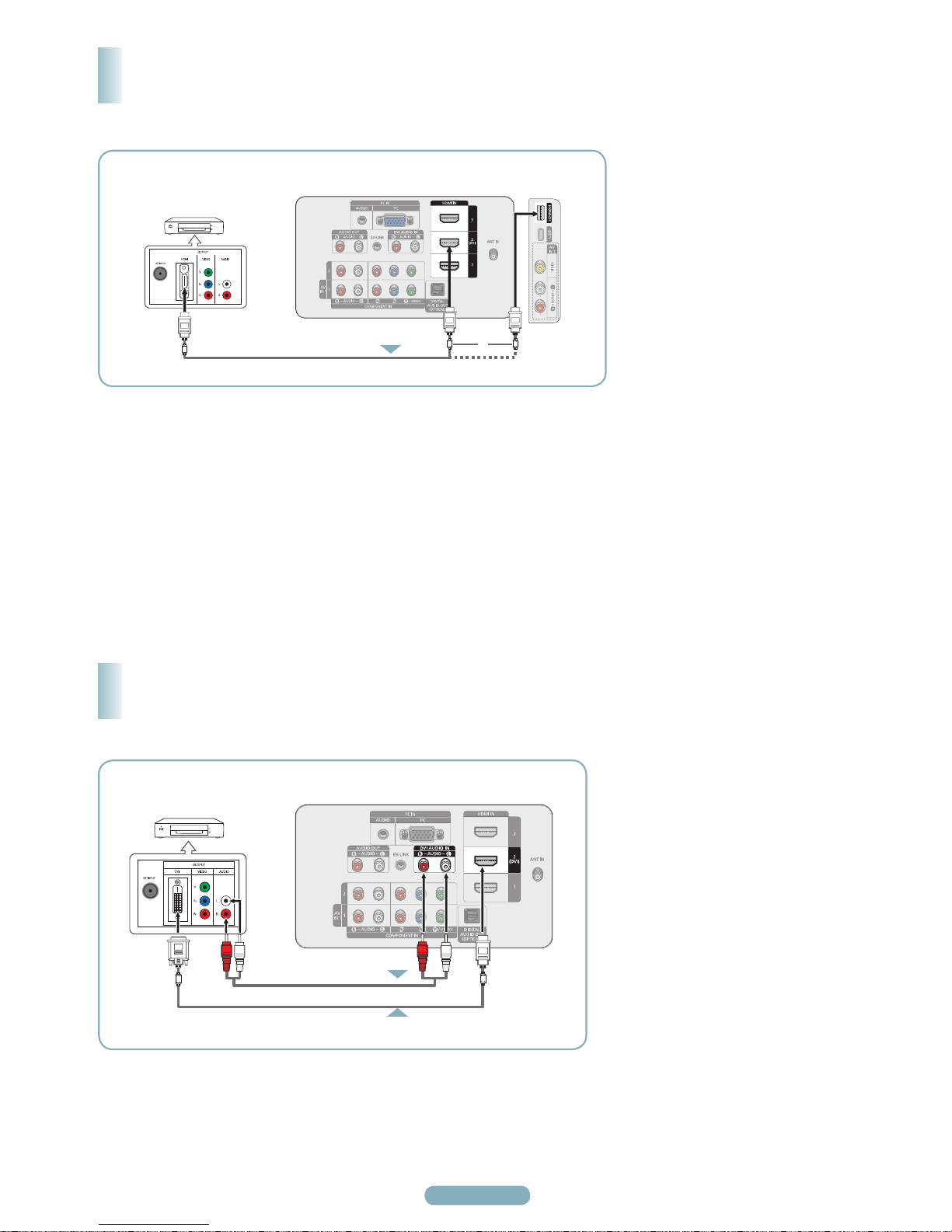

Using the DVI (Digital Visual Interface) Cable



Connect a HDMI/DVI Cable or

DVI-HDMI Adapter between the

HDMI IN 2(DVI) jack on the TV

and the DVI jack on the DVD /

Blu-Ray Player or Cable Box/

Satellite receiver (Set-Top Box).



Connect Audio Cables between

the DVI AUDIO IN [R-AUDIO-L]

jack on the TV and the DVD /

Blu-Ray Player or Cable Box /

Satellite receiver (Set-Top Box).



Press the SOURCE button on the

remote control until you see the

Set-Top Box signal (see “To Select

the Source” on page 10).

Using the HDMI (High Definition Multimedia Interface) Cable



Connect an HDMI Cable between

the HDMI IN (1, 2(DVI), 3, or 4) jack

on the TV and the HDMI jack on the

DVD / Blu-Ray Player or Cable Box

/ Satellite receiver (Set-Top Box).



Press the SOURCE button on the

remote control until you see the

Set-Top Box signal (see “To Select

the Source” on page 10).

➢

Each DVD / Blu-Ray Player or Cable Box / Satellite receiver (Set-Top Box) has a different back panel configuration.

➢ 

When connecting a DVD / Blu-Ray Player or Cable Box / Satellite receiver (Set-Top Box), match the color of the connection

terminal to the cable.

➢

When using an HDMI / DVI cable connection, you must use the HDMI IN 2(DVI) jack.

What is HDMI?

•HDMI, or high-definition multimedia interface, is an interface that enables the transmission of digital audio and video

signals using a single cable.

•The difference between HDMI and DVI is that the HDMI device is smaller in size and

as the HDCP (High Bandwidth

Digital Copy Protection) coding feature installed.

➢

Each DVD / Blu-Ray Player or Cable Box / Satellite receiver (Set-Top Box) has a different back panel configuration.

➢

The TV may not output sound and pictures may be displayed with abnormal color when DVD Player or Cable Box / Satellite

receivers supporting HDMI versions older than 1.3 are connected. When connecting an older HDMI cable and there is no sound,

connect the HDMI cable to the HDMI IN 2(DVI) jack and the audio cables to the DVI IN (HDMI2) [R-AUDIO-L] jacks on the back

of the TV. If this happens, contact the company that provided the DVD Player or Cable Box / Satellite receiver to confirm the

HDMI version, then request an upgrade.

➢

HDMI cables that are not 1.3 may cause annoying flicker or no screen display.

Connecting a DVD / Blu-Ray or Cable Box /

Satellite receiver (Set-Top Box) via HDMI

Connecting a DVD / Blu-Ray Player or Cable Box /

Satellite receiver (Set-Top Box) via DVI

TV Rear Panel TV Side Panel

HDMI Cable (Not supplied)

DVD Player or Cable Box /

Satellite receiver (Set-Top Box)

Audio Cable (Not supplied)

HDMI/DVI Cable (Not supplied)

DVD Player or Cable Box /

Satellite receiver (Set-Top Box)

TV Rear Panel

BN68-02222A.indd 3 2009-03-13 오후 6:11:41

English - 4

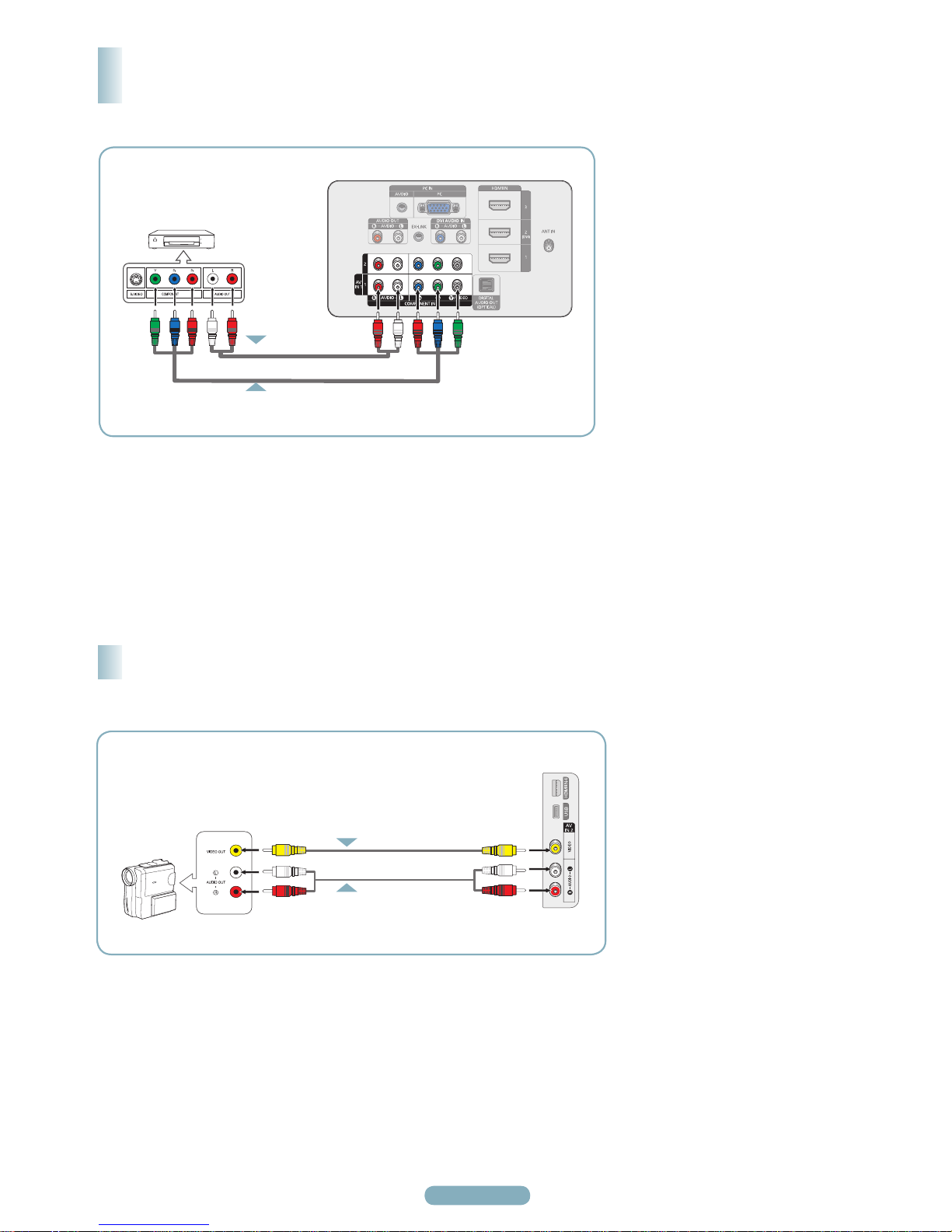

Using the Component Cable



Connect a Component Cable

between the COMPONENT IN (1 or

2) [Y, PB, PR] jacks on the TV and

the COMPONENT [Y, PB, PR] jacks

on the DVD / Blu-Ray Player or

Cable Box / Satellite receiver(Set-

Top Box).



Connect Audio Cables between the

COMPONENT IN (1 or 2)

[R-AUDIO-L] jacks on the TV and

the AUDIO OUT jacks on the DVD

/ Blu-Ray Player or Cable Box /

Satellite receiver (Set-Top Box).



Press the SOURCE button on the

remote control until you see the

Set-Top Box signal. (see “To Select

the Source” on page 10).

➢ 

Component video separates the video into Y (Luminance (brightness), PB(Blue) and PR(Red) for enhanced video quality. Be sure

to match the component video and audio connections. For example, if connecting a Component video cable to COMPONENT IN 1,

connect the audio cable to COMPONENT IN 1 also.

➢

Each DVD / Blu-Ray Player or Cable Box / Satellite receiver (Set-Top Box) has a different back panel configuration.

➢ 

When connecting a DVD / Blu-Ray Player or Cable Box / Satellite receiver (Set-Top Box), match the color of the connection

terminal to the cable.

Using the Video / Audio Cable



Connect a Video Cable between

the AV IN 2 [VIDEO] jack on the TV

and the VIDEO OUT jack on the

Camcorder.



Connect Audio Cables between the

AV IN 2 [L-AUDIO-R] jacks on the

TV and the AUDIO OUT jacks on

the Camcorder.



Press the SOURCE button on the

remote control until you see the

Camcorder signal (see “To Select

the Source” on page 10).

➢

Each Camcorder has a different back panel configuration.

➢

When connecting a Camcorder, match the color of the connection terminal to the cable.

Connecting a Camcorder

Connecting a DVD / Blu-Ray Player or Cable Box /

Satellite receiver (Set-Top Box) via Component cables

DVD Player or Cable Box/

Satellite receiver (Set-Top Box)

Audio Cable (Not supplied)

Component Cable (Not supplied)

TV Rear Panel

Camcorder

TV Side Panel

Video Cable (Not supplied)

Audio Cable (Not supplied)

BN68-02222A.indd 4 2009-03-13 오후 6:11:42

English - 5

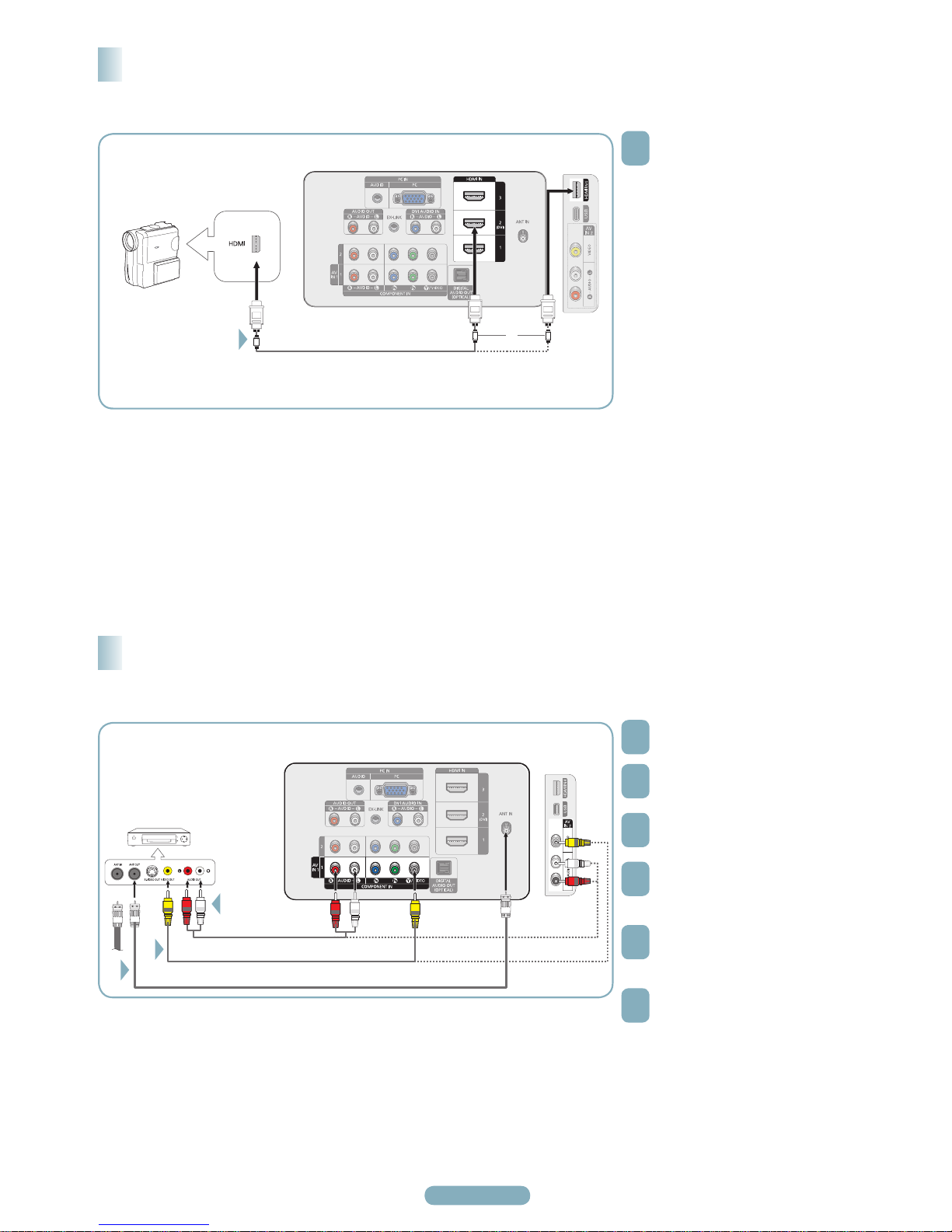

Connecting a VCR



Unplug the cable or antenna from

the back of the TV.

Connect the cable or antenna to the

ANT IN terminal on the back of the

VCR.



Connect an Antenna Cable between

the ANT OUT terminal on the VCR

and the ANT IN terminal on the TV.

Connect a Video Cable between the

VIDEO OUT jack on the VCR and

the AV IN 1 [Y/VIDEO] or AV IN 2

[VIDEO] jack on the TV.

Connect Audio Cables between the

AUDIO OUT jacks on the VCR and

the AV IN 1 (or AV IN 2)

[R-AUDIO-L] jacks on the TV.

Press the SOURCE button on the

remote control until you see the

VCR signal (see “To Select the

Source” on page 10).

Using a Video Cable

➢

If you have a “mono” (non-stereo) VCR, use a Y-connector (not supplied) to connect to the right and left audio input jacks of the

TV. Alternatively, connect the cable to the “R” jack. If your VCR is stereo, you must connect two cables.

➢

Each VCR has a different back panel configuration.

➢

When connecting a VCR, match the color of the connection terminal to the cable.

➢

When connecting to AV IN 1, the color of the AV IN 1 [Y/VIDEO] jack (Green) does not match the color of the video cable (Yellow).

VCR Rear Panel

TV Side Panel

S-Video Cable (Not supplied)

Audio Cable (Not supplied)

TV Rear Panel



Connect an HDMI Cable between

the HDMI IN (1, 2(DVI), 3, or 4) jack

on the TV and the HDMI jack on the

camcorder.

Using an HDMI Cable

➢

Each Camcorder has a different back panel configuration.

TV Side Panel

TV Rear Panel

HDMI Cable (Not supplied)

Connecting a Camcorder

Camcorder

BN68-02222A.indd 5 2009-03-13 오후 6:11:44

English - 6



Connect an Optical Cable

between the DIGITAL AUDIO OUT

(OPTICAL) jack on the TV and the

Digital Audio Input (OPTICAL) jacks

on the Digital Audio System.

When a Digital Audio System is

connected to the DIGITAL AUDIO

OUT (OPTICAL) jack: Decrease

the volume of the TV, and adjust

the volume level with the system’s

volume control.

What is OPTICAL?

• An optical cable converts an

electric signal into an optical

light signal, and transmits it

through glass fibers. S/PDIF is

a transmission system of digital

audio in the form of a light wave

that uses a glass conductor.

Connecting a Digital Audio System

➢5.1CH audio is possible when the TV is connected to an external device supporting 5.1CH.

➢Each Digital Audio System has a different back panel configuration.

➢When the receiver (home theater) is set to On, you can hear sound output from the TV’s Optical jack. When the TV is displaying a

DTV(air) signal, the TV will send out 5.1 channel sound to the Home theater receiver. When the source is a digital component such

as a DVD and is connected to the TV via HDMI, only 2 channel sound will be heard from the Home Theater receiver.

If you want to hear 5.1 channel audio, connect the DIGITAL AUDIO OUT (OPTICAL) jack on the DVD player or Cable/Satellite Box

directly to an Amplifier or Home Theater, not the TV.



Connect Audio Cables between the

AUDIO OUT [R-AUDIO-L] jacks on

the TV and AUDIO IN [L-AUDIO-R]

jacks on the Amplifier/DVD Home

Theater.

When an audio amplifier is

connected to the AUDIO OUT

[R-AUDIO-L] jacks terminals:

Decrease the volume of the TV,

and adjust the volume level with the

Amplifier’s volume control.

➢

Each Amplifier / DVD Home Theater has a different back panel configuration.

➢

When connecting an Amplifier / DVD Home Theater, match the color of the connection terminal to the cable.

Connecting an Analog Amplifier / DVD Home Theater

TV Rear Panel

Amplifier/

DVD Home Theater

Audio Cable (Not supplied)

TV Rear Panel

Digital Audio System

Optical Cable (Not supplied)

BN68-02222A.indd 6 2009-03-13 오후 6:11:46

English - 7

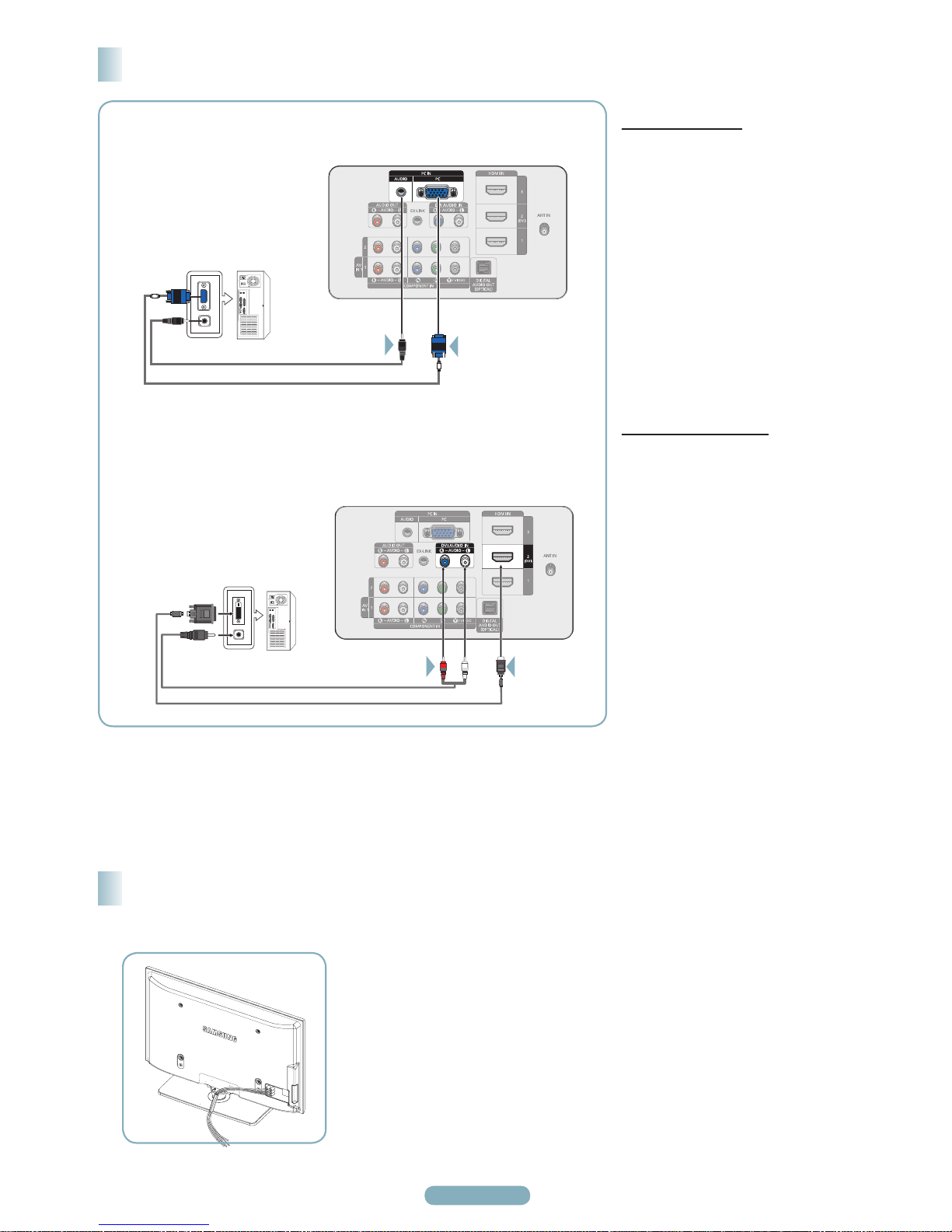

Using a D-Sub Cable



Connect a D-Sub Cable between

PC IN [PC] jack on the TV and the

PC output jack on your computer.



Connect a PC Audio Cable between

the PC IN [AUDIO] jack on the TV

and the Audio Out jack of the sound

card on your computer.

Using an HDMI/DVI Cable



Connect an HDMI/DVI cable

between the HDMI IN 2(DVI) jack

on the TV and the PC output jack on

your computer.



Connect a 3.5 mm Stereo plug to

2RCA cable between the DVI IN

(HDMI2) [R-AUDIO-L] jack on the

TV and the Audio Out jack of the

sound card on your computer.

Connecting a PC

➢

Each PC has a different back panel configuration.

➢

When connecting a PC, match the color of the connection terminal to the cable.

➢

When using an HDMI/DVI cable connection, you must use the HDMI IN 2(DVI)

terminal.

TV Rear Panel

D-Sub Cable (Not supplied)

PC Audio Cable (Not supplied)

Using a D-Sub Cable

Using an HDMI/DVI Cable

TV Rear Panel

3.5 mm Stereo plug to RCA Cable (Not supplied)

HDMI/DVI Cable (Not supplied)

Enclose the cables in the Holder-Wire Cable so that the cables are not

visible through the transparent stand.

Assembling the Cables

BN68-02222A.indd 7 2009-03-13 오후 6:11:48

English - 8

Press the POWER button on the remote control.

You can also use the POWER button on the TV.

➢It may take a while for the picture to appear.

Turning the TV On and Off

Viewing the Displays and MenusDisplays and Menusand MenusMenus

Viewing the Display



Press the INFO button on the remote control.

The TV will display the channel, the type of sound,

and the status of certain picture and sound settings.

Viewing the Menus

Your TV can memorize and store all of the available channels

for both air and cable channels. After the available channels

are memorized, use the CH or CH button to scan

through the channels. This eliminates the need to change

channels by entering the channel digits. There are three

steps for memorizing channels: selecting a broadcast source,

memorizing the channels (automatic) and adding and deleting

channels (Channel Lists).

Memorizing the Channels

Storing Channels in Memory

(Automatic Method)

Before your television can begin memorizing the available

channels, you must specify the type of signal source that is

connected to the TV (i.e. an Air or a Cable system).



Press the MENU button to display the menu.

Press the ▲ or ▼ button to select Channel, then

press the ENTER button.



Press the ▲ or ▼ button to select Auto Program,

then press the ENTER button.



Press the ▲ or ▼ button to select an antenna

connection, then press the ENTER button.

➢

Air: Air antenna signal.

Cable: Cable antenna signal.

Auto: Air and Cable antenna signals.



With the power on, press the MENU button.

The main menu appears on the screen. The menu’s

left side has icons: Picture, Sound, Channel,

Setup, Input, Application, Support.



Press the ▲ or ▼ button to select one of the icons.

Then press the ENTER button to access the icon’s

sub-menu.



Press the EXIT button to exit.

➢

It takes about one minute until the on-screen

menu disappears.

Mode :Standard

Cell Light : 4

Contrast : 95

Brightness : 45

Sharpness : 50

Color : 50

Tint (G/R) : G50/R50


Channel

Antenna : Air

Auto Program

►

Clear Scrambled Channel

Channel List

Fine Tune

Auto Program

Select the Antenna source to memorize.

Air

Cable

Auto

ReturnEnterMove

Start

Auto Program

Select the cable system.

Analog

Digital

HRC IRC

HRC IRCSTD

Start

ReturnEnterMove

STD

TV #1 Fri, Dec 19 2:05 am

M. Spillane’s Mike Hammer

Bonocrunch

DTV Air

13-1

Dolby Digital

1080i 16:9 English

1:55 am - 2:55 am

Next Program 2:55 am - 3:55 am

BN68-02222A.indd 8 2009-03-13 오후 6:11:49

English - 9



When selecting the Cable TV system:

Press the ENTER button to start the auto program.

Press the ◄ or ► to select the correct analog signal

cable system source among STD, HRC, and IRC,

then press the ENTER button. If you have Digital

cable TV, select the cable system signal source for

both Analog and Digital.

➢

STD, HRC, and IRC identify various types of

cable TV systems. Contact your local cable

company to identify the type of cable system

that exists in your particular area. At this point

the signal source has been selected.



The TV begins memorizing all available stations.

➢

After all the available channels are stored, it

starts to remove scrambled channels. The Auto

program menu then reappears.

➢

If you want to stop Auto Programming, press

the ENTER button. The Stop Auto Program?

message will be displayed. Select Yes by

pressing the ◄ or ► button, then press the

ENTER button.

Press the EXIT button to exit.

You can select the type of picture which best corresponds to

your viewing requirements.



Press the MENU button to display the menu.

Press the ENTER button to select Picture.



Press the ENTER button to select Mode.

Press the ▲ or ▼ button to select Dynamic,

Standard, or Movie.

Press the ENTER button.

●

Dynamic: Select a high-definition picture for

bright environments.

●

Standard: Selects the optimal picture display for

normal environments. This setting is convenient

for most situations.

●

Movie: Selects a comfortable picture display for

dark environments.



Press the EXIT button to exit.

Changing the Picture Standard

Auto Program

Auto Program in Progress.

Stop

DTV Air : 5 Air : 4

DTV Cable : -- Cable : --

Enter Return

Auto Program

Auto Program is completed.

56 channels are memorized.

DTV Air : 20 Air : 11

DTV Cable : 15 Cable : 10

ReturnEnter

Mode

Standard ►

Cell Light : 4

Contrast : 95

Brightness : 45

Sharpness : 50

Color : 50

Tint (G/R) : G50/R50

Picture Picture

Mode

Cell Light : 7

Contrast : 80

Brightness : 45

Sharpness : 50

Color : 50

Tint (G/R) : G50/R50

Dynamic

Standard

Movie

Air

BN68-02222A.indd 9 2009-03-13 오후 6:11:49

English - 10

Use to select TV or other external input sources such as

DVD players or Cable Box/Satellite receivers (Set-Top Box)

connected to the TV. Use to select the input source of your

choice.

To Select the Source



Press the MENU button to display the menu.

Press the ▲ or ▼ button to select Input, then press

the ENTER button.



Press the ENTER button to select Source List.

Press the ▲ or ▼ button to select the signal source,

then press the ENTER button.

➢

Available signal sources: TV, AV1, AV2,

Component1, Component2, PC, HDMI1,

HDMI2/DVI, HDMI3, HDMI4./DVI, HDMI3, HDMI4., HDMI3, HDMI4.HDMI4.

➢

You can choose only those external devices

that are connected to the TV. In the Source

List, connected inputs will be highlighted and

sorted to the top.

Inputs that are not connected will be sorted to

the bottom.

Source List

Edit Name

Input

AV1

----

AV2

----

Component1

----

Component2

----

HDMI1

----

Refresh TTools

Soutce List

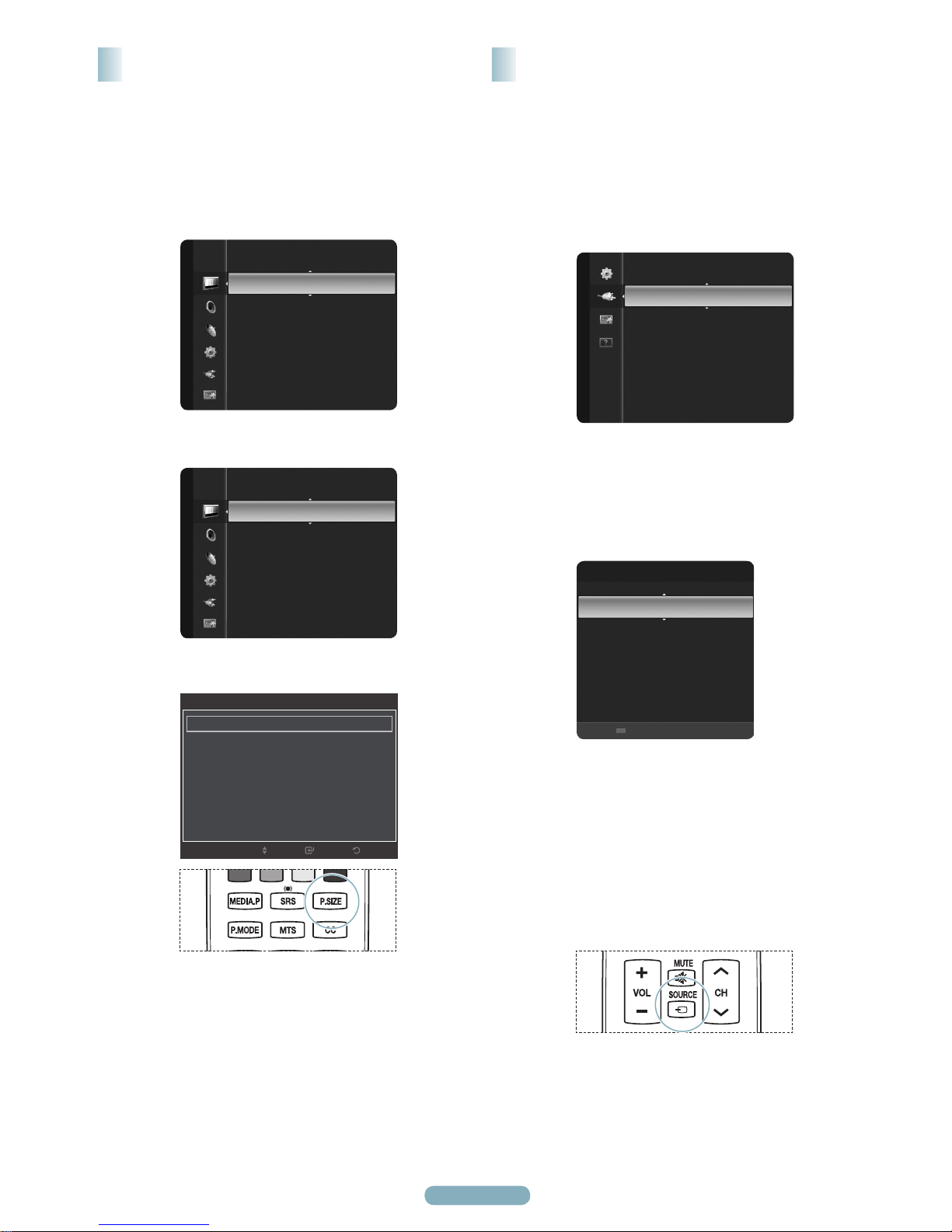

Setting the Picture Size

Occasionally, you may want to change the size of the image

on your screen. Your TV comes with six screen size options,

each designed to work best with specific types of video input.

Your satellite receiver may have its own set of screen sizes

as well. In general, though, you should view the TV in 16:9

mode as much as possible



Press the MENU button to display the menu. Press

the ENTER button to select Picture.



Press the ▲ or ▼ button to select Picture Option,

then Press the ENTER button.



Press the ▲ or ▼ button to select Size, then Press

the ENTER button.

➢

Alternately, you can press the P.SIZE button

on the remote control repeatedly to change the

picture size.

● 16:9 : Sets the picture to the 16:9 aspect ratio.

● Zoom1: Stretches the 16:9 aspect ratio picture

vertically.

● Zoom2: Stretches the Zoom 1 picture vertically.

● WideFit: Stretches the picture both horizontally

and vertically to display the optimal picture.

● 4:3: Sets the picture to the 4:3 aspect ratio.

● ScreenFit: Displays the full native HD signal that

cannot be viewed using a normal TV.

Tint (G/R) : G50/R50

Advanced Settings

Picture Options ►

Picture Reset


Picture Options

Color Tone : Normal ►

Size : 16:9

Digital NR : Auto

HDMI Black Level : Normal

Film Mode : Off

Screen Burn Protection

ReturnEnter

Move

Mode

Standard ►

Cell Light : 4

Contrast : 95

Brightness : 45

Sharpness : 50

Color : 50

Tint (G/R) : G50/R50


BN68-02222A.indd 10 2009-03-13 오후 6:11:49

Andere Handbücher für PN50B550T2F

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Samsung Flachbildfernseher Handbücher

Samsung

Samsung LA52A610A3R Bedienungsanleitung

Samsung

Samsung LN40B50 Bedienungsanleitung

Samsung

Samsung LN40C610N1F Bedienungsanleitung

Samsung

Samsung LN40C610N1F Bedienungsanleitung

Samsung

Samsung LNT3232HX - 32" LCD TV Bedienungsanleitung

Samsung

Samsung HLP5085W - 50" Rear Projection TV Bedienungsanleitung

Samsung

Samsung FP-T5094W Bedienungsanleitung

Samsung

Samsung LT-P266W Bedienungsanleitung

Samsung

Samsung LW15M23C Bedienungsanleitung

Samsung

Samsung PN50A510P3F Kurzanleitung

Samsung

Samsung LN40C650L1F Bedienungsanleitung

Samsung

Samsung CL-21M21MQ Benutzerhandbuch

Samsung

Samsung LN40C630 Bedienungsanleitung

Samsung

Samsung BN68-02714F-02 Installations- und Betriebshandbuch

Samsung

Samsung LNR1550 Bedienungsanleitung

Samsung

Samsung UN55F7050AF Bedienungsanleitung

Samsung

Samsung PN42B430P2D Bedienungsanleitung

Samsung

Samsung UN55ES8000G Leitfaden

Samsung

Samsung PN42C430A1D Bedienungsanleitung

Samsung

Samsung Smart TV UN55D6000 Leitfaden

Samsung

Samsung BN68-03088A-02 Bedienungsanleitung

Samsung

Samsung UN85S9AF Leitfaden

Samsung

Samsung BN68-01250B-00 Bedienungsanleitung

Samsung

Samsung PN50C550G1F Bedienungsanleitung

Beliebte Flachbildfernseher Handbücher anderer Marken

Philips

Philips 32PFL7602D - annexe 1 Bedienungsanleitung

Philips

Philips 42PF7321 Bedienungsanleitung

Sony

Sony WEGA KE-50XBR900, KE-42XBR900 Bedienungsanleitung

JVC

JVC LT-26DX7BFN Bedienungsanleitung

Philips

Philips Match Line 29PT9006/12 Bedienungsanleitung

Philips

Philips 37PFL5522D - annexe 2 Bedienungsanleitung

Westinghouse

Westinghouse TX-42F970Z Bedienungsanleitung

Philips

Philips 32PFL5332S Bedienungsanleitung

Philips

Philips 40PFL5705D Bedienungsanleitung

Toshiba

Toshiba 32BV500B Bedienungsanleitung

Philips

Philips MathLine 32PW9765 Bedienungsanleitung

Philips

Philips MatchLine FlatTV 50PF9965 Bedienungsanleitung

RCA

RCA MR53R400 Bedienungsanleitung

Philips

Philips 28PW8818/12 Bedienungsanleitung

JVC

JVC GGT0362-001A-H Bedienungsanleitung

Philips

Philips Magnavox 37MF331D/37 Bedienungsanleitung

Sanyo

Sanyo FVM4212 Bedienungsanleitung

Philips

Philips 47PFL7623D Bedienungsanleitung
