Safety precautions

SAFETY PRECAUTIONS

Important safety symbols and precautions:

Please follow all safety instructions in this manual. This manual uses the following

safety symbols.

CAUTION/WARNING SYMBOLS USED

WARNING It indicates a danger of death or serious injury.

CAUTION

It indicates a danger of personal injury or material

damage.

NOTE Useful information that helps users understand or

benefit from the refrigerator.

These warning signs are designed for preventing you and others from being

damaged. Please strictly follow the above instructions.

After you finished reading this part, please keep it properly for future reference.

•This refrigerator must be properly installed and located in accordance with the

manual before it is used.

•Use this appliance only for its intended purpose as described in this user manual.

•We strongly recommend that any servicing should be performed by a qualifed

individual.

•Check the compressor label or the circuit diagram at the rear of the appliance to

see which refrigerant is used for the refrigerator.

Prior to using the refrigerator, please carefully read this manual and keep it in a

safe place near the refrigerator for future reference.

As the following operation instructions apply to various models, the properties of

your refrigerator may be slightly different from those described herein.

This appliance is not intended for use by persons (including children) with reduced

physical, sensory or mental capabilities, or lack of experience and knowledge,

unless they have been given supervision or instruction concerning use of the

appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

Risk of fire / flammable materials

Safety precautions_03

•In case of R600a refrigerant, it is natural gas with high environmental

compatibility but also combustible.When transporting and installing

the appliance, care should be taken to ensure that no parts of the

refrigerating circuit are damaged.

•Refrigerant squirting out of the pipes could ignite or cause an eye

injury. If a leak is detected, avoid any naked ﬂames or potential sources

of ignition and air the room in which the appliance is standing for

several minutes.

•In order to prevent the inflammable gas from producing due to the mixing of

air and refrigerant leaked from the refrigerating circuit, the size of the room

for accommodating the refrigerator shall be selected based on the quantity

of the refrigerant.

•In case any damage sign is displayed, do not start the appliance up. Please

consult your distributor for any questions.

•The room must be 1m3in size for every 8g of R600a refrigerant inside the

appliance.

•For the consumption of refrigerant, refer to the rating label of your

refrigerator.

•Please dispose of the packaging material for this product in an

environmentally friendly manner.

•Do not change the parts in the refrigerator at random.

SEVERE WARNING SIGNS

WARNING

•Do not connect several electric appliances to the same multifunctional socket.

- Otherwise, fire hazard may be caused.

•Avoid placing the power plug at a place very close to the rear part of the

refrigerator to ensure that the power plug will not be crushed or damaged.

- A damaged power plug may cause a fire disaster due to overheating.

•Water is forbidden to be splashed or flow onto the refrigerator.

- There is a danger of fire or electric shock.

•Do not place heavy objects, or microwave oven, electric cooker and other electric

appliances which give out heat, on the power cord.

- There is a danger of short circuit or fire.

•Do not plug or unplug the power plug when the hand is wet.

- Otherwise, electric shock may be caused.

•Do not place a container full of water at the top of the refrigerator.

- If the water splashes, there is a danger of fire or electric shock.

•Do not install the refrigerator in a damp place or place where it may come in

contact with water.

Deteriorated insulation of electrical parts may cause an electric shock or fire.

04_Safety precautions

Safety precautions

•Do not store in the refrigerator or use near the refrigerator the volatile or flammable

materials.

Such materials as benzene, thinner, ethanol, ethyl ether, LP gas, etc. may cause

explosion.

•

Do not disassemble or repair the refrigerator by yourself.

- There is a danger of fire, malfunction or personal injury.

•Do not replace LED lamp privately; please contact the specialized serviceman if

necessary.

•If you are going to dispose of the refrigerator, first dismantle the refrigerator door

and sealing elements before throwing it away.

- This prevents the children from being locked in the refrigerator.

•The refrigerator must be grounded.

- To prevent any power consumption or electric shock caused by electric leakage

from the refrigerator.

•Never use gas pipes, telephone lines or other potential lightening rods as

grounding point.

- Improper use of grounding plug may result in electric shock.

•When positioning the appliance, ensure the supply cord is not trapped or

damaged.

•Do not locate multiple portable socket-outlets or portable power supplies at the

rear of the appliance.

•If the supply cord is damaged, it must be replaced by the manufacturer, its

service agent or similarly qualified persons in order to avoid a hazard.

•Keep ventilation openings, in the appliance enclosure or in the built-in structure,

clear of obstruction.

•Do not use mechanical devices or other means to accelerate the defrosting

process, other than those recommended by the manufacturer.

•Do not damage the refrigerant circuit.

•Do not use electrical appliances inside the food storage compartments of the

appliance, unless they are of the type recommended by the manufacturer.

•Do not store explosive substances such as aerosol cans with a flammable

propellant in this appliance.

CAUTION SIGNS

CAUTION

•Do not store a lot of food in the fridge compartment.

- When the door is opened, the food may fall off to cause personal injury or

material damage.

•Do not put bottles or glass containers in the freezer compartment.

- Do not put glass products in the freezer compartment, because such products

may be broken due to expansion of the substances in them when being frozen.

•If the power plug is loosen, do not connect it.

- There is a danger of electric shock or fire.

Safety precautions_05

Safety precautions

•Do not unplug the power plug by pulling the power cord.

- A damaged power cord may cause short circuit, fire or electric shock.

- A damaged power cord can only be replaced by the manufacturer, approved

maintenance agent or qualified maintenance personnel.

•Do not store objects on the top of the refrigerator.

- When the compartment door is closed or opened, objects may fall off to cause

personal injury or material damage.

•Do not store pharmaceutical products, scientific materials or other products that

are sensitive to temperature in the refrigerator.

- Do not store the products that has a strict requirement on storage temperature

in the refrigerator.

•In case of initial powering on, the food cannot be put in the refrigerator until it is

cooled sufficiently and the food shall not be placed near the temperature sensor.

- So as not to influence the correct temperature display.

•Children are not allowed to play with or climb the refrigerator.

- So as not to damage the refrigerator or harm the children.Do not insert your

hand into the gap at the axis side with door opened.

- In order to avoid personal injury.

•Do not touch the shelf evaporator in the freezer compartment with wet hands.

- In order to avoid hands sticking to the refrigerator due to freezing of water,

resulting in personal injury.

•The refrigerant is used to achieve refrigeration, and is filled in the refrigerator via

special processing technology. Therefore, make sure the pipelines behind the

refrigerator are intact.

•If abnormal noise, odor or smog is found, immediately unplug the power plug and

contact the nearest Samsung electronics service center.

•When cleaning the plug, do not use wet cloth to remove foreign matters on the

pins of the power plug.

- There is a danger of burning or fire.

•Do not insert your hands into the bottom of the refrigerator.

- The sharp edges may cause personal injury.

•

If the refrigerator is not in use for a long time, please unplug the power plug.

- Aging of insulating materials may cause fire.

•

Keep the air vent and air duct in the refrigerator clean and prevent them from being

blocked.

•In addition to the methods suggested by the manufacturer, please do not quicken

the defrosting process with the mechanical device or any other methods.

•Do not damage the refrigeration system and circuit.

•Do not use other electronics in the refrigerator except those recommended by the

manufacturer.

•Do not place the vegetable oil in the bottle rack of the refrigerator. Otherwise,

06_Safety precautions

Safety precautions

the oil will be solidified to produce putrid odor and difficult to use. Moreover, the

opened container will leak oil, breaking the bottle rack. The container of vegetable

oil shall preferably be placed in a cool place after opening, such as cupboard or

pantry.

- Examples of vegetable oil categories: olive oil, corn oil, grape seed oil, etc.

•Some models of the refrigerator have protective film on surface which can prevent

the refrigerator from being scratched in the process of transportation. In order to

avoid static electricity, please tear the protective film off slowly. If the protective

film is not removed for a long time, color difference of the steel plate may be

caused.

•This appliance is intended to be used in household and similar applications such

- staff kitchen areas in shops, offices and other working environmen

- farm houses and by clients in hotels, motels and other residential type

environments;

- bed and breakfast type environments;

- catering and similar non-retail applications.

Contents_07

Contents

Assembling your three-door

refrigerator

Operation guide for Samsung

three-door refrigerator

FAULT ANALYSIS

FAULT DIAGNOSIS FUNCTION

08 Installing the refrigerator

10 Preparations before use

10 Initial powering on and temperature

adjustment

11 Control panel

13 Refrigerator diagram

14 Food storage guide

16 Maintenance and cleaning

17 Disassembly of accessories

08_Assembly

Assembling your three-door refrigerator

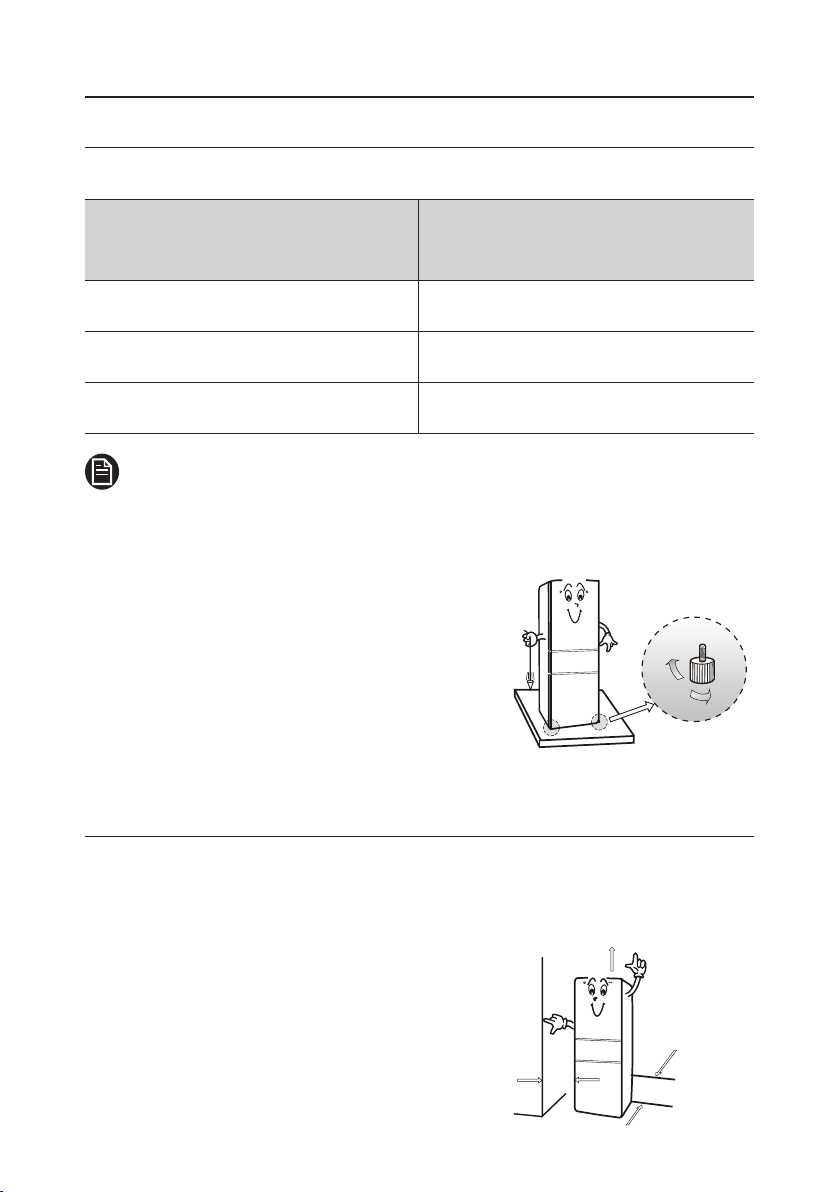

INSTALLING THE REFRIGERATOR

*Dimensions of this appliance (mm)

NOTE

•The measurements here are based on the design dimension,which may differ

depending on measuring method.

Before use, please remove all packaging assemblies, including inner adhesive

tape, etc., and make sure that the foam

mattresses of the refrigerator are removed.

1. The floor for placing the refrigerator shall be flat

and solid.

If the refrigerator is not placed level, rotate the

adjusting leg under the refrigerator to adjust

the level (rotate anticlockwise to raise the

refrigerator).

For safety reasons, the refrigerator shall be placed with the front slightly

higher than the rear.

2. Leave enough space for placing the refrigerator.

The distance between the rear & sides of the refrigerator and the walls

shall be no less than 55mm, and the height at the top shall be no less than

300mm.

Model RB29M5241*

Width

(including the door) 627

Depth 668

Height 1850

Above 300mm

Above 55mm

Assembly_09

01 Assembly

INSTALLING THE REFRIGERATOR

Assembling your three-door refrigerator

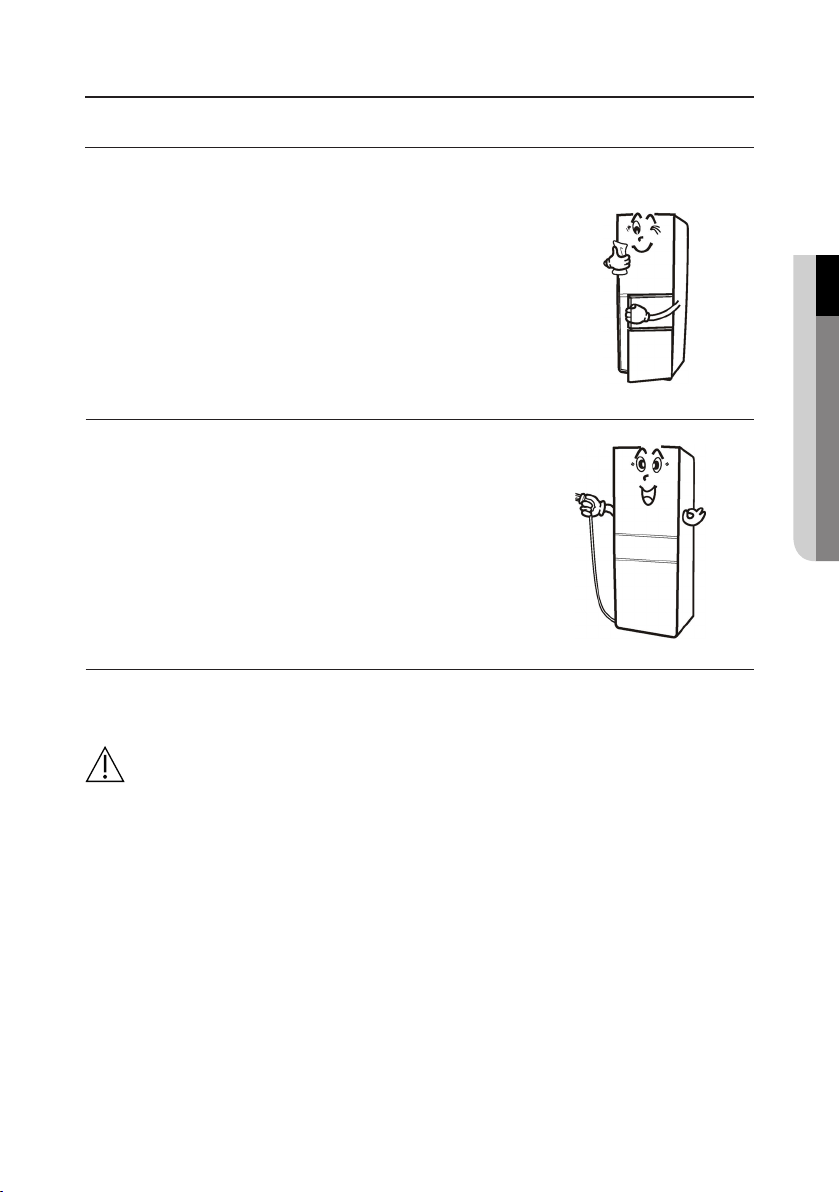

3. Clean the refrigerator.

Clean inside and outside of the refrigerator with warm

wet cloth (a small amount of neutral detergent can be

added in the warm water).

4. Connect the power plug after resting for 2 hours,

note that operations shall follow the indications on

the refrigerator.

Grounding of this appliance

WARNING

•This appliance must be grounded before use.

- To avoid any power consumption or electric shock caused by electric leakage

from this appliance.

- Never use gas pipes, telephone lines or other potential lightening rods as

grounding terminal.

•Never use an ungrounded power socket.

- Connect the ground wire (yellow-green or green).

10_Operation

PREPARATIONS BEFORE USE

Operation guide for Samsung three-door refrigerator

By completing the following steps, the refrigerator should be fully operational. If

not, first check the power supply and electricity source. If you have any further

questions, please contact the nearest Samsung service center.

1. Install the shelves and containers which are dismantled for transportation at

correct locations.

2. Clean all compartments and accessories and remove the dust accumulated

during packaging and shipping.

3. Once the refrigerator is powered on, make sure the interior light comes

on when you open the door of fridge compartment or interchangeable

temperature compartment (optional).

4. After being powered on for one hour, the refrigerator will be cool slightly. And

the compressor should run smoothly with gentle buzz.

5. Once the refrigerator temperature is sufficiently cool, you can store food in

the refrigerator.

Please remember that after starting the refrigerator, it will take a few hours to

reach the appropriate temperature.

NOTE

•Before connecting the power supply, check the voltage range. The wires and

sockets must be able to withstand the current of 10A or above.

INITIAL POWERING ON AND TEMPERATURE ADJUSTMENT

display

After connecting the power, all displays will be on for

3 seconds and then the refrigerator enters the initial

powering on mode, namely, the temperature is set to

C for fridge compartment, 0

C for interchangeable

temperature compartment and -18

C for freezer

compartment. The temperature display zone displays

the current set temperatures.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Samsung Kühlschrank Handbücher

Samsung

Samsung RF28HDEDB Series Bedienungsanleitung

Samsung

Samsung RL55VQBRS Premium 2m Fridge Freezer Bedienungsanleitung

Samsung

Samsung SR-23NME Bedienungsanleitung

Samsung

Samsung DA99-03236K Bedienungsanleitung

Samsung

Samsung RFG298HDRS Bedienungsanleitung

Samsung

Samsung SR-S25NTA Bedienungsanleitung

Samsung

Samsung SR-28NMA Bedienungsanleitung

Samsung

Samsung RB3 Series Bedienungsanleitung

Samsung

Samsung RS2545SH Technisches Handbuch

Samsung

Samsung RF267AEBP Bedienungsanleitung

Samsung

Samsung RB38T675ESA/EK Bedienungsanleitung

Samsung

Samsung rl1505sbasr Bedienungsanleitung

Samsung

Samsung SRS579NP Bedienungsanleitung

Samsung

Samsung SR392MWR Bedienungsanleitung

Samsung

Samsung RB3 T Series Bedienungsanleitung

Samsung

Samsung RF323TE Bedienungsanleitung

Samsung

Samsung RFG237AAPN - 23 cu. ft. Refrigerator Bedienungsanleitung

Samsung

Samsung RF4287HABP Bedienungsanleitung

Samsung

Samsung RB34A7B5EB1/EF Bedienungsanleitung

Samsung

Samsung RH25H5611SG Bedienungsanleitung

Samsung

Samsung RS265TDBP Bedienungsanleitung

Samsung

Samsung RF267ABBP/XAA Bedienungsanleitung

Samsung

Samsung RF23M857 Bedienungsanleitung

Samsung

Samsung RF29BB8900 Bedienungsanleitung

Beliebte Kühlschrank Handbücher anderer Marken

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Bedienungsanleitung

Sharp

Sharp SJ-BA31IEXW2-EU Bedienungsanleitung

CORBERO

CORBERO CC2300MCW Bedienungsanleitung

KitchenAid

KitchenAid 2205264 Bedienungsanleitung

Stengel

Stengel KU 1101 A++ Bedienungsanleitung

NEFF

NEFF KI181 Series Bedienungsanleitung

Hoshizaki

Hoshizaki Reach-In Bedienungsanleitung

Amana

Amana ASD2524VES00 Bedienungsanleitung

BOMANN

BOMANN KGC 213 Bedienungsanleitung

Danby

Danby DAR044A1SLDD Montageanleitung

Beko

Beko CSA31022 Bedienungsanleitung

IKEA

IKEA FROSTIG C 185 E Bedienungsanleitung

Electrolux

Electrolux ER 6821 D Bedienungsanleitung

True

True TS-28 Bedienungsanleitung

Frigidaire

Frigidaire FSC23R5DW9 Bedienungsanleitung

Beko

Beko LSP4579W Bedienungsanleitung

Teledyne

Teledyne 6712FR and Betriebsanleitung
