KEY FEATURES OF YOUR NEW REFRIGERATOR

Your Samsung French Door Refrigerator comes equipped with various innovative storage and energy-efficient

features. , Twin Cooling System

The Refrigerator and Freezer have separate evaporators. Due to this independent cooling system,

the Freezer and Refrigerator cool more efficiently.

Additionally, this separate air flow system prevents food odor of one compartment from seeping into

other compartments.

, Cool Select Pantry nus

The Cool Select pantry n°Sis a full-width drawer with adjustable temperature control.

, Bigger & Wider Space

The wide shelf area and pantry provide enough space for larger items like a pizza box, etc.

The wide freezer drawer also provides enough space for 2-3 turkeys.

, Secure Auto Close

The Secure Auto Close feature will automatically close a door that is slightly open.

,, Compact Ice Maker

The Ice maker can dispense cubed or crushed ice.

, Digital Display and Temperature Control

, Water Filtration System

,, Door Alarm

A helpful beeper alerts you if door is ajar.

, Tilting Pocket

The Tilting pocket can be used to store up to a 16" pizza.

, Auto Pull Out Drawer

The upper drawer in the freezer comes out automatically when you open the freezer door.

, Easy Handle

Freezer door can be opened with less effort.

, Energy Star

This Energy star labeled product may save you money on your energy costs.

,, Dual Ice Maker

The Refrigerator and freezer each have an ice maker; providing even more cubed and crushed ice.

For easy future reference, write the

model and serial number down. You

will find your model number and serial

number on the left side of the refrigerator.

Model #

Serial #

2 fea ures

SAFETY INFORMATION

Before usingyour new Samsung French Door Refrigerator,please readthis manual thoroughly to ensure that

you know how to safelyand efficientlyoperate the features and functions that your new appliance offers.

This appliance isnot intended for use by persons (includingchildren)with reduced physical, sensory or mental

capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction

concerning use of the appliance by a person responsible for their safety.

Because the following instruction covers various models, the characteristics of your Refrigerator may differ

slightlyfrom the Refrigeratordescribed inthis manual.Ifyou haveanyquestion, contact usat 1-800-SAMSUNG

or find helpand information online at www.samsung.com.

Important safety symbols and precautions:

//_ Hazards or unsafe practices that may result in severe personal injury or death.

WARNING

Hazards or unsafe practices that may result in minor personal injury or property

CAUTION damage.

Do NOT attempt.

Do NOT disassemble.

Do NOT touch.

[_ Follow directions carefully.

Unplug the power plug from the wall socket.

Make sure the refrigerator is grounded to prevent electric shock.

Call the contact center for help.

Note.

These warning signs are here to prevent injury to you and others.

Please follow them carefully.

After reading this section, keep it in a safe place for future reference.

WARNINGSEVEREWARNING SIGNS FOR INSTALLATION

,, Do not install the refrigerator in a damp place or place where it may come in contact with water.

- Deteriorated insulation of electrical parts may cause an electric shock or fire.

,, Do not place this refrigerator in direct sunlight or expose to the heat from stoves, room heaters or

other appliance.

,, Do not plug several appliances into the same multiple power board. The refrigerator should always be

plugged into its own individual electrical which has a voltage rating that matched the rating plate.

- This provides the best performance and also prevents overloading house wiring circuits, which could cause

a fire hazard from overheated wires.

safety inforrr at on 3

nforrn t on

CAUTION

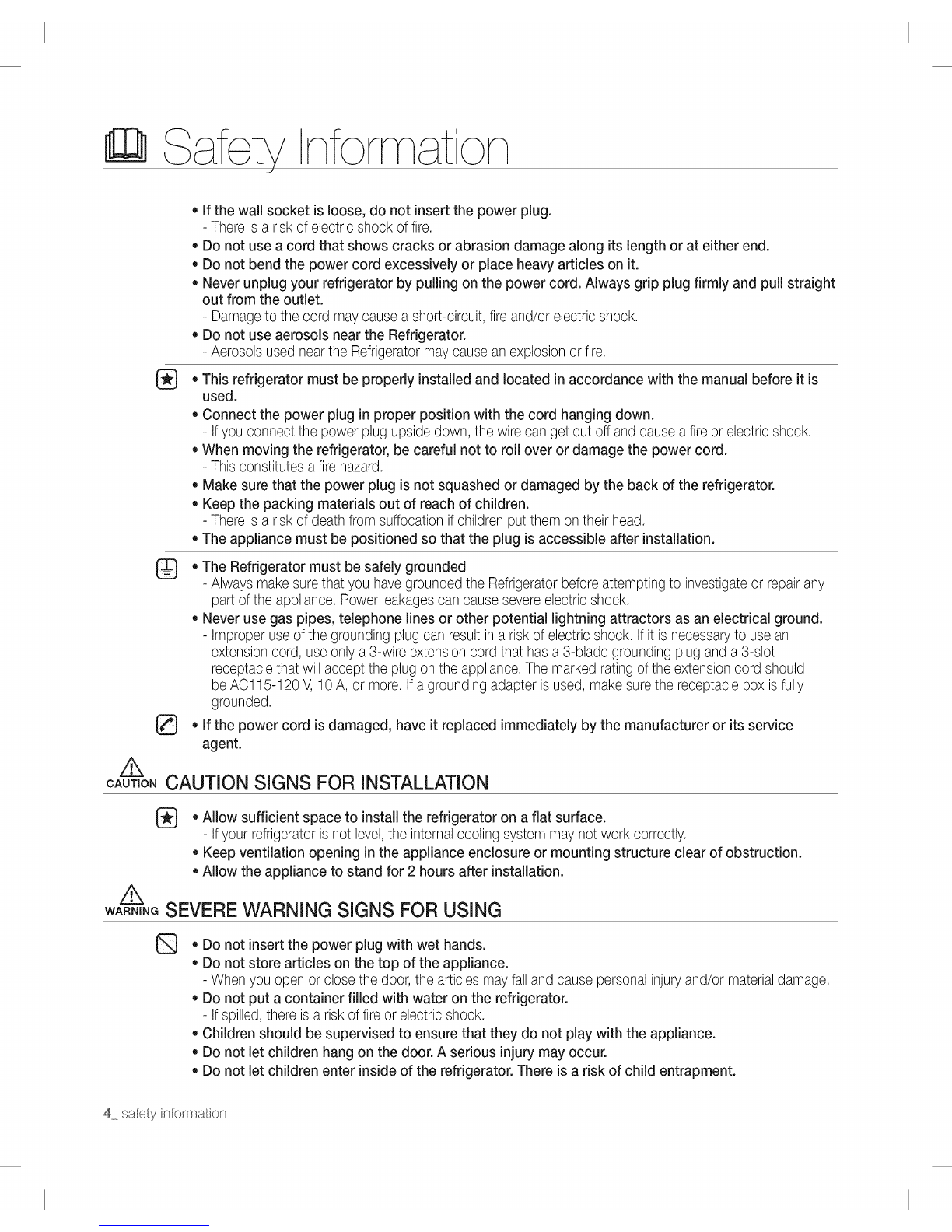

•If the wall socket is loose, do not insert the power plug.

- There is a risk of electric shock of fire.

•Do not use a cord that shows cracks or abrasion damage along its length or at either end.

•Do not bend the power cord excessively or place heavy articles on it.

•Never unplug your refrigerator by pulling on the power cord. Always grip plug firmly and pull straight

out from the outlet.

- Damage to the cord may cause a short-circuit, fire and/or electric shock.

•Do not use aerosols near the Refrigerator.

- Aerosols used near the Refrigerator may cause an explosion or fire.

This refrigerator must be properly installed and located in accordance with the manual before it is

used.

Connect the power plug in proper position with the cord hanging down.

- Ifyou connect the power plug upside down, the wire can get cut off and cause a fire or electric shock.

When moving the refrigerator, be careful not to roll over or damage the power cord.

- This constitutes a fire hazard.

Make sure that the power plug is not squashed or damaged by the back of the refrigerator.

Keep the packing materials out of reach of children.

- There is a risk of death from suffocation if children put them on their head.

The appliance must be positioned so that the plug is accessible after installation.

The Refrigerator must be safely grounded

- Always make sure that you have grounded the Refrigerator before attempting to investigate or repair any

part of the appliance. Power leakages can cause severe electric shock.

Never use gas pipes, telephone lines or other potential lightning attractors as an electrical ground.

- Improper use of the grounding plug can result in a risk of electric shock. If it is necessary to use an

extension cord, use only a 3-wire extension cord that has a 3-blade grounding plug and a 3-slot

receptacle that will accept the plug on the appliance. The marked rating of the extension cord should

be AC115-120 V, 10 A, or more. If a grounding adapter is used, make sure the receptacle box is fully

grounded.

If the power cord is damaged, have it replaced immediately by the manufacturer or its service

agent.

CAUTION SIGNS FOR INSTALLATION

• Allow sufficient space to install the refrigerator on a flat surface.

- If your refrigerator is not level, the internal cooling system may not work correctly.

•Keep ventilation opening in the appliance enclosure or mounting structure clear of obstruction.

•Allow the appliance to stand for 2 hours after installation.

WARNINGSEVERE WARNING SIGNS FOR USING

G•Do not insert the power plug with wet hands.

•Do not store articles on the top of the appliance.

- When you open or close the door, the articles may fall and cause personal injury and/or material damage.

•Do not put a container filled with water on the refrigerator.

- If spilled, there is a risk of fire or electric shock.

•Children should be supervised to ensure that they do not play with the appliance.

•Do not let children hang on the door. A serious injury may occur.

•Do not let children enter inside of the refrigerator. There is a risk of child entrapment.

4 safety info_rraton

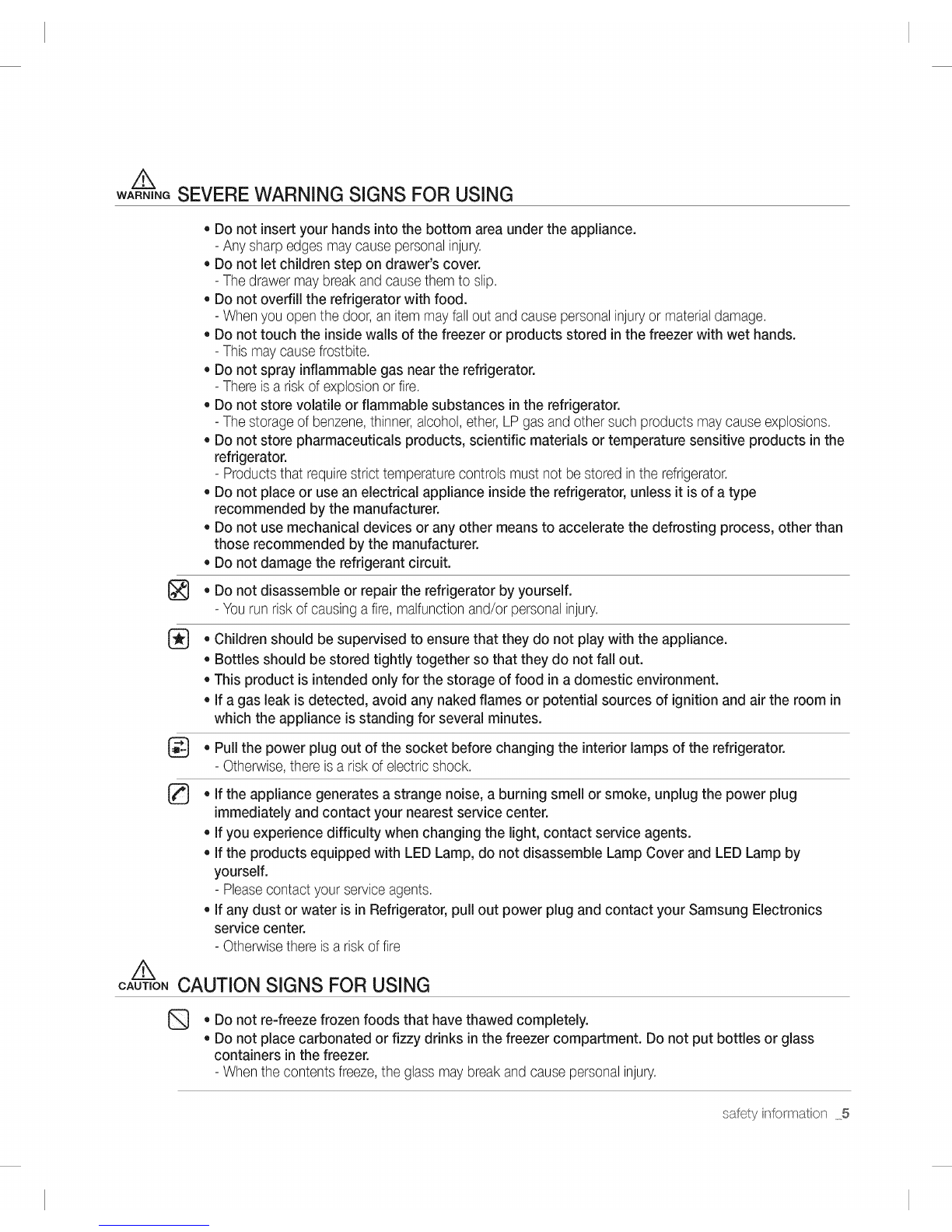

WARNINGSEVEREWARNING SIGNS FOR USING

•Do not insert your hands into the bottom area under the appliance.

- Any sharp edges may cause personal injury.

•Do not let children step on drawer's cover.

- The drawer may break and cause them to slip,

•Do not overfill the refrigerator with food.

- When you open the door, an item may fall out and cause personal injury or material damage.

•Do not touch the inside walls of the freezer or products stored in the freezer with wet hands.

- This may cause frostbite,

•Do not spray inflammable gas near the refrigerator.

- There is a risk of explosion or fire,

•Do not store volatile or flammable substances in the refrigerator.

- The storage of benzene, thinner, alcohol, ether, LP gas and other such products may cause explosions,

•Do not store pharmaceuticals products, scientific materials or temperature sensitive products in the

refrigerator.

- Products that require strict temperature controls must not be stored in the refrigerator.

•Do not place or use an electrical appliance inside the refrigerator, unless it is of a type

recommended by the manufacturer.

•Do not use mechanical devices or any other means to accelerate the defrosting process, other than

those recommended by the manufacturer.

Do not damage the refrigerant circuit.

Do not disassemble or repair the refrigerator by yourself.

-You run risk of causing a fire, malfunction and/or personal injury,

Children should be supervised to ensure that they do not play with the appliance.

Bottles should be stored tightly together so that they do not fall out.

This product is intended only for the storage of food in a domestic environment.

If a gas leak is detected, avoid any naked flames or potential sources of ignition and air the room in

which the appliance is standing for several minutes.

Pullthe power plug out of the socket before changing the interior lamps of the refrigerator.

- Otherwise, there is a risk of electric shock,

If the appliance generates a strange noise, a burning smell or smoke, unplug the power plug

immediately and contact your nearest service center.

If you experience difficulty when changing the light, contact service agents.

If the products equipped with LED Lamp, do not disassemble Lamp Cover and LED Lamp by

yourself.

- Please contact your service agents,

•If any dust or water is in Refrigerator, pull out power plug and contact your Samsung Electronics

service center.

- Otherwise there is a risk of fire

/5,

CAUTIONCAUTION SIGNS FOR USING

G•Do not re-freeze frozen foods that have thawed completely.

•Do not place carbonated or fizzy drinks in the freezer compartment. Do not put bottles or glass

containers in the freezer.

- When the contents freeze, the glass may break and cause personal injury,

safety inforrr at on 5

nforrn t on

• Service warranty and Modification.

- Any changes or modifications performed by a 3rd party on this finished appliance is not covered under

Samsung warranty service, nor can Samsung be responsible for safety issues that result from 3rd party

modifications.

Do not block air holes.

- Ifthe air holes are blocked, especially with a plastic bag, the refrigerator can be over cooled. If this cooling

period lasts too long, the water filter may break and cause water leakage.

If the refrigerator is disconnected from the power supply, you should wait for at least five minutes

before plugging it back.

If you have a long vacation planned or the refrigerator is not to be used for a long period of time,

you must empty the refrigerator and pull out the power plug.

- Deterioration in the insulation may cause fire.

Wipe excess moisture from the inside and leave the doors open.

- Otherwise, door and mold may develop.

To get the best performance from the product,

- Do not place foods too closely in front of the vents at the rear of the appliance as it can obstruct free air

circulation in the refrigerator compartment.

- Wrap the food up properly or place it in airtight containers before putting it into the refrigerator.

Fill water tank, ice tray, water cubes only with potable water.

• When the product is flooded, make sure to contact your nearest service center.

- There is a risk of electric shock or fire.

cAu'no.CAUTION SIGNS FOR CLEANING

• Do not directly spray water inside or outside the refrigerator.

- There is a risk of fire or electric shock.

• Remove any foreign matter or dust from the power plug pins. Do not use a wet or damp cloth when

cleaning the plug, remove any foreign material or dust from the power plug pins.

- Otherwise there is a risk of fire or electric shock.

• Unplug the refrigerator before cleaning and making repairs.

wAR.I.GSEVERE WARNING SIGNS FOR DISPOSAL

®Risk of child entrapment. Before you throw away your old refrigerator or freezer:

- Take off the doors.

- Leave the shelves in place so that children may not easily climb inside.

Please dispose of the packaging material for this product in an environmentally friendly manner.

Leave the shelves in place so that children may not easily climb inside. Ensure that none of the

pipes on the back of the appliance are damaged prior to disposal.

When disposing of this refrigerator, remove the door/door seals and door latch so that small

children or animals cannot become trapped inside.

Children should be supervised to ensure that they do not play with the appliance.

Cyclopentane is used as in the insulation. The gases in the insulation material require a special

disposal procedure. Please contact your local authorities in regard to the environmentally safe

disposal of this product. Ensure that none of the pipes on the back of the refrigerator are damaged

prior to disposal.

6 safety inforrr aton

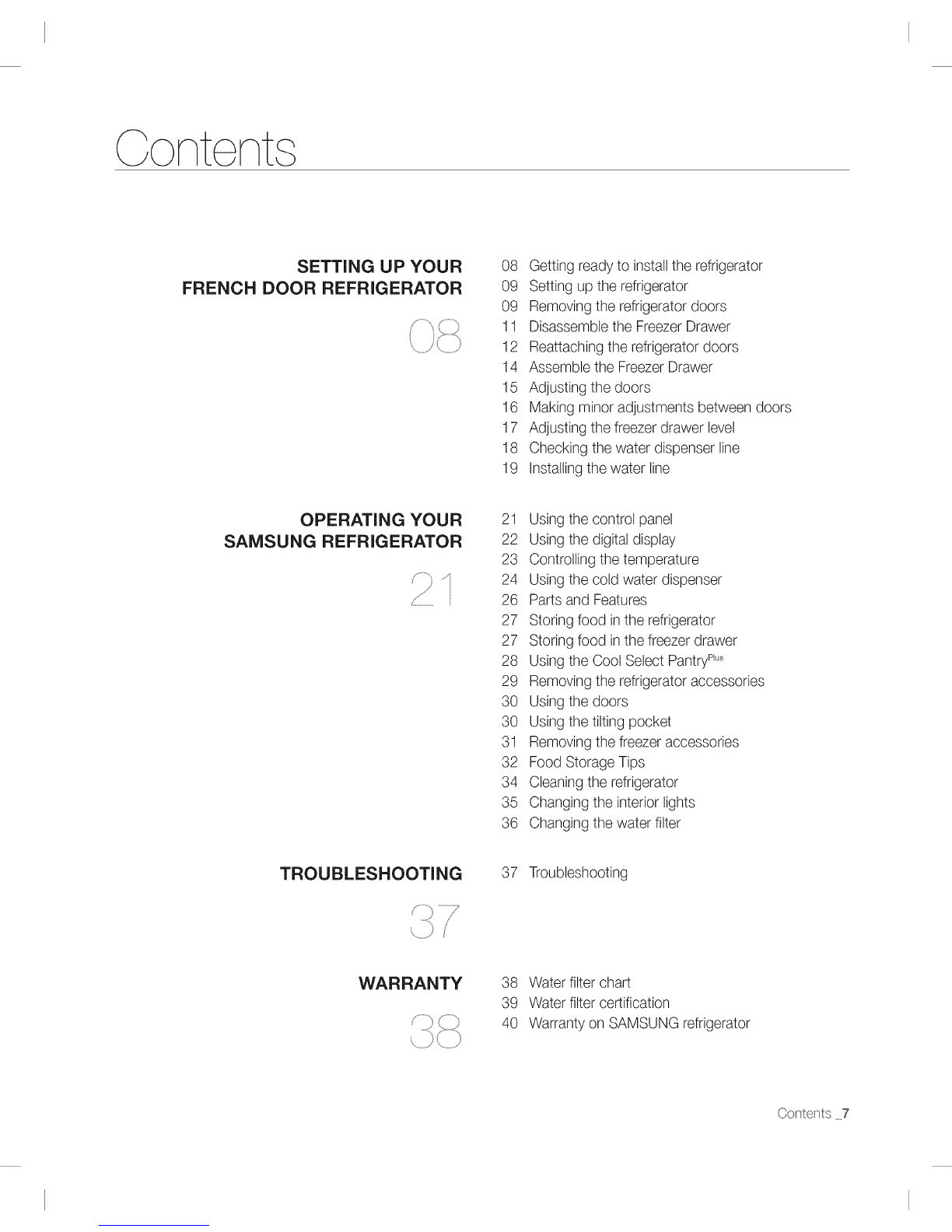

SETTING UP YOUR

FRENCH DOOR REFRIGERATOR 08 Getting ready to install the refrigerator

09 Setting up the refrigerator

09 Removing the refrigerator doors

11 Disassemble the Freezer Drawer

12 Reattaching the refrigerator doors

14 Assemble the Freezer Drawer

15 Adjusting the doors

16 Making minor adjustments between doors

17 Adjusting the freezer drawer level

18 Checking the water dispenser line

19 Installing the water line

OPERATING YOUR

SAMSUNG REFRIGERATOR

21 Using the control panel

22 Using the digital display

23 Controlling the temperature

24 Using the cold water dispenser

26 Parts and Features

27 Storing food in the refrigerator

27 Storing food in the freezer drawer

28 Using the Cool Select Pantry nus

29 Removing the refrigerator accessories

30 Using the doors

30 Using the tilting pocket

31 Removing the freezer accessories

32 Food Storage Tips

34 Cleaning the refrigerator

35 Changing the interior lights

36 Changing the water filter

TROUBLESHOOTING 37 Troubleshooting

WARRANTY

i;!fl

', ,,J

38 Water filter chart

39 Water filter certification

40 Warranty on SAMSUNG refrigerator

3ott ron DoorRofr rator

GETTING READY TO INSTALL THE REFRIGERATOR

Congratulations on your purchase of the Samsung French Door Refrigerator. We hope you enjoy the state-of-art

features and efficiencies that this new appliance offers.

Selecting the best location for the Refrigerator

• A location with easy access to the water supply.

• A location without direct exposure to sunlight.

A location with level (or nearly level) flooring.

A location with enough space for the Refrigerator doors to open easily.

Allow sufficient space for air circulation of the internal cooling system.

If the Refrigerator does not have enough space, the internal cooling system may

not work properly.

If your refrigerator has an ice maker, allow extra space at the back for the water line connections.

When you install the refrigerator next to a fixed wall, minimum clearance is 3 3A"(95mm) between the refrigerator

and wall to allow the door to swing open.

First thing! Make sure that you can easily move your Refrigerator to its final location by measuring doorways

(both width and height), thresholds, ceilings, stairways, etc.

The following chart details the exact height and depth of Samsung French Door Refric erator.

Model

RF268AB 35_3A"

(90.8cm)

Height

68_% 7'

(174.40m)

Overall

Height "D"

69_3A7'

(177.40m)

Depth

"E77

CAUTION

Allow clearance to the right, left, back and top when installing. This will help

reduce power consumption and keep your energy bills lower.

Do not install the Refrigerator where the temperature will go below 50°F (10°C).

Do not locate the refrigerator where it may become wet.

When moving your refrigerator

To prevent floor damage, be sure the front adjusting legs

are in the up position(above the floor).

Refer to 'Adjusting the doors' in the manual (on page 15).

Flat-blade

FLOORING screw driver(-)

For proper installation, this refrigerator must be placed on a level

surface of hard material that is the same height as the rest of the

flooring. This surface should be strong enough to support a fully

loaded refrigerator, or approximately 3281bs (150kg). To protect

the finish of the flooring, cut a large section of the cardboard

carton and place under the refrigerator where you are working.

When moving the refrigerator, be sure to pull it straight out and

push it back straight in.

Control Lever

8 Settng up

SETTING UP THE REFRIGERATOR

Now that you have your new Refrigerator installed in place, you are ready to set up and enjoy the features and

functions of the appliance. By completing the following steps, your Refrigerator should be fully operational.

1. Place the Refrigerator in an appropriate location with reasonable clearance between it and the wall.

Refer to installation instructions in this manual.

2. Once the Refrigerator is plugged in, make sure the interior light comes on when you open the doors.

3. Set the Temperature control to the coldest temperature and wait for an hour. The Freezer will get slightly

chilled and the motor will run smoothly.

4. After powering the Refrigerator, it will take a few hours to reach the appropriate temperature. You can

store food and drinks in the Refrigerator after the temperature is sufficiently cool.

Check the accessories listed below.

Water filter Hex wrench Fastener Compression fitting

Compression nut Clip fitting lock(red)

Required Tools (Not provided)

Philips screwdriver(+) Flat-blade screwdriver(-) Socket wrench (7/16") Pliers Allen wrench(3/16")

REMOVING THE REFRIGERATOR DOORS

Some installations require door removal to transport the Refrigerator to its final location.

Do not remove the door/drawer if it is not needed. Before removing the door/drawer, make sure you read

following items.

WARNING

®Disconnect power to the Refrigerator before removing the door or drawer.

Be careful not to drop, damage or scratch the door/drawer while removing them.

Be careful not to get injured while removing the door/drawer.

Reattach the door/drawer properly to avoid:

- Moisture from air leakage.

- Uneven door alignment.

- Wasting energy due to improper door seal.

Disassemble the Refrigerator doors

/_ Be careful not to drop and scratch the doors while the

removing

WARNING doors.

Disassemble the Refrigerator doors

1. With the door opened, remove the cap top table ( 1 ) with

a flat-blade screwdriver(-), and close the door.

Remove the 3 screws holding down the top table ( 2 ) and

remove it.

Settng up 9

DoorRefrgera or

2. Disconnect 2 connectors ( 3 ) at each

side of the top cap and one connector

( 4 ) on the left side door. Remove the

water line ( 5 ) while pressing the dark

gray color part ( 6 ) of the water line

coupler.

CAUTION

If a red clip is on the coupler, it must

be removed before removing the

tube.

3. Remove the 3 hex head bolts ( 7) attached to the

upper left and right door hinges with a socket wrench

(7/16"). Remove the ground screw ( 8 ) attached to

the upper left and right door hinges with a philips

screwdriver(+).

Remove the upper left and right door hinges ( 9 ). @

Socket wrench

4. Lift the door straight up to remove.

5. Remove the screw ( 10 ) attached to the lower left

and right door hinges with a philips screwdriver(+).

Remove the 2 hex head bolts ( 11 ) attached to the

lower left and right door hinges with an allen wrench

(3/16").

Remove the lower left and right door hinges ( 12 ).

10 Setti_g up

Andere Handbücher für RF268AB SERIES

Inhaltsverzeichnis

Sprachen:

Andere Samsung Kühlschrank Handbücher

Samsung

Samsung RF220NCTASR/AA Bedienungsanleitung

Samsung

Samsung RS27T5561 Series Bedienungsanleitung

Samsung

Samsung RF28T5021 Bedienungsanleitung

Samsung

Samsung RS25H50 SERIES Bedienungsanleitung

Samsung

Samsung RS25H5121 Bedienungsanleitung

Samsung

Samsung RS275ACBPXAA Sicherheitsleitfaden

Samsung

Samsung RS554NRUA Series Bedienungsanleitung

Samsung

Samsung RF25HMEDBSG Bedienungsanleitung

Samsung

Samsung RF62QEPN Bedienungsanleitung

Samsung

Samsung BRB2600 Series Bedienungsanleitung

Samsung

Samsung SRF533DLS Bedienungsanleitung

Samsung

Samsung SR-S25NTA Bedienungsanleitung

Samsung

Samsung RFG293HA Bedienungsanleitung

Samsung

Samsung RF28R7201 AA Series Bedienungsanleitung

Samsung

Samsung RB1955SWRB1955SH Bedienungsanleitung

Samsung

Samsung RF22 Series Bedienungsanleitung

Samsung

Samsung RS22HDHPNSR Bedienungsanleitung

Samsung

Samsung RFG293HABP Bedienungsanleitung

Samsung

Samsung RT16MAAS Bedienungsanleitung

Samsung

Samsung SR-23NME Bedienungsanleitung

Samsung

Samsung SR-28/29 Bedienungsanleitung

Samsung

Samsung RSH5 Series Bedienungsanleitung

Samsung

Samsung RFG29PEPN Bedienungsanleitung

Samsung

Samsung French Door Refrigerator Bedienungsanleitung

Beliebte Kühlschrank Handbücher anderer Marken

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Bedienungsanleitung

Sharp

Sharp SJ-BA31IEXW2-EU Bedienungsanleitung

CORBERO

CORBERO CC2300MCW Bedienungsanleitung

KitchenAid

KitchenAid 2205264 Bedienungsanleitung

Stengel

Stengel KU 1101 A++ Bedienungsanleitung

NEFF

NEFF KI181 Series Bedienungsanleitung

Hoshizaki

Hoshizaki Reach-In Bedienungsanleitung

Amana

Amana ASD2524VES00 Bedienungsanleitung

BOMANN

BOMANN KGC 213 Bedienungsanleitung

Danby

Danby DAR044A1SLDD Montageanleitung

Beko

Beko CSA31022 Bedienungsanleitung

IKEA

IKEA FROSTIG C 185 E Bedienungsanleitung

Electrolux

Electrolux ER 6821 D Bedienungsanleitung

True

True TS-28 Bedienungsanleitung

Frigidaire

Frigidaire FSC23R5DW9 Bedienungsanleitung

Beko

Beko LSP4579W Bedienungsanleitung

Teledyne

Teledyne 6712FR and Betriebsanleitung
