Samsung RF6H Series Bedienungsanleitung

English

User servicing manual

MODEL CODE: RF6H*, RS68A*, RS6GA*, RS67A*, RS66A*, RS68N*, RS67M*,

RS66M*, RS6GN*, RS6JN*, RS6KN*

1. You can check where to buy replacement parts at http://samsung.com/support

2. Visit the part purchase site and enter the model code of your product to check the parts

available for purchase. The model code is labelled on the outer side of your product.

- You can check the model code and version on the barcode label at the bottom left of

the product.

3. For replacement parts, make sure the part name matches that of the illustration in this

manual.

- User-serviceable parts are limited to handles (some models only), gaskets, drawers, and

hinges.

NOTE

Following the repair by a non-authorised service provider, self-repair or non-professional

repair of the product, Samsung is not liable for any damage to the product, any injury or

any other product safety issue caused by any attempt to repair the product which does

not carefully follow these repair and maintenance instructions. Any damage to the product

caused by an attempt to repair the product by any person other than a Samsung certied

service provider will not be covered by the warranty.

CAUTION

• The part name listed on the site may differ from that in this manual. Please make sure you

choose the right part name.

• Replacing hinges requires extreme caution because it involves detaching the door.

• Be sure to wear safety gloves while making repairs.

RS8000NC_2Door_User-servicing-manual.indb 1 2021-01-27  7:39:11

English

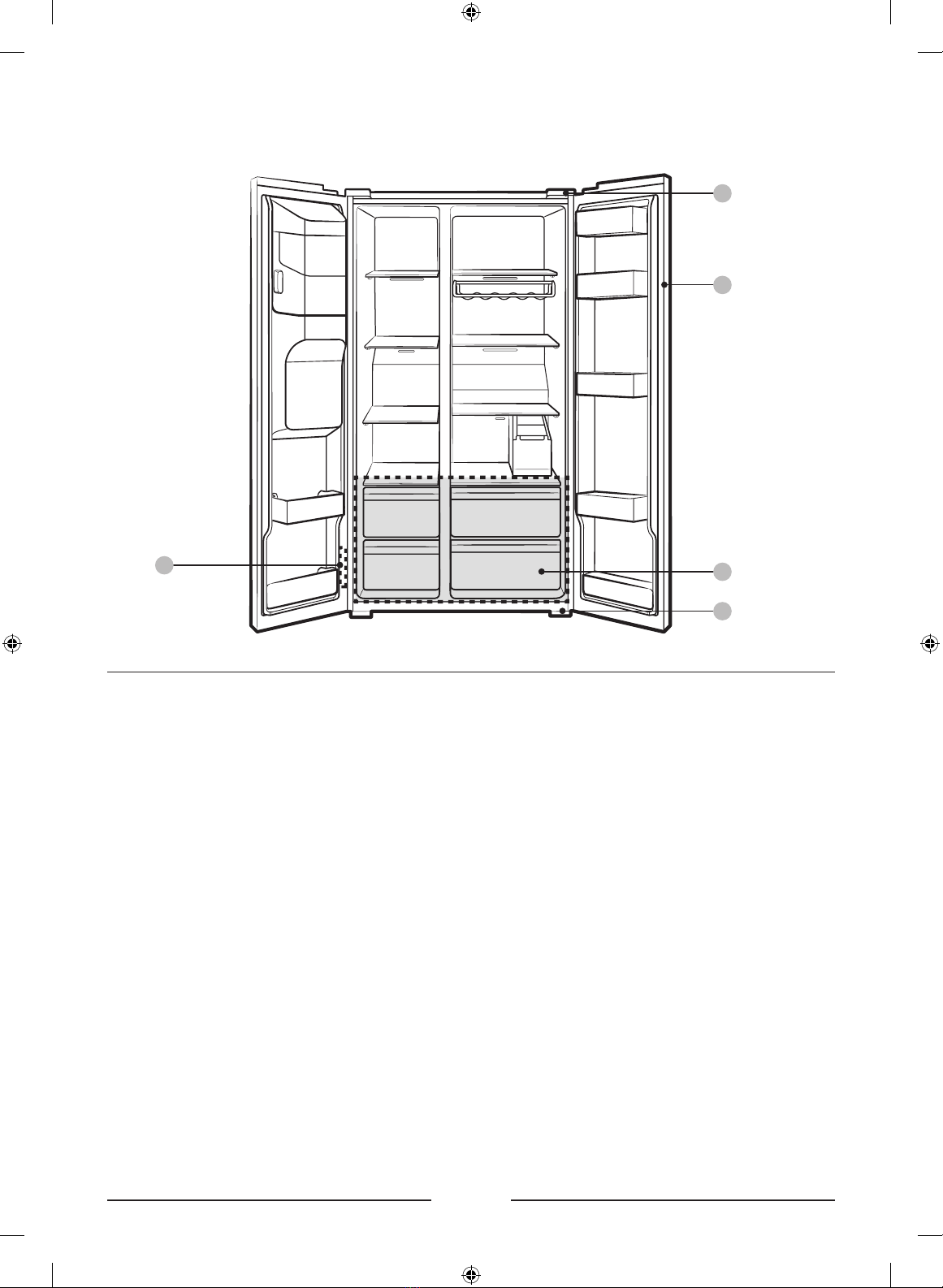

The actual image and provided parts of the refrigerator may differ, depending on the model

and the country.

01 Top hinge 02 Gasket

03 Drawer 04 Bottom hinge

05 Barcode label

RS8000NC_2Door_User-servicing-manual.indb 2 2021-01-27  7:39:11

English

Gasket replacement

CAUTION

Make sure you rmly attach the gasket. Otherwise, cold air from the refrigerator may leak.

To remove the gasket

Open the door and remove the gasket from

the door.

To replace the gasket

Attach a new gasket to the refrigerator door. Make sure there is no gap between the new

gasket and the door.

RS8000NC_2Door_User-servicing-manual.indb 3 2021-01-27  7:39:11

English

Drawer replacement

CAUTION

Check that the drawer is inserted properly into the rail during assembly.

Drawers

Gently lift up the front of the drawer and

slide out.

Vegetable / Dried food and meat storage drawer

To remove the vegetable drawer from the

fridge or the dry drawer from the freezer:

1. First, remove surrounding multipurpose

drawers if necessary.

2. If your refrigerator has a cover (A) for the

vegetable/dry drawer, remove it in the

following method.

a. Pull the drawer halfway out.

b. Pull the cover while pressing the rear

sides (as marked in the gure).

3. Gently pull out the vegetable/dry drawer.

To reattach the drawers

Reattaching the drawers follows the reverse order of their respective removal steps

RS8000NC_2Door_User-servicing-manual.indb 4 2021-01-27  7:39:12

English

Hinge replacement

To replace the hinges, you must remove the doors rst.

CAUTION

• When removing the doors, take extreme caution because the doors are heavy.

• Before replacing the hinges, put a soft pad such as cardboard on the oor to prevent

scratches on the door when you place the doors down.

• As the hinges must be handled carefully and replaced by two or more persons, we

recommend you to call for professional technical service.

• If you remove the hinge without holding the door, the door may fall and cause injury.

• Ensure that the shaft is rmly tightened on the hinge.

• Check that the hinge is rmly attached to the cabinet.

• Make sure the wire connectors are connected properly.

• Be careful not to damage the wires when fastening the top cover.

WARNING

• Tilting/laying the refrigerator requires a minimum of 2 people.

• Disconnect the power cord before reversing the doors.

Tools required (not provided)

Phillips screwdriver Flat-head

screwdriver

Socket spanner

(10 mm)

Allen spanner

(5 mm)

RS8000NC_2Door_User-servicing-manual.indb 5 2021-01-27  7:39:12

English

To replace the hinges

Disconnect the water line

CAUTION

• Make sure the water hoses are connected with matching colours. (only for Dispenser

model)

• To prevent water leaks, each water hose must be inserted fully to the centre of the

transparent coupler. (only for Dispenser model)

• Ensure that the water hose surface is not damaged. (only for Dispenser model)

1. From the bottom rear side of the

refrigerator, pull out the water line to the

front.

NOTE

The refrigerator’s water line is a water

circulation line that connects between the

water pipe from the water source and the

hoses from the water ltering system of the

refrigerator.

2. To disconnect the hoses, press and hold

the transparent coupler (A) and detach the

water hose (B).

CAUTION

Do not apply excessive force to the coupler. It

may break.

RS8000NC_2Door_User-servicing-manual.indb 6 2021-01-27  7:39:13

English

Detach the doors

CAUTION

The door may fall off or over and damage itself during any of these steps. To prevent an

accident, use extreme caution when performing these steps.

1. Use a Phillips screwdriver to unscrew the

hinge covers (A) on the top of each door.

2. Open the doors to loosen the hinges and

remove the hinge covers. Once the covers

are removed, close the doors.

3. Disconnect the electrical harness.

4. Gently lift the clamp.

NOTE

To prevent damage to the clamp or injuries,

do not lift the clamp forcefully.

5. Pull the clamp to remove.

RS8000NC_2Door_User-servicing-manual.indb 7 2021-01-27  7:39:13

English

6. Open the door by 90 degrees. While

holding the door, remove the hinge.

CAUTION

If you remove the hinge without holding the

door, the door may fall and cause injury.

RS8000NC_2Door_User-servicing-manual.indb 8 2021-01-27  7:39:13

English

Hinge Low

Hinge LowHinge Low

1. Lay down the set.

CAUTION

• Must working more than 2 people.

• Be sure to unplug the Power Cord before

performing the operation above.

Pull the guide and Hose

2. Disconnect Hose.

(Only Hinge Low Left)

3. Exhaust Water in Hose.

(Only Hinge Low Left)

4. Remove Bolt(3ea).

(Using spanner or 10mm Box wrench)

5. Remove Hinge Low L/R.

6. Reassemble in the opposite order of

disassemble after replacing the top,

middle, and/or bottom hinge.

CAUTION

• Make sure the wire connectors are

connected properly.

• Be careful not to damage the wires when

fastening the top cover.

RS8000NC_2Door_User-servicing-manual.indb 9 2021-01-27  7:39:14

English

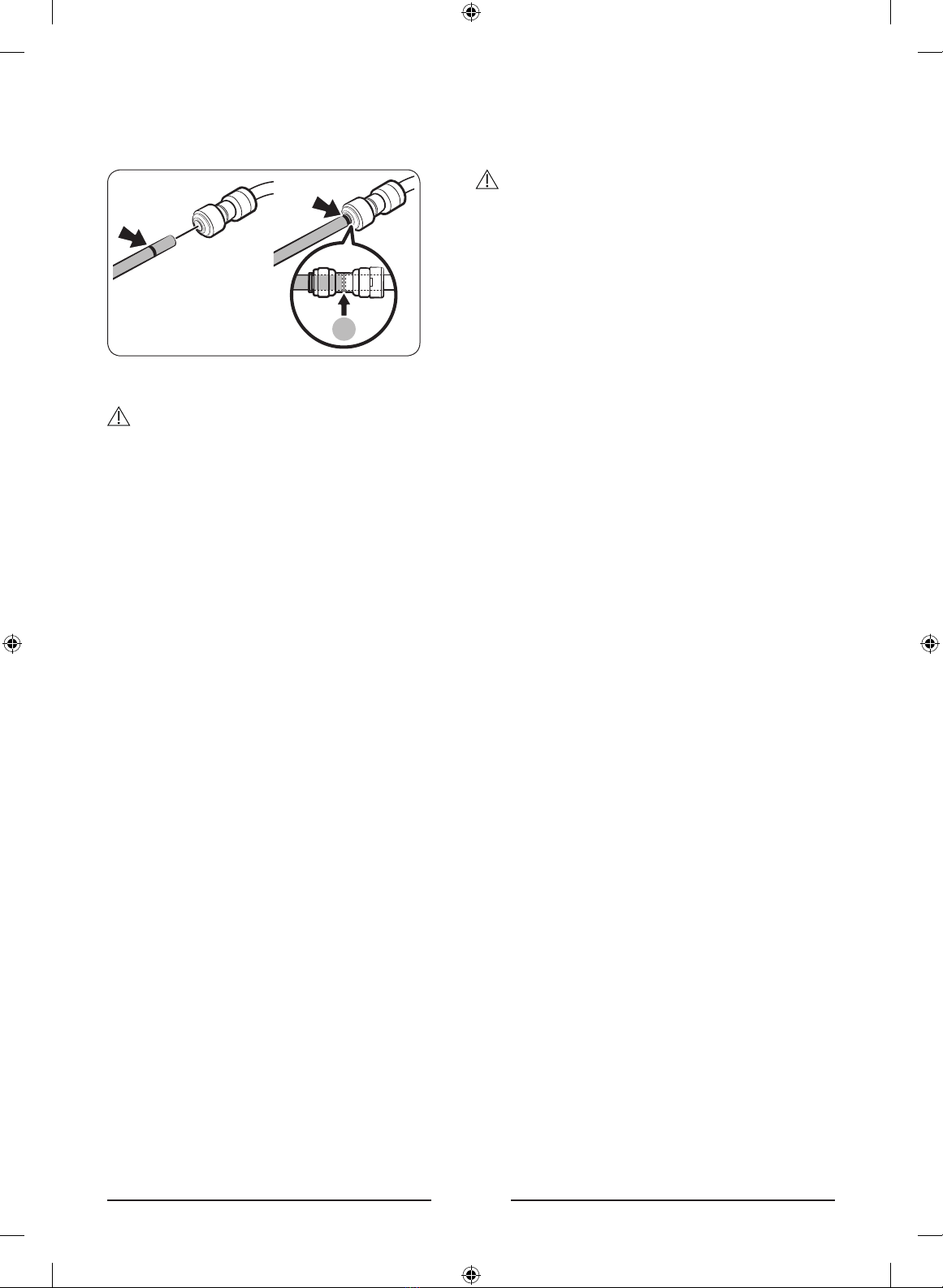

Reconnect the water hoses

Once the refrigerator has passed through the entrance, reconnect the water hoses.

A. Centre of transparent coupler

CAUTION

• Make sure the water hoses are connected

with matching colours.

• To prevent water leaks, each water hose

must be inserted fully to the centre of the

transparent coupler.

• After reconnecting the water hoses, push

them under the cabinet and arrange them

on the hook.

CAUTION

• Make sure the wire connectors are connected properly.

• Be careful not to damage the wires when fastening the top cover.

RS8000NC_2Door_User-servicing-manual.indb 10 2021-01-27  7:39:14
