Sanus Systems Motorized Mount LA112 Bedienungsanleitung

Sanus Systems 2221 Hwy 36 West, Saint Paul, MN 55113 USA

Customer Service: 1-800-359-5520 • [email protected] • www.sanus.com

LA112

(6901-100189 <01>)

Thank you for choosing the Sanus Systems LA112 motorized mount. The LA112 is a remote-controlled automated

mount for flat panel monitors designed to be fully adjustable.The LA112 supports flat panel monitors with a

maximum weight of 81 kg (180 lbs.),ranging in size from 40 in.– 63 in. (102 cm – 106 cm).The LA112 extends up to

12 in (30 cm) from the wall.

Do not use this product for any purpose not explicitly speciﬁed by Sanus Systems. Improper installation may

cause property damage or personal injury. If you do not understand these directions, or have doubts about

the safety of the installation, contact Sanus Systems Customer Service or call a qualiﬁed contractor. Sanus

Systems is not liable for damage or injury caused by incorrect mounting, assembly, or use.

CAUTION

Backed by CLO

6901-100189 <01>

Supplied Parts and Hardware

Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged,do not return the item

to your dealer; contact Sanus Systems Customer Service. Never use damaged parts!

This product contains small items that could be a choking hazard if swallowed. Keep these items away from

young children!

WARNING

1/8 in. 1/2 in.

Determine if your monitor will require adapters to fit the LA112. Measure the distance between the mounting holes on the

back of the monitor.

Measure width

between holes

Measure height

between holes

Adapters are not included with the LA112. If you need an adapter, contact Sanus Systems Customer Service at

1-800-359-5520 or email us at info@sanus.com. You may also visit our website: www.sanus.com

OPT

For monitors with hole patterns less than 21.5 inches (54.6 cm) wide,install Cross Plate adapters.

For monitors with hole patterns 26 - 34.5 inches (66 - 87.6 cm) wide,install Bar Extension

adapters.

For monitors 18.5 - 27.5 inches

(47 - 70 cm) high, install

Bracket Extension adapters.

3/8

6901-100189 <01>

Remote Control

P1 P3

VOL

SET

X-ARM

VCR

DVD CBL

SEL

IN/OUT

MENU EXIT

MUTE

FAV

1 2 3

4 5 6

7 8 9

P2 P4

P1 P3

VOL

POWER

SET

X-ARM

VCR

DVD CBL

SEL

IN/OUT

MENU EXIT

MUTE

FAV

1 2 3

4 5 6

7 8 9

P2 P4

PIP SWAP OPEN/CLOSE

POSITION FREEZE SLEEP

INFO TV/VCR GUIDE

LAST ENTER

[09] x 1

[06] x 1 [08] x 1

[10] x 6 [11] x 6

001602.eps

VM400 - Hardware

5/16 in. 5/16 x 2.5 in.

M4 x 12mm M5 x 12mm M6 x 12mm M4 x 30mm M5 x 30mm M6 x 35mm

M4 M5 M6 M4 / M5 M6 M4 / M5 M6 / M8

[27] x 1

[07] x 1

M5 x 16 mm

[12] x 4

M5 x 30mm

[13] x 4

M6 x 35mm

[15] x 4

[26] x 10

M8 x 35mm

[17] x 4

[20] x 4

[22] x 4

M8x20

[16] x 4

M6 x 18mm

[14] x 4

M4/M5

[18] x 4

M6 / M8

[19] x 4

[21] x 4

[23] x 4

M4/M5

[24] x 4

M6/M8

[25] x 4

[05] x 2

[04] x 4

[03] x2

[02] x 1[01] x 1

NOTE: Items [1] through [4] are pre-assembled.

6901-100189 <01>

Avoid potential injuries or damage to equipment! Always observe the LA112 while in motion. To stop the

motion, press any of the arrow keys on the remote control. Never allow children to operate the LA112.

CAUTION

Avoid potential injuries or damage to equipment! Do not operate the LA112 unless all protective covers and

guards are in place. Keep away from moving parts.

CAUTION

Avoid damage to equipment! Use only accessories distributed or recommended by Sanus Systems. Do

not operate the LA112 if the appliance has malfunctioned, or has been damaged in any way; return to an

authorized service facility for inspection.

CAUTION

Avoid potential injuries or damage to equipment! The LA112 must be connected to a grounded outlet.

Disconnect the LA112 when not in use, or before cleaning or servicing the unit. To disconnect the LA112, turn

oﬀ all controls then remove the plug from the outlet.

CAUTION

Avoid potential injuries or damage to equipment. The LA112 is designed to mount to vertical walls only.

Do not attempt to mount the LA112 to ceilings or non-vertical walls. For indoor use only! Do not mount

outdoors.

CAUTION

Do not unplug by pulling on cord. To uplug, grasp the plug, not the cord.

CAUTION

6901-100189 <01>

1: Remove Wall Plate from Arm

The LA112 is shipped with the wall plate and arm

assembled.You must remove the wall plate before

installation.

Loosen the two fasteners [A] securing the wall

plate [01] to the arm assembly [02].

Tilt the wall plate away from the arm assembly

then lift the wall plate to disengage it from the

hooks [B].

[A]

[02]

[01]

[B]

6901-100189 <01>

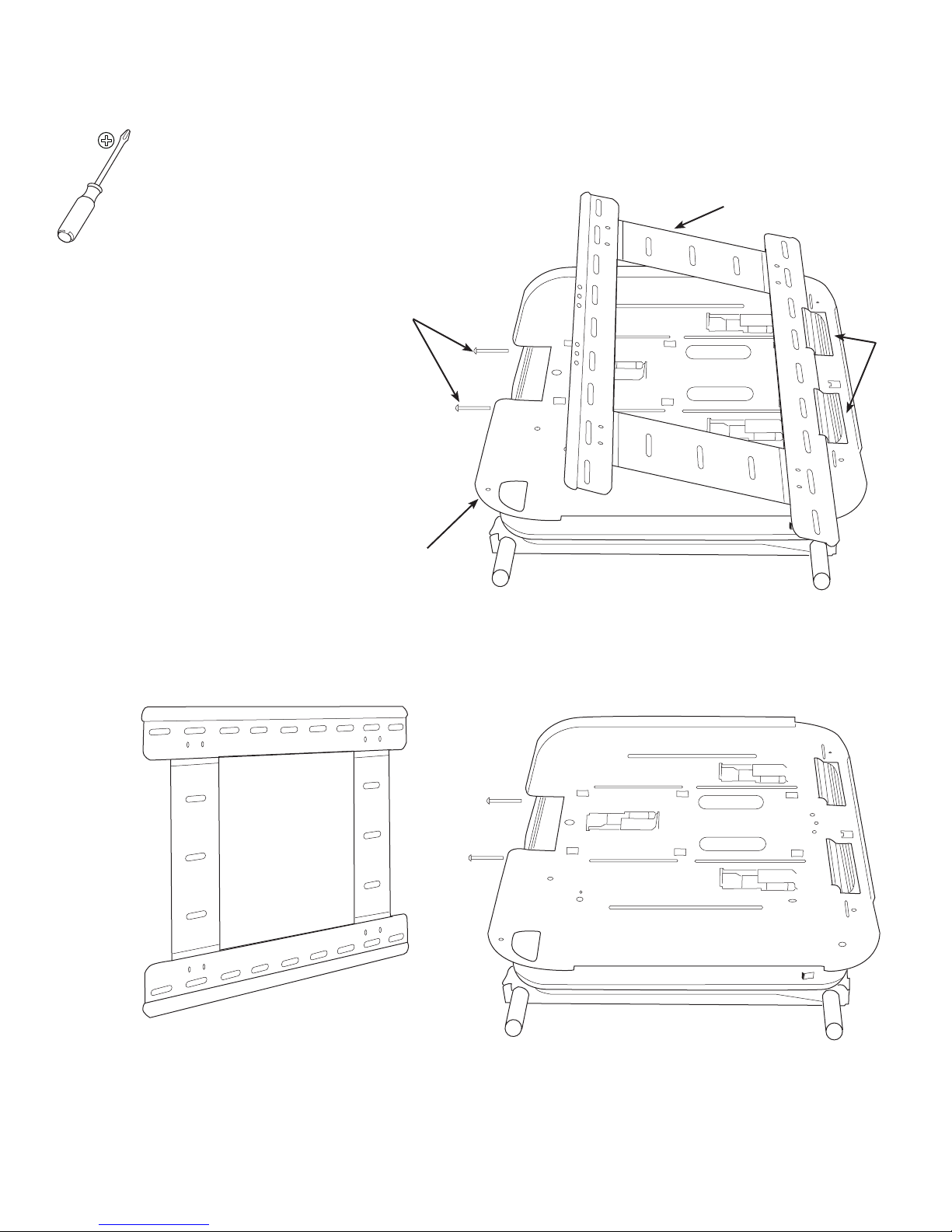

2: Remove Mounting Brackets

[27]

P1 P3

SET

X-ARM

VCR

DVD CBL

SEL

IN/OUT

MENU EXIT

P2 P4

P1 P3

SET

X-ARM

VCR

DVD CBL

SEL

IN/OUT

MENU EXIT

P2 P4

[A]

[03]

[04]

You must remove the two TV Mounting Brackets from the LA112 before attaching the arm to the wall plate.

Remove the hex screws [A] from the mounting brackets [03]. Pull the safety clips [04] from the back of the mounting brackets,

then remove the mounting brackets from the arm assembly.

[27]

6901-100189 <01>

3: Mount Wall Plate

For Wood Stud Walls

Max. 43 cm (17 in.)

Min. 6.5 cm (2.5 in.)

1/8 in.

[01]

[10]

6901-100189 <01>

For Concrete Block or Brick Walls

1/2 in.

Min. 6.5 cm (2.5 in.)

Avoid potential injuries and / or property damage!

Never drill into the mortar between concrete blocks!

CAUTION

[10]

[01]

[11]

6901-100189 <01>

4: Install Arm Assembly to Wall Plate

Hang the arm assembly [02] over the top rail of the wall plate

[01]. Be sure both hooks on the arm assembly engage with the

rail.

Align the arm assembly to the desired location on the wall

plates. Secure the bottom of the arm assembly to the wall

plate by tightening the two fasteners [A] at the bottom of

the arm assembly.

[02]

[01]

[A]

6901-100189 <01>

5: Set the Monitor Width

Avoid potential injuries and / or property damage! Do

not use the monitor manufacturer’s “screen size”; you

must measure the width of the monitor case, including

any speakers attached to the sides.

CAUTION

Set

Measure monitor width,

including any speakers

C1 102 - 113 cm (40 - 44.9 in.)

C2 114 - 123 cm (45 - 48.9 in.)

C3 124 - 140 cm (49 - 55.9 in.)

C4 141 - 155 cm (56 - 61.0 in.)

CODE WIDTH

To set the monitor width, determine the correct code from

the chart below.

Insert the power cord [08] into the plug on the arm assembly,

then connect the power cord to a grounded outlet.

Turn the power switch [A] to the ON position. Insert the

selector pin [07] into the receptacle [B] and press until the

correct code is displayed.

Press and hold the“Set” button [C] until the display stops

blinking to accept the code.

Set

[07]

[08]

[A]

Selector

Set

[B]

[C]

The LA112 restricts movement based up on the TV

widteh set on the side controls. The TV widthe must be

set correctly before operating the LA112.

CAUTION
