Digital Satellite Receiver
User’s Manual
2
Contents
General Information Main Features ......................................................................3
For Your Satety.....................................................................................................4
Unpacking.............................................................................................................4
Remote Control Unit .............................................................................................5
Front Panel Controls.............................................................................................6
Rear Panel Controls..............................................................................................6
Installation.............................................................................................................7
Connecting to TV using SCART support...............................................................7
Menu Guide Channel List .....................................................................................8
Rename................................................................................................................9
Lock....................................................................................................................10
Move...................................................................................................................11
Delete .................................................................................................................12
Channel Guide....................................................................................................13
Switching TV and Radio......................................................................................14
Main Menu..........................................................................................................15
Installation...........................................................................................................16
Antenna Connection ...........................................................................................17
Antenna Setup....................................................................................................18
Single Satellite Search........................................................................................19
Multi Satellite Search..........................................................................................20
TP List.................................................................................................................21
System Setup .....................................................................................................22
Language............................................................................................................23
TV System..........................................................................................................24
Local Time Setting..............................................................................................25
Timer Setting ......................................................................................................26
Parental Lock......................................................................................................27
OSD Setting........................................................................................................28
Tools...................................................................................................................29
Information..........................................................................................................30
Factory Setting....................................................................................................30
Upgrade By RS232.............................................................................................31
Game..................................................................................................................32
Technical Specification.......................................................................................33
3
General Information Main Features
•DVB/MPEG-2 Compliant
-Max. 4000 Channels TV & Radio Programmable
-Max. 128 Satellites Programmable
-CD Quality Sound (MPEG 1, Layer 1, 2)
•Multi-Function
-Advanced Electronic Program Guide (EPG)
-Full 7 days EPG With Time Reservation
-Supports automatic Turn-On and Off in Timer Settings
-Supports OSD/VBI Teletext and Subtitle
-Normal/Wide Vision (4:3 , 16:9)
-Multi Language OSD Menu
-Multi Reception (PAL/NTSC)
-Last channel Memory
Friendly User Interface
-True Color Background Image
-PIG (Picture In Graphic)
-Multi Picture (1 Live / 8 Still)
Easy Installation
-SCPC & MCPC Receivable from C/Ku-Band
-Program search via automatic, advanced and manual and N.I.T (Network InformationTable)
Favorite Channel List
-8 Favorite Groups
Compatibility
- DiSEqC1.0, DiSEqC1.2 and USALS Control Compatible
- Data(S/W and channel data) transferable from PC
Flexibility
-Program List Download through RS-232C (Receiver to Receiver, PC to Receiver)
-Software Upgrade through RS-232C (Receiver to Receiver, PC to Receiver)
4
For Your Satety
WARNING
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO
USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.
CAUTION
CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE MANUFACTURER
COULD VOID THE USER’S AUTHORITY TO
OPERATE THE EQUIPMENT.
Unpacking
-After purchasing the receiver, unpack it and check to make sure that all of the following items are
included in the packing.
_ 1 x Receiver
_ 1 x Remote Control Unit
_ 2 x AAA Batteries
_ 1 x RCA Cable
_ 1 x User Manual
5

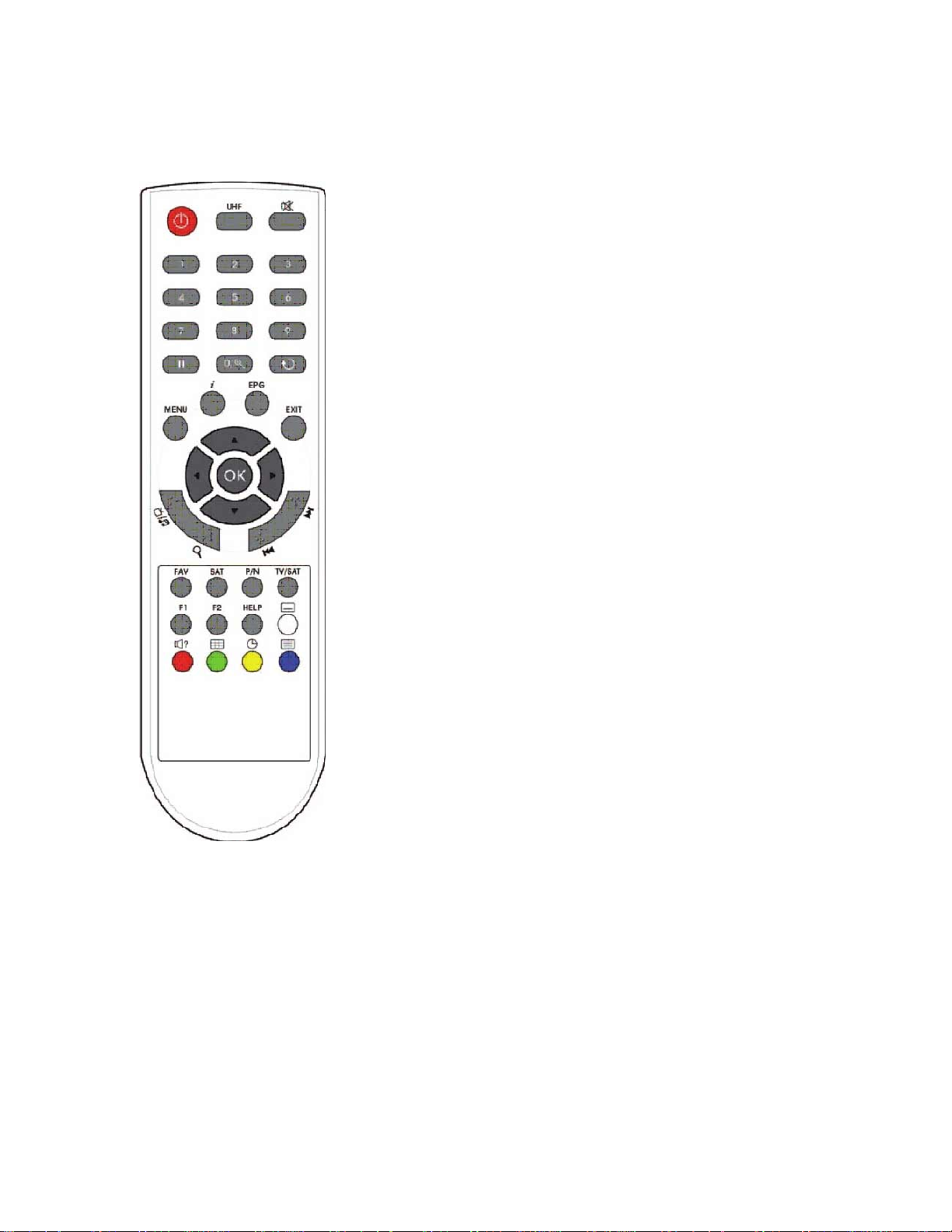

Remote Control Unit
POWER : Switch between the operation and standby modes.
TV/SAT : Select the TV or Receiver display.
MUTE : To turn the sound on/off.
PAUSE : To select the freze function.
NUMERIC (0~9) : Alphanumeric to select channel or parameter.
TV/RADIO : Press to select the TV/RADIO mode.
AUDIO : Select the Left, Right and both sound.
MENU : For the general setting and configuration of systems.
EXIT : Press to return to the previous menu and screen.
CH UP/DOWN : Change channel and page up down in channels list
of menu.
OK : Confirm or accept function or selection.
VOL DOWN/UP : Navigate in menu or adjust volume of audio.
INFO : See the TV & Radio & Favorite Channels.
Exit : Return to the previous channel or previous menu.
WHITE, RED, GREEN, YELLOW, BLUE : Color key for convenient
user action.
EPG : Electronic Program Guide button displays the TV/Radio
Program guide.
TELETEXT : See the Teletext broadcasting when available.
SUBTITLE : Press to display the subtitle language list for the current
service.
6
Front Panel Controls
Power Button Turn the IRD On and Off (Stand-by) mode..
Menu Button : For the general setting and configuration of systems.
Ok Button Confirm or accept function or selection.
Channel UP/DOWN Button Change channel up/down in channels list.
Volume UP/DOWN Button Change volume up/down
LED Display Indicate program number and setting status of receiver with 4 digits 7 segment
Rear Panel Controls
1. LNB IN/OUT
LNB terminal for signals from LNB of Antenna. The power is supplied to LNB through this terminal
2. SCART
This SCART connection provides the audio and video signals for a monitor or a television.
3. VIDEO
This RCA provides a composite video signal for the connection to a TV or VCR/DVD recorder
4. 0/12V
0V or 12V output
5. AUDIO L/R
These two RCA jacks provide the stereo audio for an A/V amplifier, TV or VCR
6. RS-232
This terminal provides a serial data connection to data download from your PC.
7
Installation
Connecting to TV using SCART support
8
Menu Guide Channel List
- Press [OK] to display the channel list while your are
watching.
- You can leave the channel list at any time by
pressing [EXIT/BACK].
- If you want to change channel in the list, use [P+/P-]
or [__].
- Press < > Keys to change display mode.
All Satellite - One Satellite
9

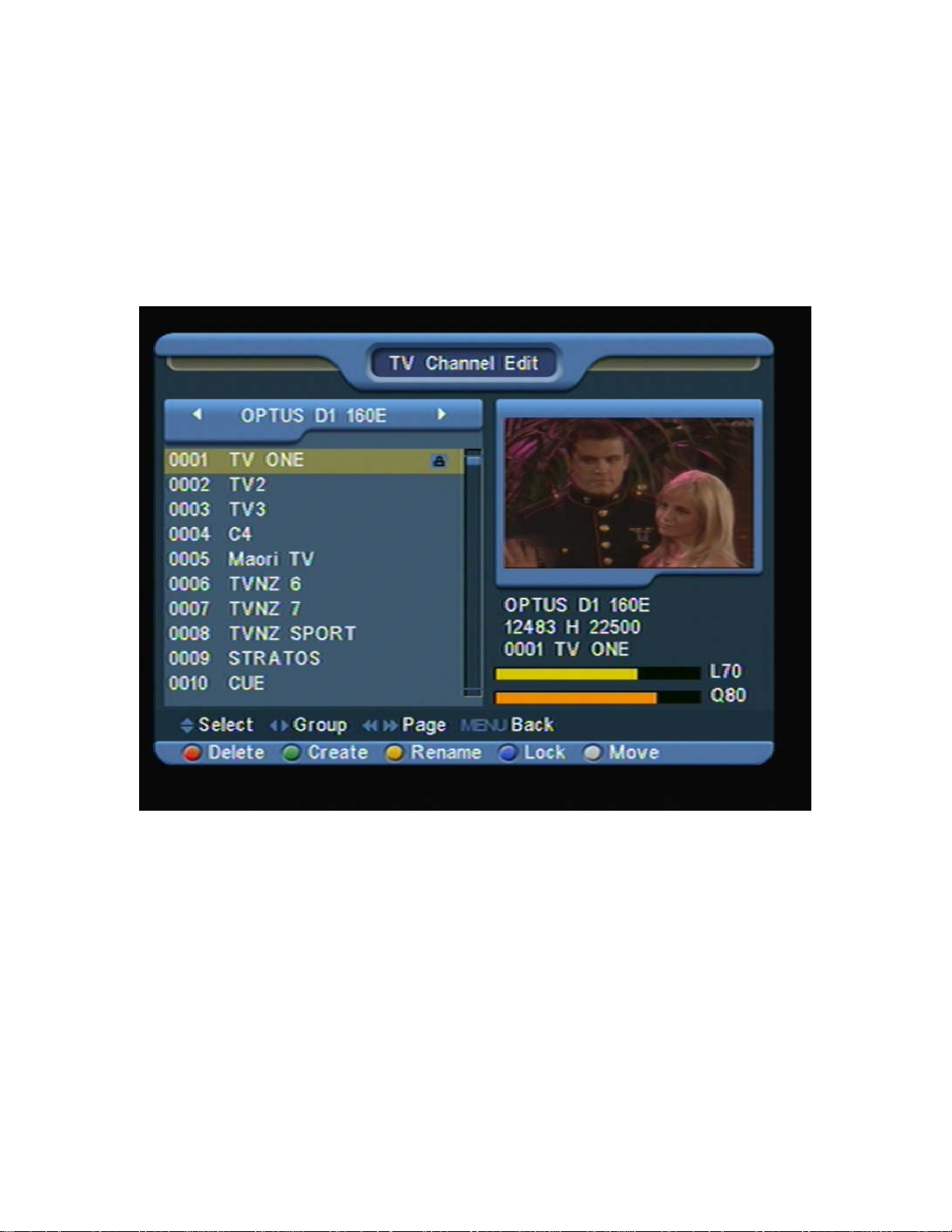

Rename
- On the RCU, press the [MENU] key.
- Select the TV Channel Manager.
- On the RCU, press the [YELLOW] key.
- On the RCU, press the [YELLOW] key.
- You can edit the selected channel name within the pop-up window
with numeric button
and select OK to save
10
Lock
- On the RCU, press the
[MENU] key.
- Select the TV Channel
Manager.
- On the RCU, press the
[Blue] key.
