SATO TH2 Series Bedienungsanleitung
RS\Mktg\InstGuides\OOB\Mar11
Help & Service for your SATO Printer 2
Setting up your Printer 3
The Keypad 6
Loading the Label Roll 7
Using the Dispenser 9
Label Formats 11
Printing Labels 13
Charging the Battery 15
Cleaning Procedures 16
THE SATO TH2 RETAIL
LABEL PRINTER
USER GUIDE
Your SATO TH2 printer will immediately provide professional labels with the
simplest of operation.
Being designed using the most up-to-date technology, the printer is fully
future-proofed and can be programmed to take care of any labelling require-
ments that your business may need.
If you should wish to upgrade your printer a number of enhancements are
available:
High Capacity Rechargeable Battery
The High-capacity rechargeable battery makes the TH2 fully portable and can
print up to 5,000 labels without re-charging. The battery can be fully recharged
in the printer in about 6 hours or even faster when using the optional charging
unit.
Barcode Scanner
Adding a Barcode Scanner enables you to scan an existing product barcode and
produce a new label without manual entry of the product details.
Anti-Microbial Keypad Cover
The casing of your TH2 is manufactured from anti-microbial material which dis-
courages the growth of bacteria. A keypad cover with the same properties can
be added to prevent ingress of food and dust into the keypad.
Automatic Calculations
Automatic calculation of percentage reductions can be added as well as
Best Before date printing and product database options . Indeed, The TH” can
be programmed to perform almost any business function. Please do not hesi-
tate to contact us with your requirements.
About your SATO Retail Printer
1
Assistance for your SATO Printer
You should find that your SATO printer is straightforward to operate. However, if
you should experience any difficulty, please contact our Helpdesk for assistance:
Call: 01255 252828
or
Ordering more labels
The high quality TH2 labels are manufactured by SATO in the UK and have been
especially developed to give the best results in the TH2 printer. These labels are
relied upon by many household name stores in UK retail.
Label Type Size SATO Product
Code
Yellow 45 X 34.925mm
P70011017451
Permanent Adhesive
White 32x 25.4mm P70010101601
Peel adhesive
Red & White
Reduced 28 x 33mm P70010109921
Peel adhesive
Red & White
Sale 28 x 33mm P70010109961
Peel adhesive
Orange
40mm circular P70011014331
Peel adhesive
Red
23mm circular
P70010144861
Peel adhesive
White 45 X 47.625mm
P70010101571
Peel adhesive
2

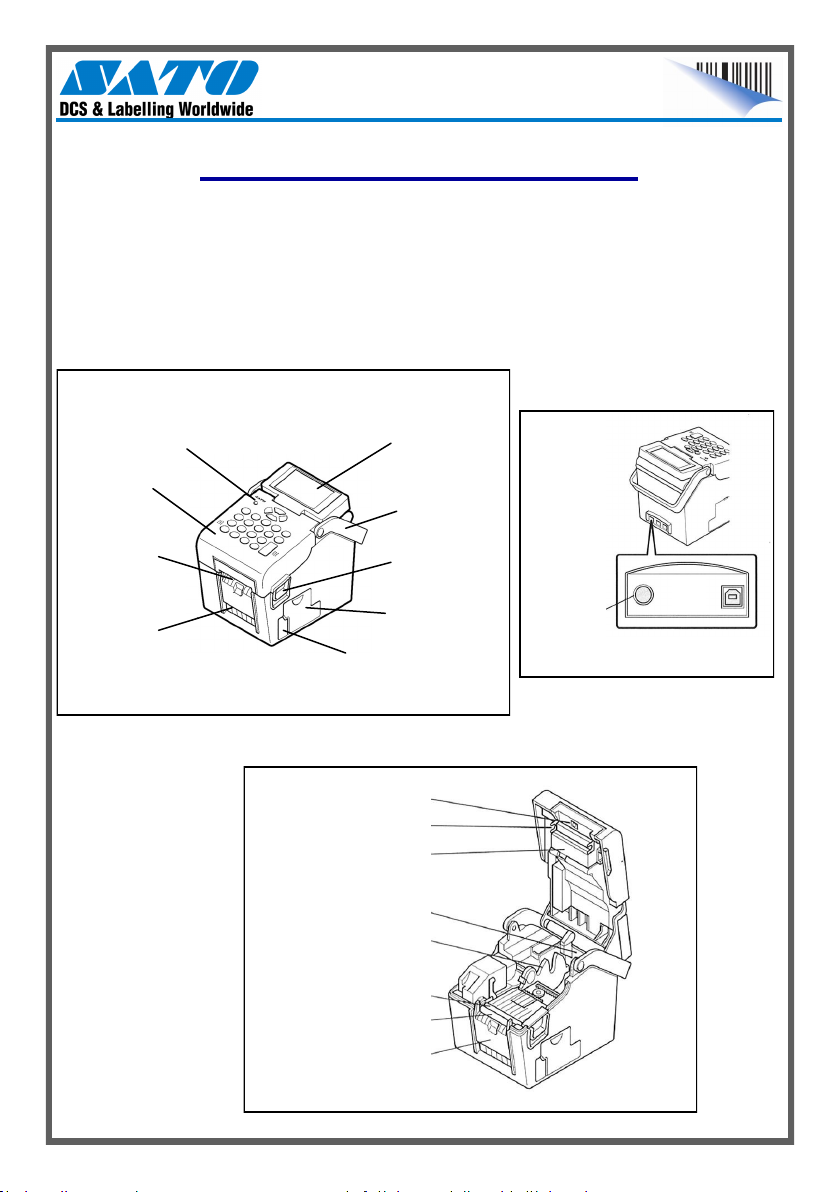

Setting up your SATO Printer (1)
Inside the box:
- TH2 Retail Label Printer
- Quick Guide
- Mains AC Adaptor
- Mains Cable
LCD Display
Battery Cover
Top Cover
Open Latch
Label Out
Dispenser
Label Out
Top cover
Carrying Handle
Scanner
Connector cover
Battery
Charge LED
DC Input
from Power
Adaptor
Dispenser
Sensor
Print head
Print head cover
Media compartment
Label roll guides
Platen Roller
Dispenser plate
Dispenser frame
Printer Parts
Power connector
Cover Open Parts
3
Setting up your SATO Printer (2)
Mains Power Cable
AC Adaptor
Power Connection
1. Plug the Mains Power Cable into the AC
Adaptor
2. Plug the DC Output plug into it’s socket at the
rear of the printer.
THIS PLUG ONLY FITS ONE WAY ROUND! The flat
area of the plastic plug should be upwards.
3. Plug the Mains Power Cable into the
Mains supply socket.
Flat of the
plug to top!
AC Adaptor
DC input
connector
4
5
Notes:
The Printer Keypad
Power
Power On:
Power Off:
Menu/Page Up
Menu:
Up 1 level:
Delete
Select Dispense Mode
Pause/Feed
In Print Mode:
Feed Mode:
Select Alphanumerics
Full Stop/Space
6
Loading the Label Roll
1
2
1. Push the handle fully back. Press the Cover
Open Latch (1) and lift up the cover (2).
Ensure that the cover is in the “up” position.
Media
Guides 2. Adjust the spacing of the Media Guides to
the widest position.
3. Place the new label roll into the Media
Compartment. Labels upwards.
Adjust the Media Guides inwards until the
Guides press lightly against the roll.
SELECT THE TYPE OF LABEL THAT YOU WISH
TO PRINT AND INSTALL INTO THE PRINTER
AS FOLLOWS:
7
5. Close the top cover until it clicks into
position.
Power
Feed
4. Position the edges of the labels under the
Label Guides and pull the end of the roll out
of the front of the printer.
6. Press the Power key for 1 second if the
printer is turned off.
Press <Enter> then the <Feed> key to feed
and align the first label.
8
Using the Label Dispenser
This feature will print and dispense a single label. As soon as the label is removed the
printer will issue the next label. This procedure will set up the printer for dispenser
use.
2. Open the printer Top Cover.
Place two fingers at the top of the Dispenser
Cover and pull forward to release the cover.
3. Fit the label roll into the printer and remove
the first few labels from the backing paper.
Position the edges of the roll underneath the
two label guides.
Label
Guides
9
1. SWITCH TO THE DISPENSE MODE:
- Press the <F1> key.
- Select 2. Profile and press <Enter>.
- Select 1. Dispense and Press <Enter> to
return to the Format menu .
- The printer is now set to Label dispensing
Dispenser
Cover
