Sauder 429430 Bedienungsanleitung

sauder.com

NOTE: THIS INSTRUCTION

BOOKLET CONTAINS IMPORTANT

SAFETY INFORMATION.

PLEASE READ AND KEEP FOR

FUTURE REFERENCE.

English pg 1-18

Français pg 19-21

Español pg 22-24

sauder.com

BEFORE MAKING ANY RETURNS TO THE STORE.

sauder.com

BEFORE MAKING ANY RETURNS TO THE RETAILER.

Visit sauder.com/service to order replacement parts, view video assembly tips, or chat with a live rep.

Prefer the phone? Give us a ring at 1-800-445-1527.

Customer Service is available Monday-Friday - 9 a.m. to 5:30 p.m. EST (except holidays)

Sauder.com

Share your journey! Lot # 559158 01/11/21

Purchased: __________________

Storage Cabinet

Model 429430 / Sku 168-0094-8

Store behind

closed doors.

Part Identiﬁcation

Hardware Identiﬁcation

Assembly Steps

Français

Español

Safety

Warranty

Hammer

Not actual size

No. 2 Phillips Screwdriver

Tip Shown Actual Size

Assembly Tools RequiredTable of Contents

2-3

5-18

19-21

22-24

25-26

A RIGHT END (1)

B LEFT END (1)

C UPRIGHT (1)

D TOP (1)

E BOTTOM (1)

F SHELF (1)

H RIGHT DOOR (1)

J ADJUSTABLE SHELF (4)

K VALANCE (2)

L SKIRT (1)

M BACK (1)

N LEFT DOOR (1)

åWhile not all parts are labeled, some of the parts will have a label or an inked letter on the edge

to help distinguish similar parts from each other. Use this part identiﬁcation to help identify similar parts.

Now you know

our ABCs.

Part Identiﬁcation

Tape Measure

Page 2 www.sauder.com 429430 / 168-0094-8

Electric drill with 1/8" or 3/8" bit

(ONLY in indicated step)

Pencil

Part Identiﬁcation

Page 3www.sauder.com429430 / 168-0094-8

Hardware Identiﬁcation

åScrews are shown actual size. You may receive extra hardware with your unit.

1/2" PAN HEAD SCREW - 8

1/2" FLAT HEAD SCREW - 12

APPLIQUE - 30

7METAL BRACKET - 2

8BOTTOM BRACKET - 1

NAIL - 36

DOOR BRACKET - 1

10 SHELF SUPPORT - 16

11 FELT DISC - 4

LARGE 1/2" PAN HEAD SCREW - 10

19 FURNITURE TIPPING

RESTRAINT KIT - 1

ANGLE BRACKET - 5

1HINGE - 6

2HINGE BRACKET - 6

3PULL - 2

1-3/8" FLAT HEAD SCREW - 40

13 7/8" MACHINE SCREW - 4

Page 4 www.sauder.com 429430 / 168-0094-8

Step 1

å Assemble your unit on a carpeted ﬂoor or on the empty

carton to avoid scratching your unit or the ﬂoor.

å Fasten ﬁve ANGLE BRACKETS (1) to the SKIRT (L). Use

ﬁve LARGE 1/2" PAN HEAD SCREWS (19).

å NOTE: Be sure the edges of the ANGLE BRACKETS are

even with the edges of the SKIRT.

å Fasten the BOTTOM BRACKET (9) to the BOTTOM (E).

Use two 1/2" PAN HEAD SCREWS (18).

1/2" PAN HEAD SCREW

(2 used in this step)

The molding on the other surface

of the BOTTOM should be here.

LARGE 1/2" PAN HEAD SCREW

(5 used for the ANGLE BRACKETS)

Look for this icon. It means a video assembly tip is

available at www.sauder.com/service/tips

Find the numbered video or scan the QR code. 0

Page 5www.sauder.com429430 / 168-0094-8

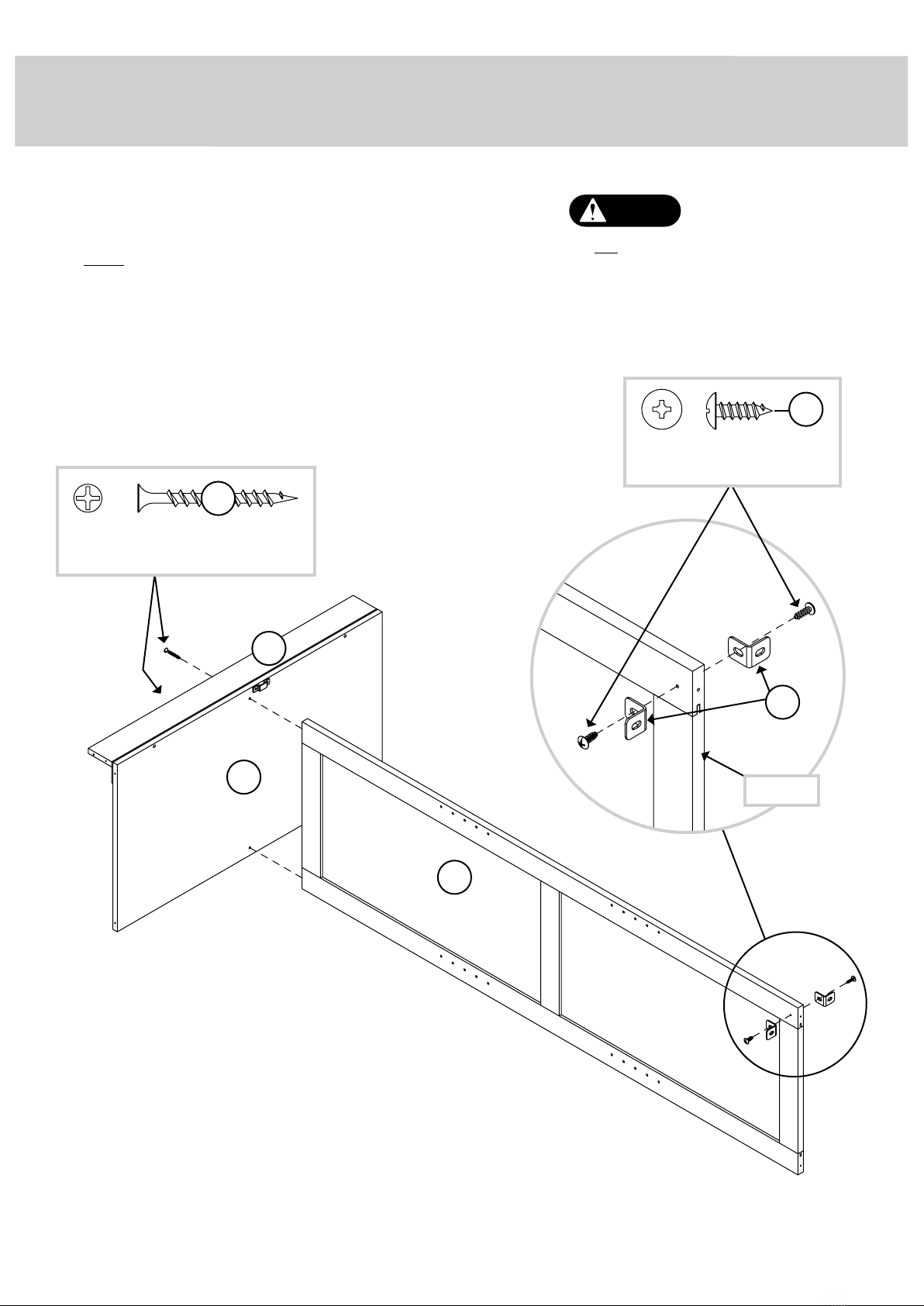

å Fasten the SKIRT (L) to the BOTTOM (E). Use three

LARGE 1/2" PAN HEAD SCREWS (19) through the ANGLE

BRACKETS on the SKIRT and into the BOTTOM.

Step 2

The molding on the

BOTTOM should be here.

LARGE 1/2" PAN HEAD SCREW

(3 used in this step)

Page 6 www.sauder.com 429430 / 168-0094-8

RRTT

FF OONN

å Fasten the VALANCES (K) to the TOP (D). Use eight

1-3/8" FLAT HEAD SCREWS (13).

Step 3

Some assembly

(and snacks) required.

Unﬁnished surface

1st

2nd

This arrow should

be pointing up.

This arrow should

be pointing down.

Finished surface

1-3/8" FLAT HEAD SCREW

(8 used in this step)

Page 7www.sauder.com429430 / 168-0094-8

Step 4

å Fasten two METAL BRACKETS (8) to the UPRIGHT (C).

Use two 1/2" PAN HEAD SCREWS (18).

å NOTE: Be sure the edges of the METAL BRACKETS are

even with the top edge of the UPRIGHT.

å Fasten the BOTTOM (E) to the UPRIGHT (C). Use two

1-3/8" FLAT HEAD SCREWS (13).

1/2" PAN HEAD SCREW

(2 used in this step)

Do not stand the unit upright without the

BACK fastened. The unit may collapse.

Caution

Top edge

1-3/8" FLAT HEAD SCREW

(2 used in this step)

Page 8 www.sauder.com 429430 / 168-0094-8

Step

å Finish fastening the BOTTOM (E) to the SKIRT (L). Use

two 1-3/8" FLAT HEAD SCREWS (13).

å Fasten the SHELF (F) to the UPRIGHT (C). Use two 1-3/8"

FLAT HEAD SCREWS (13).

å Finish fastening the SHELF (F) to the UPRIGHT (C). Use

two 1/2" PAN HEAD SCREWS (18) through the METAL

BRACKETS on the UPRIGHT and into the SHELF.

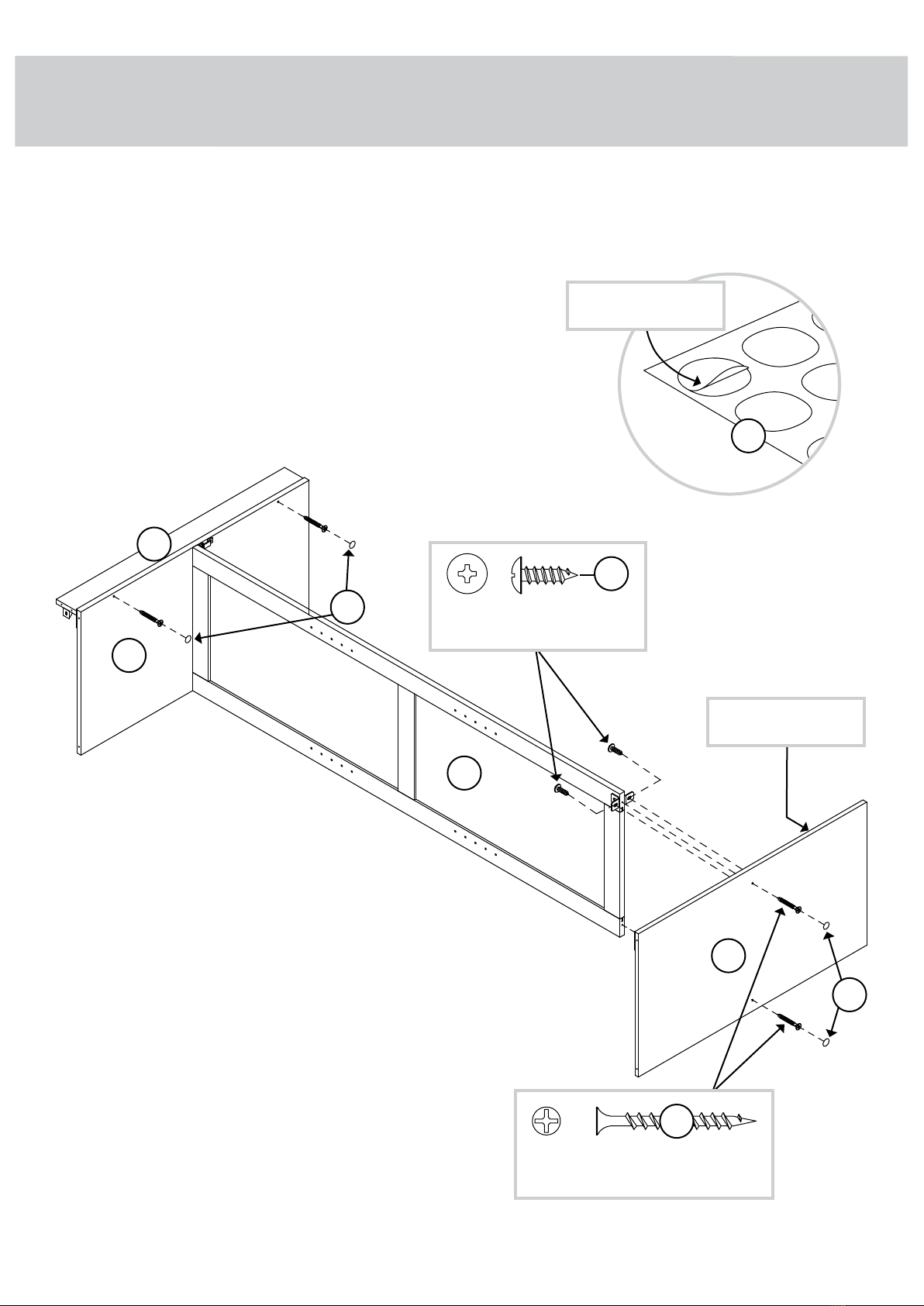

å Then, peel four APPLIQUES (7) from the applique card

and stick them over the heads of the SCREWS (13).

Step 5

Peel the APPLIQUES

from the applique card.

The molding on the

SHELF should be here.

1/2" PAN HEAD SCREW

(2 used in this step)

1-3/8" FLAT HEAD SCREW

(4 used in this step)

Page 9www.sauder.com429430 / 168-0094-8

Step

å Fasten the HINGE BRACKETS (3) to the ENDS (A and B).

Use the SCREWS in the HINGE BRACKETS.

å NOTE: The arrow on the HINGES should face towards the

edge of the ENDS.

Step 6

Page 10 www.sauder.com 429430 / 168-0094-8
