WindPro
User Guide
Wireless Anemometer
Page Contents
2
3
4
7
9
20
20
20
21
22
22
22
23
24
25
25
26
26
27
30
Introduction
Packing Contents
Overview
Technical Specification
Operation Interface
IInstallation and Setup
WindPro Sensor Installation
Console Installation
Console Setup
Settings
Measurements Offset
Alarm
Relays
Data Logging
Serial Output
Mobile App
4-20mA Output
Restore to Factory Setting
Scarlet Web Portal (OPTIONAL)
Safety, Maintenance, & Warranty
Introduction
2
WindPro Online is the ultimate IoT solution to enhance operational safety.
Users can access site-specific data remotely, set wind speed and wind direction alerts, and
integrate with external devices for control and data acquisition via various outputs. The
main hardware consists of a long-range wireless wind sensor and a control console. Users
can opt-in to Scarlet Web Portal to access live and historical data, received remote safety
alerts, and oversee hardware status anytime, anywhere.
Mobile app for live data
& safety alarm
Support 2 sensors connection
2.4G Wireless
4-level configurable wind
alarm thresholds for
external devices control
WindPro Utility for PC’s live
data & alarm, integrable
with display signs
RS232
Export recorded
data to Excel
USB
Wind speed & direction
analog outputs for
control & data
acquisition
4-20mARelay Switches
(Sub-1 GHz)
Scarlet Web Portal
Wireless Wind Sensor WindPro Control Console
RF Wireless Wi-Fi
Ethernet
or
Packing Contents
▪WindPro console
▪WindPro Antenna x2
▪WL-21 Sensor
▪Wind Cups
▪Magnetic Sensor Mounting bracket & L-shape Hex Key
▪Magnet Holder Kit & Quick Release Coupler for WindPro console
▪Power Adapter
▪User Manual & CoC
3
WL-21
Sensor Wind
Cups
WindPro WindPro
Antenna x2
Power
Adapter
WL-21 Bracket &
L-shape Hex Key Waterproof
Case
Overview
20/18/10/SL
WindPro
Sub-1 Ghz Antenna
Sub-1 Ghz Antenna
Sub-1 Ghz Antenna
USB Type C Port
Reset Button
Power Jack
Power On/Off Button
Mute Channel 1 Button
Mute Channel 2 Button
RS232 Port
LAN Port
Channel 1 Connection Status
Channel 2 Connection Status
LAN Connection Status
Wi-Fi Connection Status
2.4Ghz Wireless
Broadcasting On/Off Status
Channel 1 Alarm &
Relay 1~4 Status
Buzzer
[ Front View ]
[ Left & Right Sides ]
4
Channel 2 Alarm &
Relay 1~4 Status
WS
WS
WD
WD
RELAY
VCC GND
1 2 3 4 VCC GND
CH1
RELAY
4-20mA
4-20mA
CH2
CH1
CH2
1 2 3 4
SN:2301WP0025
AD:25 WINDPRO CONTROL CONSOLE
Channel 1 4-20mA Wind Speed
Channel 2 4-20mA Wind Speed
Channel 2 4-20mA Wind Direction
Channel 1 Power Output
(Vcc/Ground)
Channel 2 Power Output
(Vcc/Ground)
Channel 1 4-20mA Wind Direction Channel 1 Relay 1~4
Channel 2 Relay 1~4
Product Info Label

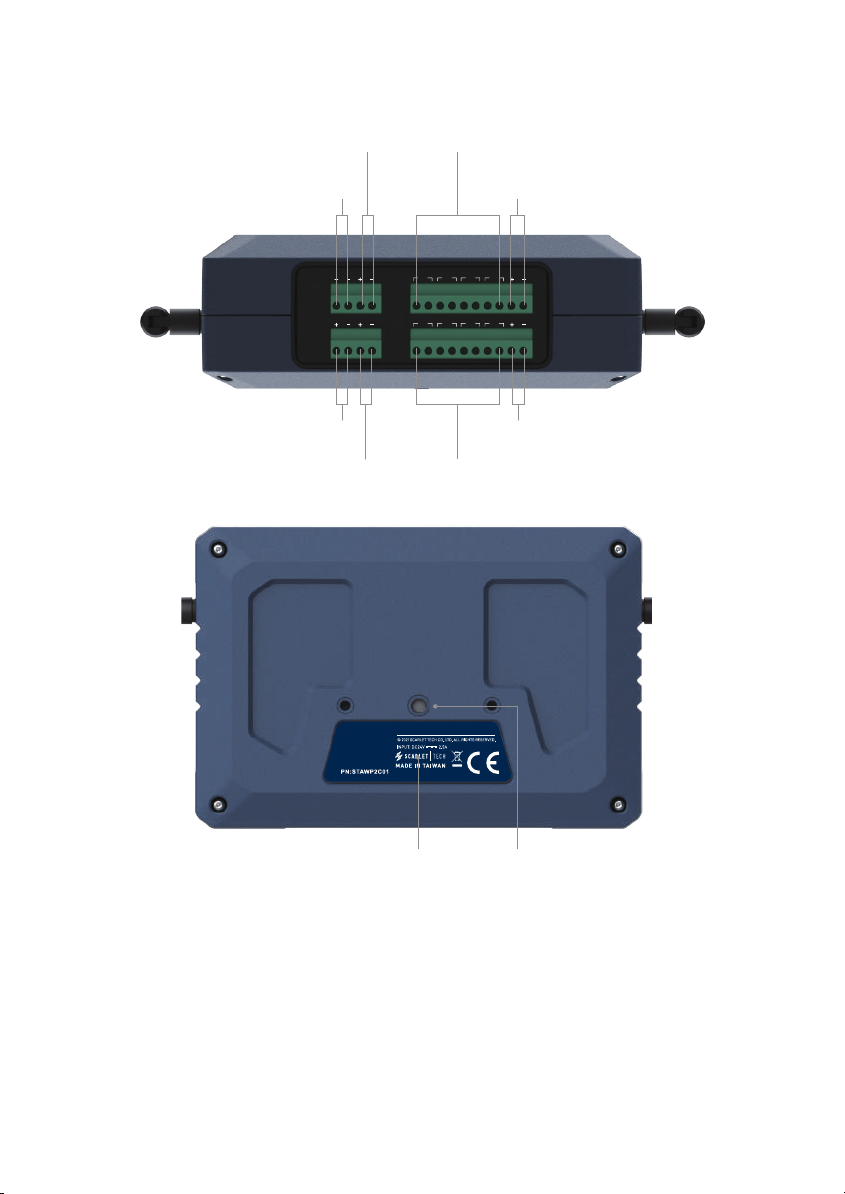

[ Bottom View (Terminal Block) ]
[ Rear View ]
5
1/4 Threaded Hole
Wind Cups
Wind Speed Sensor
Temperature & Atmospheric Pressure Sensor
Sensor Body
Wind Vane
6
Sensor WL-21
Wireless Connection
Each Wind Sensor has a unique wireless address number pre-paired corresponding to the channel 1
of Control Console. Users can add a 2nd wind sensor to the Control Console channel 2 to monitor
the wind data, received alerts, and control external devices from both sensors at the same time.
Wireless Transmission
The Sensor and Receiver are connected through Sub-1GHz wireless band (868/915/933 MHz). The
signal strength is display on the Receiver and Web Portal’s top corners. For optimal wireless
transmission, please make sure the Sensor and Console are in an unobstructed line of sight and are
not positioned directly above or below each other.
Technical Specification
7
WindPro
Item
Dimension
Weight
Display
Wireless Technology
Connector
Button
Power
LED Indicator
Housing Material
Waterproof
Description
185 x 126 x 65mm
700g
Touchscreen LCD 4.3” (480 x 272)
Sensor: 868 / 915 / 933MHz (Up to 850m in open space)
Internet: Wi-Fi 802.11 b/g/n
Mobile APP: 2.4GHz Broadcasting
SMA x2
RJ45 x1
RS232 x1
USB Type C x1
Power Jack x1
4-20mA x4 sets
Relay x8 sets
VCC GND x2 set
Power On/Off x1
CH1 Mute x1
CH2 Mute x1
Input (Power Jack): AC 100-240V
Output (VCC GND): DC 24V
Channel Status x2
LAN Status x1
Wi-Fi Status x1
2.4GHz Wireless Status x1
Alarm x8
PA6+35%GF
N/A
Sensor WL-21
Wind Speed
Temperature
Atmospheric Pressure
8
Item
Dimension
Weight
Battery
Housing Material
Waterproof
Description
262.5 x 183.5 x32mm
406g
3.6V 18505 Lithium battery x1 (3 years)
PA6
IP67
Item
Measurement Unit
Measurement Rage
Measurement Resolution
Measurement Accuracy
Description
m/s (default), knots, MPH, km/hr, ft/s
0.3…50 m/s
0.1 m/s, 0.1 knots, 0.1 MPH, 0.1 km/hr, 0.1 ft/s
±2%
Item
Measurement Unit
Measurement Rage
Measurement Resolution
Measurement Accuracy
Description
℃ (default), ℉
-30℃ ~ 60℃
0.1℃, 0.1℉
±1℃
Item
Measurement Unit
Measurement Range
Measurement Resolution
Measurement Accuracy
Description
hPa, atm, mmHg, bar, Pa, inHg
500-1100 hPa
1 hPa, 0.001 atm, 0.01 mmHg, 0.001 bar, 100 Pa, 0.01 inHg
±0.4 hPa
9
Operation Flow
SETTINGS Page
Operation Interface
Press the Power button, to turn on WindPro and enter the HOME page (CH1 INFO). Swipe right /left
on the touch screen to go to the other pages as shown on diagram below:
In SETTINGS, the user can press icon back to HOME page, or select options below to go to
different setting pages.
SETTINGS Page
Home Page
(CH1 INFO Page)
CH1 & CH2
INFO Page
CH2 INFO Page
SENSOR PAIRING Page
CHANNEL 1 Page
CHANNEL 2 Page
ALARM Page
DATA Page
CONNECTIVITY Page
4-20mA Page
GENERAL Page
CALIBRATION Page
