Scotsman AF Series Bedienungsanleitung

Page 1

SCOTSMAN EUROPE - FRIMONT SPA

Via Puccini, 22 - 20010 Pogliano M.se - Milano - Italy

Tel. +39-02-93960.1 (Aut. Sel.)- Telefax +39-02-93550500

Direct Line to Service & Parts:

Phone +39-02-93960350 - Fax +39-02-93540449

Website: www.scotsman-ice.com

E-Mail: [email protected]

ISO 9001 - Cert. n. 0080

SERVICE MANUAL

AF 80

AF 100

AF 200

AF 20

AF 30

Electronic flakers

with storage

MS 1000.73 REV. 05/2009

Page 2

TABLE OF

CONTENTS Table of contents page 2

Specifications AF 80 3

Specifications AF 100 5

Specifications AF 200 7

Specifications AF 20 9

Specifications AF 30 11

GENERAL INFORMATION AND INSTALLATION

Introduction 13

Unpacking and Inspection 13

Location and levelling 13

Electrical connections 14

Water supply and drain connections 14

Final check list 14

Installation practice 15

OPERATING INSTRUCTIONS

Start up 16

Operational checks 18

PRINCIPLE OF OPERATION (How it works)

Water circuit 21

Refrigerant circuit 21

Mechanical system 23

Operating pressures 24

Components description 25

ADJUSTMENT, REMOVAL AND REPLACEMENT PROCEDURES

Adjustment of the evaporator water level 28

Replacement of evaporator temperature sensor 28

Replacement of condenser temperature sensor 28

Replacement of ice level light control 28

Replacement of the gear motor rotation and speed sensor 28

Replacement of the reservoir water level sensor 29

Replacement of P.C. Board 29

Replacement of the ice spout 29

Replacement of the auger, water seal, bearings and coupling 29

Replacement of the gear motor assy 30

Replacement of fan motor 30

Replacement of drier 30

Replacement of the freezing cylinder 30

Replacement of air cooled condenser 31

Replacement of water cooled condenser 31

Replacement of water regulating valve (water cooled models) 31

Replacement of compressor 32

Wiring diagram 33

Service diagnosis 34

MAINTENANCE AND CLEANING INSTRUCTIONS

General 36

Icemaker 36

Cleaning instructions of water system 36

Page 3

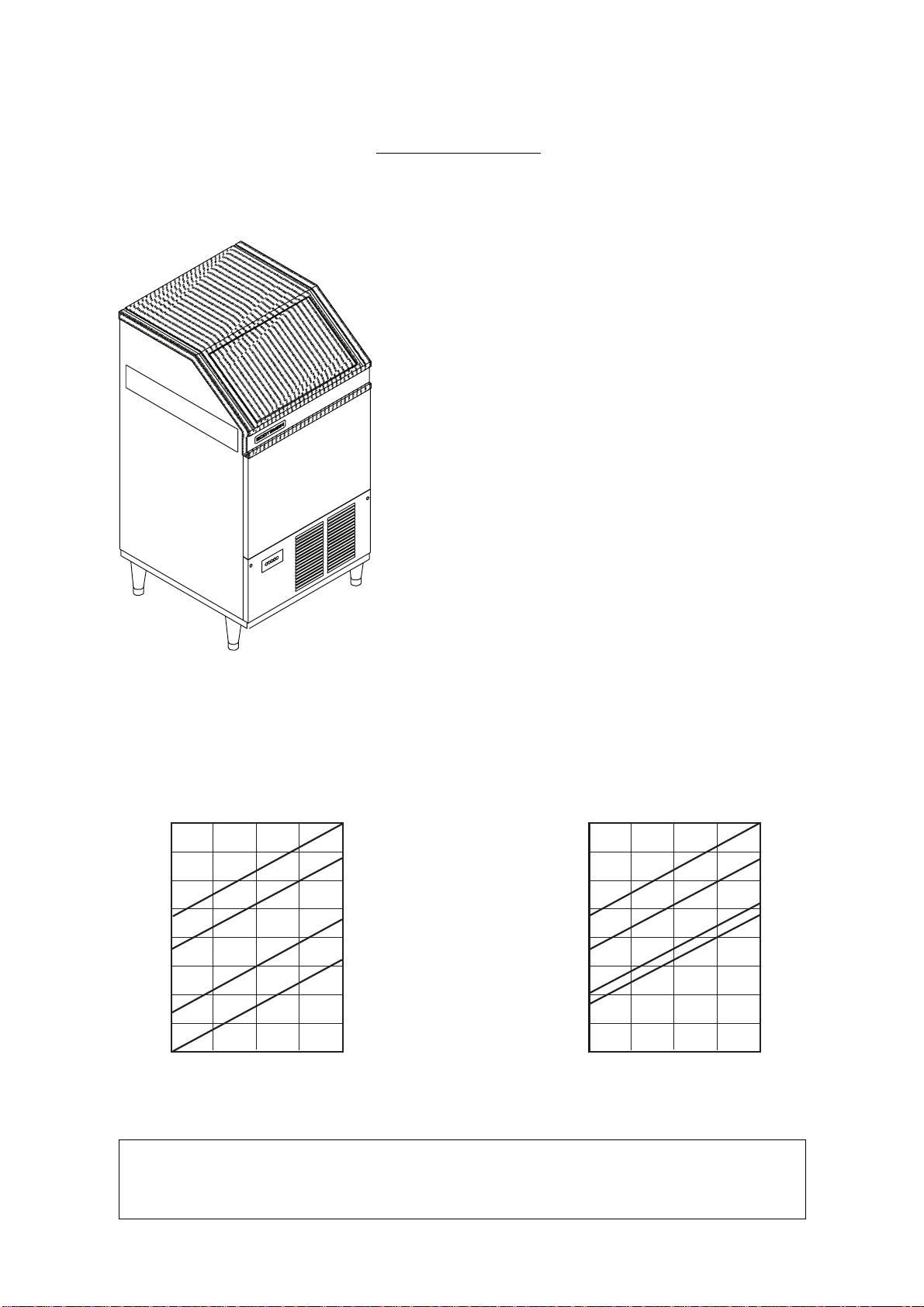

SPECIFICATIONS

ice making capacity

ELECTRONIC FLAKER MODEL AF 80

NOTE.Withtheunitin“built-in”conditions,the ice production isgraduallyreduced in respect tothe

levels shown in the graph, up to a maximum of 10% at room temperatures higher than 32

The daily ice-making capacity is directly related to the condenser air inlet temperature, water

temperature and age of the machine.

To keep your SCOTSMAN FLAKER at peak performance levels, periodic maintenance checks

must be carried out as indicated on page 36 of this manual.

Important operating requirements:

MIN MAX

- Air temperature 10°C (50°F) 40°C (100°F)

- Water temperature 5°C (40°F) 40°C (100°F)

- Water pressure 1 bar (14 psi) 5 bars (70 psi)

- Electr. voltage

variations fromvoltage

rating specified

on nameplate -10% +10%

Kg.

32 °C21 15

°C

AIR COOLED MODELS

WATER TEMPERATURE

AMBIENT TEMPERATURE

ICE PRODUCED PER 24 HRS.

Kg.

32 °C21 15

°C

WATER COOLED MODELS

WATER TEMPERATURE

AMBIENT TEMPERATURE

ICE PRODUCED PER 24 HRS.

Page 4

Start Electric power cons.

Amps Kwh per 24 HR

Basic electr. Amps Watts Nr. of wires Amps fuse

SPECIFICATIONS

Model Cond. unit Finish Comp. HP Ice bin

cap Water req.

lt/24 HR

AF80 - MACHINE SPECIFICATIONS

Dimensions:

HEIGHT (less legs) 813 mm.

HEIGHT (with legs) 933 mm.

WIDTH 535 mm.

DEPTH 621 mm.

WEIGHT 72 Kg.

230/50/1 2.2 11 330 7.5 3 x 1.5 mm210

S. Steel 1/4 25 Kg.

AF80 AS Air 53**

AF80 WS Water 300*

* A 15°C water temperature

Page 5

SPECIFICATIONS

ice making capacity

ELECTRONIC FLAKER MODEL AF 100

Important operating requirements:

MIN MAX

- Air temperature 10°C (50°F) 40°C (100°F)

- Water temperature 5°C (40°F) 40°C (100°F)

- Water pressure 1 bar (14 psi) 5 bars (70 psi)

- Electr. voltage

variations fromvoltage

rating specified

on nameplate -10% +10%

NOTE.Thedailyice-makingcapacityisdirectlyrelatedtothecondenserairinlettemperature,water

temperature and age of the machine.

To keep your SCOTSMAN FLAKER at peak performance levels, periodic maintenance checks

must be carried out as indicated on page 36 of this manual.

120

115

110

105

100

Kg.

10 °C

27 21 15

°C

AIR COOLED MODELS

WATER TEMPERATURE

AMBIENT TEMPERATURE

ICE PRODUCED PER 24 HRS.

Page 6

Start Electric power cons.

Amps Kwh per 24 HR

Basic electr. Amps Watts Nr. of wires Amps fuse

SPECIFICATIONS

Model Cond. unit Finish Comp. HP Ice bin

cap Water req.

lt/24 HR

AF100 - MACHINE SPECIFICATIONS

Dimensions:

HEIGHT (less legs) 1006 mm.

HEIGHT (with legs) 1126 mm.

WIDTH 592 mm.

DEPTH 622 mm.

WEIGHT 72 Kg.

* A 15°C water temperature

230/50/1 2.2 11 400 9 3 x 1.5 mm210

S. Steel 1/4 32 Kg.

AF 100 AS Air 85**

AF 100 WS Water 600*

Page 7

SPECIFICATIONS

ice making capacity

ELECTRONIC FLAKER MODEL AF 200

NOTE.Thedailyice-makingcapacityisdirectlyrelatedtothecondenserairinlettemperature,water

temperature and age of the machine.

To keep your SCOTSMAN FLAKER at peak performance levels, periodic maintenance checks

must be carried out as indicated on page 36 of this manual.

Important operating requirements:

MIN MAX

- Air temperature 10°C (50°F) 40°C (100°F)

- Water temperature 5°C (40°F) 40°C (100°F)

- Water pressure 1 bar (14 psi) 5 bars (70 psi)

- Electr. voltage

variations fromvoltage

rating specified

on nameplate -10% +10%

120

115

110

105

100

Kg.

32 10 °C

27 21 15

°C

AIR COOLED MODELS

WATER TEMPERATURE

AMBIENT TEMPERATURE

ICE PRODUCED PER 24 HRS.

120

115

110

105

100

Kg.

°C

WATER COOLED MODELS

WATER TEMPERATURE

AMBIENT TEMPERATURE

ICE PRODUCED PER 24 HRS.

Page 8

AF 200 AS Air 100*

AF 200 WS Water 580*

S. Steel 3/8 32 Kg.

Start Electric power cons.

Amps Kwh per 24 HR

Basic electr. Amps Watts Nr. of wires Amps fuse

SPECIFICATIONS

Model Cond. unit Finish Comp. HP Ice bin

cap Water req.

lt/24 HR

AF 200 - MACHINE SPECIFICATIONS

Dimensions:

HEIGHT (less legs) 1006 mm.

HEIGHT (with legs) 1126 mm.

WIDTH 592 mm.

DEPTH 622 mm.

WEIGHT 72 Kg.

* A 15°C water temperature

230/50/1 3.5 18 760 12 3 x 1.5 mm210

Page 9

SPECIFICATIONS

ice making capacity

ELECTRONIC FLAKER MODEL AF 20

Important operating requirements:

MIN MAX

- Air temperature 10°C (50°F) 40°C (100°F)

- Water temperature 5°C (40°F) 40°C (100°F)

- Water pressure 1 bar (14 psi) 5 bars (70 psi)

- Electr. voltage

variations fromvoltage

rating specified

on nameplate -10% +10%

120

115

110

105

100

Kg.

32 10 °C

27 21 15

°C

AIR COOLED MODELS

WATER TEMPERATURE

AMBIENT TEMPERATURE

ICE PRODUCED PER 24 HRS.

120

115

110

105

100

Kg.

32 10 °C

27 21 15

°C

WATERCOOLED MODELS

WATER TEMPERATURE

AMBIENT TEMPERATURE

ICE PRODUCED PER 24 HRS.

NOTE.Thedailyice-makingcapacityisdirectlyrelatedtothecondenserairinlettemperature,water

temperature and age of the machine.

To keep your SCOTSMAN FLAKER at peak performance levels, periodic maintenance checks

must be carried out as indicated on page 36 of this manual.

Page 10

Start Electric power cons.

Amps Kwh per 24 HR

Basic electr. Amps Watts Nr. of wires Amps fuse

SPECIFICATIONS

Model Cond. unit Finish Comp. HP Ice bin

cap Water req.

lt/24 HR

AF20 - MACHINE SPECIFICATIONS

Dimensions:

HEIGHT (less legs) 1006 mm.

HEIGHT (with legs) 1126 mm.

WIDTH 969 mm.

DEPTH 613 mm.

WEIGHT 97 Kg.

* A 15°C water temperature

230/50/1 3.2 17 500 11 3 x 1 mm210

S. Steel 3/8 70 Kg.

AF 20 AS Air 120**

AF 20 WS Water 600*
