INTRODUCTION

To the owner or user: The service manual you

are reading is intended to provide you, and the

maintenance or service technician, with the

information needed to install, start up, clean,

maintain, and service this ice system.

The NM650 is a modular ice system that fits a

variety of Scotsman ice storage bins.

It features: front service for the freezer,

gearmotor, control box, water reservoir, and

bin control; an electronic circuit for monitoring

ice and water level; a thermostatic expansion

valve; and R-502 as the refrigerant.

TABLE OF CONTENTS

Installation

For the Installer

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Two units on one bin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

For the Plumber . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

For the Electrician . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Final Check List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Start Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Component Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Electrical Sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Maintenance and Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Service Diagnosis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Removal and Replacement

Reservoir and Bin Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Bearing and Breaker . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Auger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Water Seal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Evaporator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Gearmotor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Fan Motor Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Electronic Tester . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Parts lists and wiring diagrams are in the center of this manual, printed on yellow paper.

NM650

January, 1991

Page 1

FOR THE INSTALLER

The NM650 is designed to fit the following

Scotsman storage bins:

B590 and extensions (with bin top KBT18)

BH800 using bin top KBT15 (one unit).

BH800 (two units, no bin top required).

BH1000 using bin top KBT16.

When installing a new system, check to be

sure that you have everything you need

before beginning:

Correct Bin

Correct Ice Machine

Correct Bin Top (if required)

All kits, legs, and information required for

the specific job.

Installation Limitations:

This ice system is designed to be installed

indoors, in a controlled environment:

Min Max

Air Temperature 500F 1000F

Water Temperature 400F 1000F

Water Pressure 20 PSI 80 PSI

Voltage -5% +10%

(Compared to the nameplate)

Operating the machine outside of the

limitations is misuse and can void the warranty.

Model Number

NM650AE-1A

NM650WE-1A

NM650AE-32A

NM650WE-32A

Diminsions

(w/o bin)

H X W X D

27" x 21" x 24"

same

Basic

Electrical

115/60/1

same

208-230/60/1

same

Ice Type

NUGGET

same

Condenser

Type

Air

Water

Air

Water

Minimum

Circuit

Ampacity

20.7

16.8

11.4

10.2

Max

Fuse

Size

Comp.

H.P.

3/4

The normal finish for the ice machine is

enamel-sandalwood. A stainless steel panel

kit, SPKFM21 may be field installed to convert

the unit to a stainless steel finish.

Note: Minimum Circuit Ampacity is used to determine wire size and type per national electric code.

ELECTRICAL

INLET

2.1"

5.7"

WATER INLET

3/8" FLARE

DRAIN

3/4" FPT

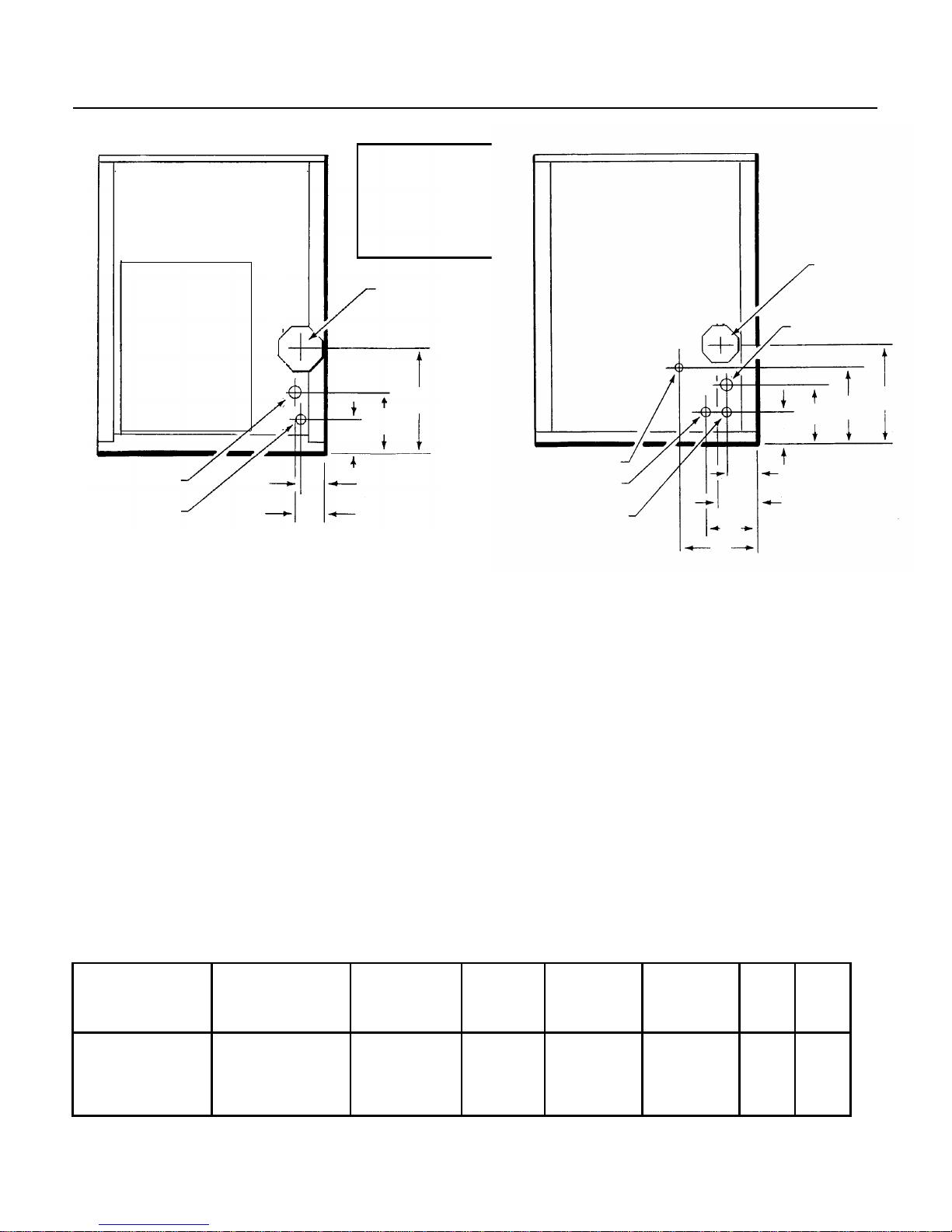

BACK VIEW: AIR COOLED

5.25"

9.5"

Note: Allow 6"

behind and 6"

above either unit

for air circulation,

utility connections,

and service. ELECTRICAL

INLET

WATER

INLET

7.3"

5.25"

3.4"

7.46"

Condenser Inlet 3/8" FPT

Condenser Drain 1/2" FPT

DRAIN

3/4" FPT 4.9"

2.9"

9.43"

BACK VIEW: WATER COOLED

SPECIFICATIONS: ICE MAKER

NM650

January, 1991

Page 2

FOR THE INSTALLER

Typical Storage Bin - B590

1.25" 21.12" Drain

3/4"

FPT

Water Limitations:

An ice machine is a food manufacturing plant:

it takes a raw material, water, and transforms

it into a food product, ice. The purity of the

water is very important in obtaining pure ice

and in maximizing product life. This section is

not intended as a complete resource for water

related questions, but it does offer these

general recommendations:

1. Check with a water treatment specialist for

a water test, and recommendations regarding

filters and treatment.

2. In most cases, the water used to make ice

should be filtered or treated, depending upon

the water.

There is no one type of water filter

that is effective in all situations.

That is why a

water test is important.

Note:

Scotsman Ice Systems are designed and

manufactured with the highest regard for

safety and performance. They meet or

exceed the standards of UL, NSF, and CSA.

Scotsman assumes no liability or responsibility

of any kind for products manufactured by

Scotsman that have been altered in any way,

including the use of any part and/or other

components not specifically approved by

Scotsman.

Scotsman reserves the right to make design

changes and/or improvements at any time.

Specifications and design are subject to

change without notice.

NM650

January, 1991

Page 3

FOR THE INSTALLER

Location:

After uncrating and inspection, the unit is

ready for installation. It is important that the

machine be installed in a location where it has

enough space around it to be accessible for

service, and minimum of 6" be allowed at the

back for air circulation on air cooled models.

Try to avoid hot, dirty and crowded locations.

Be sure that the location for the machine is

within the environmental limitations.

Storage Bin:

Tip the storage bin on its back, using parts of

the carton to protect the exterior finish. Install

the legs into the threaded holes in the bottom

of the bin. Turn the leg levelers all the way in

preparation for leveling later. Return the bin to

the upright position, remove paper covering

the bin gasket.

Note: Do not push bin into position, but lift it

there. Pushing a bin, especially one with ice in

it, can cause damage to the legs and the leg

mounts.

Install the appropriate bin top on the bin,

according to the instructions for the bin top.

Ice Maker:

The machine is heavy, so the use of a

mechanical lift is recommended for lifting the

machine high enough to install on top of the

bin. After the unit is placed on the bin, line it

up so it is even with the back side. Secure the

machine to the bin with the hardware provided

with the machine.

Remove the front panel and remove any

shipping blocks.

Typical Storage Bin with Extension and Bin Top

NM650

January, 1991

Page 4

FOR THE INSTALLER: Location

TWO UNITS ON ONE BIN

ALLOW ROOM

FOR AIR

CIRCULATION

AND SERVICE

ACCESS

DO NOT STACK ANYTHING IN

FRONT OF THE MACHINE(S)

NM650

January, 1991

Page 5

FOR THE PLUMBER

CONFORM TO ALL APPLICABLE CODES

Water Inlet

Air Cooled Models: The recommended water

supply is clean, cold water. Use 3/8" O.D.

copper tubing, connect to the 3/8" male flare

at the back of the cabinet. Install a hand valve

near the machine to control the water supply.

Water Treatment: In most areas, a water filter

of some type will be useful. In areas where the

water is highly concentrated with minerals the

water should be tested by a water treatment

specialist, and the recommendations of the

specialist regarding filtration and/or treatment

should be followed.

Water Cooled Models: A separate 3/8" O.D.

copper line is recommended, with a separate

hand valve to control it. It is connected to a

3/8" FPT condenser inlet at the back of the

cabinet. The water pressure to all lines must

always be above 20 psig, and below 120 psig.

Drains

Air Cooled Models: There is one 3/4" FPT

drain at the back of the cabinet, the drain line

is of the gravity type, and 1/4 inch per foot fall

is an acceptable pitch for the drain tubing.

There should be a vent at the highest point of

the drain line, and the ideal drain receptacle

would be a trapped and vented floor drain.

Use only 3/4" rigid tubing.

Water Cooled Models: In addition to the

above mentioned drain, a separate condenser

drain must be installed. Connect it to the 1/2"

condenser drain connection at the back of the

cabinet.

Storage Bin: A separate gravity type drain

needs to be run, similar to the air cooled drain.

Insulation of this drain line is recommended.

AIR COOLED

MODELS

HAND

VALVE

FIELD

SUPPLIED

FILTER

WATER

INLET

VENTED

DRAIN

WATER

COOLED

HAND

VALVE

CONDENSER

INLET

WATER

FILTER CONDENSER

DRAIN VENTED

DRAIN

NM650

January, 1991

Page 6

FOR THE ELECTRICIAN

CONFORM TO ALL APPLICABLE CODES

The electrical power to the unit is supplied

through the junction box at the rear of the

machine.

Check the nameplate (located on the back

panel) for the voltage requirements, and for

the minimum circuit ampacity. The machine

requires a solid chassis to earth ground wire.

The ice maker should be connected to its own

electrical circuit so it would be individually

fused. Voltage variation must remain within

design limitations, even under starting

conditions.

All external wiring must conform to

national, state, and local electrical codes.

The use of a licensed electrician is

required to perform the electrical

installation.

WATER COOLED

AIR COOLED

POWER

SUPPLY

NM650

January, 1991

Page 7

FOR THE INSTALLER Final Check List

1. Is the ice system installed indoors in a

location where the air and water temperatures

are controlled, and where they do not exceed

the design limitations?

2. Is there an electrical service disconnect

within sight of the installed machine? Has the

voltage been checked, and compared to

nameplate requirements?

3. Have all the plumbing connections been

made and checked for leaks?

4. Has the machine and bin been leveled?

5. Is there a minimum of 6" clearance at the

back of the machine for proper service access

and air circulation?

6. Is the water pressure a minimum of 20 psig?

7. Has the machine been secured to the bin?

8. Is there clearance over the top of the

machine for service access?

9. Is there a water shut off valve installed near

the machine?

10. Have all of the shipping blocks been

removed?

NM650

January, 1991

Page 8

START UP Pre-Start Inspection

1. Remove the front and side service panels.

2. Check that the styrofoam shipping blocks

have been removed.

3. Inspect the interior of the machine for loose

screws or wires. Check that no refrigerant

lines are rubbing each other. Check that the

fan blade turns freely (air cooled).

4. Check that the unit is installed correctly

according to the final check list (page 8).

Start Up

1. Go through the prestart inspection.

2. Open the hand valve, observe that water

enters the water reservoir, fills the tube from

the reservoir to the evaporator, and then shuts

off. Check for leaks.

3. Switch the master switch on.

The electrical start up sequence is now on

automatic.

A. There should be a short (15 second) delay

before the gearmotor starts.

B. After the gearmotor starts, the compressor

will start.

4. On air cooled models, the condenser will

begin to discharge warm air, on water cooled

models, the water regulating valve will open,

and warm water will be discharged into the

drain.

5. The unit should soon be making ice, if

desired, the low side pressure can be

checked: it should be 30 psig + or - 4 psig.

The suction line temperature at the

compressor is normally very cold, nearly to the

point of frost up to the compressor body, but

not on it.

The air cooled discharge pressure will depend

upon air and water temperatures, but should

be between 200 psig and 280 psig.

The water cooled discharge pressure should

be constant at about 220 psig.

The above numbers are for new, clean

machines, you can expect to see some values

higher, and some lower between different

units.

6. THERE ARE NO ADJUSTMENTS TO

MAKE, so replace the panels.

7. Clean and/or sanitize the storage bin

interior, wipe off the exterior with a clean,

damp cloth.

8. Give the owner/user the service manual,

instruct him/her in the operation of the unit,

and make sure they know who to call for

service.

9. Fill out the manufacturers registration card,

and mail it to the Scotsman Factory.

10. Fill out the field quality audit form, and mail

it to the Scotsman factory.

NM650

January, 1991

Page 9

COMPONENT DESCRIPTION

Control Box: Contains the electrical controls

that operate the machine.

High Pressure Cut Out Switch: A manual

reset switch sensing the high side refrigeration

pressure. It is set to shut the machine off if the

discharge pressure should ever exceed 400

psig. On older models (up to late 1990

production) the reset switch light would also

come on.

Compressor: The refrigerant vapor pump.

Reservoir: Float operated, it maintains the

water level in the evaporator at a constant

level, it also contains the water level sensor.

Water Level Sensor: Senses if there is water

in the reservoir to make ice out of. Will shut

the machine off it there is no water.

Ice Discharge Chute: Directs the ice

produced by the evaporator into the storage

bin.

Ice Level Sensor: An electronic “eye”, it

senses the presence of ice in the bottom of

the ice discharge chute. Operates to turn the

ice machine on and off automatically as the

level of ice in the bin changes.

Gear Motor: An oil filled, speed reduction

gearbox, driving the auger.

Condenser: Air or water cooled, where the

heat removed in ice making is discharged.

Expansion valve: The refrigerant metering

device.

AIR COOLED

CONTROL BOX

CONDENSER

EXPANSION

VALVE

RESERVOIR

ICE CHUTE

COMPRESSOR ICE LEVEL

SENSORS

DRAIN

TUBE

WATER COOLED

CONTROL BOX

CONDENSER

EXPANSION

VALVE

RESERVOIR

ICE CHUTE

ICE LEVEL

SENSORS

HIGH

PRESSURE

CUT OUT

NM650

January, 1991

Page 10

Inhaltsverzeichnis

Andere Scotsman Eiswürfelbereiter Handbücher

Scotsman

Scotsman DCE33 Series Bedienungsanleitung

Scotsman

Scotsman CMS1202 Bedienungsanleitung

Scotsman

Scotsman FME 1204 Bedienungsanleitung

Scotsman

Scotsman MDT5N40A-1J Bedienungsanleitung

Scotsman

Scotsman 300 lb Cube Ice Machine C0322 Bedienungsanleitung

Scotsman

Scotsman NH0422 Leitfaden

Scotsman

Scotsman Prodigy Plus D Series Bedienungsanleitung

Scotsman

Scotsman NM650R Bedienungsanleitung

Scotsman

Scotsman CME1386 Bedienungsanleitung

Scotsman

Scotsman Prodigy Eclipse 600 Bedienungsanleitung

Scotsman

Scotsman AFE424 Bedienungsanleitung

Scotsman

Scotsman NME1854R Bedienungsanleitung

Scotsman

Scotsman CU0415 Bedienungsanleitung

Scotsman

Scotsman FME2400R Bedienungsanleitung

Scotsman

Scotsman FM1500R Bedienungsanleitung

Scotsman

Scotsman N0922L Bedienungsanleitung

Scotsman

Scotsman FM2402RH Bedienungsanleitung

Scotsman

Scotsman TouchFree MDT2C12 Bedienungsanleitung

Scotsman

Scotsman CS0415 Bedienungsanleitung

Scotsman

Scotsman Prodigy ELITE A Series Bedienungsanleitung

Scotsman

Scotsman MCM1462R Bedienungsanleitung

Scotsman

Scotsman Prodigy C0630 Bedienungsanleitung

Scotsman

Scotsman CSW45 Bedienungsanleitung

Scotsman

Scotsman HD150 Bedienungsanleitung

Beliebte Eiswürfelbereiter Handbücher anderer Marken

Hoshizaki

Hoshizaki KMD-460MWJ Bedienungsanleitung

Sub-Zero

Sub-Zero 315I Gebrauchsanweisung

Unold

Unold 48945 Bedienungsanleitung

Kenmore

Kenmore 2217402A Bedienungsanleitung

Cornelius

Cornelius WM600 Betriebsanleitung

GE XPIO43SCSS Bedienungsanleitung

Hoshizaki

Hoshizaki KMD-901MAH Bedienungsanleitung

Whynter

Whynter FIM-450HA Bedienungsanleitung

U-Line

U-Line UMCR014-SC01A Installationshandbuch

Andrew James

Andrew James AJ000522 Bedienungsanleitung

Kärcher

Kärcher IP 120 Bedienungsanleitung

U-Line

U-Line SS1095 Bedienungsanleitung

Maytag

Maytag MIM1554WRS - Ice Maker Bedienungsanleitung

Hoshizaki

Hoshizaki KM-630MAH Bedienungsanleitung

Princess

Princess Yonanas Bedienungsanleitung

Unold

Unold 48946 Bedienungsanleitung

Electrolux

Electrolux E15IM60GP Bedienungsanleitung

Cornelius

Cornelius UC150 ICE ONLY Bedienungsanleitung
