Seagull Models A6M Zero Fighter 67 Bedienungsanleitung

Specications:

Wing span ---------------------- 67.0 in (170 cm).

Wing area ---------------------- 761.1 sq.in (49.1sq dm).

Weight -------------------------- 10.8 lbs (4.9 kg).

Length -------------------------- 51.1 in (129.8 cm).

Engine -------------------------- 15-20cc

Radio --------------------------- 5 channels with 7 servos.

Retracts landing gear (included).

Electric conversion: optional

ASSEMBLY MANUAL

Code : SEA 123N

Upgraded A6M Zero

Fighter 67”, 15-20cc

Upgraded A6M Zero Fighter 67”, 15-20cc Instruction Manual.

ank you for choosing the Upgraded A6M Zero Fighter 67”, 15-20cc ARTF by SG

MODELS . e Upgraded A6M Zero Fighter 67”, 15-20cc was designed with the in-

termediate/advanced sport yer in mind. It is a semi scale airplane which is easy to

y and quick to assemble. e airframe is conventionally built using balsa, plywood

to make it stronger than the average ARTF, yet the design allows the aeroplane to be

kept light. You will nd that most of the work has been done for you already. e mo-

tor mount has been tted and the hinges are pre-installed. Flying the Upgraded A6M

Zero Fighter 67”, 15-20cc is instruction manual is designed to help you build a great

ying aeroplane. Please read this manual throughly before starting assembly of your Up-

graded A6M Zero Fighter 67”, 15-20cc Use the parts listing below to indentify all parts.

Please be aware that this aeroplane is not a toy and if assembled or used incorrectly it is ca-

pable of causing injury to people or property. WHEN YOU FLY THIS AEROPLANE YOU

ASSUME ALL RISK & REPONSIBILITY.

If you are inexperienced with basic R/C ight we strongly recommend you contact your R/C

supplier and join your local R/C model Flying Club. R/C Model Flying Clubs oer a variety

of training procedures designed to help the new pilot on his way to successful R/C ight.

ey will also be able to advise on any insurance and safety regulations that may apply.

INTRODUCTION

WARNING

KIT CONTENTS

338

KIT CONTENTS

SEA123N Upgraded A6M Zero

Fighter 67”, 15-20cc

1. Fuselage

2. Wing set (2)

3. Tail set (2)

4. Canopy

5. Cowling (2)

6. Wing tube

7. Pilot

8. Main undercarriage

9. Wheel

10. Fuel tank

11. Tail wheel

12. Spinner

13. Bomb

14. Ep Motor box

15. Tail capture (2)

16. Anten

17. Engine bracket

ADDITIONAL ITEMS REQUIRED

TOOLS & SUPPLIES NEEDED

in cyanoacrylate glue.

Medium cyanoacrylate glue.

30 minute epoxy.

5 minute epoxy.

Hand or electric drill.

Assorted drill bits.

Modelling knife.

Straight edge ruler.

2mm ball driver.

Phillips head screwdriver.

220 grit sandpaper.

90° square or builder’s triangle.

Wire cutters.

Masking tape & T-pins.

read-lock.

Paper towels.

�15-20cc gasoline engine.

�Computer radio 5 channel with 7

servos.

�Glow plug to suit engine.

�Propeller to suit engine.

�Protective foam rubber for radio

system.

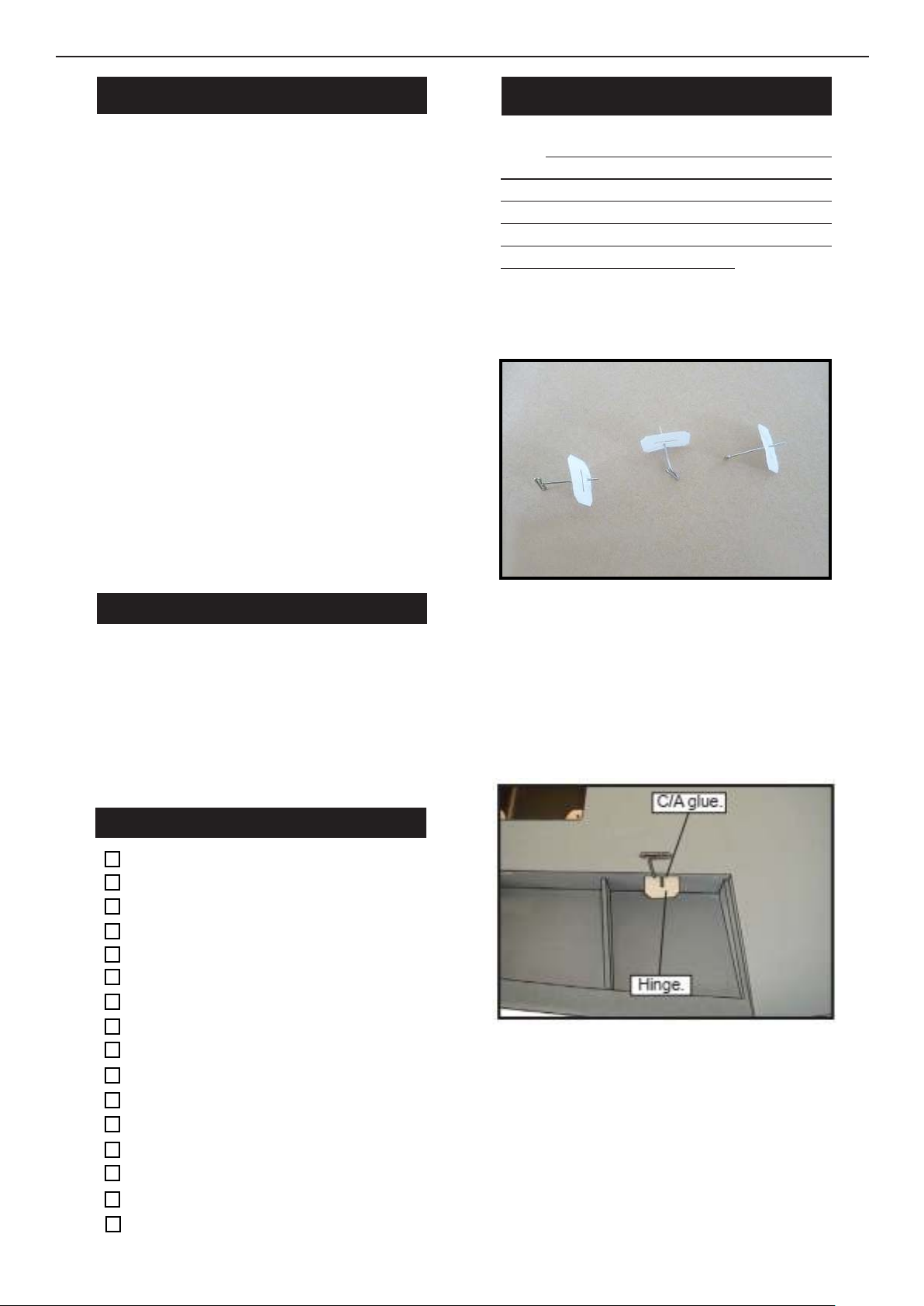

HINGING THE FLAP

Note : e control surfaces, including the ailer-

ons, elevators, and rudder, are prehinged with

hinges installed, but the hinges are not glued in

place. It is imperative that you properly adhere

the hinges in place per the steps that follow us-

ing a high-quality thin C/A glue.

Carefully remove the ap from one of the

wing panels. Note the position of the hinges.

Remove each hinge from the wing panel

and ap and place a T-pin in the center of

each hinge. Slide each hinge into the wing

panel until the T-pin is snug against the wing

panel. is will help ensure an equal amount

of hinge is on either side of the hinge line

when the ap is mounted to the aileron.

Hinge

Slide the wing panel on the ap until

there is only a slight gap. e hinge is

now centered on the wing panel and ap.

Remove the T-pins and snug the aileron

against the wing panel. A gap of 1/64” or

less should be maintained between the

wing panel and ap.

Upgraded A6M Zero Fighter 67”, 15-20cc Instruction Manual.

NOTE : e hinge is constructed of a spe-

cial material that allows the C/A to wick

or penetrate and distribute throughout

the hinge, securely bonding it to the wood

structure of the wing panel and ap.

Deect the ap and completely satu-

rate each hinge with thin C/A glue. e

ailerons front surface should lightly con-

tact the wing during this procedure. Ide-

ally, when the hinges are glued in place,

a 1/64” gap or less will be maintained

throughout the lengh of the ap to the

wing panel hinge line.

Turn the wing panel over and deect the

ap in the opposite direction from the oppo-

site side. Apply thin C/A glue to each hinge,

making sure that the C/A penetrates into

both the aileron and wing panel.

Using C/A remover/debonder and a paper

towel, remove any excess C/A glue that may

have accumulated on the wing or in the ap

hinge area.

Repeat this process with the other wing

panel, securely hinging the aileron in

place.

Aer both ap are securely hinged,

rmly grasp the wing panel and aileron to

make sure the hinges are securely glued

and cannot be pulled out. Do this by care-

fully applying medium pressure, trying to

separate the ap from the wing panel. Use

caution not to crush the wing structure.

Work the aileron up and down sev-

eral times to “work in” the hinges

and check for proper movement.

Note :

HINGING THE AILERON

Note : e control surfaces, including the ailer-

ons, elevators, and rudder, are prehinged with

hinges installed, but the hinges are not glued in

place. It is imperative that you properly adhere

the hinges in place per the steps that follow us-

ing a high-quality thin C/A glue.

Carefully remove the aileron from one of

the wing panels. Note the position of the

hinges.

Remove each hinge from the wing panel

and aileron and place a T-pin in the center

of each hinge. Slide each hinge into the wing

panel until the T-pin is snug against the wing

panel. is will help ensure an equal amount

of hinge is on either side of the hinge line

when the aileron is mounted to the aileron.

Slide the wing panel on the aileron until

there is only a slight gap. e hinge is now

centered on the wing panel and aileron.

Remove the T-pins and snug the aileron

against the wing panel. A gap of 1/64” or

less should be maintained between the

wing panel and aileron.

NOTE : e hinge is constructed of a spe-

cial material that allows the C/A to wick

or penetrate and distribute throughout

the hinge, securely bonding it to the wood

structure of the wing panel and aileron.

Deect the aileron and completely satu-

rate each hinge with thin C/A glue. e

ailerons front surface should lightly con-

tact the wing during this procedure. Ide-

ally, when the hinges are glued in place,

a 1/64” gap or less will be maintained

throughout the lengh of the aileron to the

wing panel hinge line.

Turn the wing panel over and deect the

aileron in the opposite direction from the

opposite side. Apply thin C/A glue to each

hinge, making sure that the C/A penetrates

into both the aileron and wing panel.

Using C/A remover/debonder and a paper

towel, remove any excess C/A glue that may

have accumulated on the wing or in the

aileron hinge area.

Upgraded A6M Zero Fighter 67”, 15-20cc Instruction Manual.

Work the aileron up and down sev-

eral times to “work in” the hinges

and check for proper movement.

Note :

Repeat this process with the other wing

panel, securely hinging the aileron in

place.

Aer both ailerons are securely hinged,

rmly grasp the wing panel and aileron to

make sure the hinges are securely glued

and cannot be pulled out. Do this by care-

fully applying medium pressure, trying to

separate the aileron from the wing panel.

Use caution not to crush the wing struc-

ture.

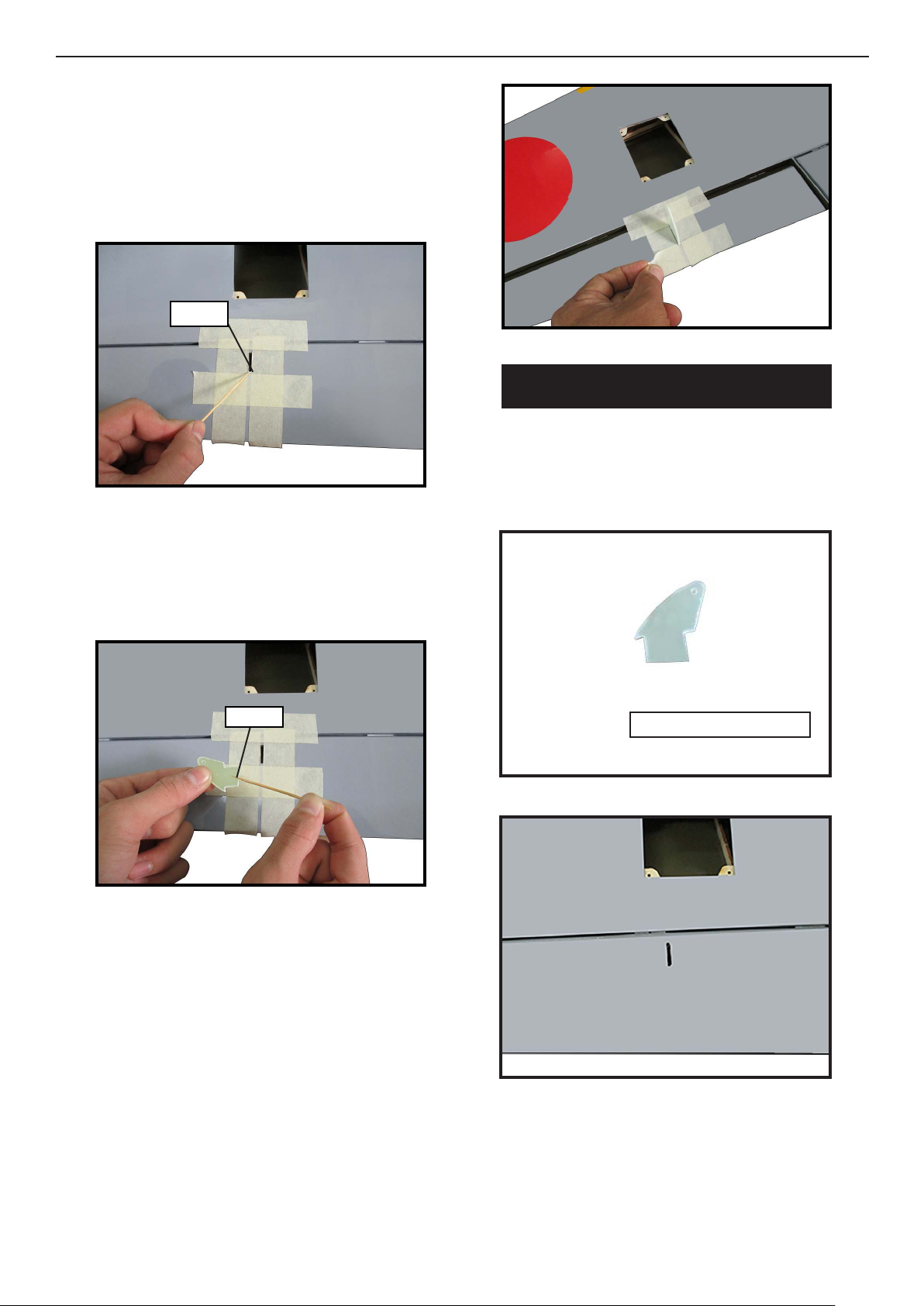

Locate the aileron and ap control horns.

e taller control horn is used for the ailer-

ons, and the shorter horn for the aps.

Use sandpaper to scu the bottom of the

aileron and ap control horns. Use a paper

towel and isopropyl alcohol to remove any

oils or debris from the control horns.

Check the t of the control horns to the

aileron and ap. ey should rest ush

against the control surface as shown.

INSTALL THE AILERONS

CONTROL HORN

Ailerons control horn

Place low-tack tape 1/32 inch (1mm)

from the control horn slot. is will pre-

vent epoxy from getting on the control

surface when the control horns are glued

in place.

Apply epoxy to the area of the control

horns that st into the slots. Use enough

epoxy so the control horns will be fully

bonded to the ed surfaces.

Remove the control horns from the

control surfaces. Apply epoxy to the slot

in the aileron and ap. Make sure the

epoxy gets into the slot for a good bond

between the surfaces and control horn.

Epoxy

Before the epoxy fully cures, remove

the tape from around the control horn.

is will allow the epoxy to ow around

the control horn, creating a small let

between the control horn and surface for

a ished look and secure bond.

Epoxy

Install the ap control horn using the

same method as same as the aileron con-

trol horns.

Fiberglass control horn

INSTALL FLAP CONTROL HORN

Upgraded A6M Zero Fighter 67”, 15-20cc Instruction Manual.

Flap control horn

Epoxy

INSTALLING THE AILERON SERVOS

Ailerons servo Flap servo

Because the size of servos dier, you

may need to adjust the size of the precut

opening in the mount. e notch in the

sides of the mount allow the servo lead to

pass through.

Place the servo between the mounting

blocks and space it from the hatch. Use a

pencil to mark the mounting hole loca-

tions on the blocks.

Use drill bit in a pin vise to drill the

mouting holes in the blocks.

Apply 2-3 drops of thin C/A to each of

the mounting holes. Allow the C/A to

cure without using accelerator.

1.5mm

Minimum servo spec.

Torque : 80 oz-in (5.8 kg-cm) @ 4.8V;

100 oz-in (7.2 kg-cm) @ 6.0V

Use dental oss or heatshrunk tube to

secure the connection so they cannot be-

come unplugged.

C/A glue

Secure the servo to the aileron hatch

using Phillips screwdriver and the screws

provided with the servo.

Apply 1-2 drops of thin C/A to each of

the mounting tabs. Allow the C/A to cure

without using accelerator.

C/A glue

Remove the string from the wing at the

servo location and use the tape to attach it

to the servo extension lead. Pull the lead

through the wing and remove the string.

10.

11.

Upgraded A6M Zero Fighter 67”, 15-20cc Instruction Manual.

Set the aileron hatch in place and use a

Phillips screw driver to install it with four

wood screws. Mark the control wire where it crosses

the servo arm hole.

Make a 90-degree bend at the mark and

cut o the excess wire leaving 8mm past

the bend.

12.

13.

14.

3x10mm

AILERON PUSHROD INSTALLATION

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Seagull Models Spielzeug Handbücher

Seagull Models

Seagull Models Glasair Sportsman G2-2 Bedienungsanleitung

Seagull Models

Seagull Models Ultimate Bedienungsanleitung

Seagull Models

Seagull Models Ultimate Bedienungsanleitung

Seagull Models

Seagull Models JU-87 STUKA Bedienungsanleitung

Seagull Models

Seagull Models SHOCK-CUB 35-55cc Bedienungsanleitung

Seagull Models

Seagull Models De Havilland DH-60M Moth 72" wingspan... Bedienungsanleitung

Seagull Models

Seagull Models EXTRA 330LX Bedienungsanleitung

Seagull Models

Seagull Models SEA278 Bedienungsanleitung

Seagull Models

Seagull Models Radial Rocket JD 10cc Bedienungsanleitung

Seagull Models

Seagull Models SEA FURY Bedienungsanleitung

Seagull Models

Seagull Models Husky Bedienungsanleitung

Seagull Models

Seagull Models Funfly 3D Bedienungsanleitung

Seagull Models

Seagull Models GLASAIR SPORTSMAN 2-2 Bedienungsanleitung

Seagull Models

Seagull Models THUNDERBOLT P47G SNAFU 60 ARF Bedienungsanleitung

Seagull Models

Seagull Models MXS-R Bedienungsanleitung

Seagull Models

Seagull Models ultra-jet Bedienungsanleitung

Seagull Models

Seagull Models NIEUPORT 28 REPLICA Bedienungsanleitung

Seagull Models

Seagull Models DHC-1 Chipmunk Bedienungsanleitung

Seagull Models

Seagull Models ZERO FIGHTER Bedienungsanleitung

Seagull Models

Seagull Models WESTLAND LYSANDER MK. III 55CC SEA216 Bedienungsanleitung

Seagull Models

Seagull Models T-6A Texan II Bedienungsanleitung

Seagull Models

Seagull Models 15CC Bedienungsanleitung

Seagull Models

Seagull Models SEA231 Bedienungsanleitung

Seagull Models

Seagull Models TEMPEST DRAGON 15cc ARF Bedienungsanleitung

Beliebte Spielzeug Handbücher anderer Marken

marklin

marklin 37321 Bedienungsanleitung

Canon

Canon PAPER CRAFT Bedienungsanleitung

GREAT PLANES

GREAT PLANES Pitts M-12S Bedienungsanleitung

NOCH

NOCH 14261 Bedienungsanleitung

Hausler

Hausler 450 SE V2 Bedienungsanleitung

Dynaflite

Dynaflite Daydream Bedienungsanleitung

MiniacRC

MiniacRC MIGHTY MINI P40 WARHAWK Handbuch

Kenner

Kenner Batman 63651 Bedienungsanleitung

LEGO

LEGO 8527 Bedienungsanleitung

iKarus

iKarus ECO 8 Bedienungsanleitung

Multiplex

Multiplex EasyStar II Bedienungsanleitung

Walkera

Walkera 38 Bedienungsanleitung

Hasbro

Hasbro TRANSFORMERS BUMBLEBEE Bedienungsanleitung

MD MXION SWD Bedienungsanleitung

Mattel

Mattel Disney Pixar Cars Cozy Cone Spiral Rampway Bedienungsanleitung

marklin

marklin 39671 Bedienungsanleitung

Meccano

Meccano 15103 Bedienungsanleitung

LEGO

LEGO TECHNIC 8735 Bedienungsanleitung
