1Introduction

1.1 Product Features

This series of HD-CVI camera adopts high a

performance sensor and advanced circuit board

design technology. It features high resolution, low

distortion, and low noise, etc. designed for use in

surveillance systems.

The main features are as follows:

High performance CMOS sensor and high

resolution to produce an exceptional image.

Low illumination, 0.01 Lux @ (F1.2, AGC ON), 0 Lux

with IR;

IR cut filter with auto switch;

OSD menu, parameters are configurable;

Auto white balance and internal synchronization;

SMART IR mode;

True WDR;

Advanced 3-axis design meets different installation

requirements;

1.2 Overview

This manual applies to two types of bullet cameras.

The overviews of each type are shown in the figures below,

please refer to the actual sample.

1.2.1 Overview of Type I Camera

Main Body

Photoconductive Resistance

Lens

Bracket

Video Cable

DC 12V

Power Cord

Figure 1-1 Overview of Type I Camera

1.2.2 Overview of Type II Camera

Camera

Bracket

Video Cable

DC 12V Power Cord

Lens

Figure 1-2 Overview of Type II Camera

2Installation

Before you start:

Please make sure that the device in the package is in

good condition and all the assembly parts are

included.

Make sure that all the related equipment is

powered-off during installation.

Check the specification of the products for the

installation environment.

Check whether the power supply is matched with

your required output to avoid damage.

Please make sure the wall is strong enough to

withstand three times the weight of the camera and

the mounting.

If the wall is cement, you need to insert expansion

screws before you install the camera. If the wall is

wooden, you can use self-tapping screw to secure the

camera.

If the product does not function properly, please

contact your dealer or technical support. Do not

disassemble the camera for repair or maintenance by

yourself.

2.1 Installation of Type I Camera

Both wall mounting and ceiling mounting are suitable for the

bullet camera. Ceiling mounting will be taken as an example in

this section. You can take steps of ceiling mounting as a

reference if wall mounting is adopted.

2.1.1 Ceiling/Wall Mounting without Gang Box

Steps:

1. Attach the drill template (supplied) to the place

where you want to fix the camera, and then drill the

screw holes and the cable hole in the ceiling/wall

according to the drill template.

2. Route the cables through the cable hole.

3. Secure the camera to the ceiling with the supplied

Screws.

Trim Ring

Fixing Screw

Adjusting Screws

Figure 2-1 Fix the Camera to the Ceiling

4. Connect the corresponding cables.

5. Adjust the camera according to Figure 2-2 to get an

optimum angle.

1). Loosen the P screw to adjust the pan direction

[0°~360°]. Tighten the screw after completing

the adjustment.

2). Loosen the T screw to adjust the tilt direction

[0°~180°]. Tighten the screw after completing

the adjustment.

3). Loosen the R screw and rotate the camera

[0°~360°] to adjust the lens to the surveillance

angle. Tighten the screw after completing the

adjustment.

P Screw

T Screw

R Screw

Tilt Position Range

[0°-180°]

Pan Position Range

[0°-360°]

Rotation Position Range

[0°-360°]

Figure 2-2 3-axis Adjustment

6. Tighten the fixing screws and the trim ring to fix the

camera.

2.1.2 Ceiling/Wall Mounting with Gang Box

You need to purchase a gang box separately if you adopt celling

mounting.

Steps:

1. Take apart the gang box and align the screw holes of

the bullet camera and the gang box cover.

2. Route the cables through the cable hole of gang box

and fix the camera with the gang box cover with the

supplied screws, as shown in Figure 2-3.

Screw

Gang Box Cover

Figure 2-3 Fix the Camera with the Gang Box

3. Drill the screw holes in the ceiling/wall according to

the supplied drill template.

4. Hammer the supplied screws into the screw holes to

fix the gang box to the ceiling/wall.

Screw

Figure 2-4 Fix the Camera to the Ceiling

5. Connect the corresponding cables and install the

gang box cover with fixing screws.

Figure 2-5 Fix the Camera to the Ceiling/Wall

6. Refer to step 5of 2.1.1 to adjust the camera to get

an optimum angle.

2.2 Installation of Type II Camera

2.2.1 Ceiling/Wall Mounting without Gang Box

Steps:

1. Attach the drill template (supplied) to the place

where you want to fix the camera, and then drill the

screw holes and the cable hole in the ceiling/wall

according to the drill template.

2. Route the cables through the cable hole.

3. Secure the camera to the ceiling with the supplied

Screws.

Figure 2-6 Fix the Camera to the Ceiling/Wall

4. Connect the corresponding cables.

5. Adjust the camera according to Figure 2-7 to get an

optimum angle.

1). Loosen the P screw to adjust the pan direction

[0°~360°]. Tighten the screw after completing

the adjustment.

2). Loosen the T screw to adjust the tilt direction

[0°~180°]. Tighten the screw after completing

the adjustment.

3). Loosen the R screw and rotate the camera

[0°~360°] to adjust the lens to the surveillance

angle. Tighten the screw after completing the

adjustment.

P Screw

T Screw

R Screw

Tilt Position Range

[0°-180°]

Pan Position Range

[0°-360°]

Rotation Position Range

[0°-360°]

Figure 2-7 3-axis Adjustment

2.2.2 Ceiling/Wall Mounting with Gang Box

You need to purchase a gang box separately if you adopt celling

mounting.

Steps:

1. Take apart the gang box and align the screw holes of

the bullet camera and the gang box cover.

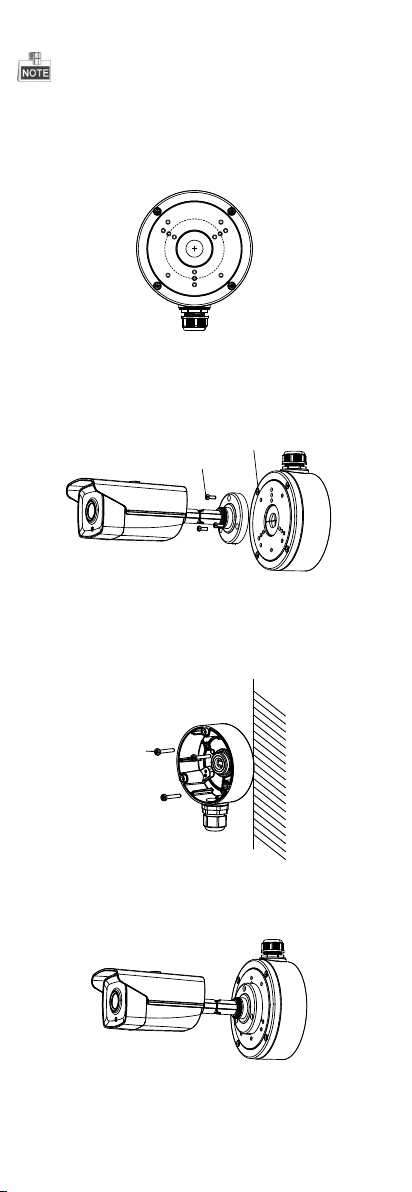

Figure 2-8 Gang Box

2. Route the cables through the cable hole of gang box

and fix the camera with the gang box cover with the

supplied screws, as shown in Figure 2-9.

Screw

Gang Box Cover

Figure 2-9 Fix the Camera with the Gang Box

3. Drill the screw holes in the ceiling/wall according to

the supplied drill template.

4. Hammer the supplied screws into the screw holes to

fix the gang box to the ceiling/wall.

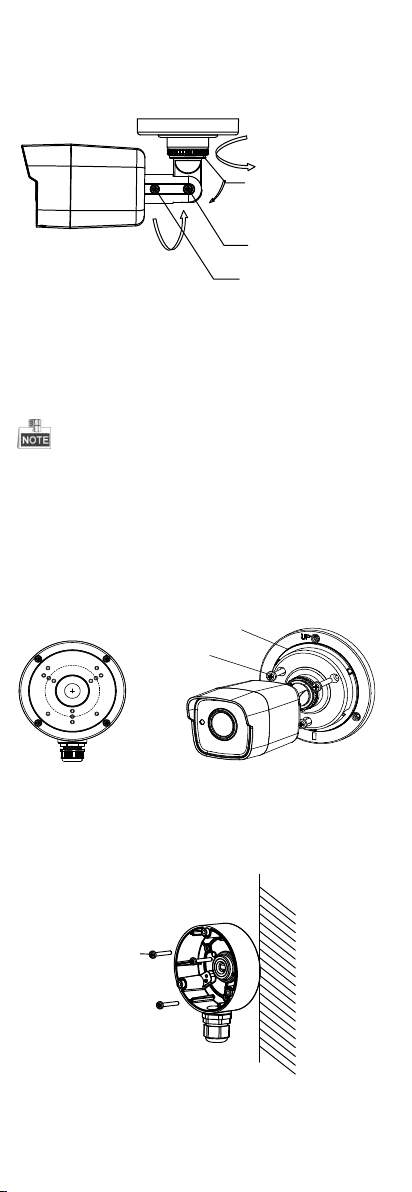

Screw

Figure 2-10 Fix the Camera to the Ceiling

5. Connect the corresponding cables and install the

gang box cover with fixing screws.

Figure 2-11 Fix the Camera to the Ceiling/Wall

6. Refer to step 5of 2.2.1 to adjust the camera to get

an optimum angle.

3Menu Description

MAIN MENU

AE WB DAY

&NIGHT

VIDEO

SETTING RESET

SAVE

&EXIT

BRIGHTNESS

EXPOSURE

MODE

GAIN

ATW

MWB

COLOR

B/W

CONTRAST

SHARPNESS

COLOR

GAIN

DNR

MIRROR

SMART

FORMAT

SETUP

Figure 3-1 Main Menu Overview

With a camera controller (purchased separately) or calling

the preset No. 95 of DVR you can select the menu and

adjust the parameters.

Move the cursor up/down to select the menu item.

Move the cursor left/right to adjust the value of the

selected item.

Press the OK key to confirm a selection.

3.1 Format

Move the cursor to FORMAT, and press the menu

button to enter the FORMAT sub menu. You can set the

format of camera and confirm.

3.2 Main Menu

3.2.2 AE (Auto Exposure)

AE describes the brightness-related parameters. You

can adjust the image brightness by the BRIGHTNESS,

EXPOSURE MODE, and GAIN in different light

conditions.

EXPOSURE

BRIGHTNESS

EXPOSUREMODE

GAIN

RETURN

BLC

MIDDLE

Figure 3-2 AE

BRIGHTNESS

Brightness refers to the brightness of the image. You

can set the brightness value from 1 to 10 to darken or

brighten the image. The higher the value is, the brighter

the image is.

EXPOSURE MODE

You can set AE mode as GLOBAL, BLC, and WDR.

GLOBAL

GLOBAL refers to the normal exposure mode which is

for adjusting the situations including unusual lighting

distribution, variations, non-standard processing, or

other conditions of under exposure to get an optimum

image.

BLC (Backlight Compensation)

BLC (Backlight Compensation) compensate light to the

object in the front to make it clear, but this causes the

over-exposure of the background where the light is

strong.

When BLC is selected as the exposure mode, the BLC

level can be adjusted from 0 to 8.

WDR (Wide Dynamic Range)

The wide dynamic range (WDR) function helps the

camera provide clear images even under back light

circumstances. WDR balances the brightness level of

the whole image and provide clear images with details.

GAIN

It optimizes the clarity of image in poor light scene. The

GAIN level can be set to HIGH, MIDDLE, and LOW.

Select OFF to disable the GAIN function.

The noise will be amplified if the GAIN is on.

3.2.3 WB (White Balance)

White balance is the white rendition function of the

camera to adjust the color temperature according to

the environment. It can remove the unrealistic color

casts in the image. You can set WB mode as ATW, and

MWB.

ATW

In ATW mode, white balance is being adjusted

automatically according to the color temperature of the

scene illumination.

MWB

You can set the R GAIN/B GAIN value from 0 to 255 to

adjust the shades of red/blue color of the image.

MODE

R GAIN

BGAIN

RETURN

MWB

Figure 3-3 MWB Mode

3.2.4 DAY-NIGHT

Color, B/W, and SMART are selectable for DAY and

NIGHT switches.

COLOR

The image is colored in day mode all the time.

B/W

The image is black and white all the time, and the IR

LED turns on in the low-light conditions.

SMART

You can select to turn on/off the INFRARED and set the

value of SMART IR in this menu.

DAY/NIGHT

MODE

INFRARED

SMART IR

RETURN

SMART

OPEN

Figure 3-4 Day & Night

INFRARED

You can select to turn on/off the IR LED to response

to the requirements of different site requirements.

SMART IR

The Smart IR function is used to adjust the light to its

most suitable intensity, and to prevent the image from

over exposure. The SMART IR value can be adjusted

from 0 to 3. The higher the value is, the more obvious

effects are, and it is disabled when the value is 0.

3.2.5 VIDEO SETTING

Move the cursor to VIDEO SETTING and press the

confirm button to enter the submenu. CONTRAST,

SHARPNESS, COLOR GAIN, DNR and MIRROR are

adjustable.

VIDEO SETTING

CONTRAST

SHARPNESS

COLOR GAIN

DNR

MIRROR

RETURN

DEFAULT

Figure 3-5 Video Setting

CONTRAST

This feature enhances the difference in color and light

between parts of an image. You can set the CONTRAST

value from 1 to 10.

SHARPNESS

Sharpness determines the amount of detail an imaging

system can reproduce. You can set the SHARPNESS

value from 1 to 10.

COLOR GAIN

Adjust this feature to change the saturation of the color.

The value ranges from 1 to 10.

DNR (Digital Noise Reduction)

The DNR function can decrease the noise effect,

especially when capturing moving images in low light

conditions and delivering a more accurate and sharp

image quality.

You can set the DNR value from 1 to 10.

MIRROR

DEFAULT, H, V, and HV are selectable for mirror.

DEFAULT: The mirror function is disabled.

H: The image flips 180 degree horizontally.

V: The image flips 180 degree vertically.

HV: The image flips 180 degrees both horizontally and

vertically.

3.2.6 RESET

Reset all the settings to the default.

3.2.7 SAVE &EXIT

Move the cursor to SAVE &EXIT and press OK to save

the setting and exit the menu.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Securitytronix Sicherheitskamera Handbücher

Securitytronix

Securitytronix ST-D700IRVP3.6-B2 Bedienungsanleitung

Securitytronix

Securitytronix HD-Coaxinator ST-HD-BT2812-720-G Bedienungsanleitung

Securitytronix

Securitytronix ST-BT540IR30 Bedienungsanleitung

Securitytronix

Securitytronix ST-D540IRVP2812 Bedienungsanleitung

Securitytronix

Securitytronix HD-Coaxinator ST-HD-BT2812-1MP Bedienungsanleitung

Securitytronix

Securitytronix HD-COAXINATORTVI ST-HDC2VFTD-MZ Bedienungsanleitung

Securitytronix

Securitytronix ST-IP2IRPTZ Bedienungsanleitung

Securitytronix

Securitytronix ST-IP-BT3.6-1 Bedienungsanleitung

Securitytronix

Securitytronix HD-COAXINATORTVI ST-HDC2FTD Bedienungsanleitung

Securitytronix

Securitytronix ST-IP4FWD Bedienungsanleitung

Securitytronix

Securitytronix HD-COAXINATOR ST-HD-PTZ-2MP Bedienungsanleitung

Securitytronix

Securitytronix ST-IP2VFB Bedienungsanleitung

Securitytronix

Securitytronix ST-BTWD600IR40-B Bedienungsanleitung

Securitytronix

Securitytronix ST-D600IR2812-HB Bedienungsanleitung

Securitytronix

Securitytronix ST-DWD600IRVP2812-B Bedienungsanleitung

Securitytronix

Securitytronix ST-IP2FB Bedienungsanleitung

Securitytronix

Securitytronix ST-IP4VFB-MZ Bedienungsanleitung

Securitytronix

Securitytronix HD-COAXINATOR ST-HD-TD3.6-1MP Bedienungsanleitung

Securitytronix

Securitytronix ST-D600IR2812-DSHB Bedienungsanleitung

Securitytronix

Securitytronix ST-D4203.6B Bedienungsanleitung

Securitytronix

Securitytronix ST-PTZMINI-IR10XTA Bedienungsanleitung

Securitytronix

Securitytronix ST-D600DN2812-DSHB Bedienungsanleitung

Securitytronix

Securitytronix ST-BT650IRVFDV –B Bedienungsanleitung

Securitytronix

Securitytronix ST-CVTMD420-WPIR-W Bedienungsanleitung

Beliebte Sicherheitskamera Handbücher anderer Marken

Okina USA

Okina USA SIR36-870VF650LP Bedienungsanleitung

Divio

Divio NDR155PA Bedienungsanleitung

Canon

Canon VB-C500D Bedienungsanleitung

Easy Access

Easy Access EasyGuard Bedienungsanleitung

Vivotek

Vivotek FD9389-EHV-v2 Bedienungsanleitung

TUYA

TUYA COSMO W2 Bedienungsanleitung

Eusso

Eusso UNC7500-IR Einrichtungshandbuch

urmet domus

urmet domus 1096/204 Bedienungsanleitung

VC VC20 series Bedienungsanleitung

Axis

Axis Q1614 Bedienungsanleitung

ieGeek

ieGeek DD201 Bedienungsanleitung

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Bedienungsanleitung

Vicon

Vicon V662-D-1 Betriebsanleitung

Grundig

Grundig GCH-K0274P Bedienungsanleitung

Lorex

Lorex VANTAGE LBC7032 Bedienungsanleitung

4xem

4xem WPT Bedienungsanleitung

Samsung

Samsung SCV-3082 Bedienungsanleitung

Vitek

Vitek VTC-C544 Bedienungsanleitung
