Sekonic SPECTROMASTER C-800 Benutzerhandbuch

SPECTROMASTER

C-800

Startup Guide

Thank you for purchasing a SPECTROMASTER C-800.

This Startup Guide introduces the basic operations of this Color Meter.

For details about how to use this Color Meter, please see the Operating

Manual.

1. Download

Please visit www.sekonic.com to download the latest

version of Utility and the operating manual as follows:

■Utility

https://www.sekonic.com/support/downloads/

c-700_800seriesutilityformacandwindows.aspx

■Operating Manual

http://www.sekonic.com/support/instruction

manualuserguidedownload.aspx

2. Check Included Items

The following items are included with the meter

in the package.

Please be sure to check that all noted items are included.

★

If any items are missing, please contact the distributor or the reseller you purchased

the meter from.

★

The USB Mini-B cable is not included in the package. Please obtain this separately.

★

Batteries (2 AA) are not included in the package. Please obtain these separately.

Meter

Startup Guide

(

this document

)

Soft Case Strap Safety

Precaution

&

Safety Precaution

For Proper Operation

Before using this product, please read this "Safety Precautions" for

proper operation.

WARNING

The WARNINGsymbol indicates the

possibility of death or serious injury if the

product is not used properly.

CAUTION

The CAUTION symbol indicates the

possibility of minor to moderate personal

injury or product damage if the product is

not used properly.

NOTICE

The NOTICE symbol indicates cautions

or restrictions when using the product.

Please read all notes to avoid errors in

operation.

General Safety Information

• Read the Operating Manual before use.

• Keep the Operating Manual on hand for reference at any

time.

• Stop using this product when there are any abnormalities.

•

• Do not attempt to repair this product by yourself.

• This product is intended only for persons with expert

knowledge.

• Monitor children so that they do not touch this product.

• Use this product in a usage environment described in the

Operating Manual.

• This product is not waterproof.

WARNING

There is a danger of electrical shock when using high

voltage strobes.

Avoidcontacting the terminals.

This product emits electromagnetic waves.

Do not bring this product close to persons with

pacemakers.

Do not use this product in an explosive atmosphere.

Use of devices emitting electromagnetic waves is

prohibited in hospitals.

CAUTION

• Check the material of the neck strap to see if there is any

risk of allergy.

• Be careful of sudden emission of lights from strobes.

NOTICE

• Do not leave this product on car dashboards in hot weather.

This may damage the product.

• Remove the batteries when this product is not in use for a

long period of time.

• When the desired performance is not achieved, stop using

this product and contact the service center.

Information for Users on Collection and

Disposal of Old Equipment

Toprotect environment, do not through this device

and batteries away with the normal household waste

at the end of those life, but bring them in at an

English

Spectrometer

日本語

カラーメーター

スタートアップガイド

English

Color Meter

Startup Guide

Spektrometer

Deutsch

Startanleitung

Français

Spectromètre pour

Guidededémarrage

Español

Espectrómetro

Guíadeinicio

Italiano

Spettrometro

Guidaintroduttiva

中文

光谱仪适用于照相摄影

使用简介

C-800

SPECTROMASTER

English

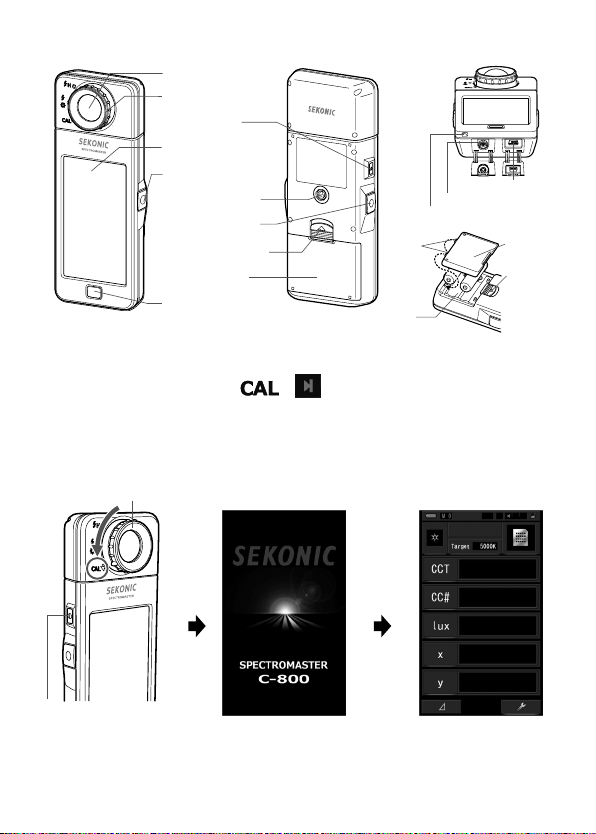

3. Names of Parts

&

［Rear View］

［Front View］

❶Light Receptor

❷Light Selection Ring

❿Tripod Socket

❸Power Button

❹Display Panel

❺

Measuring Button

❼Memory Button

❻Menu Button

❽

Battery Cover Latch

❾Battery Cover

[Bottom View]

⓭Strap Eyelet

⓬Sync Terminal

⓫USB Mini-B Connector

［Battery Cover Section］

Battery

Cover Latch

Tabs Battery

Cover

⓮Battery Holder

4. Turning the Power ON/OFF

After installing the batteries, turn the Light Selection Ring ❷to the

dark calibration position ( ) and turn ON this instrument

by pressing the Power Button ❸.

After the Opening screen displays (for 2 seconds) in the Display

Panel, dark calibration starts. After dark calibration properly ends,

the Measuring screen displays.

&

Light Selection Ring ❷

Power Button ❸

[Opening Screen][Measuring Screen]

★ You can reduce start up time by simply tapping the screen when the

Opening screen appears.

★

Please wait 3 or more seconds between turning the power ON/OFF.

★

To turn OFF the power, press and hold the Power Button for more than

one second. The meter is powered off after the display disappears.

★ If Dark Calibration Position Conrmation screen appears, set the Light Selection

Ring ❷to Dark Calibration position and perform calibration again.

If "Please set Light Selection Ring for dark

calibration" is displayed, set the Light

Selection Ring ❷to the dark calibration

position to start calibration.

*When taking measurements, set the Light

Selection Ring ❷to the range L (icon at

the middle) for ALL ambient light.

For flash light, set the ring to "H" (icon

at the top) high-power (brighter than

640lx·s) ash or "L" (icon at the middle)

for low-power ash (lower than 640lx·s).

Dark Calibration Position

Conﬁrmation Screen

NOTE

Dark calibration is performed when new batteries are used, 24 hours passed

since last use or there is a big change in temperature between turning power

OFF and ON.

Except the cases above, dark calibration after power ON is skipped.

5. Measuring Mode and Display Mode

You can change screens after turning the power on as follows.

Changes from the Measuring screen to each screen.

★

Pressing Menu Button

❻

shifts to the Display Mode Selection screen.

Please set Light Selection

Ring for dark calibration.

[Measuring Mode

Selection

Screen]

[Display Mode

Selection Screen]

1 3

󱧃󱧁 󱧂

[Measuring Screen

(Text Mode)]

Measuring Mode Icon Description

Ambient Light

Mode

Measures continuous light such as sunlight, tungsten, fluorescent, and LED

lights.

Cordless Flash

Mode

Detects flash light without meter-flash connection after Measuring

Button pressed to arm meter (for 90 seconds) and flash fired separately.

Cord (PC) Flash

Mode

Detects flash light with PC (synchro) cord meter-flash connection.

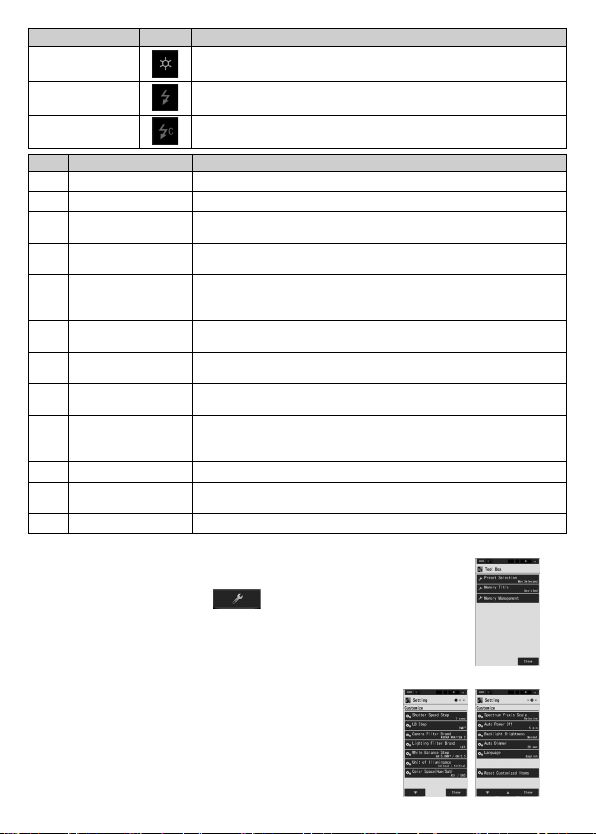

No. Display Mode Name Description

1[Text] Icon Displays user-selected 5 items in numeric values.

2[Spectrum] Icon Displays 3 user-selected values and spectrum distribution graph.

3[Spectrum

Comparison] Icon

Compares the current measurement value and up to 2 memorized

values as yellow and/or red lines in the spectrum distribution graph.

4[CRI] Icon Displays the selected average CRI (Ra) or individual CRI (R1 ~ R15)

numerically. Each CRI is displayed in a bar graph.

5[CRI Comparison]

Icon

Compares the current measurement value and memoried value to

show the color temperature and average CRI (Ra). Also, individual

CRI (R1 to R15) is displayed in a bar graph.

6[TM-30] Icon Displays three current measurement values (selectable) and color

vector graphic.

7[SSI] Icon Displays the current measurement values (color temperature, ⊿uv

and SSI) and SSI spectrum graph.

8[TLCI/TLMF] Icon Displays the current measurement values and memorized values (in

color temperature and ⊿uv), TLCI and TLMF with spectrum graph.

9[Filter] Icon Displays correction values and camera filter names or light-source

filter names required to adjust measured light source to target color

temperature.

󱧁

[Multi Lights] Icon Displays comparative correction values from multiple measurements.

󱧂

[White Balance

Correction] Icon

Displays the difference between the current measurement value and

the target color temperature in a white balance graph.

󱧃[Setting] Icon Displays Setting screen.

★1 ~ 󱧂 are the Measuring screen.

6. Tool Box

Touching the “Tool Box ( )” icon in any measurement

screen shifts to the Tool Box screen where frequently used

functions are listed.

7. Setting

Touching the “Setting” icon in the Display Mode

Selection screen or pressing the MENU button on

the meter shifts the display to the Setting screen.

Here you can set functions and display methods

required for measurement in advance.

[Tool Box Screen]

[Setting (Page 1, page2) Screen]

JT8197621
