SEM EMP1000 Bedienungsanleitung
Operation and Maintenance Manual
SEM Model EMP1000/EMP1000-HS Pulse Degausser
POP-0078 Rev. 1 | Created 8-08-19 | ECN-00491
For service, parts, and customer support, contact us:
SECURITY ENGINEERED MACHINERY
5 Walkup Drive • Westborough, MA 01581
1-508-366-1488
www.semshred.com
508.366.1488 | www.semshred.com
2
Table of Contents
1.) Before Use .............................................................................................................................. 3
1.1 Items and Packaging ........................................................................................................... 3
1.2 Lifting and Carrying ............................................................................................................. 3
1.3 Installing the Unit ................................................................................................................ 4
2.) Operation ............................................................................................................................... 5
2.1 Powering on ........................................................................................................................ 5
2.2 Executing a Degauss Cycle .................................................................................................. 7
3.) Error Messages ..................................................................................................................... 11
3.1 Temperature Errors .......................................................................................................... 11
3.2 Voltage Errors ................................................................................................................... 11
4.) Operating Safety ................................................................................................................... 12
5.) Machine Specifictions .......................................................................................................... 12
6.) Declaration of Conformity ................................................................................................... 13
508.366.1488 | www.semshred.com
3
1.) Before Use
Congratulations on your purchase of your SEM EMP1000/EMP1000-HS pulse degausser. This is a highly
capable and robust degausser that produces a maximum demagnetizing field (coercive force) of 20,000 gauss
(EMP1000-HS) or 15,500 (EMP1000).
The EMP1000/EMP1000-HS is capable of running at input voltages of 120V or 240V AC at either 50 or 60Hz.
There are no required changes to switch from one voltage to the other. Just plug in the correct power cord for
your country.
The SEM Model EMP1000-HS can be ordered with CE marking, which complies with
standard EN61010-1: 2010 (Third Edition).
Note: Always remember that any type of degausser/demagnetizer by itself is entirely ineffective at erasing
solid state memory or optical storage media. It is only effective for the erasure of magnetic media (i.e. hard
disk drives, magnetically recorded tapes, magnetic strips on credit cards, hotel passes, floppy disks, Zip and Jaz
disks, etc.).
1.1 Items and Packaging
The EMP1000/EMP1000-HS pulse degausser includes the following items:
• (1) Model EMP1000/EMP1000-HS pulse degausser unit
• (1) power cord, U.S. style cord (NEMA 5-15P to IEC320) for use with 120V 60Hz
• (1) power cord, European style cord (Schuko CEE 7/7 to IEC320) for use with 240V 50Hz
• (1) EMP1000/EMP1000-HS user’s manual
1.2 Lifting and Carrying
The EMP1000/EMP1000-HS pulse degausser weighs approximately 160 lb. (73 kg), so it is recommended
that two people lift this product when moving. Be sure to practice safe lifting techniques when handling
this product to reduce the risk of injury or equipment damage.
508.366.1488 | www.semshred.com
4
1.3 Installing the Unit
The SEM EMP1000/EMP1000-HS pulse degausser was designed to have a small footprint so that it can fit

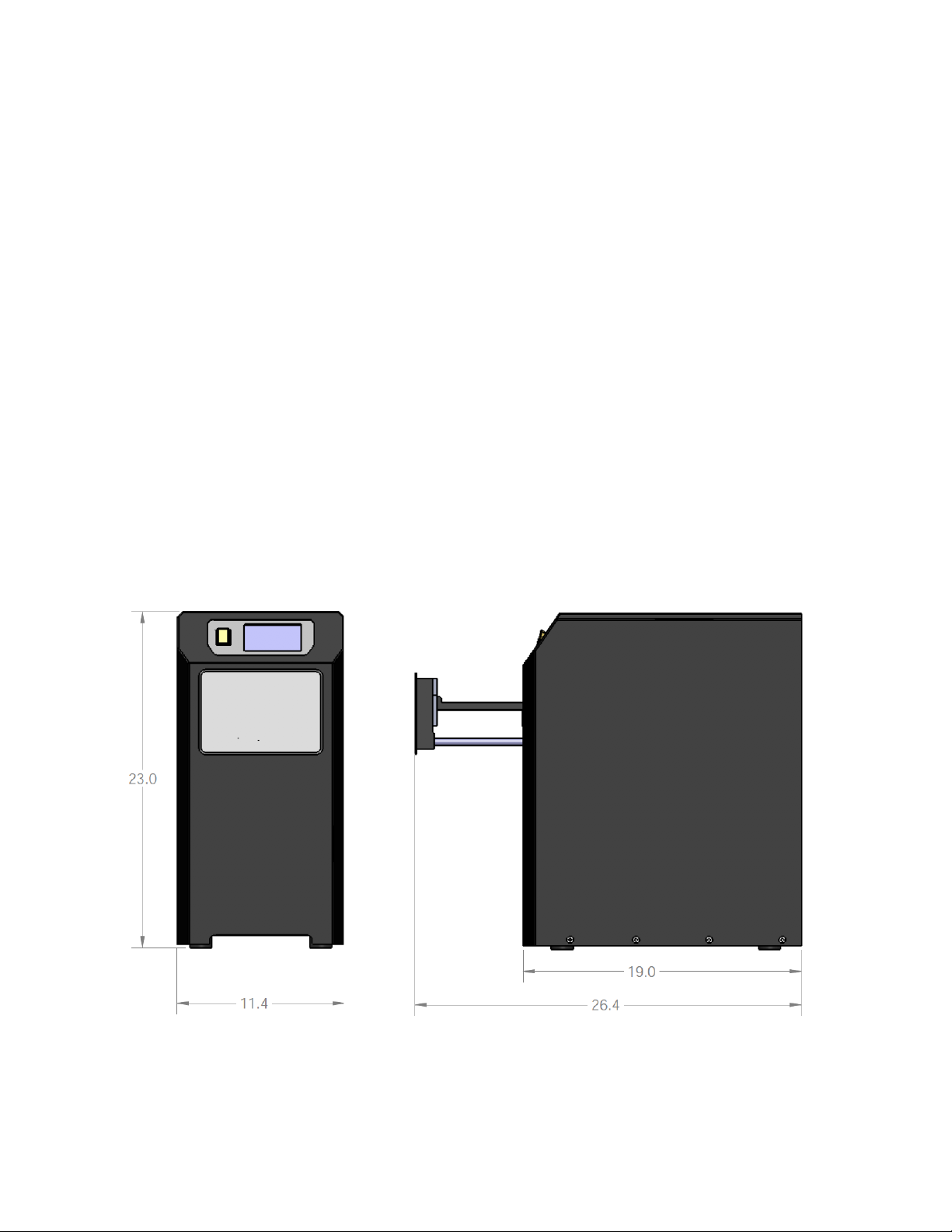

onto a countertop or into an area where space is limited. See dimensioned diagram below for space
requirements. Please note the following:
• Always mount the unit onto a level surface.
• This unit was designed to be used in an office or light industrial environment.
• The rear panel of the unit should be kept at a minimum of two inches from any walls or obstructions to
allow proper exhaust of air flow from the unit.
The EMP1000/EMP1000-HS is designed with extensive magnetic shielding, so external magnetic fields
should be very low at the external surfaces of the unit and at zero a few inches beyond that. Other
equipment may be placed alongside the EMP1000/EMP1000-HS as long as the equipment is not highly
sensitive to magnetic fields, does not emit a high level of electromagnetic emissions, and does not emit
any significant level of heat. Please see the Operator Safety section on page 12 of this manual for
additional information.
Please also note that individuals wearing a pacemaker should not operate this unit.
508.366.1488 | www.semshred.com
5
2.) Operation
2.1 Powering on

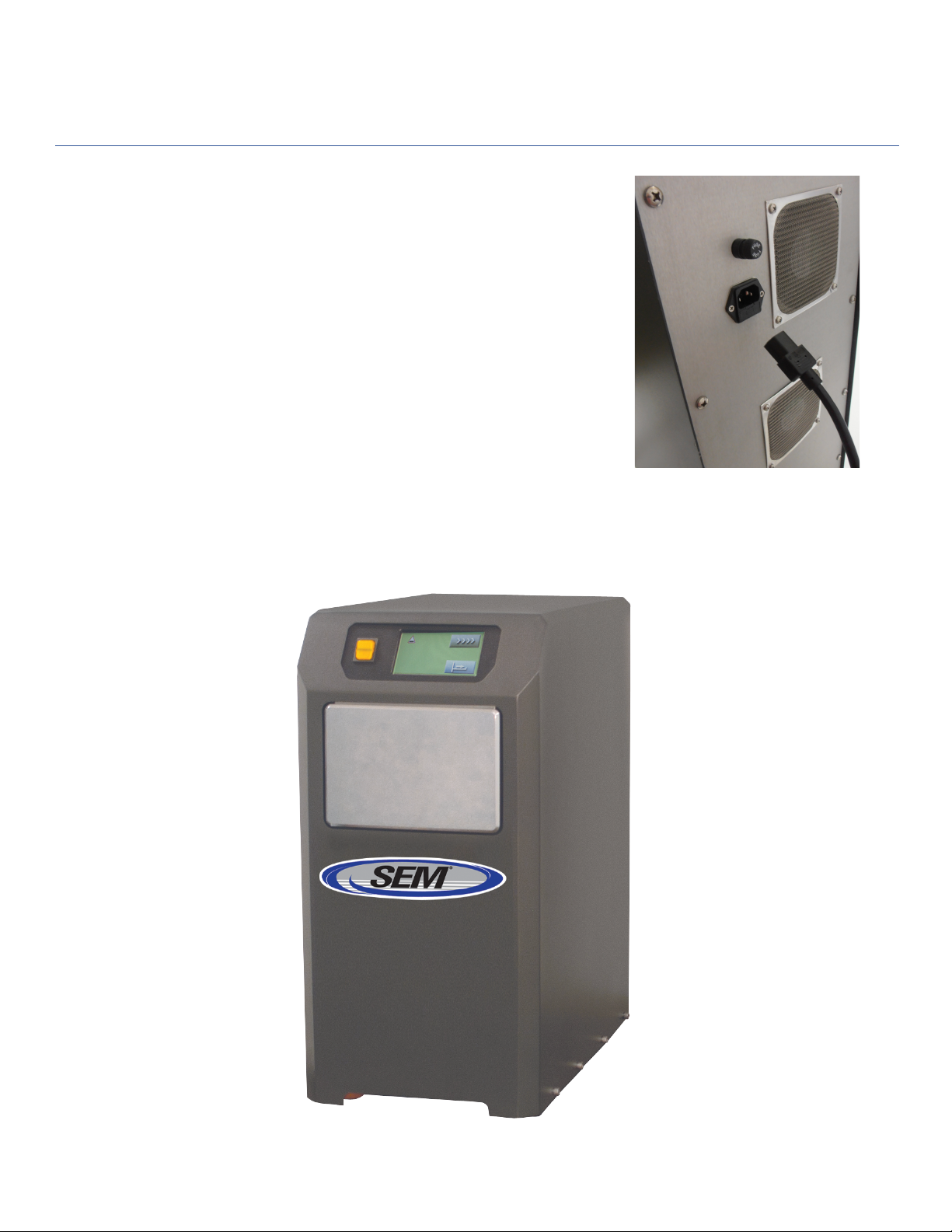

Attach the IEC320 end of the appropriate power cord (US or European
style) to the receptacle on the rear panel of the unit
and the other end into a wall receptacle.
Note: Do not replace the power cord with an inadequately rated cord.
Always be sure that any replacement cord is supplied by SEM or has an
equivalent rating.
Press the power rocker switch (amber in color) upwards to power up
the unit. The power switch will illuminate when powered on.
The touch screen display will illuminate and the product splash screen
should appear with the SEM EMP1000/EMP1000-HS product name on a white background. This screen will be
displayed for several seconds.
508.366.1488 | www.semshred.com
6
The display will now be in the standby screen. The standby screen is displayed when the unit is first turned on
or when any error or failure is encountered.
When in this mode, there is no charging of the unit’s capacitors and the CONTINUE button is always displayed.
The triangle icon is the charge indicator and indicates the level of charge stored in the unit’s capacitors. When
the border of the triangle is light green (as shown above) the unit is fully depleted of charge.
Press the CONTINUE button to advance to the user screen. The display will now show the user screen.
• The charge indicator (triangle) border turns red indicating that the unit is charging. Black bars inside
the triangle appear as the level of charge increases. A blinking icon of a person with a shovel is
displayed as the unit charges.
• The OPEN DOOR icon remains present and allows the user to access the media tray and insert the
media that requires erasure.
• The green START button is used to start the degauss cycle.
Follow steps on the following pages which explain how to execute a degauss cycle on the media requiring
erasure:
508.366.1488 | www.semshred.com
7
2.2 Executing a Degauss Cycle
Press OPEN DOOR to
release the media tray.
The media tray is now accessible and the
media needing to be erased can now be
installed. The START button is disallowed
when the door is open.
508.366.1488 | www.semshred.com
8
Insert a disk drive into the media tray, as shown.
If inserting a tape, place the tape onto
the center portion of the media tray, as
there is more clearance area here to
accommodate tapes.
508.366.1488 | www.semshred.com
9
Close the door manually by
pushing in the tray until it
locks in place.
Press the START button to begin the
degauss cycle AFTER the door has been
closed. It will be disallowed if the door
is not closed.
The START button may be pressed at any time
after the door is closed, regardless of the charge
level. The degauss cycle will start, but erasure
will not occur until the charge level is full.
The START button will change to indicate that a
degauss cycle is in process after it has been
pressed.
The charge indicator (triangle) will show a dark
green border and full bars when the charge
level is full. The unit will automatically
discharge shortly after.
508.366.1488 | www.semshred.com
10
After the unit has discharged, the media tray will be released automatically so that the now
erased media can be removed.
NEVER PULL ON THE MEDIA TRAY DOOR. This will damage the locking mechanism.
If the door ever fails to open, it will try again every five seconds. If it continues to fail or an
error is displayed, please contact the SEM service deptartment.
The magnetic field strength indicator is displayed in the upper middle portion of the screen.
This displays the actual measured strength of the magnetic field produced during the cycle
and grades the value PASS or FAIL. Shown above is a model EMP1000, where 1.53 Tesla is
results as a PASS.
The magnetic field strength is displayed in units of Tesla (flux density). If PASS is indicated,
the media can be removed, the next media to be erased can be inserted and the cycle
started again.
If FAIL is indicated then the current media should be run again. If FAIL is encountered too
many times or if an error is present, please contact the SEM service department.
