SEMAPI DSP Logger Expert Bedienungsanleitung

User Manual

Measurer and Analyzer

Ver.: 2.0

Measurer and Analyzer

User Manual

User Manual • Version 2.0_2013

www.semapi.com

Measurer and Analyzer

Introduction:......................................................4

Quick Measurement:...........................................5

Bearing Analysis:............................................... 5

Spike Energy Level:........................................... 5

Home:............................................................... 6

Input parameters:.............................................. 7

Parameters copy:.............................................. 9

Class ISO10816:............................................... 9

Bearing Analyzer: ............................................ 10

Additional indicators:....................................... 13

Channel change:............................................. 14

Trend function:................................................ 14

Channel change:............................................. 15

Record:........................................................... 16

Return:............................................................ 16

Measurement Change:.................................... 16

Spike Energy Level:......................................... 17

Channel change:............................................. 20

Measurement change:..................................... 20

Standard table:................................................ 23

Additional indicators:....................................... 23

Channel change:............................................. 25

Trend function:................................................ 25

Channel change:............................................. 26

Record:........................................................... 27

Return:............................................................ 27

Measurement Change:.................................... 27

Function Dual Channel:.................................... 28

Dual channel:.................................................. 30

Record:........................................................... 31

Alerts of machine status: ................................. 32

Vibration analyzer: ............................................34

Input parameters:............................................ 34

Measurer and Analyzer

User Manual

User Manual • Version 2.0_2013

www.semapi.com

Preconfigured measurements:......................... 35

Acceleration:................................................... 36

Velocity:.......................................................... 36

Analyzer:......................................................... 38

Scalar measurements:..................................... 43

Multivariable:................................................... 45

Channel change:............................................. 45

Spectral measurements:.................................. 46

Spectrum / waveform:..................................... 49

Waveform Measurements:............................... 50

Channel change:............................................. 50

Dual channel measurements and triaxial:.......... 51

Channel change:............................................. 53

Triaxial measurements:.................................... 54

Channel change:............................................. 55

Instructions for use:......................................... 56

Troubleshooting: ..............................................57

Measurer and Analyzer

User Manual

User Manual • Version 2.0_2013

www.semapi.com

Introduction:

This module measures and analyzes mechanical

vibrations and variable AC and DC power. It groups

all the measurements of the DSP Logger Expert on

all its inputs, allowing the user to select vibration

measurements with pre-configured settings for

expert analysis or configurations designed to search

for other sources of or complex analyses of

vibrations.

The firmware contained in Option 1 of the DSP

Logger Expert is selected with the arrow keys or

directly with the 1 key.

Entering this firmware shows two options on the

screen, as shown in the following display.

Measurer and Analyzer

User Manual

User Manual • Version 2.0_2013

www.semapi.com

Quick Measurement:

This firmware contains 3 types of vibration analysis,

which are performed fully automatically.

It enables a simple load of the machine parameters

to be analyzed, allowing the system to capture,

analyze, and monitor vibration levels associated with

mechanical failures.

Bearing Analysis:

This tool defines an accurate calculation of the state

and condition of the bearing to test for bearing

and/or lubrication failure.

To do this, you must enter the estimated RPM of the

machine.

Spike Energy Level:

This tool defines an enveloping measurement value

of the Energy Spike ® analyzing bearing condition

and the values of bearing failure frequencies.

These calculations are performed automatically,

requiring the value of the estimated RPM, the model,

and the manufacturer of the bearing.

Measurer and Analyzer

User Manual

User Manual • Version 2.0_2013

www.semapi.com

ISO 10816 Measurements:

This measurement tool performs an analysis of

machine speed, adjusting the settings to the

requirements of ISO 10816 and evaluating the

condition of the states covered by the rule.

The input data that this tool requires involves the

classification of the machine in the norm groups.

In addition to the input of the RPM value, the meter

system expert shows vibrational levels for the

balancing, alignment, and rotation of the machine

backlash.

Home:

When entering the quick measurement by the icon

you will enter the settings window:

Measurer and Analyzer

User Manual

User Manual • Version 2.0_2013

www.semapi.com

Input parameters:

The parameter display indicates the status of the six

(6) inputs of the DSP Logger Expert according to the

connected and disconnected sensors.

The entries are grouped into 3 (three) groups for

Channel A and Channel B, each taking the X, Y, or Z

direction.

Red indicates no sensor signal.

Green confirms that the sensor and cable are in

good condition.

The parameter window displays all the fields

necessary for analysis calculations.

The only required field for the use of the tools is the

RPM.

The parameter window is divided into two (2)

segments. The left corresponds to Sensor 1, and

the right corresponds to Sensor 2.

Measurer and Analyzer

User Manual

User Manual • Version 2.0_2013

www.semapi.com

Code

Identification Number or TAG

Name

Machine Name

Point

Name or Nomenclature of the point

Obs.

Specific observations

RPM

The approx. revolutions of the point

Manufacturer

Bearing Mark of the point

Model

Bearing Model of the point

The input bearing manufacturer can be viewed by

selecting the list that has the system and factory

preloaded.

Model selection is performed via a selection of all the

bearings corresponding to the selected

manufacturer.

You can enter the bearing model by placing the first

number or the complete number of the bearing, so

the position will be close to or an accurate bearing.

Recommendation

Measurer and Analyzer

User Manual

User Manual • Version 2.0_2013

www.semapi.com

Parameters copy:

The parameter window contains a tool to copy the

parameters entered in sensor A or B.

The parameters that are not copied from one sensor

to the other bear manufacturer and model data.

When activated, the system will request the copy

from one sensor to the other.

Class ISO10816:

ISO class is selected depending on the measuring

machine.

Part 3: Industrial machines with nominal power

above 15 kW and speeds between 120 and 15000

RPM.

The criteria for the vibration of this standard apply to

a set of machines with a capacity exceeding 15 kW

and a speed between 120 RPM and 15,000 RPM.

The criteria are only applicable to vibrations

produced by the machine itself and not to vibrations

that are transmitted to the machine from external

sources. The effective value (RMS) vibration velocity

is used to determine the condition of the machine.

Measurer and Analyzer

User Manual

User Manual • Version 2.0_2013

www.semapi.com

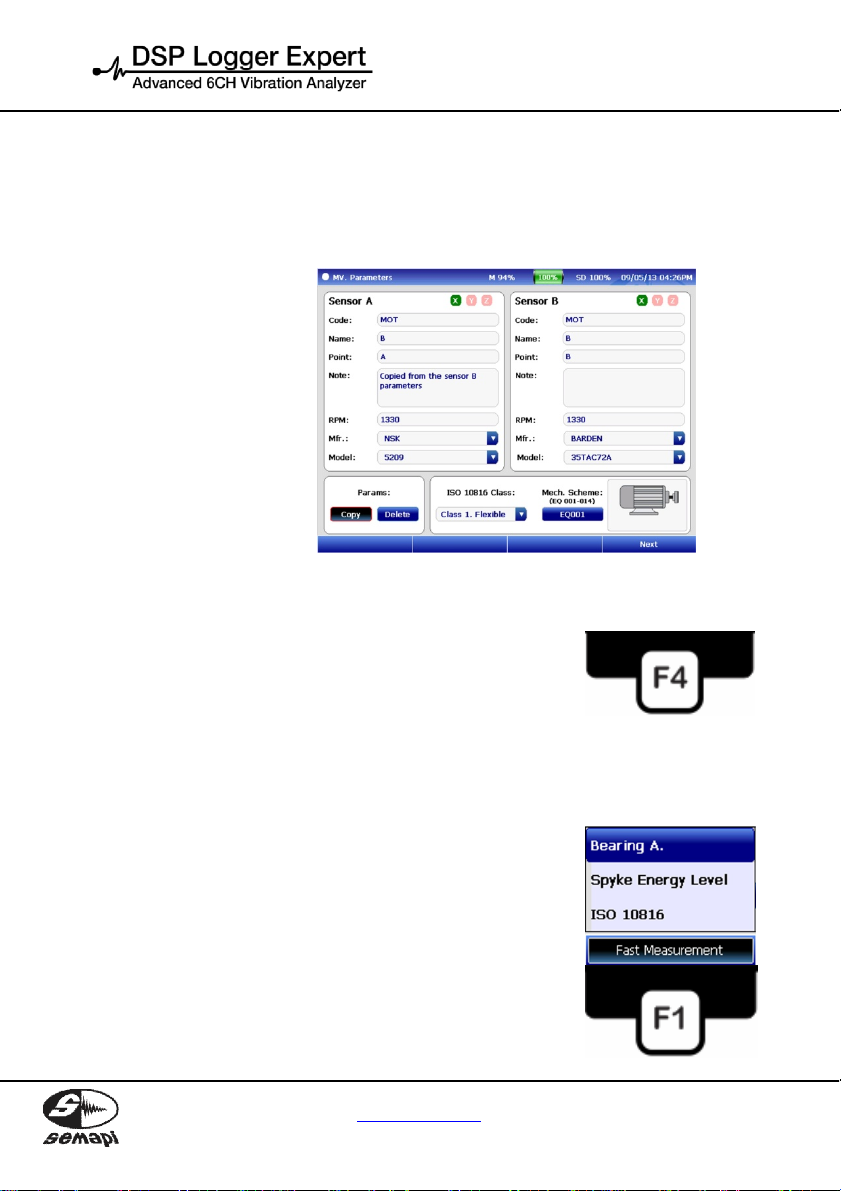

Bearing Analyzer:

The first step is the entry of the parameters in sensor

1 and/or 2.

Once the parameters load, press F4 to activate

NEXT.

The menu functions F1 to F4 will change to the next

options.

Function F1 allows you to select analysis options.

This is done by pressing the F1

key until you reach the desired

option.
