Sennheiser HD 26 Pro Bedienungsanleitung

HME 26-II

HD 26 PRO

HMD 26-II

Broadcast

HMDC 26-II

Instruction manual

Important safety instructions

• Please read this instruction manual carefully and com-

pletely before using the product.

• Make this instruction manual easily accessible to all users

at all times.

• Always include this instruction manual when passing the

product on to third parties.

• The product is capable of producing sound pressure levels

exceeding 85 dB(A). In many countries 85 dB(A) is the

maximum legally permissible level for continuous noise

exposure during the working day. Exposure to sounds of

higher volume levels or for longer durations can perma-

nently damage your hearing.

• Never repair or attempt to repair a defective product

yourself. Contact your Sennheiser partner or the

Sennheiser Service Department.

• Only replace those parts of the product whose replace-

ment is described in this instruction manual. All other

parts of the product must be replaced by your Sennheiser

agent.

• Protect the product from humidity. Use only a dry cloth to

clean the product. For information on how to clean the

headset, contact your Sennheiser partner.

Important safety instructions

Intended use

Intended use includes :

• having read and this instruction manual, especially the

chapter “Important safety instructions”.

• using the product within the operating conditions and

limitations described in this instruction manual.

Improper use

Improper use means using the product other than as

described in this instruction manual, or under operating con-

ditions which differ from those described herein.

The 26-II headset series and the HD 26 PRO headphones

The 26-II headset series

and the HD 26 PRO headphones

The HMD 26-II/HME 26-II/HMDC 26-II headsets and the

HD 26 PRO headphones feature dynamic, closed head-

phones. The noise-compensating microphone of the

HMD 26-II and HMDC 26-II ensures excellent speech trans-

mission even in noisy environments. The headsets have been

designed for broadcast use, e.g. for outdoor broadcast or

broadcast van applications. The HMDC 26-II features Noise-

Gard™ professional active noise compensation. The HME 26-II

is available with an omni-directional or a cardioid micro-

phone, making it suitable for either outdoor or studio use.

Features

• Lightweight

• Extremely comfortable to wear, even for extended lis-

tening, due to the patented two-piece automatic head-

band and soft ear pads

• ActiveGard™ (switchable) safeguards you from volume

peaks above 105 dB (HME 26-II/HMD 26-II/HD 26 PRO)

• NoiseGard™ professional active noise compensation

reduces ambient noise by up to 18 dB (HMDC 26-II)

• “Flip-away” headphone allows single-sided listening

• Detailed, linear sound reproduction for demanding

applications

Package contents

• Flexible microphone boom, can be worn on either left or

right-hand side

• Noise-compensating dynamic microphone ensures excel-

lent speech transmission (HMD 26-II/HMDC 26-II)

• Omni-directional or cardioid condenser microphone with

extremely linear frequency response (HME 26-II)

• Single-sided cable, easy to replace

Package contents

1 HMD 26-II / HME 26-II / HMDC 26-II / HD 26 PRO

1 cable clip

1 wind and pop screen (except HD 26 PRO)

1 headband padding, large

1 instruction manual

Operation

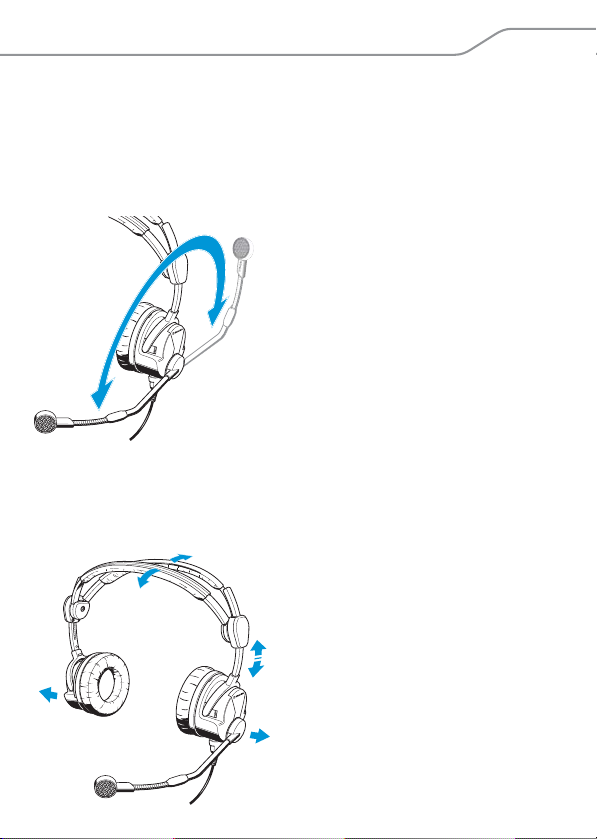

Turning the microphone boom

The microphone boom can be rotated, allowing the micro-

phone to be worn on the left or right-hand side of the head.

Putting on the headset

When putting on the headset, the patented two-piece head-

band adjusts automatically.

Operation

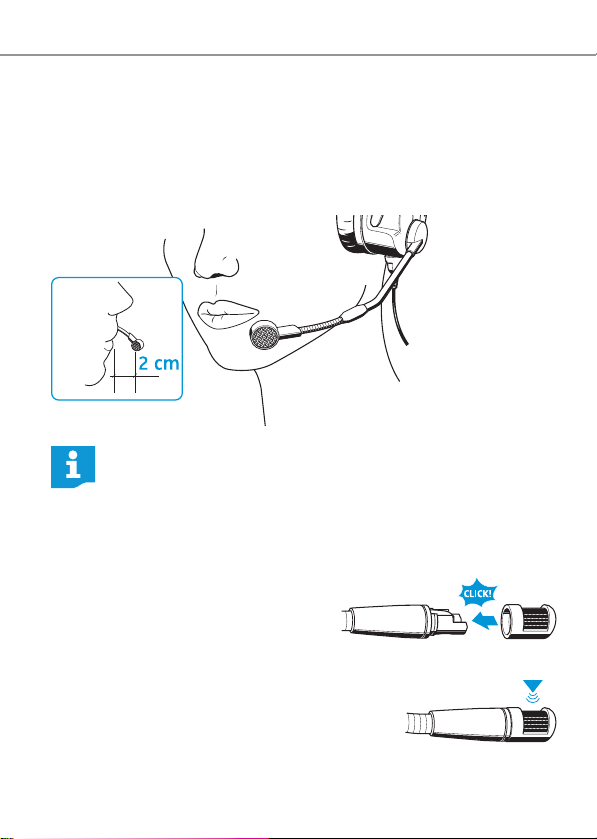

Positioning the microphone

Bend the flexible microphone boom so that the microphone

is placed at the corner of the mouth. Maintain a distance of

2cm between microphone and mouth. Always use the sup-

plied wind and pop screen.

Do not position the microphone directly in front of

your mouth as it will pick up your breathing and

plosive noises from your mouth. In addition, moisture

can adversely affect the sound and performance of

your microphone.

When attaching the sound

inlet basket, make sure

that it locks into place

with an audible click.

Make sure not to cover the

sound inlet.

Operation

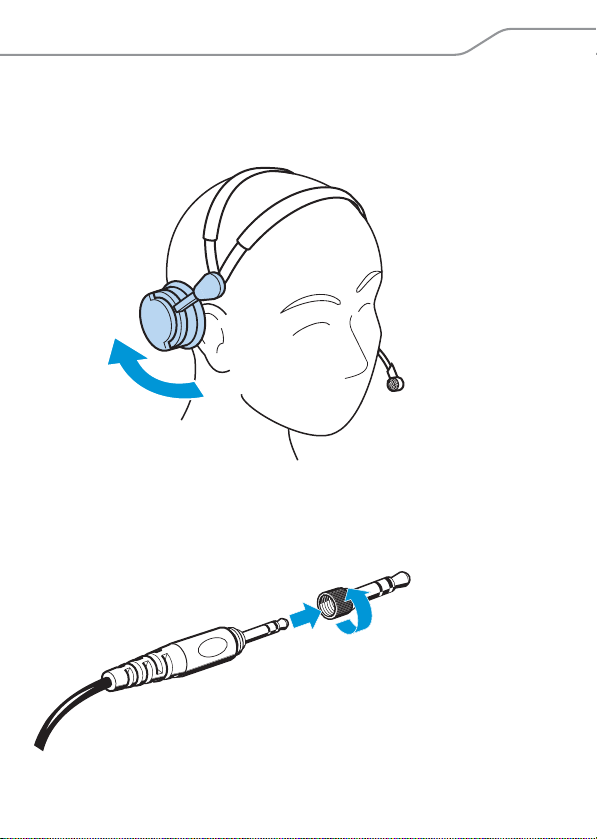

Flipping away one ear cup

The headset’s “flip-away” ear cup can be flipped backwards

by approx. 45°, allowing for singled-sided listening.

Connecting the HD 26 PRO headphones to the audio system

왘If necessary, screw the screw-on adapter for ¼“ (6.3 mm)

jack plug onto the 3.5 mm jack plug.

approx. 45°

3.5 mm

6.3 mm

Operation

Adjusting the volume on the audio system

Connect the headset to the corresponding sockets of your

audio system.

왘Adjust the volume directly on the audio system.

CAUTION

Hearing damage due to high volumes!

This headset is capable of producing high sound

pressure levels. Higher volumes or longer durations

can damage your hearing!

왘Set the volume to a medium level. Make sure

that you can hear critical environmental sounds.

Operation

Switching ActiveGard on and off

(HME 26-II/HMD 26-II/HD 26 PRO)

ActiveGard™ safeguards your ears from volume peaks above

105 dB, which can be transmitted via the audio system or

radio equipment.

왘Slide the switch for the ActiveGard function to the desired

position by using a pointed object:

Position Function

up ActiveGard is switched off (factory default setting).

down ActiveGard is switched on.
