Sennheiser SL MCR DW Bedienungsanleitung
SL MCR DW
2
SL MCR DW
Product overview and operating elements
►
1Status LEDs
• See „Meaning of the status LEDs“
2Analog Out 3-pin socket
• Analog audio output (see „Connecting the receiver“)
• Suitable for Phoenix Contact MCVW 1.5-3-ST-3.81
3Reset button
• To restore the factory settings
•Holdfor5seconds
4Dante I RJ-45 socket
• Digital audio output (see „Connecting the receiver“)
5Dante II / PoE / Ctrl RJ-45 socket
• Digital audio output (see „Connecting the receiver“)
• PoE supply (Power over Ethernet) (see „Putting the receiver into op-
eration“)
• Configuration via the software or a media control system (see „Con-
trolling and monitoring the receiver via the network“)
Analog Out
PoE/Ctrl
Reset
123
45
Front Back
SL MCR DW
3
Connecting the receiver
The receiver can output analog and digital audio signals.
The analog audio signal is output via the 3-pin Analog Out terminal.
Digital audio signals are output via the Dante interface with two RJ-45
sockets. This interface is also used for control and configuration via the
network and for Power over Ethernet supply.
The following variants are possible:
►
PoE /
network control
digital audio
PoE /
network control
digital audio digital audio
PoE /
network control
digital audio
Variant 1 Variant 2 Variant 3
SL MCR DW
4
Connecting to the network (power supply and configuration)
The PoE/Ctrl RJ-45 socket (Dante I) is used to both power the receiver via
Power over Ethernet and configure it using the Sennheiser Control Cock-
pit software (see „Controlling and monitoring the receiver via the net-
work“).
▷In your network you can either use a switch that provides PoE or a PoE
injector.
►
Analog Out
PoE/Ctrl
Reset
PoE
Analog Out
PoE/Ctrl
Reset
PoE/Ctrl
Control Cockpit clients
optional
optional
Control Cockpit
host PC (opt. client)
Media control client
LAN
Application example:
LAN or WiFi
Media control server
LAN
or WiFi
SL MCR DW
5

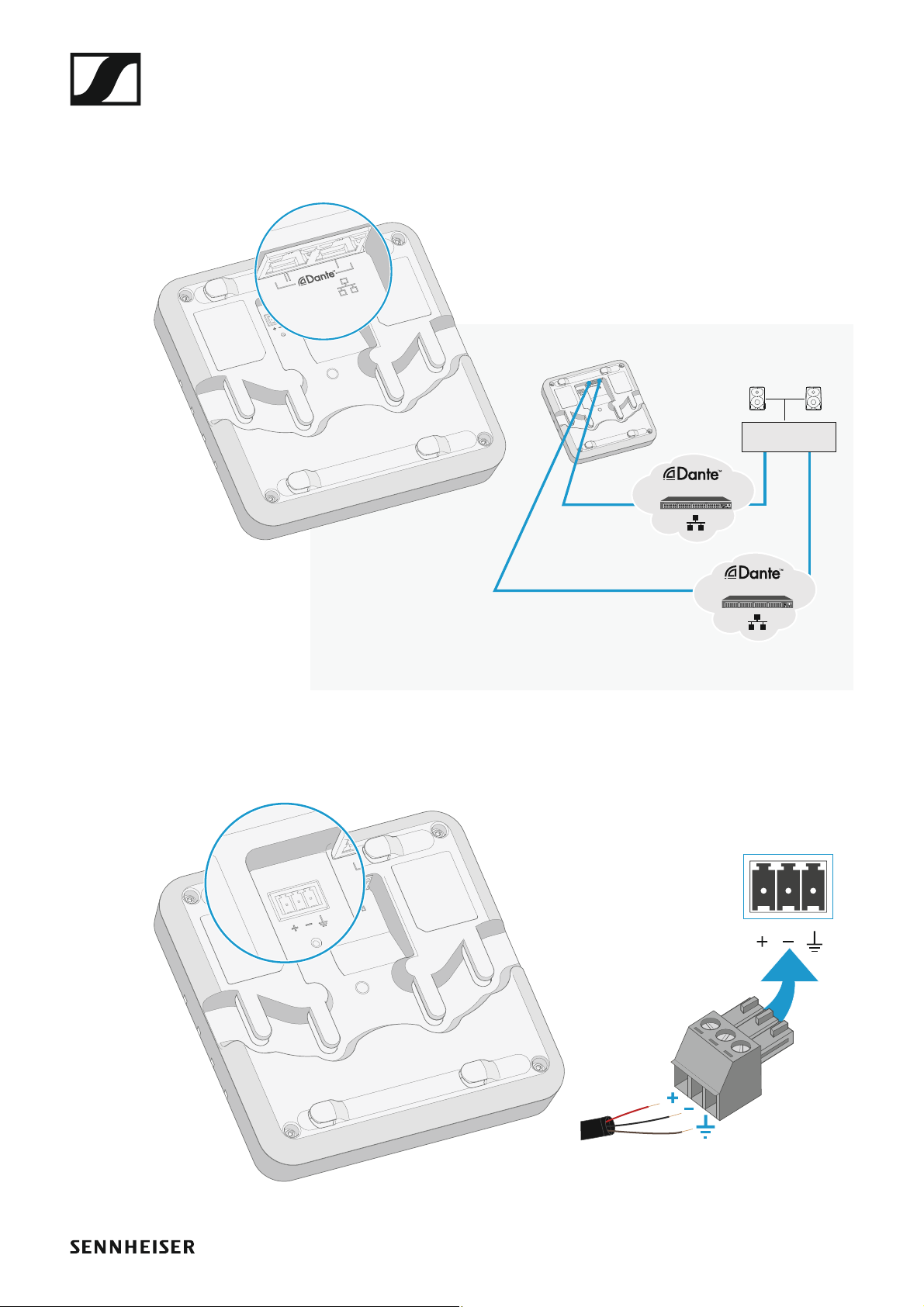

Outputting digital audio signals
The Dante™ interface with two RJ-45 sockets, Dante I and Dante II, is used
for outputting digital audio signals. The interface supports redundant out-
put.
►
Outputting analog audio signals
Use the Analog Out socket to output analog audio signals.
►
Analog Out
PoE/Ctrl
Reset
Analog Out
PoE/Ctrl
Reset
PoE/Ctrl
Dante™ DSP
PriSec
PoE
LAN
LAN
Application example:
Analog Out
Analog Out
PoE/Ctrl
Reset
Analog Out
Reset
suitable for
Phoenix Contact MCVW 1.5-3-ST-3.81
SL MCR DW
6
Mounting the receiver
Safety instructions for installation
Observe the following safety instructions when installing the product.
▷The physical mounting and all electrical installations must be per-
formed by a specialist.
▷The specialist must have sufficient professional training, experience
and knowledge of applicable provisions, regulations and standards to
be able to properly assess the work assigned to them, identify possible
hazards and take appropriate safety measures.
▷When mounting the product, observe and follow all local, national and
international regulations and standards.
The receiver can be mounted in the following ways.

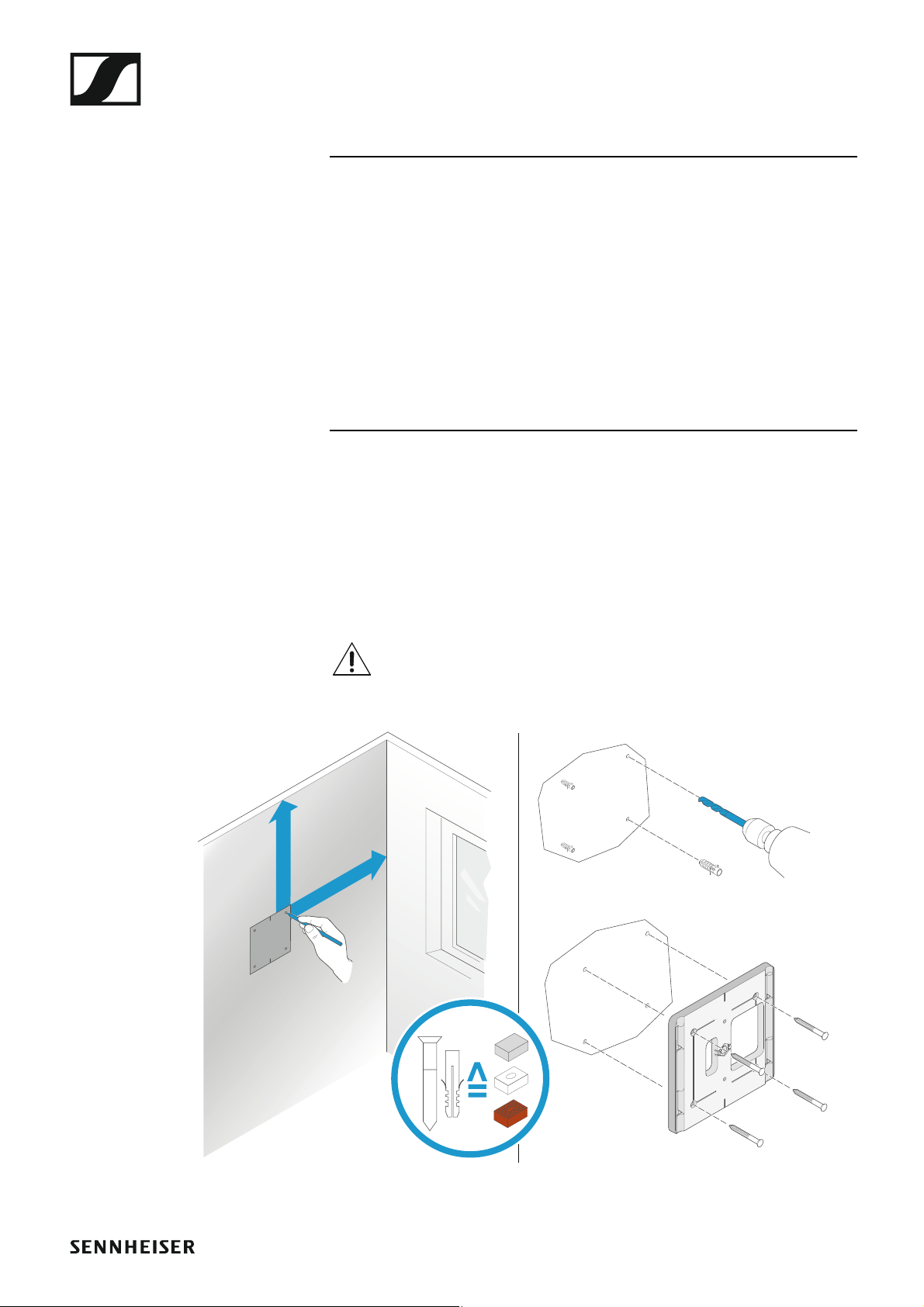

Mounting the receiver on the wall
To mount the receiver on the wall, you will need the mounting frame sup-
plied.
Screws and anchors for mounting the product to the wall are not in-
cluded with delivery. Use screws and anchors that are appropriate
for the particular characteristics of your wall.
►
center
line
center
line
topcenter
line
wall mount
VESA 100
center
line
>1,5 m>1.5 m>1,5 m>1,5 m
SL MCR DW
7

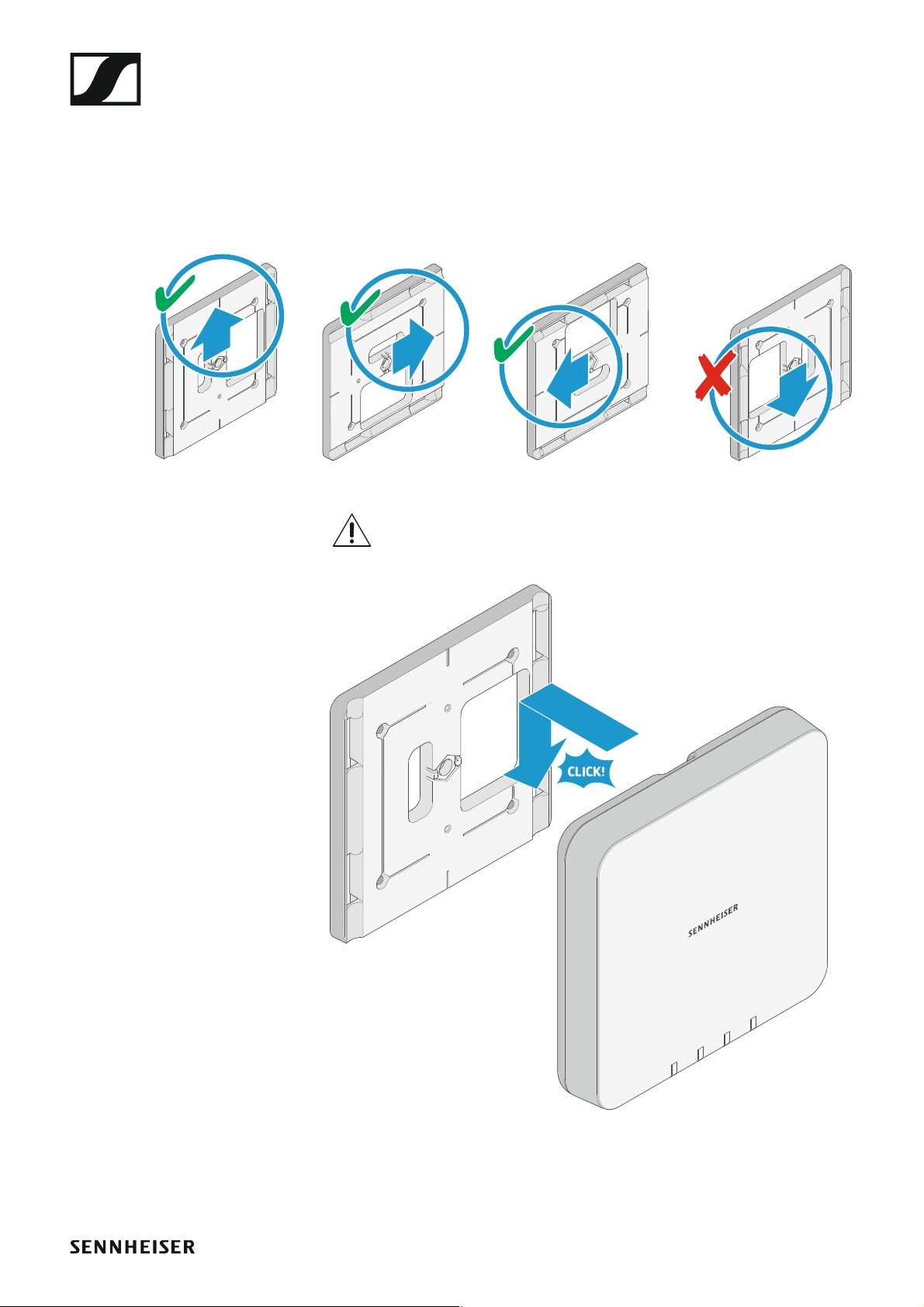

▷Use the included drilling template to mark the drill holes for wall
mounting.
▷Maintain a minimum distance of 1.5 m from other walls and the ceiling.
▷Screw the mounting frame to the wall using four suitable screws and
anchors.
►
▷Make sure that the mounting frame is aligned correctly.
The top marking on the mounting frame must not point downwards.
Otherwise the receiver may fall out and be damaged.
►
▷Insert the receiver into the mounting frame as shown until you hear it
click into place.
top center
line
wall mount
VESA 100
center
line
top!
top center
line
wall mount
VESA 100
center
line
top!
top center
line
wall mount
VESA 100
center
line
top!
top center
line
wall mount
VESA 100
center
line
top!
top center
line
wall mount
VESA 100
center
line
SL MCR DW
8

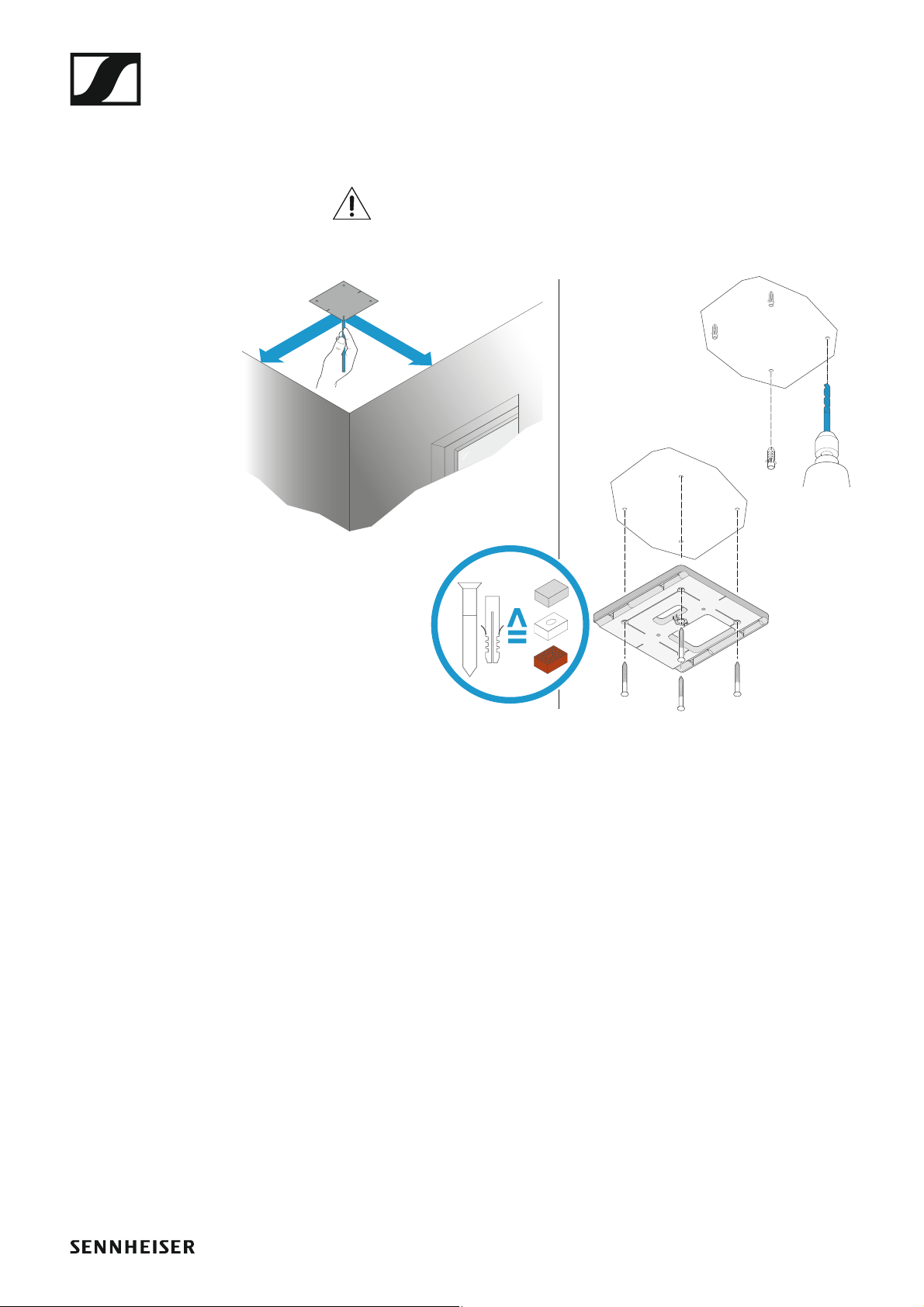

Mounting the receiver on the ceiling
To mount the receiver on the ceiling, you will need the mounting frame sup-
plied.
Screws and anchors for mounting the product to the ceiling are not
included with delivery. Use screws and anchors that are appropri-
ate for the particular characteristics of your ceiling.
►
▷Use the included drilling template to mark the drill holes for ceiling
mounting.
▷Maintain a minimum distance of 1.5 m from the walls.
▷Screw the mounting frame to the ceiling using four suitable screws and
anchors.
center
line
center
line
top center
line
wall mount
VESA 100
center
line
>1,5 m
>1,5 m
>1.5 m
>1.5 m
>1,5 m
>1,5 m
>1,5 m
>1,5 m
SL MCR DW
9
►
▷Insert the receiver into the mounting frame as shown until you hear it
click into place.
top center
line
wall mount
VESA 100
center
line
SL MCR DW
10
Mounting the receiver on a stand
The thread in the middle of the mounting frame is suitable for mounting on
a standard microphone stand with 3/8" thread.
▷Screw the mounting frame onto the microphone stand as shown.
▷Insert the receiver into the mounting frame as shown until you hear it
click into place.
►
top center
line
wall mount
VESA 100
center
line
SL MCR DW
11
Mounting the receiver on a VESA mount
The holes in the mounting frame are positioned 100 mm apart so that the
mounting frame can be mounted on any VESA 100 mount.
▷Screw the mounting frame onto the VESA mount as shown using four
suitable screws.
▷Insert the receiver into the mounting frame as shown until you hear it
click into place.
►
top center
line
wall mount
VESA 100
center
line
top center
line
wall mount
VESA 100
center
line
*
*Example of a VESA 100 mount
