MULTISCAN 8+

ATEX and SIL 1 certified

MANUAL FOR INSTALLATION

AND USE

SENSITRON S.r.l. Viale della Repubblica, 48

20010 CORNAREDO MI - Italy

Tel: + 39 02 93548155 Fax: + 39 02 93548089

E-MAIL: [email protected]

Technical manual MULTISCAN 8+

MT4412E Rev.3 15/10/2019 Page 2 of 30

Warning

THIS MANUAL MUST BE CAREFULLY READ BY ALL PERSONS WHO

ARE OR WILL BE RESPONSIBLE FOR INSTALLING, USING OR

SERVICING THIS PRODUCT.

Like any equipment, this product will perform as designed only if installed,

used and serviced in accordance with the manufacturer’s instructions.

OTHERWISE, IT COULD FAIL TO PERFORM AS DESIGNED AND

PERSONS WHO RELY ON THIS PRODUCT FOR THEIR SAFETY COULD

SUFFER SEVERE PERSONAL INJURY OR DEATH.

Technical manual MULTISCAN 8+

MT4412E Rev.3 15/10/2019 Page 3 of 30

THIS TECHNICAL MANUAL DESCRIBES THE PRODUCT IN

ITS COMPONENTS, THE INSTALLATION AND THE

OPERATION OF THE SYSTEM. THE CONFIGURATION

SOFTWARE IS NOT INCLUDED, SO PLEASE REFER TO

THE PROPER MANUAL.

Technical manual MULTISCAN 8+

MT4412E Rev.3 15/10/2019 Page 4 of 30

INDEX

1) INTRODUCTION................................................................................................................................... 5

1.1) BLOCK DIAGRAM SYSTEM WITH MULTISCAN 8+ CENTRAL UNIT............................................................. 6

1.2) TECHNICAL SPECIFICATIONS.............................................................................................................. 6

2) INSTALLATION.................................................................................................................................... 7

2.1) ASSEMBLY AND CONNECTIONS.......................................................................................................... 7

2.1.1) UNIT DIAGRAM AND PART IDENTIFICATION ................................................................................... 8

2.1.2) CENTRAL UNIT CARD LAYOUT..................................................................................................... 9

2.1.3) 16-RELAY CARD LAYOUT (OPTIONAL)........................................................................................ 10

2.2) FIELD DEVICE CONNECTIONS........................................................................................................... 12

2.2.1) DETECTOR CONNECTION ......................................................................................................... 13

2.3) STG/IN8-S REMOTE INPUT MODULES.............................................................................................. 18

2.4) STG/OUT16-S REMOTE OUTPUT MODULES..................................................................................... 19

2.4.1) STG/8REL RELAY EXPANSION BOARD ..................................................................................... 20

2.4.2) STG/IN8-S AND STG/OUT16-S MODULE ADDRESSING............................................................ 20

2.5) PROGRAMMING FROM A PC ............................................................................................................ 22

2.6) TCP/IP OPTIONAL MODULE............................................................................................................. 23

3) SYSTEM POWER UP AND OPERATION.......................................................................................... 23

3.1) POWER ON.................................................................................................................................... 24

3.2) SYSTEM STATUS............................................................................................................................. 25

3.3) MENU........................................................................................................................................... 28

3.4) ACTIVE EVENTS AND EVENT MANAGEMENT.................................................................................. 28

MT4412E Rev.3 15/10/2019 Page 5 of 30

1) INTRODUCTION

The highly innovative and versatile MULTISCAN 8+ central units the ideal solution for small

systems with up to 16 gas detectors.

The system provides for the direct connection of 8 detectors to the central unit (4-20mA) and to

additional 8 detectors that can be connected directly to the RS485 bus or via a remote module

with 8 x STG/IN8-S inputs.

Each input can be configured for different types of gas: toxic, refrigerant, flammable, and oxygen,

both for their deficiency and enrichment.

The backlit display offers an accurate indication of gas concentration and allows the display of

established alarm levels.

The central unit manages up to 38 relay outputs, of which 6 are on board the central unit and the

other 32 are via STG/OUT16S and STG/16REL cards.

The centralunitis supplied in an ABS housing andcan contain 2 x 12Vdc, 7Ah batteries to ensure

that the system works even in the event of a power failure.

The MULTISCAN 8+ is in the process of obtaining SIL1 and ATEX certification pursuant to

EN60079-29-1.

Overview of devices connectable to the MULTISCAN 8+ central unit.

Central unit model

RS485

serial bus

no.

Max no.

detectors

Max no.

outputs

Max number

ST.G/IN8

modules

Max number

ST.G/OUT16

modules

Notes

Multiscan 8+

8+8(*)

32+6(*)

(*) channels and outputs already present in the central unit

Other features of the MULTISCAN 8+, central unit are:

•Event log can be displayed on the screen or downloaded to a PC.

•USB and RS232 serial port for PC connection for programming and control via specific

software.

Central unit ordering codes and accessories

CODE

DESCRIPTION

STMTS/8+

MULTISCAN 8+ gas control panel.

8 Analog 4-20mA inputs and 6 relay outputs on-board the panel.

1 x RS485 type open bus line to connect additional 8 detectors through remote 8-input module

or addressable gas detectors daisy chained to the RS485 bus.

6 relay outputs and additional 16 relays via the dedicated STS/16REL card or via remote

modules.

The panel comes complete with 1 RS232 serial port for PC connection. Housed in ABS box

ACCESSORIES

CODE

DESCRIPTION

STG/IN8S

High safety 8-input remote module with improved performance for MULTISCAN++S1 control panel.

STG/16REL

16-relay card to be connected to MULTISCAN 8+ and STPL4/ESP to provide additional 16 relay

outputs

STG/OUT16S

High safety 16-output remote module (Open collector type) with improved performance.

STG/8REL

Plug and play relay board to be connected to STG/OUT16 to provide 8 relay outputs

STG/MTSS1-

CONF

Windows PC software for MULTISCAN++S1 control panel programming. Running under Windows

XP, VISTA, WIN7, 8, 8.1, 10.

The configuration software is supplied along with the control panel

MT4412E Rev.3 15/10/2019 Page 6 of 30

1.1) Block diagram system with Multiscan 8+ central unit

Fig. 1.1) System block outline

1.2) Technical specifications

Technical specifications

Housing:

IP 42 plastic box, 420x380x160 mm

Inputs:

Max. 16 detectors

Outputs:

6 relays in the central unit

16 through the STG/16REL card to be connected inside the central

unit

16 O/C or relay outputs via the STG/OUT16-S and STG/8REL

remote cards.

Serial ports:

1 x RS485

1 x RS232 (PC connection)

Power:

230 Vac

Absorption:

Max 10 VA

Display:

Liquid crystal display (LCD)

Optic indications:

Double row of 9 LEDS

Working temp.

0/-55°C

Storage temp.

-20 ÷ +60 C°

Working RH:

15-85%

Storage RH:

5-85% (non-condensing)

LOOP

(6)

Rs485

option: the detectors could be connected

directly on the loop in daisy-chain mode

(1) RILEVATORI GAS ANALOGICI 4-20 mA / 4-20 mA ANALOGGAS DETECTORS

(2) MODULO 8 INGRESSI ANALOGICI ST.G/IN8-S / ANALOG 8 INPUT MODULE

ST.G/IN8-S

(3) CAVO2 FILI TWISTATI PER Rs485 + 2 FILI PER ALIMENTAZIONE (12-24 Vdc) /

2 TWISTED WIRES FOR THE Rs485 BUS + 2 WIRES FOR THE POWER SUPPLY (12-24 Vdc)

(4) RILEVATORI GAS CON USCITA SERIALE Rs485 / GAS DETECTORS WITH Rs485 OUTPUTS

(5) MODULO16 USCITE O/C ST.G/OUT16PK / 16 O/C OUTPUTS MODULE ST.G/OUT16PK

(6) MODULO 8 RELE’ ST.G/8REL / 8 RELE’ ST.G/8REL MODULE

(1)

(2)

(3)

(4)

(5)

MULTISCAN 8+

16 relay

MT4412E Rev.3 15/10/2019 Page 7 of 30

2) INSTALLATION

2.1) Assembly and connections

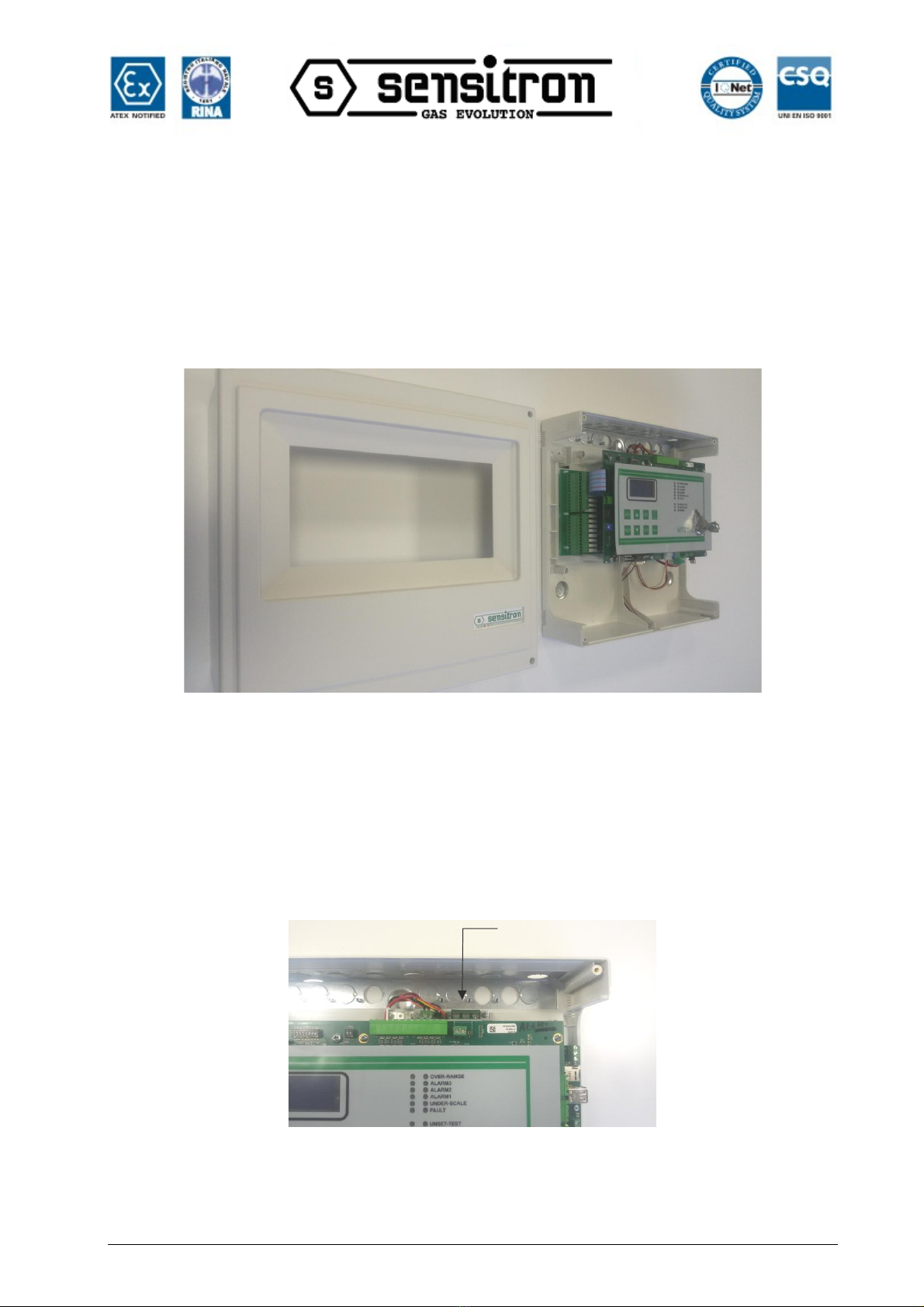

Remove the 4 screws at the 4 corners of the box and remove the front part of the central unit box.

It is now possible to choose where toplace the cables. We recommend placing the cable for entry

by using a suitable cable press.

Secure the back of the central unit to the wall by using its appropriate holes.

Fig. 2.1 a) Central unit box

Connect the tri-polar network cable to the power supply (minimum 1.5mm2per pole) and

secure it with the specific wire clamp.

Power on the central unit, and connect the red and black fastons of the power supply to

the two 12 V 7 Ah lead buffer batteries, in a series

Fig. 2.1 b) Vac network connection

Vac

MT4412E Rev.3 15/10/2019 Page 8 of 30

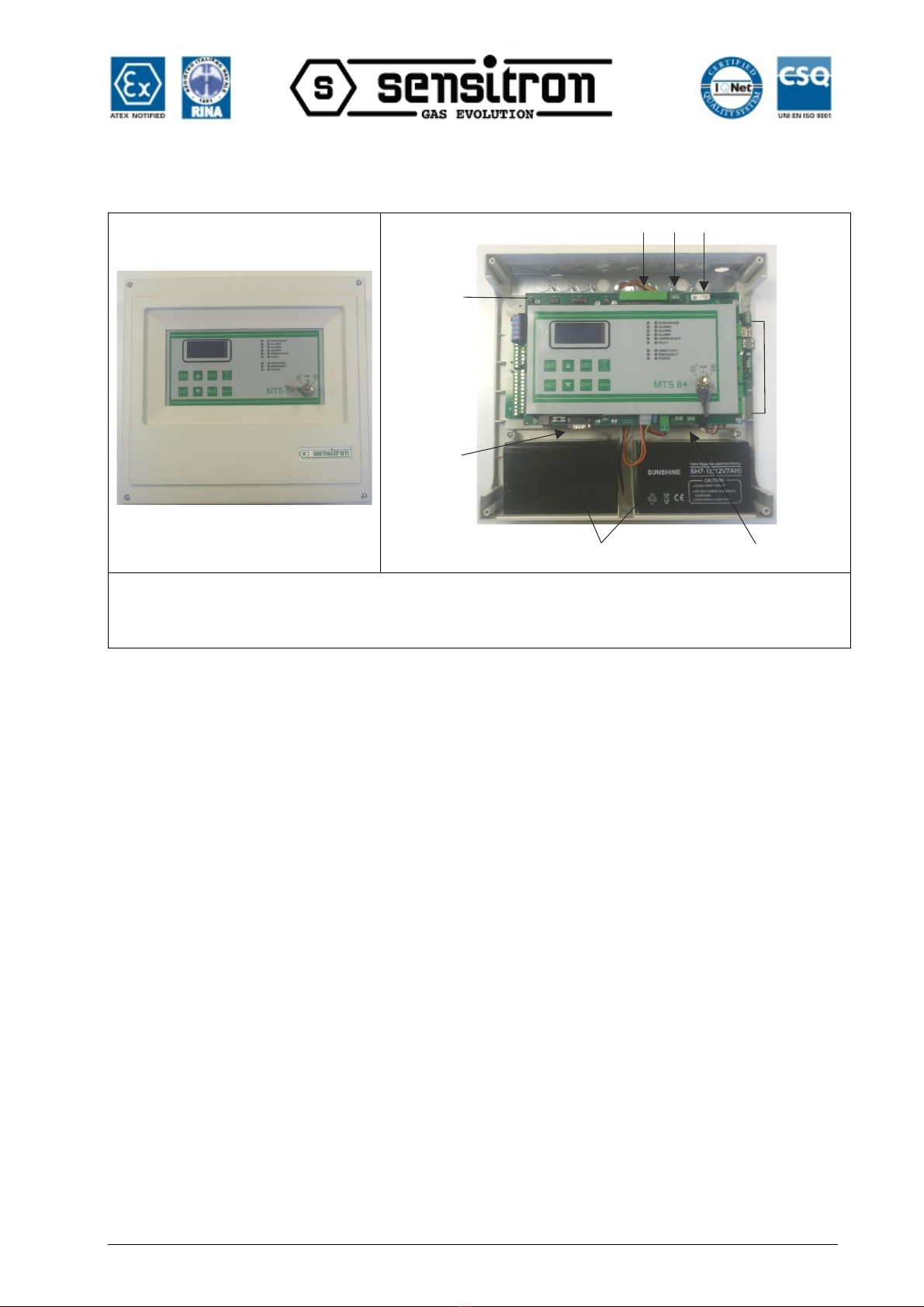

2.1.1) Unit diagram and part identification

1- Power Supply (27 Vdc 4A)

2- 2 x 12V 7Ah batteries (not included)

3- RS232 serial port and USB

4- RS485 serial card

5- Relay outputs (6)

6- 8 inputs, 4-20mA

7- RS485 bus connection

8- Central unit card

Fig. 2.1.1) Unit diagram and part identification

6 7

MT4412E Rev.3 15/10/2019 Page 9 of 30

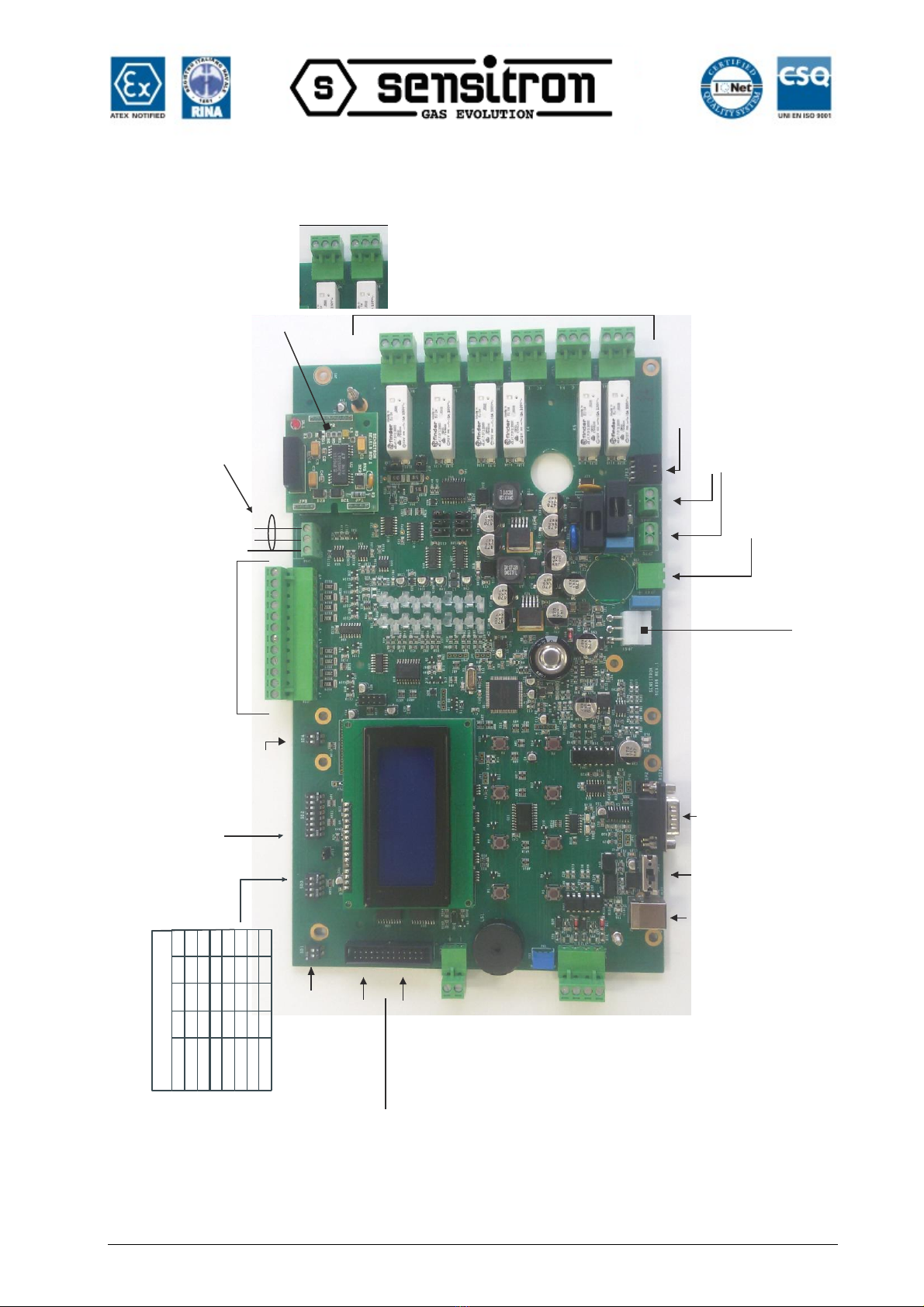

2.1.2) Central unit card layout

Fig. 2.1.2) Central unit card layout

Dip switchsettaggio (vedi tabella)

Setting switches (seetable)

D3 sw itches: Cont rol pane l languag e

Language Sw1

Sw4 Sw3 Sw2

English

Italian

Spanish

Portuguese

German

French

Slovenian ON

OFF

ON ON

OFF OFF

OFF

OFF OFF

OFF

OFF OFF

8 X INGRESSI ANALOGICI 4-20mA

8 x 4-20 mA ANALOG INPUTS

6 X USCITE RELE’ / 6 X RELAY OUTPUTS

SCHEDA SERIALE Rs485

Rs485 SERIALBOARD

LINEA SERIALE Rs485

Rs485 SERIAL LINE

DIGITAL

INPUTS

(NOT

USED)

USB FOR PC

CONNECTION

(OPTIONAL)

Rs232

FOR PC

SWITCH

USB / SERIAL

CONNETTORE SCHEDA

16 USCITE RELE’

OPZIONALE

16 RELAY OPTIONAL

BOARD CONNECTOR

DALL’ALIMENTATORE

FROM THE POWER

SUPPLY

CHIAVE /

KEY SWITCH

USCITE AUSILIARIE ALIMENTAZIONE

AUXILIARY POWER SUPPLY OUTPUTS

POSITIVO E NEGATIVO DALL’ALIMENTATORE

POSITIVE AND NEGATIVE FROM POWER SUPPLY

NOT USED

NOT

USED

NOT

USED

shield

+-++

27,2 Vdc

1 A max

MT4412E Rev.3 15/10/2019 Page 10 of 30

2.1.3) 16-relay card layout (optional)

Fig. 2.1.3) 16-relay card layout

Fig. 2.1.3 a) 16 relay card positioning

FOR MULTISCAN 8+

CONTROL PANEL

FOR Pl4+ CONTROL

PANEL (PL4/ESP

BOARD REQUIRED)

CONNECTORS

JUMPER FOR

NORMALLY ENERGIZED

NORMALLY NOT ENERGIZED

RELAY

116

1 8 9 16

C NC NO

C NC NO R4 R8 R10 R14

R15R11R7

C NC NO C NC NO

12Vdc POWER SUPPLY

SOLO CENTR. Pl4+ / ONLY Pl4+ PANEL

LAYOUT
