Shure MV51 Bedienungsanleitung

MV51

USB Microphone

The Shure digital large-diaphragm condenser microphone, MV51, user guide.

Version: 6.1 (2022-H)

Shure Incorporated
2/25
Table of Contents
MV51   USB Microphone 3
General Description 3
Features 3
Mounting and Placement 3
Quick Setup 4
Touch Panel Interface Controls 5
Applications 5
Podcast and Voice Recording 5
Acoustic Instruments and Music 6
Bands and Loud Sources 6
Bypass EQ and Compression (Flat) 7
Additional Tips 7
The MOTIV App 7
Device Setup 8
Preset Modes 9
Custom Presets 10
Advanced Mic Settings 10
Adjusting Microphone Level 11
Adjusting Headphone Level 11
Accessing the Control Panel 12
Input Meter Level 12
Monitoring with the MOTIV Device 12
Recording Tips 12
Turn On Airplane Mode and Do Not Disturb 13
Use the Dark Theme 13
Capture the Complete Performance 13
Keep Screen Awake During Recording 13
Recording Acoustic and Electric Guitar with the MV51 13
Library 13
Converting Multiple Files 14
Playback 14
Editing Your Audio 15
Navigating The Timeline 16
Creating A Loop 16
Markers 17
Editor 17
Editing in Split Mode 18
Sharing MOTIV Recordings 19
Save to Camera Roll 19
Customize Track Artwork 19
Save to Dropbox™ 19
AirDrop® with MOTIV 20
Save to iTunes 20
Sampling Rate and Bit Depth 21
Troubleshooting 21
System Requirements 21
System Requirements and Compatibility: Mac 21
System Requirements and Compatibility: Windows 22
System Requirements and Compatibility: iOS 22
System Requirements and Compatibility: Android 22
Specifications 22
Accessories 24
Furnished Accessories 24
Certifications 24
Information to the user 24

Shure Incorporated

3/25

•

MV51

USB Microphone

General Description

The Shure MV51 is a professional-quality USB condenser microphone, ideal for home recording, podcasting, and video confer-

encing. The attractive and durable all-metal design features an adjustable kickstand for desktop use, and can also mount onto

a microphone stand. A touch panel user interface provides control of microphone gain, headphone level, application modes,

and muting.

Features

Easily adjust settings with the intuitive touch panel interface

Compatible with most iDevices (iPhone, iPad, and iPod) through Lightning interface

Compatible with most computers, tablets and smart phones through USB interface

Large-diaphragm electret condenser microphone captures speech and music with excellent clarity

Sleek design includes all-metal housing for professional-grade durability

Headphone output allows real-time monitoring of the live signal and audio from the computer or device

Preset DSP modes include equalization and compression settings for specific applications

Desktop kickstand includes a removable tip for mounting onto a microphone stand

Mounting and Placement

Desktop Aim the microphone towards the sound source by adjusting the kickstand.

Microphone Stand Unscrew the end cap to thread the kickstand onto a standard 5/8" microphone stand.

Shure Incorporated

4/25

Kickstand End Cap

Quick Setup

The MV51 is compatible with most devices that have a USB or Lightning connector.

Connect the microphone to a computer or mobile device. Use the appropriate cable (USB or Lightning).

Drivers will be installed automatically. The touch panel illuminates to indicate a successful connection.

Open the sound control panel. Select the Shure MV51 driver.

Raise the level on both the MV51 product and the host computer for proper monitoring.

Confirm that the MV51 is the selected audio device.

Plug headphones into the MV51 device audio output and play an audio track. If you can hear sound, the microphone is

functioning properly.

If your computer settings default to another device, open the sound control panel and select the MV51 device.

Adjust the headphone volume on the Shure MV51 device driver.

Open the MV51 driver from the sound control panel and raise the headphone volume from the playback or output tab.

Use the MODE button to select the preset mode that fits your application.

If the audio is too quiet or causes distortion, adjust the gain manually. Refer to the "Adjusting Microphone Level" topic in

this guide for more details.

In your recording application, select the MV51 as the input source.

See your software user guide for information on assigning input sources.

Shure Incorporated

5/25

•

You are ready to record.

Touch Panel Interface Controls

Touch Panel

①Volume Control Slider Adjust microphone or headphone level by sliding your finger across the control surface.

Press the mode button to activate microphone level.

Press the headphone button to activate headphone volume.

②LED bar Displays microphone and headphone level. The LED color indicates the level being displayed or adjusted.

Green: Microphone level

Orange: Headphone level

③Mute Button Press to mute and unmute the microphone.

④Mode Selector Press to select preset mode.

⑤Headphone Volume Selector Press to select headphone level controls (orange LED bar). Then use the volume control

slider to adjust headphone level. Press again to return to microphone level display (green LED bar).

Applications

This section suggests microphone placement for typical use cases. Keep in mind that there are many effective ways to record

a given source. Experiment with the following microphone placement and settings to find what works best.

Podcast and Voice Recording

Set the microphone to the Speech mode. Speak directly into the front of the microphone at a distance of 2-12 inches (5-30 cm)

away. Speaking closer to the microphone results in more bass response, similar to voices on a radio broadcast. Make addition-

al gain adjustments if necessary.

Shure Incorporated

6/25

Typical position for speech

Acoustic Instruments and Music

To capture acoustic sources, such as singing, acoustic guitar, soft percussion, or other musical instruments, use a close micro-

phone placement.

Aim the microphone directly at the sound source. For a single source, such as a string instrument or a vocalist, place the mi-

crophone 6 to 12 inches (15 to 30 cm) away. For a small group or a performer who is singing and playing an instrument simul-

taneously, use a distance of 2 to 10 feet (0.6m to 3 m). Placing the microphone farther away results in more ambient room

sound.

Set the microphone to the Acoustic or Singing mode and make additional gain adjustments if necessary.

Bands and Loud Sources

To record a band with drums or amplified instruments, aim the microphone towards the group at a distance of 6 to 15 feet (1.8

to 4.6 m). Placement of the microphone depends on the size of the room, number of people, and instrument volume. If possi-

ble, walk around the room and listen to find where it sounds best.

For other loud sources, such as an electric guitar amplifier, aim the microphone at the sound source from 0-18 inches (0-45

cm) away.

Set the microphone to the Band mode and make additional gain adjustments if necessary.

Shure Incorporated

7/25

Bypass EQ and Compression (Flat)

To record a signal without any processing, set the microphone to the Flat mode. This mode is appropriate for any application

when you want to bypass equalization and compression presets, and is ideal when applying signal processing to the recording

at a later time.

Additional Tips

Shure offers additional educational publications on recording techniques for specific instruments and applications. Visit

shure.com for more information.

The MOTIV App

Use the MOTIV app to change microphone settings and to record, edit, and share audio. The device stores the most recently

used settings for quick setup each time you record.

Tip: Turn on Airplane Mode and Do Not Disturb to prevent interruptions to the recording caused by phone calls, text messages, or alerts.

Tap Device on the navigation bar to access the device settings tab.

Shure Incorporated

8/25

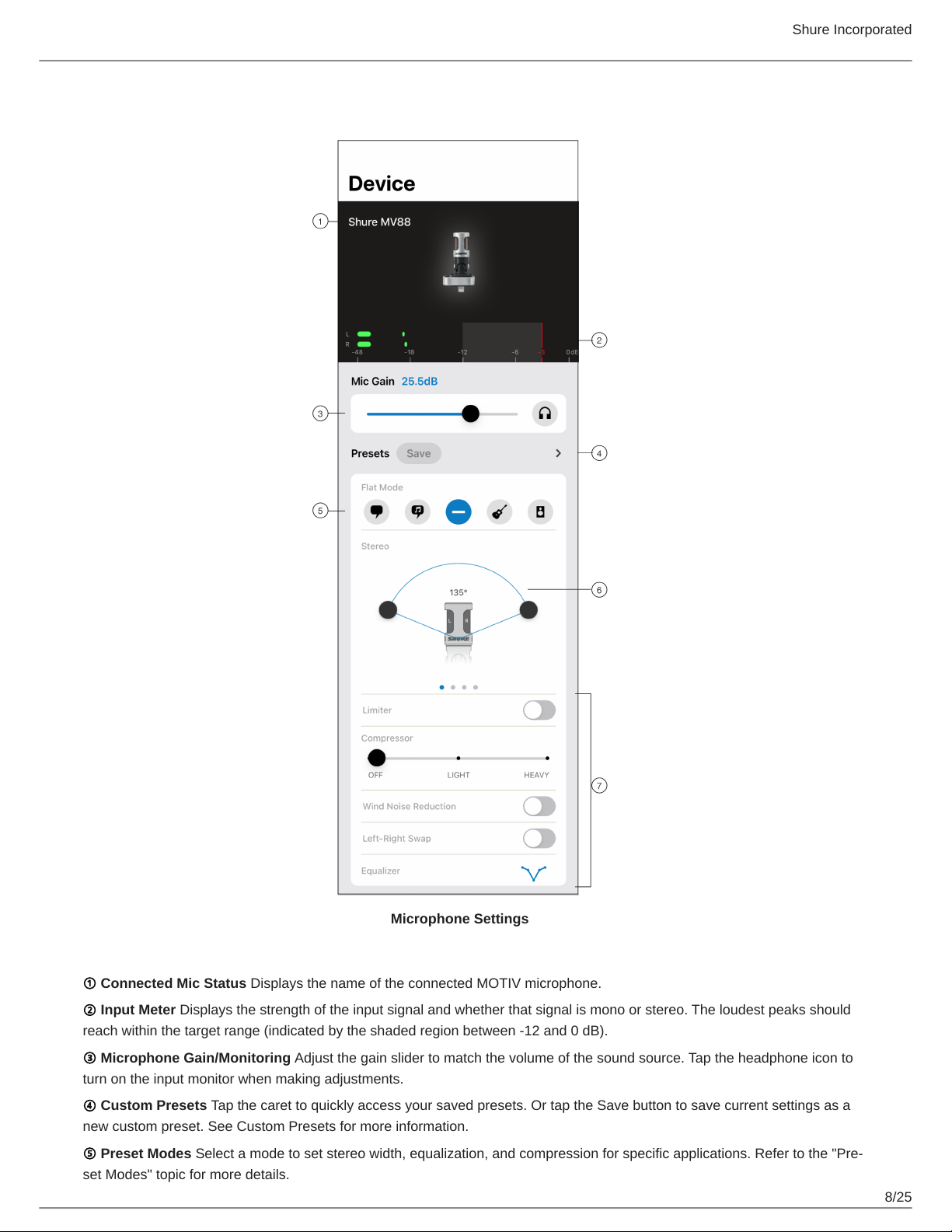

Device Setup

Microphone Settings

①Connected Mic Status Displays the name of the connected MOTIV microphone.

②Input Meter Displays the strength of the input signal and whether that signal is mono or stereo. The loudest peaks should

reach within the target range (indicated by the shaded region between -12 and 0 dB).

③Microphone Gain/Monitoring Adjust the gain slider to match the volume of the sound source. Tap the headphone icon to

turn on the input monitor when making adjustments.

④Custom Presets Tap the caret to quickly access your saved presets. Or tap the Save button to save current settings as a

new custom preset. See Custom Presets for more information.

⑤Preset Modes Select a mode to set stereo width, equalization, and compression for specific applications. Refer to the "Pre-

set Modes" topic for more details.

Shure Incorporated

9/25

⑥Polar Pattern Selection Swipe to choose between Stereo, Mono Cardioid, Mono Bidirectional or Raw Mid-Side pick-up pat-

terns. Then adjust the width of the stereo microphone pickup area.

Tip: Consider the location of the microphone and the size of the sound source when adjusting the width. For example, a large

orchestra or ensemble recording will benefit from a wide stereo image to achieve increased separation between instruments.

Other applications, such as speech, benefit from a narrow width for improved clarity with rejection of ambient (room) sound.

⑦Advanced Features First select a preset mode, then use the advanced controls to fine tune your audio recording and dial in

your sound. Your settings will be retained in the microphone. See "Advanced Features," "Wind Noise Reduction" and "Left-

Right Channel Swap" for more information on how these features work.

Preset Modes

Five selectable modes optimize settings for gain, stereo width, equalization, and compression. Set the microphone level and try

the modes to find which sounds best. Preset modes can affect the strength of the input signal, so adjust the microphone level

as needed after changing presets.

Mode Application Characteristics

Speech

speech Narrow stereo width to reject background noise, equalization that emphasizes

clarity and fullness, and gentle compression.

Singing

solo or group vocal per-

formances

Medium stereo width with subtle equalization to add richness and clarity for a

natural sound.

Flat any An unprocessed signal (no equalization or compression settings used). Adds

flexibility when processing the audio after recording.

Acousti

acoustic instruments and

quiet music

Medium stereo width with transparent compression to smooth out volume spikes

and bring out quiet passages. The equalizer setting emphasizes detail and an

overall natural sound.

Shure Incorporated

10/25

Mode Application Characteristics

Loud

live performance and

louder sources

Wide stereo to increase separation between sources. Equalization further im-

proves definition by reducing frequencies that can make the instrumentation

sound crowded.

Custom Presets

Create and save custom presets to quickly access frequently used mic settings.

Start with the preset mode that best suits your application needs.

Adjust advanced settings, like compression, for clarity and consistency.

Tap Save to rename and save your new custom preset. The original preset will remain available.

The new custom preset is added to your list.

To access saved presets:

Tap the caret (arrow) in the Preset row to view your list of available presets.

Tap custom preset and Apply Preset to instantly apply gain, stereo, equalization, and compression preferences.

Tip: You can save a custom preset at any point by tapping Save.

Advanced Mic Settings

After you have selected the preset mode for your application, fine tune the sound of your recording with limiter, compressor,

and equalizer controls. Your settings will be retained in the microphone when using other audio and video recording applica-

tions.

Limiter

Toggle the limiter on to set an input threshold and prevent distortion from volume peaks in your recordings.

Compressor

Choose no compression, or select light or heavy compression to control volume when your sound source is dynamic. The com-

pressor will narrow the dynamic range, which means that quiet signals are boosted and loud signals are lowered.

Wind Noise Reduction

Wind Noise Reduction engages a low-frequency cutoff filter that reduces rumble caused by environmental noise. Use the in-

cluded foam windscreen in combination with wind reduction to counteract rumble and plosives (bursts of air hitting the micro-

phone).

To further reduce wind noise, use the optional Rycote Windjammer, which fits over the included foam windscreen.

™

Andere Handbücher für MV51

Inhaltsverzeichnis

Andere Shure Mikrofon Handbücher

Shure

Shure WM98 Bedienungsanleitung

Shure

Shure Microflex MX400S Bedienungsanleitung

Shure

Shure Beta 58 Bedienungsanleitung

Shure

Shure EZG Bedienungsanleitung

Shure

Shure MUSIC EDUCATORS Bedienungsanleitung

Shure

Shure Microflex Advance MXA910 Bedienungsanleitung

Shure

Shure ULX Wireless System Bedienungsanleitung

Shure

Shure UNISPHERE 565SD Bedienungsanleitung

Shure

Shure 515SDX Bedienungsanleitung

Shure

Shure WL93 Bedienungsanleitung

Shure

Shure VP89L Bedienungsanleitung

Shure

Shure SM48 Bedienungsanleitung

Shure

Shure 565 UNISPHERE I Bedienungsanleitung

Shure

Shure Microflex MX391BP Series Bedienungsanleitung

Shure

Shure Beta 53 Bedienungsanleitung

Shure

Shure PGA58-QTR Bedienungsanleitung

Shure

Shure SM35 Bedienungsanleitung

Shure

Shure Microflex MX391 Series Bedienungsanleitung

Shure

Shure Beta 53 Bedienungsanleitung

Shure

Shure Microflex MX400SE Series Bedienungsanleitung

Shure

Shure Easyflex EZG-SE Series Bedienungsanleitung

Shure

Shure BETA 56A Bedienungsanleitung

Shure

Shure SE215 PRO Bedienungsanleitung

Shure

Shure SM81 Bedienungsanleitung

Beliebte Mikrofon Handbücher anderer Marken

IK Multimedia

IK Multimedia iRig Stream MIC PRO Bedienungsanleitung

DAPAudio

DAPAudio RM-101 Bedienungsanleitung

AKG

AKG CHM 21 Bedienungsanleitung

Sennheiser

Sennheiser evolution wireless series EM 100 Bedienungsanleitung

Sony

Sony C-48 Bedienungsanleitung

GIGAMEDIA

GIGAMEDIA GGM PAMICUHFG Bedienungsanleitung

auna PRO

auna PRO MIC-900 Bedienungsanleitung

AKG

AKG D 3800 Bedienungsanleitung

MAIIN SOUND

MAIIN SOUND IIN style Bedienungsanleitung

Earthworks

Earthworks TC25 Bedienungsanleitung

Sennheiser

Sennheiser evolution D1 Bedienungsanleitung

Alesis

Alesis MicLink Wireless Bedienungsanleitung

DSPPA

DSPPA D6234 Bedienungsanleitung

Monacor

Monacor IMG STAGELINE ECM-300B Bedienungsanleitung

Ansr Audio

Ansr Audio Scan16 Bedienungsanleitung

JLab

JLab GO TALK Bedienungsanleitung

Renkforce

Renkforce TY-109 Bedienungsanleitung

Trust

Trust 31008 Bedienungsanleitung
