TM100 Thermal Mass Flow Meter

Instruction Manual

Document: S-IM-TM100 | Rev B_PN 110068

www.sierrainstruments.com

Disclaimer TM100

GLOBAL SUPPORT LOCATIONS: WE ARE HERE TO HELP!

For Global Service Centers, go to http://www.sierrainstruments.com/facilities.html

CORPORATE HEADQUARTERS

5 Harris Court, Building L Monterey, CA 93940

Phone +1 (831) 373-0200 Fax (831) 373-4402

info@sierrainstruments.com

www.sierrainstruments.com

EUROPE HEADQUARTERS

Bijlmansweid 2 1934RE Egmond aan den Hoef

The Netherlands

Phone +31 72 5071400 Fax +31 72 5071401

sales@sierrainstruments.nl

ASIA HEADQUARTERS

Second Floor Building 5, Senpu Industrial Park

25 Hangdu Road Hangtou Town

Pu Dong New District, Shanghai, P.R. China

Postal Code 201316

Phone: + 8621 5879 8521 Fax: +8621 5879 8586

No part of this publication may be copied or distributed, transmitted, transcribed, stored

in a retrieval system, or translated into any human or computer language, in any form or

by any means, electronic, mechanical, manual, or otherwise, or disclosed to third parties

without the express written permission of Sierra Instruments. The information contained

in this manual is subject to change without notice.

TRADEMARKS

TM100™, TM-Cal™, Gas-Mix™, FlowTrak™, TM100-View™, and DigiSense™ are trademarks

of Sierra Instruments, Inc. Other product and company names listed in this manual are

trademarks or trade names of their respective manufacturers.

Disclaimer

TM100

Warnings and Cautions

General Safety Information

We use caution and warning statements throughout this book to draw your attention to

important information.

Symbol Key

Symbol Symbol Meaning Description

Warning

This statement appears with

information that is important to

protect people and equipment from

damage. Pay very close attention

to all warnings that apply to your

application.

Caution/Note

This statement appears with

information that is important for

protecting your equipment’s

performance. Read and follow

all cautions that apply to your

application.

• Warning! Agency approval for hazardous location installations varies between ﬂow

meter models. Consult the ﬂow meter nameplate for speciﬁc ﬂow meter approvals

before any hazardous location installation.

• Warning! Hot tapping must be performed by a trained professional. U.S. regulations

often require a hot tap permit. The manufacturer of the hot tap equipment and/or the

contractor performing the hot tap is responsible for providing proof of such a permit

• Warning! All wiring procedures must be performed with the power O.

• Warning! To avoid potential electric shock, follow National Electric Code safety

practices or your local code when wiring this unit to a power source and to peripheral

devices. Failure to do so could result in injury or death. All AC power connections must

be in accordance with published CE directives.

• Warning! Before attempting any ﬂow meter repair, verify that the line is de-pressurized.

• Warning! Always remove main power before disassembling any part of the

mass ﬂow meter.

WARNING

Disclaimer TM100

• Caution! Before making adjustments to the TM100, verify the ﬂow meter is not actively

monitoring or reporting to any master control system. Adjustments to the electronics will cause

direct changes to ﬂow control settings.

• Caution! All ﬂow meter connections, isolation valves and ﬁttings for hot tapping must have the

same or higher pressure rating as the main pipeline.

• Caution! The ﬂow meter electronics and sensor probe have been manufactured and calibrated

to operate as a unit. The ﬂow meter will not operate properly if parts are replaced from another

meter.

• Caution! Printed circuit boards are sensitive to electrostatic discharge. To avoid damaging the

board, follow these precautions to minimize the risk of damage:

- before handling the assembly, discharge your body by touching a grounded, metal object

- handle all cards by their edges unless otherwise required

- when possible, use grounded electrostatic discharge wrist straps when handling

sensitive components

CAUTION

Disclaimer

TM100

Receipt of System Components

When receiving a Sierra mass ﬂow meter, carefully check the outside packing carton for damage

incurred in shipment. If the carton is damaged, notify the local carrier and submit a report to the factory

or distributor. Remove the packing slip and check that all ordered components are present. Make

sure any spare parts or accessories are not discarded with the packing material. Do not return any

equipment to the factory without ﬁrst contacting Sierra Customer Service.

Technical Assistance

If you encounter a problem with your ﬂow meter, review the conﬁguration information for each step

of the installation, operation, and setup procedures. Verify that your settings and adjustments are

consistent with factory recommendations. Installation and troubleshooting information can be found in

the Chapter  (Installation) and Chapter  Maintenance sections of this manual.

If the problem persists after following the troubleshooting procedures outlined in Chapter  of this

manual, contact Sierra Instruments by e-mail (see inside front cover). For urgent phone support you

may call () - between : a.m. and : p.m. PST. In Europe, contact Sierra Instruments

Europe at +  . In the Asia-Paciﬁc region, contact Sierra Instruments Asia at + 

. When contacting Technical Support, make sure to include this information:

• The serial number (marked on the meters label)

• The ﬁrmware version (visible on the display at startup)

• The problem you are encountering and any corrective action taken

• Application information (ﬂow range, gas, pressure, temperature and piping conﬁguration)

Using This Manual

This manual provides information needed to install and operate the series TM Thermal Mass Flow

Meter.

Additional Resources

Visit Sierrainstruments.com for additional resources. Note: the most current versions of the TM

documents can be found at https://www.sierrainstruments.com/products/downloads.html.

TM100

Introduction

1. Introduction Pages 9-21

a. Quick Start Guide .........................................................................p. 9

b. Menu Trees ..............................................................................p. 11

c. General ................................................................................ p. 19

2. Installation (Mechanical) Pages 21-34

a. Lateral Placement........................................................................p. 23

b. Welding Branch Outlet to Pipe (Insertion) ...................................................p. 25

c. Installation Depth ........................................................................p. 26

d. Orientation..............................................................................p. 28

e. Mounting Instructions ....................................................................p. 27

f. Retractor Installation .......................................................................p. 31

3. Wiring (Electrical) Pages 35-45

a. Wiring Access ...........................................................................p. 35

b. Input Power .............................................................................p. 36

c. Signal Wiring and HART Communication Option .............................................p. 37

d. Pulse/Alarm Wiring (optional feature) .......................................................p. 40

e. RS485 Wiring: Modbus RTU ...............................................................p. 42

f. HART Handheld Wiring....................................................................p. 44

4. Operation (Standard Operation) Pages 46-68

a. Start Up ................................................................................p. 45

b. Programming............................................................................p. 48

c. TM-Cal™ ................................................................................p. 63

d. Gas-Mix TM..............................................................................p. 65

5. Communication Protocols Pages 70-83

a. Modbus RTU (RS485).....................................................................p. 69

b. BACnet ................................................................................ p. 81

c. HART...................................................................................p. 83

Table of Contents

TM100 Table of Contents

6. Maintenance Pages 85-93

a. Safe Meter Removal from Retractor ........................................................p. 85

b. Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . p. 94

7. Appendices Pages 96-107

a. Speciﬁcations ...........................................................................p. 99

b. Agency Approvals ......................................................................p. 102

c. Dimensions ............................................................................p. 103

d. Warranty...............................................................................p. 104

e. Returning your meter....................................................................p. 104

8. Deﬁnitions Page 110

9. Index Page 113

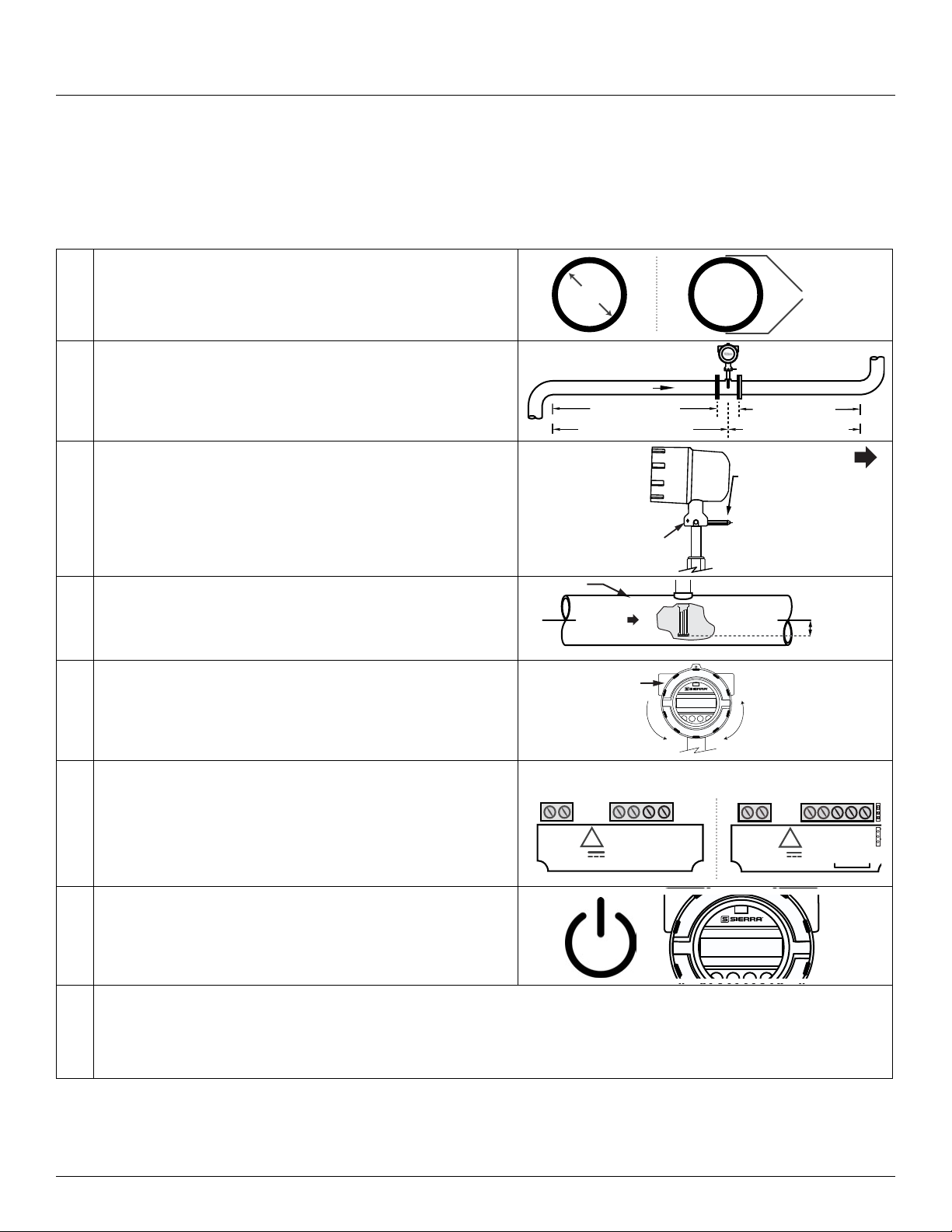

1. Record inside diameter (ID). Ensure the actual pipe ID

matches the pipe ID shown on the factory calibration

certiﬁcate. If IDs do not match, refer to p. 59.

Record up/downstream straight-pipe requirements based on

Pipe ID and meter style (insertion or inline). [refer to p. 23]

3. The Flow Direction Indicator must point in the

direction of ﬂow.

The housing can be rotated for a better view of the meter's

display. Note that the 2 set screws must be loosened before

the housing will turn. [refer to p. 29]

Ensure correct probe depth setting. If using 1 ½" size pipe,

please see note on p. 26.

Open the housing. If needed, the orientation of display can

be rotated in 90° increments for a better view.

[refer to p. 28 for more information]

6. Ensure power wiring [p. 37] and 4-20mA wiring [p. 38

- p. 39] are properly connected. [refer to Wiring section p.

35 for more information]

Verify the output signal wiring based on model type (Pulse/

Alarm or communication protocol) [refer to Wiring section p.

38 for more information]

Apply power to the ﬂow meter.

8. Check the remaining ﬂow meter settings by accessing the meter settings either through the front panel of

the display or by using the TM100-ViewTM Software. Record the settings in the spaces given for items A - F

on the following page.

Use the table below as a guide while using the worksheet on the next page to record your notes.

NOTE! Please read the entire quick-start procedure before beginning installation.

ID OD

FLOW

4X = Inline

10X = Insertion

8X = Inline

15X = Insertion

Pipe ID min.

INDICATOR:

- POINT IN DIRECTION

OF FLOW

- REMOVE TO ROTATE

HOUSING ±90º,

±180º

- REPLACE INDICATOR

WHEN DONE

LOOSEN HOUSING

WITH 2 FRONT SET

SCREWS, RETIGHTEN

WHEN DONE

FLOW

PIPE

0.73"

(18.5 mm)

F1 F2 F3 F4

ACCESS DISPLAY

BY UNSCREWING COVER

REMOVE SCREWS ON

DISPLAY TO ROTATE

DISPLAY ±180°

(

)(+) (

)(+)(

)(+)

Power

12-24VDC

4-20mA Pulse

/Alarm

)(+)

Power

12-24VDC

4-20mA(

)

4-20mA(+)

Common

Tx/Rx(

)

Tx/Rx(+)

F1 F2 F3 F4

Initializing...

TM100

Introduction

Quick Start Guide

Item to verify Serial Number: Serial Number: Serial Number: Serial Number:

. What is the Pipe ID? ID = ID = ID = ID =

. Calculate the Upstream/Downstream

straight-pipe requirements

UP =

DN =

UP =

DN =

UP =

DN =

UP =

DN =

.

Is the ﬂow indicator pointed in direction

of ﬂow?

Must the housing be rotated for

easy viewing?

Y / N

. Is the probe depth setting correct? Y / N Y / N Y / N Y / N

. Have you rotated the display for easier

viewing? Y / N Y / N Y / N Y / N

. Verify proper power wiring

. Verify proper input/output wiring

After applying power to your meter, check items A - E below by accessing the meter settings either

through the front panel of the meter's display or by using the TM-View™ software tool.

A. Which ﬂow units have been set in

meter? (SCFM, KG/H, etc..)

B. Correct values for reference

temperature and pressure? Y / N Y / N Y / N Y / N

C. Conﬁrm the pipe ID listed above same

as "Pipe_id="

D. Verify mA and mA meter settings mA =

mA =

mA =

mA =

mA =

mA =

mA =

mA =

E. Conﬁrm the correct gas is selected for

your application in the Gas-Mix menu

Before applying power to your meter, use this worksheet to record your notes.

If you are experiencing any problems after completing this procedure, please call the Sierra Instruments Tech Department

at 831-373-0200 to review this information.

Your Notes:

TM100 Quick Start Guide

Inhaltsverzeichnis

Andere Sierra Messgerät Handbücher

Sierra

Sierra RedyCompact Series Bedienungsanleitung

Sierra

Sierra InnovaSonic 210i Bedienungsanleitung

Sierra

Sierra MaxTrak 180 Series Bedienungsanleitung

Sierra

Sierra InnovaSonic 207i BACnet Bedienungsanleitung

Sierra

Sierra 760S Series Bedienungsanleitung

Sierra

Sierra MaxTrak 180 Series Bedienungsanleitung

Sierra

Sierra QuadraTherm 640i Series Bedienungsanleitung

Sierra

Sierra InnovaMass 241i Bedienungsanleitung

Sierra

Sierra 780S Series Flat-Trak Bedienungsanleitung

Sierra

Sierra 780 Series Bedienungsanleitung

Sierra

Sierra RedySmart Series Bedienungsanleitung

Sierra

Sierra Profibus DP 600 Series Bedienungsanleitung

Sierra

Sierra QuadraTherm 640i Series Bedienungsanleitung

Sierra

Sierra 830M Bedienungsanleitung

Sierra

Sierra 780S Series Flat-Trak Bedienungsanleitung

Sierra

Sierra InnovaSonic 205i Bedienungsanleitung

Sierra

Sierra InnovaMass 241 series Bedienungsanleitung

Sierra

Sierra BioTrak 645S Bedienungsanleitung

Sierra

Sierra Smart-Trak 100 series Bedienungsanleitung

Sierra

Sierra Smart-Trak 100 series Bedienungsanleitung

Sierra

Sierra Foundation Fieldbus 600 Series Bedienungsanleitung

Sierra

Sierra InnovaSonic 205i Bedienungsanleitung

Sierra

Sierra Smart-Trak 100 series Bedienungsanleitung

Sierra

Sierra INNOVA-MASS 240-VT Bedienungsanleitung

Beliebte Messgerät Handbücher anderer Marken

Suaoki

Suaoki D40 Bedienungsanleitung

Elster

Elster BK-G1.6 Bedienungsanleitung

Endress+Hauser

Endress+Hauser Deltabar FMD71 Handbuch

Duratool

Duratool D03128 Bedienungsanleitung

Vega

Vega VEGAPULS 65 Bedienungsanleitung

Tonghui

Tonghui TH2618B Bedienungsanleitung

Tenmars

Tenmars TM-801 Bedienungsanleitung

MSR

MSR 145 Bedienungsanleitung

TPS

TPS WP-82 Bedienungsanleitung

ELMETRON

ELMETRON CP-511 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics 003C30 Bedienungsanleitung

Tenma

Tenma 72-10465 Bedienungsanleitung

Endress+Hauser

Endress+Hauser Proline Promag 50 Technische Daten

Siemens

Siemens SITRANS F Coriolis FCT030 Stücklistenhandbuch

KLINGER

KLINGER CMF V Series Bedienungsanleitung

EXFO

EXFO FTB-2 Bedienungs- und Wartungshandbuch

Keysight

Keysight M8290A Bedienungsanleitung

ADTEK

ADTEK MW-5 Bedienungsanleitung
