SilentCall SK09214-2 Legacy Series Betriebsanleitung

3126052

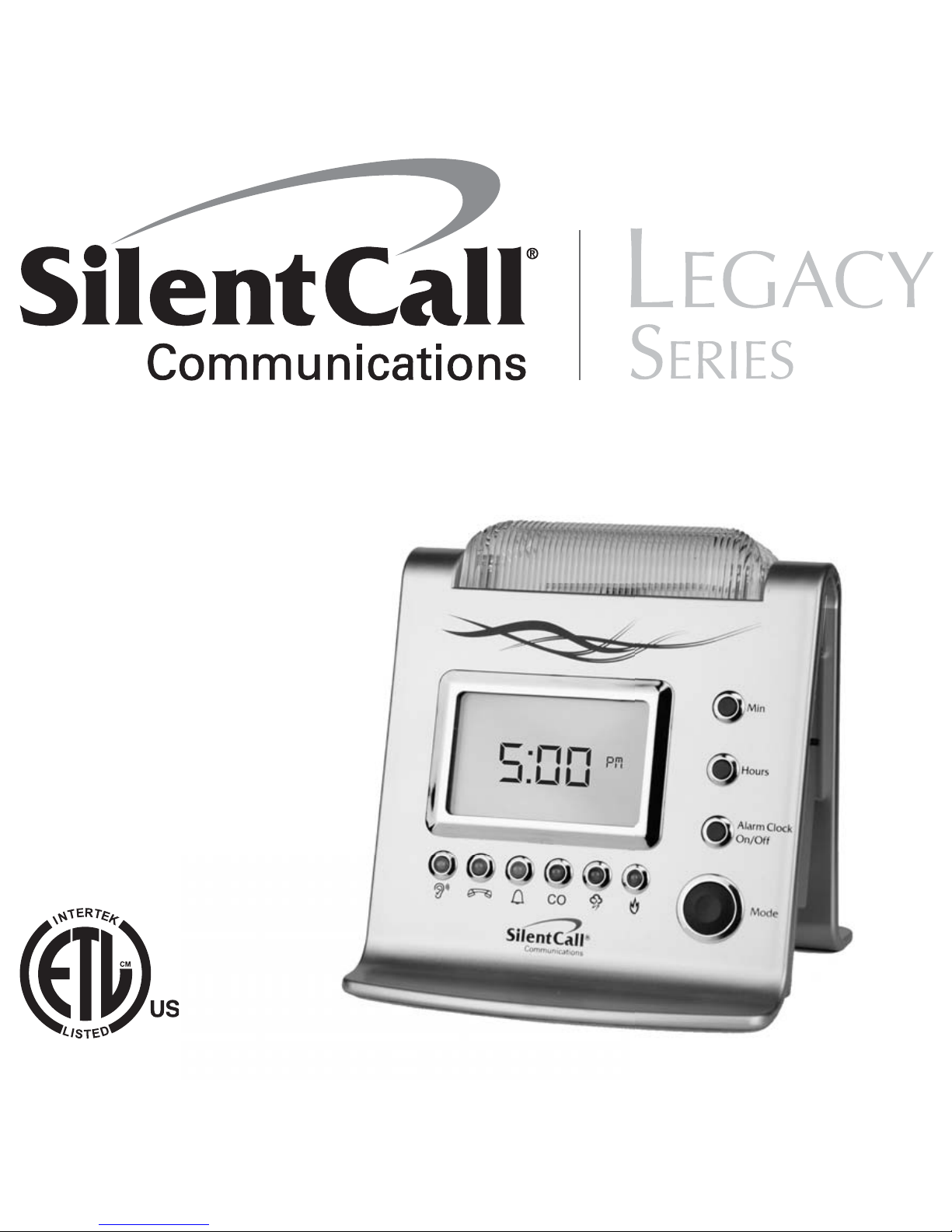

Sidekick II Receiver

Model # SK09214-2

318 MHz

Installation

and

Operation

Guide

SK09214-2 INITIAL SETUP:

The Silent Call Model SK09124-2 is packaged with the following items.

• AC Power Adapter supplying 16 [email protected]

• SK09124-2 Quick Start Manual

• SK09124-2 Instruction Manual

• RJ11 Splitter

• 7 Ft Telephone cable

Inspect all items when removing from packaging for damage or misuse.

• Connect supplied power adapter to 110VAC outlet.

• Connect barrel power connector to power receptacle on back lower cover of SK09214-2.

• Optional Bed vibrator may also be connected at this time.

• TURN THE POWER ON by sliding the on/off switch on the back of the receiver to the “ON” position. The

front panel display will show the time 11:59AM.

• Legacy Series Receivers are programmed with “Factory Code” transmitters during manufacture. All

Silent Call Transmitters are set also to “Factory Code” when manufactured.

NOTE: WHEN USING LEGACY SERIES RECEIVERS IN AN APARTMENT COMPLEX OR

MULTI-DWELLING CONDITIONS CROSS TALK FROM LIKE NEIGHBORING

SYSTEMS MAY CAUSE FALSE ALARMS OR INTERFERENCE.

• Refer to Programming Transmitters Section to choose an Address unique for your equipment if interfer-

ence is an issue.

• After all programming is complete. Test each of your Silent Call transmitters. Verify LED, LCD indicate

transmitter tested. Verify Strobe ﬂashes for approximately 16 seconds and the Bed vibrator operates.

• SELECT BATTERY BACK-UP TO “ON”. An amber light will appear if the unit is in battery backup mode.

I.E. Outlet power or Power adapter fails.

• SET CLOCK TIME: press and release the mode button (the large button located at the lower right hand

side on the unit). The orange led will light up to let you know that you are in “set clock time” mode.

• Press and release the minute button to set the minutes. Press and release the hour button to set the

hour.

• When you are ﬁnished setting the minutes and hours, press and release the mode button three times to

exit the setup mode.

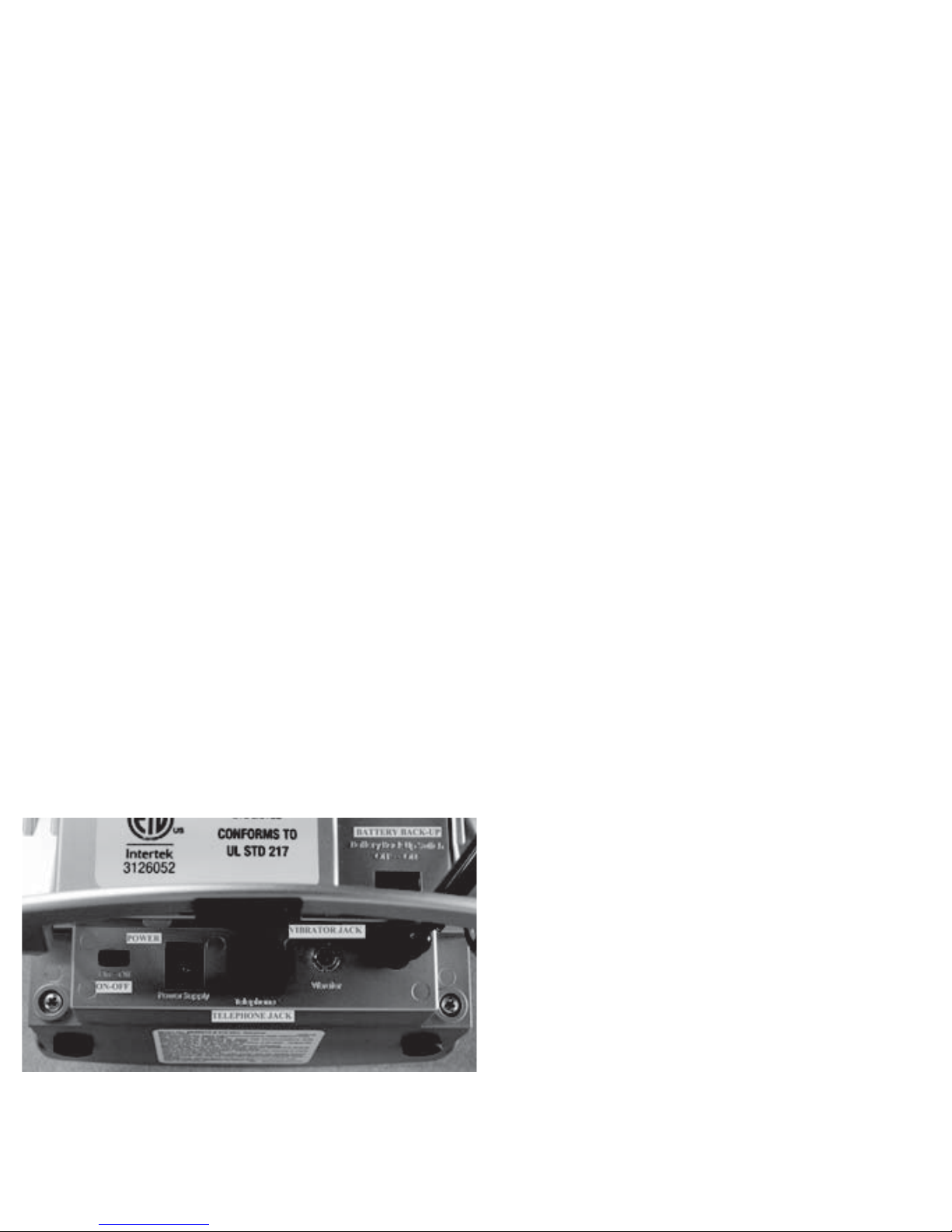

REAR VIEW OF SK09214-2 LEGACY

SERIES RECEIVER.

NOTE: Any time you unplug your Sidekick II Legacy

Series receiver from the wall outlet or turn the

power off, without the battery back-up switch on, the

receiver will reset the clock to 11:59AM. The receiver

will keep all programmed transmitters in memory

when power is cycled.

ALARM CLOCK FEATURE:

SETTING ALARM CLOCK:

• Press and release the MODE button twice.

• The Green LED will light up indicating that you are in the “SET UP” mode. The display will show the

present Alarm Clock Time setting.

• Press and release the MINUTES button to set minutes and press and release the HOURS button to set

the hours.

• Once the Alarm Clock Time has been set, press the MODE button 2 times to exit the “SET UP” mode.

When your alarm is activated the LED strobe light and bell icon will ﬂash and the bed vibrator (optional) will

shake.

To turn the ALARM on or off, press and release the “Alarm Clock” button. When the alarm is turned ON the

BELL ICON will appear on the screen.

LCD DISPLAY:

The LCD Display screen is back lighted. The back light brightness is automatically controlled by the light level

in the room. When the room becomes dark, the back lighting comes on. When the room becomes light, the

back lighting goes off.

LED STROBE:

The Sidekick II Legacy Series has a solid state LED strobe board for visual alerting. The SK09214-2 LED

Strobe Intensity can be controlled by a switch located on the right side of the Unit. Select High, Medium, or

Low for LED intensity desired.

TELEPHONE DIRECT INTERFACE:

The Sidekick II Legacy Series Receiver has the ability to plug directly into a standard telephone RJ-11 inter-

face. Using the supplied telephone wire and RJ-11 splitter the SK09214-2 will alert user to phone each time it

rings.

Plug the dual connector into your phone wall outlet. Then plug the wire from your telephone into one side of

the dual connector. Next, take the telephone wire that came with your Sidekick II Legacy Series Receiver and

plug it into the other side of the dual connector. Reference FIGURE 1. Plug the other end of that cable into

the back of the Sidekick II Legacy Series Receiver. Reference FIGURE 2.

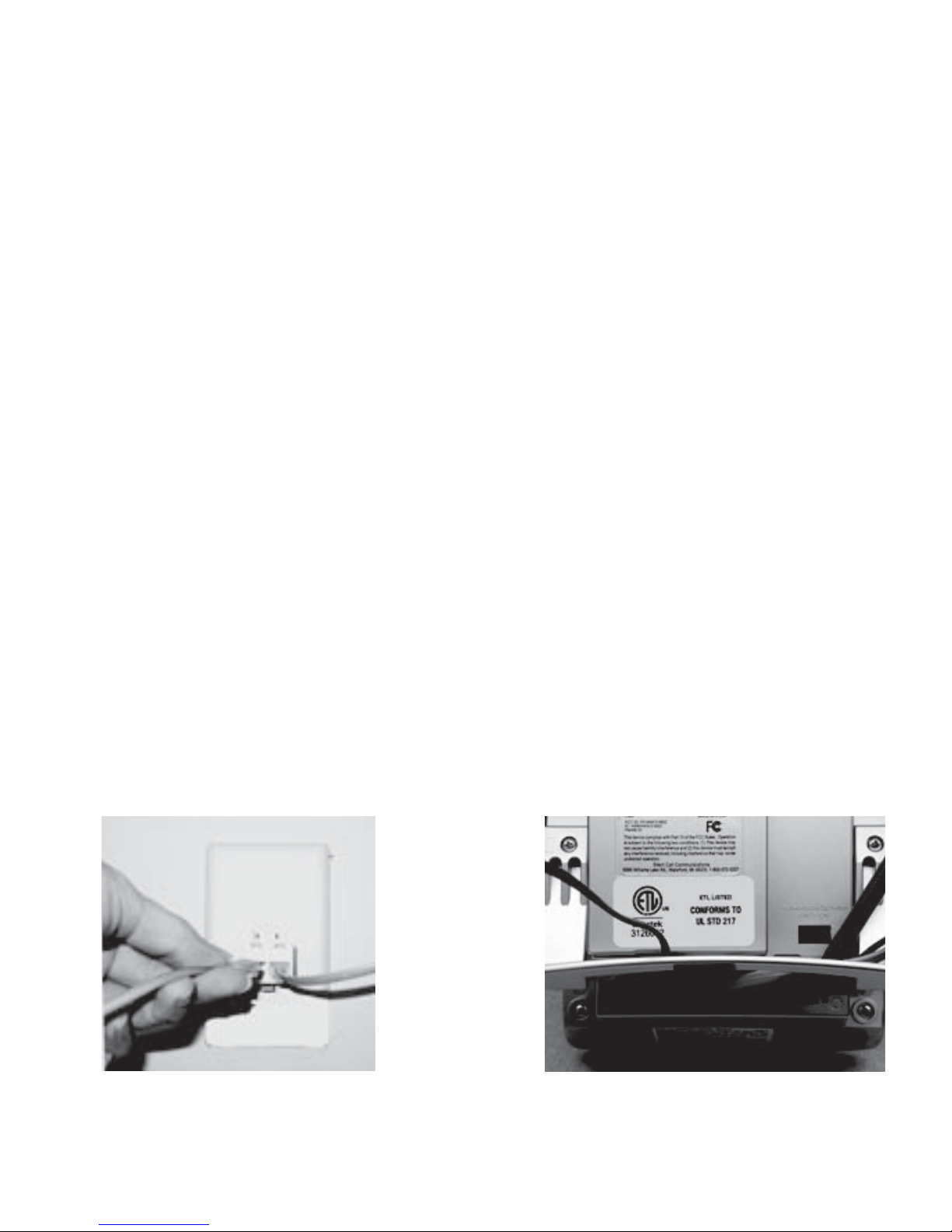

Figure 1 Figure 2

DISPLAY AND LED DESCRIPTION:

When the Sidekick II Legacy Series Receiver detects an incoming signal from any of the Legacy Series trans-

mitters it will notify you by displaying the appropriate ICON and illuminating the appropriate LED.

Transmitter Type: Notification:ICON:

Alarm Clock

(Vibrator Optional)

Sound Monitor Transmitter

(Vibrator Optional)

Telephone Transmitter

(Vibrator Optional)

Door Bell Transmitter

(Vibrator Optional)

Door/Window Access

Transmitter

(Vibrator Optional)

TransMATTer Transmitter

(Vibrator Optional)

Weather Alert Transmitter

(Vibrator Optional)

Carbon Monoxide

Transmitter

(Vibrator Optional)

Smoke or Fire Transmitter

(Vibrator Optional)

Bell Icon, Strobe ﬂashes,

Sound Icon, Orange LED,

Strobe ﬂashes,

Phone Icon, Green LED,

Strobe ﬂashes

Door Icon, Yellow LED,

Strobe ﬂashes

Door Icon, Yellow LED,

Strobe ﬂashes

Door Icon, Yellow LED,

Strobe ﬂashes

Weather Icon, 1st Red LED,

Strobe ﬂashes

CO Icon, 2nd Red LED,

Strobe ﬂashes

Fire Icon, 3rd Red LED,

Strobe ﬂashes

VIBRATOR DESCRIPTION:

If you are using the optional Bed Vibrator and your Sidekick II Legacy Series Receiver detects an incoming

signal from any of the Legacy Series transmitters, along with the above Notiﬁcations, the bed vibrator will

also pulse in a speciﬁc pattern for each transmitter.

Alarm Clock

Sound Monitor Transmitter

Telephone Transmitter

Doorbell Transmitter

Door/Window Access

Transmitter

TransMATTer Transmitter

Weather Alert Transmitter

Carbon Monoxide

Transmitter

Smoke or Fire Transmitter

Two Short Pulses and One Long

Pulse

Three Short Pulses

One long pulse

Two Short Pulses

One Short Pulse and One Long

Pulse

Three Short Pulses and One Long

Pulse

Continuous Short Pulses

• • —

• • •

—

• •

• —

• • • —

• • • • • • • •

TRANSMISSION RANGE:

Transmission range refers to the distance a Silent Call Transmitter can communicate with the Sidekick II Leg-

acy Series Receiver. Range is measured in an outdoor environment without obstructions from metal objects

or buildings. The line of sight range for the Sidekick II Legacy Series Receiver is up to 500 feet. The actual

range inside a building will vary depending on many factors outside of one’s control.

CANCELLING AN INCOMING ALERT:

To cancel an alert, press and release the mode button.

ALL ERASE:

Provisions are made to erase all programmed transmitter addresses. The only time you would need to use

the ALL ERASE feature is if you are receiving signals from another Silent Call System in your area. You

would then do the ALL ERASE feature on your receiver and then re-program your transmitters to a different

address.

The ALL ERASE function is performed as follows:

• Turn off the Sidekick II Legacy Series Receiver by turning the power switch to the OFF position. Turn

back-up battery to OFF position. An indication of back-up power being on would be that the amber light

in the strobe lens is on.

• Press and hold the MINUTES button DO NOT RELEASE THE BUTTON.

• Turn the power back ON while holding the MINUTES button in.

• Once power is on, release the MINUTES button after a few seconds.

• The all erase function is complete and the unit will now need to be re-programmed with its transmitters.

11:59AM will be displayed for time.

PROGRAMMING SILENT CALL TRANSMITTERS:

All Legacy Series Smoke detectors and consolidated transmitters are set to “Factory Code” (C-Code) when

shipped from factory.

NOTE: You do NOT need this step unless you need to change the address due to someone in your area that

has Silent Call products and they are interfering with your equipment. Make sure that all Silent Call transmit-

ters in the area are turned off.

• Select the transmitter you wish to program with the Sidekick II Legacy Series Receiver.

• Located on the back of the transmitter case is a removable access panel. Remove the access panel and

take out the batteries.

• Locate the switch on the transmitter circuit board that has 5 small dip switches.

• You have up to 30 different codes to choose from. (DO NOT SET THEM TO ALL ON OR ALL OFF AS THIS

CAN CAUSE INTERFERENCE). This gives your transmitter an “address”. Note that you MUST remove

the batteries or the switch setting will not take effect.

• FACTORY CODE (C- Code) is Dip switch conﬁguration as follows: 1, 2, 3 are OFF and switches 4 and 5

are ON.

• Reinstall batteries and replace the access panel.

PROGRAMMING SK09214-2 RECEIVERS:

• Make sure that the transmitter to be programmed is near the Sidekick II Legacy Series Receiver.

• Perform All Erase to ensure SK09214-2 receiver is cleared. Reference All Erase Section.

• On the Sidekick II Legacy Series Receiver, press and release the MODE button until the Yellow LED lights

up and “PPP” is displayed on the LCD screen. This means you are now in program mode. May require

cycling mode button a few times after an All Erase.

• Press the test button on the transmitter so that it sends a signal to the Sidekick II Legacy Series Receiver.

The unit will ﬂash its strobe, turn on the appropriate LED and display Icon for the transmitter that you

used. Your transmitter is now programmed to work with your receiver.

• Repeat the above steps ONLY if your other transmitters are set to a DIFFERENT address setting than the

transmitter you just programmed.

BATTERY BACK-UP REPLACEMENT INSTRUCTIONS:

Silent Call Battery Part Number (BU-10).

Your Sidekick II Legacy Series Receiver comes with the battery pre-installed at the factory. The back-up

battery is a UNITECH 12VDC 1500maH Ni-MH back-up battery. Replacement batteries can be ordered online

at www.SilentCall.com or by calling 800-572-5227. The Sidekick II Legacy Series receiver Model #BU-10 has

been tested to provide back-up for 24 hours in Stand By mode and 15 minutes in full operational mode, (with

both the strobe and vibrator operating). The battery back-up is automatically being charged when the Side-

kick II SK09214-2 receiver’s power supply is plugged into a standard electrical wall outlet and back up switch

is selected to on. Switch is located on back of unit at lower right hand corner of battery compartment. A small

tool may be needed to select the switch.

In the event that you need to re-install or replace the battery pack, follow the instructions below.

• Turn SK09214-2 OFF and disconnect from AC power adapter.

• Select battery back-up switch to OFF.

• Remove battery access cover screw and cover.

• Remove Battery by gently disconnecting plug on SK09214-2 main board located in battery compartment.

• Gently connect new battery to two pin jack on SK09214-2 main board located in battery compartment.

Inspect connector is correctly seated and secure.

• Place battery in battery compartment and route wires alongside battery. Note: Battery cover will pinch

wires if not properly installed.

• Replace Battery access cover and screw. Place Battery back-up switch to ON.

• Verify Amber Light is on and LCD Display is lit.

• Check unit for proper operation.

• Reconnect AC power adapter and turn power ON/OFF switch to ON.

• Verify Amber light extinguishes when AC power is restored.

The amber LED is a visual warning that the SK09214-2 has lost Power from the supplied AC power adapter.

Normal operation of unit would be with amber LED extinguished.

IT IS IMPORTANT THAT THE BATTERY BACK-UP FEATURE BE TURNED “ON” FOR PROPER OPERATION.

The BATTERY ICON will display itself on the LCD display screen once the battery back-up level has reached

2/3 of its discharge. However, the BATTERY ICON will not be displayed until this condition is reached. This

means the battery has a 2/3 to full charge.

SPECIFICATIONS:

Frequency:

Main Power:

Battery Backup:

318 MHz

Grand Power Model PA1015-3HU AC to DC Adapter. Input: 100~240 VAC 50~60Hz

0.4A. Output: 16.0 VDC 1.12A, 18 Watts Max.

12 VDC, Unitech 1500 mAH Ni-MH Battery. P/N BU-10

Order Online @ www.silentcall.com or call 800-572-5227.

WARNING:

Use only Battery speciﬁed in marking. Use of a different battery will have a detrimental effect on alarm oper-

ation. Constant exposures to high or low temperatures or high humidity mat reduce battery life.

Current Draw:

Operating Ambient

Temperature Range:

Operating Humidity Range:

Agency Listings:

40~70ma @ Idle, - 1.0A DC Max. During Alert w/ Strobe High and VIB-PJ in use.

40° to 100°F (4.4° to 37.8°C)

15% to 95% Relative Humidity, non-condensing

Certiﬁed to UL-217

For Warranty Claims/Repairs Please Contact the Manufacturer:

Silent Call Communications

5095 Williams Lake Road, Waterford MI 48329

800-572-5227

Please Visit www.silentcall.com

Limited Warranty

Your Silent Call product is warranted to be free of defects in material and workmanship for ﬁve years from

the date of initial purchase. During that time, the unit will be repaired or replaced free of charge when

shipped prepaid to Silent Call Communications. This warranty is void if the defect is caused by customer

abuse or neglect. We honor the smoke detector manufacturer’s warranty for their smoke detector. Only Silent

Call products are warranted for 5 years. Batteries are not warranted by the manufacturer.

Inhaltsverzeichnis

Andere SilentCall Empfänger Handbücher

SilentCall

SilentCall Signature Series Bedienungsanleitung

Beliebte Empfänger Handbücher anderer Marken

Garmin

Garmin GA 23 Bedienungsanleitung

Aiphone

Aiphone PS-12F Bedienungsanleitung

IMES

IMES TCS-01CA-PMI Bedienungsanleitung

BWI Eagle

BWI Eagle AIR-EAGLE SR Handbuch

AMIMON

AMIMON AMN12310 WHDI Bedienungsanleitung

Dual

Dual DMCPA79BT Betriebsanleitung

Sound Associates

Sound Associates SA652P Bedienungsanleitung

Sherwood

Sherwood NewCastle R-772 Bedienungsanleitung

Audio

Audio A10-RX Series Bedienungsanleitung

AllSee

AllSee PushShare PSRV1.1 Bedienungsanleitung

DEMAG

DEMAG DRC-DR D2 Bedienungsanleitung

Teleco

Teleco TVRCL868A02 Bedienungsanleitung

Bosch

Bosch RF3222E Bedienungsanleitung

Kramer

Kramer 631R Bedienungsanleitung

Xpress

Xpress xmc10 Bedienungsanleitung

JVC

JVC KD-MR1BTS Bedienungsanleitung

Omega Engineering

Omega Engineering UWTC-REC3 Bedienungsanleitung

e-survey

e-survey E300 Pro Bedienungsanleitung
