| Spectre 3.0 Elite Kit Installation Manual
Revision 1.0
Page | 1
Table of Contents
Installing Spectre 3.0 Elite Kit onto the Front Panel ........................................................................... 2
Installing Spectre 3.0 Elite Kit onto the Top Panel............................................................................... 2
Installing Radiators ......................................................................................................................................3
LED Strip Installation....................................................................................................................................3
Dimensions & Flow .......................................................................................................................................3
| Spectre 3.0 Elite Kit Installation Manual
Revision 1.0
Page | 2
Installing Spectre 3.0 Elite Kit onto the Front Panel
Remove the standard front panel by undoing the 4x M4 x 20mm fasteners marked in Diagram A1.
The LED Cover and LED Diffusor can then be removed (Diagram B2). Install the Spectre 3.0 Front
Elite Kit and replace the LED Cover and LED Diffusor, then replace and tighten the fasteners
(Diagram C1).
Installing Spectre 3.0 Elite Kit onto the Top Panel
Remove the Spectre 3.0 standard Top Panel by undoing the 6 x M4 x 6mm fasteners marked in
the Diagram A2. Then remove the Angle Panel from the standard Top Panel by undoing the
fasteners marked in Diagram B2. Attach the Angle to the Spectre 3.0 Elite Kit using the same
fasteners. Remove the nuts and spring washers from the Spectre 3.0 Elite Kit marked in Diagram
C2, then attach it to the Top Struts using the included 35mm fasteners which were already
installed.
| Spectre 3.0 Elite Kit Installation Manual
Revision 1.0
Page | 3
Installing Radiators
To install the radiators the Distribution Plate section(s) of the Spectre 3.0 Elite Kit(s) must be
removed by undoing the x6 fasteners across the top and bottom. Then the radiator(s) can be
installed. Position the radiator/s correctly to align with the ports on the main Spectre 3.0
Distribution Plate, this can be done with the adjustment on the Spectre 3.0 Elite(s). Once the
radiator/s are in place reinstall the Spectre 3.0 Distribution Plate(s).
LED Strip Installation
Note: Version 1.0 does not come with the LED
Shroud included, this is something which will need
to be purchased separately by contacting us at
support@singularitycomputers.com
Spectre 3.0 Elite is only compatible with maximum
2mm high and 5mm wide LED strips. LED strip
length can be up to 435mm.

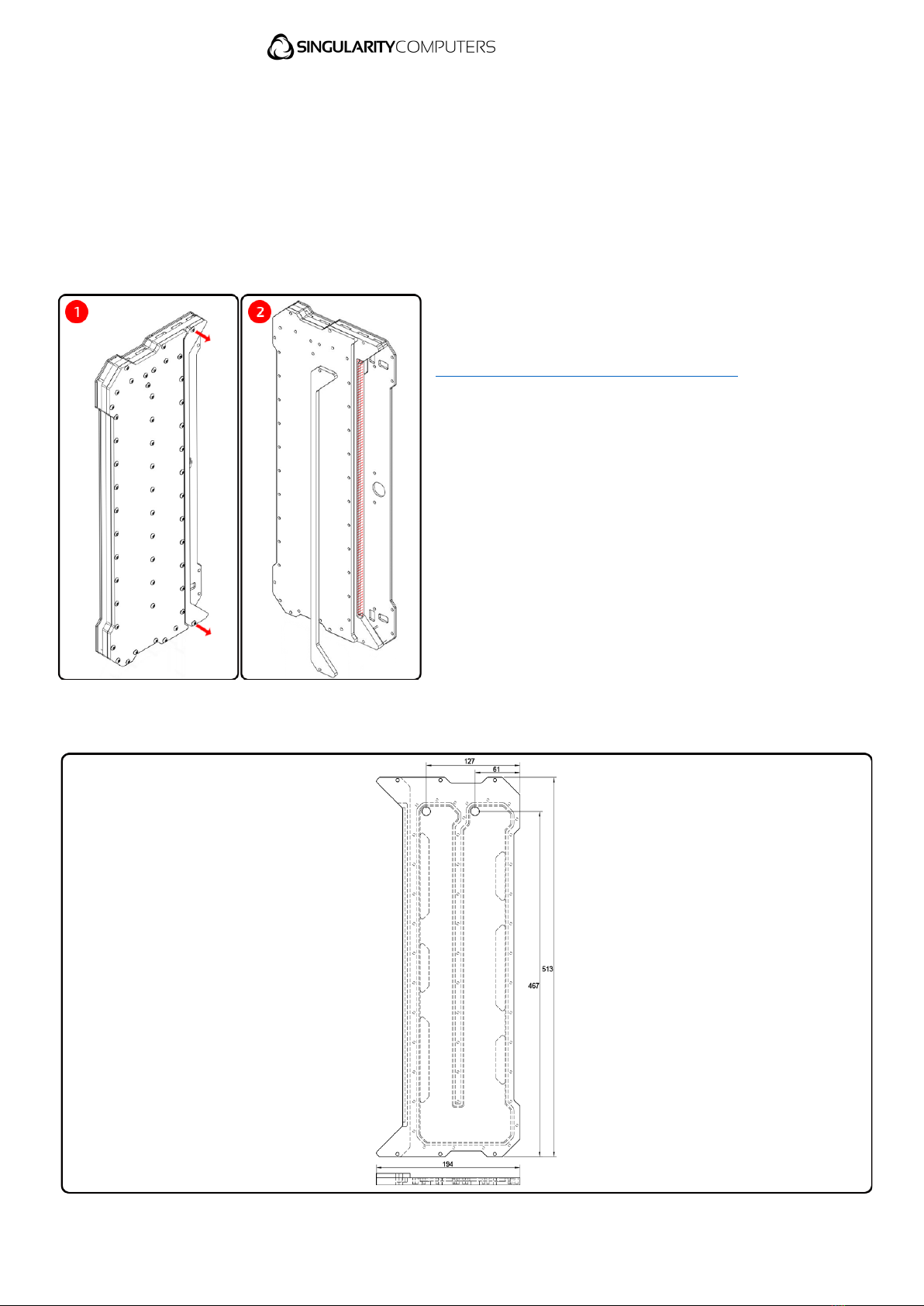

For Version 1.1 and onwards remove the LED Shroud
by undoing the two fasteners marked diagram 1.
Check the LED Strip length against the length of the
LED Strip mounting position which is marked in
diagram 2. Cut the LED Strip to length then install it
into the LED strip position. Make sure to select
which side you want to run the cable to depending
on how you plan the cable management in your
build.
Dimensions & Flow
Note
The flow can be run in
either direction.
