SKYLOTEC MARK 1 PLUS Bedienungsanleitung

MAT-BA-0143-00

Stand 03.04.2019

PSA-VO (EU) 2016/425

Instruction for use

Gebrauchsanleitung

Istruzioni d‘uso

Instructions d‘utilisation

Instrucciones de uso

Gebruiksaanwijzing

Οδηγίες χρήσης

Instrukcja obsługi

Használati útmutató

Návod na použití

Návod na použitie

Instrucţiuni de utilizare

Navodila

Инструкции за употреба

Upute za upotrebu

GEBRAUCHSANLEITUNG

MARK 1 PLUS

MARK 1 TACTICAL

DOUBLE STOP

DESCENDER

SKYLOTEC GmbH

Im Mühlengrund 6-8

56566 Neuwied · Germany

Fon +49 (0)2631/9680-0

Mail [email protected]

Web www.skylotec.com

0123

TÜV SÜD Product Service GmbH

Zertiﬁzierstelle Ridlerstraße 65

80339 München/Germany

Informationen (Beide Anleitungen beachten)/

Information (Use both manuals)

GB Instruction for use

Icons page 3-9

Explanation page 10-13

DE Gebrauchsanleitung

Icons Seite 3-9

Erklärung Seite 14-17

IT Istruzioni per l‘uso

Icons pagina 3-9

Delucidazion pagina 18-21

FR Instructions d´utilisation

Icons page 3-9

Déclaration page 22-25

ES Instrucciones de uso

Icons página 3-9

Declaración página 26-29

SE Bruksanvisning

Icons sida 3-9

Förklaring sida 30-33

EL Οδηγίες χρήσης

 Εικονίδια Σελίδα3-9

 Επεξήγηση Σελίδα34-37

PL Instrukcja obsługi

Ikony strona 3-9

 Wyjaśnienie strona38-41

HU Használati útmutató

Ikonok Oldal 3-9

Magyarázat Oldal 42-45

CZ Návod na použití

Ikony sayfa 3-9

Prohlášení sayfa 46-49

SK Návod na použitie

Ikony Strana 3-9

Vysvetlenie Strana 50-53

RO Instrucţiuni de utilizare

Pictograme pagina 3-9

 Explicația pagina54-57

SL Navodila

Ikone stran 3-9

Izjava stran 58-61

BG Инструкции за употреба

 Икони Страница3-9

 Разяснение Страница62-65

HR Upute za upotrebu

Simboli Stranica 3-9

Objašnjenje Stranica 66-69

Informationen (Beide Anleitungen beachten)/

Information (Use both manuals)

1. Installation of the rope

a b c

2. Functioning principles

full open

abc

a Self breaking

b Descend

c Press- Stop (anti panic)

d full open

3. Operational Check

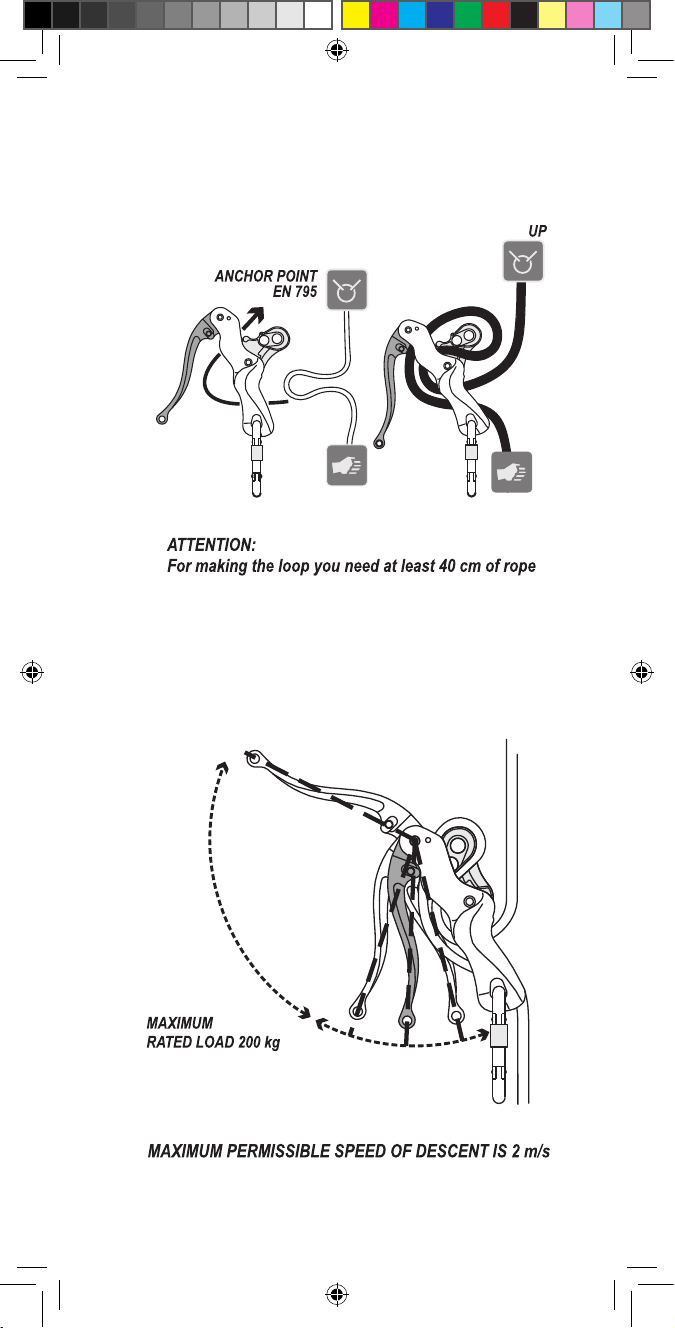

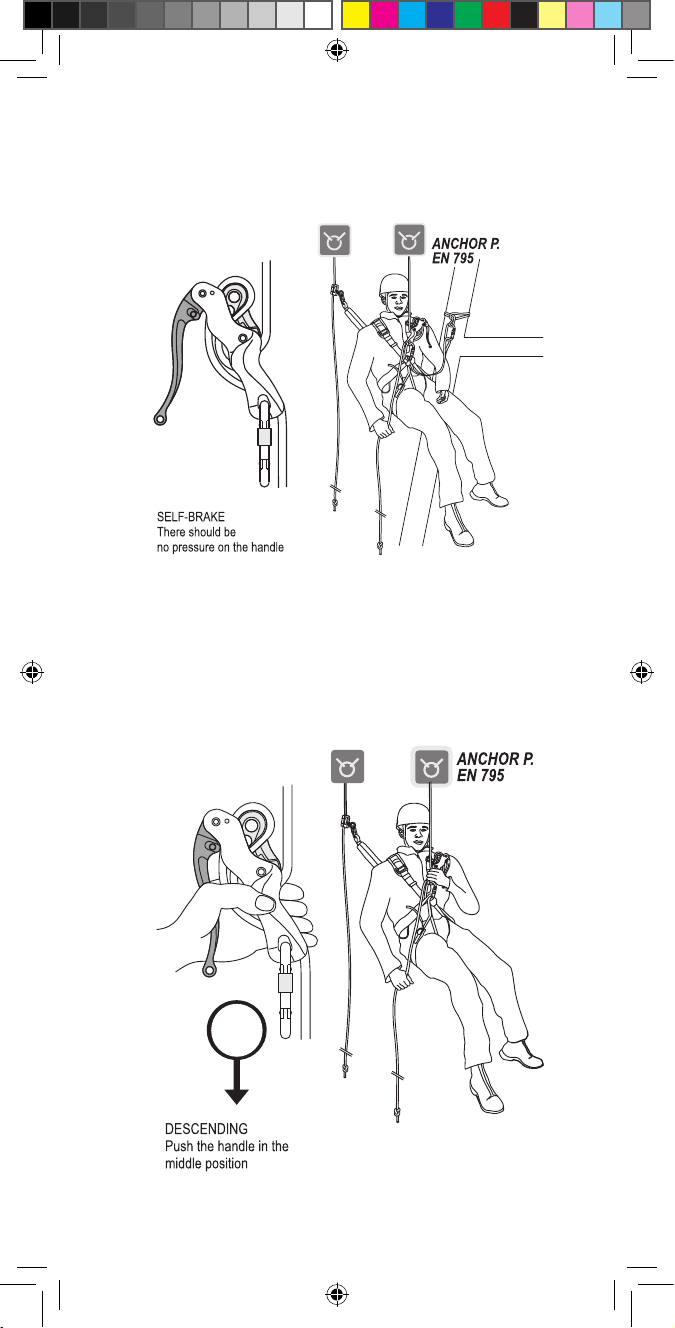

4. Descent

2m/s

max

a b c

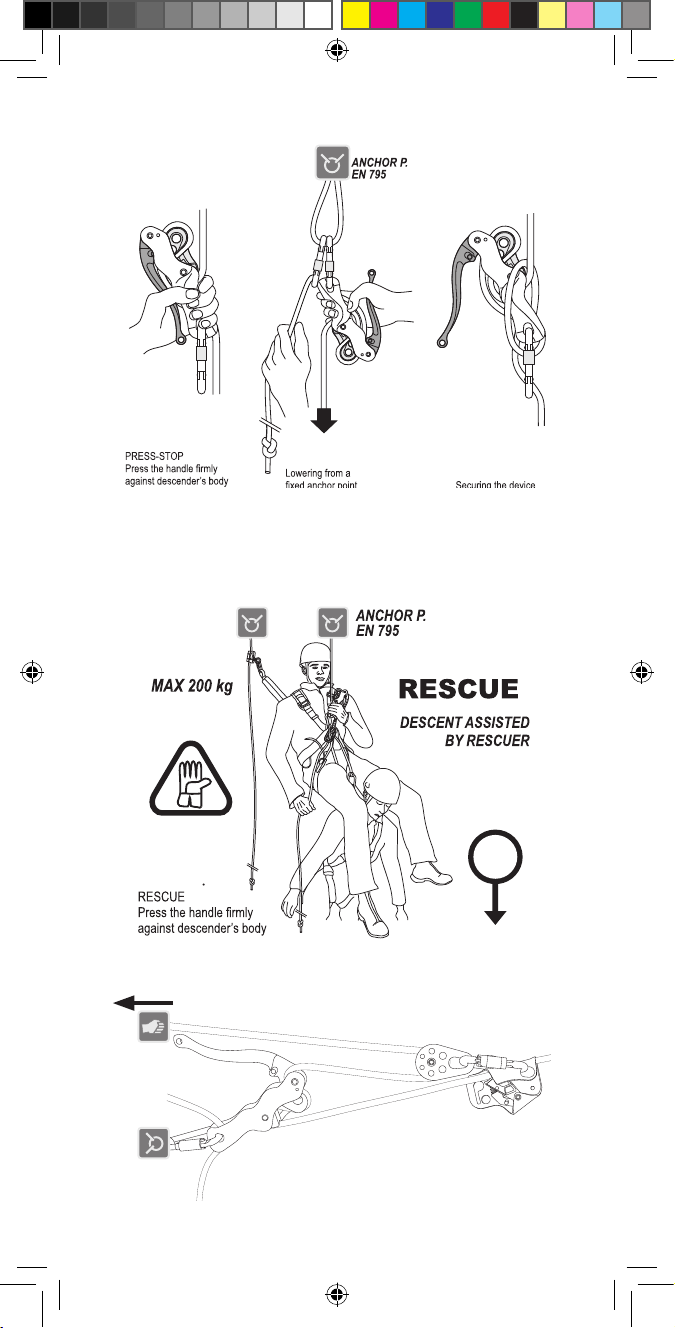

5. Accompained Descent

1m/s

max

5.1. Hauling and progress

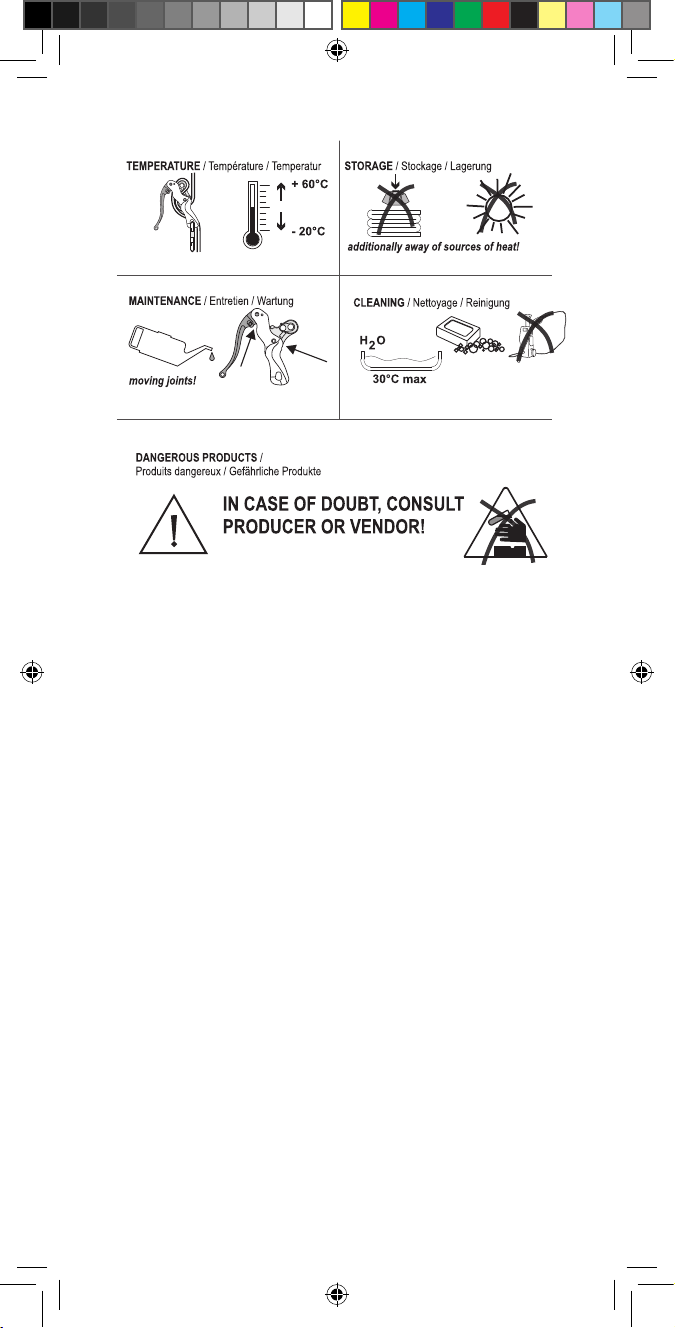

European Norms

and rope diameters

Instructions

reading Logo

6. Data on MARK 1 PLUS/MARK 1 TACTICAL

Revision

17. 12. 2018 Original proposal.

Date Description of the revision

Miha Staut

17. 12. 2018

DRAWING BY: Miha Staut

MODEL:

MARK 1 Plus

XXXXXX-ZZZ

MM/YYYY

EN 12841-C:2006

9≤Ø<10 mm, 130 kg

10≤Ø≤12 mm, 200 kg

ANSI/ASSE Z359.4

11 mm, H 190 m

1-person load, 59-141 kg

Max. n. of descents, 28

STOP

Use only compatible rope.

STOP

Im Mühlengrund 6-8, D - 56566 Neuwied

0123

EN 341:2011/2A,

H 190m, 11mm

Dry: -20°C≤T≤60°C, 30≤m≤160kg

Wet: -4°C≤T≤60°C, 50≤m≤160kg

A-031

Supplier

Model

Piktogramm

Body controlling

the manufacturing

of PPE

Serialnumber

Year and month of

manufacturing

Revision

17. 12. 2018 Original proposal.

Date Description of the revision

Miha Staut

17. 12. 2018

DRAWING BY: Miha Staut

MODEL:

MARK 1 Tactical

XXXXXX-ZZZ

MM/YYYY

EN 12841-C:2006

9≤Ø<10 mm, 130 kg

10≤Ø≤12 mm, 200 kg

ANSI/ASSE Z359.4

11 mm, H 190 m

1-person load, 59-141 kg

Max. n. of descents, 28

STOP

Use only compatible rope.

STOP

Im Mühlengrund 6-8, D - 56566 Neuwied

A-039

EN 341:2011/2A,

H 190m, 11mm

Dry: -20°C≤T≤60°C, 30≤m≤160kg

Wet: -4°C≤T≤60°C, 50≤m≤160kg

0123

Supplier

Model

Piktogramm

Body controlling

the manufacturing

of PPE

Serialnumber

Year and month of

manufacturing

European Norms

and rope diameters

Instructions

reading Logo

WARNING:

Activities at height are inherently dangerous. Understand and

accept the risks involved before participating. You are responsible

for our own actions and decisions. Before using this product, read

and understand all instructions and warnings that accompany it

and familiarize with its proper use, capabilities and limitations. We

recommend that every climber seeks proper training in the use of

the equipment. Failure to read and follow these warnings can result

in severe injury or even death!

MARK 1 PLUS/MARK 1 TACTICAL is a self-breaking descender for

singleropeuseandiscertiedaccordingtothenormsEN341:2011,

ClassA and EN 12841:2006Type C. While the former norm is

meant for rescue purposes only later implies rope access.

USE:rescue,intervention,industry,sport:ropeaccess,independent

descent, assisted descent, emergency evacuations, work at height…

EN341:2011

TestsaccordingtothenormEN341:2011havebeenperformed

with the INOBELT SUPER STATIC Ø 11 mm.

min. rated load (kg) 30

max. rated load (kg) 160

max. descent dist. m 190

nr. of consecutive descents 25

sheath slippage ≤2,1%

elongation (E) ≤5%

mass per metre (M) 75 g/m

sheath proportion (Sp) 39%

core proportion (C) 61%

shrinkage (R) 2,5%

material PA

Tested and approved for descents with a released energy of 7,5 MJ

(accordingtoEN341classA):

W=m x g x h x n  m:mass(kg)

   g:accelerationofgravity=9,81m/s2

h:height(m)

   n:numberofdescents

Approved Temperature range and rated loades:

Dry rope:-20°C≤T≤60°C,30kg≤ratedload≤160kg

wet rope:-4°C≤T≤60°C,50kg≤ratedload≤160kg

EN12841:2006 Type C

Certiedforusewithstatic(EN1891TypeA)ropeswithdiameters

between 9 mm and 12 mm.

Diameter Maximum rated load

9 mm 130 kg

10 mm - 12 mm 200 kg

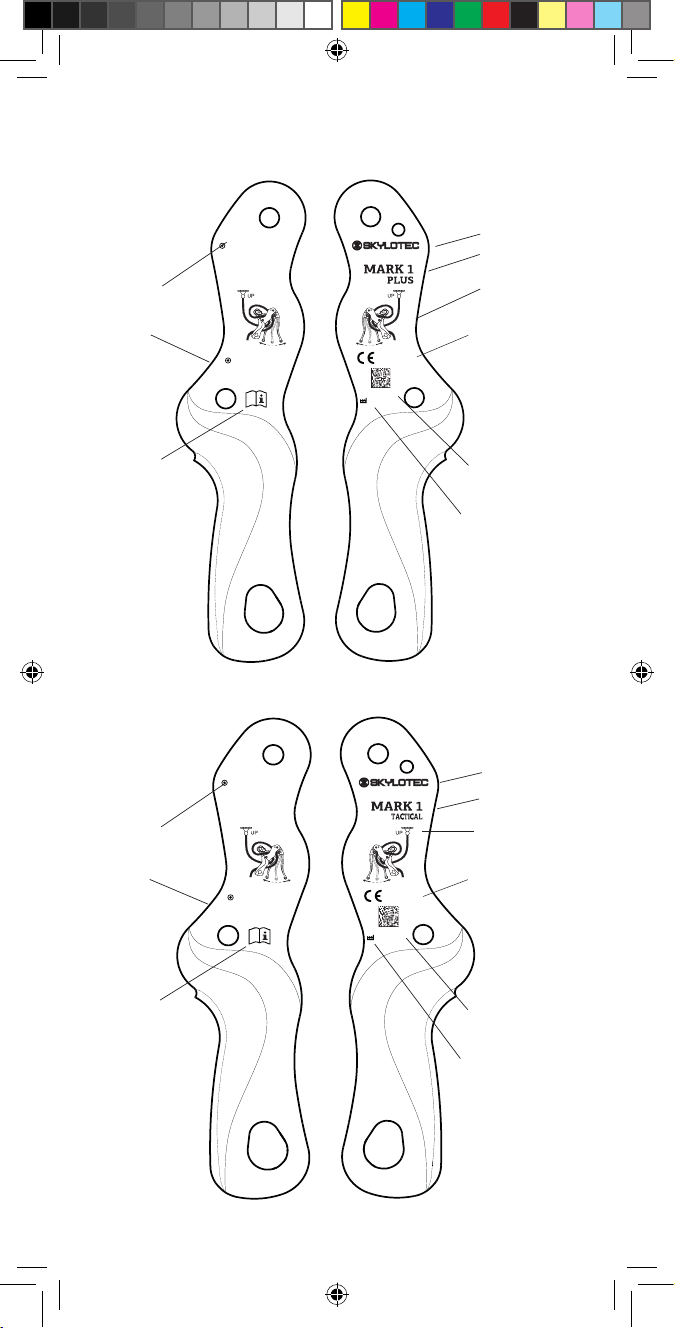

NOMENCLATURE OF PARTS

GB Instruction for use

Read this notice carefully

This device was designed to offer you the degree of safety expected

from personal protective equipment in accordance with the PPE

regulation 2016/425 .

Safety measures and warnings

a) There are innumerable and even unimaginable possible modes

ofuseofthisdevice.Onlytechniquesshownintheguresthatare

not crossed out or displaying a skull are recommended and covered

by the warranty.

b) This product must be used exclusively by adequately skilled

persons otherwise the user must be constantly supervised by

trained personnel, who must guarantee for the safety. This includes

liability against damages, injuries and death incurred by improper

use or misuse of the equipment.

c) This product may be used combined with personal protective

equipment conforming to PPE regulation 2016/425 and compatibly

with the relevant information.

d) Lifetime of this product will be extended if it is used with care.

In particular avoid rubbing against abrasive surfaces and/or sharp

edges.

e) Primary function of the descender is progression along a working

line, and is not suitable for use in a fall arrest system. It must always

be used in conjunction with a fall-arrest device on an independent

safety line.

f) The braking action of the device and thus your safety may be

considerably reduced if the device or the rope is dirty, oily, muddy

or icy.

g) Prolonged use in salty environments (e.g. sea cliffs) may affect

the performance of the product.

h)Donotexposethedevicetosignicantheatorcold(seework

and stock temperature).

i) Avoid any contact with chemical reagents as they may affect the

performance of this product. Contact the producer if in doubt.

j)Thedescenderdeviceshouldneverbeleftinplace(specically

outdoors) e.g. at a workstation because of the weathering

deterioration of the rope.

k) This device is not tested for safe use in explosive atmospheres.

Functioning principles

Figure 1: INSTALLATION OF THE ROPE

The descender can either be attached to the harness concordant

witheitherEN361,EN813orEN12277(g.4/A-theoperator

slides with the descender along the rope) or it can be fastened to

an anchor (g.4/C – the rope slides through the non-moving

descender).Toinstallthedescenderontherope,rstformabight

ontherope(g.1/B).Thehandleofthedescenderhastobepushed

in its extreme open position and the jamming cleat has to be drawn

out of the descender to its terminal point. Now the bight can be

pushedinbetweenbothangesattheirlowerend(g.1/A),thatis,
