Skyrc Super Rider SR4 Bedienungsanleitung
TABLE OF CONTENTS 目 录
REQUIRED TOOLS FOR ASSEMBLY
装配工具……………………………………………………………………………………………………………………………………..………………………
ASSEMBLY PROCEDURE
装配过程…………………………………………………………………………………………………………………………………………………………….
PART LIST
零件列表…………………………………………………………………………………………………………………………………………………………….
02
03
27
37
37
Avoid working on a deep pile carpet. It is
difficult to find some small components, such as
screw, if you drop them into it.
To prevent parts from rolling off and protect the
working surface, you could put all the small
parts into a container.
Avoid running the bike in cold weather. Low
temperature may cause plastic and metal parts
brittle. What’s more, the grease and oil become
thick which may cause poor performance.
Test fit all parts before attaching them to the
bike.
HELPFUL HINTS FOR ASSEMBLY
1.
2.
3.
4.
安装提示
尽量不要在长毛地毯上操作摩托车，如果零配件，
例如螺丝，掉进地毯，很难找到。
为了不让零件滚落，最好将所有部件放在容器里。
尽量避免在天冷的时候操作摩托车。低温会引起塑
料机金属部件会变脆，容易折断。而油也会变浑
浊，影响摩托车性能。
在固定各部件之前，请确保各部件之间完全吻合。
1.
2.
3.
4.
SKYRC is unable to ensure that the user will follow
the instructions supplied with the bike, nor can
SKYRC control how the bike is assembled,repaired,
operated and maintained. For this reason, SKYRC
cannot be held responsibility for damage, loss, or
injury caused by the use of materials different from
what is indicated in the manual, or from the
improper use of the product. From the moment the
buyer begins the assembly progress, he is
assuming the responsibility of any consequence
resulting from misuse or assembly. If customer
can't accept this, please return the product to the
place of purchase. The returned item should be
new, unused and with complete package.
IMPORTANT NOTICE
本公司无法保证用户完全遵照说明书指示操作，
也不能确保客户后续能正确安装/改装/维修、恰当操作
及妥善保养。因此，本公司不承担任何由于以下情况
造成的破损、损失及人身伤害的责任：
1. 用户使用与说明书描述不符的材料或者配件；
2. 用户操作或者使用不当。
从客户开始安装摩托车的那一刻起，客户将自行
承担由于使用不当造成的任何后果。如果客户不能接
受此条款，请将摩托车退回购买处。注意，退回的摩
托车必须全新，未使用，且包装完好。
注意事项
TROUBLE SHOOTING
疑难解答……………………………………………………………………………………………………………………………………………………………..
WARRANTY
保修条款……………………………………………………………………………………………………………………………………………………………..
01

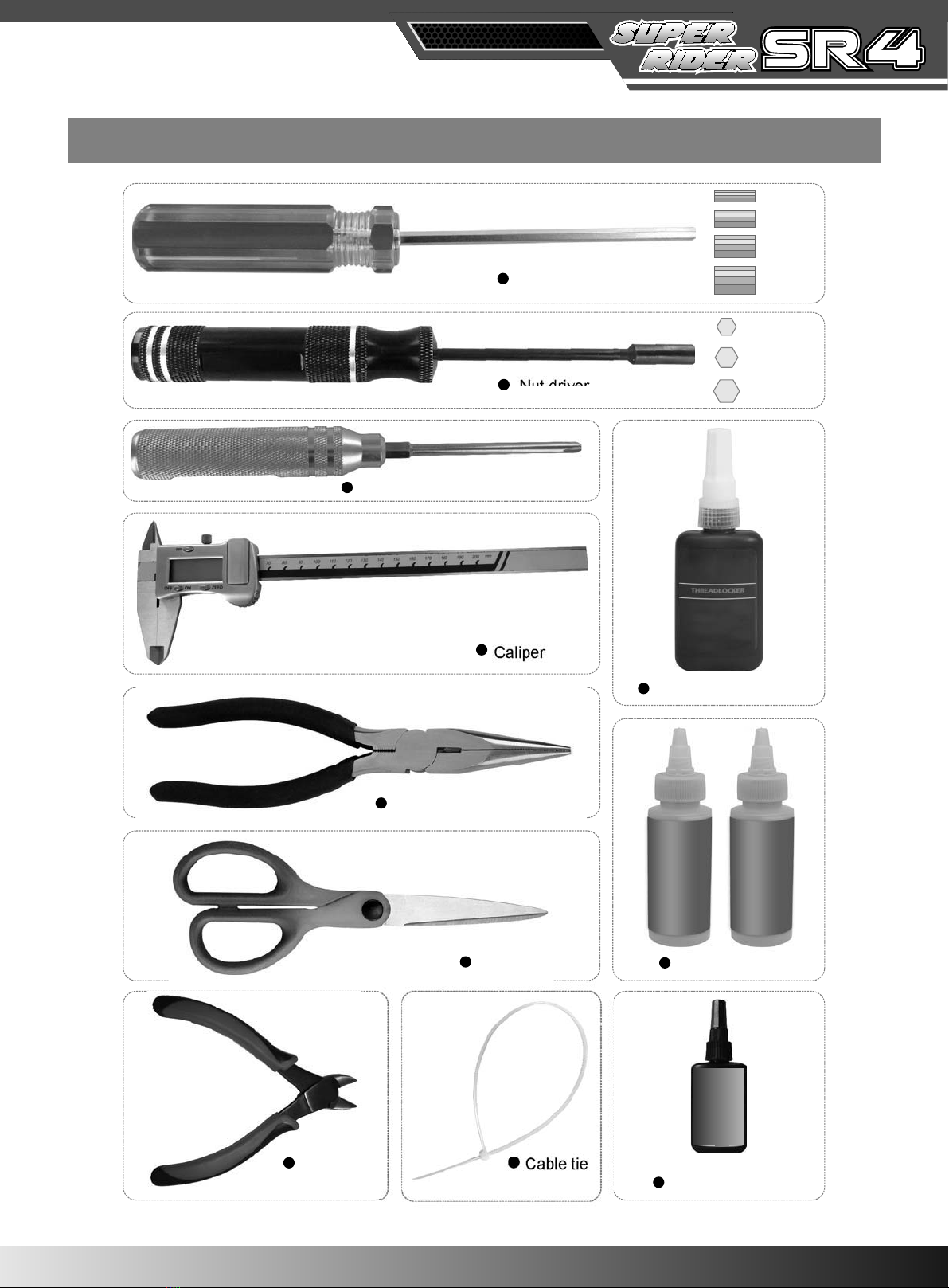

REQUIRED TOOLS FOR ASSEMBLY装配工具
Nut driver
Phililips Screwdriver
Caliper
Hex wrench
1.5mm
2.0mm
2.5mm
3.0mm
5.5mm
7.0mm
8.0mm
Cable tie
Scissors
20wt 70wt
Shock Oil
302
Tire rubber
Side cutter
六角扳手
螺丝刀
十字螺丝刀
卡尺
Needle nose pliers 尖嘴钳
剪刀
斜口钳 绑带
Threadlocker 螺丝胶
减震油
轮胎胶
02

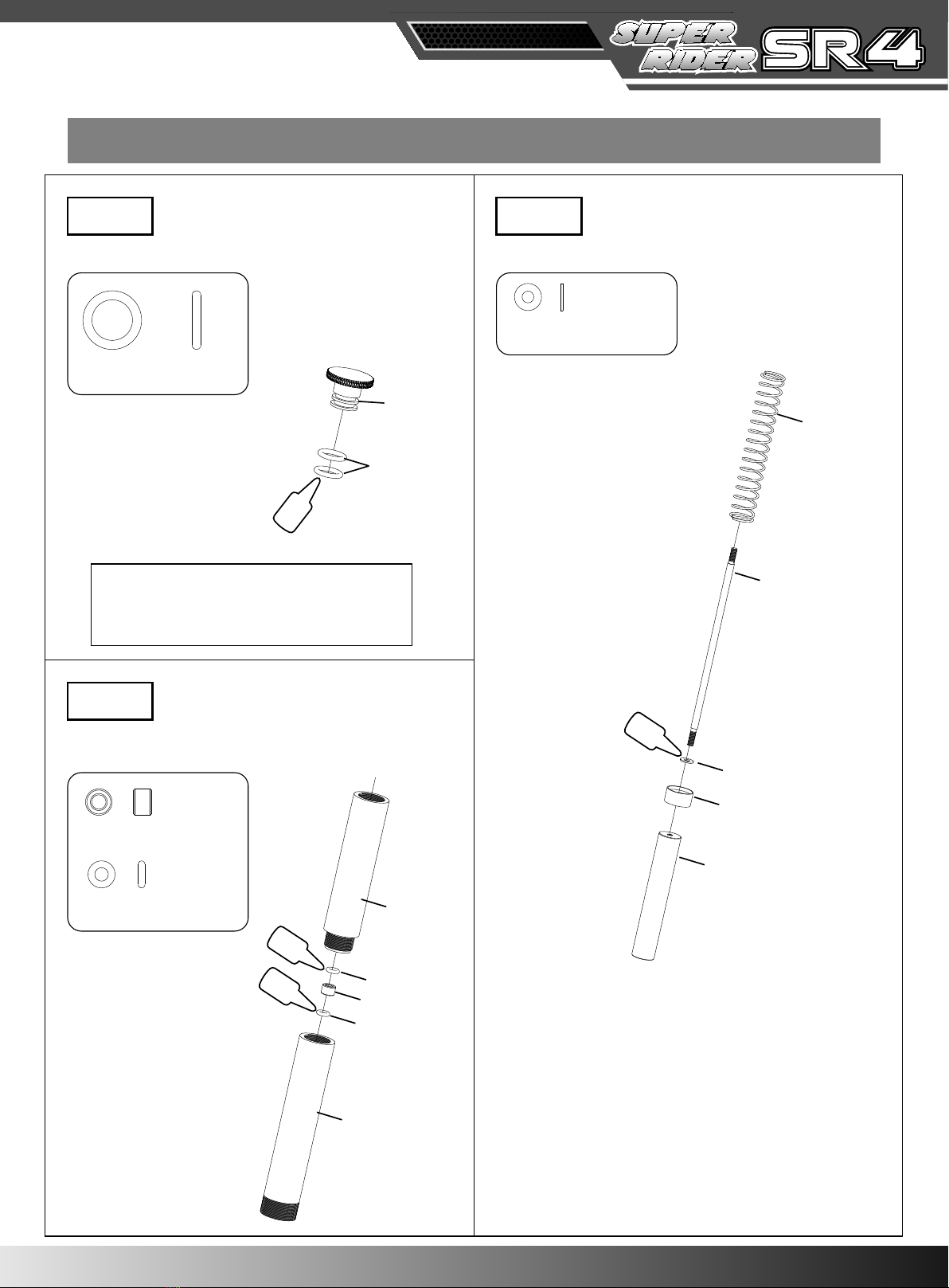

ASSEMBLY PROCEDURE装配过程
RB-A029
RB-A032
ø3.2xø5.9x4T ..................1
FW 3xø ø6x1.5T ................2
Step2
RB-A003
RB-A032
RB-A032
RB-A029
OIL
OIL
RB-A004
RB-A005
RB-A034
RB-A030
RB-A008
RB-A034
FW ø2.6xø6x0.5T ..............1
Step3
LOCK
RB-A001
RB-A033
OIL
RB-A033
FW 9xø ø13x2T ...............2

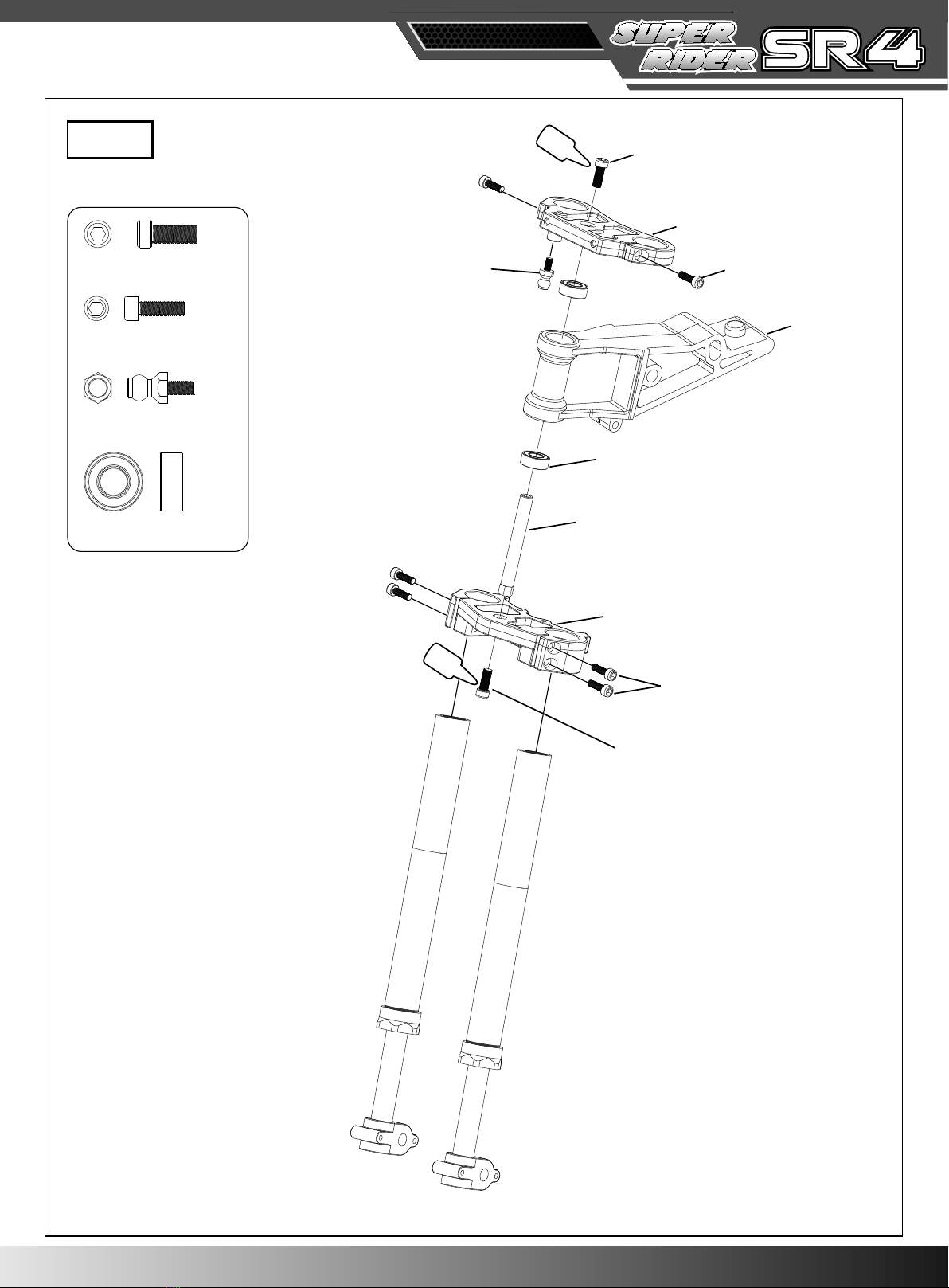

Step1
Note:It will be easier to assemble if you add oil
to the ring (RB-A033) before installation.
提示：如果在O型密封圈上添加润滑油，安装更
为容易
RB-A002
03

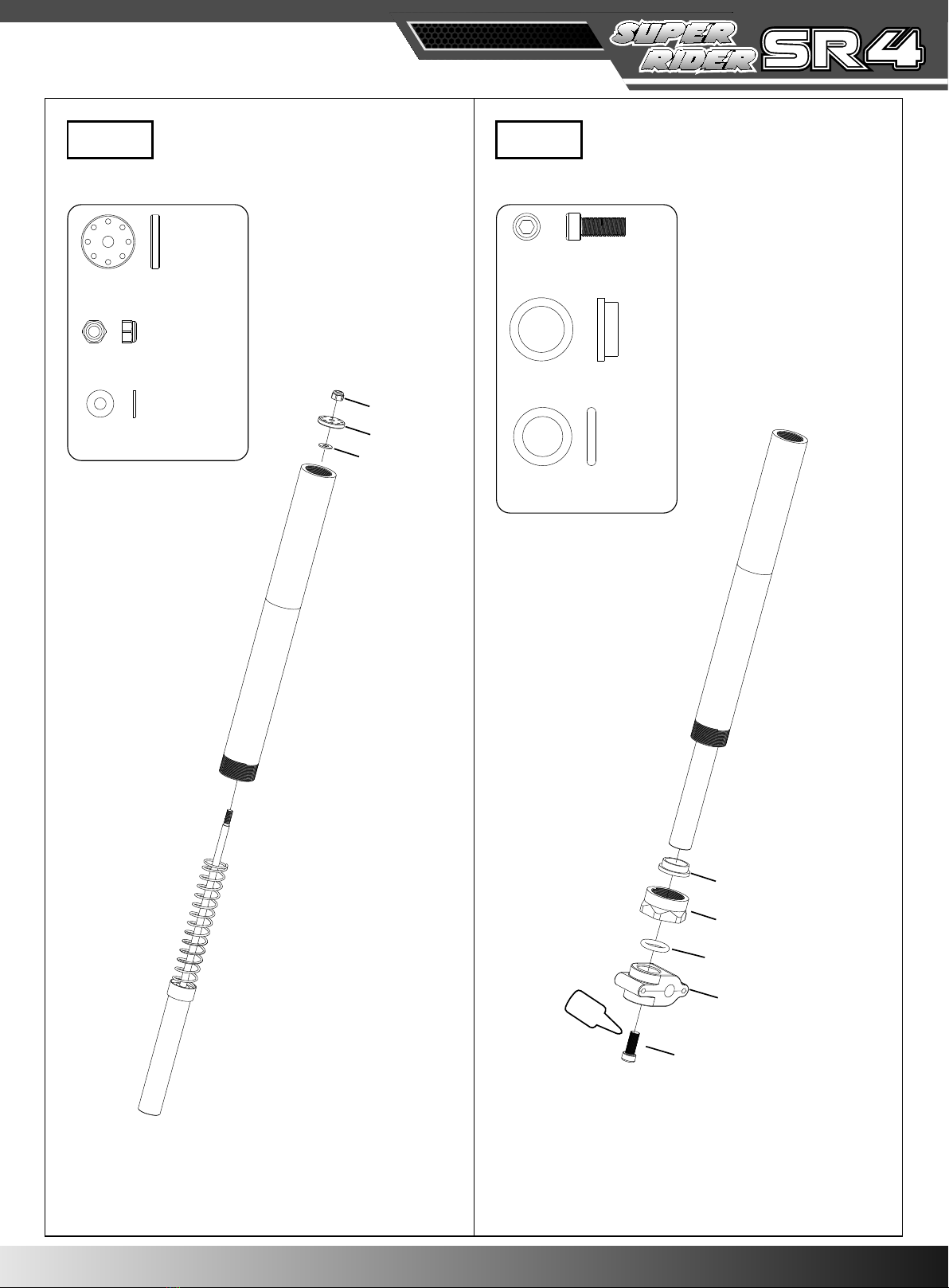

RB-A034
RB-A028
RB-A035
RB-A034
RB-A028
RB-A035
ø2.5xø11.9x2T .................1
M2.5防松镙母 ..................1
FW ø2.6xø6x0.5T .............1
Step4
RB-A041
RB-A031
RB-A006
ø12.9xø8.9x2T .................1
ø10.2xø14x4.5T .................1
M4x10PH........................1
Step5
RB-A031
RB-A007
RB-A006
RB-A009
RB-A041
LOCK
04
RB-A041
RB-A040
RB-A011
RB-A022
M4x10PH........................2
M3x10PH........................6
M3x10PH........................6
Brg.ø6xø13x5ZZ.............1
Step6
RB-A010
RB-A041
RB-B003
RB-A040
RB-A022
RB-A018
RB-A017
RB-A040
RB-A041
RB-A011
LOCK
LOCK
04 05
OIL

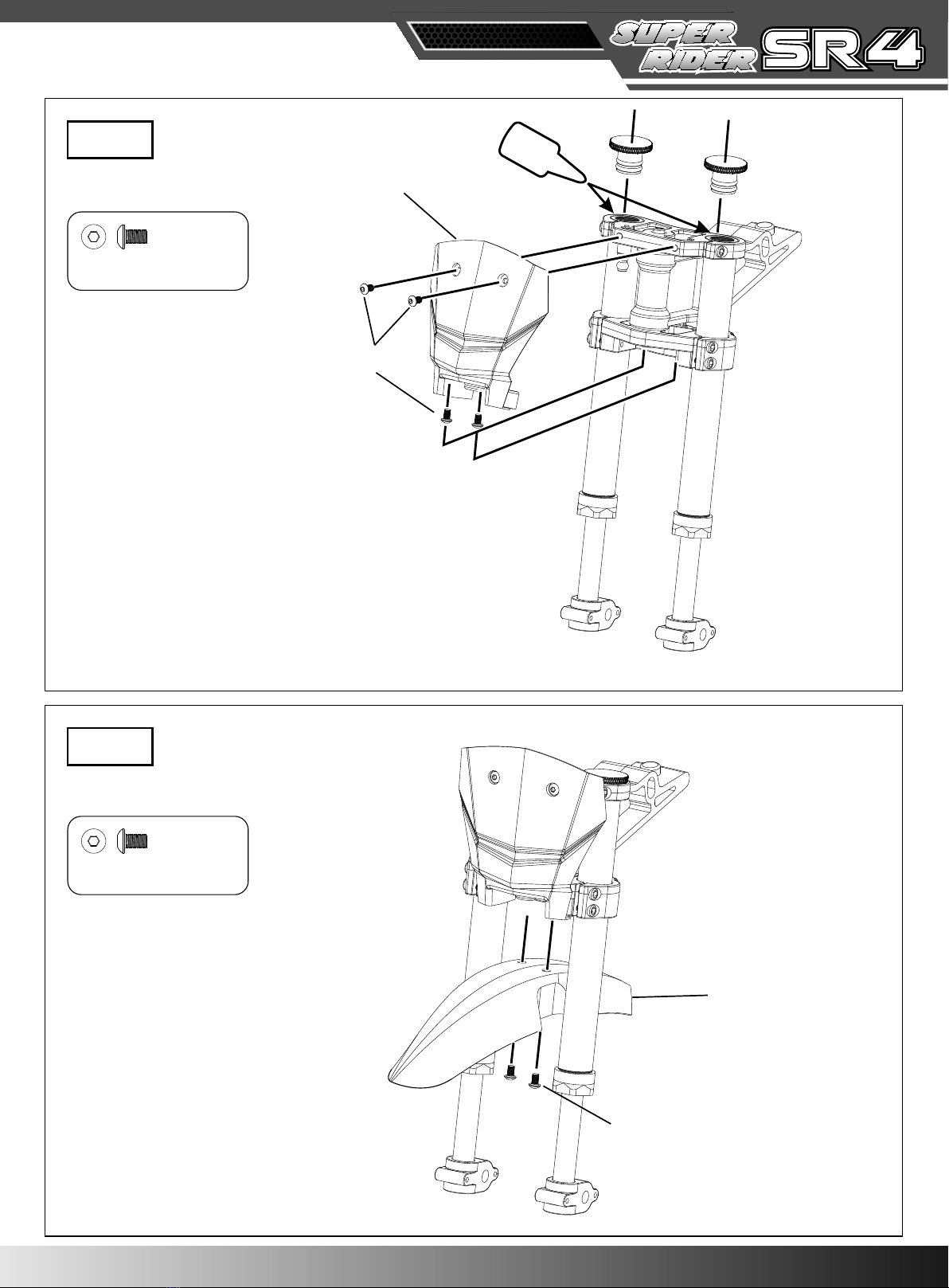

RB-A042
RB-A043
M3x5TS............................4
RB-A042
Step7
RB-A042
RB-A044
M3x5TS............................2
RB-A042
Step8
0506
RB-A025
RB-A045
RB-A019 RB-A023
RB-A020
RB-A021
RB-A022
RB-A036
RB-A021
RB-A022
RB-A022
RB-A036
RB-A021
M3x8TS..............................5
Collar6x10x5.3...................2
Brg.ø6xø13x5ZZ................2
Step9
RB-A038
RB-A036
RB-A024
RB-A039
RB-A036
RB-A024
M3x8TS..............................4
M4防松镙母........................2
Step10
LOCK

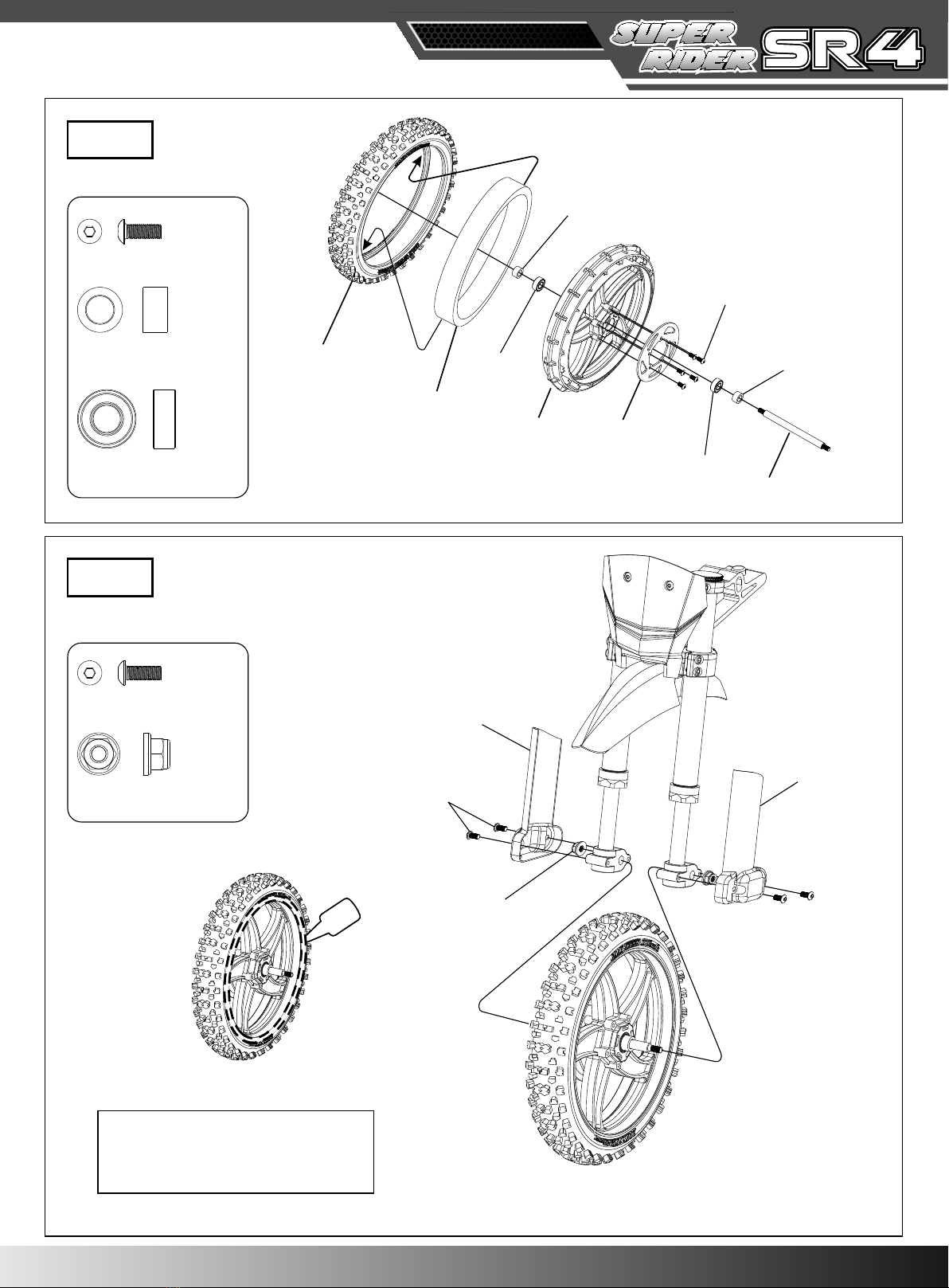

Note: Please secure the rim and the tire with
tire rubber after finishing assembly.
提示:安装完成后请将轮毂与轮胎用轮胎胶
固定

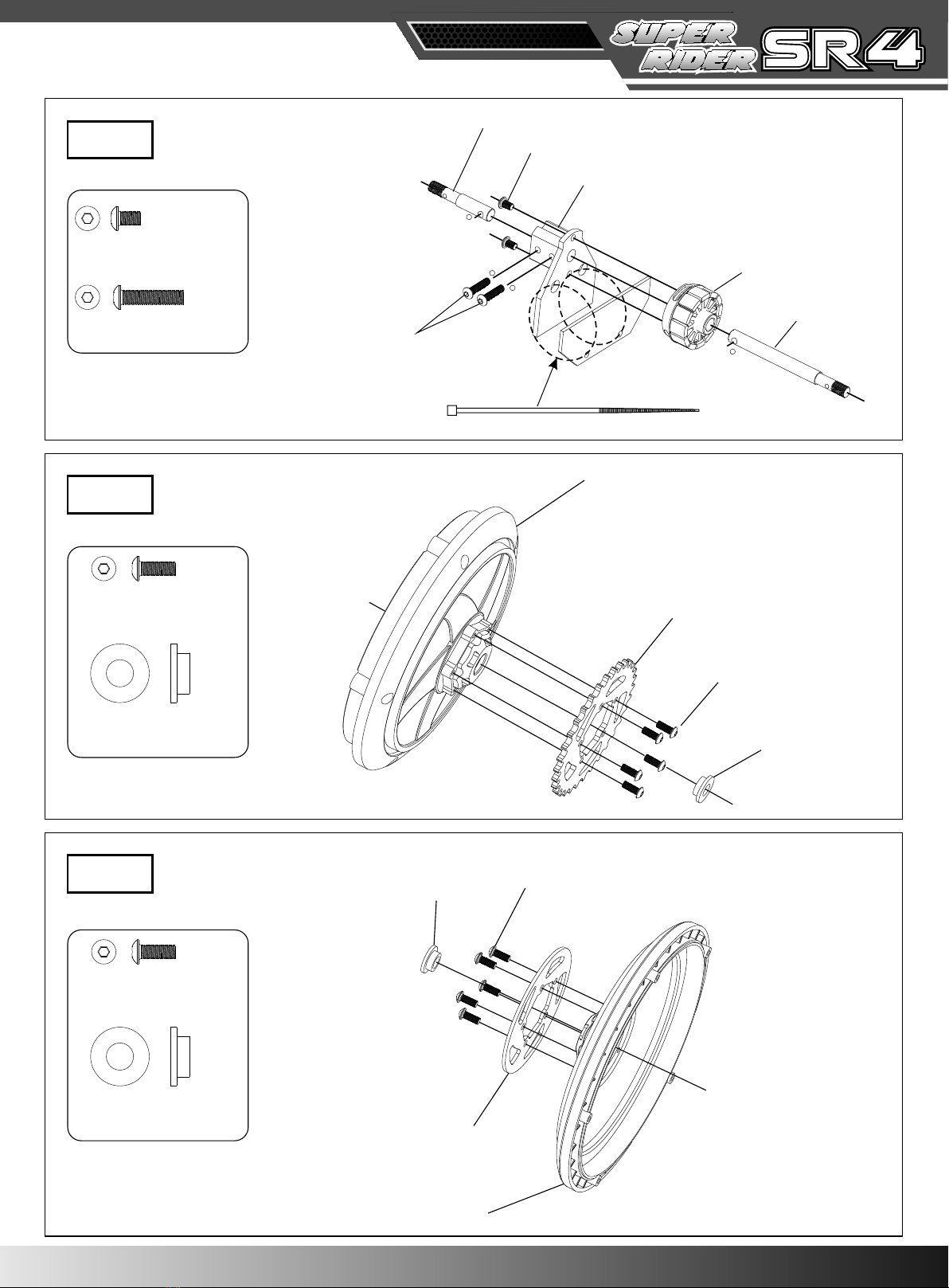

06 07
RB-A036
RB-E004
RB-A023
RB-E001
RB-A036
RB-E004
M3x8TS..............................5
ø6xø13x4T.........................1
Step13
RB-E002
RB-E012
RB-A036
RB-E004
RB-A036
RB-E004
M3x8TS..............................5
ø6xø13x4T.........................1
Step12

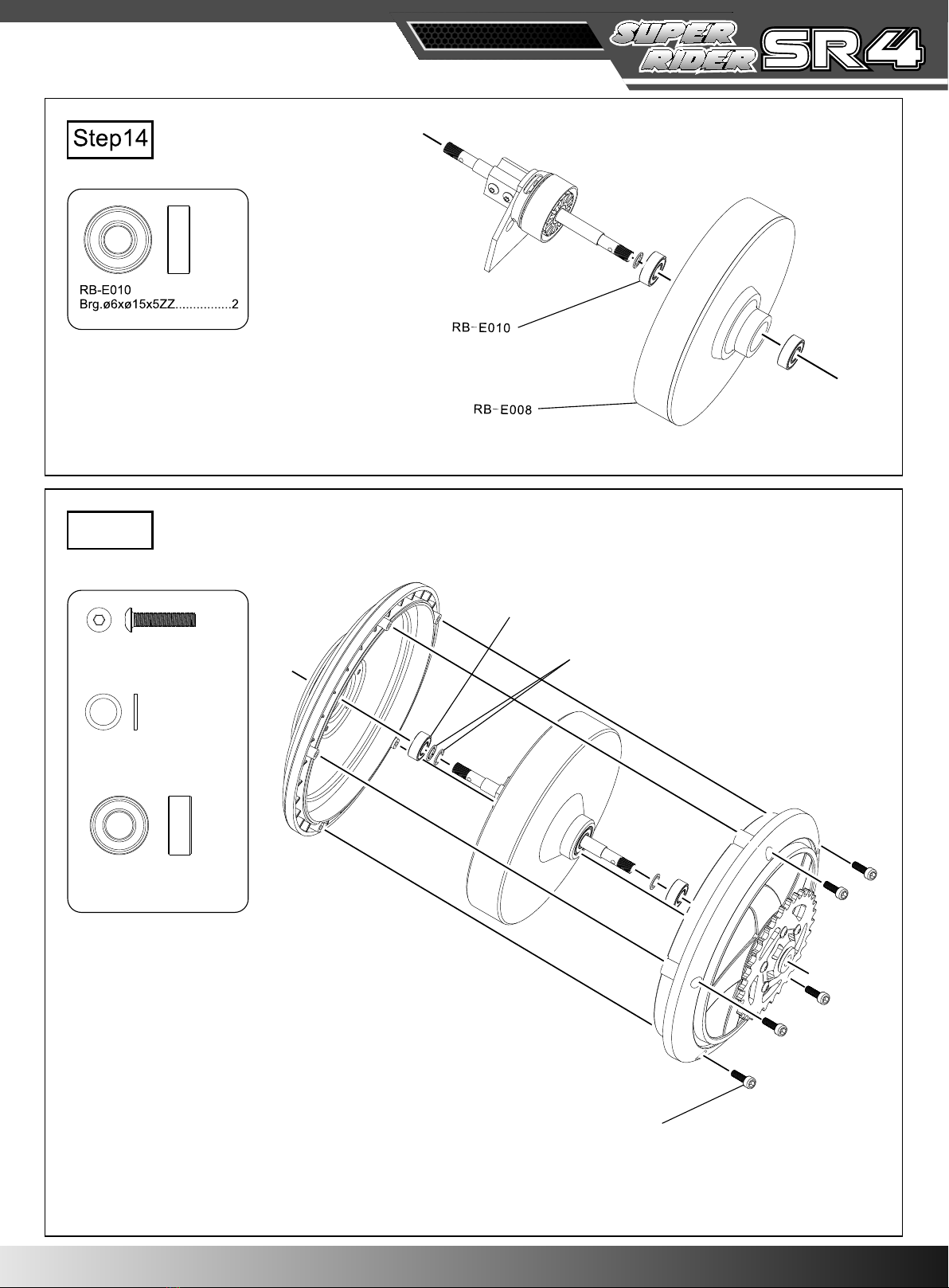

RB-A042
RB-B044
M3x14TS............................2
M3x5TS..............................2
Step11
１
１
２
RB-E003
RB-A042
RB-E005
RB-E009
RB-E006
RB-B044
２
0708
RB-A022
RB-E011
RB-B044
RB-B044
RB-A022
RB-E011
M3x14TS............................5
ø6xø8x0.5T......................3
Brg.ø6xø13x5ZZ................2
Step15
08 09
Andere Handbücher für Super Rider SR4
2
Andere Skyrc Spielzeug Handbücher
