Sliger CERBERUS Handbuch
CERBERUS / X
The Worlds Smallest ATX / EATX PC Case

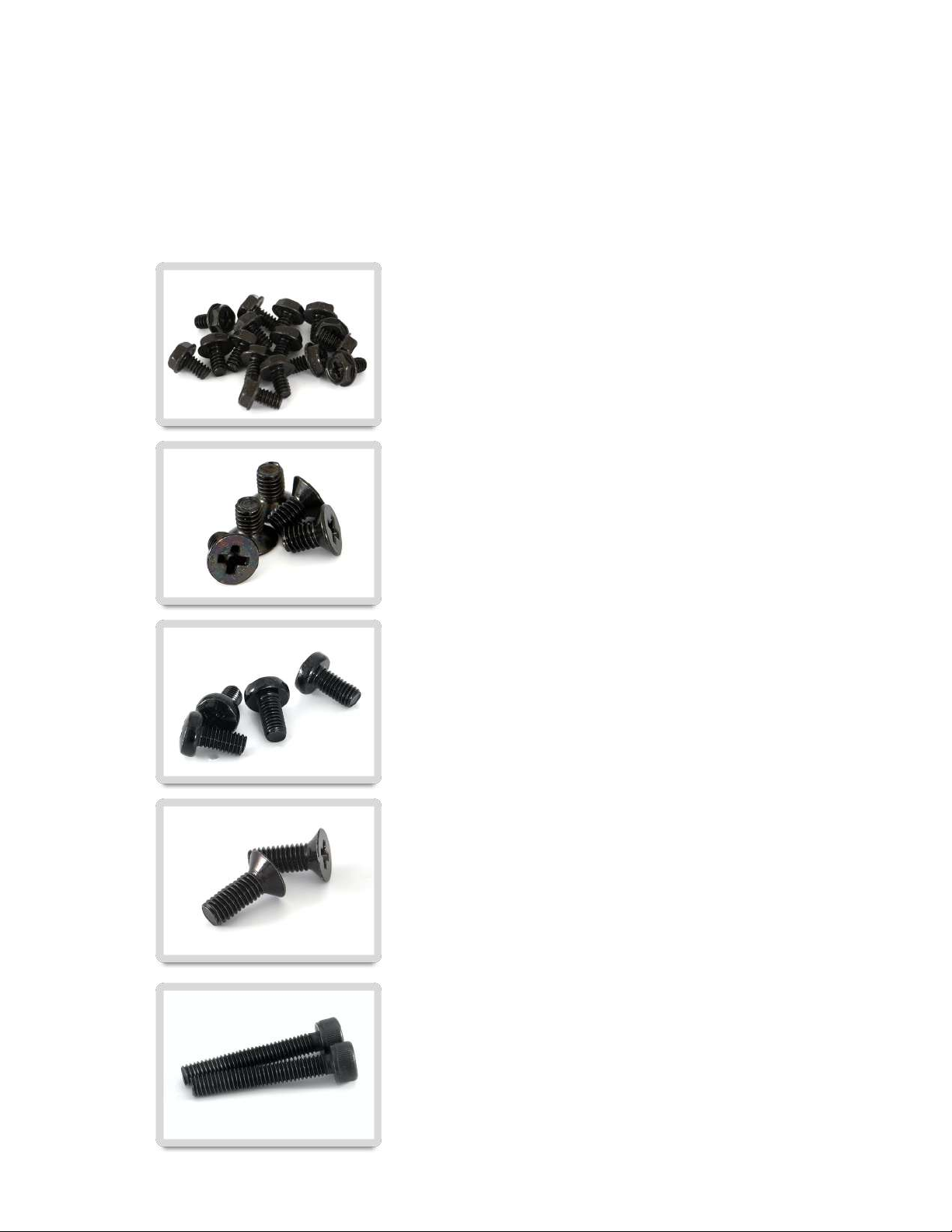

SCREWS
The Cerberus X comes with a total of 5 dierent screws. For the
purposes of this guide we will assign a unique color to each of
the screws to signify their locations through out this guide.
VIOLET 6-32 x 1/4” HEX HEAD
Power Supply
3.5" HDDs
RED M3 x 5mm FLAT HEAD
Power Cord Mount Bracket
SSDs / SSD brackets
GREEN M3 x 6mm PAN HEAD
PCIe Cards and Card Slot Dust Cover
Motherboard
Power Supply Rear Plate
2.5" SSD and HDDs
GREY M3 x 12mm SOCKET CAP
Case Handle
PINK M3 x 8mm FLAT HEAD
Power pig tail
SIDE HINGE BRACKET is secured with 2x
M3 x 5mm FLAT HEAD
Chassis hardware kit includes 9 x M3 x 6mm PAN HEAD screws for mounting the
motherboard.
MOTHERBOARD
The card slot dust cover included with
the base chassis hardware kit installs on
the outside above PCIe card slot cutouts
using 2x M3 x 6mm PAN HEAD screws.
Additional Hardware:
5x M3 x 6mm PAN HEAD for Cerberus
8x M3 x 6mm PAN HEAD for Cerberus
X PCIe card mounting are shown.
CARD SLOT DUST COVER / HANDLE BRACKET
HANDLE KIT BRACKET mounts as
shown with 4x
M3 x 5mm FLAT
HEAD
screws. Attach top panel and
then install handle with 2x
M3 x
25mm SOCKET CAP
. The 4x holes
around cutout are for mounting a
120mm or 140mm fan with 120mm
spacing.
SSD MOUNTING
By default every Cerberus and Cerberus X chassis has the ability to
mount two 2.5” HDDs or SSDs. Mounting is shown below using the
provided
M3 x 5mm FLAT HEAD screws.
SSDs or HDDs are
mounted as shown with
the connector ends for
SATA cable and SATA
power cable facing the
open cuts (BLUE) in the
main chassis frame.
Each SSD mounts with 4x
M3 x 5mm FLAT HEAD
screws.
SSD MOUNTING CONT.
The other SSD mounting location is on the front open side. Using our
Window SSD Bracket secured to chassis with 2x
M3 x 5mm FLAT HEAD
SSDs mount as shown
with the connector ends
for SATA cable and SATA
power cable facing the
rear of the main chassis
frame.
Each SSD mounts with 2x
M3 x 6mm PAN HEAD
screws.
EASY-OFF PANELS
All front, top and side panels have tool-less removal via their ball-stud
mounting points. However, be careful as panels may be very tight on the
rst few times on/o.
REASSEMBLY NOTES:
Side panels are reversible to either side.
Front Panels can be installed with either end at top or bottom.
ATX/SFX PLATE KITS
The ATX PLATE KIT is for mounting full-sized ATX form factor power
supplies on the rear opening.
The SFX PLATE KIT is for mounting SFX form factor power supplies
on the rear opening.
The ATX power supply
attaches to the ATX Plate
with 4x
6-32 x 1/4” HEX
HEAD and the ATX plate
attaches to the chassis
with 4x M3 x 6mm PAN
HEAD screws.
The SFX power supply
attaches to the SFX Plate
with 6x
6-32 x 1/4” HEX
HEAD and the SFX plate
attaches to the chassis
with 4x M3 x 6mm PAN
HEAD screws.
SFX INTERNAL MOUNT
Our SFX Internal kit consists of multiple parts; a rear plate with PC power
inlet and two external water-cooling holes with included hole plugs and
the SFX power supply internal bracket.
The rear plate attaches to the chassis with
4x M3 x 6mm PAN HEAD
and the power pig tail attaches to plate with 2x M3 x 8mm FLAT HEAD
SFX INTERNAL MOUNT CONT.
Attach the SFX power supply to the internal bracket with up to
6x
6-32 x 1/4” HEX HEAD screws.
Then the whole assembly is secured to the chassis with
4x
M3 x 5mm FLAT HEAD screws.
