Smart Start SSI-2035 Bedienungsanleitung
Rev. January-2018
SSI-2035
User Manual
Smart Start LLC
SSI-2035 User Manual
Rev. January-2018
Page 2
Copyright © 2018
This document is protected by copyright law and international treaties, and is the confidential and
proprietary information of Smart Start, LLC. Unauthorized reproduction, use, or distribution of this
document, or any portion of it, may result in severe civil and criminal penalties, and will be prosecuted
to the maximum extent possible under the law. Smart Start is a trademark of Smart Start, LLC. All
other trademarks used herein are the property of their respective owners and are used for
identification purposes only.
Disclaimer
The authors of this manual have incorporated their best efforts in preparing this information and
ensuring that the technical content is completely accurate at the time of publication.
Smart Start LLC. accepts no responsibility for technical inaccuracies and reserves the right to make
periodic changes, enhancements, revisions and alterations to the programs and/or its manuals without
obligation to notify any person, institution or organization of such changes, enhancements, revisions
and alterations.
Smart Start, LLC.
Note: Please read and sign the form at the back of the book and return it to the correct monitoring
authority.
Smart Start LLC
SSI-2035 User Manual
Rev. January-2018
Page 3
Contents
FCC Statement...................................................................... 4
Safety ................................................................................ 5
Handset Mount...................................................................... 6
Mouthpiece Cover .................................................................. 6
Cleaning Cautions .................................................................. 6
Other Cautions...................................................................... 6
Description .......................................................................... 7
Parts Listing......................................................................... 7
SSI-2035 Operations................................................................ 8
Mouthpiece Installation...................................................... 8
Mounting Clip for the Head Unit............................................ 9
Mouthpiece Cover ...........................................................10
How to Take a Test .........................................................11
Post-Test Results ............................................................11
Post-Test Actions............................................................11
Re-Tests ............................................................................12
Lockouts ............................................................................13
Unlock Codes.......................................................................14
Displayed Messages and Troubleshooting Guide...............................15
Maintenance .......................................................................17
Service & Calibration .......................................................17
Disposal of the device ......................................................17
Spare Parts & Accessories ..................................................17
Service and Support...............................................................18
Customer Service Contact Information ...................................18
SSI-2035 Service .............................................................18
After-Hours Service .........................................................18
Support Locations ...........................................................18
Technical Data.....................................................................19
Ignition Interlock Client Checklist...............................................20
Read and Understood .............................................................21
Figures
Figure 1 Head Unit...................................................................... 7
Figure 2 Mouthpiece Installation...................................................... 8
Figure 3 Mouthpiece Key............................................................... 8
Figure 4 Properly Inserted Mouthpiece .............................................. 9
Figure 5 Head Unit attached to Mounting Clip...................................... 9
Figure 6 Head Unit with Mouthpiece Cover attached .............................10
Tables
Table 1 Displayed Messages & Troubleshooting Guide ...........................16
Table 2 SSI-2035 Specifications .....................................................19
Smart Start LLC
SSI-2035 User Manual
Rev. January-2018
Page 4
FCC Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses, and can radiate
radio interference energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
•Reorient or relocate the receiving antenna
•Increase the separation between the equipment and the receiver.
•Connect the equipment into an outlet or on a circuit different from that to which the receiver is
connected.
•Consult the dealer or an experienced radio/TV technician for help.
You may also find helpful the following booklet, prepared by the FCC: “How to Identify and Resolve
Radio-TV Interference Problems.” This booklet is available from the U.S. Government Printing Office,
Washington, D.C. 20402.
Changes and modifications not expressly approved by the manufacturer or registrant of this equipment
can void your authority to operate this equipment under Federal Communications Commission rules.
Smart Start LLC
SSI-2035 User Manual
Rev. January-2018
Page 5
Safety
Strictly follow the instructions for use. Any use of the SSI-2035 device requires the full
understanding and strict observation of these instructions. The device is to be used only for the
purpose specified in this manual.
Any changes and/or additions to the SSI-2035 device may cause the device to malfunction or be
damaged. Such changes and/or additions invalidate any or all warranty of the device or vehicle.
To protect against electrical shock and fire, maintain a secure connection of all components to the
SSI-2035. Do not cut any cables connected to the SSI-2035 as this could result in electrical shock or
fire.
The installation may only be carried out by an authorized Smart Start, LLC Service Center
according to the instructions for installation. Service and maintenance must only be performed by
qualified persons.
The liability for the proper function of the instrument is irrevocably transferred to the owner or
operator to the extent that the instrument is serviced or repaired by personnel not employed or
authorized by Smart Start, LLC or if the instrument is used in a manner not conforming to its
intended use.
Do not place the interlock where it is prone to damage: on the floor, under your ashtray, or where
you can’t see or hear it. Also, do not expose the unit to moisture from liquids. You are liable for all
damages due to negligence or abuse of the device.
Do not tamper with the device. This will result in additional charges and notification to appropriate
monitoring authorities.
Smart Start LLC cannot be held responsible for damage caused by non-compliance with the
recommendations given above. The warranty and liability provisions of the terms of sale and
delivery by Smart Start, LLC are likewise not modified by the recommendations given above.
Smart Start LLC
SSI-2035 User Manual
Rev. January-2018
Page 6
Handset Mount
You have been provided with a handset mount to keep your device within easy reach and out of
harm’s way. If your mount needs replacing, contact our service personnel and we will provide a
new one.
Mouthpiece Cover
You have been provided with a mouthpiece cover to keep the mouthpiece protected from dirt and
moisture. Always use this cover over the mouthpiece whenever you are not providing a breath
sample.
Cleaning Cautions
Use only mild soap and water on a damp cloth to clean the outside of the unit. Solvent, alcohol or
chemical-based cleaners can damage the unit or result in false readings.
Mouthpieces can also be washed and reused. Always use a clean and dry mouthpiece for every
test.
Other Cautions
•Use the device only for its intended use as described in this manual.
•Do not drink alcohol, eat alcohol containing foods including medicines or lozenges or use alcohol
based mouthwash or mouth spray for at least 15 minutes before taking a breath test. Alcohol
residue in your mouth will result in a higher alcohol reading.
•Do not immerse device in water or any other liquid.
•Never operate the device if it is not working properly, has been dropped or damaged, or if it has
been immersed in any liquid.
•Except for mouthpiece, never insert any object into any opening.
•Do not use where aerosol (spray) products are being used or where oxygen is being
administered.
•Do not store the device where it is exposed to direct sunlight or near a heater or other source of
heat.
•Keep out of reach of children.
•Call 1-800-880-3394 for service or repair.
Smart Start LLC
SSI-2035 User Manual
Rev. January-2018
Page 7
Description
The SSI-2035 is a breath-alcohol ignition interlock device which requires the user to take and pass a
breath test before the vehicle will start. If the breath alcohol concentration of the breath sample
submitted is at or above the preset fail level, the vehicle will not start. Only breath alcohol
concentrations below the pre-set fail level will allow the vehicle to be started.
The interlock device has no effect on the engine operation and cannot turn your engine off once it
is running.
Anyone can drive your vehicle, but they must use the device, and YOU are responsible for all
readings recorded by the device.
Mouthpiece
Bi-color LEDs
Color Graphic Display
Keypad
Figure 1 Head Unit
Parts Listing
The SSI-2035 unit consists of the following parts:
•The SSI-2035 device
•Mouthpiece
•Mounting clip for Head Unit
•Mouthpiece Cover
Smart Start LLC
SSI-2035 User Manual
Rev. January-2018
Page 8
SSI-2035 Operations
Mouthpiece Installation
The SSI-2035 has a keyed slot for the mouthpiece. The mouthpiece can be inserted in only one
direction.
Keyed Slot for mouthpiece
Figure 2 Mouthpiece Installation
The mouthpiece has a key along its underside. Align the key with the slot on the SSI-2035 and insert the
mouthpiece until it is fully seated against the body of the 2035.
Key
Figure 3 Mouthpiece Key
Smart Start LLC
SSI-2035 User Manual
Rev. January-2018
Page 9
Figure 4 Properly Inserted Mouthpiece
Mounting Clip for the Head Unit
The mounting clip us used for placing the Head Unit on the dash of the vehicle. This ensures
several things:
•Keeps the Head Unit a position that is easily accessible to the driver
•Is in a position that can be easily seen and heard
•Protects the handset
All of these need to be considered when choosing the position of the handset.
Figure 5 Head Unit attached to Mounting Clip
Smart Start LLC
SSI-2035 User Manual
Rev. January-2018
Page 10
Mouthpiece Cover
To protect the mouthpiece from dust, dirt and moisture, the SSI-2035 is supplied with a
mouthpiece cover. The mouthpiece cover should be place on the mouthpiece whenever the
head unit is not being used to perform a breath test.

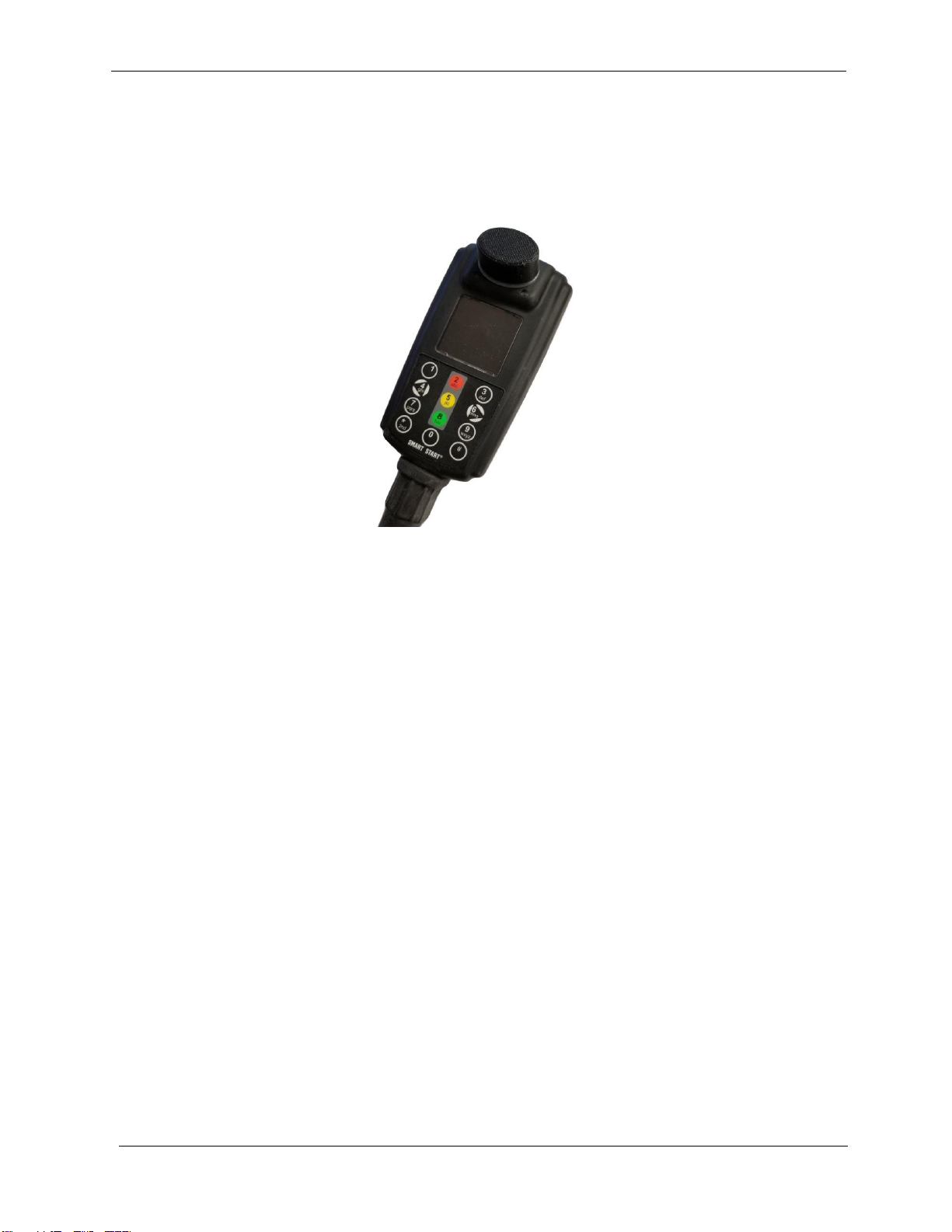

Figure 6 Head Unit with Mouthpiece Cover attached
