Integration of SMARTFOX Energy Meter

The following instructions explain how to connect and parameterise the SMARTFOX Energy Meter with

the SMARTFOX Pro system.

To create a comprehensive building monitoring system, the meter can be connected to the SMARTFOX

Pro via RS485 (Modbus RTU) or S0 interface. In this way, generation systems (PV inverters,

hydroelectric power plants...) as well as consumers (heat pumps, charging stations, flats...) can be

connected to the my.smartfox.at monitoring system.

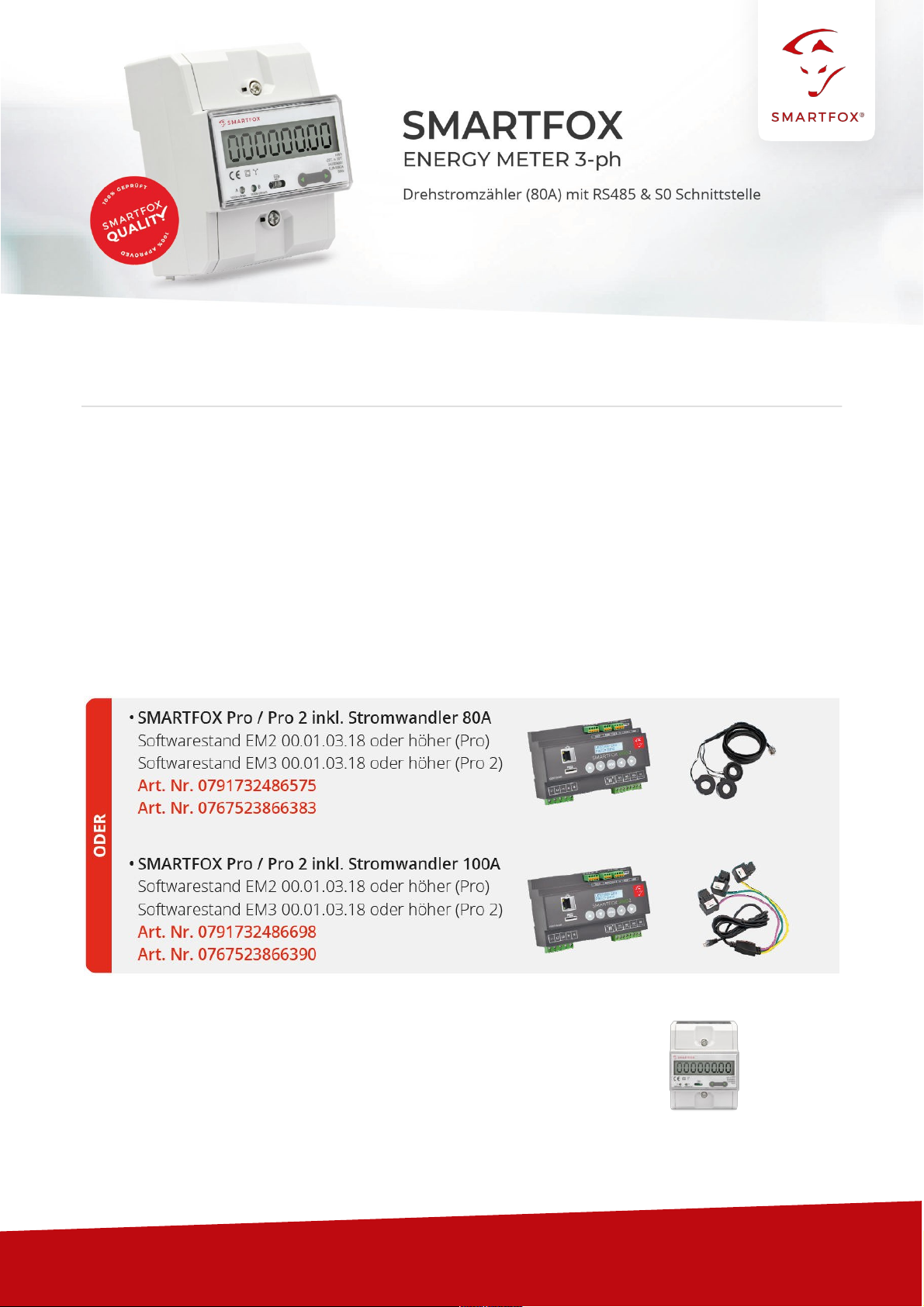

Items

needed:

"SMARTFOX Energy Meter

Art. No. 0767523866321

V1.0-06.2022

www.smartfox.at

Table of contents

Connection..............................................................................................................................................3

1.1

connection .............................................................................................................................................3

1.2 Communication...........................................................................................................................................3

2 Settings on the SMARTFOX Pro (RS485 connection)

.......................................................................

2.1 Function subcounter ..................................................................................................................................9

2.2 Function WR1 - WR5 ..............................................................................................................................11

2.3 Function CC1 - CC5 ................................................................................................................................14

2.4 Own" function ...........................................................................................................................................16

3 Settings on SMARTFOX Pro (connection S0)

...................................................................................

3.1 Inverter function........................................................................................................................................18

3.2 Function consumption meter ..................................................................................................................20

Notes.......................................................................................................................................................21

We have checked the contents of this documentation for conformity with the hardware and software described.

Nevertheless, deviations, remaining errors and omissions cannot be ruled out, so that we cannot accept any liability

for any damage that may result. However, the information in this publication is checked regularly and any

necessary corrections are included in subsequent editions. We are grateful for any suggestions for improvement.

distribution as well as translation. No part of this manual may be

reproduced

in any form (by photocopy, microfilm or

any other process)

or stored, processed, duplicated or

distributed

using electronic systems

without written permission

from

DAfi GmbH.

Contraventions may result in penal consequences.

All rights & technical changes reserved.

www.smartfox.at

Connection

1.1

AC connection

Connect the phases to be measured L1, L2, L3 & N to the corresponding

terminals on the meter (Fig. right).

Pay attention to the input and output side.

1.2

Communication

Two interfaces are available on the meter for communication (RS485 or S0

signal). In general, the use of the RS485 interface is recommended in order

to be

able to

display the data in real time in the portal.

The S0 signal transmits the energy values in pulses. The corresponding

power value is calculated via a minute average.

1.2.1

Connection via RS485 (Modbus RTU)

Up to 5 SMARTFOX Energy Meters can be added to the bus. In addition, up to 5 SMARTFOX Pro

Chargers can be operated on the same bus (10 devices in total). For this purpose, use a twisted pair of

wires of a shielded cable (e.g. CAT6).

www.smartfox.at

1.2.2

Connection via S0 signal

If the RS485 interface of the energy manager is already occupied, a SMARTFOX Energy Meter can

be read in

via S0

signal. For this purpose, use a twisted pair of wires of a shielded cable (e.g. CAT6).

Settings on the SMARTFOX Pro (RS485 connection)

Call up the web portal "my.smartfox.at" and log in.

Select the menu "Settings" 🡒"My devices" and

open

the device parameterisation of the SMARFOX Pro

(cogwheel).

www.smartfox.at

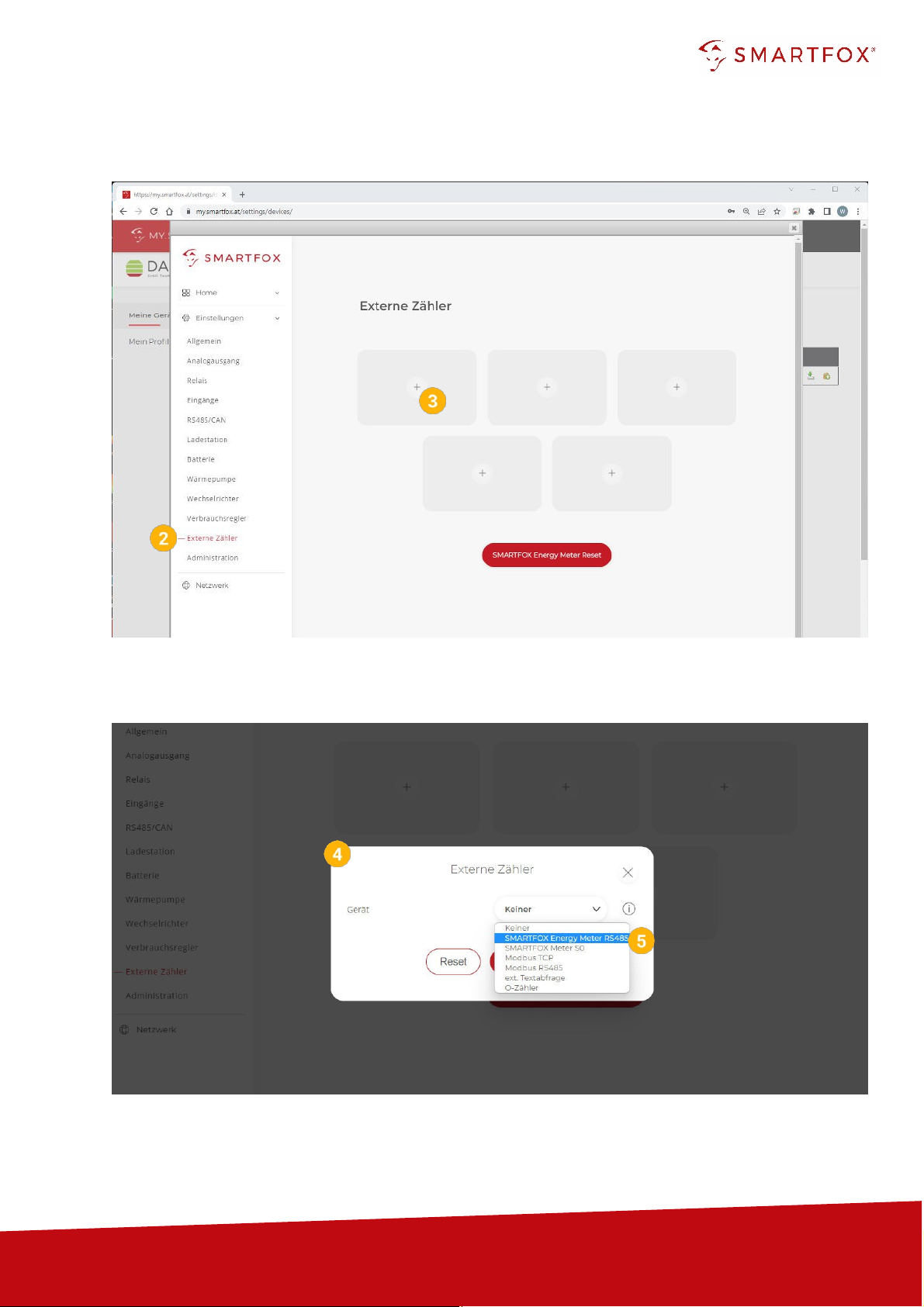

Select the submenu "External counters".

Select a free field by clicking on it.

The pop-up window opens.

Select "SMARTFOX Energy Meter RS485" in the drop-down menu.

www.smartfox.at

Note! If several participants are connected to the bus, make sure that

only the participant to be

parameterised is switched on

before starting the

configuration. Once the first participant has been

configured, switch it off and switch on the next participant.

Start the configurator for the additional meter or charging station and repeat the steps until all participants

have been integrated. After configuration, all participants can be switched on.

The commissioning wizard is called up.

Click on "Start configuration".

Enter the current address (ID) of the meter. Factory setting ID=1, no

change required.

The counter is automatically

assigned

a new ID by the configuration.

The counter at place 1 receives ID=101, counter 2 ID=102 ... counter 5

ID=105.

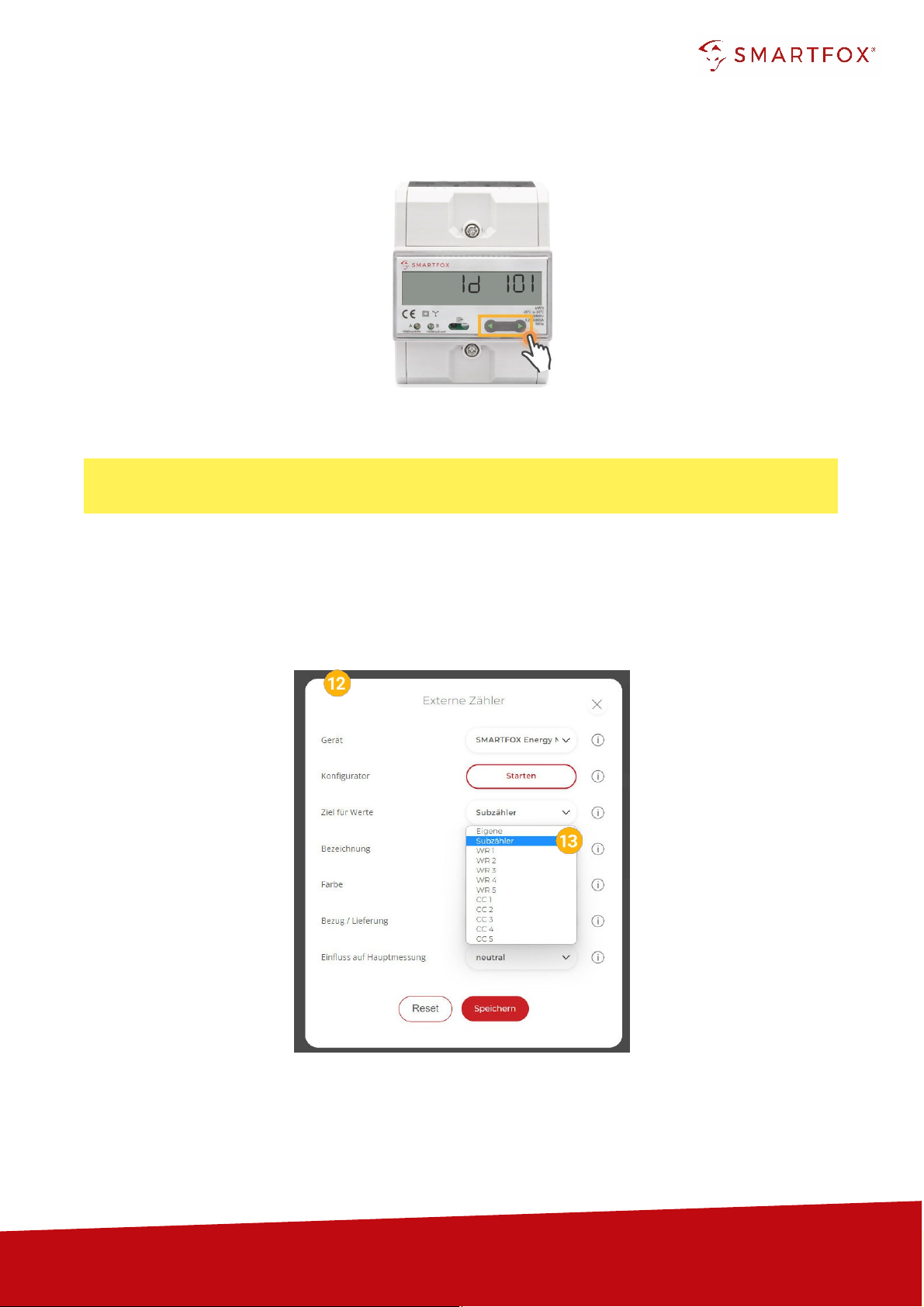

If the meter was already in operation, the current ID can be read on the

display. By means of touch-sensitive keys (fig. right: green arrows), you

can navigate through the menu until the ID is displayed.

www.smartfox.at

Click on "Configure".

10.

The counter is configured.

www.smartfox.at

Hint! If the configuration could not be completed, the SMARTFOX issues an error message. Check the

RS485 cabling, power supply of the participant and repeat the steps.

11.

After the configuration is complete, the ID can be checked on the meter.

12.

If the configuration of the bus address (ID) was successful, the other settings can be made.

13.

Under "Target for values" the function of the counter can be defined. The individual functions

are described in points 2.1 to 2.4.

www.smartfox.at

2.1

Function subcounter

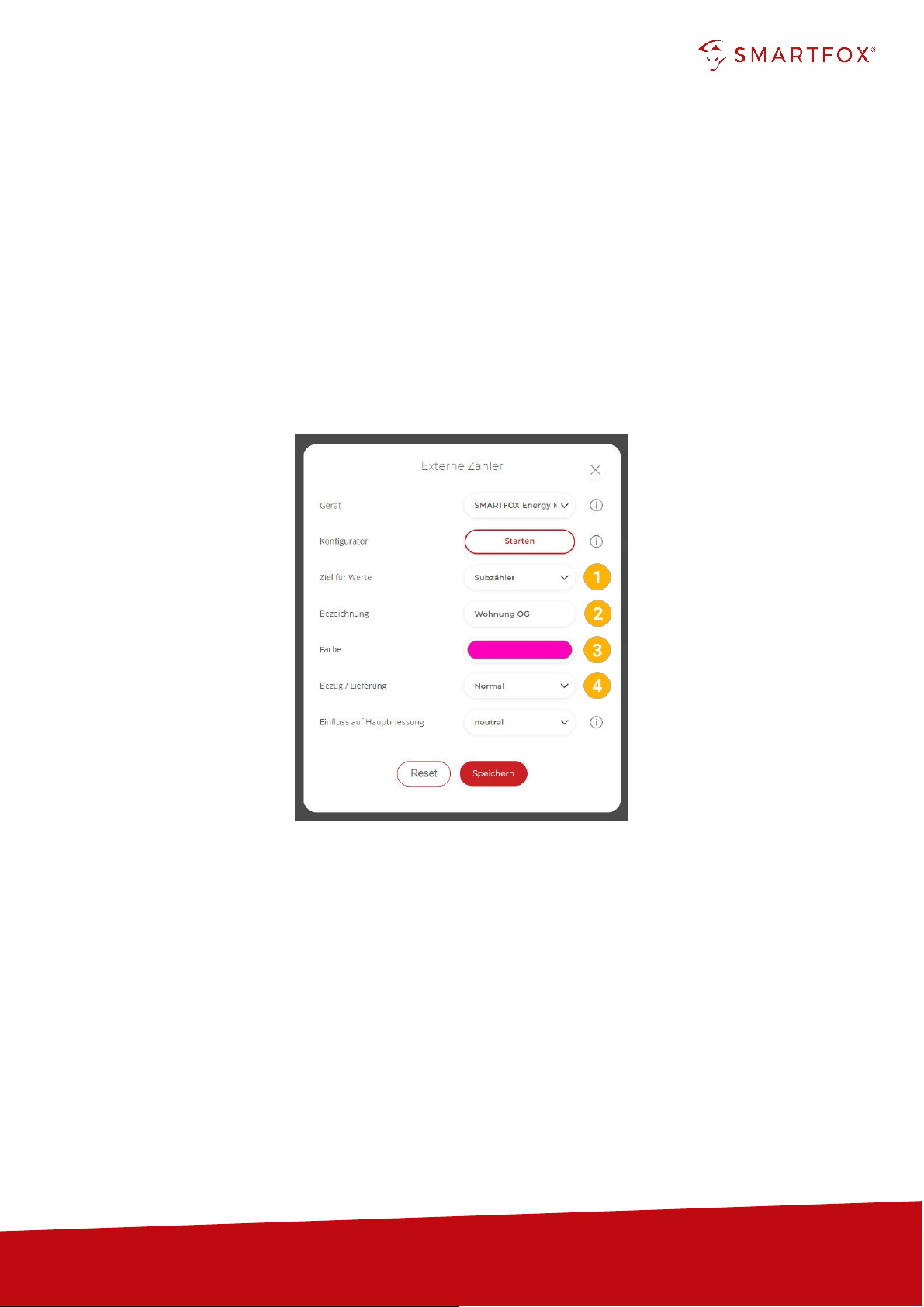

The "Sub-meter" function can be selected to connect various consumers to the monitoring (e.g. flat

meter, heat pump meter, general consumer...).

Select "Sub-counter" under Destination for values.

Under Designation, the name is given with which the meter is displayed in the portal.

The counter is displayed with the selected colour in the portal.

The "Supply / Delivery" setting can be used to change the counting direction if the input and

output have been reversed when connecting the meter.

www.smartfox.at

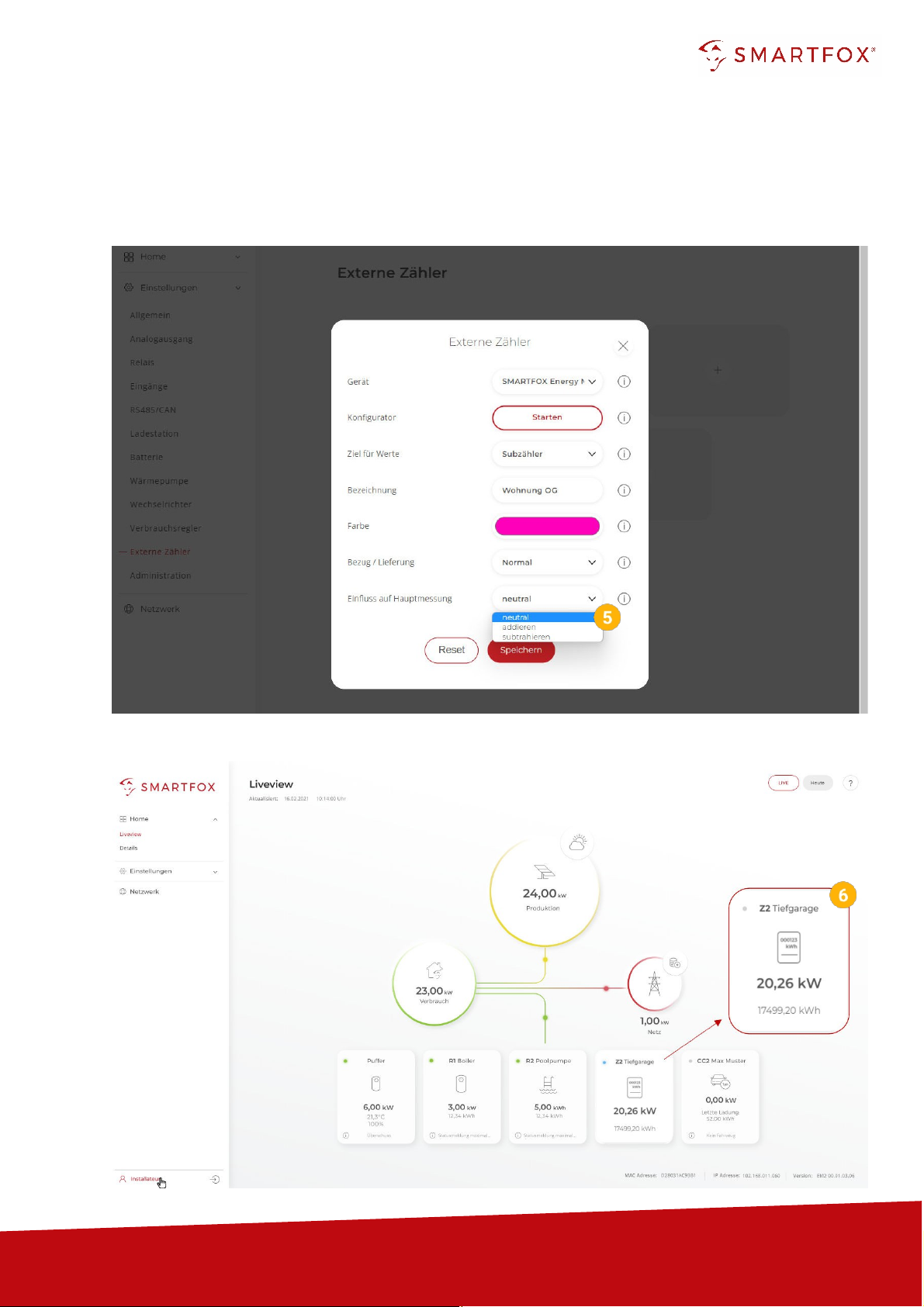

This setting can be used to define the influence of the counter on the main measurement.

Neutral: The power value of the meter has no influence on the main measurement.

Add: The power value of the meter is added to the main measurement.

Subtract: The power value of the meter is subtracted from the main measurement.

The measured values can now be read in LiveView, power charts, energy charts, ....
