PART- 1. BEFORE USING THE APPLIANCE

Special Instructions

 If this appliance is to replace an old refrigerator with a lock; break or remove the lock

as a safety measure before storing it, to protect children while playing might lock

themselves inside.

 Old refrigerators and freezers contain insulation gases and refrigerant, which must

be disposed of properly. Please ensure that the refrigeration tubing is not damaged.

IMPORTANT NOTE:

Please read this booklet before installing and switching on this appliance. The manu-

facturer assumes no responsibility for incorrect installation and usage as described in

this booklet.

Recommendations

Warning: Do not use mechanical devices or other artificial means to accelerate the

defrosting process. Do not use electrical appliances in the food storage of the appliance.

Keep the appliance ventilation openings free. Do not damage the refrigerators refriger-

ant circuit.

 Do not use adopters or shunts which could cause overheating or burning.

 Do not plug old, warped power supply cables.

 Do not twist and bend the cables.

 Do not allow children to play with the appliance. Children must

NEVER sit on drawers/shelves or hang from the door.

 Do not plug the power supply with wet hands.

 Do not place containers (glass bottles or tin containers) of liq-

uids into the freezer especially gassy liquids as they could cause

the container to burst during freezing.

 Bottles, which contain a high percentage of alcohol must be

sealed well and placed vertically in the refrigerator.

 Do not touch the cooling surfaces, especially with wet hands as

you could be burnt or hurt.

 Do not eat ice, which have just been removed from the freezer.

 If the supply cord is damaged it must be replaced by the manu-

facturer or service agent or appointed qualified person.

 The appliance is not intended for use by people (including children) with reduced

physical, sensory or mental capabilities, or lack of experience and knowledge, unless

they have been given supervision or instruction concerning use of the appliance by a

person responsible for their safety. Children should be supervised to ensure that they

dont play with the appliance. If the supply cord is damaged it must be replaced by the

manufacturer or service agent or appointed person.

UK - 3 -

Installation and Switching On The Appliance

 This appliance is connecting to 220-240V and 50 Hz.

 You can offer help from the service to install and switching on the appliance without

any cost.

 Before making the connection to the power supply, ensure that the voltage on the

nameplate corresponds to the voltage of electrical system in your home.

 If the socket does not match the refrigerator plug, replace the plug with a suitable

one (at least 16 A)

 Insert the plug into a socket with an efficient ground connection. If the socket has no

ground contact, we suggest you call an electrician for assistance.

 Manufacturer is not responsible for failure to complete the ground connection as

described in this booklet.

 Do not place the appliance in direct sunlight.

 Do not use in open air and shall not be exposed to the rain.

 Place the refrigerator far from heat sources and in a well-venti-

lated position. The refrigerator should be at least 50 cm from

radiators, gas or coal stoves and 5 cm far from electrical stoves.

 Keep the top free for at least 15 cm.

 Do not place heavy and lots of things on the appliance.

 If the appliance is installed next to another refrigerator or freezer,

observe a minimum distance of 2 cm to prevent condensation.

 The appliance must be stand firmly and level on the floor Use

the two front levelling-feet to compensate for an even floor.

 In order to have air circulation under the appliance, the space

under the appliance must be open. Dont close it with carpet ,

etc.

 The outside of the appliance and the accessories inside should

be cleaned with a solution of water and liquid soap; the inside

of the appliance with sodium bicarbonate dissolved in lukewarm

water. After drying replace all the accessories.

Before Switching On

 Wait after 3 hours before plugging the appliance in to the main power

to ensure proper performance.

 There can be an odour when you first switch on the appliance. It will

disappear after the appliance starts to cool.

UK - 4 -

PART- 2. THE VARIOUS FUNCTION AND POSSIBILITIES

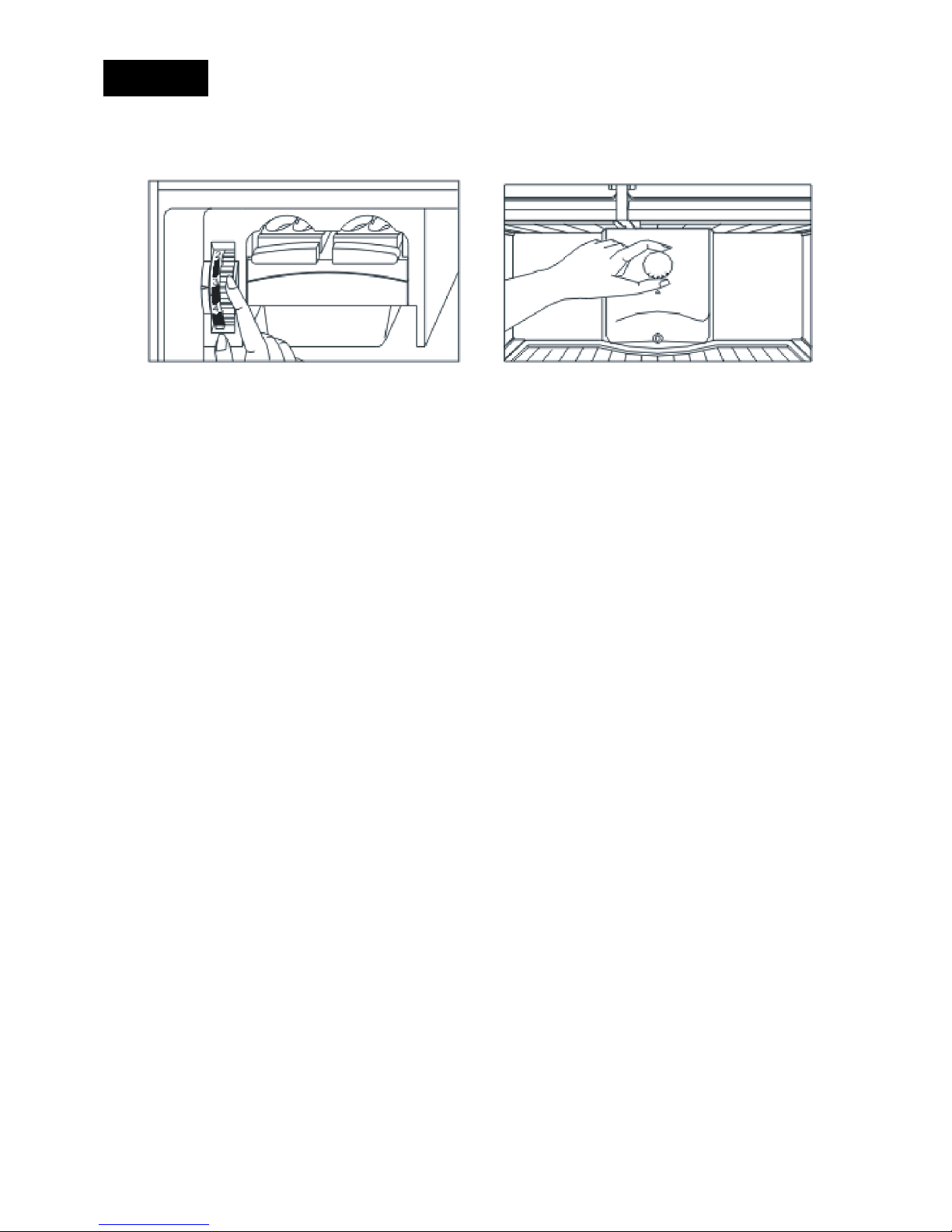

Thermostat Setting

FREEZER THERMOSTAT REFRIGERATOR THERMOSTAT

Freezer and refrigerator thermostat automatically regulates the inside temperature of

the compartments. By rotating the knob from position 1 to 5, colder temperatures can be

obtained. In cold seasons, you can set lower positions in order to decrease the energy

consumption.

Freezer Thermostat Setting;

1  2 : For short-term storage of food in the freezer compartment, you can set the

knob between minimum and medium position.

3  4 : For long-term storage of food in the freezer compartment, you can set knob

medium position.

5 : For freezing the fresh food. Th appliance will work longer. After you get the

cold condition you must position to its original position.

Refrigerator Thermostat Setting;

1  2 : For less coldly conditions.

3  4 : For normal conditions.

5 : For colder conditions.

 Note that; the ambient temperature, temperature of the freshly stored food and how

often the door is opened, affects the temperature in the refrigerator and freezer com-

partment. If required, change the temperature setting.

 When you first switch on the appliance, for starting a suitable cooling, the appliance

should work 24 hours continuously until it cools down to sufficient temperature.

 In this time do not open the door so often and place a lot of food inside the appliance.

 If the unit is switched off or unplugged, you must allow at least 5 minutes before

restarting or re-plugged the unit in order not to damage the compressor.

UK - 5 -

PART- 3. ACCESSORIES

Magic Shelf

Figure 1 Figure 2 Figure 3

Magic shelf, which is on the crisper cover, was designed to give you more place and

comfort placing the things in the appliance. This shelf is mobile so you can arrange long

or big containers on the crisper cover.

Making Ice Cubes

 Take out the ice making tray

 Fill the water in level of line.

 Place the ice making tray in its original position

 When ice cubes are formed, twist the lever to drop off ice cubes

into the icebox.

Do not fill the icebox with water in order to make ice. It can be

broken.

Fast Freezing Shelf

 Use the fast freezing shelf to freeze home cook-

ing (and fresh foods which is wanted to freeze)

more quickly because of the freezing rooms

greater freezing power.

 For opening the shelf pull the cover up, and

slide it in to the shelf. You can close it in the

same way

Note that; be sure that the cover of fast freezing shelf is closed before closing the

compartment door. If not, it can not show its fast freezing power.

(Optional)

UK - 6 -

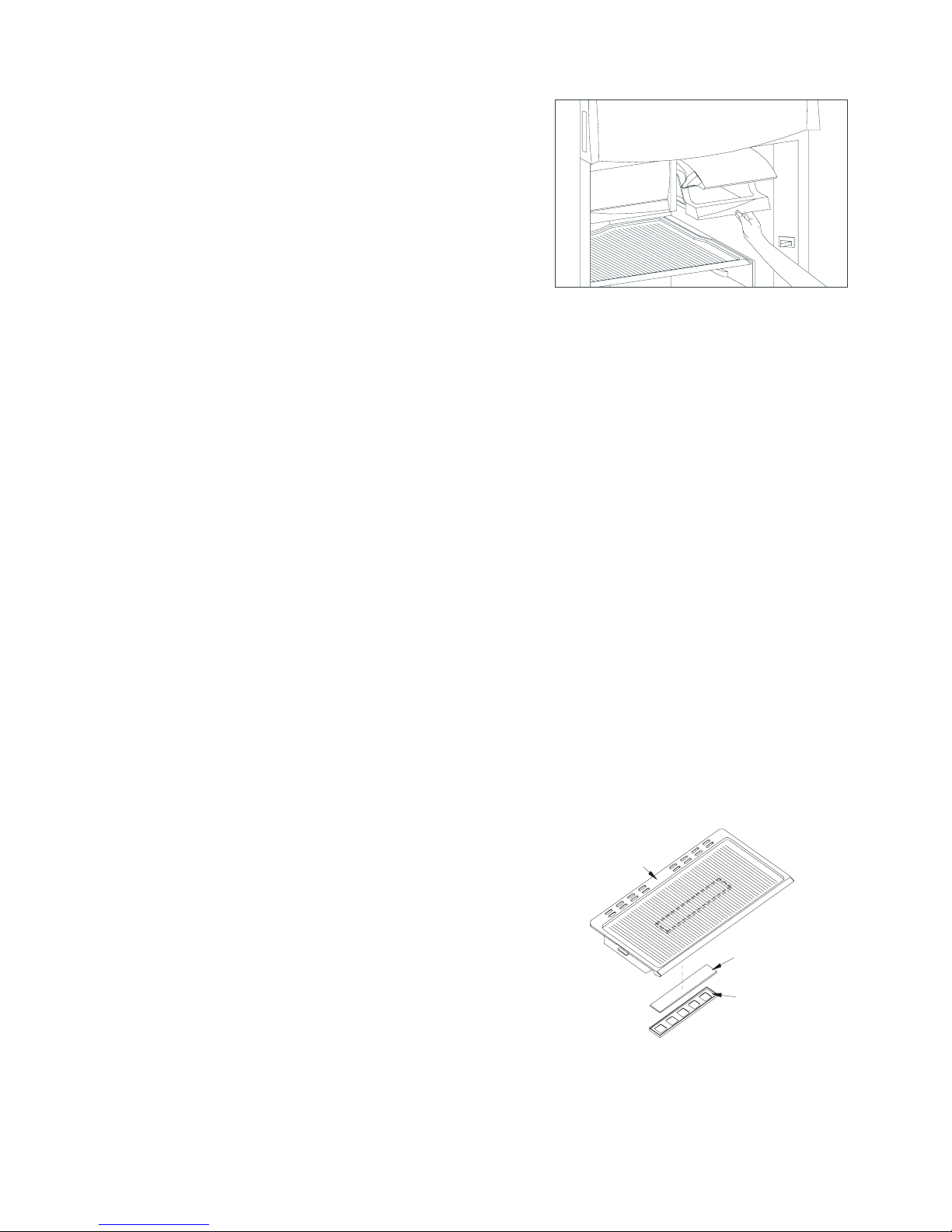

Crisper and Crisper Shelf

The crisper compartment absorbs and

decomposes ethylene gas (*) emitted from fruits

and vegetables with a FILTER in the crisper shelf,

keeping fruits and vegetables fresh. The filter also

eliminates unpleasant odours from inside the

crisper, and control the excess water released by

the vegetables, maintaining a high humidity

environment inside the crisper. When the crisper

shelf become dirty, remove the filter by taking out

the filter cover and wash the crisper cover with water.

! Do not wash the Humidity-Control Filter with water.

(*)NOTE; Ethylene gas is a gas, produced from fruits and vegetables, which acceler-

ates the ageing of fruits and vegetables. For example, spinach and broccoli turn to yellow

colour easily in places where ethylene gas is abundant.

Sebzelik raf

Nem tutucu filtre

Filtre kapa

ðý

Crisper Cover

Filter

Filter Cover

Chillier Shelves

Keeping food in the Chillier compartment

instead of the freezer or refrigerator compartment

allows food retain freshness and flavour longer,

while preserving its fresh appearance. When chillier

tray becomes dirty, remove it and wash it with water.

(Water freezes at 0°C, but foods containing salt

or sugar freeze at temperature lower than that)

Normally people use the chillier compartment

for raw fish, lightly pickled, rice, etc...

Do not put foods you want to freeze or ice trays in order to make ice.

(Optional)

UK - 7 -

REMOVING THE CRISPER COVER

First Step : emoving the crispers

 It is easy to pull out the crisper because

of the crisper has rollers.

 Pull the crisper out as far as possible

and pull the front part up and out

Second Step : Taking out the Partition

Crisper Center between the crispers.

 Bend the Partition toward left from the

bottom of the part

 Take out the Partition crisper

Third Step: Taking out the crisper cover

 Pull out the crisper cover until the nails

of the cover come on the cavities (right

and left side) of the cabinet.

 When the nails comes into the cavities

pull up and take out the crisper cover

Cavity Nail

Nail

Crisper Cover

Partition Crisper

center

Crisper

(Optional)

UK - 8 -

RESETTING THE CRISPER COVER

First Step : Settle the crisper cover

 Put the crisper cover on its place fitting

the nails and the cavities on the cabinet..

 Then push forward the crisper cover un-

til it fits on its place.

Second Step : Placing the Partition Crisper

centre

 Place the Partition on its cavities placed

on the bottom of the cabinet and on the

wall of the crisper housing like shown

in the figure

Third Step: Settling the crispers

 Put on the crisper on its rolls on its

places..

 Push forward.

Cavity Nail

Nail

Crisper Cover

Partition Crisper

center

Crisper

(Optional)

Andere Smeg Kühlschrank Handbücher

Smeg

Smeg FC182PBNEM Bedienungsanleitung

Smeg

Smeg FA374AL Bedienungsanleitung

Smeg

Smeg S64STR2P Bedienungsanleitung

Smeg

Smeg FAB10 Bedienungsanleitung

Smeg

Smeg 142396 Bedienungsanleitung

Smeg

Smeg UKUD7140LSP Bedienungsanleitung

Smeg

Smeg FA 40B4 Bedienungsanleitung

Smeg

Smeg Refrigerator-freezers Bedienungsanleitung

Smeg

Smeg FD43PXNF1 Bedienungsanleitung

Smeg

Smeg FR155SE Benutzerhandbuch

Smeg

Smeg FI224STB Bedienungsanleitung

Smeg

Smeg ZAC3172NP Bedienungsanleitung

Smeg

Smeg FQ60CPO Bedienungsanleitung

Smeg

Smeg FAB28RPB3UK Bedienungsanleitung

Smeg

Smeg FAB32L Bedienungsanleitung

Smeg

Smeg CB30PFNF Bedienungsanleitung

Smeg

Smeg CR330SENF Benutzerhandbuch

Smeg

Smeg WRSR25V5A Bedienungsanleitung

Smeg

Smeg Fridge-freezer Bedienungsanleitung

Smeg

Smeg FD 32 AP Bedienungsanleitung

Smeg

Smeg FAB5RWH5 Bedienungsanleitung

Smeg

Smeg ABM32 Bedienungsanleitung

Smeg

Smeg SBS63XE Bedienungsanleitung

Smeg

Smeg FAB5 Bedienungsanleitung

Beliebte Kühlschrank Handbücher anderer Marken

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Bedienungsanleitung

Sharp

Sharp SJ-BA31IEXW2-EU Bedienungsanleitung

CORBERO

CORBERO CC2300MCW Bedienungsanleitung

KitchenAid

KitchenAid 2205264 Bedienungsanleitung

Stengel

Stengel KU 1101 A++ Bedienungsanleitung

NEFF

NEFF KI181 Series Bedienungsanleitung

Hoshizaki

Hoshizaki Reach-In Bedienungsanleitung

Amana

Amana ASD2524VES00 Bedienungsanleitung

BOMANN

BOMANN KGC 213 Bedienungsanleitung

Danby

Danby DAR044A1SLDD Montageanleitung

Samsung

Samsung RF323TE Bedienungsanleitung

Beko

Beko CSA31022 Bedienungsanleitung

IKEA

IKEA FROSTIG C 185 E Bedienungsanleitung

Electrolux

Electrolux ER 6821 D Bedienungsanleitung

True

True TS-28 Bedienungsanleitung

Frigidaire

Frigidaire FSC23R5DW9 Bedienungsanleitung

Beko

Beko LSP4579W Bedienungsanleitung
