SMITH SYSTEM 58021 Bedienungsanleitung

Assembly Instructions

MOTUM TEACHERS DESK

SPLIT HEIGHT LEFT HAND

If you have damaged or missing components,

please contact customer service at 1-800-328-1061

MODEL NUMBERS

58021 AND 58023

REVISED: 2/2022

Document #: 179719

Hardware and Components

BOX A (60149)

(60152)

For 72” Model Only (58022)

(60151)

ITEM NO. DESCRIPTION QTY

A-1 TEACHER DESK U TUBE LEG ASSEMBLY 1

A-2 SWIVEL GLIDE W/ GLIDE STOP 2

A-3 TEACHER DESK STRAIGHT TUBE LEG ASSEMBLY 1

A-4 TD BRACED L BRACKET 1

A-5 TD STRAIGHT TUBE LEG Z BRACKET 1

ITEM NO. DESCRIPTION QTY

1 Vibration-Resistant Catch 1

2 Vibration-Resistant Strike Plate 1

3 NO.8x3/4" PHILLIPS/SLOTTED WOOD SCREW 2

4 NO. 4 X 1/2" PHILLIPS/SLOTTED WOOD SCREW 2

ITEM NO. DESCRIPTION QTY

5 TD SUPPORT BRACE 1

6 TD SUPPORT BRACE HARDWARE PACK 1

ITEM NO. DESCRIPTION QTY

A-8 TD U TUBE LEG Z BRACKET 1

A-9 TD L BRACKET FRONT 120 1

A-10 TD FILLER BRACKET 2

A-11 TD L BRACKET FRONT MAIN 1

A-12 TD FRONT MAIN TO 120 SPACER 1

REVISED: 2/2022

Document #: 179719

BOX B (60150)

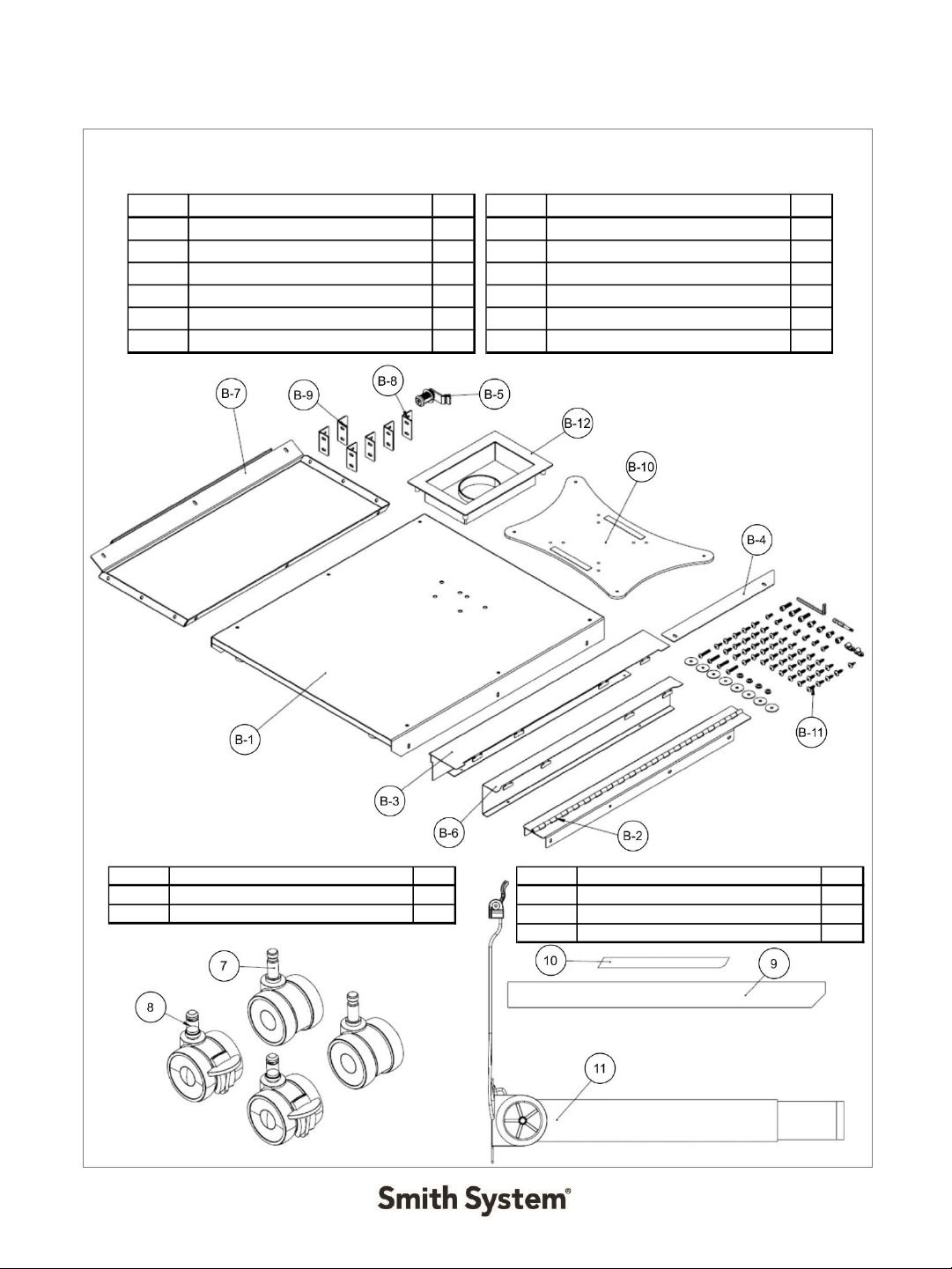

ITEM NO. DESCRIPTION QTY

B-1 TD SPLIT HEIGHT BASE ASSEMBLY 1

B-2 TD DOOR HINGE ASSEMBLY 1

B-3 SPLIT HEIGHT COSMETIC COVER SIDE 1

B-4 SPLIT HEIGHT SPACER 1

B-5 MWS TD LOCK ASSEMBLY 1

B-6 SPLIT HEIGHT COSMETIC COVER FRONT 1

ITEM NO. DESCRIPTION QTY

B-7 TD SPLIT HEIGHT ANGLED PANEL 1

B-8 TD BOLT ON L BRACKET 5

B-9 MWS TD WELD ON L BRACKET 1

B-10 BUTTERFLY PLATE WITH HARWARE PACK 1

B-11 TD SPLIT HEIGHT HARDWARE PACK 1

B-12 MWS TOD TILT SUPPORT ASSEMBLY 1

ITEM NO. DESCRIPTION QTY

7 2" Caster No Lock w/ 7/16" Friction Stem 2

8 2" Caster w/Lock 7/16" Friction Stem 2

ITEM NO. DESCRIPTION QTY

9 TD SPLIT LAMINATE COVER LH SIDE 1

10 TD SPLIT LAMINATE COVER LH FRONT 1

11 SIT-STAND DESK FLIP TOP COLUMN 1

REVISED: 2/2022

Document #: 179719

Hardware and Components

BOX A ITEM #A-13 (60139) –

TEACHERS DESK HARDWARE

PACK COMPONENTS

BOX B ITEM #B-11 (60140) –

TD SPLIT HEIGHT HARDWARE

PACK COMPONENTS

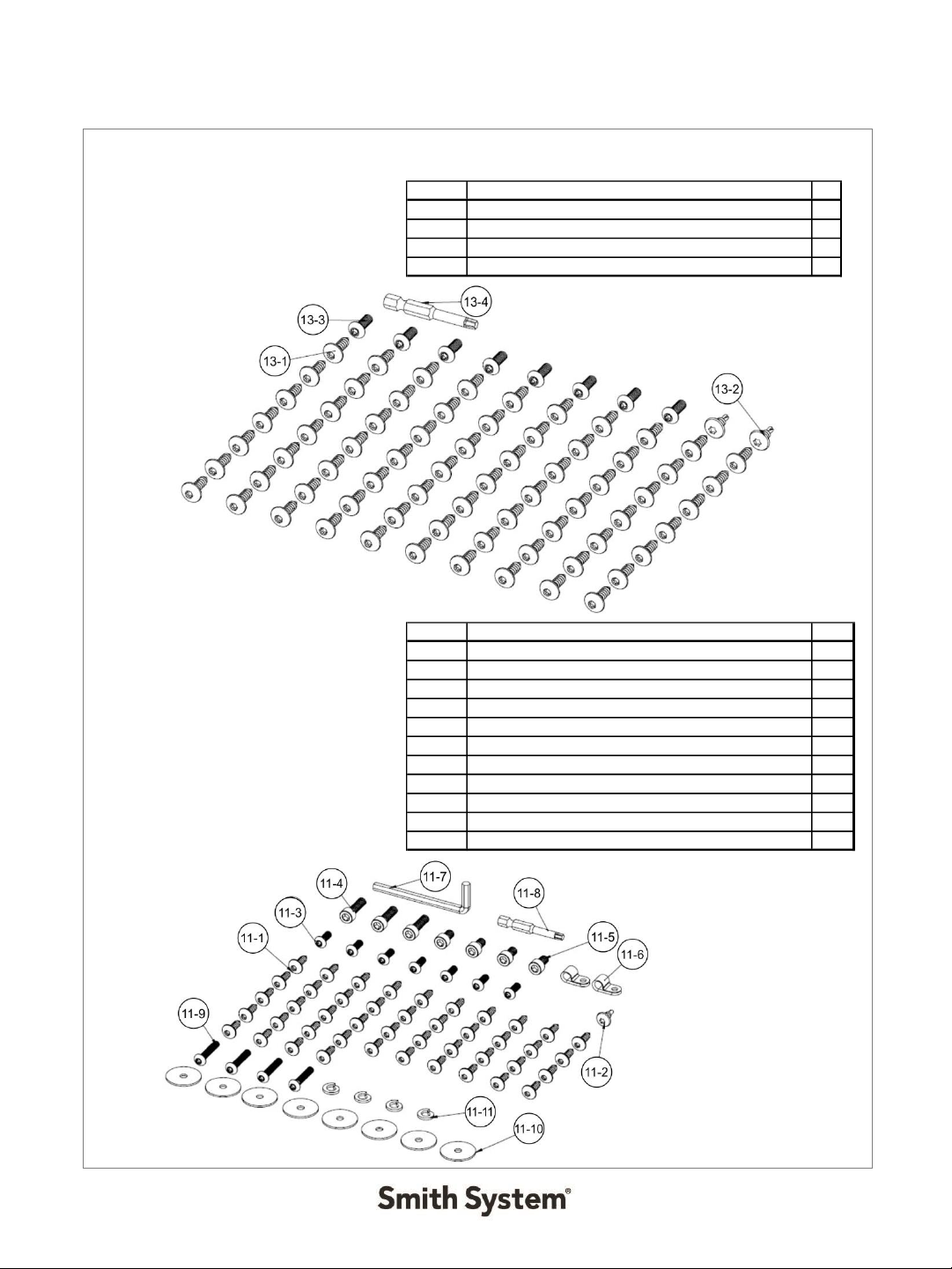

ITEM NO. DESCRIPTION QTY

13-1 NO. 10 X 5/8" TORX BUTTON HEAD SCREW 70

13-2 NO. 10 X 1/2" TORX SELF DRILLING BUTTON HEAD SCREW 2

13-3 10-32 X 1/2" TORX BUTTON HEAD W/PATCH 8

13-4 T25 TORX POWER BIT #2 1

ITEM NO. DESCRIPTION QTY

11-1 NO. 10 X 5/8" TORX BUTTON HEAD SCREW 44

11-2 NO. 10 X 1/2" TORX SELF DRILLING BUTTON HEAD SCREW 1

11-3 10-32 X 1/2" TORX BUTTON HEAD SCREW W/PATCH 7

11-4 M6 X 1.0 X 20MM SOCKET HEAD, HEX DRIVE, BLK OX 3

11-5 M6 X 1.0 X 10MM SOCKET HEAD, HEX DRIVE, BLK OX 4

11-6 1/4" I.D. PLASTIC LOOP CLAMP 2

11-7 HEX KEY 5MM SHORT ARM 1

11-8 T25 TORX POWER BIT 2" 1

11-9 10-32 X 1" TORX BUTTON HEAD W/PATCH 4

11-10 #10 WASHER 1" od 8

11-11 M6 SPLIT LOCK WASHER 4

REVISED: 2/2022

Document #: 179719

Hardware and Components

FOR 60” MODEL ONLY

58021

FOR 72” MODEL ONLY

58023

A TD STRAIGHT LEG SIDE PANEL 1

B TD U LEG SIDE PANEL 1

C TD MAIN FRONT PANEL LH 1

D TD 120 FRONT PANEL LH 1

J TD SPLIT 24X36" TOP LH 1

K TD SPLIT 24X24" TOP 1

M TD SPLIT SIDE PANEL LH 1

L TD SPLIT DOOR LH 1

O TD SPLIT SHELF LH 1

N TD SPLIT MIDDLE PANEL LH 1

T TD SPLIT 24X45" TOP LH 1

REVISED: 2/2022

Document #: 179719

Hardware and Components

REVISED: 2/2022

Document #: 179719

General Assembly Guidelines

Special Notes:

•Ensure that all components are accounted for and undamaged

before assembling

•Follow each step carefully to ensure the proper assembly of this

product

•2-person assembly is highly recommended

•Clean the product with a mild cleaner and damp cloth

Tools:

•Framing Square

•Drill

•#1 and #2 Phillips bit

•Screwdriver (optional)

•Wood Clamps (optional)

•¼” bit extender (optional)

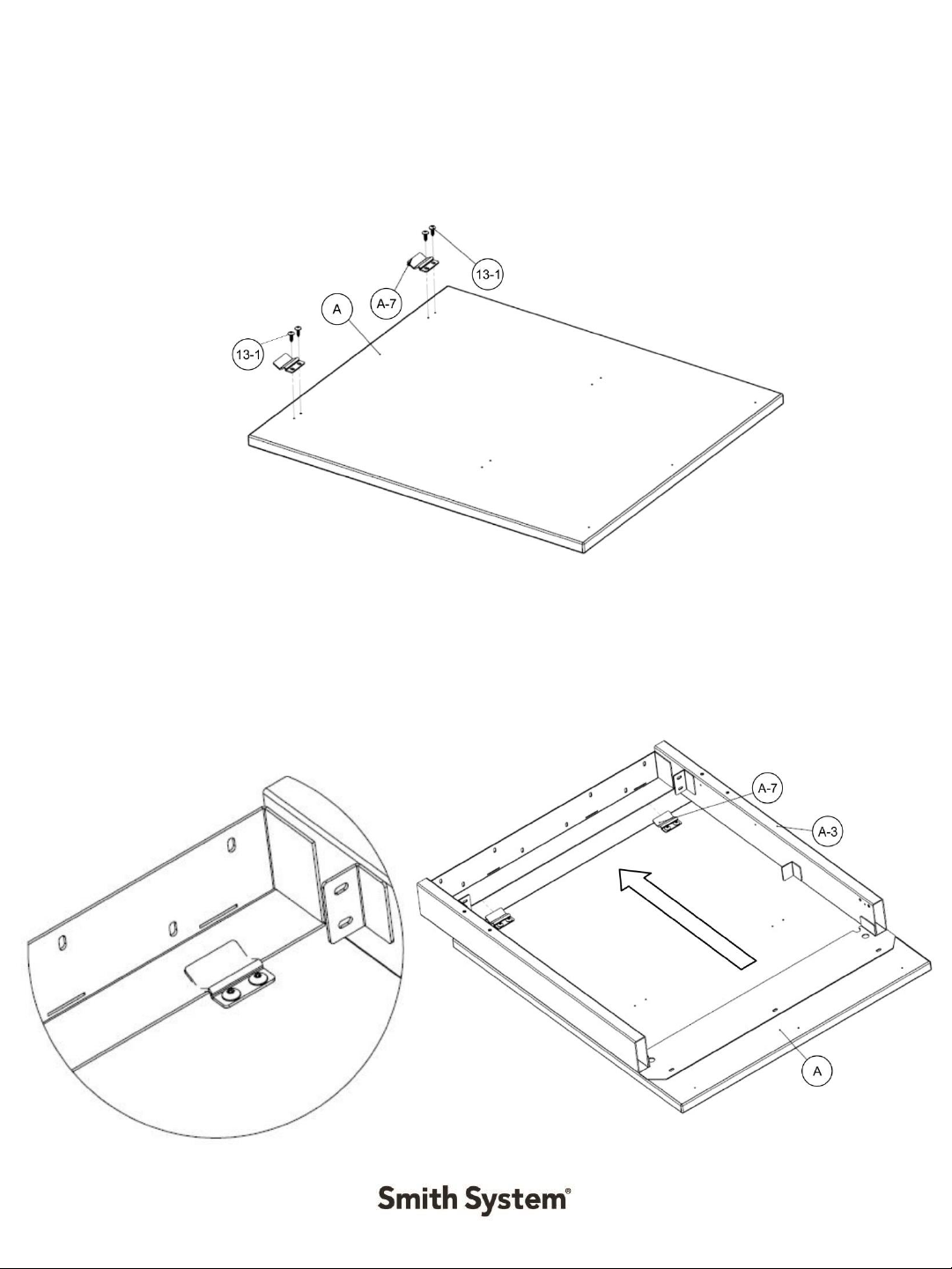

1. Place wood top on clean smooth surface upside down with the pilot holes facing up,

fasten 2x item #A-7 to item A using 4x fasteners item #13-1 using the supplied T25

Torx bit item #13-4.

2. Slide the previously assembled panel A onto item #A-3, item #A-7 should side over

the metal lip of item #A-3 as shown. Do not install any fasteners at this point this

board will be removed later. It is helpful to clamp panel A to item #A-3.

REVISED: 2/2022

Document #: 179719

Assembly Instructions

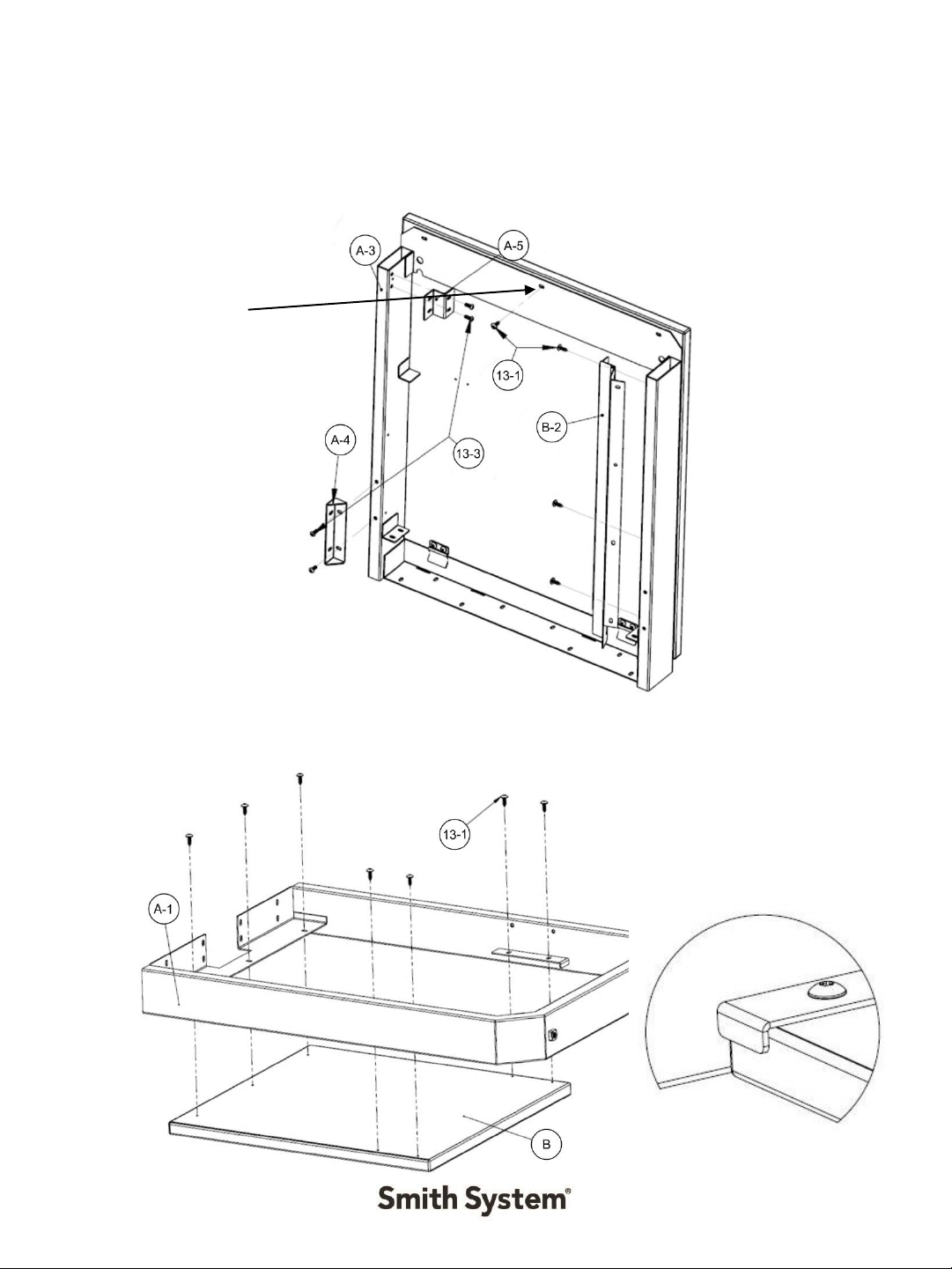

3. Using previously assembled components install item #A-4 and #A-5 using 4x fastener

#13-3, do not fully tighten, install item #B-2 using 3x fastener #13-1 note to

orientation of #B-2, do not fully tighten.

4. Position Panel B as shown, centering the panel to create equal gaps, a spacer or credit

card works well. Fasten panel B to item #A-1 using 7x fasteners item #13-1 using the

supplied T25 Torx bit item # 13-4. NOTE: The panel should sit on the metal finger as

shown in detail.

Optional: Use 1x

fastener #13-1 to

hold #A-3 in place.

This fastener will be

removed on step 10

REVISED: 2/2022

Document #: 179719

Assembly Instructions

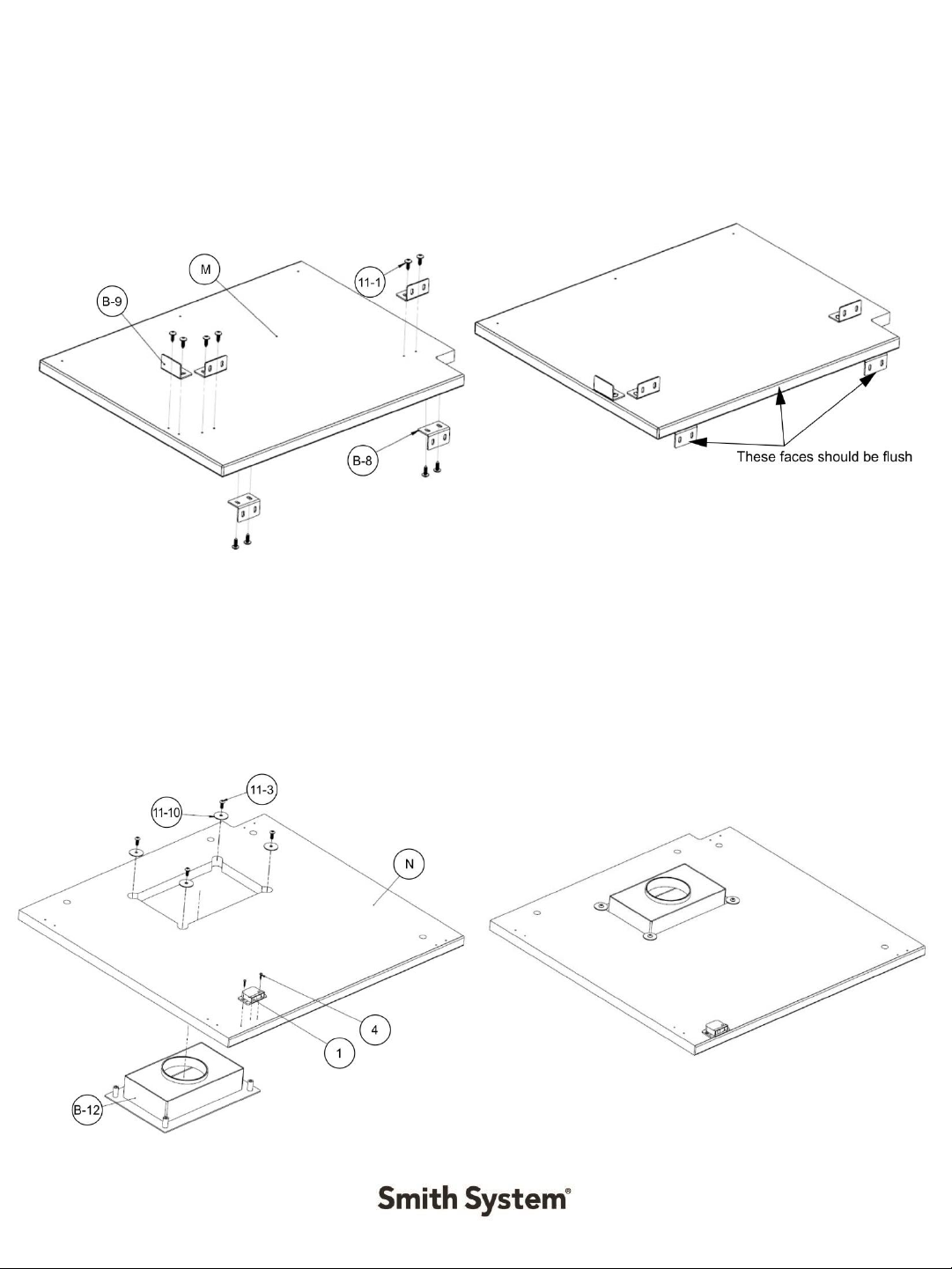

5. Fasten 4x item #B-8 and 1x item #B-9 to panel M using 10x fasteners item #11-1 using

the supplied T25 Torx bit item #13-4.

6. Position Panel N as shown over the top of item #B-12. Fasten panel N to item #B-12

using 4x fasteners item #11-3 and #11-10, finger tighten only. Fasten item #1 using 2x

fastener #4 as shown.

REVISED: 2/2022

Document #: 179719

Assembly Instructions

7. Using 2x item #A-10 as spacers. Place panel D as shown. Confirm edges of panels D and

A align as shown. Fasten panel D with the 2x indicated fastener #13-1. Confirm edges of

panels D and A are still aligned before installing the remaining 6x #13-1 fasteners

REVISED: 2/2022

Document #: 179719

8. Place the previously assembled panel N as shown, ensure panel N is below the 4 mounting

tabs before sliding panel M into place. This is the most critical step, ensure all 3 edges of

panel N are touching the corresponding edges as shown below. Fasten panel N and M

using 8x fastener #11-1

These edges

should touch

Assembly Instructions
