Smooth Fitness EVO 2CD Bedienungsanleitung

OWNER’S MANUAL

RETAIN FOR FUTURE REFERENCE

TOLL FREE CUSTOMER SERVICE

1.888.800.1167

MODEL NUMBER: EVO 2CD

SERIAL NUMBER:

USER’S WEIGHT LIMITATION 400lbs.

APPLICATION STANDARD

ASSEMBLY

OPERATING INSTRUCTIONS

CONDITIONING GUIDELINES

MAINTENANCE

SERVICE

EVO 2CD Motorized Treadmill

Optional Equipment:Standard Equipment:

precautions

-2-

BEFORE BEGINNING

Use the treadmill only as

described in this manual.

Place on a level surface, with 6

feet (2 m) of clearance behind it. Do

not place the treadmill on any surface

that blocks air openings. To protect

the floor or carpet from damage, place

a mat under the treadmill.

When choosing a location for the

treadmill make sure that the location

and position permit access to a plug.

Keep the treadmill indoors, away

from moisture and dust. Do not put

the treadmill in a garage or covered

patio, or near water.

Do not operate the treadmill

where aerosol products are used or

where oxygen is being administered.

Keep children under the age of

12 and pets away from the treadmill

at all times.

The treadmill should not be used

by persons weighing more than

400lbs.

Never allow more than one

person on the treadmill at a time.

Wear appropriate exercise clothing

when using the treadmill. Do not

wear loose clothing that could become

caught in the treadmill. Athletic

support clothes are recommended

for both men and women. Always

wear athletic shoes. Never use the

treadmill with bare feet, wearing only

stockings, or in sandals.

For future service or related

questions.

Please staple your receipt and/or

write in the name and phone number

of the retail store where you

purchased your EVO treadmill.

Name:

Phone Number:

Receipt:

Precautions

WARNING: To reduce the risk of

burns, fire, electric shock, or injury

to persons, read the following

important precautions and

information before operating the

treadmill.

It is the responsibility of the

owner to ensure that all users of this

treadmill are adequately informed of

all warnings and precautions.

When connecting the power

cord, plug the power cord into

a grounded circuit. No other

appliance should be on the same

circuit.

Always straddle the belt and allow

it to start moving before stepping

onto the belt.

Always examine your treadmill

before using to ensure all parts are

in working order.

Allow the belt to fully stop before

dismounting.

Never insert any object or body

parts into any opening.

Follow the safety information in

regards to plugging in your treadmill.

Keep the power cord away from

the incline wheels and do not run

the power cord underneath your

treadmill. Do not operate the

treadmill with a damaged or frayed

power cord.

Always unplug the treadmill before

cleaning and/or servicing. Service

to your treadmill should only be

performed by an authorized service

representative, unless authorized

and/or instructed by the

manufacturer. Failure to follow these

instructions will void the treadmill

warranty.

Never leave the treadmill

unattended while it is running.

power requirements

POWER REQUIREMENTS

conductor and a grounding plug.

Always plug the power cord into a

surge protector, and plug the surge

protector into an appropriate outlet

that is properly installed and

grounded in accordance with all local

codes and ordinances.

This product is for use on a nominal

120-volt circuit, and has a grounding

plug that looks like the plug illustrated

in the drawing below.

Power Requirements:

IMPROPER CONNECTION OF

THE EQUIPMENT GROUNDING

CONNECTOR CAN RESULT IN A

RISK OF AN ELECTRIC SHOCK.

CHECK WITH A QUALIFIED

ELECTRICIAN OR SERVICE MAN

IF YOU ARE IN DOUBT AS TO

WHETHER THE PRODUCT IS

PROPERLY GROUNDED. DO NOT

MODIFY THE PLUG PROVIDED

WITH THE PRODUCT, IF IT WILL

NOT FIT THE OUTLET, HAVE A

PROPER OUTLET INSTALLED BY

A QUALIFIED ELECTRICIAN.

This treadmill can be seriously

damaged by sudden voltage

changes in your home’s electrical

power. Voltage spikes, surges and

noise interference can result from

weather conditions or from other

appliances being turned on or off.

To reduce the possibility of treadmill

damage, always use a surge

protector (not included) with your

treadmill.

Surge protectors can be purchased

at most hardware stores. The

manufacturer recommends a single

outlet surge protector with a UL1449

rating as a Transient Voltage Surge

Suppressor (TVSS) with a UL

suppressed voltage rating of 400V

or less and an electrical rating

120VAC,15 amps.

This treadmill must be grounded to

reduce the risk of electrical shock.

Grounding provides a path of least

resistance for electric current, should

the treadmill malfunction. This

treadmill comes with an electrical

cord having an equipment-grounding -3-

SURGE PROTECTOR

GROUNDING PLUG

SURGE PROTECTOR

GROUNDING PIN

GROUNDING OUTLET

TREADMILL POWER CORD

ADAPTOR

SCREW

GROUNDING OUTLET

SURGE PROTECTOR

GROUNDING PLUG

preassembly

-4-

BEFORE BEGINNING

Invite a friend

Some of the assembly steps may

require heavy lifting. It is

recommended that you obtain the

assistance of another person when

assembling this product.

User Weight Limitation

Please note that there is a weight

limitation for this product. If you

weigh more than 400lbs. it is not

recommended that you use this

product. Serious injury may occur

if the user’s weight exceeds the

limit shown here. This product is

not intended to support users whose

weight exceeds this limit.

Open the boxes

You are now ready to open the boxes

of your new equipment. Make sure

to inventory all of the parts that are

included in the boxes. Check the

Hardware Comparison Chart for a

full count of the number of parts

included for this product to be

assembled properly. If you are

missing any parts or have any

assembly questions call your local

Smooth Retailer.

Gather your tools

Before starting the assembly of

your unit, make sure that you have

gathered all the necessary tools you

may require to assemble the unit

properly. Having all of the necessary

equipment at hand will save time

and make the assembly quick and

hassle-free.

Clear your work area

Make sure that you have cleared

away a large enough space to

properly assemble the unit. Make

sure space is free from anything that

may cause injury during assembly.

After the unit is fully assembled,

make sure there is a comfortable

amount of free area around the unit

for unobstructed operation.

-5-

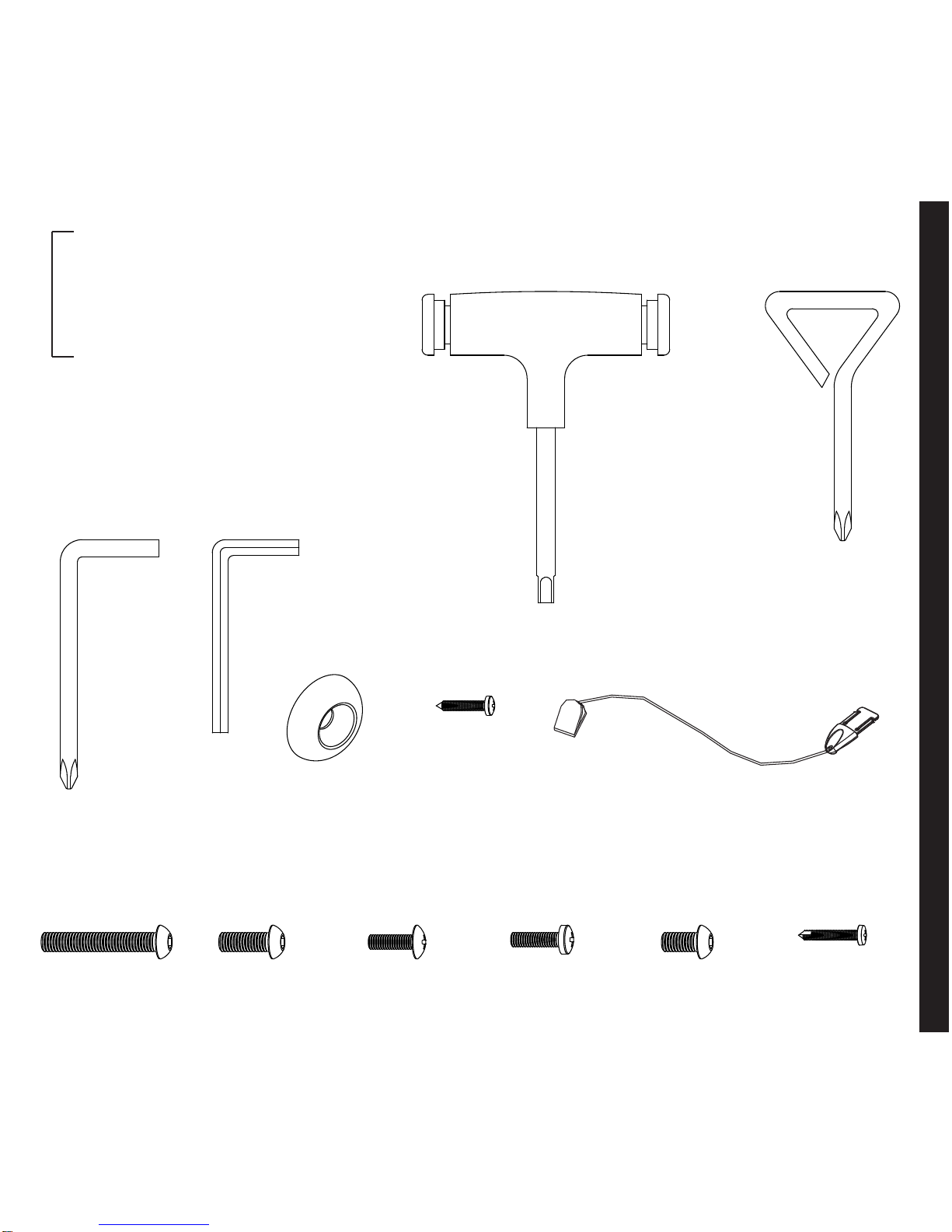

COMPARISON CHART

For your convenience, we have

identified the hardware used in

the assembly of this product.

This chart is provided to help you

identify those items that may be

unfamiliar to you.

hardware

Screw

M4 x 19mm

(4 pieces)

Screw

#8 x 19mm

(4 pieces)

Screw

M6 x 20mm

(2 pieces)

Bolt

M8 x 15mm

(4 pieces)

121

Allen Head Bolt

M9 x 19mm

(4 pieces)

Metal Cap

(2 pieces)

Allen Wrench

(1 piece)

Wrench

(1 piece)

Wrench

(1 piece)

Wrench

(1 piece)

130

Screw

M6 x 15mm

(2 pieces)

Bolt

M8 x 78mm

(2 pieces)

Safety Key

(1 piece)

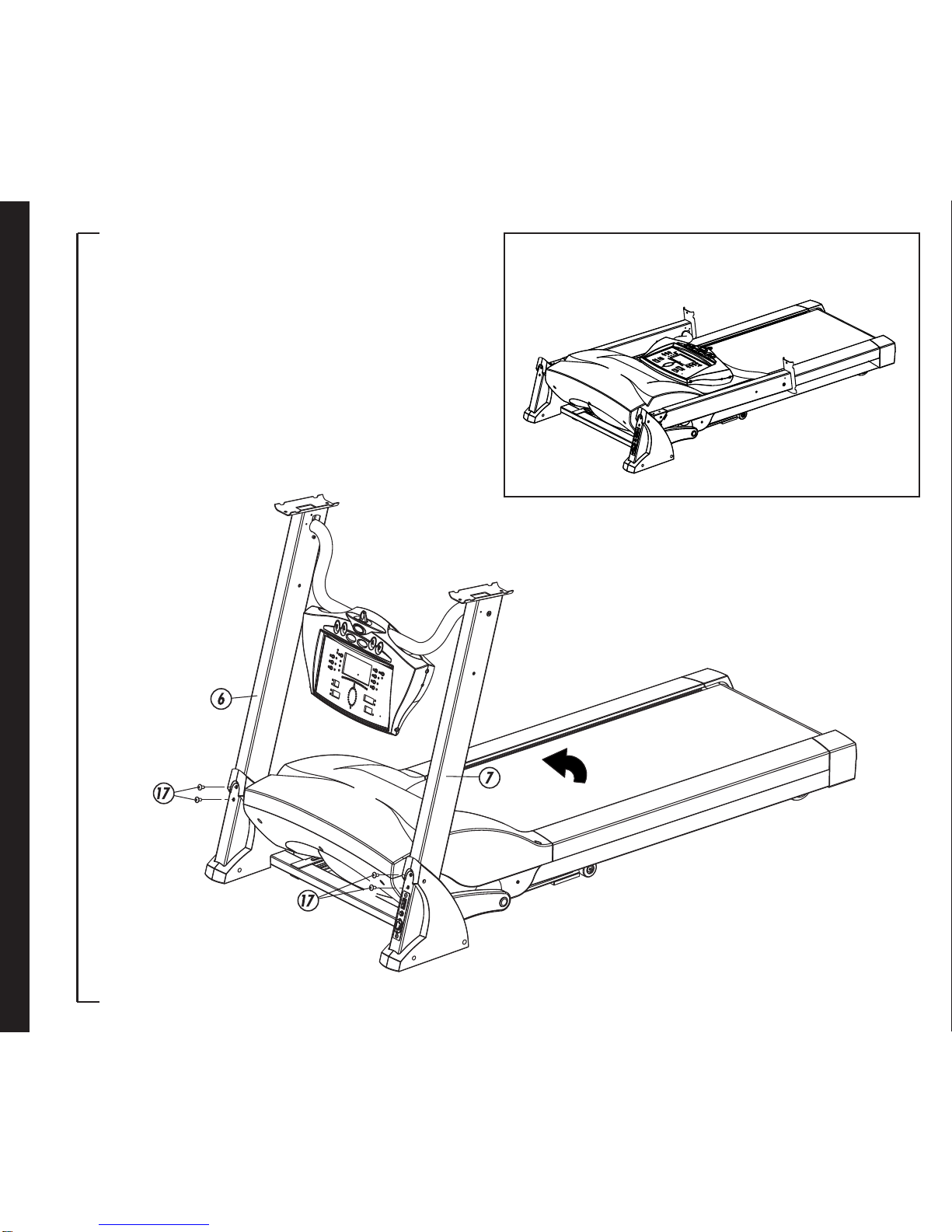

Step 1:

Remove your EVO 2CD Treadmill from

the carton and place it on the floor in an

open area as shown in FIG-1.

Raise the Right and Left Handle Uprights

(6 and 7) to the upright position and

secure with Screws (17).

assembly instructions

-6-

ASSEMBLY

FIG-1

assembly instructions

-7-

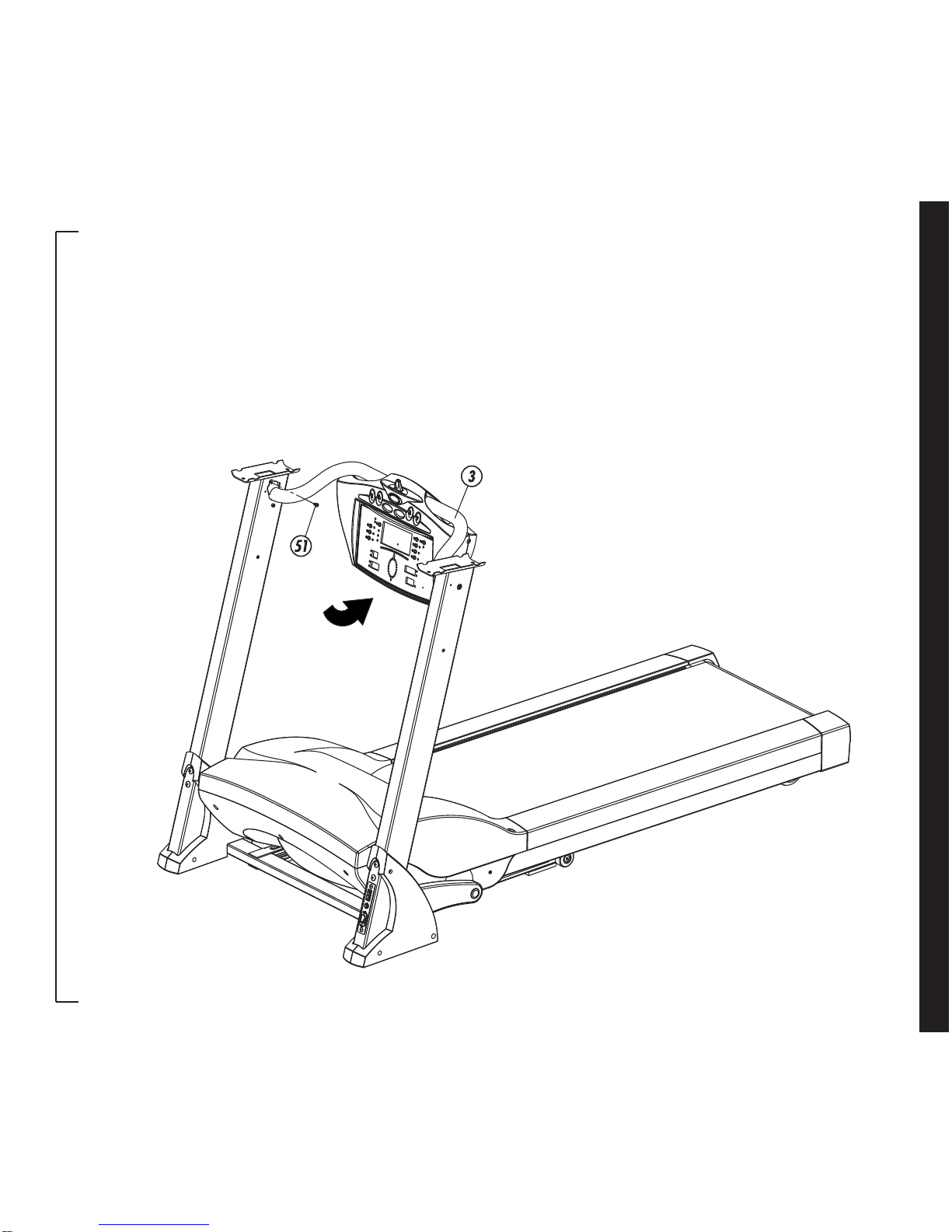

Step 2:

Remove the Screw (51) then rotate the

Computer Support (3) up to the correct

position as shown and secure with the

Screw (51).

ASSEMBLY

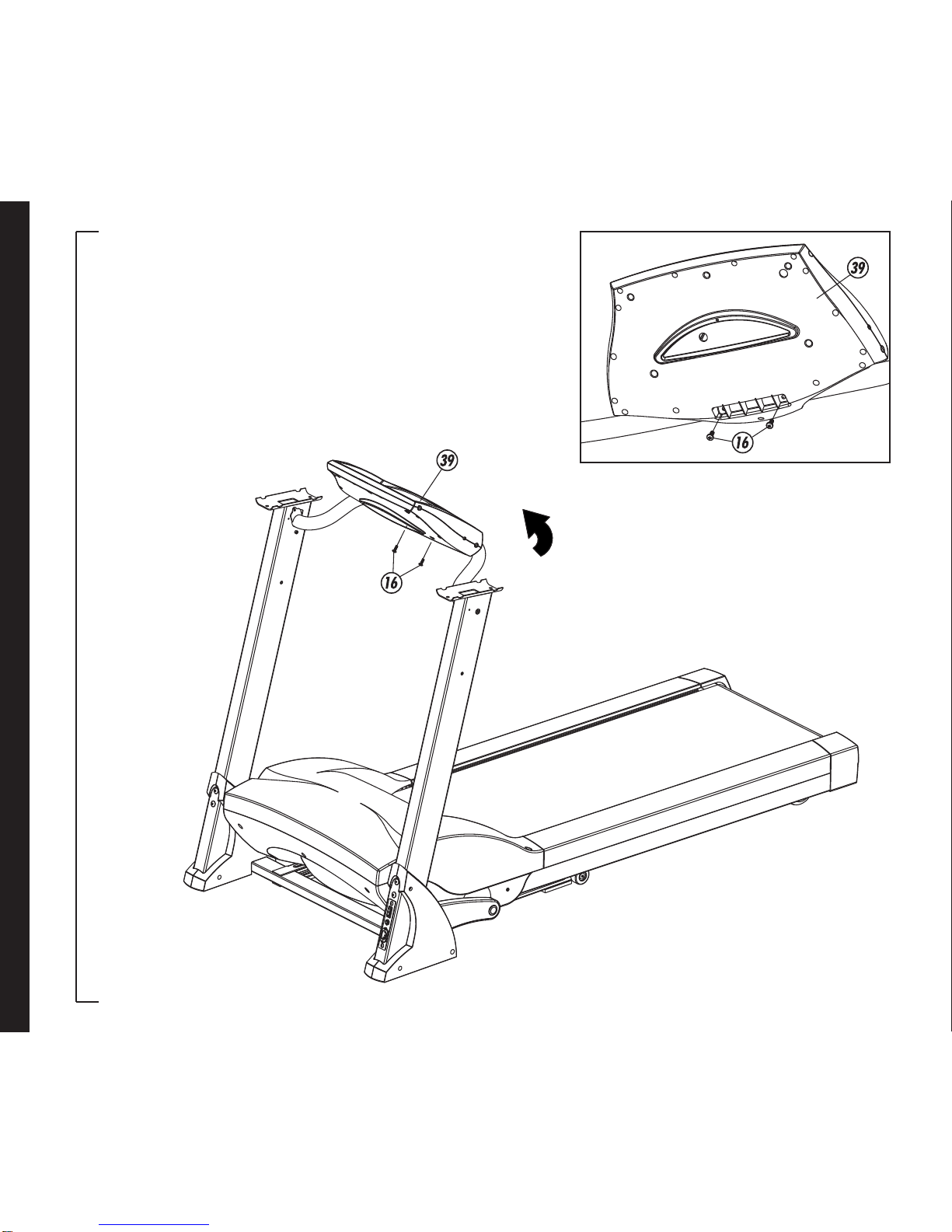

Step 3:

Rotate the Console (39) up to its proper

angle and secure with Screws (16) as

shown in FIG-2.

ASSEMBLY

assembly instructions

-8-

FIG-2

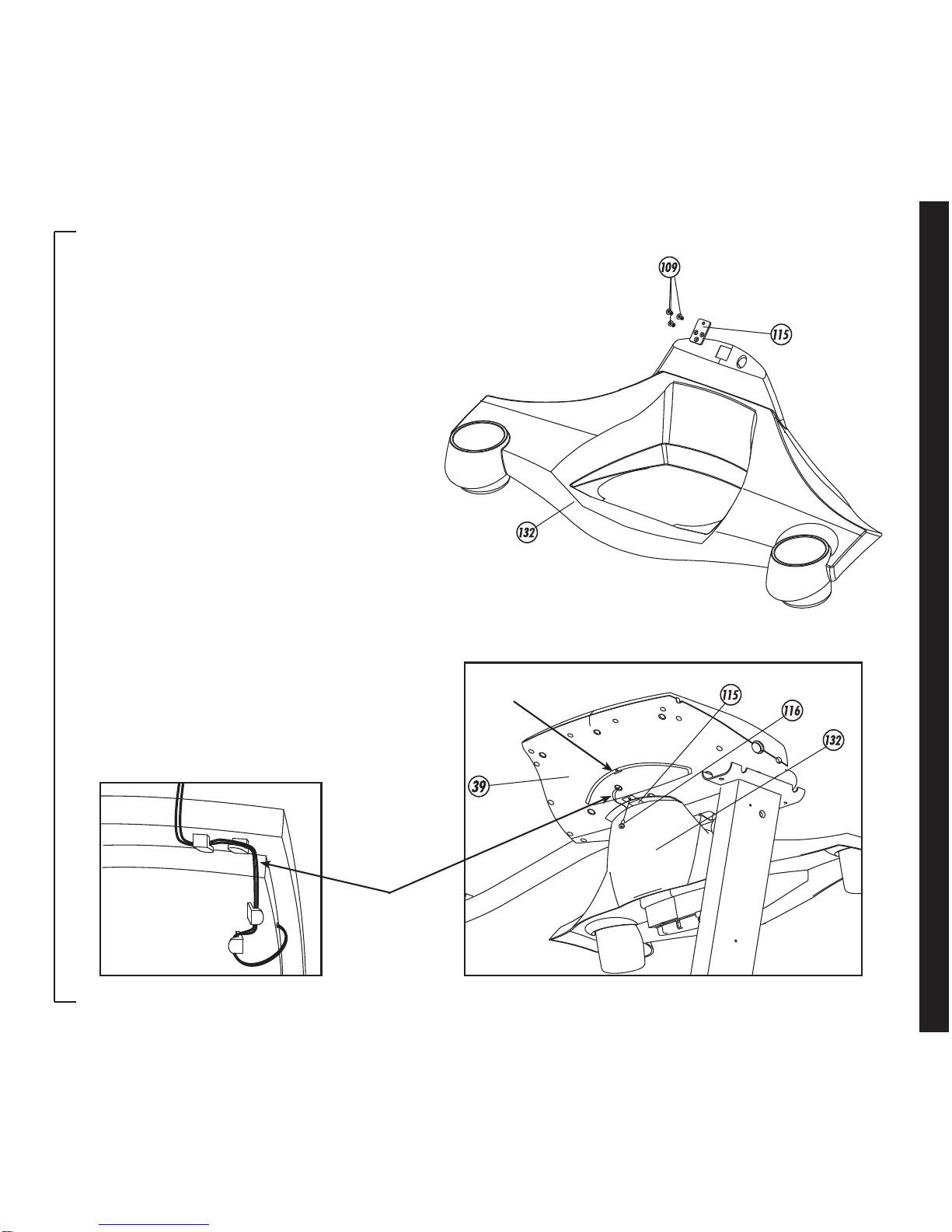

Step 4:

NOTE:

If you have the Optional Smooth Music Package

follow these instructions before attaching the Console

Tray (132).

Run the Cd Player Wires from the back of the

Console (39) first through the small hole on the

Console Tray (132), then through the tabs on the

back of the Console Tray (132) and finally through

the small hole on the side of the Console (39) as

shown.

Attach the Metal Plate (115) to the Console Tray

(132) and secure with Screws (109).

Attach the Console Tray (132). Insert the Metal

Plate (115) into the Console (39) and secure with

the Screw (116).

NOTE: For proper use please make sure to insert

the plastic flange UNDER the metal tab before

inserting the screw.

assembly instructions

-9-

ASSEMBLY

CD PLAYER

WIRES

Plastic Flange

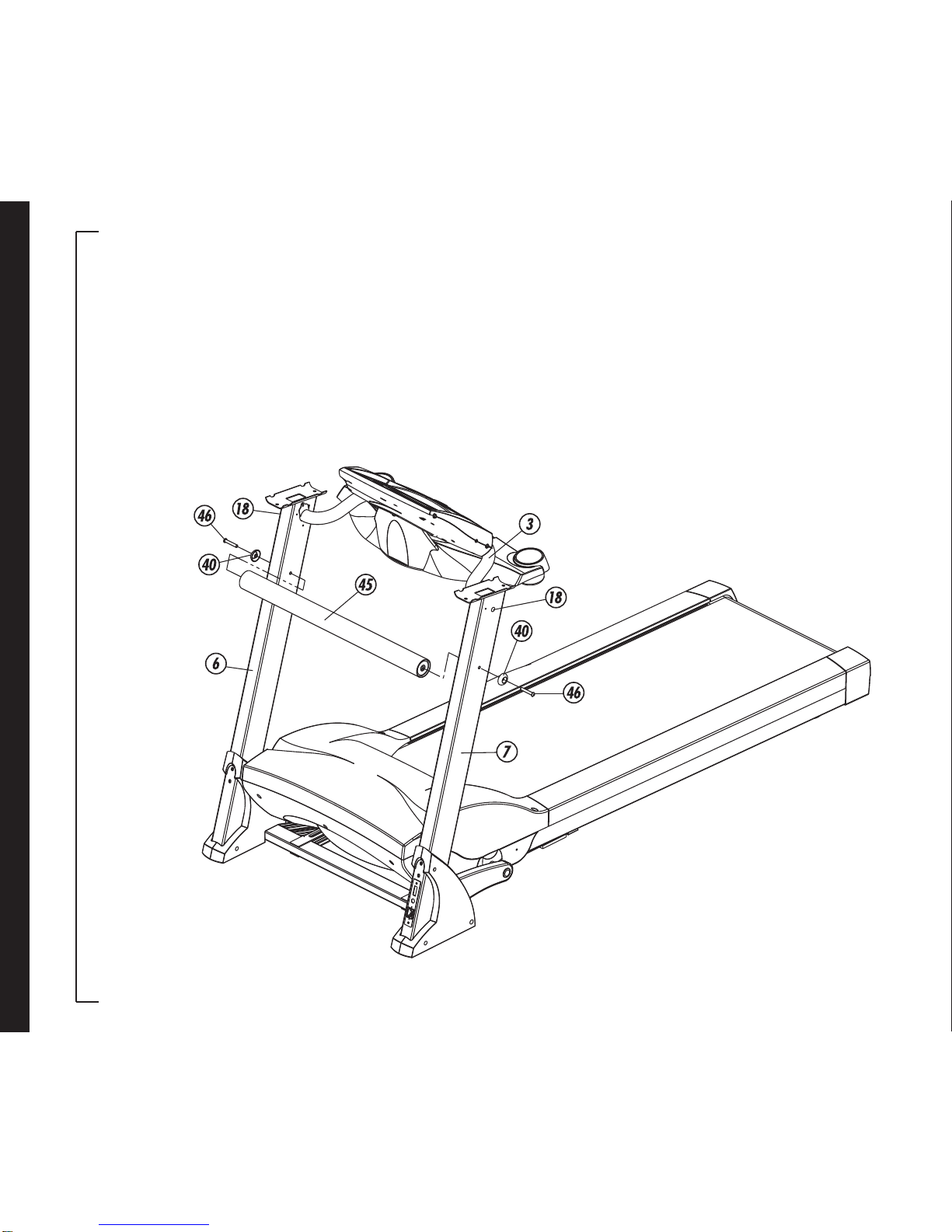

Step 5:

Attach the Cross Tube (45) to the Left and

Right Handle Uprights (6 and 7) and secure

with the Metal Cap (40) and Bolts (46).

Secure the Computer Support (3) to the

Right and Left Handle Uprights (6 and 7)

by tightening the Screws (18).

ASSEMBLY

assembly instructions

-10-

Inhaltsverzeichnis

Andere Smooth Fitness Tretmühle Handbücher

Smooth Fitness

Smooth Fitness SMT6.1P Bedienungsanleitung

Smooth Fitness

Smooth Fitness 9.6P Bedienungsanleitung

Smooth Fitness

Smooth Fitness 9.45TV Bedienungsanleitung

Smooth Fitness

Smooth Fitness 9.35e Bedienungsanleitung

Smooth Fitness

Smooth Fitness 4.25 Bedienungsanleitung

Smooth Fitness

Smooth Fitness 9.45ST Bedienungsanleitung

Smooth Fitness

Smooth Fitness FX30 Bedienungsanleitung

Smooth Fitness

Smooth Fitness Smooth 9.25HR Bedienungsanleitung

Smooth Fitness

Smooth Fitness 5.25 MOTORIZED TREADMILL Bedienungsanleitung

Smooth Fitness

Smooth Fitness 9.17HRO Bedienungsanleitung

Smooth Fitness

Smooth Fitness EVO 3CD Bedienungsanleitung

Smooth Fitness

Smooth Fitness FX20HR Bedienungsanleitung

Smooth Fitness

Smooth Fitness SMOOTH 7.1HR Bedienungsanleitung

Smooth Fitness

Smooth Fitness 7.6HR PRO Bedienungsanleitung

Smooth Fitness

Smooth Fitness 5.25E Bedienungsanleitung

Smooth Fitness

Smooth Fitness SMT9.2HR Bedienungsanleitung

Smooth Fitness

Smooth Fitness 7.35 R Bedienungsanleitung

Smooth Fitness

Smooth Fitness 5.65iS Bedienungsanleitung

Smooth Fitness

Smooth Fitness 5.15E Bedienungsanleitung

Smooth Fitness

Smooth Fitness 9.65LC Bedienungsanleitung

Smooth Fitness

Smooth Fitness 6.17 MOTORIZED TREADMILL Bedienungsanleitung

Smooth Fitness

Smooth Fitness 5.25 MOTORIZED TREADMILL Bedienungsanleitung

Smooth Fitness

Smooth Fitness 7.35 R Bedienungsanleitung

Smooth Fitness

Smooth Fitness 7.25 Bedienungsanleitung

Beliebte Tretmühle Handbücher anderer Marken

Treadly

Treadly TREADLY 2 Bedienungsanleitung

HEALTH ONE

HEALTH ONE Walk Ro Bedienungsanleitung

NordicTrack

NordicTrack NTL12941 Bedienungsanleitung

NordicTrack

NordicTrack T7.5 S Bedienungsanleitung

Gold's Gym

Gold's Gym ADVANTAGE GGTL12920 Bedienungsanleitung

Merax

Merax MS282992 Bedienungsanleitung

FYTTER

FYTTER RU-2SX Bedienungsanleitung

Precor

Precor 903 Bedienungsanleitung

FitLogic

FitLogic freewill d225 Bedienungsanleitung

HOP-SPORT

HOP-SPORT ESTIMA HS-3200LB Bedienungsanleitung

Horizon Fitness

Horizon Fitness Adventure 5 Plus Bedienungsanleitung

Stamia

Stamia InMotion II Bedienungsanleitung

NordicTrack

NordicTrack NETL81810.0 Bedienungsanleitung

Schwinn

Schwinn 830/Journey 8.0 Bedienungsanleitung

Keys Fitness

Keys Fitness HealthTrainer HT-740T Bedienungsanleitung

Spirit

Spirit XT8 Bedienungsanleitung

NordicTrack

NordicTrack T 14.0 Treadmill Bedienungsanleitung

Master

Master F22 Bedienungsanleitung
