Sofraser 9601 Bedienungsanleitung

601

Technical Manual

Original version

REF: 382-0

Viscosity and temperature

processor

Technical Manual 9601

REF: 382 2

IMPORTANT

THE OFFSET ADJ STMENT IN THE AIR

M ST BE THE FIRST TASK COMPLETED.

Offset adjustment procedure is detailed in § 9.1.

1. CLEAN AND DRY THE SENSOR ROD.

2. BE S RE THE PROCESS IS EMPTY. THE ROD M ST BE VIBRATING IN THE AIR.

3. INSTALL THE SENSOR ON THE PROCESS AND FIX IT WITH ITS 4 SCREWS.

4. POWER ON THE DEVICE, WAIT 15 MIN TES.

5. REACH THE OFFSET ADJ STMENT F NCTION BY ENTERING INTO MEN /

SETTINGS / OFFSET.

6. FOLLOW THE INSTR CTIONS DISPLAYED ON THE ELECTRONICS SCREEN.

7. PRESS “F3” TO ADJ ST THE OFFSET. IT MEANS THE RAW SIGNAL IN THE AIR IS

SHIFTED TO THE VOLTAGE REFERENCE DEFINED IN THE FACTORY CALIBRATION

STAGE.

Technical Manual 9601

REF: 382 3

Table of contents

1. TRANSMITTER PRINCIPLE ........................................................................................................... 5

2. PROCESSOR TECHNICAL CHARACTERISTICS ....................................................................... 6

2.1 Electronic device si e ............................................................................................................................................ 6

2.2 Mechanical characteristics ................................................................................................................................ 6

2.3 Display ............................................................................................................................................................................. 7

2.4 Keyboard ....................................................................................................................................................................... 7

2.5 Battery ............................................................................................................................................................................ 7

2.6 Consumption .............................................................................................................................................................. 7

2.7 Connection blocks .................................................................................................................................................. 7

2.8 General scheme of the electronic device................................................................................................. 8

2.9 Connections made by Sofraser ....................................................................................................................... 9

2.10 Connections to be done by the user ........................................................................................................... 9

2.11 Digital Inputs TOR ................................................................................................................................................. 10

2.12 Analog Inputs ........................................................................................................................................................... 10

2.13 Density meter (optional) ................................................................................................................................... 10

2.14 Safety considerations ............................................................................................................................................ 11

2.15 Relay outputs ............................................................................................................................................................. 11

2.16 Analog outputs ......................................................................................................................................................... 12

2.17 Outputs wiring ......................................................................................................................................................... 12

2.18 General information .............................................................................................................................................. 12

2.19 Wastes handling ..................................................................................................................................................... 13

3. PROCESSOR MO NTING-INSTALLATION ............................................................................. 14

4. COMM NICATION ........................................................................................................................ 16

4.1 Serial interface .......................................................................................................................................................... 16

4.2 Modbus communication protocol .............................................................................................................. 17

5. GENERAL INFORMATION ON THE SE OF 9601 ................................................................. 18

5.1 Navigation ................................................................................................................................................................... 18

5.2 Diagnosis ...................................................................................................................................................................... 18

5.3 Security codes ........................................................................................................................................................... 18

5.4 Modes ............................................................................................................................................................................. 18

6. TILIZATION MODE ..................................................................................................................... 19

6.1 “Bargraphs” view ..................................................................................................................................................... 19

6.2 “Compensated viscosity” view ........................................................................................................................ 19

6.3 “Acquisition graph” view .................................................................................................................................... 19

6.4 Information – version............................................................................................................................................ 19

6.5 Synoptic ...................................................................................................................................................................... 20

7. ADAPTATION MODE ..................................................................................................................... 21

8. BLOCK “DISPLAYS” ...................................................................................................................... 22

8.1 Menu of the block “Displays” .......................................................................................................................... 22

8.2 Choose the Viscosity Unit ................................................................................................................................. 22

8.3 Choose the Temperature Unit ...................................................................................................................... 22

8.4 Activate viscosity correction ........................................................................................................................... 22

8.5 Status ............................................................................................................................................................................. 23

Technical Manual 9601

REF: 382 4

8.5.1 Current outputs status .................................................................................................................................. 23

8.5.2 Alarms relay outputs status ...................................................................................................................... 23

8.5.3 Data status ........................................................................................................................................................... 23

8.6 Synoptic of Block “Display” ..............................................................................................................................24

9. BLOCK “SETTINGS” ...................................................................................................................... 25

9.1 Set the offset ............................................................................................................................................................. 25

9.2 Set the alarms .......................................................................................................................................................... 26

9.3 Set and test the current outputs ................................................................................................................. 27

9.3.1 Set the current outputs ................................................................................................................................ 27

9.3.2 Test the current outputs ............................................................................................................................. 27

9.4 Choose the method of kinematic viscosity calculation ................................................................ 28

9.5 Set the bargraphs .................................................................................................................................................. 28

9.6 Set the graph scales ............................................................................................................................................. 28

9.7 Activate the Pt100 ................................................................................................................................................. 29

9.8 Define the filter ....................................................................................................................................................... 29

9.9 Synoptic of Block “Settings” ...........................................................................................................................30

10. BLOCK “PARAMETERS” ............................................................................................................... 31

10.1 Viscosity corrections ............................................................................................................................................. 31

10.2 Compensation table ............................................................................................................................................ 32

10.2.1 Reading of the compensation table ................................................................................................... 32

10.2.2 Modification of the compensation table ........................................................................................ 32

10.3 Define the density coefficient ....................................................................................................................... 33

10.4 Modify the security codes ................................................................................................................................ 33

10.5 Synoptic of Block “Parameters”....................................................................................................................34

11. BLOCK “CONFIG RATION” ....................................................................................................... 35

11.1 Define the thermal drift table and the calibration data ............................................................... 35

11.2 Define the filter inputs ....................................................................................................................................... 35

11.3 Define the adjustment data ........................................................................................................................... 35

11.4 Synoptic of Block “Configuration” .............................................................................................................. 36

12. SPECIFIC NOTES ........................................................................................................................... 37

Technical Manual 9601

REF: 382 5

1. Transmitter principle

The measuring chain is composed of three inseparable elements: the sensor, its cable and the 9601

processor that controls it. The sensor cannot be used with another transmitter or another cable

type or length because they are all a part of the resonant loop so they are matched together as one

vibrating system.

The active part of the sensor is composed of a vibrating rod held in oscillation at resonance

frequency by driving magnets. When the rod is immersed into a viscous material, the amplitude of

the vibration is dampened. The vibration amplitude varies according to the product viscosity

where the rod is immersed.

The sensor receiving coil detects the response and the signal is converted to a viscosity value

through the electronic device. The factory calibration is performed with standard oils.

The processor acquires the coils’ amplitudes and frequency and generates various signals. These

signals represent the properties being measured. It is also in charge of powering the whole system.

It gives viscosity and temperature information through analog outputs, serial communication and

displays it. The processor also allows settings as the very important “ ero in the air” procedure.

Technical Manual 9601

REF: 382 6

Processor technical characteristics

2.1

Electronic device size

The electronic box has the purpose to be ﬁtted in a panel, close to the process line. The collar

is the only visible part, composed of a face plate and a LCD screen. It is continuously

displaying the viscosity value and, in the case there is a Pt100 probe, the temperature value.

The ID label is stick on the back panel with main information (see §2.6).

2.2

Mechanical characteristics

•Dimensions behind the collar: 138 x 123 x 106.4 mm

•Collar dimensions: 184 x 155 x 6.7 mm

•Case transducer dimensions : 66.2 x 67.1 x 28.2 mm

•Cut-out for assembly on panel: 141 x 126 mm. Thickness ≤ 5mm.

•Weight: about 515 g.

•Tightness: IP 65 with panel mounting and IP20 on rear panel.

•Operational temperature: 0 °C to 45 °C.

Screw for brightness

Technical Manual 9601

REF: 382 7

2.3

Display

•Display type: STN LCD

•Illumination backlight: LED yellow

•Display resolution: 128 x 64 pixels

The brightness can be adjusted using the screw on the top panel

2.4

Keyboard

24 keys: alphanumeric keys and function keys.

2.5

Battery

The battery lifespan is about 7 years at 25 °C. When the battery no longer works, the

operating parameters of the sensor are no longer stored in memory. It is then necessary to foresee

the change of the battery after 5 years of use of the sensor.

2.6

Consumption

The processor requires a 24 VDC (± 2.4 V) stabili ed and filtered power supply (not provided

by SOFRASER).

Typical power consumption: 7.2 W maximum

2.7

Connection blocks

On the processor back module, various categories are identified (example: DIGITAL INPUTS,

ANALOG OUTPUTS…).

We will call these categories "connection blocks". The diagram below identiﬁes the various

connection blocks. The colours codes used and the name of these connection blocks are taken

again for each connection diagram.

Technical Manual 9601

REF: 382 8

2.8

General scheme of the electronic device

Technical Manual 9601

REF: 382 9

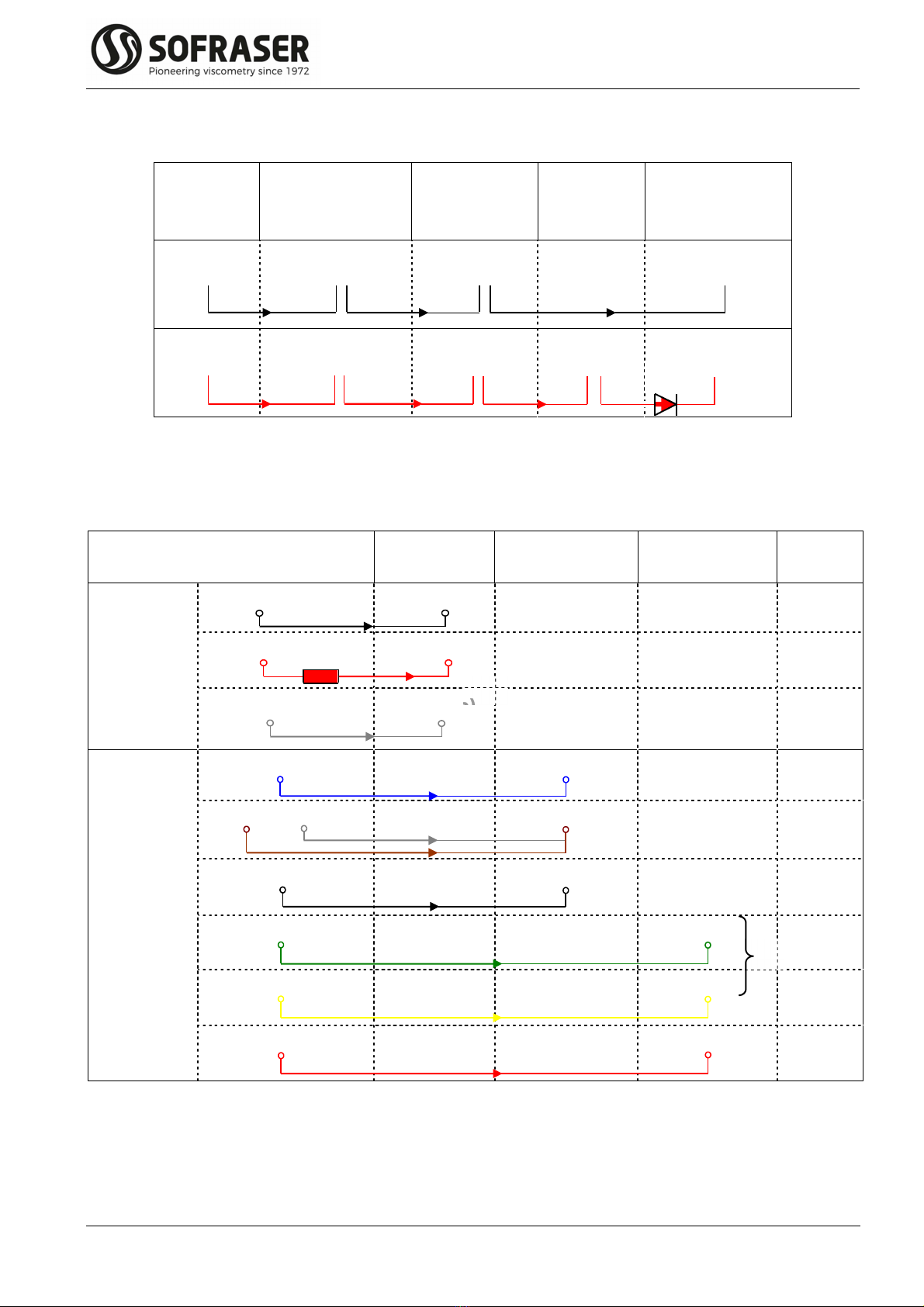

2.9

Connections made by Sofraser

All the connections in the following table are already wired when the equipment is delivered.

12/24

VDC

24 VDC

DIGITAL

O TP TS

24 VDC

ANALOG

I/O

DIGITAL

INP TS TRANSD CER

COM

A 1N4007-type diode (1) is cabled between the digital inputs block and the transducer in

order to protect the transducer from the unexpected power supply inversion.

2.10

Connections to be done by the user

All the wires and terminal blocks at stake here are already numbered and pre-cabled.

Equipment 12/24 VDC

Transducer

Analog

Inputs

Digital

Inputs

POWER

S PPLY

0V 0V

24V +V

Shielding bread

T (Earth)

MIVI

A 1

B C 2

D 3

G T- PT

F T+ PT

E CM

If there is no incorporated Pt100 probe, there are no E, F and G wires to connect. In the case

of a non-provided by SOFRASER external probe, be sure this is a 3-wires one.

An external circuit protection device (such as a fuse) is recommended as shown in (2).

See §3 for power supply earthing (3).

(1)

(3)

(2)
