SOLTEK SL-B8E-FG Bedienungsanleitung

SL-B8E-FG / B8E-FGR

Contents

Chapter 1 Specification ............................................. 8

1-1 SL-B8E-FG/FGR Mainboard Layout ...................................9

1-2 Mainboard Specifications .................................................... 10

1-2.1 CPU Socket ................................................................................... 10

1-2.2 System Chipsets ........................................................................... 10

1-2.3 AMI BIOS ..................................................................................... 10

1-2.4 Memory ......................................................................................... 11

1-2.5 Integrated Multiplexed AGP and DVO Interface .................. 11

1-2.6 Multi-I/O Functions .................................................................... 11

1-2.7 Advanced System Power Management .................................... 12

1-2.8 Gigabit LAN on board ................................................................ 12

1-2.9 Hardware Monitor on board ..................................................... 12

1-2.10 8-channel AC’97 Audio Codec ALC850 on board .............. 12

1-2.11 Front Audio-out Connector...................................................... 12

1-2.12 1394A-- high performance serial bus..................................... 13

1-2.13 Form Factor................................................................................ 13

1-3 Mainboard Specification Table ........................................... 14

1-4 Chipset System Block Diagram........................................... 15

Chapter 2 Hardware Setup ..................................... 16

2-1 CPU Installation with Socket 478B .................................... 17

2-1.1 To Identify a Pentium 4 CPU..................................................... 17

2-1.2 CPU Installation with Socket 478B .......................................... 18

2-2 Pentium 4 CPU Fan Installation ......................................... 19

2-3 Memory Installation ............................................................. 20

2-3.1 Dual-Channel DIMM Installation ............................................ 20

2-3.2 To Remove a DIMM .................................................................... 20

2-4 VGA / AGP 8X/4X Slot Installation.................................... 21

Contents

2-5 IDE Connector Installation ................................................. 23

2-6 Floppy Drive Connector Installation ................................. 24

2-7 Serial ATA Connectors Installation .................................... 25

2-8 ATX V2.03 Power Supply Installation ............................... 26

2-9 Jumper Settings ..................................................................... 27

2-9.1 JFSB1 & JFSB2: CPU Frequency Select................................. 28

2-9.2 JBAT1: Clear CMOS .................................................................. 29

2-9.3 JKB1: KB / Mouse Wake Up ..................................................... 29

2-10 Other Connectors Configuration...................................... 30

2-10.1 On Board Fan Connectors ....................................................... 30

2-10.2 USB Ports and USB Pin-headers ............................................ 31

2-10.3 Complex Pin-header (Front Panel Connectors)................... 32

2-10.4 Back Panel Connectors............................................................. 33

2-10.5 RJ45 LAN Connector................................................................ 33

2-10.6 PS/2 Mouse And PS/2 Keyboard............................................. 34

2-10.7 CD-ROM Audio Connectors.................................................... 34

2-10.8 System Buzzer: BZ1 .................................................................. 35

2-10.9 JAUD1: Front Panel Audio Connector .................................. 35

2-10.10 RT1: Thermal Resistor ........................................................... 36

2-10.11 1394A Front Connector : IEEE1........................................... 36

2-10.12 Printer Port: JPNT1 (optional)............................................. 37

Chapter 3 Software Setup ....................................... 38

3-1 To Open up the Support CD ................................................ 39

3-2 Intel Chipset Software Installation Utility........................ 40

3-3 Graphics Driver Installation ............................................... 41

3-4 AC’97 Audio Driver Installation......................................... 42

3-4.1 Installing AC’97 6-channel Audio Driver ............................... 42

3-4.2 Verifying 6-channel Audio ........................................................ 43

3-5 To Install RTL8110S Gigabit Ethernet Drivers ............... 45

SL-B8E-FG / B8E-FGR

3-6 IAA RAID Driver (for Win2000/XP only) ......................... 46

3-7 To Install Hardware Monitor Utility.................................. 47

3-7.1 Installation ................................................................................... 47

3-7.2 Verification .................................................................................. 48

3-8 To Install USB 2.0 Driver for Windows 2000/XP............. 49

Chapter 4 AMI BIOS Setup.................................... 50

4-1 About BIOS Setup ................................................................. 51

4-2 To Run BIOS Setup ............................................................... 51

4-3 About CMOS .......................................................................... 51

4-4 The POST ( Power On Self Test ) ....................................... 51

4-5 To Update BIOS ..................................................................... 52

4-6 BIOS SETUP --- CMOS Setup Utility................................ 53

4-6.1 CMOS Setup Utility .................................................................... 53

4-6.2 Standard BIOS Features ............................................................ 55

4-6.3 Advanced BIOS Features ........................................................... 56

4-6.3.1 CPU Configuration................................................................... 57

4-6.3.2 IDE Configuration.................................................................... 58

4-6.3.3 Floppy Configuration ............................................................... 60

4-6.3.4 Super IO Configuration ........................................................... 61

4-6.3.5 Hardware Health Configuration............................................. 62

4-6.3.6 ACPI Configuration ................................................................. 63

4-6.3.7. Power Management ................................................................. 64

4-6.3.8. USB Configuration .................................................................. 65

4-6.3.9 Frequency/Voltage Control ...................................................... 66

4-6.3.10 B8E Onboard Device .............................................................. 66

4-6.4 Advanced Chipset Features ....................................................... 67

4-6.4.1 NorthBridge Configuration ..................................................... 67

4-6.4.2 SouthBridge Configuration ..................................................... 69

4-6.5 PCI/PNP Resource Management .............................................. 69

4-6.5 PCI/PNP Resource Management .............................................. 70

4-6.6 Boot Configuration Features ..................................................... 72

Contents

4-6.6.1 Boot Settings Configuration .................................................... 72

4-6.6.2 Boot Device Priority/Removable Drives/CD/DVD Drives .... 73

4-6.7. Boot Security Features .............................................................. 74

4-6.7.1. Supervisor Password ............................................................... 74

4-6.7.2. User Password.......................................................................... 74

4-6.7.3 Change Supervisor Password .................................................. 74

4-6.7.4 Change User Password ............................................................ 75

4-6.7.5. Clear User Password ............................................................... 76

4-6.7.6 Boot Sector Virus Protection ................................................... 76

4-6.8 Load Optimal Defaults ............................................................... 77

4-6.9 Discard Changes .......................................................................... 77

4-6.10 Discard Changes ( and Exit )................................................... 77

4-6.11 Save Changes and Exit.............................................................. 77

Chapter 5 SATA RAID Setup ................................. 78

5-0 About Disk Array................................................................... 79

5-0-1 Disk Array Interpretation.......................................................... 79

5-0-2 Disk Array Member .................................................................... 79

5-0-3 Disk Array Types Supported by ICH5R ................................. 79

5-1 Enable SATA RAID in System BIOS ................................. 80

5-2 To Enter Intel RAID BIOS Utility Setup........................... 81

5-3 To Create Disk Array ............................................................ 82

5-4 To Install SATA RAID Driver.............................................. 85

5-4-1 To Install SATA RAID Driver on Windows 2000/XP ............ 85

5-4-2 To run Windows 98SE/ME without ICH5R RAID driver ..88

SL-B8E-FG / B8E-FGR

Topics incl ded in this chapter are:

1-1 Mainboard Layo t

1-2 Mainboard Specifications**

1-3 Mainboard Specification Table

1-4 Chipset Diagram

Introd ction

Chapter 1 Specification

This series of mainboards features an integration of the powerful pro-

cessor Intel Pentium 4 and the North Bridge Intel 865G. The Intel P4

processor is a rapid execution engine supporting 800/533/400MHz sys-

tem bus, while North Bridge Intel 865G is a high performance integrated

chipset providing Dual Channel DDR 400/333/266 SDRAM memory

interface, Hub interface, AGP interface as well as an integrated Graph-

ics Port for VGA display.

Integrated with i865G, South Bridge Intel ICH5/ICH5R supports the

LPC I/O, upstream Hub interface, PCI interface, IDE interface, Serial-

ATA /SATA RAID, USB 2.0 interface, and interrupt control. (The differ-

ence between ICH5 and ICH5R is the RAID interface support). And the

8-channel Audio support is also integrated via the on-board chip ALC850.

This chapter is to introduce to users every advanced function of this

high performance integration.

** If any difference is fo nd between the mainboard description

and the Mainboard yo are sing, please look p the Errata/

Update Slip enclosed inside for the correction or pdated

information, or else contact the mainboard Dealer or visit o r

Web Site for the latest man al pdate.

Chapter 1 Specification

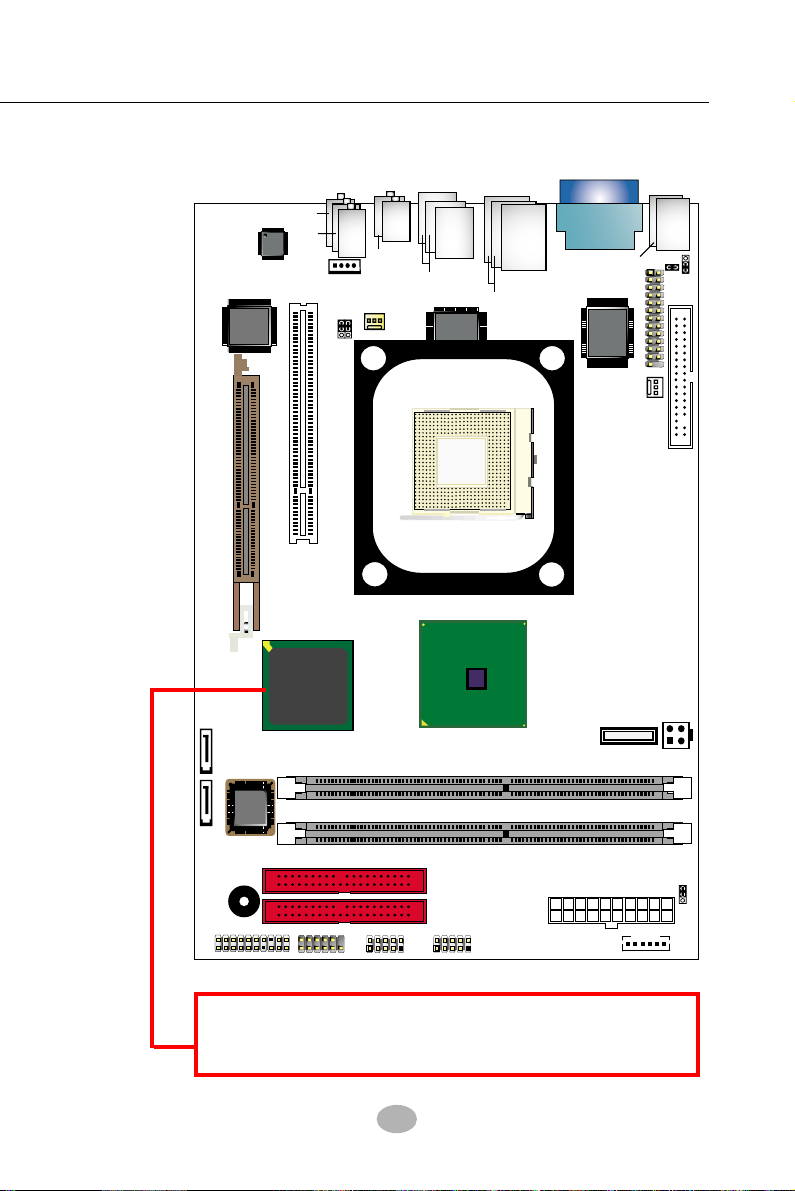

1-1 SL-B8E-FG/FGR Mainboard Layo t

RTL

PCI 1

DIMM1

FDC1

IDE1

IDE2

PW2

PW1 (Main Power)

BIOS

DIMM2

DDR 400/333/266/200 MHz

AGP1 ( 8X/4X)

mPGA478B

VIA

VT6307S

Intel RG82845

i865G

Intel

BZ1

Battery

NJ1

SPK RST

PWLED

HDD IR PWR

LED

RTL

ALC850

AC'97

CD-IN1

USB3

Fan1

Fan2

JFSB2

USB4

ATA1ATA2

JFSB1

JBAT1

JKB1

W83627THF

Winbond

PS/2

PS/2 K/B

(underside)

VGA

JPNT1

Line In

Line Out

Side

(on top)

(underside)

(Middle)

RJ45

USB1(2 ports)

(on top)

VCOM1

(on top)

RT1

(on top)

Mouse

8110S

(+12V Power)

ICH5R

Intel

USB2 (2 ports)

(on top)

JAUD1

Rear

Speaker

Center/

Subwoofer

1394A

IEEE1

ICH5

So th Bridge Option:

ICH5 for SATA interface in SL-B8E-FG;

ICH5R forSATA RAID interface in SL-B8E-FGR

SL-B8E-FG / B8E-FGR

1-2 Mainboard Specifications

1-2.1 CPU Socket

CPU Socket 478B on board, supporting Intel® Pentium 4 processors

(including Hyper-Threading and Prescott CPUs) in 478-pin package :

(Willamette 1.75V and Celeron 1.75V CPUs not supported)

-- 800/533/400MHz System Bus;Hyper-pipelined technology;

-- Advanced dynamic execution;Advanced transfer cache;

1-2.2 System Chipsets

North Bridge Intel 865G:

• A high performance integrated chipset providing P4 processor interface

(including Hyper-threading Technology), 800/533/400MHz FSB, Dual

-channel DDR 400/333/266 SDRAM memory, Hub interface, AGP in-

terface as well as another integrated VGA interface with one on-board

display port.

• Showing Hyper-Threading Logo when booting with Hyper-threading

CPU

South Bridge Intel ICH5 for SL-B8E-FG:

• Supporting the LPC I/O, upstream Hub interface, PCI interface, IDE

interface, Serial ATA interface, USB 2.0 interface, the 8-channel AC’97

V2.3 Audio interface (with ALC850) and the interrupt control

South Bridge Intel ICH5R for SL-B8E-FGR:

• Supporting the LPC I/O, upstream Hub interface, PCI interface, IDE

interface, Serial ATA/SATA RAID interface, USB 2.0 interface, 8-chan-

nel AC’97 2.3 (with ALC850) Audio interface and the interrupt control

1-2.3 AMI BIOS

Flash Memory for easy upgrade, supporting BIOS Writing Protection,

Year 2000 compliant, and supporting various hardware configuration

during booting system (See Chapter 4 BIOS Setup):

• Standard BIOS Features(Times, Date, System Information etc.)

• Advanced BIOS Features (CPU,IDE, Floppy, SuperIO, Hardware

Health, ACPI, USB, and Frequency/Voltage Control)

• Advanced Chipset Features (NorthBridge, SouthBridge Configuration)

• PCI/PNP Resource Management (IRQ Settings, Latency Timers etc.)

• Boot Configuration Setup (Boot Settings, Boot Device Priority etc.)

• BIOS Security Features (Supervisor Password, User Password)

Chapter 1 Specification

1-2.6 M lti-I/O F nctions

• Serial ATA Controller integrated in ICH5, supporting:

-- 2 Serial ATA connectors supporting up to 150MByte/s transfer rate

• Serial ATA RAID Controller integrated in ICH5R, supporting:

-- 2 SATA/SATA RAID connectors supporting up to 150MByte/s transfer rate

• PCI EIDE Controller, supporting:

-- 2 UATA100/66/33 IDE connectors supporting up to 4 IDE devices

• Dedicated IR Functions:

-- Third serial port dedicated to IR function either through the two

complete serial ports or the third dedicated port Infrared-IrDA (HPSIR)

and ASK (Amplitude Shift Keyed) IR

• Multi-mode Parallel Data Transfer:

-- Standard mode, high speed mode ECP and enhanced mode EPP

• Floppy Disk Connector:

-- 1 FDD connector supporting 2 floppy drives with drive swap support

• Universal Serial Bus Transfer Mode:

-- USB V2.0 compliant; 480Mb/s USB Bus, supporting Windows 2000 or

later operating systems (no support for Win 9X/Me)

-- 4 built-in USB Ports and 2 USB Headers which require 2 additional

USB cables to provide 4 more optional USB ports

• PS/2 Keyboard and PS/2 Mouse

• UARTs (Universal Asynchronous Receiver / Transmitter):

-- 1 serial ports on board

1-2.5 Integrated M ltiplexed AGP and DVO Interface

Integrated multiplexed AGP and DVO interface in Springdale-G,sup-

porting AGP performance and analog/Digital display:

• One AGP slot on board, supporting both Digital Video Out card or

AGP8x/4x card for analog/digital display (TMDS,LVDS and TV-out)

(See AGP Installation in Chapter 2 of this manual)

• One 15-pin VGA connector on board, supporting analog display

• Hardware motion compensation for software MPEG/DVD decode

• Integrated 2D/3D graphics accelerator

• VGA Driver enclosed in Support CD for user’s installation

1-2.4 Memory

2 DDR DIMM 184-pin slots on board :

• Supporting unregistered, non-ECC Dual-channel DDR 400/333/266

SDRAM to 2GBs

• DIMMs to be populated in identical pairs for Dual-channel operation

• SPD (Serial Presence Detect) Scheme for DIMM Detection supported

SL-B8E-FG / B8E-FGR

1-2.10 8-channel AC’97 A dio Codec ALC850 on board

ALC850 on board for AC’97 audio

• Supporting 8-channel display of PCM audio output

• 8 channel audio consists of Front Left, Front Right, Back Left, Back

Right, Rear Left, Rear Right, Center and Subwoofer for complete

surround sound effect

• AC’97 Audio Codec Driver enclosed in Support CD for user’s

installation

1-2.11 Front A dio-o t Connector

• 1 Front Audio-out connector supporting Front Panel S/PDIF Output,

Front Panel Mic-In and Front Panel Line-out

• This Front Audio-out distinguishing itself from the Back Panel Audio

Connectors

1-2.8 Gigabit LAN on board

PCI local bus Gigabit Fast Ethernet Controller RTL8110S on board:

• Supporting 10/100/1000Mb data transfer

• Supporting Wake On LAN function through the on-board RJ45 LAN

Connector

• LAN Driver enclosed in Support CD for user’s installation.

1-2.9 Hardware Monitor on board

• Hardware Monitor supported by W83627THF, providing monitoring

and alarm for flexible desktop management of hardware voltage, tem-

peratures and fan speeds.

• Utility Software Soltek Hardware Monitor for displaying system status

is enclosed in Support CD for user’s installation.

1-2.7 Advanced System Power Management

• ACPI 1.0B compliant (Advanced Configuration and Power Interface),

including ACPI suspend mode support (See ACPI Configuration of

Advanced BIOS Features in BIOS Setup)

• APM V1.2 compliant (Legacy Power Management)

• Keyboard / Mouse Power On/Wake Up (See ACPI Configuration of

Advanced BIOS features in BIOS Setup)

• Supporting Wake-on-LAN

• Supporting Real Time Clock (RTC) for date alarm, month alarm, and

century field configuration

Chapter 1 Specification

1-2.13 Form Factor

• Soltek Mini Form Factor, ATX Power Supply, version 2.03 compliant,

supported by 1x Main Power Connector, 1x +12V Power Connector.

• Mainboard size: 180mm x 270mm

1-2.12 1394A-- high performance serial b s

1394A Interface, via VT6307 PCI PHY/Link Open Host Controller:

• PCI-bus based open host controller, compliant with IEEE 1394A-2000

standard for high performance serial bus

• supporting 2x 1394A ports, each supporting 400/200/100 Mbits transfer

rate

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere SOLTEK Hauptplatine Handbücher

SOLTEK

SOLTEK SL-KT880E-GR Bedienungsanleitung

SOLTEK

SOLTEK SL-65MV Gebrauchs- und Pflegehandbuch

SOLTEK

SOLTEK SL-75DRV5 Bedienungsanleitung

SOLTEK

SOLTEK SL-K8T-939FL Bedienungsanleitung

SOLTEK

SOLTEK SL-55F5 Bedienungsanleitung

SOLTEK

SOLTEK B9A-FGR Bedienungsanleitung

SOLTEK

SOLTEK 86SP2 Bedienungsanleitung

SOLTEK

SOLTEK SL-845GVI Bedienungsanleitung

SOLTEK

SOLTEK SL-65ME Bedienungsanleitung

SOLTEK

SOLTEK SL-75KAV Bedienungsanleitung

SOLTEK

SOLTEK SL-75LIV Bedienungsanleitung

SOLTEK

SOLTEK SL-65FVB Bedienungsanleitung

SOLTEK

SOLTEK SL-PM800I Bedienungsanleitung

SOLTEK

SOLTEK B7A-F Bedienungsanleitung

SOLTEK

SOLTEK SL-53A2 Gebrauchs- und Pflegehandbuch

SOLTEK

SOLTEK SL-855GEI-FDGR Bedienungsanleitung

SOLTEK

SOLTEK SL-65KIV Bedienungsanleitung

SOLTEK

SOLTEK SL-53D2 Gebrauchs- und Pflegehandbuch

SOLTEK

SOLTEK SL-67EB Plus Bedienungsanleitung

SOLTEK

SOLTEK SL-65MIE Bedienungsanleitung

SOLTEK

SOLTEK SL-65GS Bedienungsanleitung

SOLTEK

SOLTEK SL-63AV Gebrauchs- und Pflegehandbuch

SOLTEK

SOLTEK 865Pro-FGR Bedienungsanleitung

SOLTEK

SOLTEK SL-67B-W Bedienungsanleitung

Beliebte Hauptplatine Handbücher anderer Marken

DFI

DFI SD170 Bedienungsanleitung

ASROCK

ASROCK ROMED8-2T Bedienungsanleitung

Asus

Asus P2L97A Bedienungsanleitung

Winmate

Winmate IC70 Bedienungsanleitung

Asus

Asus MES-B Bedienungsanleitung

Grantech

Grantech SYS8F377VGGA-3OMN Bedienungsanleitung

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Bedienungsanleitung

Gigabyte

Gigabyte GA-9IVDT Bedienungsanleitung

Texas Instruments

Texas Instruments ADS8372EVM Bedienungsanleitung

Commell

Commell MS-C73 Bedienungsanleitung

IBT Technologies

IBT Technologies MB860 Bedienungsanleitung

Nvidia

Nvidia TEGRA DG-04927-001_V01 Bedienungsanleitung

Biostar

Biostar M7VIT Bravo Bedienungs- und Montageanleitung

Intel

Intel D33217CK Bedienungsanleitung

Asus

Asus F1A55-M LX PLUS R2.0 Bedienungsanleitung

EPC

EPC EPC9147C Bedienungsanleitung

Asus

Asus EX-B760M-V5 D4 Bedienungsanleitung

EPOX

EPOX MU-8KHA0010 Bedienungsanleitung
