SL-PM800I / PM800I-L Chapter 1 Specification

1-1 Mainboard Layout and Components Setup

Chapter 1 Specification

VIA

PM800

PCI 1

BIOS

IDE2IDE1

VIA

1617A

AC'97

Battery

DIMM1 DIMM2

DDR 400/333/266MHz

mPGA478

JKB1

Main Power

JAUD1

PS/2 Mouse

(on top)

NJ1

HDD IR PWR

SPK RST

PW LED

LED

PCI 2

Fan3

JCLK 1

JBAT1

PS/2 Keyboard

AGP1 8X/4X

VT8235

VIA

RJ45

(on top)

Line in

(ontop)

LineOut

(middle)

Mic

PCI 3

JCLK 2

VIA

6103L

(2 ports)

FDD1

LPT1

COM1

VGA

USB

PW2

+12V Power

PW1

LPC I/O

IT8705F

Fan1

(underside)

(2 ports)

USB

USB3

CDIN1

Fan2

For PM800I-L Only

RJ45

LAN Chip VT6103L }

USB Cable (Optional)

Red wire

USB Port

CD-ROM Audio Connector

Black

+5V

Red GreenWhite GNDD2- D2+

Black

GND

Green

D1+

White

D1-+5V

Red

CD-In1

Pin 1

Pin 2

Pin 3

Pin 4

Left Channel

GND

Right Channel

Pin Signal

Fast Ethernet

10/100

for

CRT Monitor

SL-PM800I / PM800I-L Chapter 1 Specification

Intel Pentium 4 + VIA PM800 + VT8235 Diagram

1-2 Chipset System Block Diagram

Intel Pentium 4 CPU

(Hyper-Threading)

System Bus 800/533/400MHz

System

Memory

DDR 400/333/

266/200 SDRAM

VIA PM800

AGP Slot AGP 8X/4X

8X V-Link

533MB/s

VT8235

PCI Bus

AC’97 2.2

ATA 133/100/66

2 IDE

Connector

USB Bus V2.0/1.1

USB

Ports

3 PCI Slots

Audio

Connectors

VT6103L

(LAN)

RJ45

(Optional)

FDD

Serial Ports

Printer Port

H/Monitor

BIOS

LPC I/O

IT8705F

(6-channel)

Keyboard & Mouse

North Bridge

South

Bridge

SL-PM800I / PM800I-L Chapter 1 Specification

1-3 Mainboard Specification Table

SL-PM800I/ PM800I-L Specifications and Features

CPU

South Bridge

North Bridge

Socket 478B for P4 CPU

(including Hyper-threading CPUs)

VT8235

VIA PM800, supporting 800/533/400MHz FSB

LAN Controller

on board

Optional

Features

Models

Other common

features

I/O Connectors

PCI Slots

IDE Interface

Audio

AGP interface

I/O Chip

Memory

Keyboard/Mouse Wake Up

6 USB2.0 ports, 1 FDD port, 1 COM port, 1

LPT, 1 IrDA, 1 PS/2 Keyboard, 1 PS/2 Mouse

3 PCI Master slots on board

2 UATA 66/100/133 IDE ports

AC’97 Audio 2.2 compliant, 6 channel audio

Supporting DDR 400/333/266 SDRAM, up to

2GB in 2 DIMM slots

Yes

ITE IT8705F

1 AGP Slot On Board support 4X /8X AGP

PM800I PM800I-L

VGA Integrated VIA Unichrome Pro Graphic

SL-PM800I / PM800I-L Chapter 1 Specification

1-4.2 Hyper-Threading CPU supported by Win XP

This mainboard supports Hyper-

threading dual-in-one CPU, the func-

tion of which can be enabled by Win-

dows XP. (See illustration on the

right.)

( If Hyper-Threading CPU is

installed successfully with

Windows XP, the O/S will

enable the dual-in-one CPU

function.)

1-4 Pentium 4 CPU and CPU Fan Installation

1-4.1 CPU Installation with Socket 478B

(3) Pull down the lever to fix

Connect Fan Power cable to onboard

(4) Load down the P4 CPU Fan

(1) Pentium 4 CPU

Pin 1

(2) Pull up the lever and insert P4 CPU

into socket 478

Pin 1

SL-PM800I / PM800I-L Chapter 1 Specification

VIA

PM800

PCI 1

BIOS

IDE2IDE1

VIA

1617A

AC'97

Battery

DIMM1 DIMM2

DDR 400/333/266MHz

mPGA478

JKB1

Main Power

JAUD1

PS/2 Mouse

(on top)

NJ1

HDD IR PWR

SPK RST

PW LED

LED

PCI 2

Fan3

JCLK 1

JBAT1

PS/2 Keyboard

AGP1 8X/4X

VT8235

VIA

RJ45

(on top)

Linein

(on top)

LineOut

(middle)

Mic

PCI 3

JCLK 2

VIA

6103L

(2 ports)

FDD1

LPT1

COM1

VGA

USB

PW2

+12V Power

PW1

LPC I/O

IT8705F

Fan1

(underside)

(2 ports)

USB

USB3

CDIN1

Fan2

1-6 ATX V 2.03 Power Supply Installation

Main Power

Connector

+12V

5SB

PWR OK

GND

+5V

-5V

+5V

+3.3V

+3.3V +3.3V

PS ON#

Pin1 Pin11

-12V

GND

Warning: Both the Main

Power Connector and the

+12V Power Connector

should be connected to

Power Supply; otherwise,

the system may either not

start or be damaged.

+12V Power Connector

GND

+12V

VIA

PM800

PCI 1

BIOS

IDE2IDE1

VIA

1617A

AC'97

Battery

DIMM1 DIMM2

DDR 400/333/266MHz

mPGA478

JKB1

Main Power

JAUD1

PS/2 Mouse

(on top)

NJ1

HDD IR PWR

SPK RST

PW LED

LED

PCI 2

Fan3

JCLK 1

JBAT1

PS/2 Keyboard

AGP1 8X/4X

VT8235

VIA

RJ45

(on top)

Linein

(ontop)

LineOut

(middle)

Mic

PCI 3

JCLK 2

VIA

6103L

(2 ports)

FDD1

LPT1

COM1

VGA

USB

PW2

+12V Power

PW1

LPC I/O

IT8705F

Fan1

(underside)

(2 ports)

USB

USB3

CDIN1

Fan2

GND

+12V

SENSO

Void

+12V

GND

Sensor No

FAN3, sensor Fan

Connector(Yellow)

FAN2, No-Sensor Fan

Connector

FAN1, Sensor Fan

Connector (Yellow)

1-5 On board Fan Connector Setup

SL-PM800I / PM800I-L Chapter 1 Specification

VIA

PM800

PCI 1

BIOS

IDE2IDE1

VIA

1617A

AC'97

Battery

DIMM1 DIMM2

DDR 400/333/266MHz

mPGA478

JKB1

Main Power

JAUD1

PS/2 Mouse

(on top)

NJ1

HDD IR PWR

SPK RST +-

PW LED

LED

PCI 2

Fan3

JCLK 1

JBAT1

PS/2 Keyboard

AGP1 8X/4X

VT8235

VIA

RJ45

(on top)

Linein

(ontop)

LineOut

(middle)

Mic

PCI 3

JCLK 2

VIA

6103L

(2 ports)

FDD1

LPT1

COM1

VGA

USB

PW2

+12V Power

PW1

LPC I/O

IT8705F

Fan1

(underside)

(2 ports)

USB

USB3

CDIN1

Fan2

1-7 Jumper Settings

The following diagrams show the locations and settings of jumper blocks

on the mainboard.

Keyboard / Mouse

Wake Up

JKB1:

1-2 closed (default)

Disabled

2-3 closed

Enabled

Clear CMOS

1-2 closed

(default)

To hold data

2-3 closed

To clear CMOS

JBAT1

(default)

JCLK1&JCLK2: CPU Frequency Select

CPU

Auto-

Detection

100MHz 133MHz 200MHz

(FSB533)

JCLK2

JCLK1

JCLK2

JCLK1

JCLK2

JCLK1

111

JCLK2

JCLK1

(FSB800)

(FSB400)

SL-PM800I / PM800I-L Chapter 1 Specification

JAUD1

External Audio Connector

Pin 1 Mic In

Pin 3 Mic VREF

Pin 5 FPOUT R

Pin 7 (Key)

Pin 9 FPOUT L

Pin 2 Aud GND

Pin 6 RET R

Pin 10 RET L

Pin 4 Aud Vcc

(1)Power Switch PLED-

PLED+

RSTGND

RST1

SP1

SP3

SPVCC

PWRBT#

PWRBT

IR_VCC

IRRX

IRGND

IRTX

HDLED-

HDLED+

(2)Infrared(IR)

(3)HDD LED

Power LED (4)

Reset Switch (5)

Speaker (6)

1-8.1 Front Audio Connector

This Mainboard is designed with a Front Panel Audio connector “JAUD1”

which provides connection to your chassis.

1. When JAUD1 is set to 5-6 closed and 9-10 closed, this default setting

disables this connector and leaves the Back Panel Audio enabled.

2. To use this Front Panel Audio Connector, please open all pins of

JAUD1 and connect it to your chassis.

1-8 Other Connectors Setup

VIA

PM800

PCI 1

BIOS

IDE2IDE1

VIA

1617A

AC'97

Battery

DIMM1 DIMM2

DDR 400/333/266MHz

mPGA478

JKB1

Main Power

JAUD1

PS/2 Mouse

(on top)

NJ1

HDD IR PWR

SPK RST

PW LED

LED

PCI 2

Fan3

JCLK 1

JBAT1

PS/2 Keyboard

AGP1 8X/4X

VT8235

VIA

RJ45

(on top)

Linein

(ontop)

LineOut

(middle)

Mic

PCI 3

JCLK 2

VIA

6103L

(2 ports)

FDD1

LPT1

COM1

VGA

USB

PW2

+12V Power

PW1

LPC I/O

IT8705F

Fan1

(underside)

(2 ports)

USB

USB3

CDIN1

Fan2

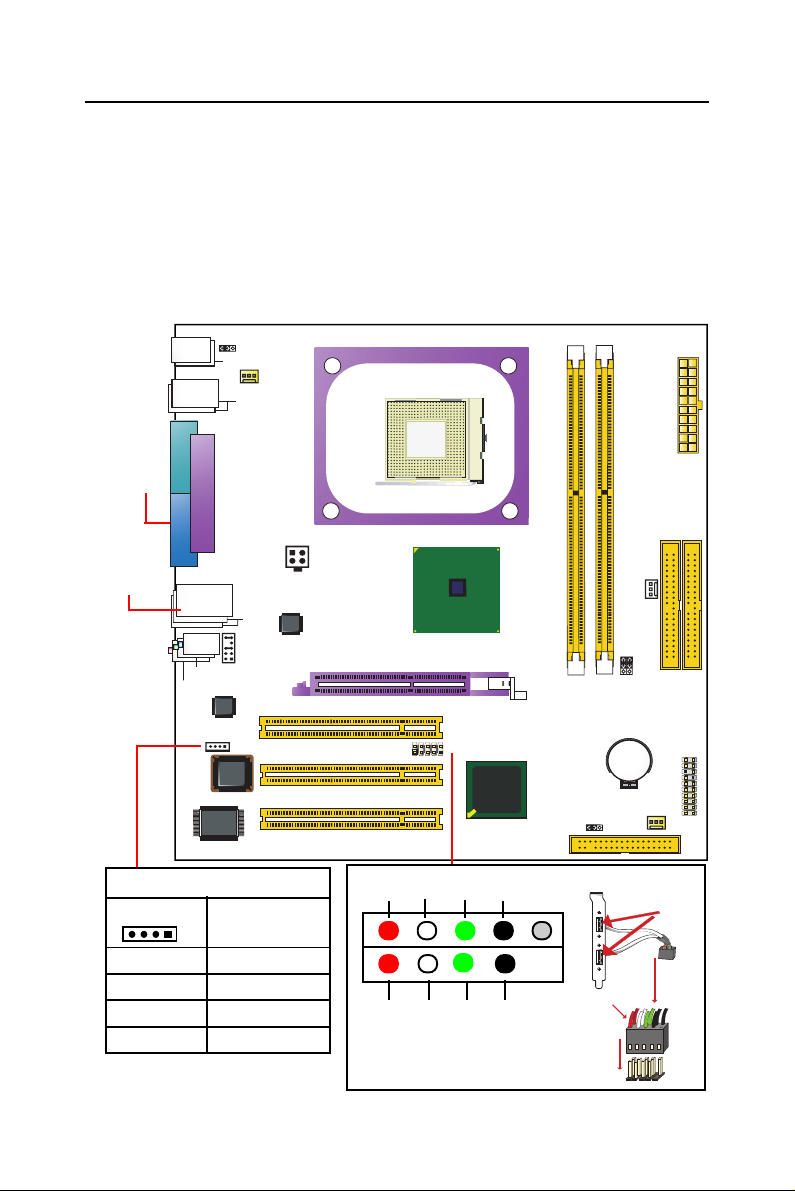

Front Panel Connectors Illustration

1-8.2 Complex Header (Front Panel Connectors)

This complex Header consists of 6 connectors providing various

supports:

SL-PM800I / PM800I-L Chapter 2 Software Setup

Chapter 2 Software Setup

1. Please put the Support CD enclosed in your mainboard package into

the CD-ROM drive. In a few seconds, the Main Menu will automatic-

ally appear, displaying the contents to be installed for this series:

2. Start driver and software installation from the first item and finish all

to optimize your system.

2-2.1 LAN Driver Installation (for PM800I-L)

2-2 Some Installation Illustrations

2-2.2 LAN Driver Verification

1. After LAN Driver setup, a new networking icon will appear at the

corner of the “Start” screen of your system, indicating that a network

channel has been set up.

2. Instantly, “The installation is

completed” screen appears,

indicating that LAN Driver

setup is finished.

1. Following the procedures of

opening the Support CD, click to “

Onboard LAN Driver” to proceed.

VIA USB 2.0 Driver

DirectX

Graphics Driver

AC’97 Audio Driver

Onboard LAN Driver (Optional)

Hardware Monitor Utility

VIA 4 in 1 Driver

2-1 To Open up the Support CD

SL-PM800I / PM800I-L Chapter 2 Software Setup

2. Instantly, the “installShield Wizard”

screen appears to guide you through

the “Realtek AC’97 Audio Setup””.

1. Following the procedures of opening the Support CD, click to “ AC’97

Audio Driver” to proceed.

2-2.3 Installing AC’97 6-channel Audio Driver

3. In a few seconds, the setup process

is finished. Please check the radial

button “Yes, I want to restart my

computer now.” And click “Finish” to

restart your system.

2-2.4 Verifying 6-channel Audio

1. Start your Windows system and double click the Avance Sound Effect

manager icon to enter 6-channel configuration:

2. The AC’97 Audio Configuration” screen will pop out. Clikc the “Speaker

Configuration” bar with your mouse.

4. At finishing the Speakers Configuration, you can also click the

“Speaker Test” bar on the screen to test the 6-channel performance.

The figure below is the “Speaker Test” screen with testing instructions

enclosed on it. Follow the instructions to perform the Speakers Test.

3. Instantly, the “Speaker Configuration” screen will pop out. Pick the

items “6-channel mode for 5.1 speakers output” and “ Synchronize

the phonejack switch with the speakers settings” and then click “OK”

to finish configuration.

“Speaker Configuration”

“6-channel mode for 5.1 speakers output”

“ Synchronize the phonejack switch with the speakers settings”

“The Speakers Test”

SL-PM800I / PM800I-L Chapter 2 Software Setup

2-2.5 To Install USB 2.0 Driver

VIA USB V2.0 is already integrated on board. Its 480Mb/s transfer rate

supports operating systems Windows 98SE/ME/2000/XP. USB2.0

Driver is typically for Windows 98SE/ME. For Windows 2000/XP, users

can install their latest Service Pack instead of the USB2.0 driver to gain

the USB2.0 support. For the Windows system which is not installed

with its latest Service Pack, users must install the USB2.0 driver to

activate the USB2.0 support:

1. Following the procedures of opening the Support CD, click to choose

“VIA USB 2.0 Driver” to proceed. Please notice that the USB card

driver is different from the USB 2.0 driver typically for the on-board

USB. Do not use the USB card driver here.

kÉñí

2. “USB 2.0 Setup program ” will pop up.

Click “Next” to continue.

3. Select “Install USB Driver” and click

“Next” button to continue.

4. Please click “Finish” button to restart

system to put the new driver into effect.

cáåáëÜ

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere SOLTEK Hauptplatine Handbücher

SOLTEK

SOLTEK SL-85DIR3 Bedienungsanleitung

SOLTEK

SOLTEK SL-PM800I-R Bedienungsanleitung

SOLTEK

SOLTEK SL-67D Bedienungsanleitung

SOLTEK

SOLTEK 86SP3 Bedienungsanleitung

SOLTEK

SOLTEK SL-B9D-FGR Bedienungsanleitung

SOLTEK

SOLTEK SL-61A Gebrauchs- und Pflegehandbuch

SOLTEK

SOLTEK SL-63AV Bedienungsanleitung

SOLTEK

SOLTEK SL-55F5 Bedienungsanleitung

SOLTEK

SOLTEK SL-75KIV Bedienungsanleitung

SOLTEK

SOLTEK SL-65EP Bedienungsanleitung

SOLTEK

SOLTEK SL-52D2 Bedienungsanleitung

SOLTEK

SOLTEK 865Pro-FGR Bedienungsanleitung

SOLTEK

SOLTEK 75FRV Bedienungsanleitung

SOLTEK

SOLTEK SL-XP865G-3IG Bedienungsanleitung

SOLTEK

SOLTEK SL-75DRV-X Bedienungsanleitung

SOLTEK

SOLTEK 85MR3-R Bedienungsanleitung

SOLTEK

SOLTEK SL-54A2-S Bedienungsanleitung

SOLTEK

SOLTEK SL-65ME-T Bedienungsanleitung

SOLTEK

SOLTEK SL-85DR-C Bedienungsanleitung

SOLTEK

SOLTEK SL-53D5-S Gebrauchs- und Pflegehandbuch

SOLTEK

SOLTEK SL-75KV Bedienungsanleitung

SOLTEK

SOLTEK SL-65EB Bedienungsanleitung

SOLTEK

SOLTEK SL-75KAV Bedienungsanleitung

SOLTEK

SOLTEK SL-85DIV Bedienungsanleitung

Beliebte Hauptplatine Handbücher anderer Marken

DFI

DFI SD170 Bedienungsanleitung

ASROCK

ASROCK ROMED8-2T Bedienungsanleitung

Asus

Asus P2L97A Bedienungsanleitung

Winmate

Winmate IC70 Bedienungsanleitung

Asus

Asus MES-B Bedienungsanleitung

Grantech

Grantech SYS8F377VGGA-3OMN Bedienungsanleitung

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Bedienungsanleitung

Gigabyte

Gigabyte GA-9IVDT Bedienungsanleitung

Texas Instruments

Texas Instruments ADS8372EVM Bedienungsanleitung

Commell

Commell MS-C73 Bedienungsanleitung

IBT Technologies

IBT Technologies MB860 Bedienungsanleitung

Nvidia

Nvidia TEGRA DG-04927-001_V01 Bedienungsanleitung

Biostar

Biostar M7VIT Bravo Bedienungs- und Montageanleitung

Intel

Intel D33217CK Bedienungsanleitung

Asus

Asus F1A55-M LX PLUS R2.0 Bedienungsanleitung

EPC

EPC EPC9147C Bedienungsanleitung

Asus

Asus EX-B760M-V5 D4 Bedienungsanleitung

EPOX

EPOX MU-8KHA0010 Bedienungsanleitung
