SOMFY Maestria 50 RTS Betriebsanleitung

Maestria 50 RTS

Programming Guide

Maestria 50 RTS

Manual limit setting

*The motor will move continuously if the Up or Down buttons are held for more than a few seconds. Use the my

button to stop.

Obstacle detection works when the correct weight of the load bar is used in the application. Check with your

product manufacturer if the obstacle detection does not work.

Switch on the power to the motor

Only connect one motor at a time.

Power on the motor

To reverse the

direction of the

motor, press and

hold the my

button until the

product jiggles.

Press and hold

the Down

button to test

that the motor

direction is

correct.

Press for

5 secs

Continue to step 4

Reverse the direction of rotation

When using a multi-

channel RTS control,

remember to select the

desired channel prior

to programming.

Hold Up and

Down together

until it jiggles.

NO - The product

retracts while pressing

the Down button -

Continue to step 3

2 Check the motor's rotation direction

Press and hold the

Down button. Does

the product extend?

YES - The product

extends while pressing

the Down button -

Go to step 4

4Set limits

Maestria 50 RTS

Manual limit setting

Briefly press the

my and UP buttons

simultaneously. The

product will begin to

move, then stop at

the upper limit.

Programming the RTS control to the motor

Stop the product

at the lower limit.

Press and hold the

my button until

the motor jiggles.

*Move the

product to

the desired

top limit.

Briefly press the my

and Down buttons

simultaneously. The

product will begin to

move down.

Smoove RTS Situo RTS jiggle = control recorded

Press the program button on the RTS control until the product jiggles.

Check functionality

Complete

Maestria 50 RTS

Manual limit setting

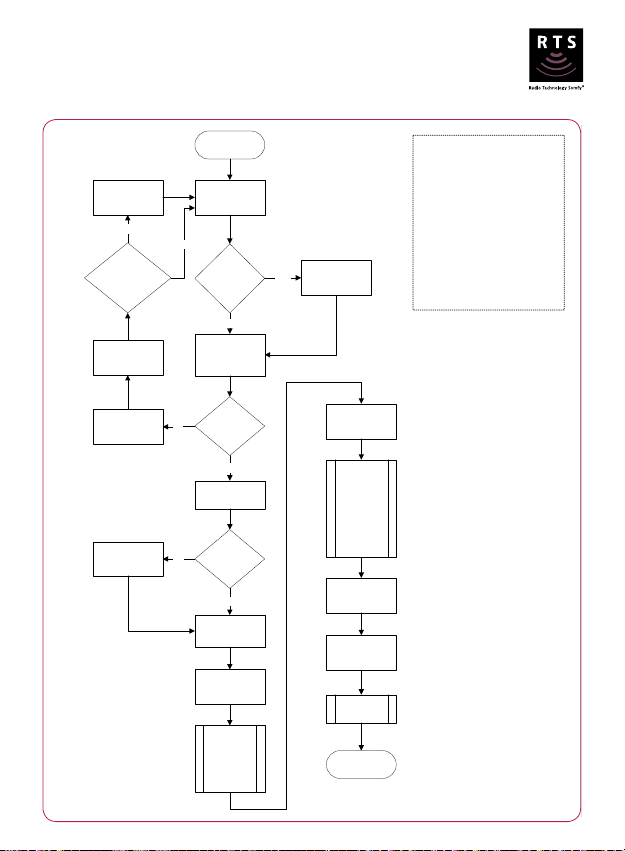

Maestria RTS

MANUAL LIMIT SETTING

Connect the motor

to a 240 Volt

power supply

START

Is the

transmitter

single or multi

channel?

Select the

required channel

Press & hold the

up & down buttons

on the transmitter

for 2 secs

The motor

jiggles?

Check the motor

direction

Is the direction

correct?

Single

Multi

Yes

*move the product

to the desired top

limit

Briefly press the

my & down

buttons

simultaneously

The product

will begin to

move down

Stop the product

at lower limit

Briefly press the

my & up buttons

simultaneously

The product

will begin to

move stop at

the upper

limit

Press & hold the

my button until the

motor jiggles

Press the program

button briefly

The motor

jiggles

END

Check power

supply

Check the motor

remote battery

Has the motor

been programmed

previously?

Refer to resetting

to factory

flowchart

Yes

Press & hold the

my button until the

motor jiggles

*The motor will move continuously if the

up or down buttons are held for more

than a few seconds. Use the stop button

to stop.

Obstacle detection works when the

correct weight of the load bar is used in

the application. Check with your product

manufacturer if the obstacle detection

does not work.

STOP = MY

Yes

Maestria 50 RTS

Semi-automatic limit setting

Note: Semi-automatic setting mode is only compatible with screens featuring a hard stop at the upper end limit.

The motor will move continuously if the Up or Down buttons are held for more than a few seconds. Use the my

button to stop.

Obstacle detection works when the correct weight of the load bar is used in the application. Check with your

product manufacturer if the obstacle detection does not work.

Switch on the power to the motor

Only connect one motor at a time.

Power on the motor

To reverse the

direction of the

motor, press and

hold the my

button until the

product jiggles.

Press and hold

the Down

button to test

that the motor

direction is

correct.

Press for

5 secs

Continue to step 4

Reverse the direction of rotation

When using a multi-

channel RTS control,

remember to select the

desired channel prior

to programming.

NO - The product

retracts while pressing

the Down button -

Continue to step 3

2 Check the motor's rotation direction

YES - The product

extends while pressing

the Down button -

Go to step 4

Hold Up and

Down together

until it jiggles.

Press and hold the

Down button. Does

the product extend?

Maestria 50 RTS

Semi-automatic limit setting

4Semi-automatic limit setting

5Programming the RTS control to the motor

Smoove RTS Situo RTS jiggle = control recorded

Press the program button on the RTS control until the product jiggles.

Check functionality

Complete

Position the

screen at the

desired lower

limit.

Press my and

Up, the screen

raises. Press

my to stop the

screen.

Press and hold the

my button to save

the lower limit.

The motor will

jiggle.

Maestria 50 RTS

Semi-automatic limit setting

Maestria RTS

SEMI-AUTOMATIC LIMIT SETTING

Connect the motor

to a 240 Volt

power supply

START

Is the

transmitter

single or multi

channel?

The motor

begins to

raise the

screen

Select the

required channel

Press & hold the

up & down buttons

on the transmitter

for 2 secs

The motor

jiggles?

Check the motor

direction

Is the direction

correct?

*Move the product

to its lower limit

Briefly press the

up & my buttons

simultaneously

Single

Multi

Yes

Press the stop

button

Press & hold the

my button until the

motor jiggles

Press the program

button briefly

The motor

jiggles

END

Check power

supply

Check the motor

remote battery

Has the motor

been programmed

previously?

Refer to resetting

to factory

flowchart

Yes

Press & hold the

my button until the

motor jiggles

Automatic setting at UP end limit is only

compatible with screens featuring a hard

stop.

*The motor will move continuously if the

up or down buttons are held for more

than a few seconds. Use the stop button

to stop.

Obstacle detection works when the

correct weight of the load bar is used in

the application. Check with your product

manufacturer if the obstacle detection

does not work.

STOP = MY

Yes

Maestria 50 RTS

Automatic limit setting

Note: Automatic mode is only compatible with screens fitted with hard up and lower stops.

The motor will move continuously if the Up or Down buttons are held for more than a few seconds. Use the my

button to stop.

Obstacle detection works when the correct weight of the load bar is used in the application. Check with your

product manufacturer if the obstacle detection does not work.

Switch on the power to the motor

Only connect one motor at a time.

Power on the motor

To reverse the

direction of the

motor, press and

hold the my

button until the

product jiggles.

Press and hold

the Down

button to test

that the motor

direction is

correct.

Press for

5 secs

Continue to step 4

Reverse the direction of rotation

When using a multi-

channel RTS control,

remember to select the

desired channel prior

to programming.

NO - The product

retracts while pressing

the Down button -

Continue to step 3

2 Check the motor's rotation direction

YES - The product

extends while pressing

the Down button -

Go to step 4

Hold Up and

Down together

until it jiggles.

Press and hold the

Down button. Does

the product extend?

Maestria 50 RTS

Automatic limit setting

4Automatic limit setting

Move the screen to

the halfway position.

Briefly press the Up and Down buttons.

The screen will jiggle.

Hold the Down button. The screen will lower until it detects the lower limit,

perform a brief upward movement and return to the lower limit position.

Press and hold the my button

until the motor jiggles.

5Programming the RTS control to the motor

Smoove RTS Situo RTS jiggle = control recorded

Press the program button on the RTS control until the product jiggles.

Check functionality

Complete

Maestria 50 RTS

Automatic limit setting

Maestria RTS

AUTOMATIC LIMIT SETTING

Connect the motor

to a 240 Volt

power supply

START

Is the

transmitter

single or multi

channel?

The motor

performs a

jiggle

Select the

required channel

Press & hold the

up & down buttons

on the transmitter

for 2 secs

The motor

jiggles?

Check the motor

direction

Is the direction

correct?

*Move the product

to its half-way

position

Briefly press the

up & down buttons

simultaneously

Single

Multi

Yes

Hold the down

button

The product

will begin to

move down

detect the

lower limit,

performs an

upward

movement

and returns to

its lower limit

Press & hold the

my button until the

motor jiggles

Press the program

button briefly

The motor

jiggles

END

Check power

supply

Check the motor

remote battery

Has the motor

been programmed

previously?

Refer to resetting

to factory

flowchart

Yes

Press & hold the

my button until the

motor jiggles

Automatic setting at UP and LOWER

end limits is only compatible with

screens featuring a hard stop.

*The motor will move continuously if the

up or down buttons are held for more

than a few seconds. Use the stop button

to stop.

Obstacle detection works when the

correct weight of the load bar is used in

the application. Check with your product

manufacturer if the obstacle detection

does not work.

STOP = MY

Yes

Andere Handbücher für Maestria 50 RTS

Andere SOMFY Motor Handbücher

SOMFY

SOMFY Elite Smart Shades R28 WireFree RTS Installationshandbuch

SOMFY

SOMFY BAT-R Installationshandbuch

SOMFY

SOMFY OXIMO 40 AUTO io Bedienungsanleitung

SOMFY

SOMFY MAESTRIA+ 50 io Bedienungsanleitung

SOMFY

SOMFY J4 RTS Montageanleitung

SOMFY

SOMFY Tilt & Lift 25 RTS Central Bedienungsanleitung

SOMFY

SOMFY Cord Lift 32 RTS Bedienungsanleitung

SOMFY

SOMFY Maestria 50 RTS Betriebsanleitung

SOMFY

SOMFY Orea 60 WT Montageanleitung

SOMFY

SOMFY ILT 2 Bedienungsanleitung

SOMFY

SOMFY LS40 404R2 Bedienungsanleitung

SOMFY

SOMFY LT50 Service-Handbuch

SOMFY

SOMFY Centreo RTS Bedienungsanleitung

SOMFY

SOMFY Roll Up Basic 28 WFRTS Li-ion Bedienungsanleitung

SOMFY

SOMFY LT50 RS485 Bedienungsanleitung

SOMFY

SOMFY LOGGIA RTS Bedienungsanleitung

SOMFY

SOMFY SGH RTS Bedienungsanleitung

SOMFY

SOMFY Tilt Only 50 WF RTS Bedienungsanleitung

SOMFY

SOMFY SGH io Montageanleitung

SOMFY

SOMFY WireFree RTS Betriebsanleitung

SOMFY

SOMFY RS-485 SDN 2.0 Kurzanleitung zur Einrichtung

SOMFY

SOMFY Glydea Ultra WT Bedienungsanleitung

SOMFY

SOMFY J4 1TN Bedienungsanleitung

SOMFY

SOMFY Sonesse 40 RTS Installationshandbuch

Beliebte Motor Handbücher anderer Marken

Rotax

Rotax 125 senior MAX evo Bedienungsanleitung

Kohler

Kohler K361 Bedienungsanleitung

MTD

MTD OHV Series Bedienungsanleitung

Kohler

Kohler COMMAND CH18-745 Bedienungsanleitung

Mercury

Mercury D4.2L D-Tronic Bedienungsanleitung

Selve

Selve SE Plus-RC Series Bedienungsanleitung

Perkins

Perkins 1206E-E66TA Bedienungsanleitung

Skov

Skov DA 174 Handbuch

Rossi

Rossi TX11 Series Bedienungsanleitung

Siemens

Siemens SIMOTICS T-1FW3 Merkblatt

AL-KO

AL-KO PRO 350 Bedienungsanleitung

MTU

MTU 12 V 4000 Lx4 Bedienungsanleitung

Nanni

Nanni N3.30 Gebrauchsanweisung

Nanni

Nanni N5.160 CR2 Bedienungsanleitung

KSB

KSB SuPreme Series Montageanleitung

Hiwin

Hiwin EM1 Series Bedienungsanleitung

Rotax

Rotax 912 i series Betriebsanleitung

Siemens

Siemens SIMOTICS XP 1MB1 Bedienungsanleitung
