Sonesse®30 DCT

Installation instructions

Ref :5051080A

SAFETY

• This Somfy product must be installed by a professional motorization and home automation installer,

for whom these instructions are intended.

• Before installation, check that this product is compatible with the associated equipment and acces-

sories.

• These instructions describe how to install, commission and use this product.

• Moreover, the installer must comply with current standards and legislation in the country in which

the product is being installed, and inform his customers of the operating and maintenance conditions

for the product.

• Any use outside the sphere of application specied by Somfy is not approved. Such use, or any

failure to comply with the instructions given herein will invalidate the warranty, and Somfy refuses to

accept liability.

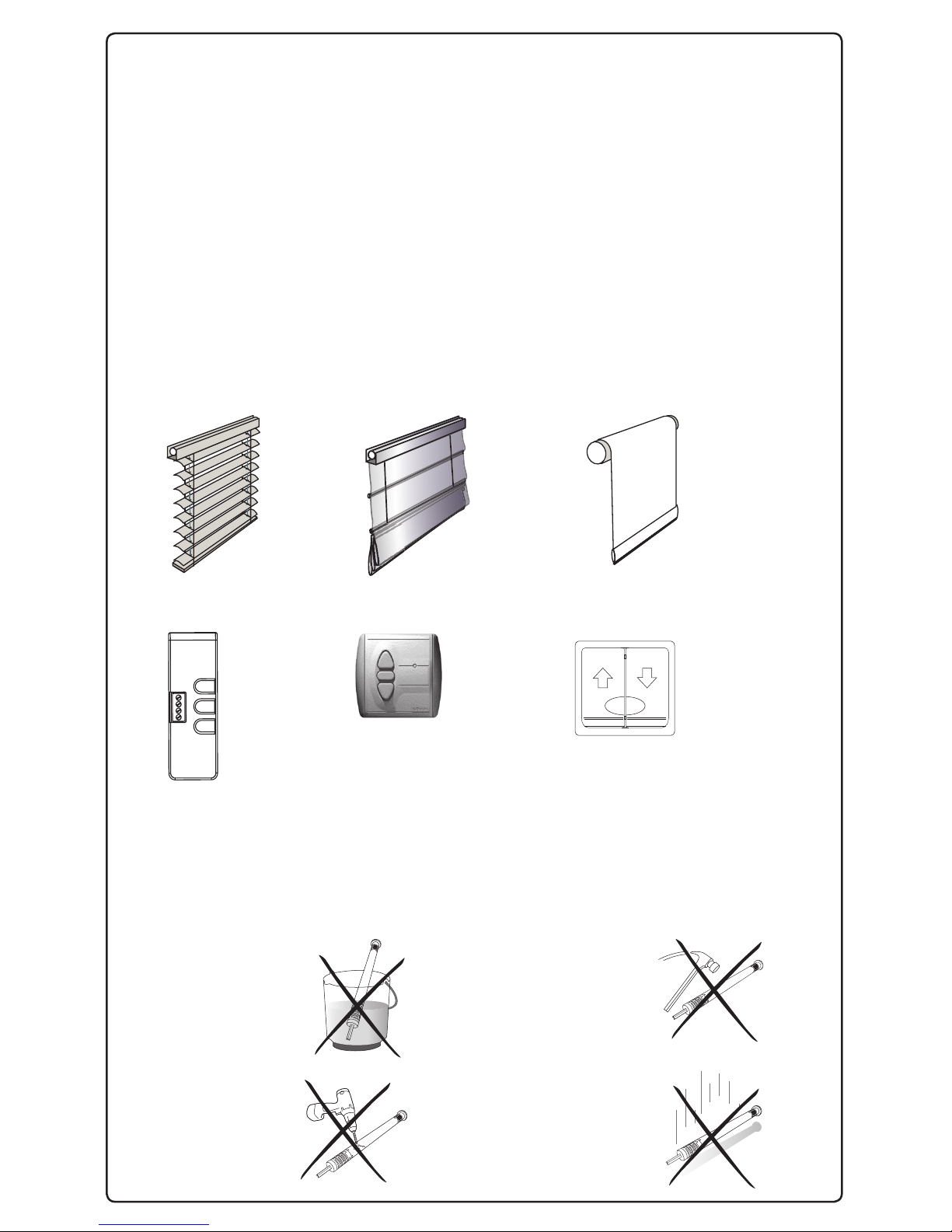

COMPATIBLE BLINDS

Venetian blinds Roman shades Roller blinds

COMPATIBLE CONTROL

GENERAL SAFETY INSTRUCTION

The safety instructions that must be observed, besides the usual rules, are

explained in these instructions and in the attached «Safety Instructions» document.

Never immerse the

motor in liquid!

Never drill holes in the

motor!

Avoid impacts!

Do not drop it!

ST OP

Setting Tool Centralis IB Wall Switch

INSTALLATION

Motor preparation

1) Fit the crown (a) and drive wheel (b)

to the motor.

2) Measure the length (L) between

the middle of the drive wheel and the

head end.

Tube preparation

Cut the tube to the required length.

Deburr the tube and remove the

debris.

Motor/tube assembly

1) Slide the motor into the tube.

2) Fix the tube to the motor with self-

tapping screws or steel pop rivets

depending on the dimension (L).

Mounting the motorized tube on the

brackets

If necessary, screw the bracket inter-

face on the motor head.

Mount the motorized tube on the end

bracket (C ).

Mount the motorized tube on the

motor bracket (D).

Wiring

Sonesse® 30 DCT is Dry

contact motor.It can’t be

controlled with power going

through the setting tool cable.

1) Connect the power cable to the

motor.

2 ) Connect the setting tool cable to

the motor.

3) Control wiring

Setting Tool

1 UP (White/Blue)

2 STOP (Blue)

3 DOWN (White/Orange)

4 GND (Orange)

Centralis IB

1 UP or DOWN (White/Blue or White/

Orange)

2 UP or DOWN (White/Blue or White/

Orange)

3 GND (Orange)

Wall Switch

1 UP or DOWN (White/Blue or White/

Orange)

2 UP or DOWN (White/Blue or White/

Orange)

3 GND (Orange)

4) Correspondence

ST OP

COMMISSIONING

Checking the direction of rotation

Press the setting tool UP button:

a) If the shade is raised, the direction

of rotation is correct. Move to the sec-

tion entitled «Adjusting the end limits».

b) If the shade is lowered, the direction

of rotation is incorrect. Move to the

next step.

Press the setting tool STOP button

until the shade jogs: the direction of

rotation has been modied.

Press the setting tool UP button to

check the direction of rotation.

Adjusting the end limits

The limits can be set in any sequence.

1) Press and hold the UP button to

move the shade to the desired up

position.

2) Press simultaneously the STOP and

DOWN buttons and release them once

the shade begins to move.

The up limit is memorized.

3) Press the STOP button when it

reaches the desired down position.

If necessary adjust the down position,

using the UP or DOWN buttons.

4) Press simultaneously the STOP and

UP buttons and release them when

the shade begins to move.

The down limit is memorized.

The shade moves up and will stop at

its upper limit.

5) To conrm the end limits press and

hold the STOP button until the shade

jogs.

The end limits are recorded.

1 2

3 4

USE

MY position

1) Recording MY position

To set the MY position, move the

shade to the desired position with the

UP and DOWN buttons then press the

STOP button until the shade jogs.

2) Changing the MY position

To change the MY position go to the

new desired MY position with the UP

and DOWN buttons then press the

STOP button until the shade jogs.

3) Delete the MY position

To delete the MY position, move to this

position and press the STOP button

until the shade jogs.

Mode Selection

By factory default, the motor is in

Roller mode but you can change from

a mode to another.

To change from a Roller mode to a

Tilting mode, press the UP, STOP and

DOWN buttons simultaneously until

the shade jogs.

With the setting tool, it is possible

to cancel and exit the speed or limit

adjustment mode by simultaneously

pressing the UP, STOP, and DOWN

buttons. These modes will also be

cancelled with inactivity of 2 minutes.

Adjusting the roller speed

1) Press and hold the STOP button

until the shade jogs twice.

The shade moves up and down auto-

matically in 10 second cycles.

2) While the shade is moving, briey

press the UP button to increase the

speed or DOWN button to decrease

the speed.

3) To conrm the new speed, press

and hold the STOP button until the

shade jogs.

Adjusting the Tilting speed

1) Press and hold the STOP button

until the shade jogs 3 times.

The shade moves up and down auto-

matically in 10 second cycles.

2) While the shade is moving, briey

press the UP button to increase the

speed or DOWN button to decrease

the speed.

3) To conrm the new speed, press

and hold the STOP button until the

shade jogs.

10s 10s

UP, DOWN and MY

In roller mode

1) To move the shade from a limit to

the other limit, press briey the UP or

DOWN button.

2) To stop the shade, press the STOP

button.

3) To move the shade to the MY posi-

tion, press briey the STOP button.

In tilting mode

1) To move the shade from a limit to

the other limit, press briey (less than

0,5s) the UP or DOWN button.

2) To stop the shade, press the STOP

button.

3) To move the shade to the MY posi-

tion, press briey the STOP button.

The Venetian blind goes rst to the

down end-limit, then to the MY posi-

tion.

4) To tilt the slats, press and hold the

UP or DOWN button until the slats

reach the desired position.

End limit re-adjustement

UP LIMIT

1) Press the UP button, to move the

shade to the limit to be readjusted.

2) Press and hold the DOWN and

STOP buttons simultaneously until the

shade jogs.

3) Press and hold the UP or DOWN

button to move the shade to the new

desired position.

4) To conrm the new limit press and

hold the STOP button until the shade

jogs.

DOWN LIMIT

1) Press the DOWN button, to move

the shade to the limit to be readjusted.

2) Press and hold the STOP and UP

buttons simultaneously until the shade

jogs.

3) Press and hold the UP or DOWN

button to move the shade to the new

desired position.

4) To conrm the new limit press and

hold the STOP button until the shade

jogs.
