DSX-B700

5-003-283-81(2)

FM/AM

Bluetooth® Car Audio

Operating Instructions GB

To cancel the demonstration (DEMO) display, see page 7.

To switch the FM/AM tuning step, see page 6.

For the connection/installation, see page 11.

2GB

Warning

The nameplate indicating operating voltage, etc., is

located on the bottom of the chassis.

The validity of the CE marking is restricted to only

those countries where it is legally enforced, mainly

in the countries EEA (European Economic Area) and

Switzerland.

WARNING: Do not ingest battery,

Chemical Burn Hazard.

The remote commander contains a coin/

button cell battery. If the coin/button cell battery is

swallowed, it can cause severe internal burns in just

2 hours and can lead to death.

Keep new and used batteries away from children. If

the battery compartment does not close securely,

stop using the product and keep it away from

children.

If you think batteries might have been swallowed or

placed inside any part of the body, seek immediate

medical attention.

Note on the lithium battery

Do not expose the battery to excessive heat such as

direct sunlight, fire or the like.

Disclaimer regarding services offered by

third parties

Services offered by third parties may be changed,

suspended, or terminated without prior notice.

Sony does not bear any responsibility in these sorts

of situations.

For safety, be sure to install this unit in the

dashboard of the car as the rear side of the unit

becomes hot during use.

For details, see “Connection/Installation”

(page 11).

Warning if your car’s ignition has no ACC

position

Be sure to set the AUTO OFF function. The unit

will shut off completely and automatically in the

set time after the unit is turned off and the clock

is displayed (i.e. press and hold OFF for 1 second),

which prevents battery drain. If you do not set

the AUTO OFF function, press and hold OFF until

the display disappears each time you turn the

ignition off.

3GB

Caution

IN NO EVENT SHALL SONY BE LIABLE FOR ANY

INCIDENTAL, INDIRECT OR CONSEQUENTIAL

DAMAGES OR OTHER DAMAGES INCLUDING,

WITHOUT LIMITATION, LOSS OF PROFITS, LOSS OF

REVENUE, LOSS OF DATA, LOSS OF USE OF THE

PRODUCT OR ANY ASSOCIATED EQUIPMENT,

DOWNTIME, AND PURCHASER’S TIME RELATED TO

OR ARISING OUT OF THE USE OF THIS PRODUCT, ITS

HARDWARE AND/OR ITS SOFTWARE.

Dear customer, this product includes a radio

transmitter.

Please check your vehicle operation manual or

contact the manufacturer of your vehicle or your

vehicle dealer, before you install this product into

your vehicle.

Emergency calls

This BLUETOOTH car handsfree and the electronic

device connected to the handsfree operate using

radio signals, cellular, and landline networks as well

as user-programmed function, which cannot

guarantee connection under all conditions.

Therefore do not rely solely upon any electronic

device for essential communications (such as

medical emergencies).

On BLUETOOTH communication

Microwaves emitting from a BLUETOOTH device

may affect the operation of electronic medical

devices. Turn off this unit and other BLUETOOTH

devices in the following locations, as it may cause

an accident.

where inflammable gas is present, in a hospital,

train, airplane, or petrol station

near automatic doors or a fire alarm

This unit supports security capabilities that

comply with the BLUETOOTH standard to provide

a secure connection when the BLUETOOTH

wireless technology is used, but security may not

be enough depending on the setting. Be careful

when communicating using BLUETOOTH wireless

technology.

We do not take any responsibility for the leakage

of information during BLUETOOTH

communication.

If you have any questions or problems concerning

your unit that are not covered in this manual,

consult your nearest Sony dealer.

Important notice

4GB

Main Unit and Remote Commander

(browse)

During playback:

Enters the browse mode.

(Not available when a USB device in Android™

mode or iPod is connected.)

PTY (program type)

During FM reception:

Selects PTY in RDS.

SRC (source)

Turns on the power.

Changes the source.

OFF

Press and hold for 1 second to turn the source

off and display the clock.

Press and hold for more than 2 seconds to turn

off the power and the display.

If the unit is turned off and the display

disappears, operation by the remote

commander is not available.

EXTRA BASS

Reinforces bass sound in synchronization with

the volume level.

Press to change the EXTRA BASS setting: [1], [2],

[OFF].

Display window

USB port

/ (SEEK–/+)

During radio reception:

Tunes in radio stations automatically.

Press and hold to tune manually.

/(prev/next)

/(fast-reverse/fast-forward)

MODE

(back)

Returns to the previous display.

CALL

Enters the call menu. Receives/ends a call.

Press and hold for more than 2 seconds to

switch the BLUETOOTH signal.

Guide to Parts and Controls

Main unit

5GB

Receptor for the remote commander

Number buttons (1 to 6)

Receives preset radio stations.

Press and hold to preset stations.

ALBUM /

Skips an album for audio device.

Press and hold to skip albums continuously.

(Not available when a USB device in Android

mode or iPod is connected.)

(repeat)

(Not available when a USB device in Android

mode is connected.)

(shuffle)

(Not available when a USB device in Android

mode is connected.)

MIC

(play/pause)

Control dial

Adjusts the volume.

PUSH ENTER

Enters the selected item.

Press SRC, rotate then press to change the

source (timeout in 2 seconds).

Opens the setup menu.

VOICE

Press and hold for more than 2 seconds to

activate voice dial, voice recognition (Android

smartphone only), or the Siri function (iPhone

only).

AUX input jack

DSPL (display)

Changes display items.

SCRL (scroll)

Press and hold to scroll a display item.

The VOL (volume) + button has a tactile dot.

SOUND

Opens the SOUND menu directly.

Press and hold to open the setup menu.

///

Selects a setup item, etc.

ENTER

Enters the selected item.

Press and hold for more than 2 seconds to

establish or terminate the “Sony | Music Center”

function.

/(prev/next)

+/– (album +/–)

VOL (volume) +/–

Remove the insulation film before use.

RM-X231 Remote commander

6GB

Resetting the Unit

Before operating the unit for the first time, after

replacing the car battery, or changing the

connections, you must reset the unit.

1Press and hold DSPL and CALL for

more than 2 seconds.

Note

Resetting the unit will erase the clock setting and some

stored contents.

Switching the FM/AM Tuning

Step

Set the FM/AM tuning step of your country. This

setting appears only while the source is off and

the clock is displayed.

1Press MENU, rotate the control dial to

select [GENERAL], then press it.

2Rotate the control dial to select [TUNER

STEP], then press it.

3Rotate the control dial to select from

[50K/9K], [100K/10K] or [200K/10K], then

press it.

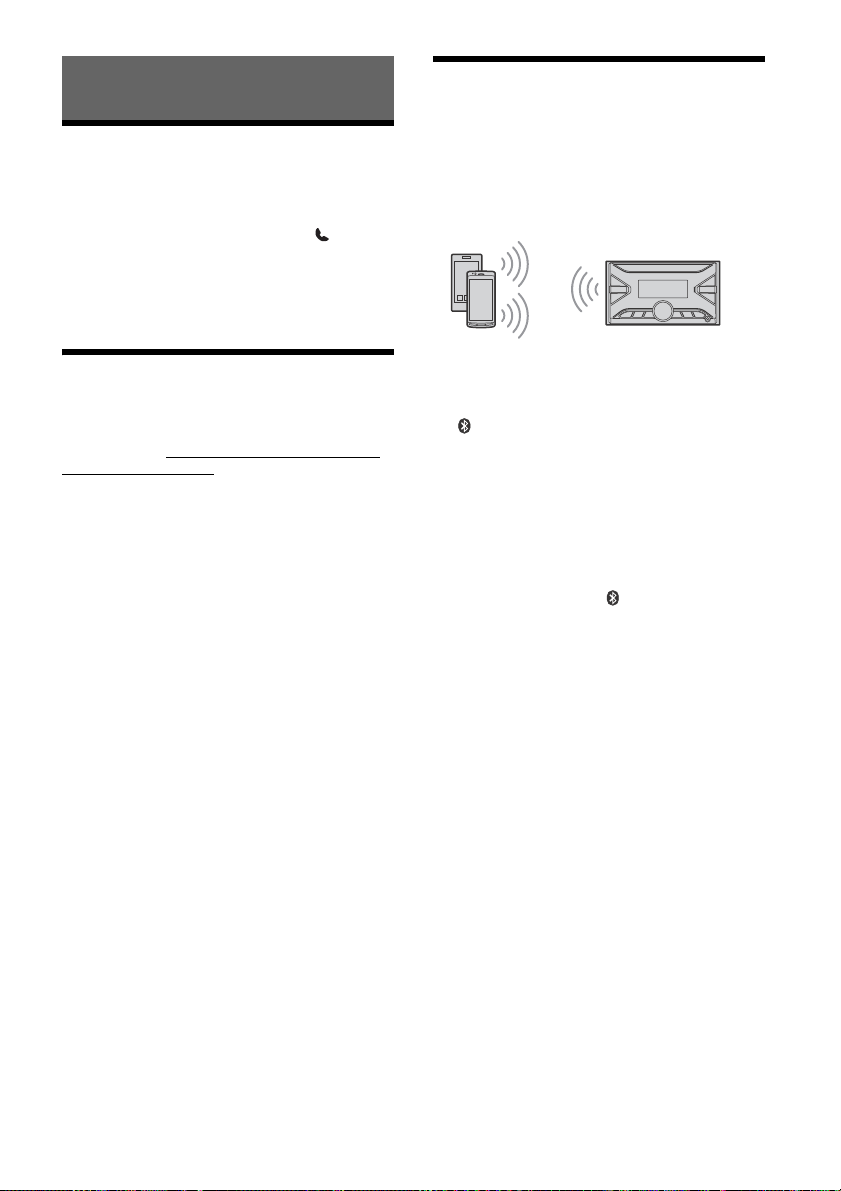

Pairing with a BLUETOOTH

Device

When connecting a BLUETOOTH device for the first

time, mutual registration (called “pairing”) is

required. Pairing enables this unit and other devices

to recognize each other. This unit can connect two

BLUETOOTH devices (two mobile phones, or a

mobile phone and an audio device).

1Press MENU, then rotate and press the

control dial to select [BLUETOOTH] 

[PAIRING] [DEVICE 1]/[DEVICE 2]*.

flashes while the unit is in pairing standby

mode.

* [DEVICE 1] or [DEVICE 2] will be changed to the

paired device name after pairing is complete.

2Perform pairing on the BLUETOOTH

device so it detects this unit.

3Select your model name shown in the

display of the BLUETOOTH device*.

When pairing is made, stays lit.

* If passkey input is required on the BLUETOOTH

device, input [0000].

Basic Operations

7GB

Canceling the Demonstration

Mode

You can cancel the demonstration display which

appears when the source is off and the clock is

displayed.

1Press MENU, rotate the control dial to

select [GENERAL], then press it.

2Rotate the control dial to select [DEMO],

then press it.

3Rotate the control dial to select [DEMO-

OFF], then press it.

The setting is complete.

4Press (back) twice.

The display returns to normal reception/play

mode.

Updating the Firmware

To update the firmware, visit the support site on the

back cover, then follow the online instructions.

Notes

Using a USB device (not supplied) is required for

updating the firmware. Store the updater in the USB

device, and connect the device to the USB port, then

perform the update operation.

Updating the firmware takes a few minutes to

complete. During the update, do not turn the ignition

to the OFF position, nor remove the USB device.

Precautions

Cool off the unit beforehand if your car has been

parked in direct sunlight.

Do not leave audio devices brought in inside the

car, or it may cause malfunction due to high

temperature in direct sunlight.

Power antenna (aerial) extends automatically.

To maintain high sound quality

Do not splash liquid onto the unit.

Additional Information

Playback order of audio files

Folder (album)

Audio file (track)

8GB

You can connect to the following iPod models.

Update your iPod devices to the latest software

before use.

Compatible iPhone/iPod models

Use of the Made for Apple badge means that an

accessory has been designed to connect

specifically to the Apple product(s) identified in

the badge, and has been certified by the

developer to meet Apple performance standards.

Apple is not responsible for the operation of this

device or its compliance with safety and

regulatory standards.

Please note that the use of this accessory with an

Apple product may affect wireless performance.

If you have any questions or problems concerning

your unit that are not covered in this manual,

consult your nearest Sony dealer.

Maintenance

Replacing the lithium battery (CR2025) of the

remote commander

When the battery becomes weak, the range of the

remote commander becomes shorter.

CAUTION

Danger of explosion if battery is incorrectly

replaced. Replace only with the same or equivalent

type.

Note on the lithium battery

Keep the lithium battery out of the reach of children.

Should the battery be swallowed, immediately consult

a doctor.

About iPod

Compatible Model Bluetooth® USB

iPhone XR 

iPhone Xs max 

iPhone Xs 

iPhone X 

iPhone 8 

iPhone 8 Plus 

iPhone 7 

iPhone 7 Plus 

iPhone SE 

iPhone 6s 

iPhone 6s Plus 

iPhone 6 

iPhone 6 Plus 

iPhone 5s 

iPhone 5c 

iPhone 5 

iPhone 4s 

iPod touch

(6th generation) 

iPod touch

(5th generation) 

iPod nano

(7th generation) 

Lithium battery (CR2025)

+ side up

9GB

Specifications

Tuner section

Tuning range:

87.5 MHz – 108.0 MHz (at 50 kHz step)

87.5 MHz – 108.0 MHz (at 100 kHz step)

87.5 MHz – 107.9 MHz (at 200 kHz step)

FM tuning step:

50 kHz/100 kHz/200 kHz switchable

Usable sensitivity: 7 dBf

Signal-to-noise ratio: 73 dB

Separation: 50 dB at 1 kHz

Tuning range:

531 kHz – 1,602 kHz (at 9 kHz step)

530 kHz – 1,710 kHz (at 10 kHz step)

AM tuning step:

9 kHz/10 kHz switchable

Sensitivity: 26 μV

USB Player section

Interface: USB (Full speed)

Maximum current: 1 A

Maximum number of recognizable folders and files:

Folders (albums): 256

Files (tracks) per folder: 256

Compatible Android Open Accessory protocol

(AOA): 2.0

Corresponding codec:

MP3 (.mp3)

Bit rate: 8 kbps – 320 kbps (Supports VBR

(Variable Bit Rate))

Sampling rate: 16 kHz – 48 kHz

WMA (.wma)

Bit rate: 32 kbps – 192 kbps (Supports VBR

(Variable Bit Rate))

Sampling rate: 32 kHz, 44.1 kHz, 48 kHz

AAC (.m4a, .mp4)

Bit rate: 16 kbps – 320 kbps (stereo)

Sampling rate: 8 kHz – 48 kHz

FLAC (.flac)

Bit depth: 16 bit, 24 bit

Sampling rate: 44.1 kHz, 48 kHz

Supported file system: FAT16, FAT32

Wireless Communication

Communication System:

BLUETOOTH Standard version 3.0

Output:

BLUETOOTH Standard Power Class 2

(Max. Conducted +1 dBm)

Maximum communication range*1:

Line of sight approx. 10 m (33 ft)

Frequency band:

2.4 GHz band (2.4000 GHz – 2.4835 GHz)

Modulation method: FHSS

Compatible BLUETOOTH Profiles*2:

A2DP (Advanced Audio Distribution Profile) 1.3

AVRCP (Audio Video Remote Control Profile) 1.3

HFP (Handsfree Profile) 1.6

PBAP (Phone Book Access Profile)

SPP (Serial Port Profile)

Corresponding codec:

SBC (.sbc), AAC (.m4a)

*1 The actual range will vary depending on factors such

as obstacles between devices, magnetic fields

around a microwave oven, static electricity,

reception sensitivity, antenna (aerial)’s performance,

operating system, software application, etc.

*2 BLUETOOTH standard profiles indicate the purpose

of BLUETOOTH communication between devices.

Power amplifier section

Output: Speaker outputs

Speaker impedance: 4 Ω – 8 Ω

Maximum power output: 55 W × 4 (at 4 Ω)

General

Power requirements: 12 V DC car battery (negative

ground (earth))

Rated current consumption: 10 A

Dimensions:

Approx. 178 mm × 100 mm × 177 mm

(7 1/8in × 4 in × 7 in) (w/h/d)

Mounting dimensions:

Approx. 182 mm × 111 mm × 159 mm

(7 1/4in × 4 3/8in × 6 3/8in) (w/h/d)

Mass: Approx. 1.0 kg (2 lb 4 oz)

Package contents:

Main unit (1)

Remote commander (1): RM-X231

Parts for installation and connections (1 set)

Optional accessories/equipment:

Cable for steering wheel remote input: RC-SR1

Ask the dealer for detailed information.

Design and specifications are subject to change

without notice.

10GB

The Bluetooth® word mark and logos are registered

trademarks owned by the Bluetooth SIG, Inc. and

any use of such marks by Sony Corporation is under

license. Other trademarks and trade names are

those of their respective owners.

Windows Media is either a registered trademark or

trademark of Microsoft Corporation in the United

States and/or other countries.

This product is protected by certain intellectual

property rights of Microsoft Corporation. Use or

distribution of such technology outside of this

product is prohibited without a license from

Microsoft or an authorized Microsoft subsidiary.

Apple, iPhone, iPod, iPod nano, iPod touch, and Siri

are trademarks of Apple Inc., registered in the U.S.

and other countries.

Android is a trademark of Google LLC.

Copyrights

Andere Handbücher für DSX-B700

Andere Sony Autoradiosystem Handbücher

Sony

Sony XS-V1331 Bedienungsanleitung

Sony

Sony CDX-GT63UIW - Fm/am Compact Disc Player Bedienungsanleitung

Sony

Sony MEX-BT4700U Bedienungsanleitung

Sony

Sony XR-C5080R Bedienungsanleitung

Sony

Sony MEX-BT3750U Bedienungsanleitung

Sony

Sony CDX-565MXRF Operating Instruction correction: multi-session... Bedienungsanleitung

Sony

Sony MEX-BT2500 Bedienungsanleitung

Sony

Sony MEXBT2700 - CD Receiver With Bluetooth... Bedienungsanleitung

Sony

Sony CDX-1000RF Bedienungsanleitung

Sony

Sony XR-C6220R Produkthandbuch

Sony

Sony XM-1502SX - Stereo Power Amplifier Installationsanleitung

Sony

Sony DVX 11B Bedienungsanleitung

Sony

Sony XDP-MU110 Bedienungsanleitung

Sony

Sony Pressman TCM-5000EV Bedienungsanleitung

Sony

Sony CDX-MP70 Installation/Connection Bedienungsanleitung

Sony

Sony MEX-BT4700U Bedienungsanleitung

Sony

Sony MEX-BT4700U Produkthandbuch

Sony

Sony DSX-GS80 Bedienungsanleitung

Sony

Sony BluetoothH MEX-BT5100 Produkthandbuch

Sony

Sony MEX-BT3600U Bedienungsanleitung

Sony

Sony CDX-GT72W - Fm/am Compact Disc Player Bedienungsanleitung

Sony

Sony MEX-N5300BT Bedienungsanleitung

Sony

Sony XR-1900 Bedienungsanleitung

Sony

Sony XR-C223 Produkthandbuch

Beliebte Autoradiosystem Handbücher anderer Marken

JL Audio

JL Audio Stealthbox SB-CAN-G2MVX3D/10TW3 Bedienungsanleitung

Clarion

Clarion PU-9836A Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric AR0M Bedienungsanleitung

Insignia

Insignia NS-HD5113 Bedienungsanleitung

Clarion

Clarion BTD3341 Bedienungsanleitung

USA SPECS

USA SPECS PA11-VW6 Bedienungsanleitung

Kenwood

Kenwood KCD-BT6544U/UY Bedienungsanleitung

JVC

JVC KD-DB912BT Bedienungsanleitung

Philips

Philips CSQ405/98 Bedienungsanleitung

Alpine

Alpine TDM-7544 Bedienungsanleitung

Autotek

Autotek TransAm TA 1400 Bedienungsanleitung

Clarion

Clarion PN-3124N-A Bedienungsanleitung

Denso TEN

Denso TEN FT0108A Bedienungsanleitung

Pyle

Pyle PLD57MU Bedienungsanleitung

Harman

Harman Chrysler Radio Navigation System RB4 Bedienungsanleitung

Clarion

Clarion VS735 Bedienungsanleitung

JVC

JVC KW-R910BT Bedienungsanleitung

Eclipse

Eclipse CD2000 Bedienungsanleitung
