Sony EXR-400 Bedienungsanleitung

Actual total number: Sony EXR-400 (E) 3-810-306-11 (2)

1996 by Sony Corporation

Operating Instructions

FM/AM

Cassette Car

Stereo

EXR-400

3-810-306-11 (2)

For installation and connections, see the supplied installation/connections

manual.

Owner’s Record

The model and serial numbers are located on the bottom of the unit.

Record the serial number in the space provided below.

Refer to these numbers whenever you call upon your Sony dealer regarding this

product.

Model No. EXR-400 Serial No.

Actual total number: Sony EXR-400 (E) 3-810-306-11 (2)

Welcome!

Thank you for purchasing the SONY Cassette

Car Stereo. This unit lets you enjoy a variety of

features by using a rotary remote.

In addition to the tape playback and the radio

operation you can expand your system by

connecting optional CD changer.

Warning

This equipment has been tested and found to

comply with the limits for a Class B digital

device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide

reasonable protection against harmful

interference in a residential installation. This

equipment generates, uses, and can radiate

radio frequency energy and, if not installed

and used in accordance with the instructions,

may cause harmful interference to radio

communications. However, there is no

guarantee that interference will not occur in a

particular installation. If this equipment does

cause harmful interference to radio or

television reception, which can be determined

by turning the equipment off and on, the user

is encouraged to try to correct the interference

by one or more of the following measures:

— Reorient or relocate the receiving antenna.

— Increase the separation between the

equipment and receiver.

— Connect the equipment into an outlet on a

circuit different from that to which the

receiver is connected.

— Consult the dealer or an experienced radio/

TV technician for help.

You are cautioned that any changes or

modifications not expressly approved in this

manual could void your authority to operate

this equipment.

Actual total number: Sony EXR-400 (E) 3-810-306-11 (2)

Table of contents

This Unit Only

Getting Started

Resetting the unit ................................................ 4

Detaching the front panel .................................. 4

Setting the clock .................................................. 5

Cassette player

Listening to the tape ........................................... 5

Playing the tape in various modes ................... 6

Radio

Memorizing stations automatically

— Best Tuning Memory (BTM) ................... 7

Memorizing only the desired stations ............. 7

Receiving the memorized stations.................... 7

Other Functions

Adjusting the sound characteristics ................. 8

Muting the sound................................................ 8

Changing the sound and display settings ....... 8

With Optional Equipment

CD changer

Playing a CD ........................................................ 8

Scanning the tracks — Intro scan ...................... 9

Playing tracks repeatedly

— Repeat play ................................................ 9

Playing tracks in random order

— Shuffle play ................................................ 9

Additional Information

Precautions ......................................................... 10

Maintenance ....................................................... 10

Dismounting the unit ....................................... 11

The rotary commander labels ......................... 11

Location of controls .......................................... 12

Specifications ..................................................... 13

Troubleshooting guide ..................................... 14

Index .................................................... Back cover

Actual total number: Sony EXR-400 (E) 3-810-306-11 (2)

Getting Started

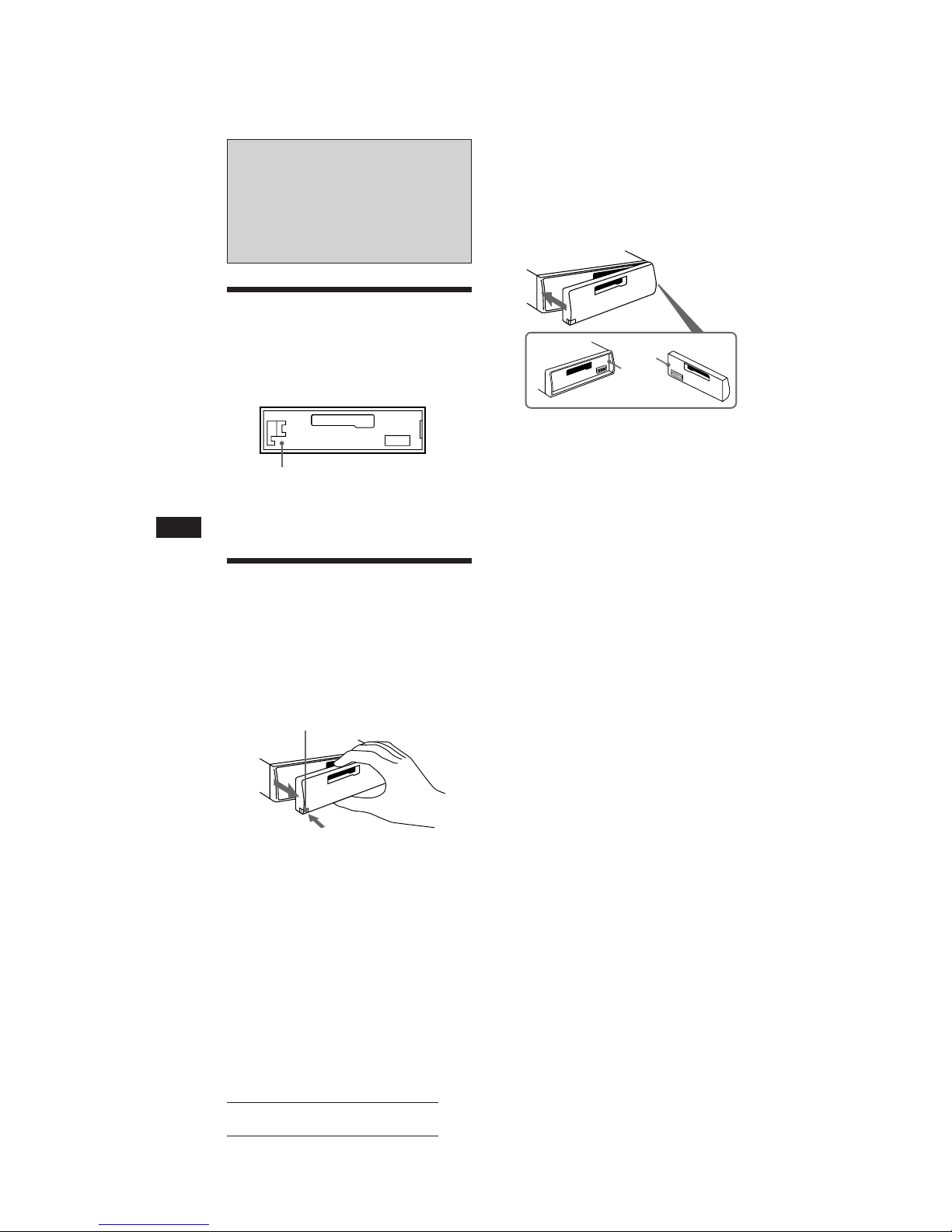

Resetting the unit

Before operating the unit for the first time or

after replacing the car battery, you must reset

the unit.

Press the reset button with a pointed object,

such as a ball-point pen.

Note

Pressing the reset button will erase all the memorized

stations.

Detaching the front panel

The front panel of this unit can be detached in

order to prevent the unit from being stolen.

1Press (OFF).

2Press (RELEASE) to open up the front

panel, and detach the panel by pulling it

towards you.

Notes

• Be sure not to drop the panel when detaching it from the

unit.

• If you press (RELEASE) to detach the panel while the

unit is still turned on, the power will be automatically

turned off in order to protect the speakers from being

damaged.

Attaching the front panel

Attach part Aof the front panel to part Bof

the unit as illustrated and push until it clicks.

Notes

•Make sure that the front panel is the right way up when

attaching it to the unit as it cannot be attached upside

down.

•Do not press the front panel hard against the unit when

attaching it to the unit. It can easily be attached by

pressing it lightly against the unit.

•When you carry the front panel with you, put it in the

supplied front panel case.

•Do not press hard or give excessive pressure to the

display windows of the front panel.

•Do not expose the front panel to direct sunlight, heat

sources such as hot air ducts or leave it in a humid place.

Never leave it on the dashboard etc. of a car parked in

direct sunlight where there may be a considerable rise in

temperature inside the car.

Caution alarm

If you turn the ignition key to the OFF position

without removing the front panel, the caution

alarm will beep for a few seconds (only when

the POWER SELECT switch is set to the A

position).

Reset button

(RELEASE)

Actual total number: Sony EXR-400 (E) 3-810-306-11 (2)

Setting the clock

The clock has a 12-hour digital indication.

For example, setting it to 10:08

1Press (OFF) or (DSPL) during operation.

2Press (DSPL) for two seconds.

1Set the hour digits.

2Press (SEL) momentarily.

3Set the minute digits.

3Press (DSPL) momentarily.

Note

If the POWER SELECT switch on the bottom of the unit is

set to the Bposition, the clock cannot be set unless the

power is turned on. Set the clock after you have turned on

the radio.

Getting Started/Cassette Player

Cassette Player

Listening to the tape

Insert the cassette.

Playback will start automatically.

If the cassette is already inserted, press (TAPE)

to start playback.

The side facing up is being played.

The side facing down is being played.

Tip

To change the tape transport direction, press (TAPE)

during tape playback.

Fast-winding the tape

During playback, press either side of

(PRESET/DISC).

To start playback during fast-forwarding or

rewinding, press (TAPE) .

100

The hour digit blinks.

1000

The minute digit blinks.

1008

The clock activates.

TAPE

Press

(OFF)

Stop playback

Eject the cassette

Fast-forwardRewind

DISC

PRESET

REW

to go back to go forward

Actual total number: Sony EXR-400 (E) 3-810-306-11 (2)

SEEK

AMS

To locate the

succeeding the tracks

To locate the

previous tracks

Switching to the radio during fast-

winding the tape

— Automatic Tuner Activation (ATA)

Press (5) during playback.

“ATA” appears on the display.

When fast-forwarding or rewinding with

(PRESET/DISC), the tuner will turn on

automatically.

Skipping blanks during tape

playback — Blank skip

Press (6) during playback.

“BL.SKIP” appears on the display.

Blanks longer than eight seconds will be

automatically skipped during tape playback.

Locating the beginning of the

tracks

— Automatic Music Sensor (AMS)

You can skip up to nine tracks at one time.

During playback, press either side of

(SEEK/AMS) momentarily.

Note

The AMS function may not work when :

• the blanks between tracks are shorter than 4 seconds

• there are noises

• there are long sections of low volume or quiet sections.

Changing the displayed items

Each time you press (DSPL) momentarily

during tape playback, the displayed item

changes as follows:

zTape playback zClock zFrequency*

*While the ATA function is activated.

Playing the tape in

various modes

Searching the desired track

— Intro scan

Press (1) during playback.

“INTRO” appears on the display.

The first 10 seconds of all the tracks are played.

When you find the desired track, press again.

The unit returns to the normal playback mode.

Playing tracks repeatedly

— Repeat play

Press (2) during playback.

“REP” appears on the display.

When the currently played track is over, it will

be played again from the beginning.

To cancel this mode, press again.

Actual total number: Sony EXR-400 (E) 3-810-306-11 (2)

Radio

Memorizing stations

automatically

— Best Tuning Memory (BTM)

This function selects from the currently

received band the stations with the strongest

signals and memorizes them in order of their

frequency.

PREVENTING ACCIDENTS!

When tuning in during driving, use the

automatic tuning and the memory preset

search function instead of the manual tuning.

1Press (FM) or (AM) repeatedly and select

the band.

Each time you press (FM) or (AM), the

band changes as follows:

(FM): FM1 nFM2 nFM3

(AM): AM1 ˜AM2

2Press (SENS/BTM) for two seconds.

Notes

• The unit will not store stations with weak band

frequencies on the preset number buttons. If there are

only a few stations received, some preset number buttons

will remain empty.

• When there is a preset number indicated on the display

window, the unit will store stations on all preset number

buttons from the one currently displayed.

Memorizing only the

desired Stations

Up to 6 stations on each band (FM1, FM2,

FM3, AM1 and AM2) can be stored on the

preset number buttons in order of your choice.

Therefore, 18 stations can be memorized on

FM.

If you try to store another station on the same

preset number button, the previously stored

station will be erased.

1Press (FM) or (AM) repeatedly, and

select the band.

2Press (SEEK/AMS) to search for the

station which you wish to store on the

preset number button.

3Press the desired preset number button

((1) to (6)) for two seconds until a beep

sounds.

The number of the pressed preset number

button appears on the display window.

Receiving the memorized

stations

1Press (FM) or (AM) repeatedly, and

select the band.

2Press the preset number button ((1) to

(6)) momentarily on which the desired

station is stored.

Tip

Press either side of (PRESET/DISC) momentarily to

receive in order the stations stored in the memory (Preset

Search Function).

If FM stereo reception is poor

— Monaural mode

Press (SENS/BTM) momentarily until

“MONO” lights up on the display.

The sound will improve, but it will become

monaural. (The “ST” indication will

disappear.)

Changing the displayed items

Each time you press (DSPL), the display item

changes as follows:

Frequency ˜Clock

If you can't tune in a preset station

Press either side of (SEEK/AMS)

momentarily to search for the station

(automatic tuning).

The scanning stops when a station is received.

Press either side of the button repeatedly until

the desired station is received.

Note

If the automatic tuning stops too frequently, press

(SENS/BTM) momentarily until “LCL” lights up on the

display (local seek mode). Only the stations with relatively

strong signals can be tuned in.

Tip

If you know the frequency, press and hold either side of

(SEEK/AMS) until the desired station is received (manual

tuning).

Actual total number: Sony EXR-400 (E) 3-810-306-11 (2)

Other Functions

Adjusting the sound

characteristics

1Select the item you want to adjust by

pressing (SEL) repeatedly.

VOL (volume) nBAS (bass) nTRE

(treble) nBAL (balance) nFAD (fader)

2Adjust the selected item by pressing

either (+) or (–).

Adjust within three seconds after selecting.

(After three seconds the button will again

serve as volume control button.)

Muting the sound

Press (MUTE).

The “MUTE” indication flashes.

To restore the previous volume level, press

again.

Changing the sound and

display settings

Enjoying bass and treble even at

Low Volume — Loudness

Bass and treble will be reinforced.

Press (LOUD).

“LOUD” will appear on the display.

To cancel, press again.

Muting the beep tone

Press (6) while pressing (SEL).

To obtain the beep tone again, press these

buttons once more.

With the Optional Equipment

CD Changer

You can control two CD changers.

Playing a CD

Press (CD) and select the changer.

CD playback starts.

When a CD changer is connected, all the tracks

play from the beginning.

Each time you press (DSPL) momentarily

during CD playback, the displayed item

changes as follows:

Elapsed playback time

Disc and track number

Clock

Locating a specific track

— Automatic Music Sensor (AMS)

During playback, press either side of

(SEEK/AMS) the number of times you

wish to skip the tracks.

Locating a specific point in a track

— Manual Search

During playback, press and hold either

side of (SEEK/AMS). Release the button

when you have found the desired part.

Switching to other discs

During playback, press either side of

(PRESET/DISC).

To locate the

succeeding tracks

To locate the

previous tracks

SEEK

AMS

To forwardTo reverse

SEEK

AMS

To advance to the

next disc

To return to the

previous disc

DISC

PRESET

REW

Actual total number: Sony EXR-400 (E) 3-810-306-11 (2)

Other Functions/CD Changer

Scanning the tracks

— Intro scan

The first 10 seconds of all the tracks on the

currently selected disc are played in order.

After the first disc is over, the next disc is

played.

Press (1) during playback.

“INTRO” appears on the display.

When you find the desired track, press again .

The unit returns to the normal CD playback

mode.

Playing tracks repeatedly

— Repeat play

To repeat a track

Press (2) repeatedly during CD playback

until “REP 1” is displayed.

To repeat a disc

Press (2) repeatedly during CD playback

until “REP 2” is displayed.

To repeat all the discs in the

current changer

Press (2) repeatedly during CD playback

until “REP 3” is displayed.

Each time you press (2) the display changes as

follows:

Playing tracks in random

order — Shuffle play

To play the tracks on the current

disc in a random order

Press (3) repeatedly during CD playback

until “SHUF 1” is displayed.

REP 2

(Disc repeat)

REP 1

(Track repeat)

REP 3 (Changer

repeat)

Cancel (Normal CD

playback mode)

To play all the tracks in the current

changer in a random order

Press (3) repeatedly during CD playback

until “SHUF 2” is displayed.

Each time you press (3) the display changes as

follows:

SHUF 1 (Disc shuffle)

SHUF 2 (Changer shuffle)

Cancel (Normal CD playback mode)

If you press (1) during shuffle play, the first 10

seconds of all tracks will be played in random

order.

Actual total number: Sony EXR-400 (E) 3-810-306-11 (2)

Additional

Information

Precautions

• If your car was parked in direct sunlight

resulting in a considerable rise in

temperature inside the car, allow the unit to

cool off before switching on.

• If no power is being supplied to the unit,

check the connections first. If everything is in

order, check the fuse.

• If no sound comes from the speakers of a

2-speaker system, set the fader control to the

center position.

If you have any questions or problems

concerning your unit that are not covered in

this manual, please consult your nearest Sony

dealer.

Notes on Cassettes

Cassette care

• Do not touch the tape surface of a cassette, as

any dirt or dust will contaminate the heads.

• Keep cassettes away from equipment with

built-in magnets such as speakers and

amplifiers, as erasure or distortion on the

recorded tape could occur.

• Do not expose cassettes to direct sunlight,

extremely cold temperatures or moisture.

• When the tape is played back for a long

period, the cassette shell may become warm

because of the built-in power amplifier.

However, this is not a sign of a malfunction.

Cassettes longer than 90 minutes

The use of cassettes longer than 90 minutes is

not recommended except for long continuous

play. The tapes used for these cassettes are

very thin and tend to be stretched easily.

Frequent playing and stopping of these tapes

may cause them to be pulled into the cassette

deck mechanism.

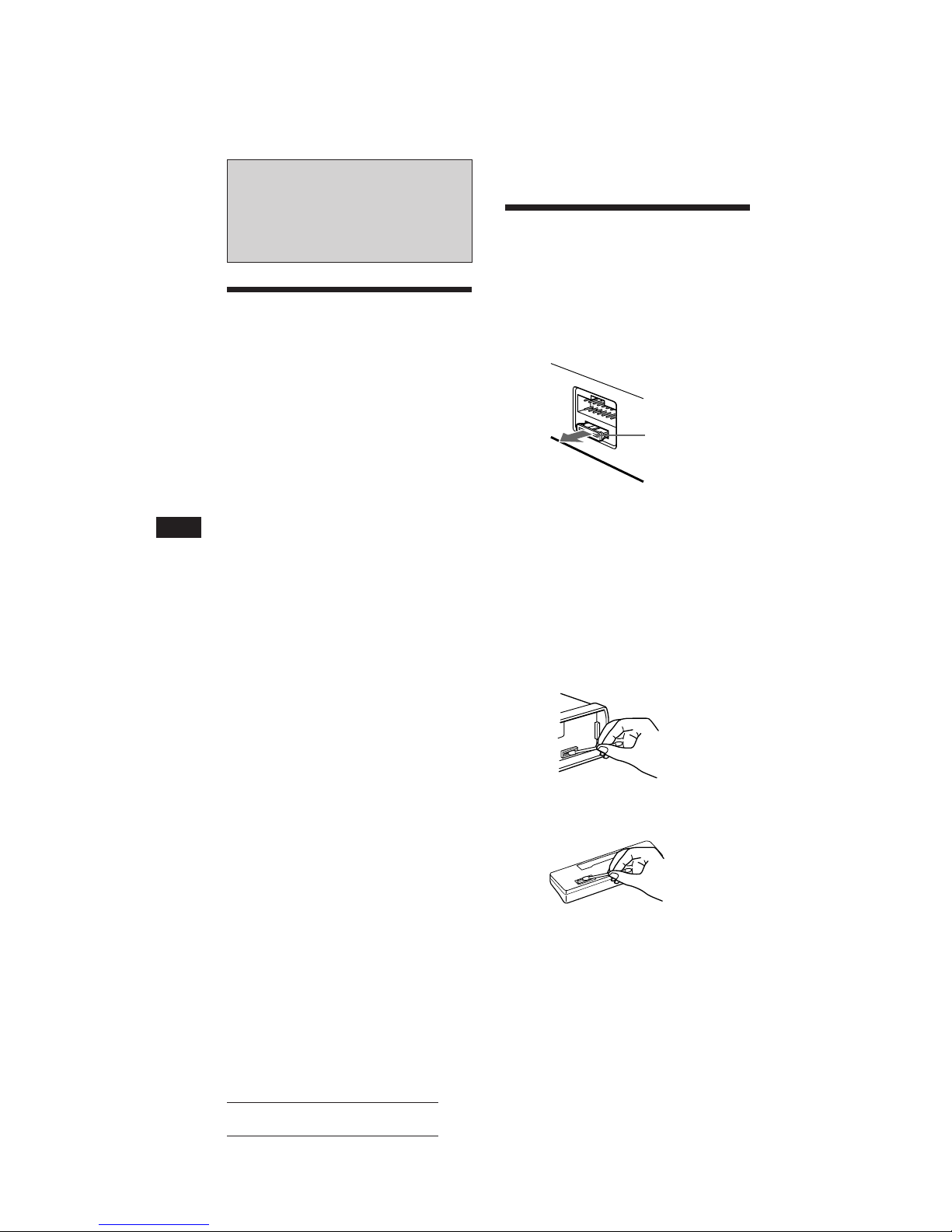

Maintenance

Fuse Replacement

When replacing the fuse, be sure to use one

matching the amperage rating stated on the

fuse. If the fuse blows, check the power

connection and replace the fuse. If the fuse

blows again after replacement, there may be an

internal malfunction. In such a case, consult

your nearest Sony dealer.

Warning

Never use a fuse with an amperage rating

exceeding the one supplied with the unit as

this could damage the unit.

Cleaning the Connectors

The unit may not function properly if the

connectors between the unit and the front

panel are not clean. In order to prevent this,

open the front panel by pressing (RELEASE),

then detach it and clean with a cotton swab

dipped in alcohol. Do not apply too much

force. Otherwise, the connector may get

damaged.

Fuse (15 A)

Main unit

Back of the front panel

Andere Handbücher für EXR-400

Inhaltsverzeichnis

Andere Sony Autoradiosystem Handbücher

Sony

Sony XR-4800 Produkthandbuch

Sony

Sony CDXGT640UI - MP3/WMA/AAC Player CD Receiver Bedienungsanleitung

Sony

Sony MEX-N5300BT Bedienungsanleitung

Sony

Sony XR-5W497RB Bedienungsanleitung

Sony

Sony CDX-MR60UI Produkthandbuch

Sony

Sony Bluetooth 3-299-319-12 (1) Bedienungsanleitung

Sony

Sony XDP-PK1000 Bedienungsanleitung

Sony

Sony MEX-BT5750U Bedienungsanleitung

Sony

Sony CDX-M20 Bedienungsanleitung

Sony

Sony XR-CA670X Bedienungsanleitung

Sony

Sony XAV-W1 Bedienungsanleitung

Sony

Sony CDX-GT828U Bedienungsanleitung

Sony

Sony XPlod MEX-BT5000 Bedienungsanleitung

Sony

Sony CDX-GT630UI - Cd Receiver Mp3/wma/aac Player Produkthandbuch

Sony

Sony CDXGT620IP - Radio / CD Bedienungsanleitung

Sony

Sony CDX-M670 (XT-XM1) Bedienungsanleitung

Sony

Sony MEX-BT3800U - Bluetooth Audio System Produkthandbuch

Sony

Sony CDX-5V661 Bedienungsanleitung

Sony

Sony XR-C6220R Produkthandbuch

Sony

Sony MEX-BT2800 - Bluetooth Audio System Bedienungsanleitung

Sony

Sony XR-1790 Bedienungsanleitung

Sony

Sony GT520 - CDX Radio / CD Bedienungsanleitung

Sony

Sony CDX-S2010C Bedienungsanleitung

Sony

Sony CDX-CA850X - Fm/am Compact Disc Player Bedienungsanleitung

Beliebte Autoradiosystem Handbücher anderer Marken

JL Audio

JL Audio Stealthbox SB-CAN-G2MVX3D/10TW3 Bedienungsanleitung

Clarion

Clarion PU-9836A Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric AR0M Bedienungsanleitung

Insignia

Insignia NS-HD5113 Bedienungsanleitung

Clarion

Clarion BTD3341 Bedienungsanleitung

USA SPECS

USA SPECS PA11-VW6 Bedienungsanleitung

Kenwood

Kenwood KCD-BT6544U/UY Bedienungsanleitung

JVC

JVC KD-DB912BT Bedienungsanleitung

Philips

Philips CSQ405/98 Bedienungsanleitung

Alpine

Alpine TDM-7544 Bedienungsanleitung

Autotek

Autotek TransAm TA 1400 Bedienungsanleitung

Clarion

Clarion PN-3124N-A Bedienungsanleitung

Denso TEN

Denso TEN FT0108A Bedienungsanleitung

Pyle

Pyle PLD57MU Bedienungsanleitung

Harman

Harman Chrysler Radio Navigation System RB4 Bedienungsanleitung

Clarion

Clarion VS735 Bedienungsanleitung

JVC

JVC KW-R910BT Bedienungsanleitung

Eclipse

Eclipse CD2000 Bedienungsanleitung
