Sony WEGA KV-SW21 Bedienungsanleitung

Sony KV-SW21M30 Group O4 (GB)_2-633-234-12 (1)

KV-SW21

2-633-234-12 (1)

Operating Instructions

• Before operating the unit, please read this manual thoroughly and retain

it for future reference.

Trinitron Color TV

M30

01GB01COV-SOEMOce.p65 6/27/05, 9:43 PM1

Black

Sony KV-SW21M30 Group O4 (GB)_2-633-234-12 (1)

220-240 V AC, 50/60 Hz

Indicated on the rear of the TV

B/G, I, D/K, M

PAL, PAL 60, SECAM, NTSC3.58, NTSC4.43

NICAM Stereo/Bilingual B/G, I, D/K;

A2 Stereo/Bilingual B/G

VHF : E2 to E12 /UHF : E21 to E69 /

CATV : S01 to S03, S1 to S41

VHF : 0 to 12, 5A, 19A /UHF : 28 to 69 / Australia only

CATV : S01 to S03, S1 to S41

UHF : B21 to B68 /CATV : S01 to S03, S1 to S41

VHF : C1 to C12, R1 to R12 /

UHF : C13 to C57, R21 to R60/

CATV : S01 to S03, S1 to S41, Z1 to Z39

VHF : A2 to A13 /UHF : A14 to A79 /

CATV : A-8 to A-2, A to W+4, W+6 to W+84

75-ohm external terminal

5 W + 5 W

Input: 2 Output: 1 Phono jacks; 1 Vp-p, 75 ohms

Input: 3 Output: 1 Phono jacks; 500 mVrms

Input: 1 Phono jacks;

Y: 1 Vp-p, 75 ohms,

sync negative

CB: 0.7 Vp-p, 75 ohms

CR: 0.7 Vp-p, 75 ohms

Output: 1 Stereo minijack

87.5 - 108.0 MHz

10.7 MHz

21 in.

Measured diagonally

647 ×469 ×509

ASpecifications

Note

KV-SW21M30

Design and specifications are subject to change without notice.

Power requirements

Power consumption (W)

Television system

Color system

Stereo/Bilingual system

Channel coverage

B/G

D/K

8 (Antenna)

Audio output (Speaker)

Number of terminal

(Video)

(Audio)

(Component

Video)

i(Headphone)

FM Radio

Tuning Range

Intermediate

Frequency

Picture tube

Tube size (cm)

Screen size (cm)

Dimensions (w/h/d, mm)

Mass (kg)

01GB02WAR-SOEMoce.p65 6/27/05, 10:26 PM2

Black

Sony KV-SW21M30 Group O4 (GB)_2-633-234-12 (1)

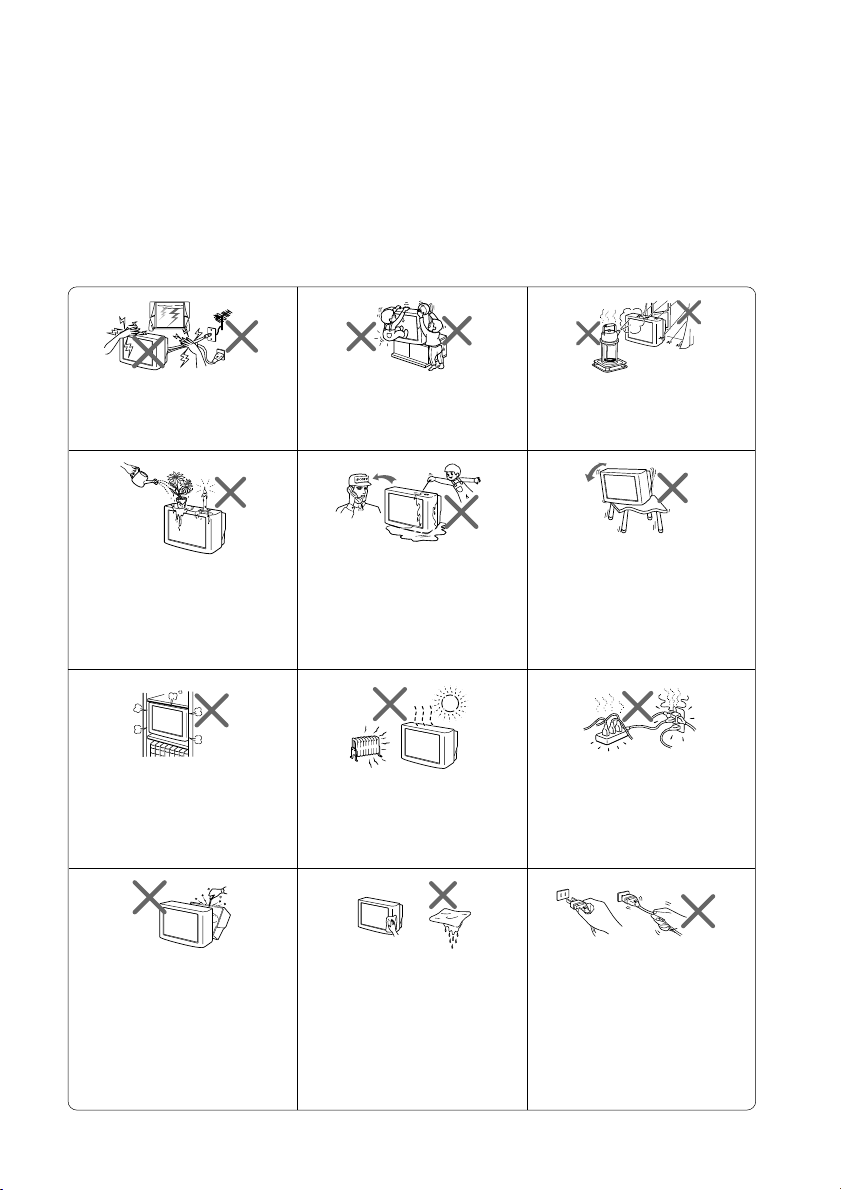

Clean the TV with a dry and soft

cloth. Do not use benzine, thinner,

or any other chemicals to clean the

TV. Do not attach anything (e.g.,

adhesive tape, cellophane tape,

glue) on the painted cabinet of the

TV. Do not scratch the picture

tube.

BWARNING

• Dangerously high voltages are present inside the TV.

• TV operating voltage: 220 – 240 V AC.

• Do not plug in the power cord until you have completed making all other

connections; otherwise a minimum leakage current might flow through the antenna

and other terminals to ground.

• To avoid battery leakage and damage to the remote, remove the batteries from the

remote if you are not going to use it for several days. If any liquid leaks from the

batteries and touches your skin, immediately wash it away with water.

Install the TV on a stable TV stand

and floor which can support the

TV set weight. Ensure that the TV

stand surface is flat and its area is

larger than the bottom area of the

TV.

Do not plug in too many

appliances to the same power

socket. Do not damage the power

cord.

For children’s safety, do not leave

children alone with the TV. Do not

allow children to climb onto it.

For your own safety, do not touch

any part of the TV, the power cord

and the antenna cable during

lightning storms.

Do not place any objects on the TV.

The apparatus shall not be

exposed to dripping or splashing

and that no objects filled with

liquids, such as vases, shall be

placed on the apparatus.

Do not operate the TV if any liquid

or solid object falls into it. Have it

checked immediately by qualified

personnel only.

Do not block the ventilation

openings of the TV. Do not install

the TV in a confined space, such

as a bookcase or built-in cabinet.

Do not open the cabinet and the

rear cover of the TV as high

voltages and other hazards are

present inside the TV. Refer

servicing and disposal of the TV

to qualified personnel.

Pull the power cord out by the

plug. Do not pull the power cord

itself. Even if your TV is turned

off, it is still connected to the AC

power source (mains) as long as

the power cord is plugged in.

Unplug the TV before moving it

or if you are not going to use it for

several days.

To prevent fire or shock hazard, do

not expose the TV to rain or

moisture.

Your TV is recommended for

home use only. Do not use the TV

in any vehicle or where it may be

subject to excessive dust, heat,

moisture or vibrations.

01GB02WAR-SOEMoce.p65 6/27/05, 10:26 PM3

Black

Sony KV-SW21M30 Group O4 (GB)_2-633-234-12 (1)

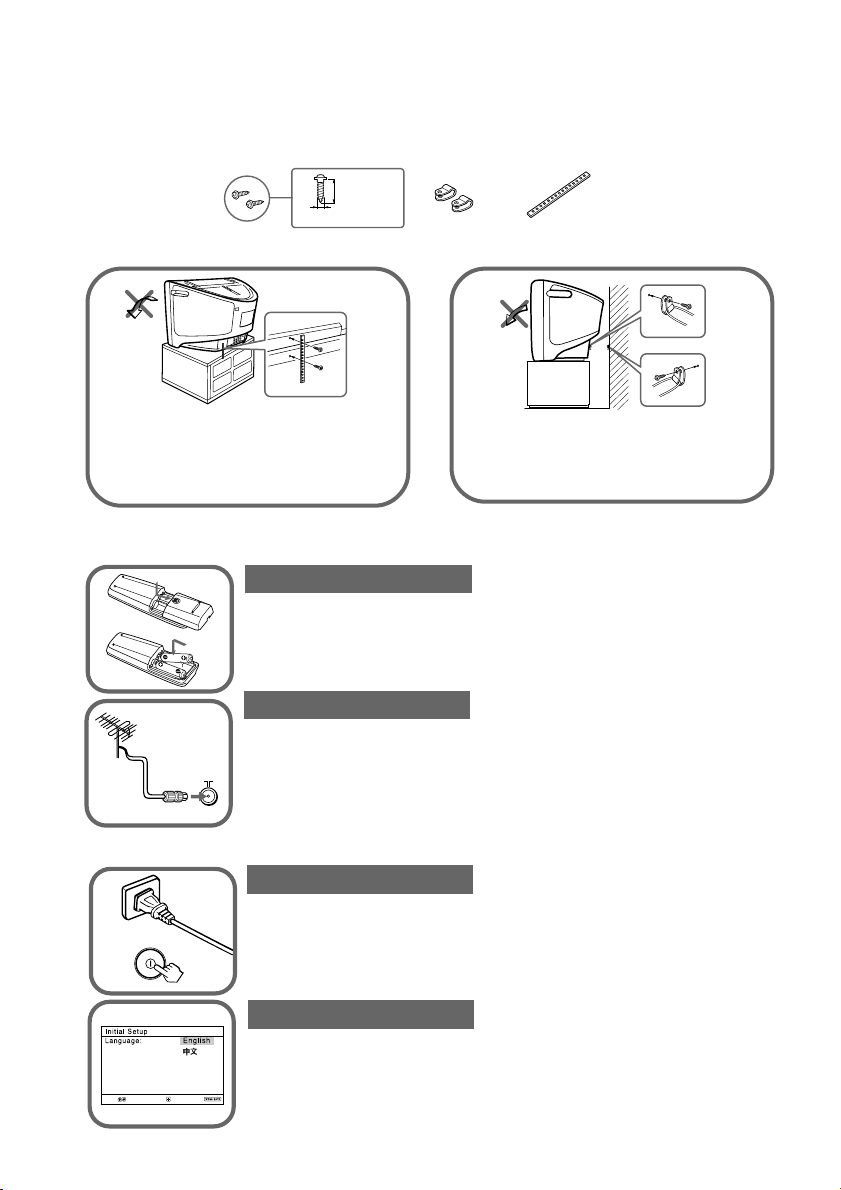

CSecuring the TV

To prevent the TV from falling, use the supplied screws, clamps and band to secure

the TV. Use only the supplied screws. Use of other screws may damage the TV.

Screw the band to the TV stand and to the

provided hole at the rear of your TV.

(1) Put a cord or chain through the clamps.

(2) Screw one clamp to a wall or pillar and

the other clamp to the provided hole at

the rear of your TV.

20 mm

3.8 mm

screws clamps band

End

Select Confirm

Insert the batteries (supplied) into the remote.

Note

•Do not use old or different types of batteries together.

Connect the antenna cable (not supplied) to 8

(antenna input) at the rear of the TV.

Tips

•Your TV can receive both TV and FM radio signal from the appropriate

connections through the 8(antenna input) terminal (see G).

•You can also connect your TV to other optional components (see G).

Plug in the power cord, then press !on the TV to turn it on.

Note

•The 1(standby) indicator flashes green for a few seconds when

turning on the TV. This does not indicate a malfunction.

Set up the TV by following the instructions of the “Initial

Setup” menu (see E).

DGetting Started

Step 1

Step 2

Step 3

Step 4

01GB02WAR-SOEMoce.p65 6/27/05, 10:26 PM4

Black

Sony KV-SW21M30 Group O4 (GB)_2-633-234-12 (1)

Program Sorting/Edit

Off

Sorting mode

PROG

SkipLabel

Off01

Exit

Select Confirm

Program Sorting/Edit

Off

Sorting: Edit:

PROG

SkipLabel

Exit

Select Confirm

Setting up your TV (“Initial Setup”)

When you turn on your TV for the first time, the “Initial Setup” menu will

appear. You may change the menu language, preset the TV channels

automatically, sort or edit the channels and adjust the picture position using

the buttons on the remote control or TV top control panel.

1Press V or vto select the desired menu

language, then press .

The selected menu language appears.

2Press V or vto select “Yes”, then press to

preset the channels automatically.

The screen will indicate automatic

presetting is in progress.

After all available channels have been tuned

and stored, the “Program Sorting/Edit”

menu appears automatically on the screen.

To skip automatic channel presetting, select

“No”, then press .

If the message “No channel found. Please

connect cable/antenna” appears, check your

TV connections, then press .

3The “Program Sorting/Edit” menu enables

you to sort and edit the channels.

a) If you wish to keep the channels in the current

condition, press WEGA GATE to exit.

b) Press Vor vto select the program

number with the channel you wish to

change. The selected channel will appear

on the screen.

c) If you wish to store the channels in a

different order:

1) Press bto enter sorting mode.

2) Press Vor vto select the new program

number position for your selected

channel, then press B.

End

Select Confirm

End

Select Confirm

Program:

TV System: Auto

VHF Low

End

01GB02WAR-SOEMoce.p65 6/27/05, 10:26 PM5

Black

Sony KV-SW21M30 Group O4 (GB)_2-633-234-12 (1)

d) If you wish to edit the channels, press

to change to edit mode.

Press buntil the mode that you wish to edit

is highlighted: Label, Skip, (block symbol).

Then press .

1) To label, press Vor vto select the

alphanumeric characters for the label.

Then press .

2) To skip the program number, press Vor vto

select “On”. Then press .

You can skip this program number when

using PROG +/-.

3) To block unwanted program number,

press Vor vto select . Then press .

e) Repeat step b) to d) if you wish to change other

channels.

Press WEGA GATE to go to the next menu.

4Press B or bto adjust the bars on the top

and bottom of the menu if they are

slanted, then press .

If no adjustment is necessary, then press .

5To prevent this “Initial Setup” menu from

appearing again when you turn on the TV

by pressing !, press V or vto select “No”,

then press .

To allow this menu to appear again, select

“Yes”, then press .

Tip

• You can immediately go to the end of the ”Initial Setup” menu by pressing WEGA GATE.

End

Select Confirm

Exit

Select Confirm

Exit

Select Confirm

Exit

Select Confirm

Setting up your TV (“Initial Setup”) (continued)

01GB02WAR-SOEMoce.p65 6/27/05, 10:26 PM6

Black

Sony KV-SW21M30 Group O4 (GB)_2-633-234-12 (1)

(MONO)

WEGA GATE

PROG

9876

(MONO) (MONO)

qsqd

TV front panel

TV rear panel

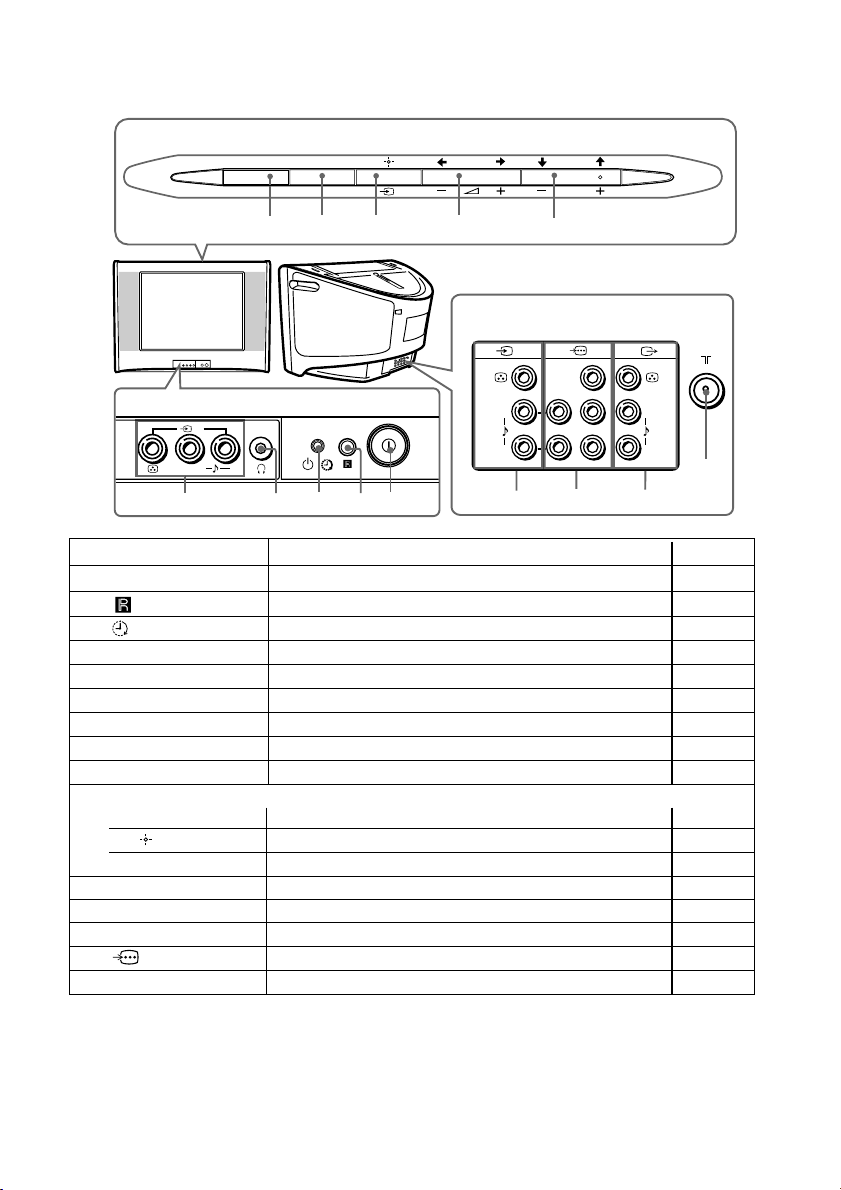

TV top control, front and rear panels

TV top control panel

Button/Terminal Function See

1!Turn off or turn on the TV. D

2Remote control sensor. –

3Wake Up indicator. I

31Standby indicator. D

4iHeadphone jack. –

5t2 Video input terminal 2. G

6PROG +/–Select program number. –

72+/–Adjust volume. –

8tSelect TV or video input. G

WEGA GATE menu operations

6,7 V,v,B,bSelect and adjust items. J

8 Confirm selected items. J

9WEGA GATE Display or cancel WEGA GATE menu. J

0FM Listen to FM Radio. Q

qa 8Antenna input terminal. G

qs TMonitor output terminal. G

qd Component video input terminal. G

qf t1 Video input terminal 1. G

01GB03INS-SOEMOce.p65 6/27/05, 10:26 PM7

Black

Sony KV-SW21M30 Group O4 (GB)_2-633-234-12 (1)

GConnecting optional components

Connecting to the video input terminal ( t)

TV front panel

Antenna cable

(not supplied)

VCR

TV rear panel

Audio/

Video cable

(not supplied)

Note

•If you connect a VCR to 8(antenna input), preset the signal output from the VCR to the

program number 0 on the TV (see N).

Audio/Video cable

(not supplied)

Camcorder

TV, CATV, Satellite

When there is no

FM signal

Antenna

selector

FM signal

TV signal

Antenna cable

(not supplied)

(MONO) (MONO)

(MONO)

DVD player

01GB03INS-SOEMOce.p65 6/27/05, 10:26 PM8

Black

Sony KV-SW21M30 Group O4 (GB)_2-633-234-12 (1)

Connecting to the component video input terminal ( )

Notes

•If your DVD player can output interlace and progressive mode signals, select the interlace

output when connecting to (component video input) on your TV. Your TV can receive

either 525i/60Hz or 625i/50Hz interlace signals.

•The component video terminals on your DVD player are sometimes labeled Y/CB/CR, Y/PB/

PR, Y/Cb/Cror Y/B-Y/R-Y.

•If you select “DVD”on your TV screen, the signal from the T(monitor output) jacks will not

be output properly. This does not indicate a malfunction.

Connecting optional components (continued)

Connecting to the monitor output terminal ( T )

DVD player

TV rear panel

Component video

cable

(not supplied)

Audio cable

(not supplied)

(MONO) (MONO)

TV rear panel

Audio system

VCR

Audio/Video

cable

(not supplied)

(MONO) (MONO)

01GB03INS-SOEMOce.p65 6/27/05, 10:26 PM9

Black

Sony KV-SW21M30 Group O4 (GB)_2-633-234-12 (1)

HTroubleshooting

If you find any problem while viewing your TV, you can either use the “Factory

Settings”function or check the Troubleshooting guide below. If the problem

persists, contact your Sony dealer.

“Factory Settings” function

Press the WEGA GATE button. Choose “Settings”and go to “Setup”( ) menu.

From “Setup”menu, select “Factory Settings”. Then select “Yes”and press .

Your TV will go blank for a few seconds, then the “Initial Setup”menu will

appear. Your TV will be set to factory settings, but certain problems may be

solved.

Symptom Solutions

Snowy picture,

noisy sound

Distorted picture,

noisy sound

Good picture,

noisy sound

No picture,

no sound

Good picture,

no sound

Dotted lines or

stripes

Double images

or “ghosts”

No color

•Check the antenna cable and connection on the TV, VCR and at the wall

(see G).

•Check the antenna setup. Contact a Sony dealer for advice.

•Display the “Channel Setup”menu and select “Manual Program”to preset

the channel again (see N).

•Display the “Channel Setup”menu and set the “Signal Booster”to “Auto”

from “Manual Program”(see N).

•Try using an external booster.

•Turn off or disconnect the external booster if it is in use.

•Display the “Channel Setup”menu and set the “Signal Booster”to “Off”

from “Manual Program”(see N).

•Display the “Channel Setup”menu and select the appropriate “TV

System”from “Manual Program”(see N).

•Check the power cord, antenna and VCR connections (see G).

•Press ?/1 (power) to turn on the TV (see I).

•Press !(main power) on the TV to turn off the TV for about five seconds,

then turn it on again (see F).

•Press 2+ to increase the volume level (see I).

•Press to cancel the muting (see I).

•Do not use a hair dryer or other equipment near the TV.

•Check the antenna setup. Contact a Sony dealer for advice.

•Use a highly directional antenna.

•Use the fine tuning (“Fine”) function (see N).

•Check the antenna setup. Contact a Sony dealer for advice.

•Turn off or disconnect the external booster if it is in use.

•Display the “Picture”menu and select “Custom”from “Picture Mode”,

then adjust the “Color”level from “Picture Adjustment”(see L).

•Display the “Setup”menu and check the “Color System”setting

(usually set this to “Auto”) (see O).

•Check the antenna setup. Contact a Sony dealer for advice.

01GB03INS-SOEMOce.p65 6/27/05, 10:26 PM10

Black

Andere Handbücher für WEGA KV-SW21

Inhaltsverzeichnis

Andere Sony Fernseher Handbücher

Sony

Sony KV-28FQ75 B Bedienungsanleitung

Sony

Sony KV-XA25M80 Bedienungsanleitung

Sony

Sony KDL-40WL140 - Bravia Lcd Television Bedienungsanleitung

Sony

Sony KD-49XD83 SERIES Bedienungsanleitung

Sony

Sony KLV-70X300A Bedienungsanleitung

Sony

Sony Bravia XR-77A80K Bedienungsanleitung

Sony

Sony WEGA KLV-30XBR900 Bedienungsanleitung

Sony

Sony KV-21FA210 Bedienungsanleitung

Sony

Sony KD-65X8500E Bedienungsanleitung

Sony

Sony TRINITRON KV-25X5A Bedienungsanleitung

Sony

Sony BRAVIA XR XR-55A83K Bedienungsanleitung

Sony

Sony BRAVIA XBR-85X807H Bedienungsanleitung

Sony

Sony Trinitron KV-9PT40 Bedienungsanleitung

Sony

Sony KDS-50A3000 - Bravia Sxrd Microdisplay Hdtv Bedienungsanleitung

Sony

Sony BRAVIA XR-85Z9K Bedienungsanleitung

Sony

Sony KDF-50E3000 - 50" Rear Projection TV Bedienungsanleitung

Sony

Sony BRAVIA KD-49X8500F Bedienungsanleitung

Sony

Sony Bravia KDL-75W850C Benutzerhandbuch

Sony

Sony KV-HR36M61 Bedienungsanleitung

Sony

Sony GRAND WEGA KF 42WE610 Bedienungsanleitung

Sony

Sony AZ1-L CHASSIS Bedienungsanleitung

Sony

Sony KV-HA14MXX Bedienungsanleitung

Sony

Sony BRAVIA KDL-32W660F Bedienungsanleitung

Sony

Sony KV-27FA210 - 27" Tv With Subwoofer Bedienungsanleitung

Beliebte Fernseher Handbücher anderer Marken

Philips

Philips Colour Television Bedienungsanleitung

Toshiba

Toshiba 27A10 Bedienungsanleitung

Philips

Philips 42PF9630A/37 Bedienungsanleitung

Hitachi

Hitachi 32FX48B Bedienungsanleitung

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Bedienungsanleitung

Changhong Electric

Changhong Electric uhd55b6000is Bedienungsanleitung

Philips

Philips Matchline 21CE7551 Bedienungsanleitung

Panasonic

Panasonic Genus TX-G10 Bedienungsanleitung

Toshiba

Toshiba 19A20 Bedienungsanleitung

Philips

Philips 25PT4523-16 Bedienungsanleitung

Philips

Philips PR0930X3 Bedienungsanleitung

Philips

Philips Brilliance 231P4QPY Bedienungsanleitung

Samsung

Samsung 55S9 B Series Bedienungsanleitung

Philips

Philips 32HF9385D Fehlerbehebungshandbuch

Sharp

Sharp LC-40FI5012E Bedienungsanleitung

Loewe

Loewe Table Stand Reference 55 Bedienungsanleitung

Philips

Philips 32PFH5300 Bedienungsanleitung

Sylvania

Sylvania 6427FB Bedienungsanleitung
