Soundigital EVOX2 3000.1 Bedienungsanleitung

OWNER´S MANUAL

3000.1

Introduction

Package contents ......................................................................................................

Safety instructions ......................................................................................................

Technologies

DTM ...........................................................................................................

Ultra Compact PCB..........................................................................

Robust Construction .......................................................................

I-Power Supply ....................................................................................

Full Range .............................................................................................

Assembling and Disassembling the plastic cover...................................

Panels description

Audio inputs and controls............................................................

Power inputs and audio outputs..............................................

Installation sequence.................................................................................................

Electrical Dimensioning...........................................................................................

Audio inputs

RCA inputs............................................................................................

High Level inputs...............................................................................

SD RLC and Gain Setting........................................................................................

Crossovers set up.......................................................................................................

Bass Boost set up.......................................................................................................

Wiring diagram...............................................................................................................

Technical specifications

Parameters.........................................................................................

Dimensional data............................................................................

...................................................................................................................

Code document review: 1000750250-006/MAY2022

TABLE OF CONTENTS

INTRODUCTION

DEAR CUSTOMER,

CONGRATULATIONS ON ACQUIRING A PRODUCT WITH THE HIGHEST

QUALITY AND TECHNOLOGY!

You have just purchased a SounDigital product of the highest technology

and quality, so we thank you for your confidence.

SounDigital products are made with raw materials of the highest quality

standards, and the most modern processes, equipment and technology are

used in their production.

On this manual you will learn about the product, its features and

characteristics, in order to obtain the best result and to be able to enjoy your

music with SounDigital quality and power.

To better understand and take advantage of all the functions of the product

and use it safely, read this manual carefully and if you have any questions,

consult our support by email info@soundigitalusa.com.

PACKAGE CONTENTS

▪ 01 3000.1 EVOX2 Amplifier

▪ 01 Installation quick guide with warranty card

▪ 01 Allen wrench 2.0mm

▪ 01 Allen wrench 2.5mm

▪ 01 Allen wrench 3.0mm

▪ 01 Promotional sticker

SAFETY INSTRUCTIONS

THIS "WARNING" SIGN ALERTS THE USER OF IMPORTANT INFO. NOT FOLLOWING

THIS INSTRUCTIONS MAY CAUSE INJURIES TO THE USER OR DAMAGE TO THE

EQUIPMENT.

Warning!

To prevent injuries to the user or damage to the amplifier, read all safety

instructions written on this manual;

If you are insecure about the installation of this equipment, get in touch with

our tech support or with a professional specialized in car audio installation;

Before proceeding with the installation of any electric equipment on your

vehicle, unplug the negative (-) terminal of the battery to avoid fires, injuries or

damages;

Use your sound system safely. The continuous exposure to sound pressures

over 85dB may cause irreversible hearing damage;

This equipment is for use in automotive DC voltage batteries between 12.6

and 14.4 volts. Before installing the equipment, check voltage of the batteries;

Do not install the amplifier in places exposed to water, dirt or humidity;

Choose a ventilated place to install the amplifier and avoid blocking the side

ventilation windows;

Mount the amplifier in a secure way. Avoid mounting it on metallic parts of the

vehicle, because it may cause ground looping (noise);

Make sure that the location chosen for the amplifier installation does not effect

the operation of the vehicle;

When passing cables through metallic walls, use rubber O-rings to avoid

cable cutting and short-circuits;

Clean the amplifier periodically with brush or dry cloth to assure the thermal

efficiency of the heatsink;

This product may reach temperatures over 60°C/140°F. Make sure it is cold

before touching it;

Be careful when making holes in the vehicle. Make sure you are not making

holes in the fuel tank, brake lines or electrical cables of the vehicle;

Make sure the cables are properly secured throughout the installation;

Wear gloves, safety glasses and and all necessary PPE during the installation

of SounDigital amplifiers.

TECHNOLOGIES

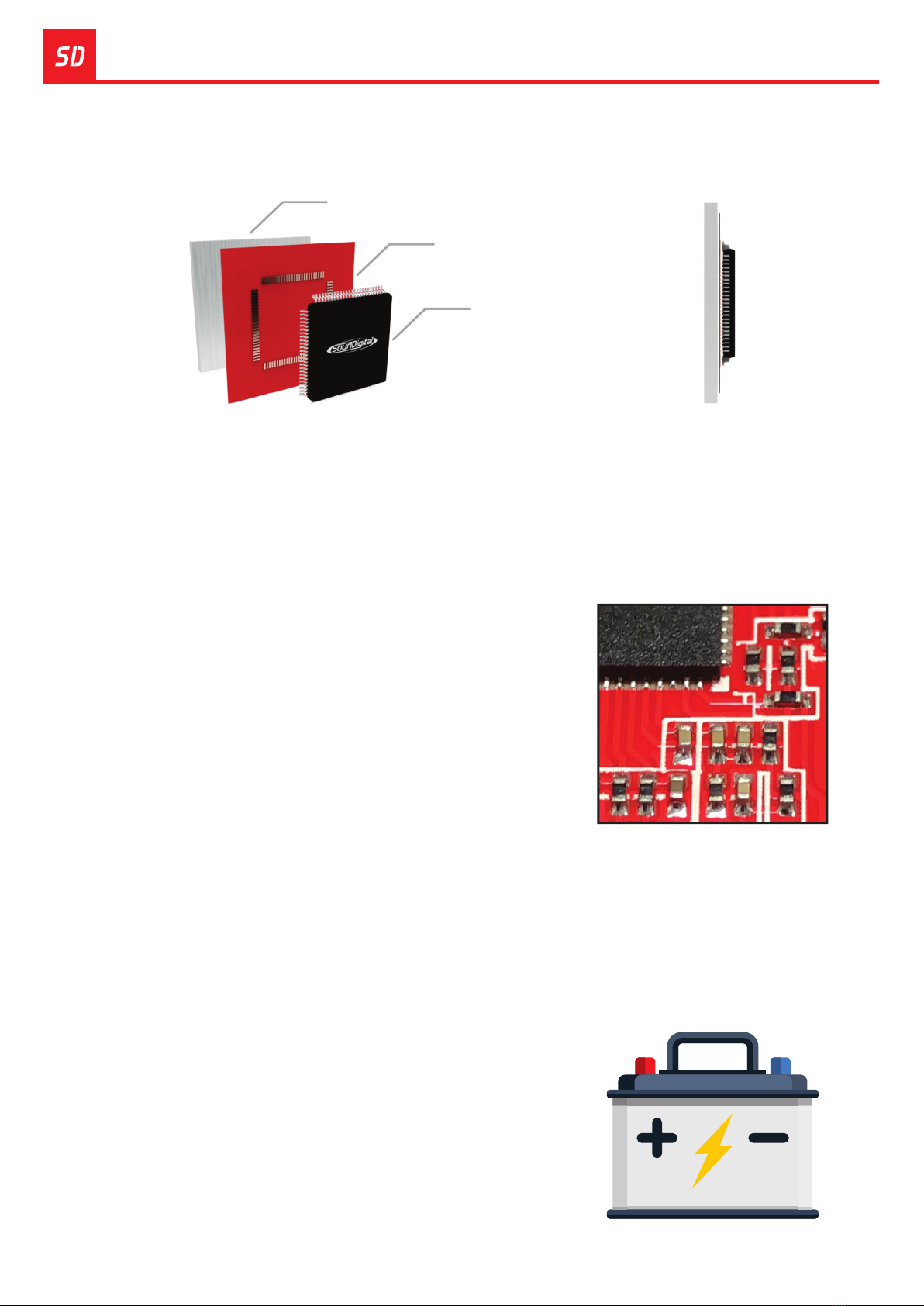

The DTM* is a dynamic thermal recovery system which always maintains a high efficiency

of the amplifier by accelerating the thermal exchange of electronic components with the

heatsink. * Patent. Required

ALUMINIUM

HEATSINK

CONDUCTIVE

COPPER LAYER

ELECTRONIC

COMPONENT

DYNAMIC THERMAL MANAGEMENT - DTM®

An intelligent layout, with great use of the PCB area

and the use of modern components with reduced

structure guarantee SounDigital products a

compact design, at the same time robust and with

excellent thermal efficiency.

ULTRA COMPACT PCB

*Efficiency measured at power supply only

SounDigital amplifiers are known for their low

consumption of battery, and this feature was

imp r ov e d o n th e E VOX2 Li n e. The new

I-POWER SUPPLY is even more modern, which

r e p l a c e s t h e o l d t o r o i d a l t r a n s f o r m e r s

by a new generation of "E-E" core transformers

delivers efficiency above 90%*, ensuring more

hours of sound without battery recharge.

I-POWER SUPPLY

ROBUST CONSTRUCTION

Thinking about the application of power sports, the

product has an extremely robust assembly, both the

fixing points and the layout of the PCB were designed

to withstand high vibrations, bumps and impacts.

TECHNOLOGIES

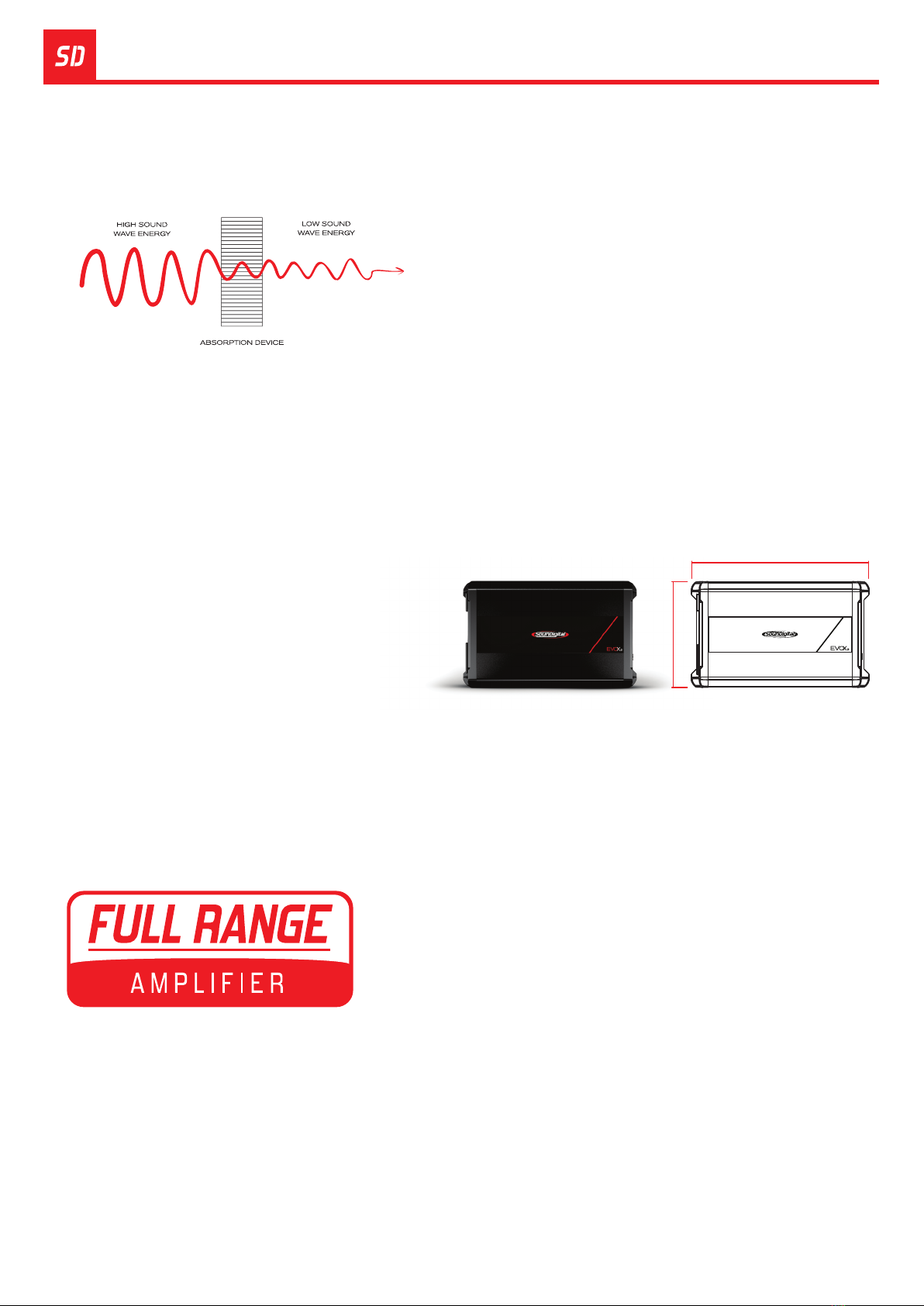

Our Technology reduces all impact caused

VAD

by vibration on the electronic circuit board. This

can include road vibration and even vibration

caused by sound waves, increasing the reliability

of our amplifiers.

VIBRATION ABSORPTION

DEVICE - VAD

Versatile products that cover the entire audible

frequency range, any type of loudspeaker or

music program.

FULL RANGE

The technology used in our amplifiers

bring both high performance and

power a compact chassis, providing

flexible installation solutions for vehicles

with limited space.

REDUCED SIZE 9.0"

5.3"

1 2

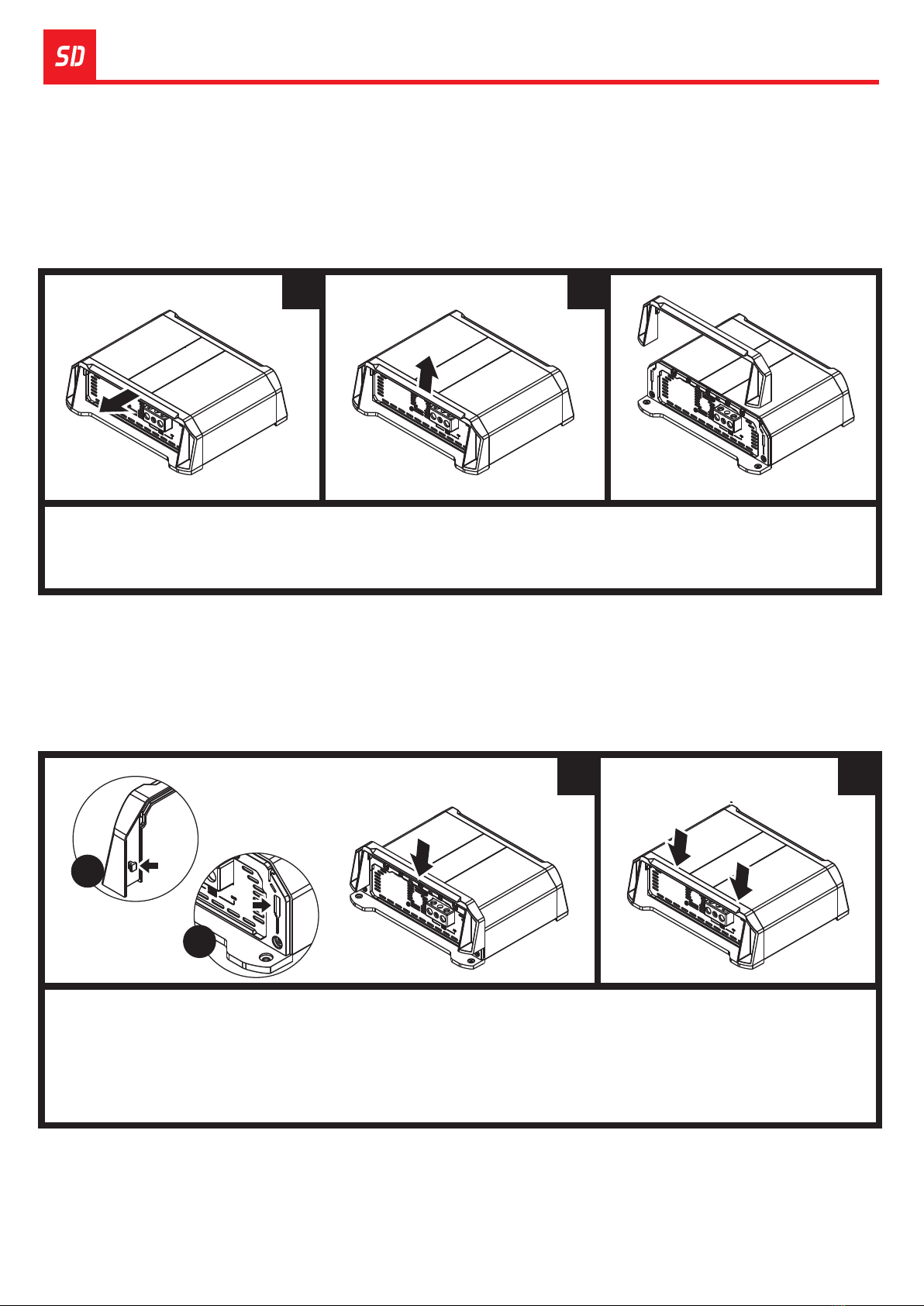

DISASSEMBLING OF THE PLASTIC COVER

ASSEMBLING THE PLASTIC COVER

The plastic covers have the function of finishing and hiding the amplifier fixing

screws. To disassembling and assembling them, follow the instructions

below.

1. Carefully pull out the top of plastic cover to release the upside latches, as shown in the picture 1.

2. Slide up the plastic cover in a continuous movement to remove it.

1. To fit the plastic cover back, carefully insert the point A of the plastic cover into point B of the

amplifier, slowly sliding it down.

2. Gently press the sides of the top of the plastic cover towards the bottom of the amplifier until

you hear a clicking noise.

ASSEMBLING AND DISASSEMBLING THE PLASTIC COVER

*Merely illustrative images.

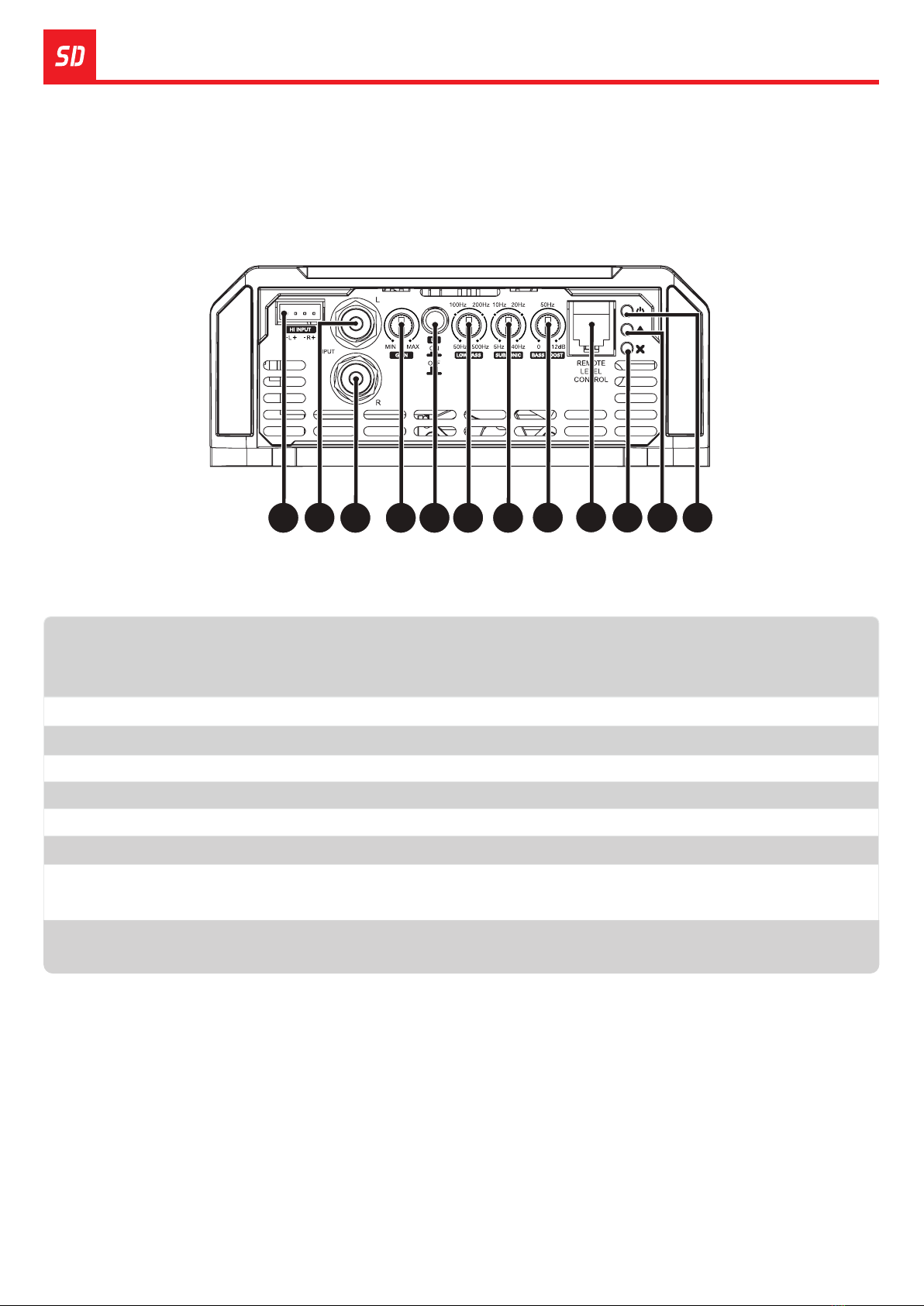

PANELS DESCRIPTION

"Power ON" LED indicator

"Clip" LED indicator

"Protection" LED indicator

Variable Bass Boost control 50Hz (0dB ~ +12dB)

Variable Low Pass filter control (50Hz ~ 500Hz)

Variable Subsonic filter control (5Hz ~ 40Hz)

Variable Gain control

Low Pass filter on/off switch key

Audio input - RCA connectors

Red

Blue

Left Channel

Right Channel

Yellow

-Remote level control connector

Audio input - High Level

(To connect to the speaker output of the head unit)

810 4

9 7 6 5

12 11 3

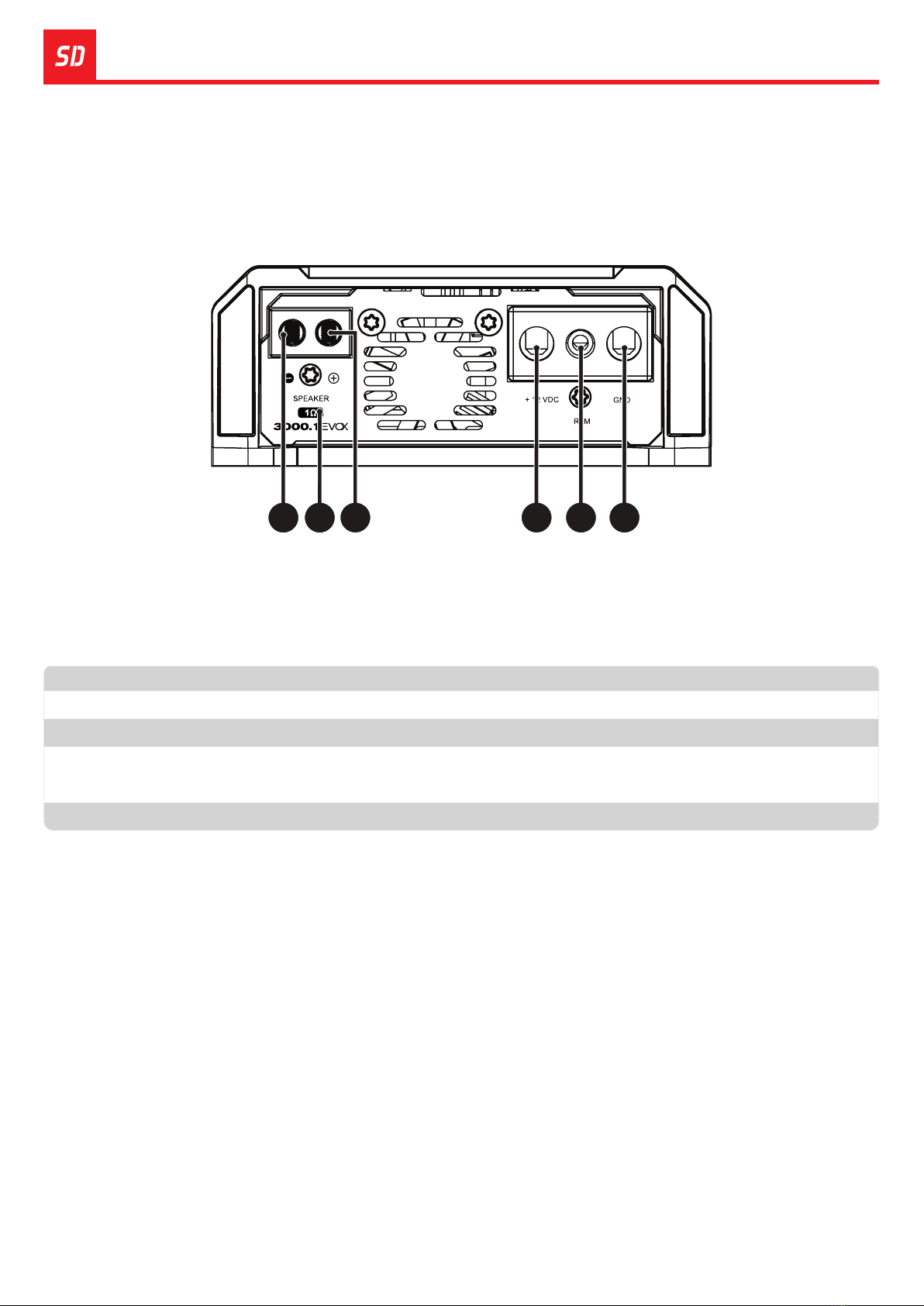

PANELS DESCRIPTION

Negative power supply connector (GND)

Remote power supply connector (REM)

Positive power supply connector (+12VDC)

Positive speaker connector

Negative speaker connector

Minimum speaker load allowed (impedance)

13 -

Speakers output

connectors

1517 18 16

ØMount the amplifier in such a way you have access to the connectors;

ØInstall the power cables in the vehicle properly, starting from the battery to the fuse

holder or circuit breaker, use the cable with the appropriate size. Make all

connections, install fuse holders or circuit breakers, but without placing the fuses

or with the circuit breakers in the "OFF" position;

ØConnect the power cables in to the amplifier, observing the polarity. Connect all the

positive cables from the fuse holder or circuit breaker to the positive conector of

the amplifier and all the negative power cables from the batteries to the negative

connector of the amplifier;

ØThe ground cable must be as short as possible and must be connected to the

vehicle chassis and the battery negative;

ØInstall the signal input cables in a proper way, distant from the power cables;

ØConnect the RCA or the high level signal input cables to the head unit and

amplifiers;

ØInstall the audio output cables with the appropriate section, distant from the power

and audio input cables;

ØConnect the audio output cables to the amplifier and speakers respecting the

positive (+) and negative (-) polarities;

ØInstall the remote cable with the power cables, using 1.5mm² (15 AWG) cable or

thicker;

ØConnect the remote power cable to the amplifier's "REM" terminal at the main unit's

remote power output (when not using the high level signal inputs);

ØBefore powering the system, verify all the connections and make sure there are no

mistakes or short-circuits on the power and ground cables;

Ø;Reconnect the ground of the batteries

ØCheck if the head unit is turned off and then place the fuses in the fuse holders or

switch the circuit breakers on;

ØTurn on the main unit and the amplifier will turn on the "ON" LED indicating that it is

in operation.

INSTALLATION SEQUENCE

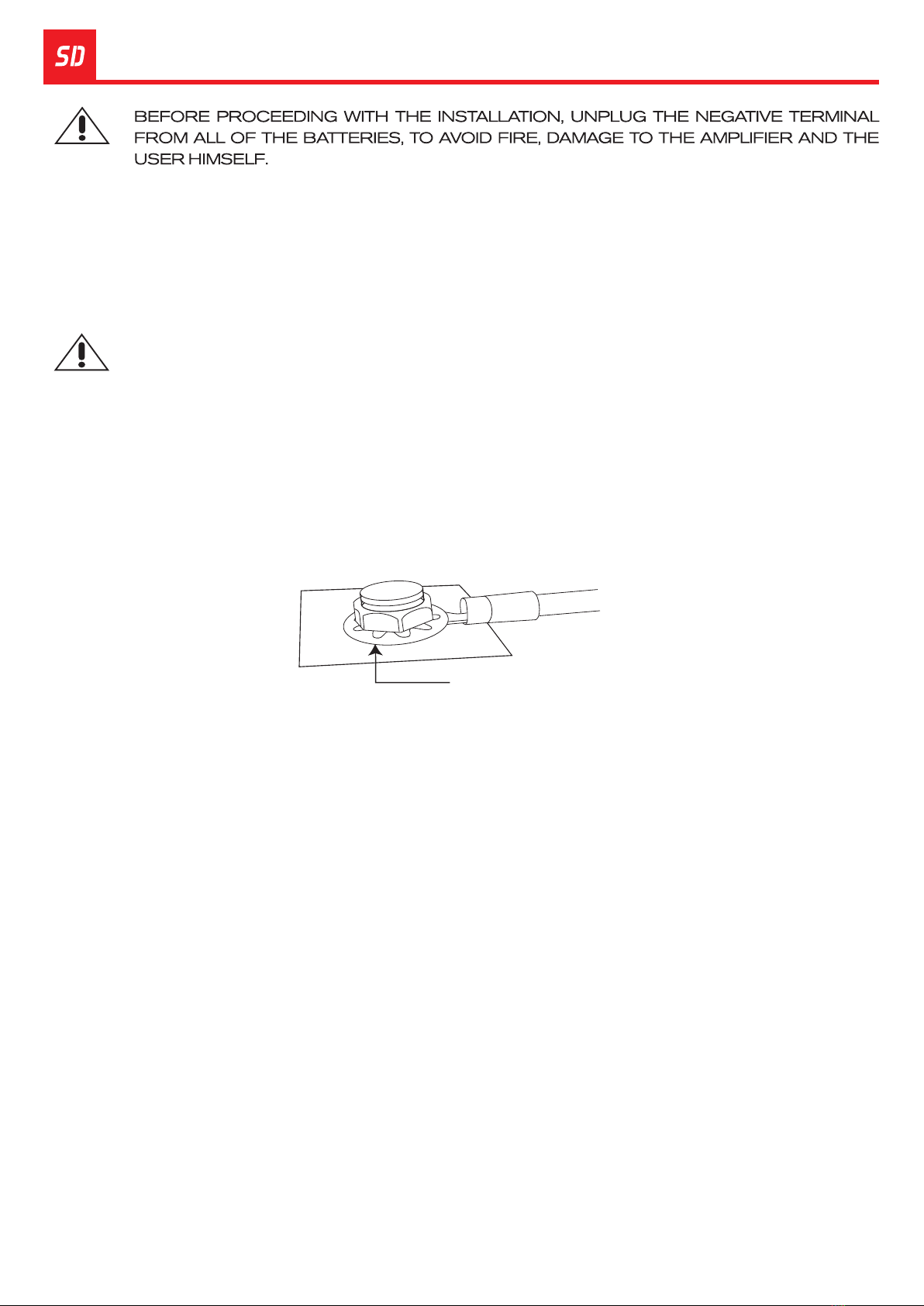

Warning!

Remove the paint between

the terminal and chassis

THE MAXIMUM DISTANCE FOR THE INSTALLATION OF THE FUSE/CIRCUIT

BREAKER IS 12 INCHES (30cm) AWAY FROM THE BATTERY.
