Speco HT7248TM Bedienungsanleitung

INSTRUCTION

MANUAL

,QWHQVLÀHU7

0RWRUL]HG=RRP)RFXV&DPHUD

4QFDP5FDIOPMPHJFTJTDPOTUBOUMZEFWFMPQJOHQSPEVDUJNQSPWFNFOUT

8FSFTFSWFUIFSJHIUUPNPEJGZQSPEVDUEFTJHOBOETQFDJGJDBUJPOTXJUIPVUOPUJDFBOEXJUIPVUJODVSSJOHBOZPCMJHBUJPO 3FW

HT7248TM

( Dome Camera)

Contents

- 1 -

Motorized Zoom Focus TVI Camera



Contents......................................................1

Ł

Precautions.................................................2, 3

Ł

Safety Instructions ......................................4

Ł

Package Contents.......................................5

Ł

Camera Installation.....................................8

Ł

6SHFL¿FDWLRQV..............................................9

Ł

Camera Dimension.....................................10

Ł

Features......................................................11

Ł

OSD Menu Details......................................12-30

Ł

Trouble Shooting.........................................31

- 2 -

Motorized Zoom Focus TVI Camera

Precautions

Do not install the camera in

extreme temperature conditions. Do not touch the front lens of the

camera.

Never keep the camera pointed

directly at strong light. Do not expose the camera to

radioactivity.

Do not install the camera under

unstable lighting conditions.

Do not drop the camera or subject

it to physical shocks.

Only use the camera under conditions

where temperatures are between

-10°C and +50°C. Be especially careful to

provide ventilation when operating under

high temperatures.

This is one of the most important parts of

the camera. Be careful not to leave

fingerprints on the lens cover.

It can cause malfunctions to occur. If exposed to radioactivity the CCD

will fail.

Severe lighting change or flicker can

cause the camera to work improperly.

Housing damage can compromise

weatherproof ratings.

NOTE

* If the camera is exposed to spotlight or object reflecting strong light,

smear or blooming may occur.

* please check that the power satisfies the normal specification before

connecting the camera.

- 3 -

Motorized Zoom Focus TVI Camera

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK

DO NOT REMOVE COVER(OR BACK).

NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

ISO14001

The lightning flash with an arrowhead symbol, within an equilateral

triangle is intended to alert the user to the presence of uninsulated

dangerous voltage within the product's enclosure that may be of

sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert

the user to the presence of important operating and maintenance

(servicing) instructions in the literature accompanying the appliance.

INFORMATION - This equipment has been tested and found to comply with

limits for a Class A digital device, pursuant to part 15 of the FCC Rules & CE Rules.

These limits are designed to provide reasonable protection against harmful

interference when the equipment is operated in a commercial environment.

This equipment generates, uses, and can radiate radio frequency energy and, if

not installed and used in accordance with the instruction manual, may cause

harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause harmful

interference in which case the user will be required to correct the interference at

their own expense.

WARNING - Changes or modifications not expressly approved by the

manufacturer could void the user’s authority to operate the equipment.

CAUTION : To prevent electric shock and risk of fire hazards:

ōDo NOT use power sources other than those specified.

In USA and Canada, Use Class 2 Power Supply Only

- 4 -

Motorized Zoom Focus TVI Camera

Safety Instructions

1SFDBVUJPOTGPSVTF

1MFBTFIBOEMFUIJTDBNFSBDBSFGVMMZ

Ł7KLVFDPHUDVKRXOGEHLQVWDOOHGE\TXDOL¿HGSHUVRQQHORQO\

ŁThere are no user serviceable parts inside

ŁDo not disassemble this camera other than to make initial adjustments

ŁUse a UL approved regulated 24 volt AC or 12 volt DC power supply

8VHDSSURSULDWHORZYROWDJHSRZHUFDEOHWRSUHYHQW¿UHRUHOHFWULFDOVKRFN

Please insure that your installation area can support the weight of the camera

ŁDo not use a strong or abrasive detergent when cleaning the camera

ŁDo not install near cooling or heating device

- 5 -

Motorized Zoom Focus TVI Camera

Package Contents

Please make sure that the following items are included in the Package:

q8KFGQ6GUV%QPPGEVQT2QYGT,CEM

q%JCOGNGQP%QXGT

q9TGPEJ

q5GV5ETGY

- 3 Tapping Screws 4x40

- 3 Plastic Anchor

- 6 -

Motorized Zoom Focus TVI Camera

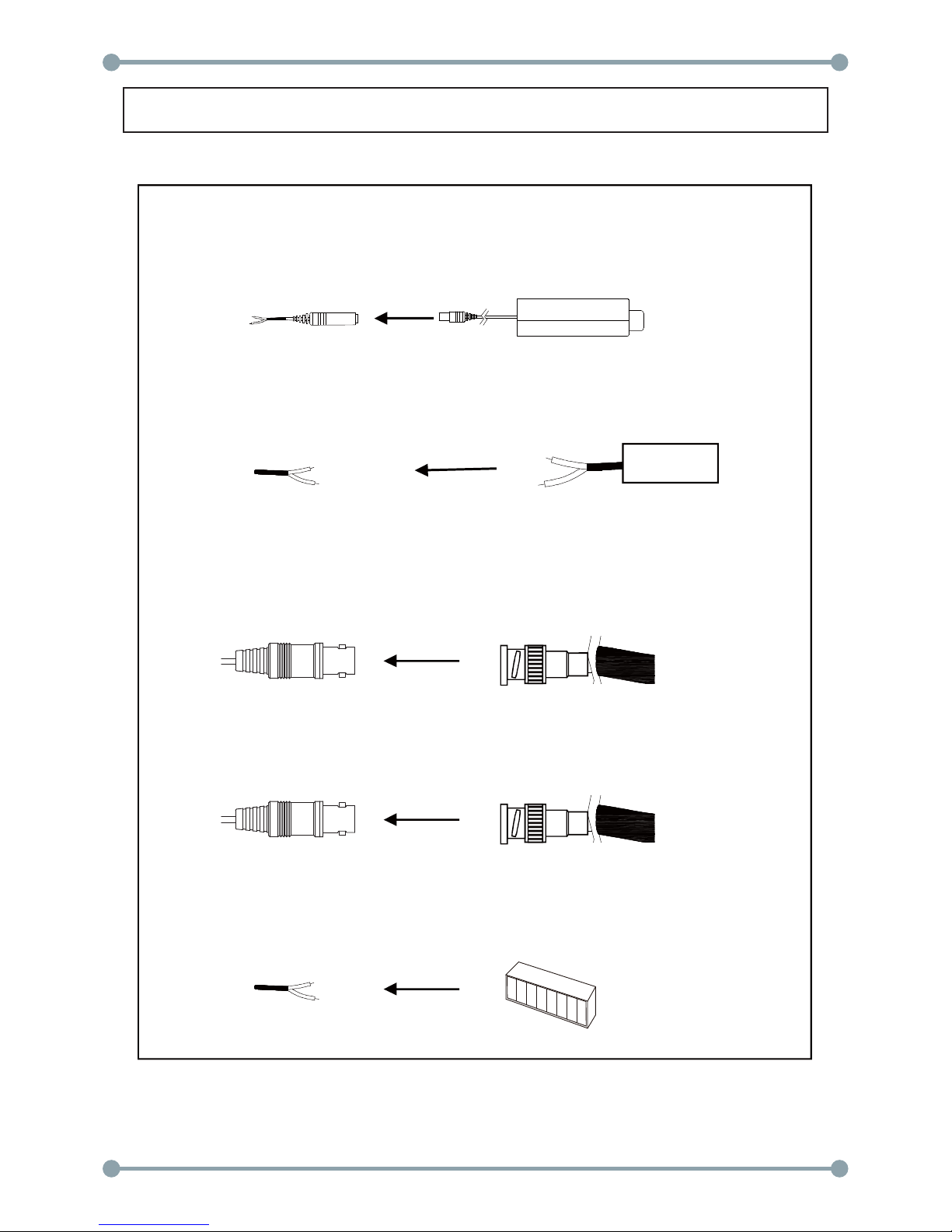

CAMERA INSTALLATION

CONNECT POWER CABLE

1. WHEN USING 12 VOLTS DC (constant voltage 500mA)

2. WHEN USING 24 VOLTS AC (40 Volt Amps)

3. CONNECT VIDEO CABLE

1) WHEN USING IT AS ANALOG OUTPUT,

CONNECT YELLOW COLOR BNC CABLE TO THE BNC JACK.

2) WHEN USING IT AS TVI OUTPUT,

CONNECT BLACK COLOR BNC CABLE TO THE BNC JACK.

DC 12V Power S upply

Power Input :RED

Center : (+)

C V B S

T V I

LBACK:(-)

RED(+)

4. CONNECT RS-485 CABLE

- CONNECT 2 WIRE CABLE TO THE 485 PORT AS BELOW.

ORANGE (+)

WHITE (-)

PowerSupply

AC 24V

- 7 -

Motorized Zoom Focus TVI Camera

CAMERA INSTALLATION

Compatibility

INTWM INTPM CVCJBD DFM

CAMERA INSTALLATION

- 8 -

Motorized Zoom Focus TVI Camera

VANDAL DOME BODYASSEMBLY

BODY OUTER COVER

TAPPING SCREW 4X40, 3EA

VANDAL DOME BASE ASSEMBLY

PLASTIC ANCHOR 6x30, 3EA

- 9 -

Motorized Zoom Focus TVI Camera

Image Sensor

Effective Pixels

Total pixels

Scanning System

S/N Ratio

Resolution

Video Output

Minimum Illumination

LENS

Shutter Speed

OSD

BLC

HSBLC

WDR(Wide Dynamic Range)

ACE

Day&Night

Smart-IR

White Balance

Sense-Up

Motion

Digital Noise Reduction

De-Fog

Brightness

AGC

Privacy

Mirror

Sharpness

Defect

Lens Shading(LSC)

COLORBAR

TVI / CVBS OUTPUT

Language

Power

Power Consumption

Operating Temperature

RS-485

Storage Temperature

Dimension

Weight

1/3" SONY 2Mega Exmor CMOS Sensor Imx222

1984(H) X 1105(V), 2.19M Pixels

2000(H) X 1121(V), 2.24M Pixels

Progressive Scan

More than 50dB

Digital : 1920X1080(1080p@30f / 1080p@25f))"

1280X720(720p@60f / 720p@50f)

1.0Vp-p Composite. 75 Ohms

1.0Vp-p TVI(Transport Video Interface) 75 Ohms

0.001 Lux(Sens-Up X32)

2.8-10mm Auto Iris Varifocal Motorized Lens

AUTO / Manual(1/30,1/25Sec ~ 1/30000Sec) / FLICKER

Built-in

ON / OFF (Low,Middle,High)-(Only For TVI Output)

OFF/LOW/MIDDLE/HIGH

AUTO/COLOR/NIGHTEXTERN0

0~20

AUTO/AWB/AWC-SET/MANUAL

x2 ~ x32

ON / OFF (4 Area)

3DNR (OFF/LOW/MIDDLE/HIGH)

ON(AUTO/MANUAL) / OFF

0 ~ 20, Default : 10

0~20(Level Adjustable), Default : 20

ON / OFF (16 Area)

MIRROR,V-FLIP

0~20

AUTO DETECT

ON/OFF

NTSC/PAL Selectable

English

DC 12V/AC 24V Dual Voltage Operation

DC 12V : Heater ON-500mA, Heater OFF-300mA

AC 24V : Heater ON-195mA, Heater OFF-130mA

-4ºF ~ +140ºF(Humidity : 20%RH ~ 95%RH)

PELCO-D / PELCO-P (Only for CVBS Output)

-4ºF ~ +140ºF(Humidity : 20%RH ~ 95%RH)

5.10"(Dia)*3.46"(H)

1.0 Ibs

HT7248TM

SPECIFICATIONS

Intensifier T Motorized Zoom Focus Camera

OO#WVQ+TKU8CTKHQECN/QVQTK\GF.GPU

+770PP
