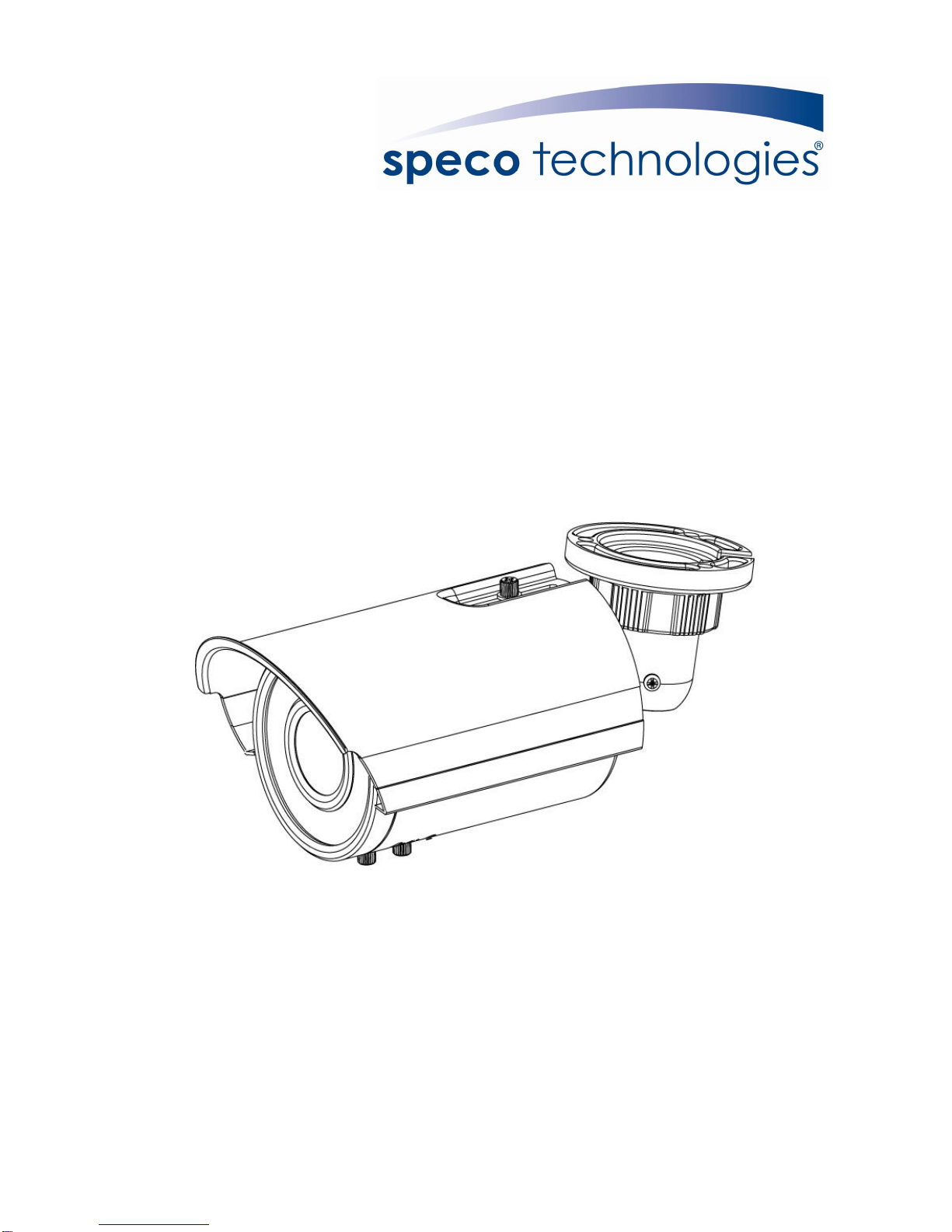

LPRB922

License Plate Capture Camera

Installation Guide

Speco Technologies 200 New Highway, Amityville, NY 11701 1-800-645-5516 www.specotech.com

Speco Technologies is constantly developing product improvements

We reserve the right to modify product design and specifications without notice and without incurring any obligation

Rev. 3/15/10

1. Notice of Use

 Follow all instructions. All requirements should be followed before using this camera.

 SPECO TECHNOLOGIES is not responsible for any technical or typographical errors

and reserves the right to change this manual without notice.

 Keep this document for future reference.

 Please make sure the power source is 12V DC/24 V AC. Only connect to the camera to

these required power systems.

 The camera must be installed on a solid mounting surface.

 Store the camera and other accessories in a dry place.

 SPECO TECHNOLOGIES is not responsible for any damage caused by inappropriate use.

Speco Technologies 200 New Highway, Amityville, NY 11701 1-800-645-5516 www.specotech.com

Speco Technologies is constantly developing product improvements

We reserve the right to modify product design and specifications without notice and without incurring any obligation

Rev. 3/15/10

2. Product Overview

The LPRB922 is a high-performance plate-capture camera, equipped with a 1/3” SONY™ CCD.

Outfitted with powerful 850 nm IR, the LPRB922 works perfectly even in total darkness to

deliver clear plate images. Its varifocal IR-corrected lens keeps it in focus day and night,

optimizing performance even in very low light conditions. In short, the LPRB922 provides the

kind of reliability and round-the-clock surveillance-and-capture capabilities crucial to

maximizing the efficiency of LPR applications.

High Contrast Image

The LPRB922 features high-contrast imaging performance that delivers sharp, clear license-

plate captures, even of vehicles moving at 55 MPH, in bad weather, and in low-light

conditions.

Powerful IR

Its powerful IR functionality and IR-corrected lens deliver perfect image captures and

outstanding images all day long. It is also equipped with a high-power LED to help minimize

energy usage.

Wide Range Capture

Its built-in 9-22mm lens captures a wide 10-27 ft. field.

Rain Guard/ Extendable Sunshield

The camera’s rain guard and extendable sunshield minimize the effects of rain and sunlight

on image quality.

Easy Installation

The cable-management bracket enables easy installation in any location, including walls,

surfaces, and ceilings.

Note: Because of the special nature of this camera, it will only show pictures

of license plates. All other items in the camera's field of view will be blacked out.

Speco Technologies 200 New Highway, Amityville, NY 11701 1-800-645-5516 www.specotech.com

Speco Technologies is constantly developing product improvements

We reserve the right to modify product design and specifications without notice and without incurring any obligation

Rev. 3/15/10

Camera Dimensions:

Speco Technologies 200 New Highway, Amityville, NY 11701 1-800-645-5516 www.specotech.com

Speco Technologies is constantly developing product improvements

We reserve the right to modify product design and specifications without notice and without incurring any obligation

Rev. 3/15/10

2.1 Camera Parts Definition

 Rain guard/extendable sunshield: minimize the effects of rain and sunlight on image quality

Tele/Wide and Far/Near adjustment screws: lens adjustment

 Mount adjustment: easy to mount at different angles

 BNC connector: video output

 Power connector: 12V DC / 24V AC

Extendable

sunshield

Tele/Wide adjustment screw

Far/Near adjustment screw

Mount adjustment

BNC connector

Power connector

Rain guard

Speco Technologies 200 New Highway, Amityville, NY 11701 1-800-645-5516 www.specotech.com

Speco Technologies is constantly developing product improvements

We reserve the right to modify product design and specifications without notice and without incurring any obligation

Rev. 3/15/10

2.2 Specifications

Image system

Signal system

NTSC

Image Sensor

1/3" SONY CCD

Effective pixels 768 (H) x 494 (V)

Electric

Scanning system

2:1 Interlace V: 59.94Hz

H: 15.734KHz

Sync system

Internal

Horizontal resolution

600 TV lines

Built-in lens

f=9mm ~ 22mm, F1.4 DC iris varifocal IR-corrected lens

External adjustments (zoom and focus)

View angle

Horizontal: 32.1° (wide) ~ 13.1° (tele)

Vertical: 23.3° (wide) ~ 9.8° (tele)

Gamma correction

0.45

Minimum illumination

0 Lux (IR LEDsON)

S/N ratio

More than 50dB (AGC off)

BLC

Auto (Center Weighting)

Video output

1Vpp composite output, 75 Ohm

IR LEDs36 Super power LEDs

IR wavelength

850nm

IR distance

50 ft.

Capture range

10~27 ft.

Capture speed

55MPH

LED life

More than 10,000 hours (122℉)

Power supply

Power requirement

Dual voltage: 12V DC /24V AC

Power consumption

10W (max.)

Environment

Operating Temp.-14℉

~122℉

Mechanism

Dimensions 3.26" H x 8.09"W

Weight

1.35 lbs.

Construction

Sunshield; Cable management bracket

Compact die-cast aluminum; Tempered Glass

Protection class

IP66 weatherproof rating; Vandal-resistant

Speco Technologies 200 New Highway, Amityville, NY 11701 1-800-645-5516 www.specotech.com

Speco Technologies is constantly developing product improvements

We reserve the right to modify product design and specifications without notice and without incurring any obligation

Rev. 3/15/10

3. Mounting Specifications& Installation Instructions

Please follow the mounting specifications to install the LPRB922 camera.

3.1 Package Contents

Item Description

LPRB922 camera camera assembly

rubber pad static electricity protection

3 insulation tubes static electricity protection

mounting templateguide pattern sticker

3 self-tapping screws r mounting camera

3 plastic anchor for cement ceiling mounting

printed material installation guide, notice card

3.2 Mounting Specifications

1. Use appropriate screws and select an appropriate location to install the camera.

2. Ensure the mounting surface can support the weight of the camera.

3. The width of the license plate should cover approximately 17-20% of the width of

the screen.

4. The camera height should be more than 36 inches.

5. The vertical angle should be less than 40 degrees.

Speco Technologies 200 New Highway, Amityville, NY 11701 1-800-645-5516 www.specotech.com

Speco Technologies is constantly developing product improvements

We reserve the right to modify product design and specifications without notice and without incurring any obligation

Rev. 3/15/10

6. The horizontal angle should be less than 40 degrees. This camera is designed to

cover only one lane (less than 3 meters).

7. If using with a DVR, make sure the DVR has the de-interlace feature and the frame

rate is above 15 fps for optimal effect.

8. To ensure an optimal view, please adjust the lens under the conditions we suggest.

3.3 Camera Installation

1. Mark hole positions: use the mounting template to mark hole positions on the

desired location. If you want to mount the camera on a cement surface, insert the

plastic anchors into holes which you've drilled into the cement first.

2. Adjust the mounting angle: Loosen the left and right screws and rotate the

mount adjustment counterclockwise to adjust a desired angle for mounting.

Then, fasten the screws and rotate the mount adjustment clockwise to set desired angle.

Partial enlargement

Speco Technologies 200 New Highway, Amityville, NY 11701 1-800-645-5516 www.specotech.com

Speco Technologies is constantly developing product improvements

We reserve the right to modify product design and specifications without notice and without incurring any obligation

Rev. 3/15/10

3. Install the camera: Lock the 3 self-trapping screws to fasten the camera.

For static electricity protection, please use the rubber pad to cover the metal

mount adjustment and put 3 insulation caps through the metal screws when locking the

3 self-trapping screws into the desired location.

rotate the mount

adjustment

1. loosen the left

screw

self-trapping screw

2. loosen the right

screw

insulation tube

rubber pad

Speco Technologies 200 New Highway, Amityville, NY 11701 1-800-645-5516 www.specotech.com

Speco Technologies is constantly developing product improvements

We reserve the right to modify product design and specifications without notice and without incurring any obligation

Rev. 3/15/10

4. Adjust the lens: loosen the Tele/Wide or Far/Near screw counterclockwise and then

adjust it according to your needs. After adjustment, be sure to lock it tightly to prevent

water leaking into the body of the camera.

5. Adjust the sunshield: loosen the screw counterclockwise, move the sunshield

forward or backward and then turn the screw clockwise to fix the position of the

sunshield. Be sure to adjust the sunshield in coordination with the lens to avoid

reflection problems.

move forward/backward

Warning!To avoid water

leaking, do not loosen

these 2 screws.

Warning!To avoid damage to

the lens, do not adjust the Tele/Wide

or Far/Near screw beyond the

marked lines.

Speco Technologies 200 New Highway, Amityville, NY 11701 1-800-645-5516 www.specotech.com

Speco Technologies is constantly developing product improvements

We reserve the right to modify product design and specifications without notice and without incurring any obligation

Rev. 3/15/10
