Speco CVC605CMT Bedienungsanleitung

INSTRUCTION

MANUAL

HD-TVI

Intensifier T Corner Mount Camera

CVC605CMT

Speco Technologies is constantly developing product improvements.

We reserve the right to modify product design and specifications without notice and without incurring any obligation. Rev. 02/01/17

• To avoid electrical shock, do not open the case of this product.

• Only use a regulated DC 12V Power supply to operate this product.

• Do not overload electrical outlets or extension cords. This can result in a fire or

electrical shock.

• Keep this product away from strong magnetic fields.

• Do not expose this product in direct sunlight or strong reflected rays.

• Refer servicing to qualified personnel only.

• Do not change or modify this product. This will void the warranty.

Precautions

Features

Installation

• 1/2.9 Inch SONY 2Mega CMOS Sensor

• Privacy Masking (16 Zones)

• No Noise, Ghosting Effect with DNR

• Highest Resolution:Vivid Sharp Picture in complete darkness

• UTC Built-in

• DC 12V

BOLT

FRONT PLATE

NUT

CAMERA MODULE ASSEMBLY

BASE BRACKET

ELEVATOR

SCREW

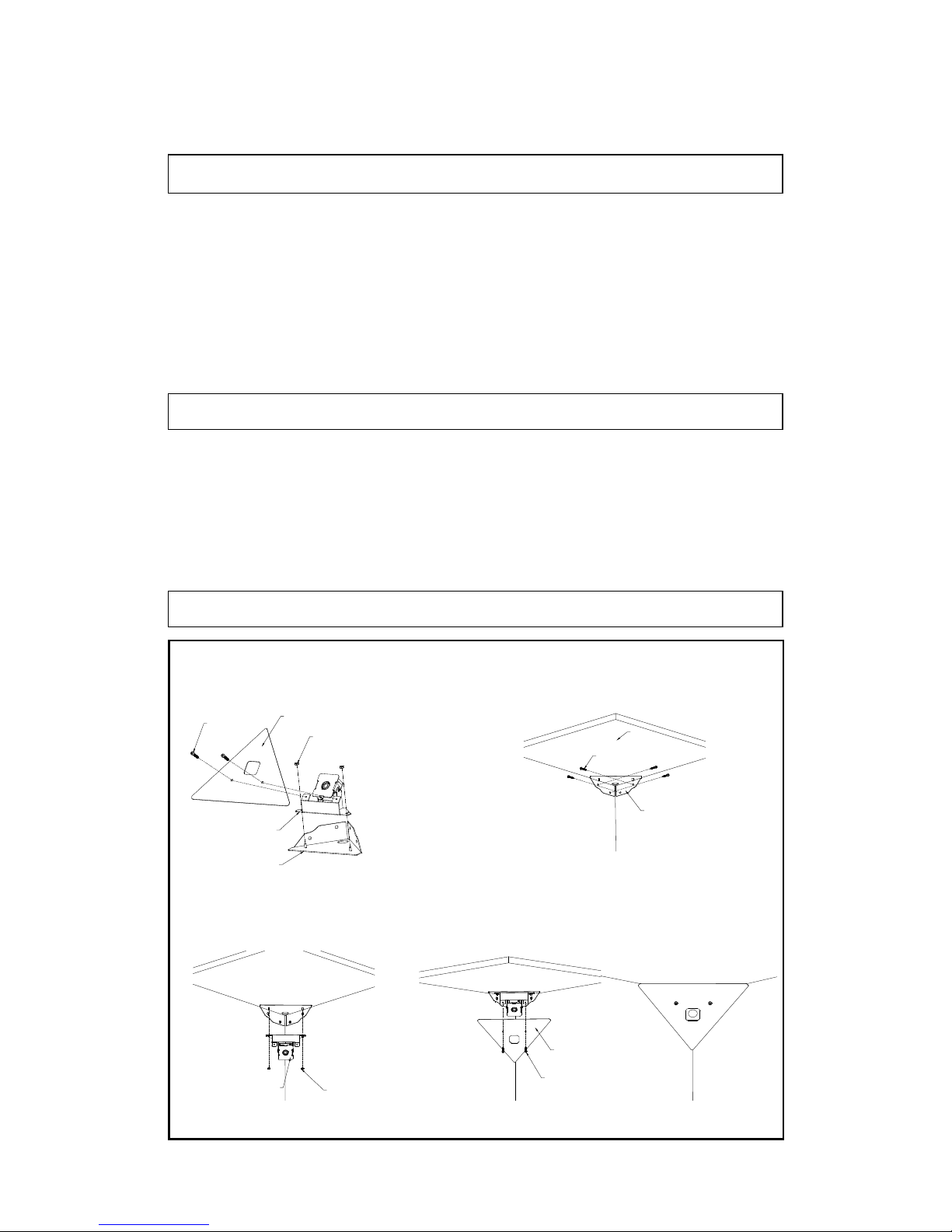

1.Loosen the bolt and separate front plate.

Loosen the nut and separate camera module and base bracket.

3.Use nut screw to fixate camera module

on base bracket.

2.Fix the base bracket to the corner.

4.Use bolt screw to fixate front plate. 5.Finish install.

Specifications

1/2.9 Inch SONY 2Mega CMOS Sensor

2001 (H) X 1121 (V)

1985 (H) X 1105 (V)

1920X1080(1080p@30f / 1080p@25f)

1280X720_CROP(720p@60f / 720p@50f)

1280X720_CROP(720p@30f / 720p@25f)

Progressive Scan

50 dB

1.0Vp-p Composite. 75 Ohms / 1.0Vp-p TVI(Transport Video Interface) 75 Ohms

0.001 Lux @ F1.4(Sens-Up X32)

AUTO / Manual(1/25,1/30Sec ~ 1/30000Sec) / FLICKER

ON / OFF (Low,Middle,High) (15 Fram)

O(OFF/LOW/MIDDLE/HIGH)

AUTO / COLOR / BW / EXT

AUTO/AWB/AWC-SET/MANUAL

x2 ~ x32

ON / OFF (4 Area)

3DNR (OFF/LOW/MIDDLE/HIGH)

O (AUTO/MANUAL)

0 ~ 20

0~20(Level Adjustable)

ON / OFF (16 Area)

MIRROR,V-FLIP

Image Sensor

Pixels - total

Pixels - Effective

Resolution

Scanning System

S/N Ratio

Video Output

Minimum Illumination

Shutter Speed

BLC

HSBLC

WDR(Wide Dynamic Range)

ACE(D-WDR)

(Adaptive Contrast Enhancement)

Day&Night

White Balance

Smart-IR

Sense-Up

Motion

Digital Noise Reduction

De-Fog

brightness

AGC

Privacy

Mirror

0~20(Level Adjustable)Sharpness

AUTO DETECTDefect

0Coaxial Communication (UTC)

ENG/KOR/CHN/CHA(S)/JPNLanguage

DC12VPower

DC12V 110mA ±10%(MAX)Power Consumption

-4ºF ~ +140ºF(Humidity : 20%RH ~ 95%RH)Operating Temperature

-4ºF ~ +140ºF(Humidity : 20%RH ~ 95%RH)Storage Temperature

Dimension & Camera Connection

CVC605CMT

9.24”

6.71”

3.40”

Change height based on angle

FRONT PLATE

FRONT SIDE

3.6mm Fixed Board Lens

Bolt

Main Cable
