Speco O4LT1 Bedienungsanleitung

Quick Start Guide

O4LT1

Welcome

Thank you for purchasing this network camera!

This owner's manual is designed to be a reference tool for your system.

Please read this manual carefully before operating the unit and retain it for future reference.

Should you require any technical assistance, contact Speco Technologies Tech Support at

1-800-645-5516

1. Electrical safety

All installation and operation here should conform to local electrical safety codes.

Use a certified/listed 12VDC Class 2 power supply or adequate PoE switch.

Please note: The product must be grounded to reduce the risk of electric shock.

Improper handling and/or installation could run the risk of fire or electrical shock.

2. Environment

Do not expose the unit to heavy stress, violent vibration or long-term exposure to water

and humidity during transportation, storage, and/or installation.

Do not install near sources of heat.

Only install the product in environments inside the specification operating temperature

and humidity range.

Do not install the camera near power lines, radar equipment or other electromagnetic

radiation.

Do not block any ventilation openings if any.

Use all the weatherproofing hardware requirement to minimize weather intrusion.

3. Operation and Daily Maintenance

Please shut down the device and then unplug the power cable before you begin any

maintenance work.

Do not touch the CMOS sensor optic component. You can use a blower to clean the dust on

the lens surface.

Always use the dry soft cloth to clean the device. If there is too much dust, use a cloth

Important Safeguards and Warning

Package

Warning

Statement

This camera should be installed by qualified personnel only.

All the examination and repair work should be done by qualified personnel.

Any unauthorized changes or modifications could void the warranty.

This guide is for reference only.

Product, manuals and specifications may be modified without prior notice. Speco

Technologies reserves the right to modify these without notice and without incurring

any obligation.

Speco Technologies is not liable for any loss caused by improper operation.

Note:

Before installation, check the package and make sure that all components are included.

Contact your rep or Speco customer service department immediately if something is

broken or missing in the package.

dampened with a small quantity of neutral detergent. Finally use the dry cloth to clean

the device.

Please use a professional optical cleaning method to clean the enclosure. Improper enclosure

cleaning (such as using cloth) may result in poor IR functionality and/or IR reflection.

The grounding holes of the product are recommended to be grounded to further enhance

the reliability of the camera.

The lens is an optical device, please don't touch or wipe cover surface directly during

installation and use, please refer to the following methods if dirt is found:

Stained with dirt: Use oil-free soft brush or hair dryer to remove it gently.

Stained with grease or fingerprint: Use oil-free cotton cloth or paper soaked with alcohol

or detergent to wipe from the lens center outward. Change the cloth and wipe several

times if it is not clean enough.

Overview

3 Overview

Audio input connector

4Mounting base

Ethernet connector

Reset

Micro SD card slot

Fixed screw

Microphone

Power connector

Screwdriver

Camera Quick start guide CD Junction box

7 Plastic screw

anchors

7 screws (PA 4×25mm)

3 Screws

(PM 4×10mm)

4 Rubber o-rings

for screws

Drill Template

Connecting Network Cable

① Loosen the nut from the main element.

② Run the network cable (without RJ 45 connector) through both

elements. Then crimp the cable with RJ 45 connector.

③ Connect the cable to the water-proof connector. Then tighten the

nut and the main cover.

Water-proof connector

DC12V

External microphone

* It is recommended to install the water-proof connector for outdoor installations.

Installation

* Before you start, please make sure that the wall or ceiling is strong enough

to withstand three times the weight of the camera and the junction box.

① Open the mounting base and the upper cover of the junction box.

② Attach the drill template of the junction box to the place where you

want to install the junction box and then rill the screw hole and calbe

hole on the wall according to the drill template.

③ Install junction box onto the wall by using the screws provided.

Mounting Base

Upper Cover

12mm

6.5×38mm

4×

Rubber o-ring

④ Loosen the set screw to disassemble the camera. Then remove

the cover from the camera unit to insert the SD card. After that, install

the cover back to the camera unit and fix it firmly with the screws.

(Note that the cover should not be installed unevenly .)

⑥ Route the cables through the cable hole and connect the cables.

Then reinstall the upper cover onto the junction box and mount the

camera unit and enclosure to the mounting base.

⑤ Fasten the mounting base of the camera onto the junction box.

PM 4x10mm

6.6mm

3×

Set Screw

Mounting Base

Enclosure

Camera Unit

Cover

⑦ Adjust the camera to obtain an optimum angle. Before adjustment,

preview the image of the camera on a monitor. After that, tighten the

set screw to finish the installation.

Web Operation and Login

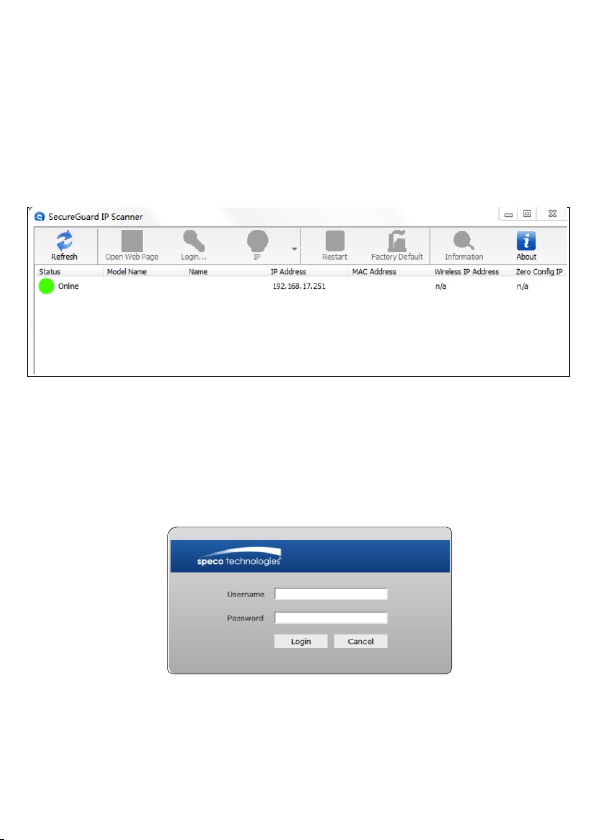

IP Scanner can search for the device on the local network.

Set screw

③ In the device list, you can view the IP address, model number, and

MAC address of each device. Select the applicable device and double

click to open up the web viewer. You can also manually enter the IP

address in the address bar of the web browser.

The login interface is shown above. Default user name is admin and

password is 1234. After logging in, follow directions to install

applicable plugins if prompted.

● Operation

① Make sure that the camera and the PC are connected to the same

local network. The camera is set to DHCP by default.

② Install IP Scanner from the CD and run it after installation.Or

download from https://www.specotech.com/ip-scanner/

5C : F2: 0 7 :34 : 68:9 A

O4 LT1
