Speco O8VD1 Bedienungsanleitung
Quick Start Guide
O8VD1
Welcome
Thank you for purchasing this network camera!
This owner's manual is designed to be a reference tool for your system.
Please read this manual carefully before operating the unit and retain it for future reference.
Should you require any technical assistance, contact Speco Technologies Tech Support at
1-800-645-5516
1. Electrical safety
All installation and operation here should conform to local electrical safety codes.
Use a certified/listed 12VDC Class 2 power supply only.
Please note: Do not connect two power supplying sources to the device at the same time;
it may result in device damage! The product must be grounded to reduce the risk of
electric shock.
Improper handling and/or installation could run the risk of fire or electrical shock.
2. Environment
Heavy stress, violent vibration or exposure to water is not allowed during transportation,
storage and installation.
This product should be installed in a cool, dry place away from direct sunlight and heat
sources.
Do not install the product in extreme temperature conditions.
Do not expose the camera to electromagnetic radiation. Otherwise it may result in CMOS
sensor failure.
Do not block any ventilation openings.
Do not allow water and liquid intrusion into the camera.
3. Operation and Daily Maintenance
Please shut down the device and then unplug the power cable before you begin any
maintenance work.
Do not touch the CMOS sensor optic component. You can use a blower to clean the dust on
the lens surface.
Always use the dry soft cloth to clean the device. If there is too much dust, use a cloth
Important Safeguards and Warning
Warning
Statement
This camera should be installed by qualified personnel only.
All the examination and repair work should be done by qualified personnel.
Any unauthorized changes or modifications could void the warranty.
.
This guide is for reference only.
Product, manuals and specifications may be modified without prior notice. Speco
Technologies reserves the right to modify these without notice and without incurring
any obligation.
Speco Technologies is not liable for any loss caused by improper operation.
Note:
Before installation, check the package and make sure that all components are included.
Contact your rep or Speco customer service department immediately if something is
broken or missing in the package.
dampened with a small quantity of neutral detergent. Finally use the dry cloth to clean
the device.
Please use a professional optical cleaning method to clean the enclosure. Improper enclosure
cleaning (such as using cloth) may result in poor IR functionality and/or IR reflection.
The grounding holes of the product are recommended to be grounded to further enhance
the reliability of the camera.
Dome cover is an optical device, please don't touch or wipe cover surface directly during
installation and use, please refer to the following methods if dirt is found:
Stained with dirt: Use oil-free soft brush or hair dryer to remove it gently.
Stained with grease or fingerprint: Use oil-free cotton cloth or paper soaked with alcohol
or detergent to wipe from the lens center outward. Change the cloth and wipe several
times if it is not clean enough.
Package
1
Overview
3
Camera Quick start guide
CD Drill template
Rubber plug Junction box
Overview
2
Screwdriver
Plastic plug ×4
4 tapping screws
Ethernet connector
Audio input connector
Power connector
Microphone
Reset
Micro SD Card Slot
1
2
3
4
5
6
1
2
3
4
5
6
* 1 It is recommended to install the security cap for outdoor installations.
* 2 DC 12V power supply is not required if a PoE switch or injector is used to power
the camera.
► Connecting Network Cable
① Loosen the nut from the main element.
② Run the network cable (without RJ 45 connector) through both
elements. Then crimp the cable with RJ 45 connector.
③ Connect the cable to the hermetic connector. Then tighten the nut
and the main cover.
2
13
DC12V
Security Cap
Installation
3
* Before you start, please make sure that the wall or ceiling is strong enough
to withstand three times the weight of the camera.

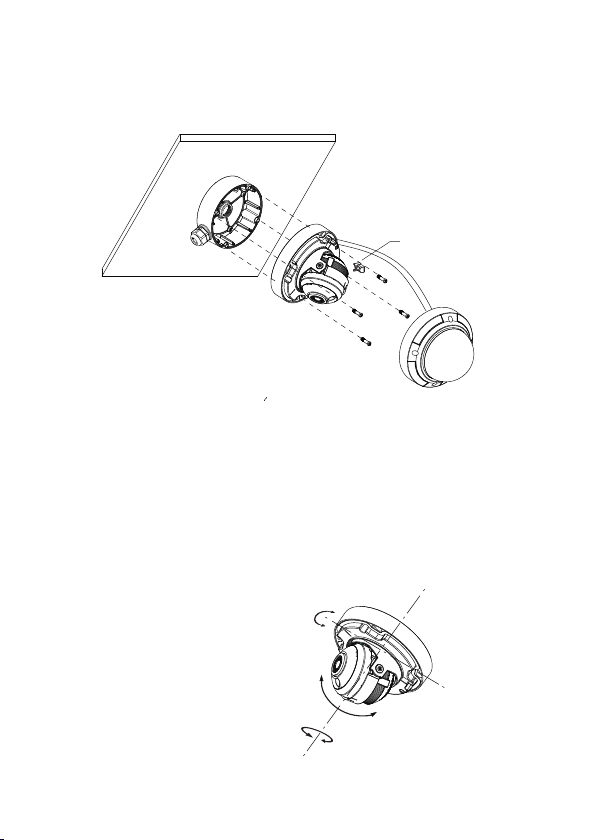

① Install junction box onto the wall by using the screws provided.
② Loosen the screws to open the lower dome.
Lower Dome
③Connect the cables, mount the rubber plug to the gap of the
mounting base and fasten the camera onto the junction box.
Rubber Plug
④
camera on a monitor and then adjust the camera according to the figure
below to get an optimum angle.
Three-axis Adjustment-Before adjustment, preview the image of the
Rotation 0°~355°
Pan 0°~355°
Tilt 0°~67°
⑤ Install the lower dome back to the camera and fix it with the screws.
Web Operation and Login
4
● Operation
IP Scanner can search for the device on the local network.
① Make sure that the camera and the PC are connected to the same
local network. The camera is set to DHCP by default.
② Install IP Scanner from the CD and run it after installation.
③ In the device list, you can view the IP address, model number, and
MAC address of each device. Select the applicable device and double
click to open up the web viewer. You can also manually enter the IP
address in the address bar of the web browser.
The login interface is shown above. Default user name is admin and
password is 1234. After logging in, follow directions to install
applicable plugins.
O8 VD 1
5C :F 2:07:24 :5 8: 9A
