Spectrum Technologies 2958 Bedienungsanleitung

IR Crop Temperature/

External Soil Temperature

Meter

PRODUCT MANUAL

Item # 2958

CONTENTS

Specifications 2

Description 3

Operation 4

Maintenance 7

Warranty 8

CE Declaration of Conformity 8

Thank you for purchasing the Infrared Crop Temp / External Soil

Temp Meter. The meter is designed to combine non-contact IR

thermometer with a penetration probe to enable both leaf surface

and soil temperature measurement using the same meter. Please

read this manual thoroughly before using your meter.

Specifications

Infrared Temperature

Emissivity 0.97

Distance to Target Ratio 3:1

Range -40 to 149°F (-40 to 65°C)

Accuracy ±2°F (±1°C)

Probe Temperature

Range -40 to 149°F (-40 to 65°C)

Accuracy ±1°F (±.5°C) for 23 to 149°F (-5 to 65°C)

±2°F (±1°C) for -40 to 23°F (-40 to –5°C)

Response Time <500ms

Auto Power Off 20 seconds

IP Rating IP65

Power Supply 9V battery

Description

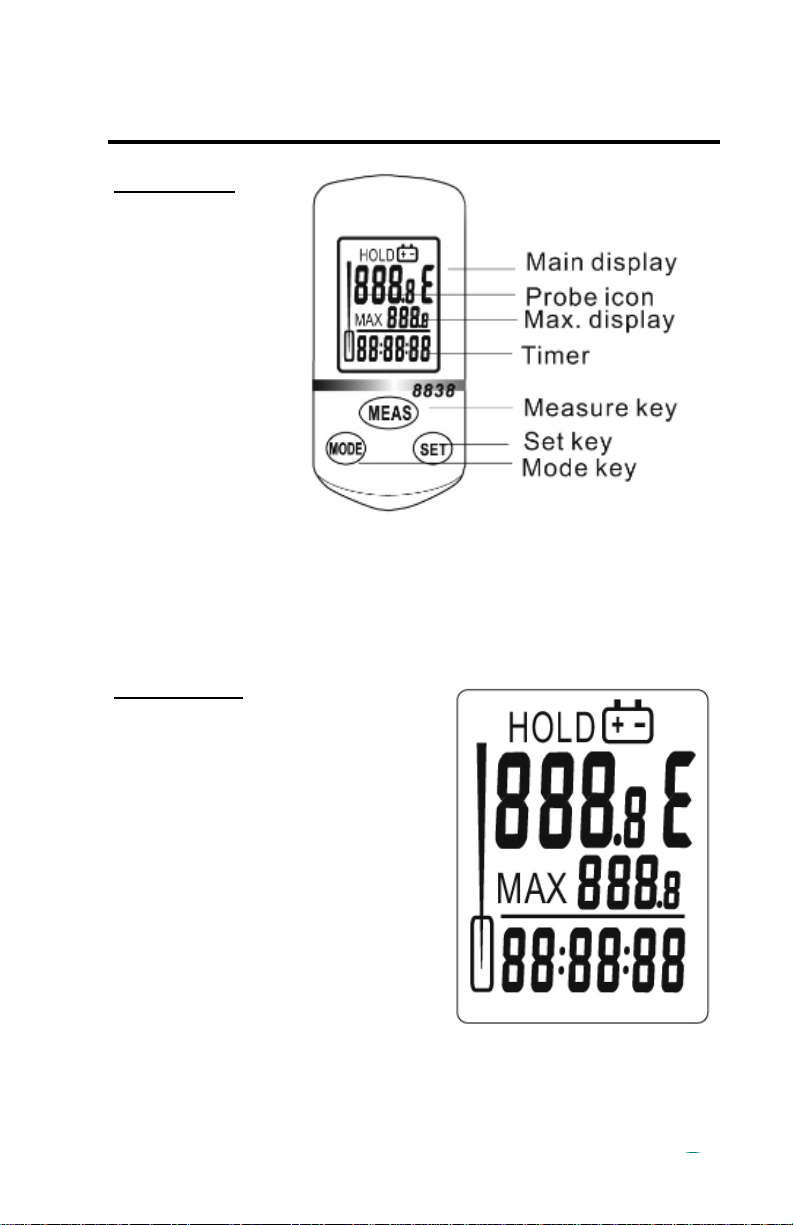

Front Panel

LCD Display

Top Row:

“HOLD”: Last reading displayed

Battery icon: Low battery warning

Main Display: Real time temp.

Middle Display: Max temp.

Lower Display: Timer

Probe icon: Probe measurement

mode

Operation

Power On/Off

Press any key to turn on the meter in last operating mode. It

automatically turns off after 20 sec. non-operation.

Select display modes

Press MODE button to select display modes. It cycles among

IR, Probe, and Counter operation modes. In IR mode, the

LCD shows real time temp. and max. reading. The Probe

mode displays a probe icon on the left and temp. on the main

screen.

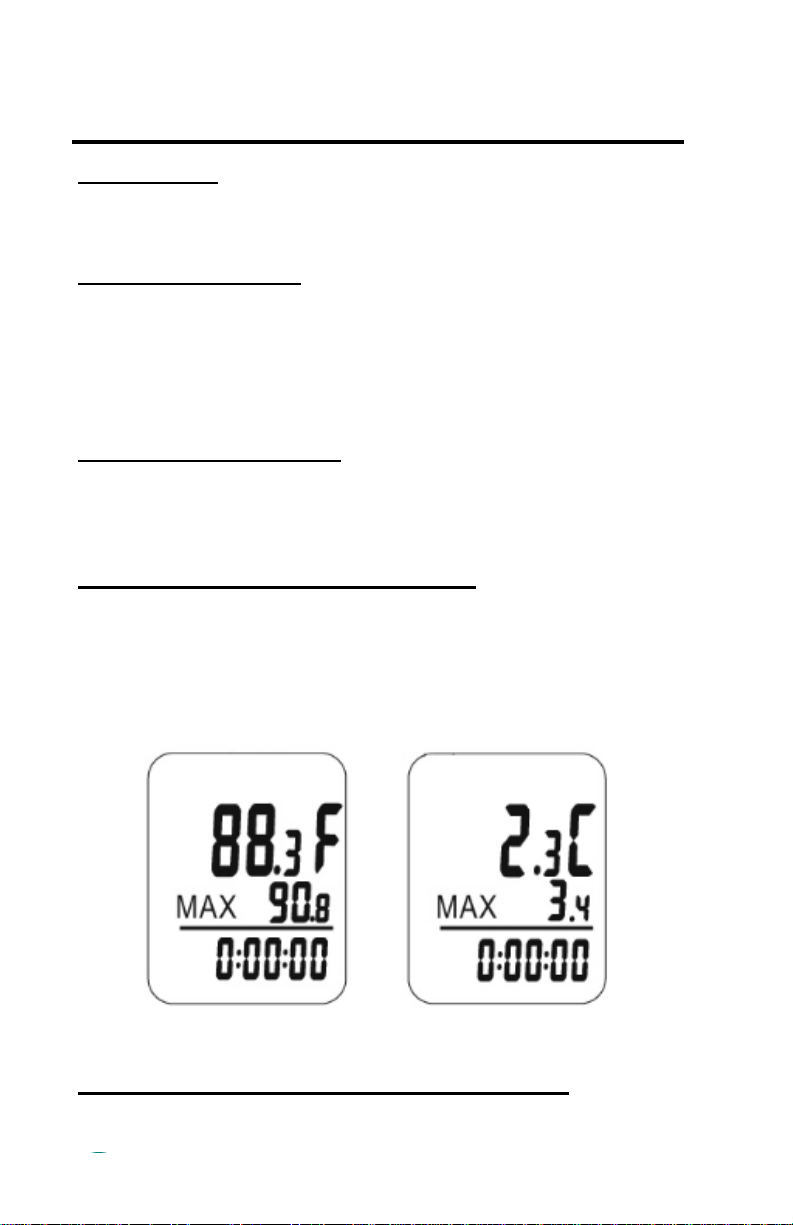

Switch temperature units

Select °C or °F by pressing SET button when the meter is on.

In probe mode, wait for readings to stabilize before switching

units.

IR measurement: Surface temperature

Point the infrared sensor to the target, press and hold MEAS

button to scan the object surface, the illumination beam can

be seen highlighting the measurement area. The LCD dis-

plays real time temperature and maximum value since power

on.

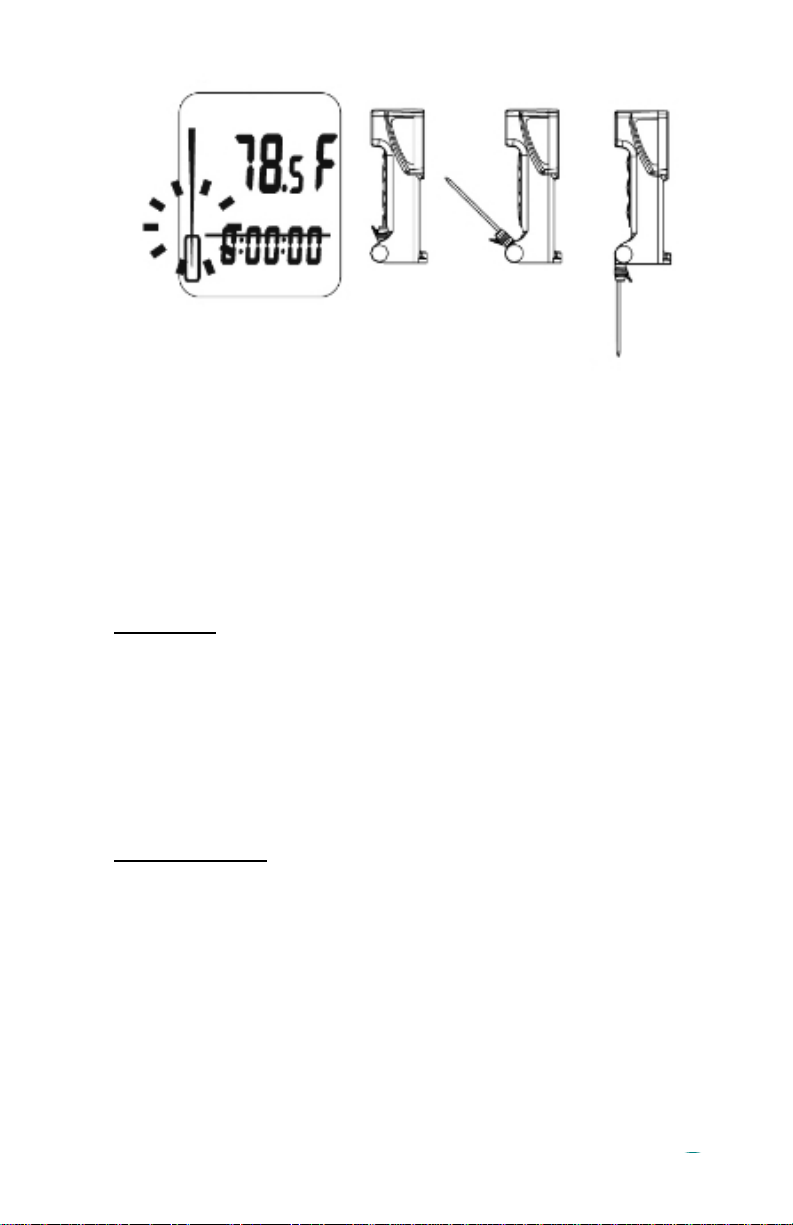

Probe measurement: Soil or liquid temperature

Press MODE button to enter probe measurement mode. A

probe icon shows on the left of the LCD. Unfold the probe

and insert into the target at least 1/2” (10mm) deep for sev-

eral seconds or stir the liquid to equilibrate with the target ob-

ject, and then press MEAS to measure internal temp. The

probe icon blinks while measuring and stops with short beeps

when the readings stabilize.

It is important to clean the probe tip before and after every

measurement for better accuracy and probe life maintenance.

Data Hold

The data hold function works in both IR and probe modes. In

IR measurement, just release MEAS button, the meter stops

measuring and holds the last reading until next measurement

is taken or power off. To hold the data in probe measure-

ment, release MEAS button and wait until it gets the stable

reading. Then the “HOLD” icon will display on the top of LCD

along with the held reading.

Timer function

The meter has timer and alarm for control purpose, which

ranges up to 9:59:59. Press MODE to enter counter setting

(after probe mode), and the LCD displays 0:00:00

(hour:minute:second) or previous setting.

Press MEAS to start countdown with previous setting, or

press SET button to have a new one. The Second digits will

blink first for value change. Press SET again to increase the

value and then MODE to select minute and hour digits. After

hour setting is completed, press MEAS to count down.

“:” blinks while the counter is working. Users can pause or

continue it by pressing MEAS button in counter mode. Or

press MODE to return to IR or probe mode and let it count

down in the background. The counting timer will remain on

the screen even when it auto turns off.

The alarm sounds for 30 seconds when the timer reaches 0.

Users may press any button to stop alarming or just wait for

30 seconds until it automatically stops.

Notes

The meter is waterproof at IP65 rating and the probe is wash-

able. Take care not to let water, steam or smoke get directly

into the infrared sensor, as it will affect the accuracy.

The probe is not replaceable. Do not attempt to unplug the

probe as this will damage the unit.

Troubleshooting

Meter does not turn on or display flashes

Check the battery voltage and replace with fresh battery if

necessary.

Display is fixed and the function keys don’t work

Remove the battery for one minute and then reinstall it. Re-

place with a new battery if the problem isn’t solved after re-

set.

Maintenance

Case cleaning

Use a damp cloth to clean the exterior housing. Make sure no

water goes inside the infrared lens.

Lens cleaning

Clean the infrared lens after a certain time of operation. Use

low pressure compressed air or soft damp swab to remove

the particles on the lens.

Probe cleaning

Clean the probe before and after every measurement.

Proper maintenance can assure better performance and

longer life of the probe.

DECLARATION OF CONFORMITY

Spectrum Technologies, Inc.

12360 S. Industrial Dr. East

Plainfield, IL 60585 USA

Model Numbers: 2958

Description: Infrared Temperature Meter with External Probe

Type: Electrical Equipment for Measurement, Control, and Laboratory

Use

Directive: 2004/108/EC

Standards: EN 61326-1:2006

EN 61000-4-2:1995, including A1:1998 and A2:2001

EN 61000-4-3:2002

EN 55011:2007

Michael J. Dunning, Weather Products Manager January 16, 2009

War r anty

This product is warranted to be free from defects in material or work-

manship for one year from the date of purchase. During the warranty

period Spectrum will, at its option, either repair or replace products that

prove to be defective. This warranty does not cover damage due to

improper installation or use, lightning, negligence, accident, or unau-

thorized modifications, or to incidental or consequential damages be-

yond the Spectrum product. Before returning a failed unit, you must

obtain a Returned Materials Authorization (RMA) from Spec-

trum. Spectrum is not responsible for any package that is returned

without a valid RMA number or for the loss of the package by any ship-

ping company.

12360 S. Industrial Dr. E

Plainfield IL 60585

(800) 248-8873 or (815) 436-4440

Fax (815) 436-4460

E-Mail: [email protected]

www.specmeters.com
