Spirit CU800 Bedienungsanleitung
Fitness Bike
CU800
Please carefully read this entire manual before operating your new tness bike
OWNER’S MANUAL
2
Fitness Bike
CU800
1
2
3
4
5
12
13
16
24
26
27
Product Registration
Important Safety Instructions
Important Electrical Instructions
Important Operation Instructions
CU800
Assembly Instructions
Features
Console Operation
Programmable Features
Using Heart Rate Transmitter
General Maintenance
Manufacturer’s Limited Warranty
Table of Contents
1
Fitness Bike
CU800
Record Your Serial Number
Please record the serial number of this tness product
in the space provided below.
Serial Number
Register Your Purchase
The self-addressed product registration card must be completed in full and returned to Spirit
Fitness. You can also go to www.spirittness.com/warranty.asp under the support tab to register
online.
Thank you for your purchase of this quality group tness bike from Spirit Fitness. Your new tness
bike was manufactured by one of the leading tness manufacturers in the world and is backed by
one of the most comprehensive warranties available. Through your dealer, Spirit Fitness will do
all we can to make your ownership experience as pleasant as possible for many years to come.
If not purchased direct from Spirit Fitness, the local dealership where you purchased this tness
bike is your administrator for all Spirit Fitness warranty and service needs. Their responsibility is to
provide you with the technical knowledge and service personnel to make your experience more
informed and any difculties easier to remedy.
Please take a moment at this time to record the name of the dealer, their telephone number, and
the date of purchase below to make any future, needed contact easy. We appreciate your sup-
port and we will always remember that you are the reason that we are in business. Please com-
plete and mail your registration card today and enjoy your new tness bike.
Yours in Health,
Spirit Fitness
Congratulations on your new tness bike and welcome to the Spirit Fitness family!
Name of Dealer
Dealer Phone #
Purchase Date
CU800_20140113
Product Registration
2
Fitness Bike
CU800
WARNING - Read all instructions before using this appliance.
Before beginning this or any exercise program, consult a physician. This is especially important
for persons over the age of 35 or persons with pre-existing health conditions.
Keep children away from the tness bike. There are obvious pinch points and other
caution areas that can cause harm.
Keep hands away from all moving parts.
Never drop or insert any object into any openings.
Do not use outdoors.
Do not attempt to use your tness bike for any purpose other than for the purpose it is
intended.
The hand pulse sensors are not medical devices. Various factors, including the user’s move-
ment, may affect the accuracy of heart rate readings. The pulse sensors are intended only as
exercise aids in determining heart rate trends in general.
Wear proper shoes. High heels, dress shoes, sandals or bare feet are not suitable for use on
your tness bike. Quality athletic shoes are recommended to avoid leg fatigue.
SAVE THESE INSTRUCTIONS - THINK SAFETY!
Important Safety Instructions
3
Fitness Bike
CU800
WARNING!
Be aware that the generator is producing A.C. power while the tness bike is being used. Do not
service the tness bike while the generator is spinning; serious electric shock could occur.
NEVER expose this tness bike to rain or moisture. This product is NOT designed for use
outdoors, near a pool or spa, or in any other high humidity environment. The operating tempera-
ture specication is 40 to 120 degrees Fahrenheit, and humidity is 95% non-condensing (no water
drops forming on surfaces).
Important Electrical Instructions
4
Fitness Bike
CU800
NEVER expose the bike to rain or moisture. This product is NOT designed for use out-
doors, near a pool or spa, or in any other high humidity environment. Maximum environmen-
tal ratings are 40-120 degrees Fahrenheit, 95% humidity non-condensing (no water droplets
forming on surfaces).
Do not use excessive pressure on console control keys. They are precision set to properly
function with little nger pressure. If you feel the buttons are not functioning properly with
normal pressure, contact your Spirit Fitness dealer.
Important Operation Instructions
5
Fitness Bike
CU800
1. Cut the straps, then along the dotted line on the bottom of the box; lift the box over the unit and unpack.
2. Locate the hardware package. The hardware is separated into four steps. Remove the tools rst. Remove the
hardware for each step as needed to avoid confusion. The numbers in the instructions that are in parenthesis
(#) are the item number from the assembly drawing for reference.
Pre-Assembly
Phillips Head
Screwdriver
13/15mm Wrench
CU800
Assembly Instructions
Assembly Tools
12/14mm Wrench
6
Fitness Bike
CU800

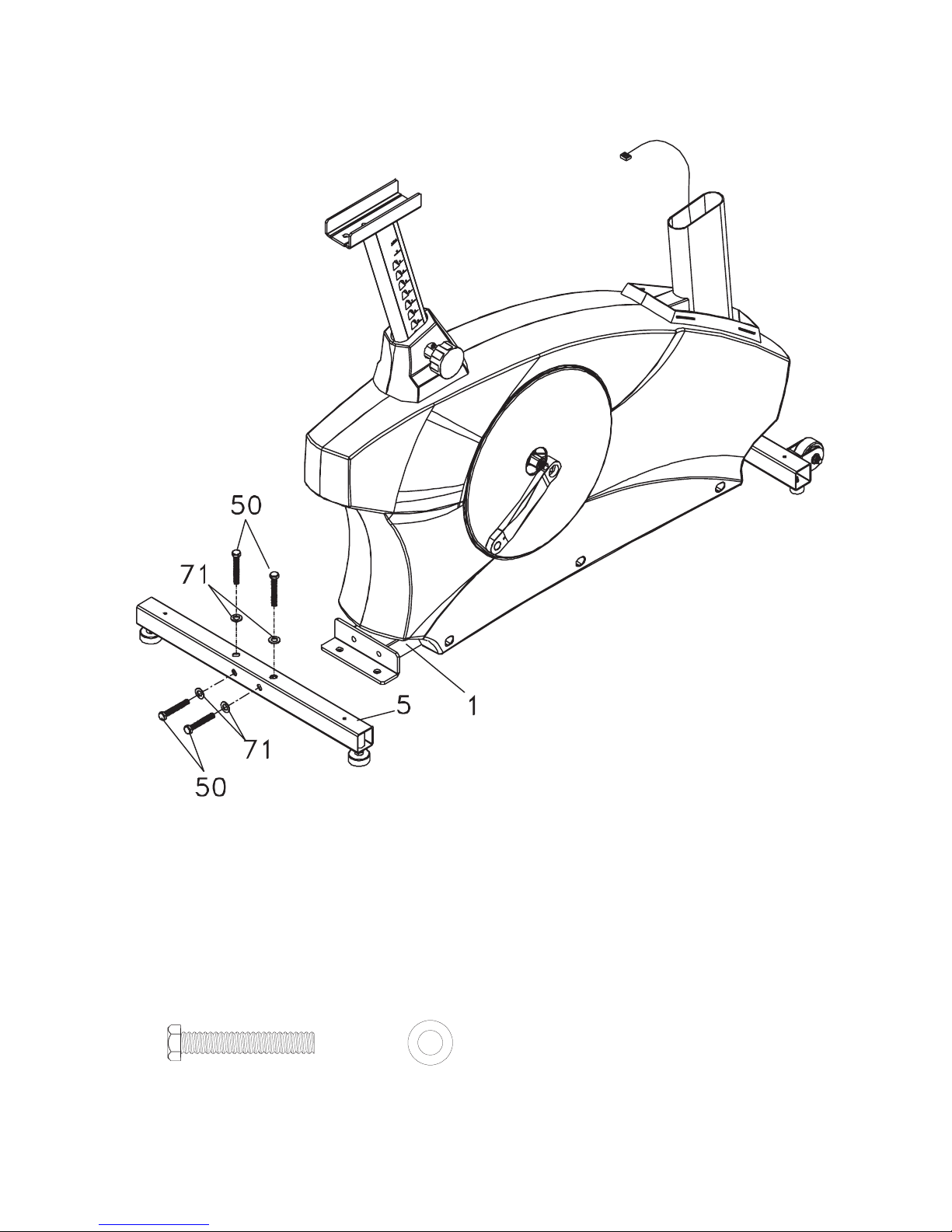

1. Install the Rear Stabilizer (5) onto the Main Frame (1) with the four bolts (50) and four washers (71).
#71. 3/8” x 25
Flat Washer
(4 pcs)
#50. 3/8” x 2-1/4”
Hex Head Bolt
(4 pcs)
HARDWARE
STEP 1: Rear Stabilizer
