SQlab 711R Bedienungsanleitung

711 R Assembly Instruction

What‘s needed?

A clean handlebar mounted on the bike with enough space

to the Innerbarends® or the brake (at least length of the

grip), a brake cleaner, a pair of rubber gloves, safety glasses

(bike goggles are sufficient), a needle and the 711 R grip.

The 711 R is the lightest ergonomic grip on the market (59g). This is

made possible by dispensing with the clamp and the inner sleeve.

The rubber material must therefore be so tight that slipping is no

longer possible and no moisture can penetrate. This also explains

why the 711 R grip is completely closed, making installation a little

more complicated than with our existing grips. With a few tips and

tricks, however, this is easily done by anyone.

Assume the riding position by placing your hand

around the handlebars and memorizing/marking the

position of the Edge of the hand.

Place the middle row of knobs of the 711 R on the

outside at the level of the marking and note the

orientation of the grip to the handlebars.

1Step: The Preparation

Check the general 711 R position, as turning the 711 R when

mounted is only possible for a few seconds. You should also

note that the left handlebar grip is on the left side of the

handlebars and the right handlebar grip is on the right side

of the handlebars. The inscription "left" and "right" can be

seen on the grip.

Now pull the grip over the handlebars as quickly as

possible with twisting movements until you feel the

edge of the handlebars on the thin outside.

2Step: The Assembly

Put on gloves and safety goggles and spray sufficient brake

cleaner into the grip and onto the handlebars. Caution!

Please follow the instructions for use of the brake cleaner

and protect your eyes in particular!

Step: The Alignment

If you have successfully mounted the first grip, repeat this

for the second grip. But now press on the outside of the 711

R handle during assembly so that no overpressure occurs.

Last, small alignments are still possible for a short time.

Tip: At the height of the middle row of knobs, you can see

across, very faintly, the shape dividing line of the grip. If

this is straight and the middle row of knobs is in the right

place, the grip is optimally positioned!

4Step: If Required

Sometimes an overpressure can form on the outside of the

grip, causing the grip to bulge outwards. This occurs

because the air cannot escape through the closed grip.

You must get rid of this pressure!

To do this, take a thin needle and prick the middle of the

outside of the grip, thus allowing the air to escape. The

rubber material then closes the hole by itself and

prevents moisture from penetrating. Please make sure

that the hole is not too large when you prick the grip, this

is the only way to guarantee a good hold.

5Step

Wait about 10 minutes until the brake cleaner has

evaporated.

Dieses Handbuch passt für folgende Modelle

Andere SQlab Fahrradzubehör Handbücher

SQlab

SQlab 702 Bedienungsanleitung

SQlab

SQlab 70X Bedienungsanleitung

SQlab

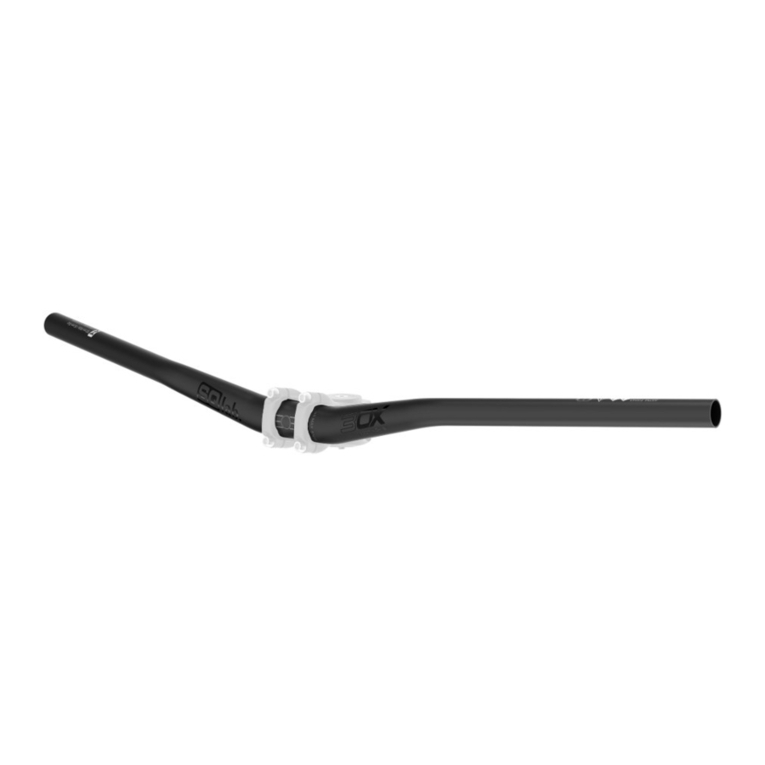

SQlab 3OX Bedienungsanleitung
